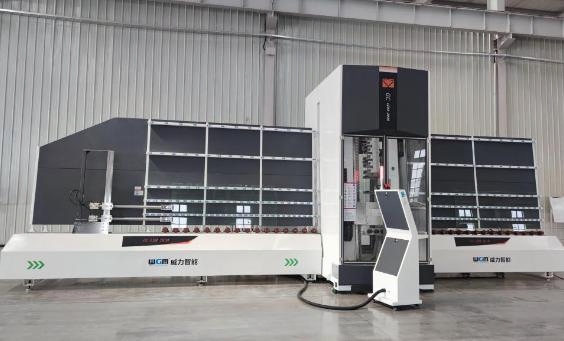

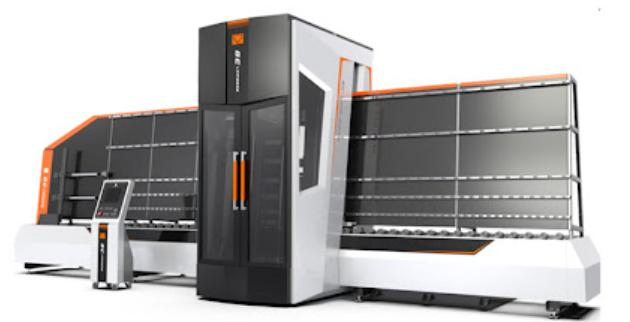

High-Performance CNC Vertical Drilling and Milling System

1 / 5

High-Performance CNC Vertical Drilling and Milling System

Customization:	Available
Certification:	CE
Condition:	New

Send Inquiry

Product Description

Overview & Basic Info

Control System	CNC, PLC	Warranty	12 Months
Max. Glass Size	2500*4200mm	Dimension	1270042004200mm
Min. Glass Size	500*500mm	Glass Thickness	5-25mm
Speed of Spindle	0-12000rpm	Spindle Power	7.5kw*2
Total Power	22kw	Air Compression	0.7MPa
Voltage	3*380V/50Hz or Customized	Weight	7500kg
Structure	Vertical	Machine Type	CNC Vertical Drilling and Milling

Professional Profile

As a leading provider of high-quality flat glass processing machinery, we focus on delivering innovative and reliable equipment for fabricating, handling, and processing flat glass. Each system is specialized and characterized by innovative features, long-lasting durability, and high reliability, ensuring optimal performance for glass processing industries worldwide.

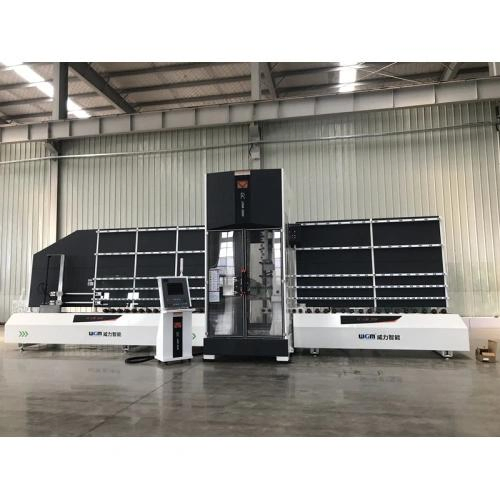

CNC Vertical Drilling and Milling System Overview

Product Description - GC-LDM-III2542

Advanced Vertical Working Center: The GC-LDM-II is a high-tech vertical working center designed for the deep glass processing industry. It completes complex work in a short time with high precision, eliminating the accuracy issues common in manual drawing and cutting.

Precision Control: Utilizing advanced numerical control systems and drives, the machine realizes dynamic management of each axis and precise speed control. It is suitable for structural glass, including frameless doors and glass curtain walls.

Core Functions:

High-speed Milling by single router
Precision Grinding
Efficient Arrising
Quality Polishing (Optional)

Our Advantages

Superior Rigidity: Built for fast response and stability during high-speed operations.
High-Precision Components: Equipped with precision ball screws and guide rails for high-accuracy production.
Low Wear and Tear: Designed to maintain high precision even after years of intensive use.
Automated Lubrication: Moving parts are supported by a centralized oil supply system.
Robust Protection: Main protective parts are made of 201 stainless steel with dual observation doors for safe monitoring.

Technical Parameters & Configuration

Max. Glass Size	20003000 / 25004200 / 3000*6000mm	Glass Thickness	5-25mm
Spindle Speed	0-12000rpm	Number of Axis	5 Axis

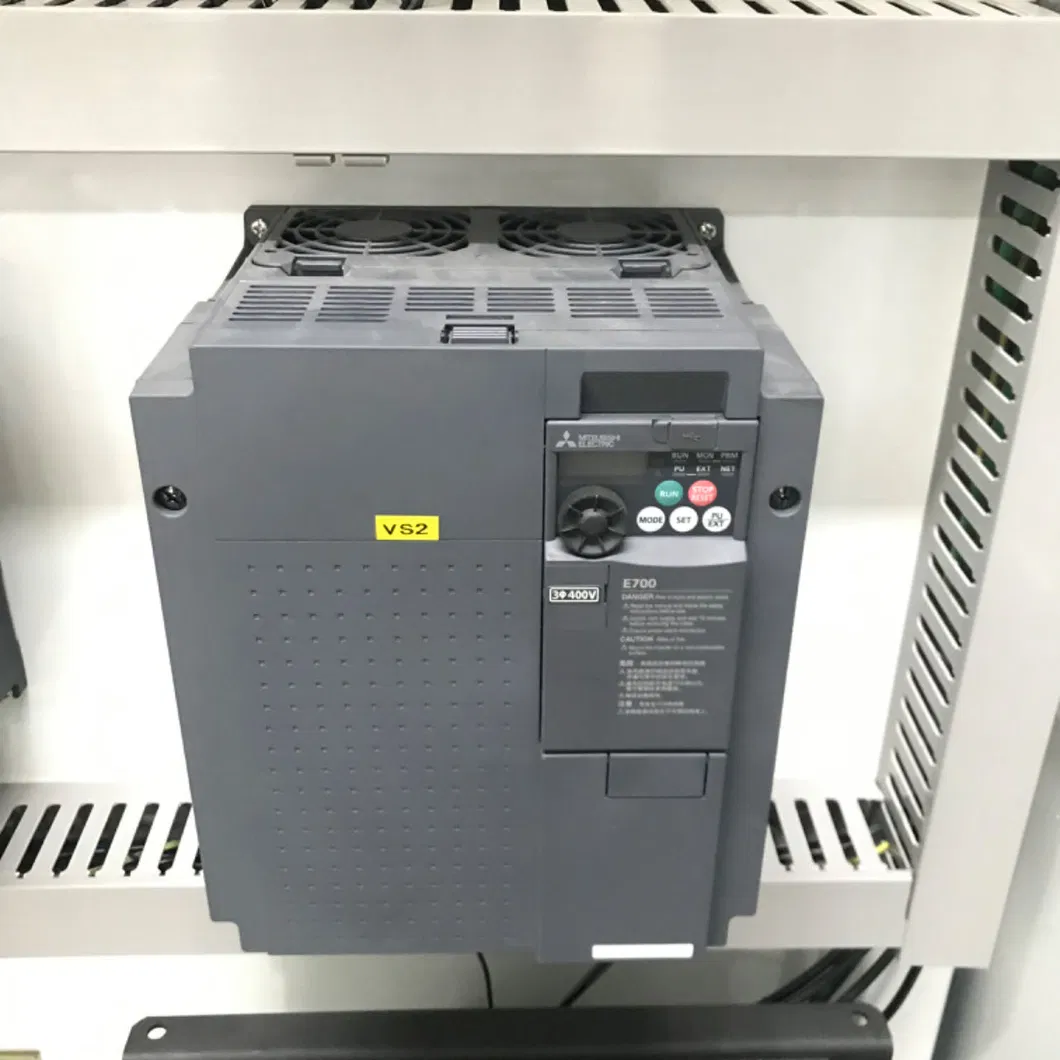

Control System	High-End Japanese Brand	Servo Motor	High-Precision Servo System
Spindle Power	7.5KW * 2	Tool Positions	62 / 82 (Optional)
Tool Handle	BT30 (Glass specific)	Pneumatic System	Leading Brand Components

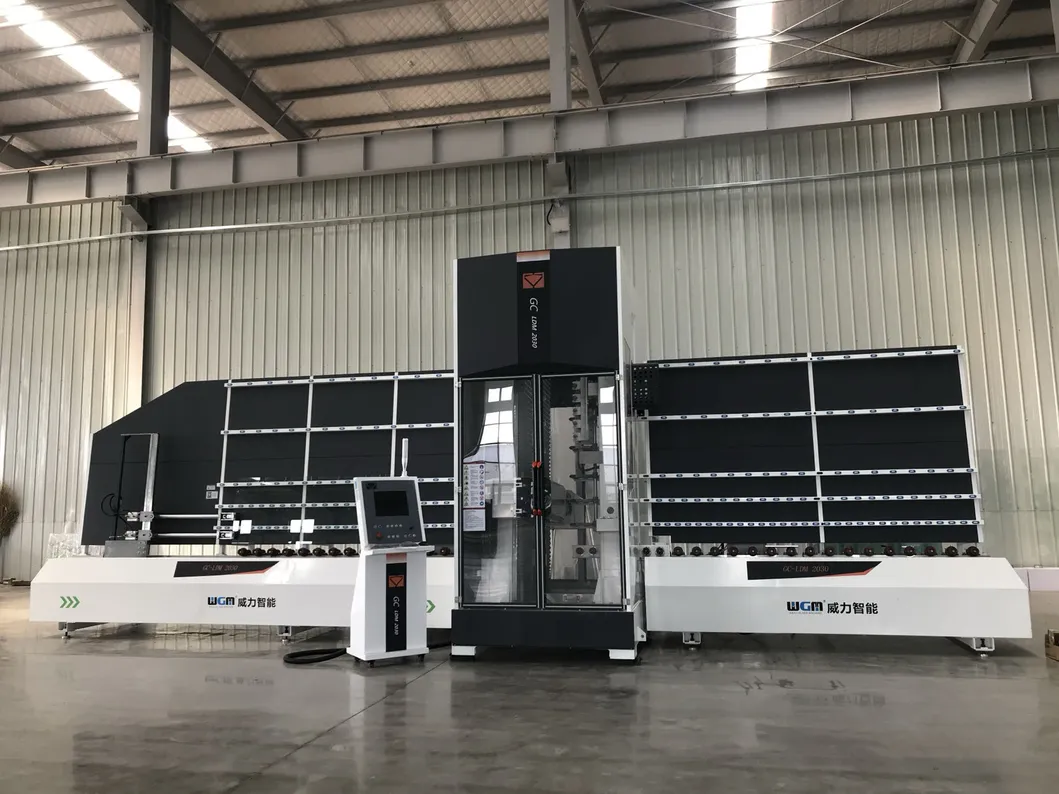

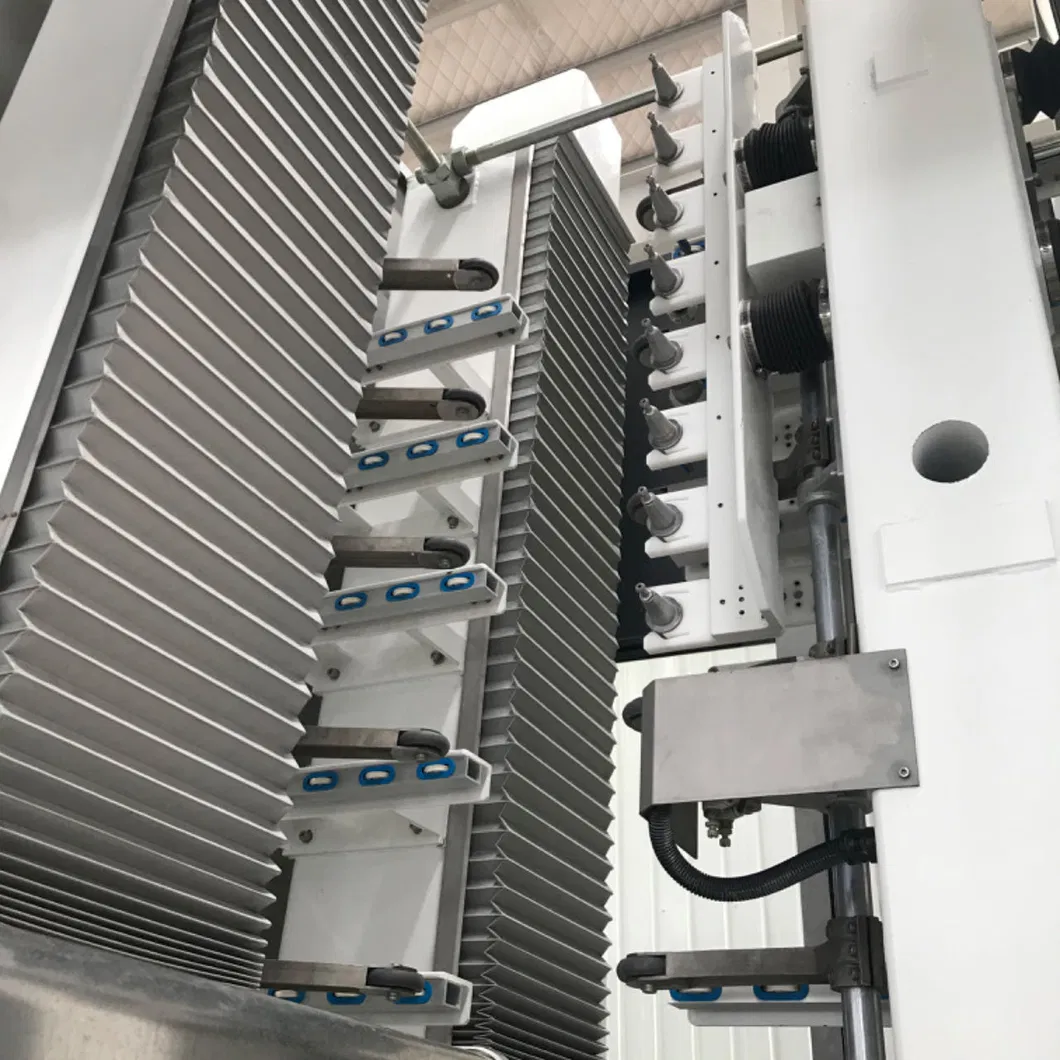

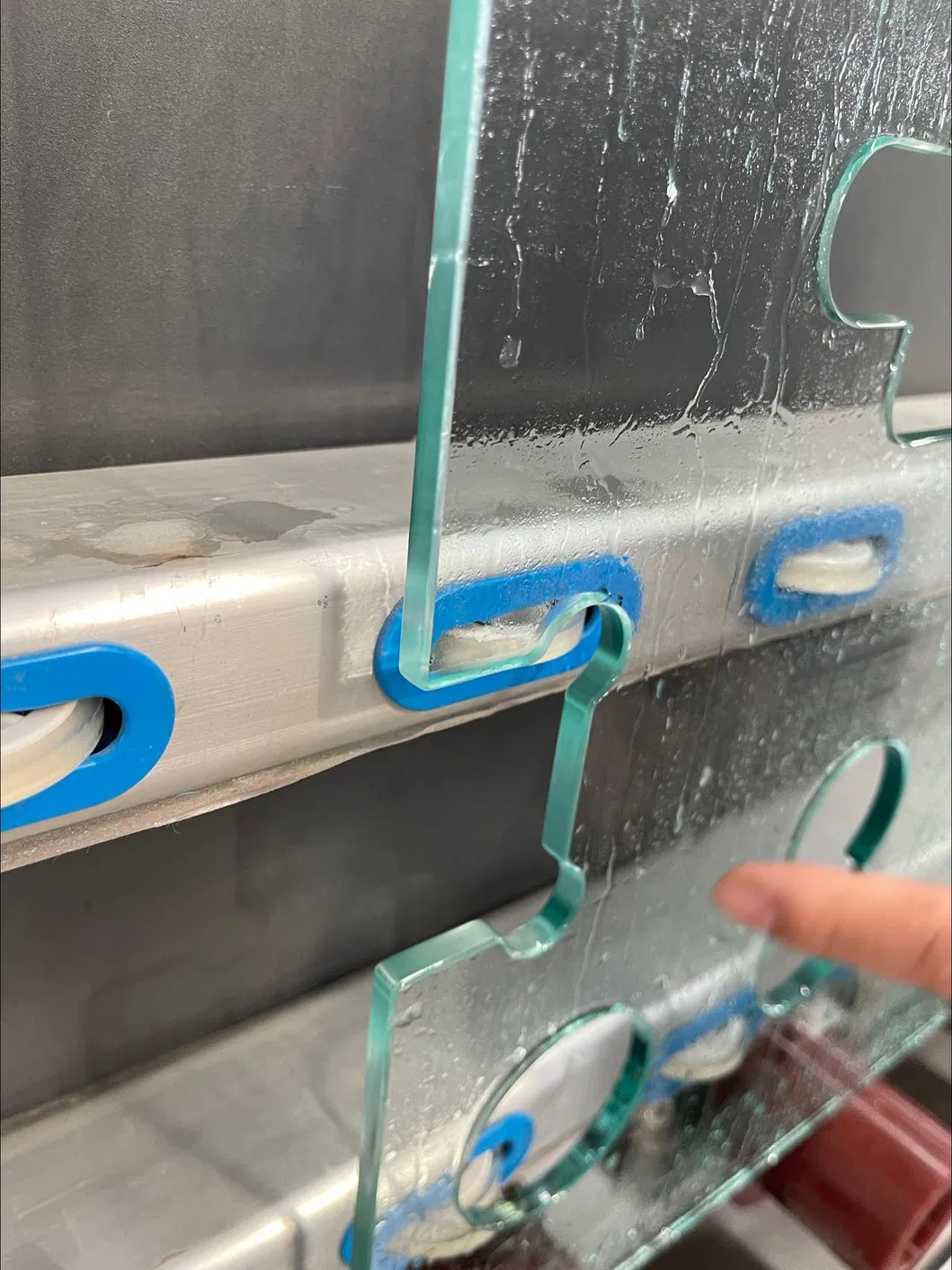

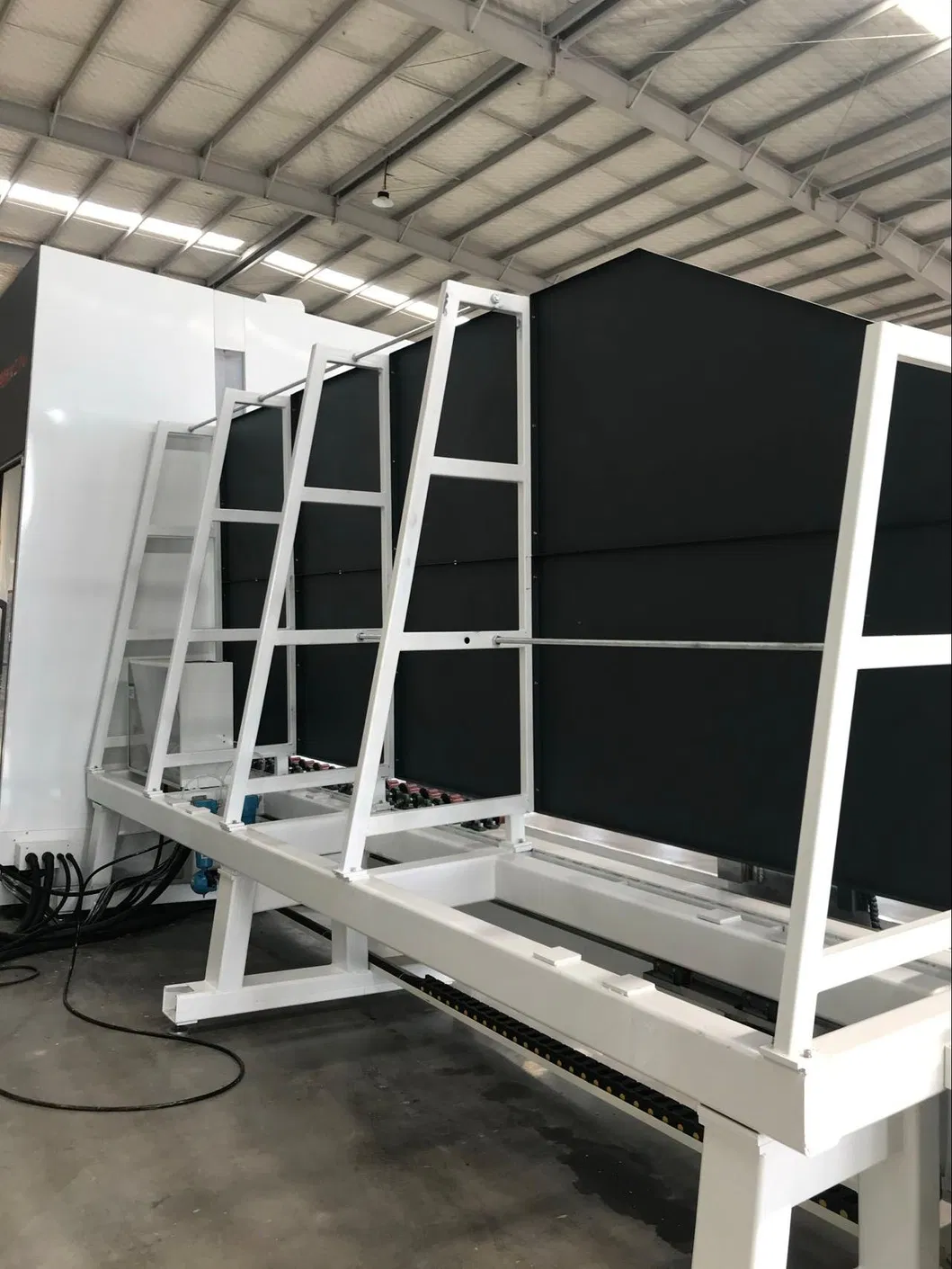

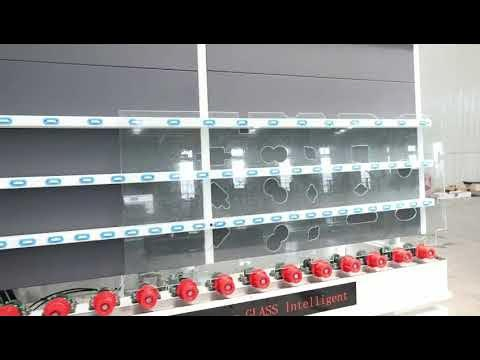

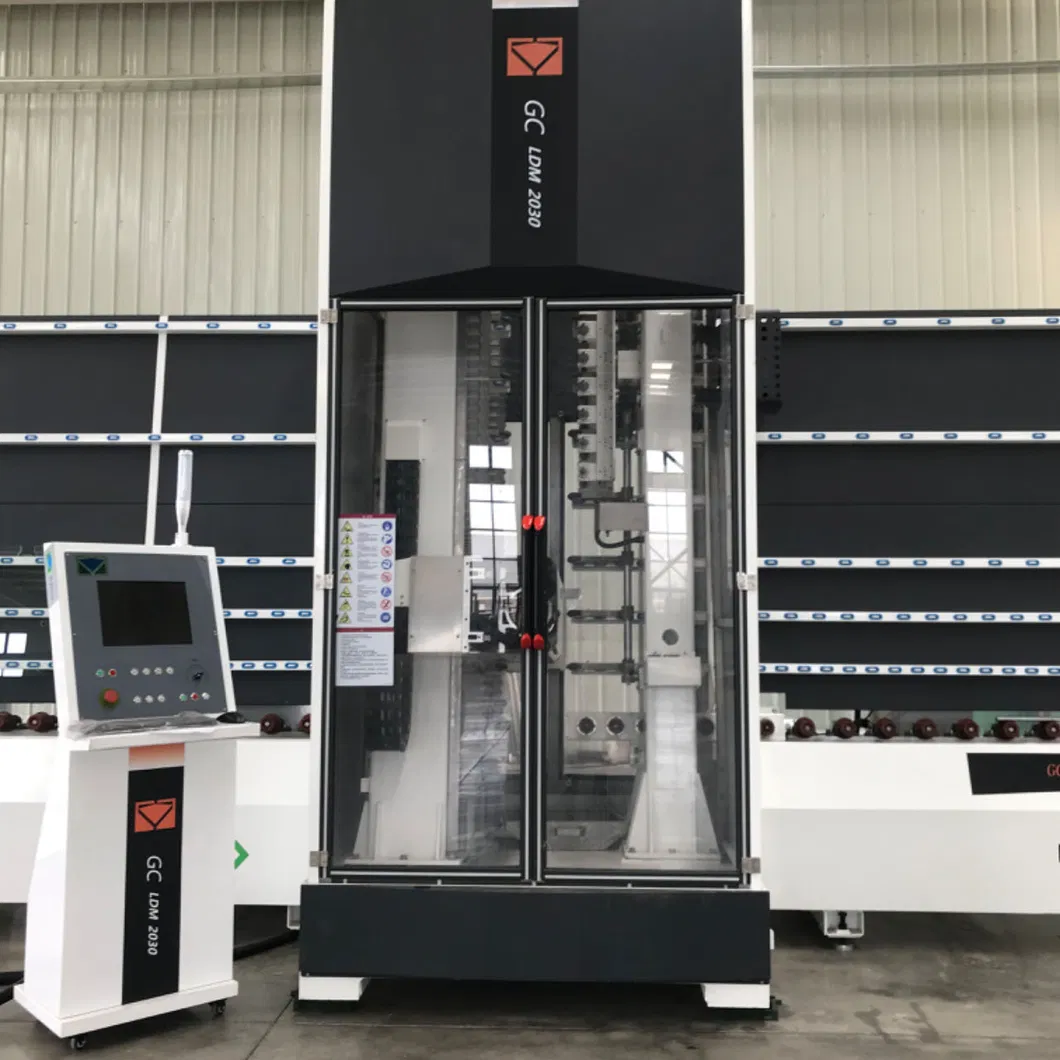

Detailed Photos

Frequently Asked Questions

What are the primary functions of this machine?

The CNC Vertical Drilling and Milling machine is designed for milling, grinding, arrising, and optional polishing of large flat glass sheets.

What is the range of glass thickness it can process?

The machine can efficiently process glass with a thickness ranging from 5mm up to 25mm.

Is the machine suitable for architectural glass?

Yes, it is ideal for processing structural glass components such as frameless doors and glass curtain walls.

How does the machine ensure long-term accuracy?

It uses high-precision ball screws and linear guides, paired with a centralized lubrication system and a robust welded steel main frame to minimize wear.

Does the machine support automatic tool changes?

Yes, the machine features an optional tool magazine with 6*2 or 8*2 tool positions for automated processing.

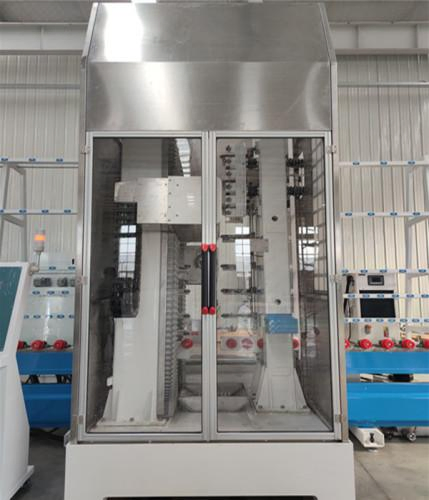

How is the workspace protected?

The main frame is protective-covered with stainless steel parts, and it includes observation doors to allow operators to monitor the process safely.
