| Application | Metal | Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |
|---|---|---|---|
| Movement Method | Contour Control | Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC | Performance Classification | High-End CNC Machine Tools |
| Certification | CE, ISO 9001 | Condition | New |
| Type | CNC Controller | Material | Metal |
| Displayer | 10.4-Inch Screen | PLC | Online Editing |
| Interface | RS232, USB & Network | Connection | Full Bus |
| Origin | China | Production Capacity | 100,000 sets/Year |
This state-of-the-art product is designed to dominate the CNC Turning machine and Turning center market. Built on the advanced industry spot BUS, it integrates a BUS servo drive unit with a multi-core, 23-bit absolute encoder servo motor. This guarantees a 0.1μm level position accuracy, seamless servo parameter on-line configuration, and non-block mechanical zero return.

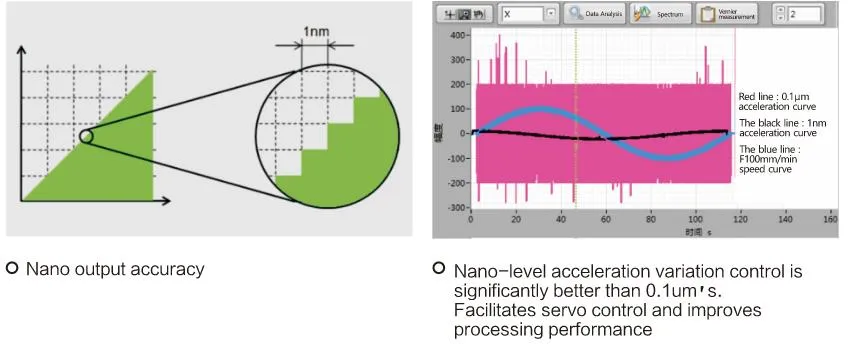

Leveraging high-resolution absolute encoders, the system delivers nano-level interpolation. This ensures output accuracy aligns perfectly with servo motor feedback, culminating in unparalleled high-precision machining.

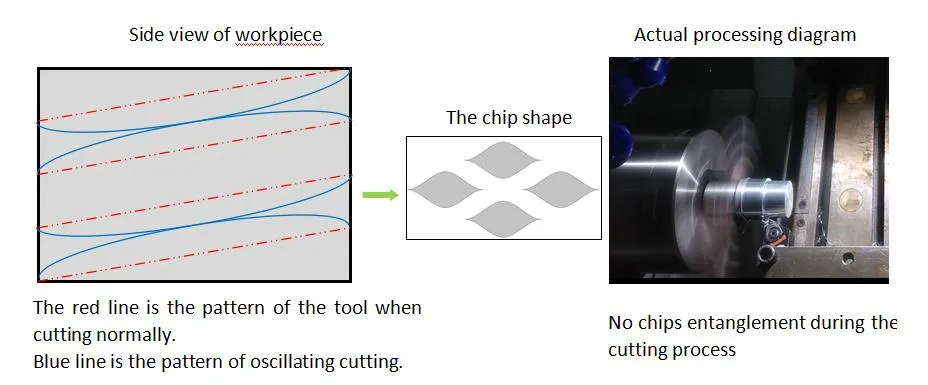

Introduces specific frequency interference to the feed axis, causing the tool to oscillate. This breaks continuous chips into manageable pieces, reducing the risk of tool breakage or workpiece misalignment.

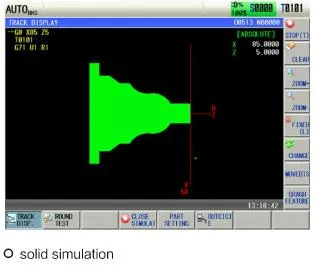

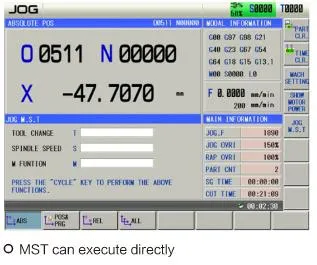

A 3D model of the workpiece simulates real machining scenarios, making the tool path more intuitive and simplifying the identification of programming errors.

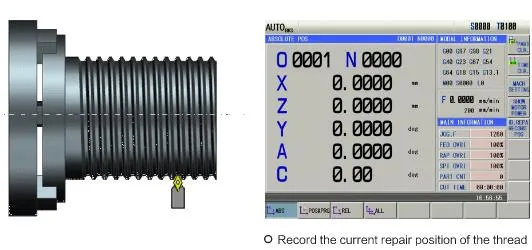

Enables the machine to restore damaged threads on large oil pipelines or screws, regardless of whether it is fitted with a servo or analog spindle.
| Item | Specification |
|---|---|
| Controlled Axis | Max 5 axes (linkage 5 axes linear, 2 axes circular) |
| Coordinate System | G50, G54-G59 Workpiece coordinate systems, Local coordinate system |
| Feed Function | Rapid traverse: 0-100,000 mm/min; Cutting feed: 0-15,000 mm/min |
| Thread Cutting | Equal pitch, taper, end, arc, and variable pitch threads; 1-99 threads |
| Spindle Function | 0-9,999 rpm; 2 route 0V-10V analog voltage output; Rigid tapping |
| Tool Management | 32 groups of length/wearing compensation; Tool life management |
| PLC Function | Two levels; 5,000 steps; 48 inputs / 38 outputs (extendable) |
| HMI | 8.4" or 10.4" LCD true color; Multi-language support (English/Chinese) |
| Communication | USB flash disk, RS232, LAN (Remote file transfer) |
