CNC Control System for Milling Machine 3 4 5 6 Axis with AC Servo Motor

Customization: Available
After-sales Service: 3 Years
Warranty: 3 Years

Product Description

Basic Information
Model NO.400MA3-H Controlling ModeCNC
Automatic GradeAutomatic PrecisionHigh Precision
CertificationCE Selling UnitsSingle Item
Program Capacity8GB Operating SystemRt Linux
Display10.4 Inch LCD RAM2GB
Product Description

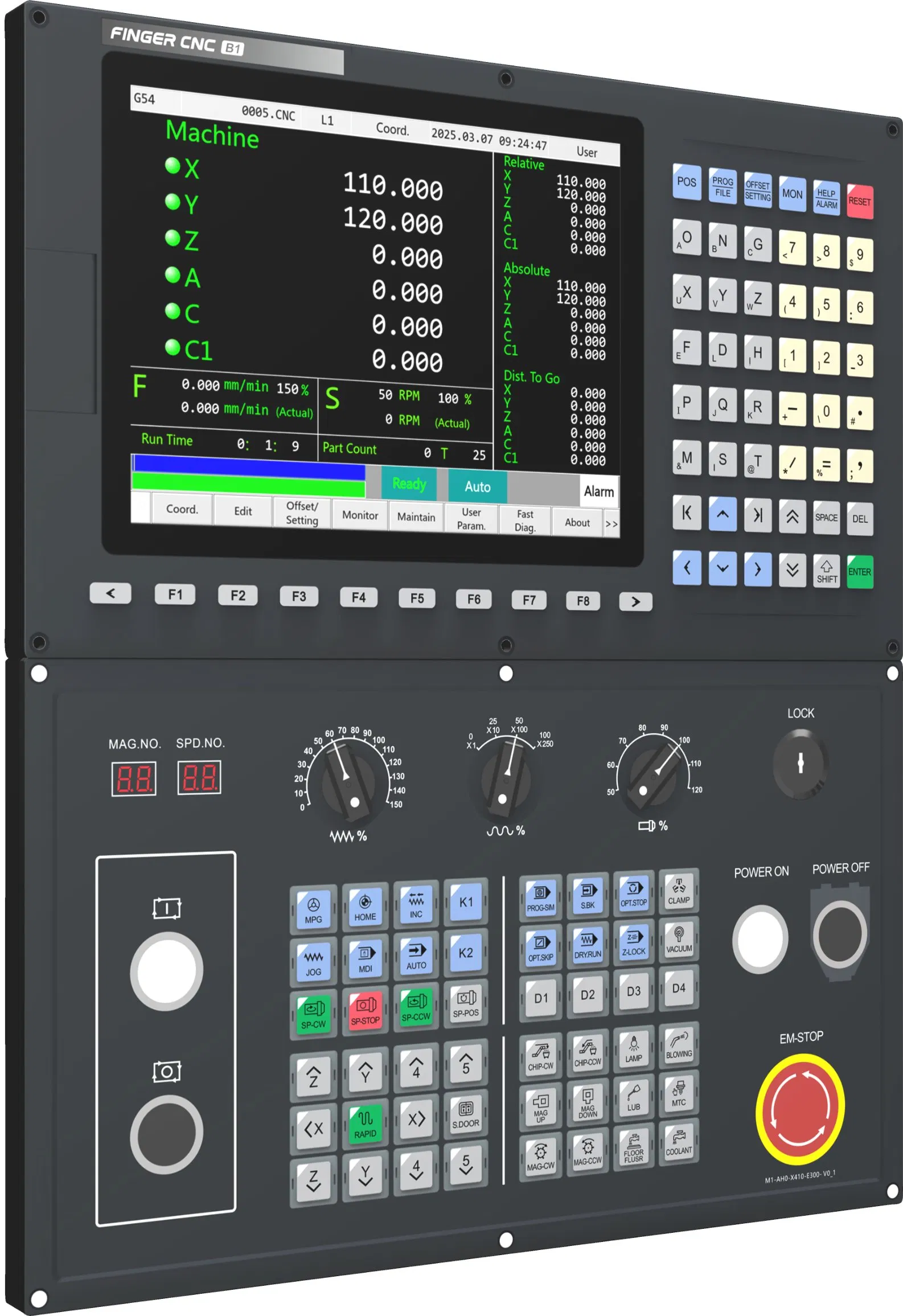

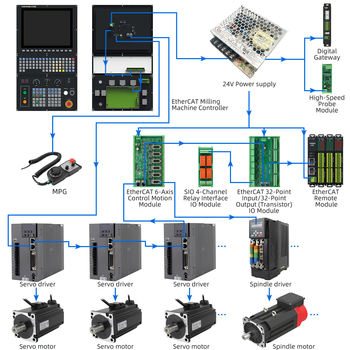

CNC Control System Overview
CNC Control System Detail

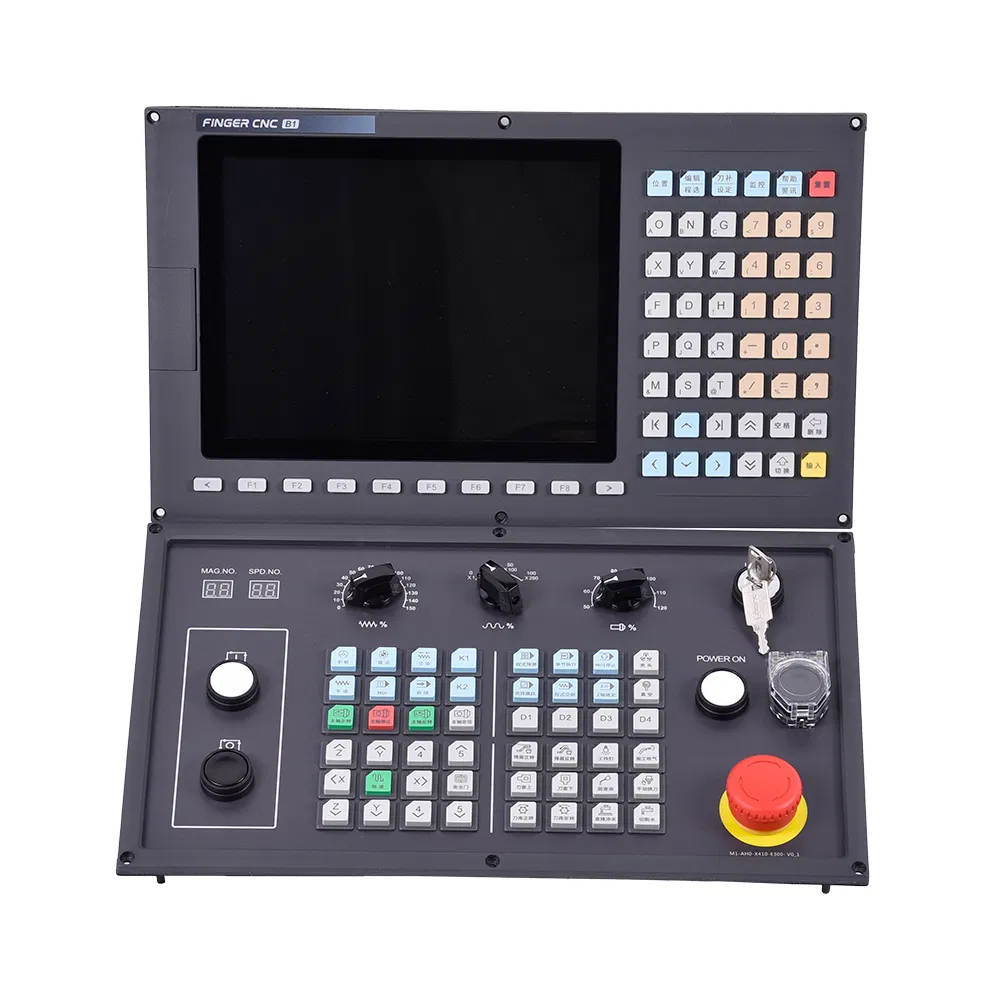

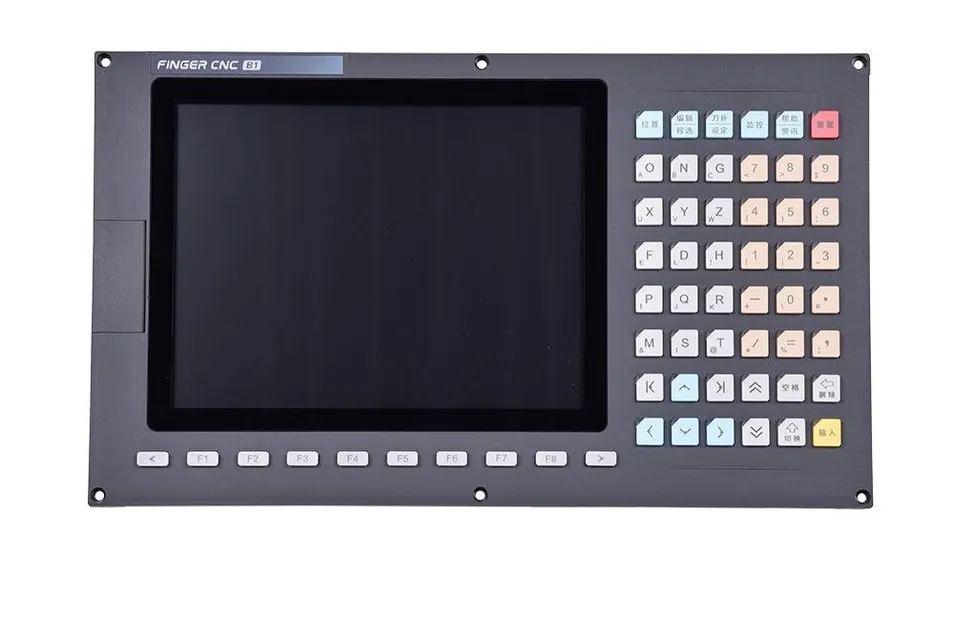

CNC Milling Controller View 1

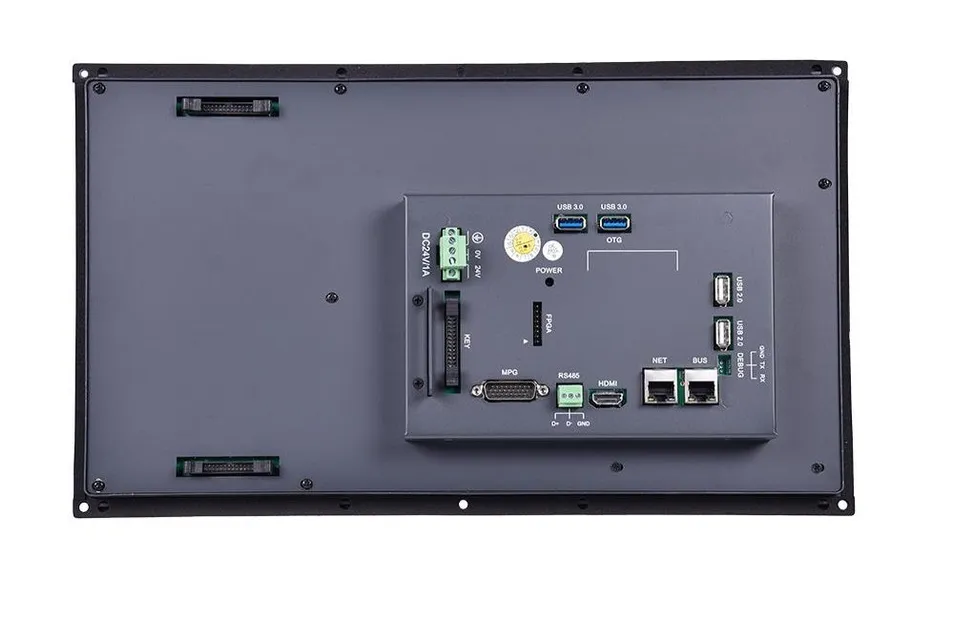

CNC Milling Controller View 2

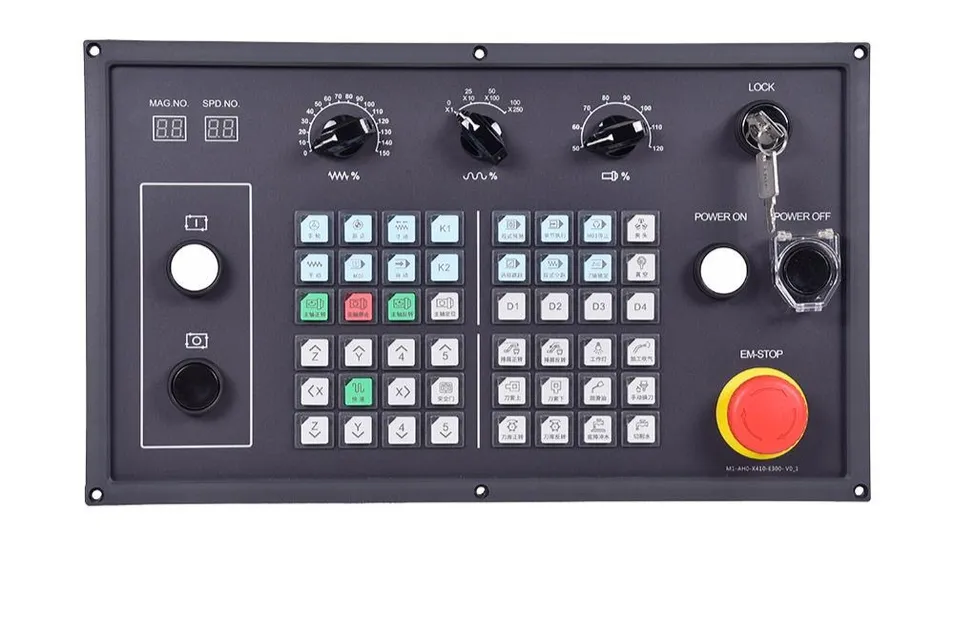

CNC Controller Application 1

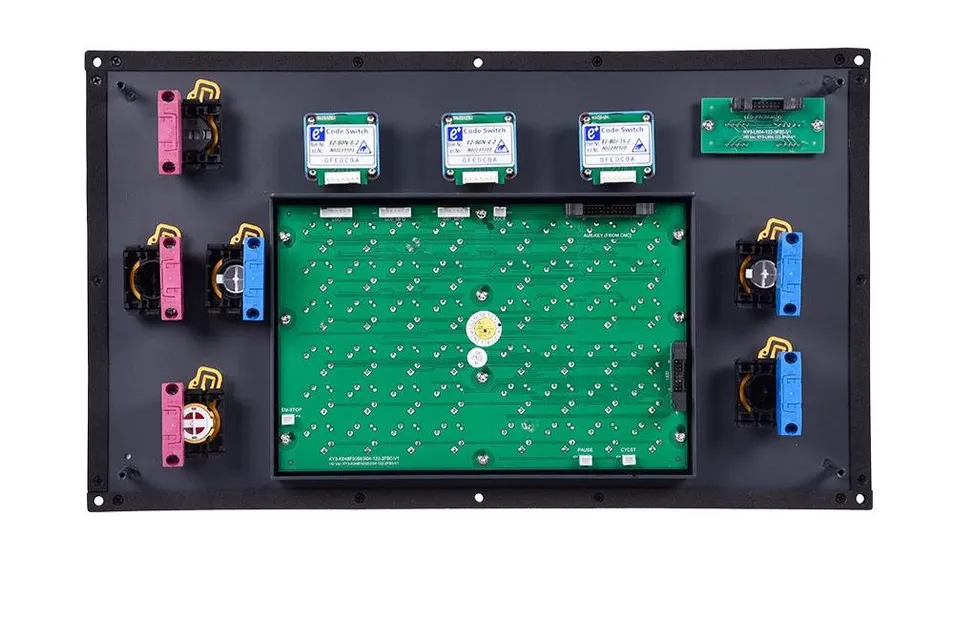

CNC Controller Application 2
Feature And Function Introduction

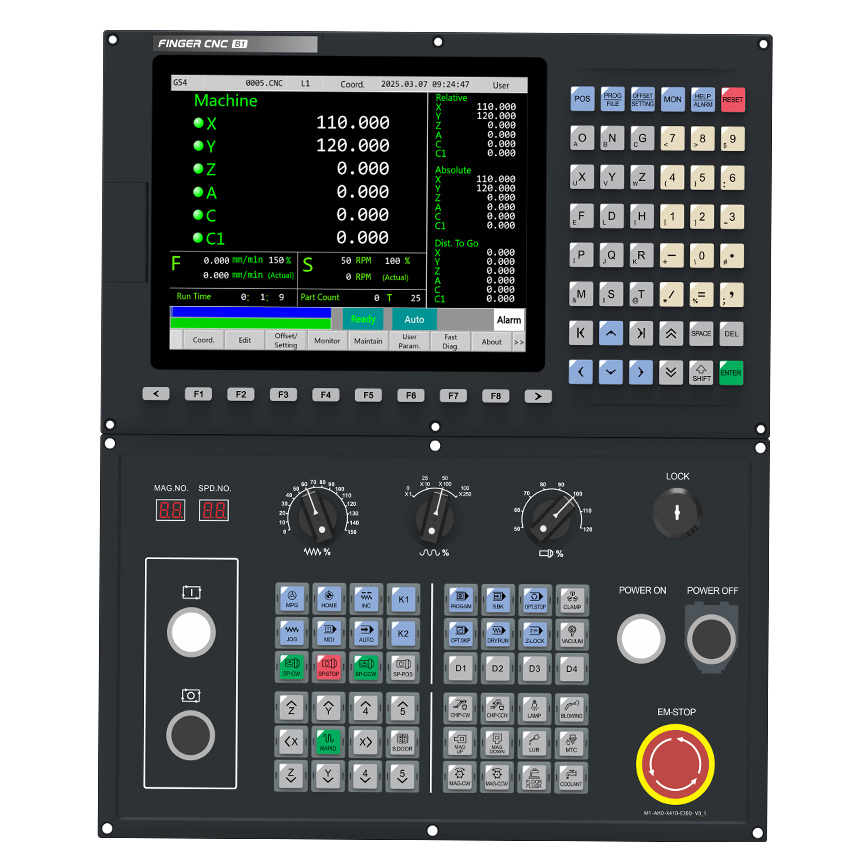

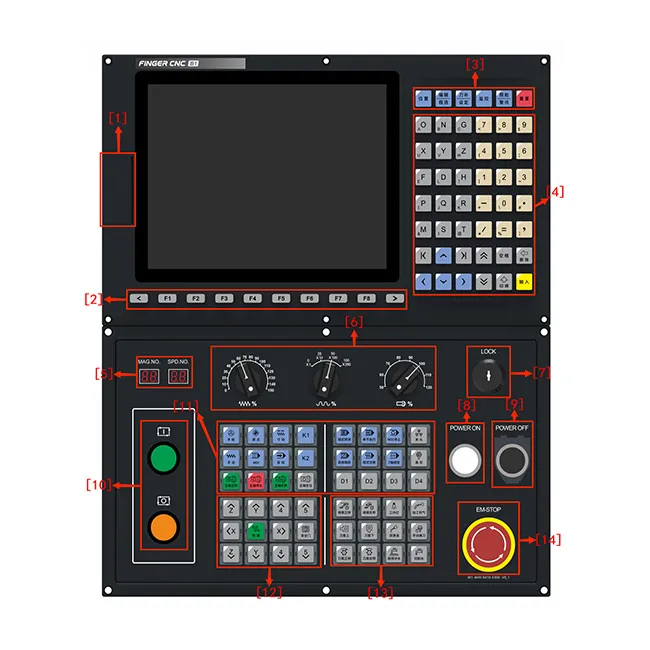

Panel Features
(1) USB communication port
(2) F1-F8 function selection buttons
(3) Quick menu key
(4) Normal editing and operation area
(5) Display Tool Number
(6) Speed ratio selection
(7) Program lock
(8) Power on switch
(9) Power off switch
(10) Cycle start and stop buttons

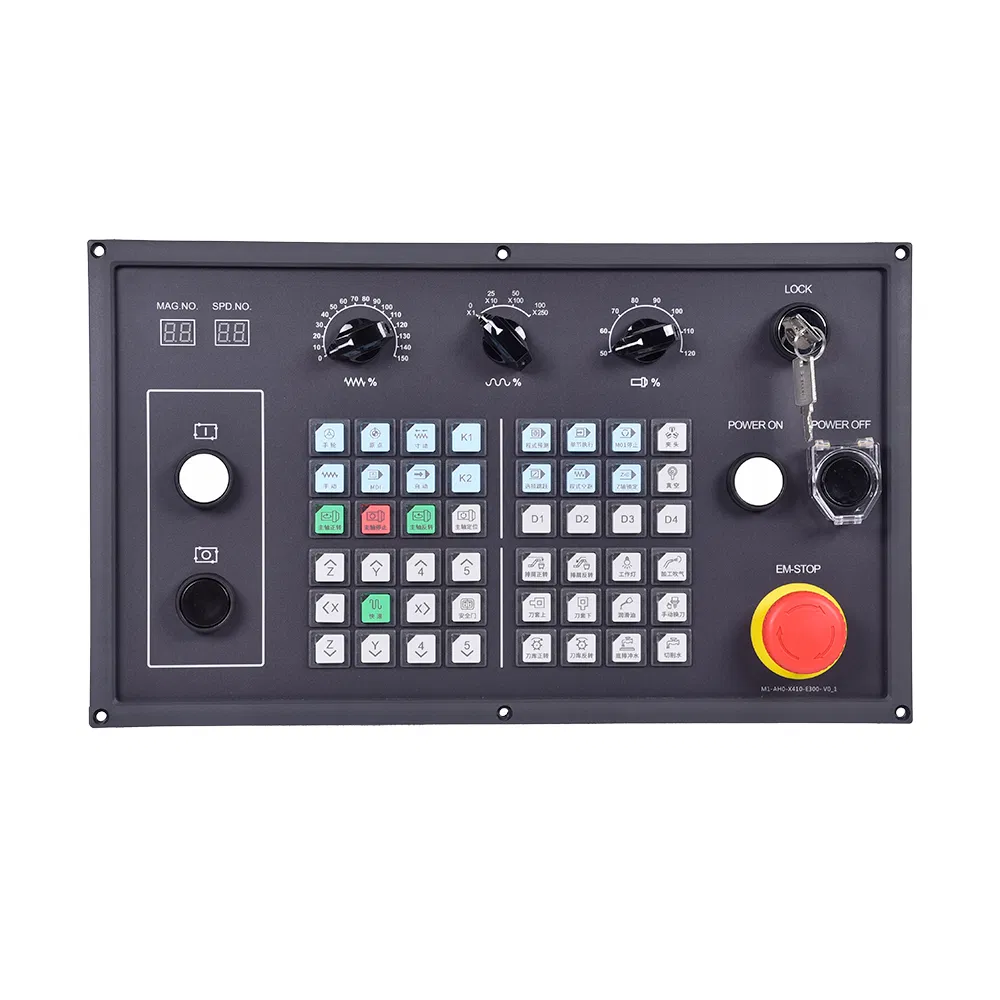

(11) Auxiliary Panel
(12) JOG feedrate switch
(13) Emergency-stop switch
Back Interface Introduction
(1) DC 24V power supply port
(2) System keypad port
(3) Firmware updating port
(4) USB 3.0 / 2.0 ports
(5) Debug and MPG ports
(6) RS485 communication
(7) HDMI for external display
(8) LAN supports OPC-UA, Modbus TCP, FTP
(9) Field Bus: EtherCAT/MⅢ

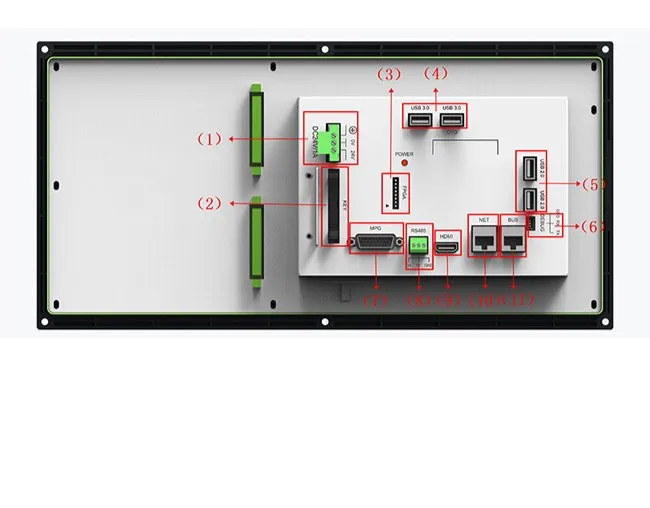

Back Interface Map
System Specifications
Installation MethodHorizontal
Standard Axis NumberStandard 6 (Maximum 6)
Maximum Linked Axis4 (XYZA)
Applicable ModelsXYZ+Spindle+Tool magazine / XYZ+A+Spindle+Tool magazine
Control Accuracy0.00001mm
Tool Compensation160 groups
Transmission InterfaceUSB / RS232 / RS485 / LAN / WIFI
Standard I/OI16 / O16 (Max Expansion to I32 / O32)
Special Features & Layout

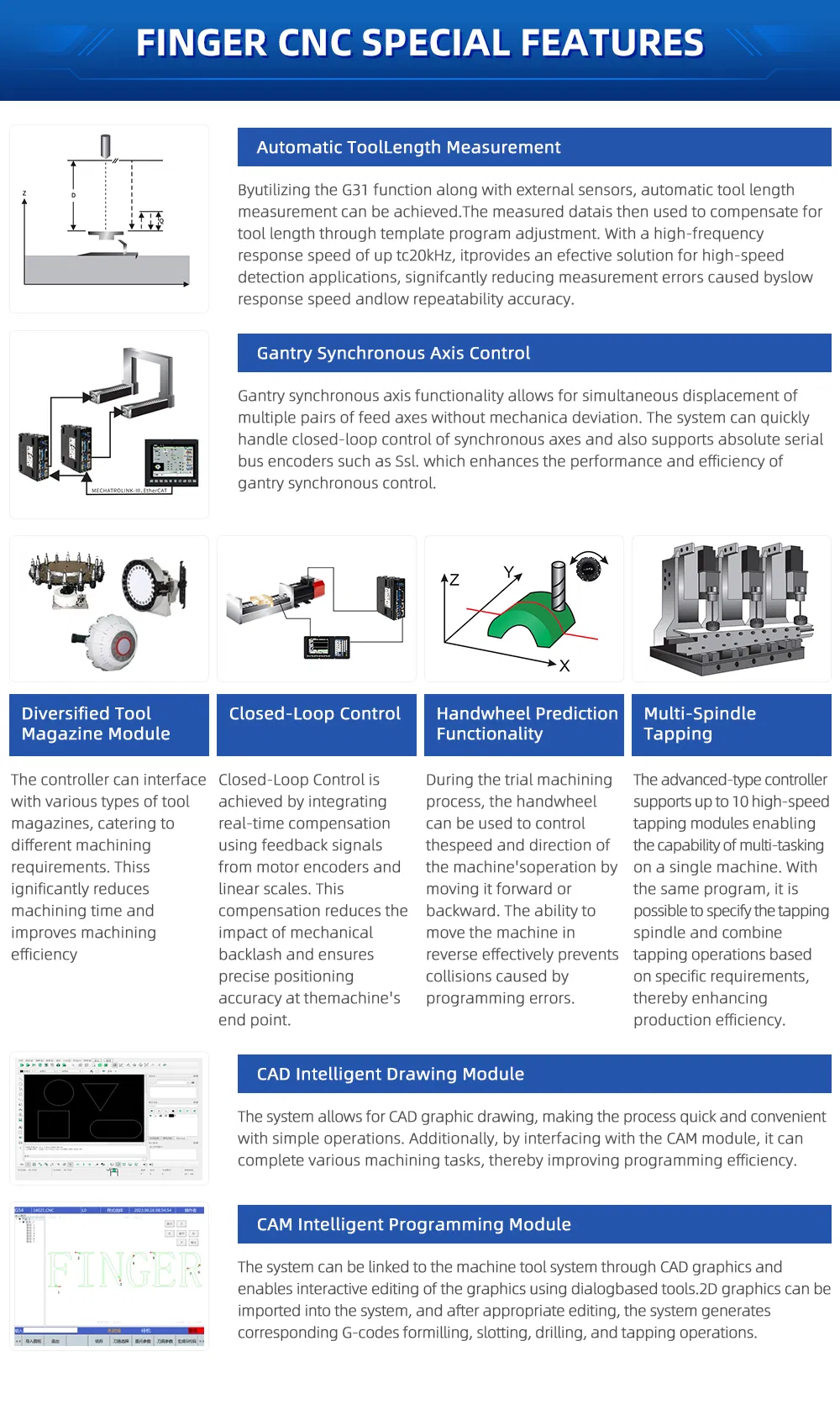

Feature 1

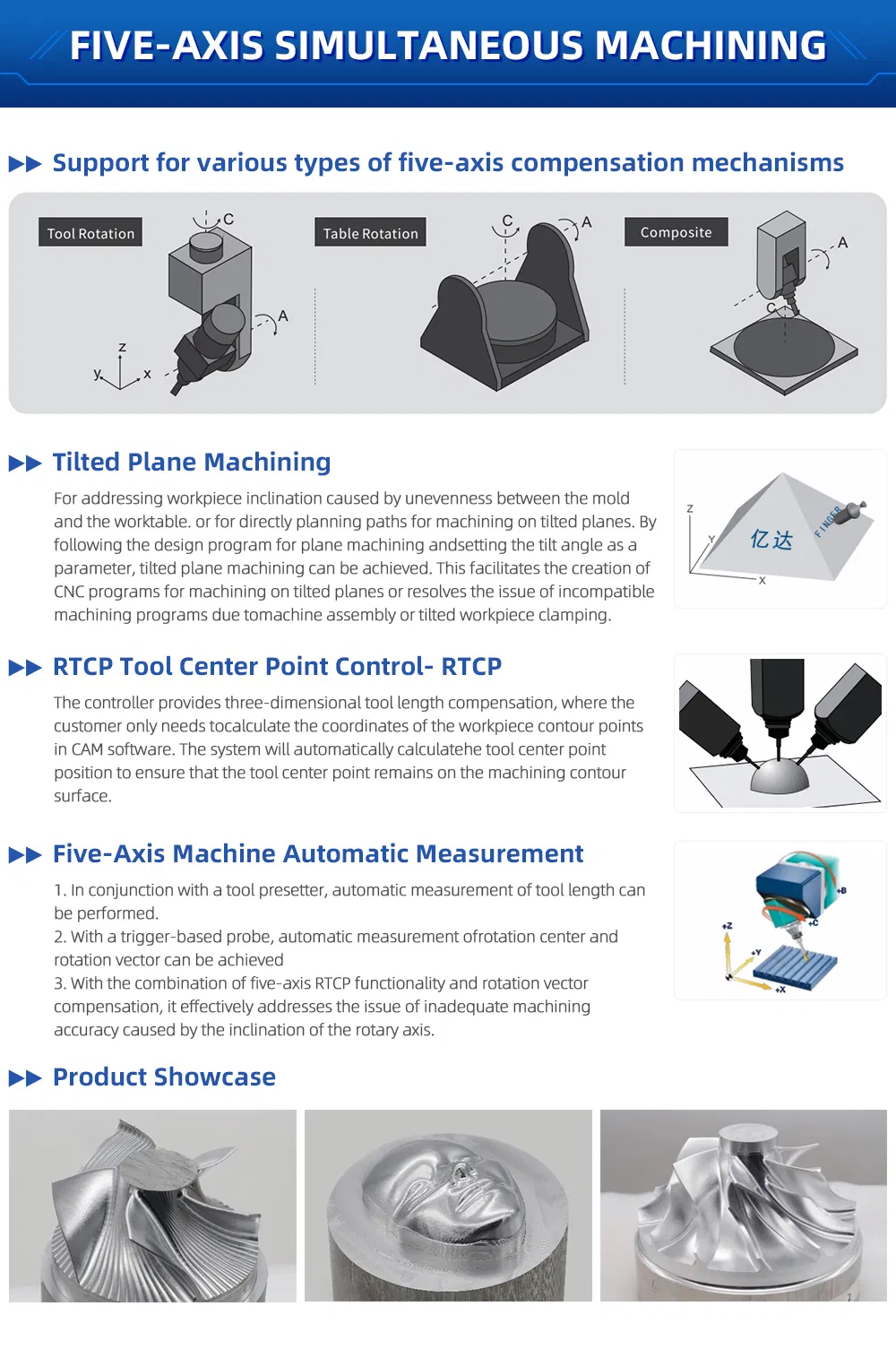

Feature 2

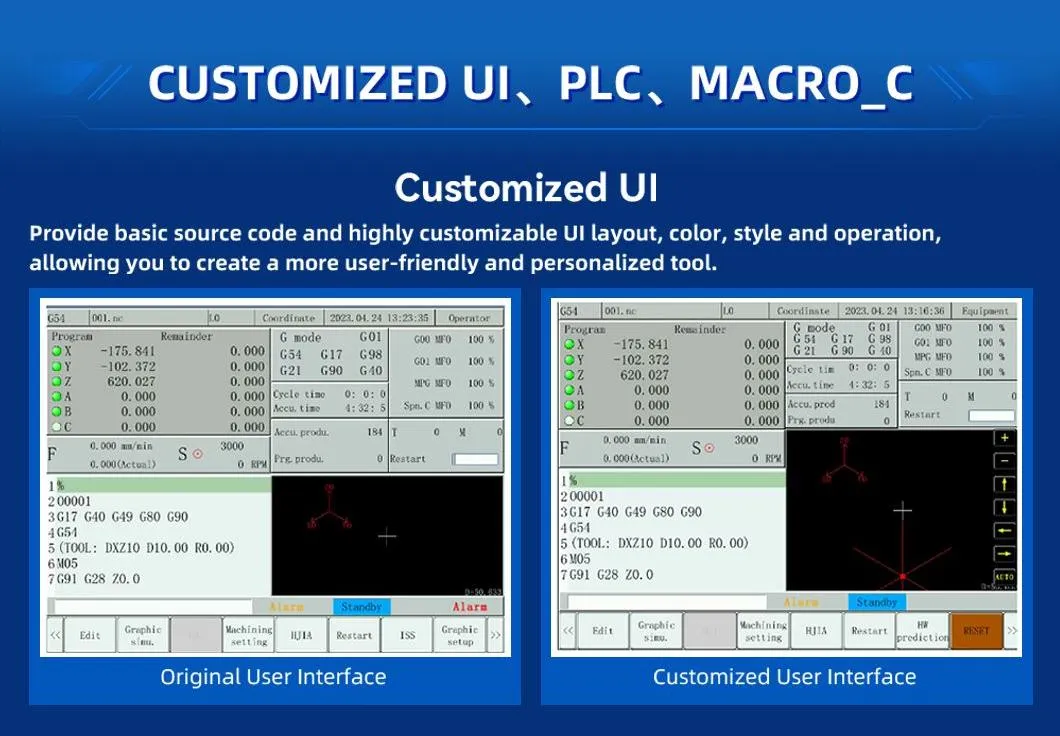

Feature 3

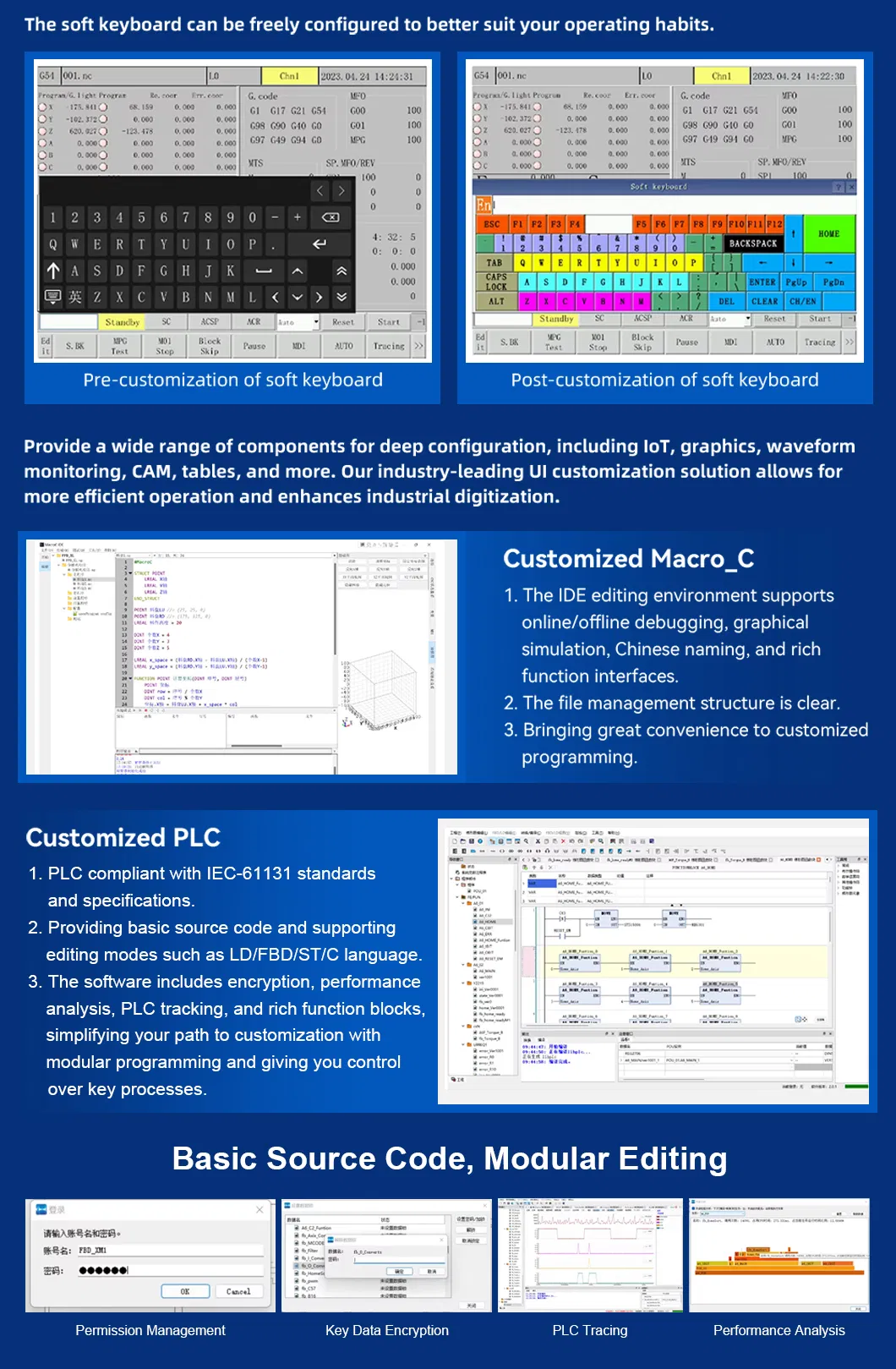

Feature 4
Company Profile

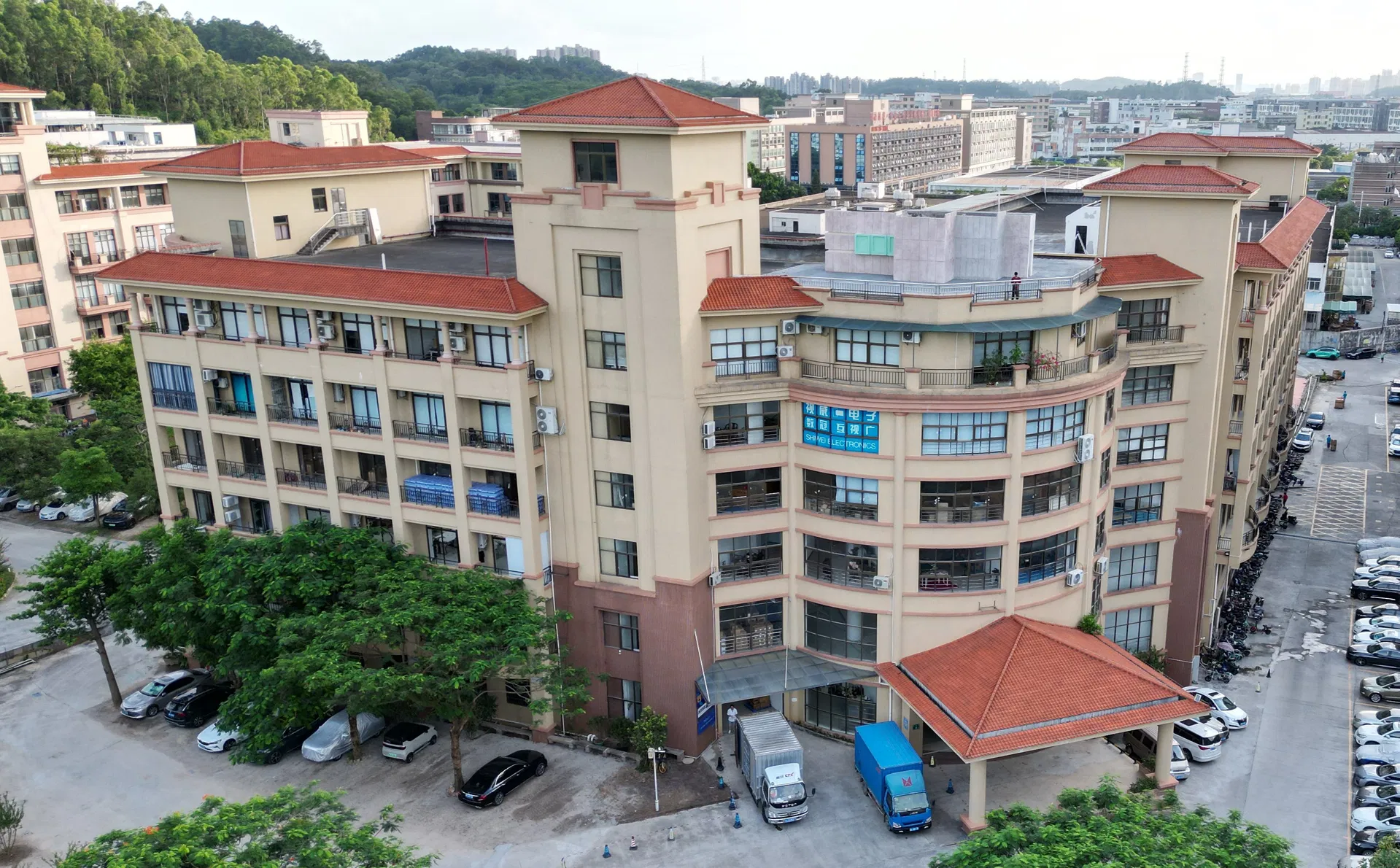

Company Facility

Our company is committed to creating high-performance open CNC systems, making automation development simpler. As one of China's leading high-performance controller manufacturers, we focus on customer needs and continually push the boundaries of technological innovation. We have built a comprehensive automation ecosystem with key technologies, offering differentiated solutions and convenient services to clients. We strive to help customers gain value from products, accelerate growth, and generate substantial returns.

We are fundamentally driven by technology, originating from CNC but not confined to it. Firmly rooted in CNC technology, we actively explore motion controllers, edge computing controllers, Open CNC development platforms, CAD/CAM technologies, machine vision technologies, and industrial Internet of Things (IoT) technologies. Our industry-leading Open CNC development platform makes the customized development of machine equipment electrical controls more cost-effective and simpler.

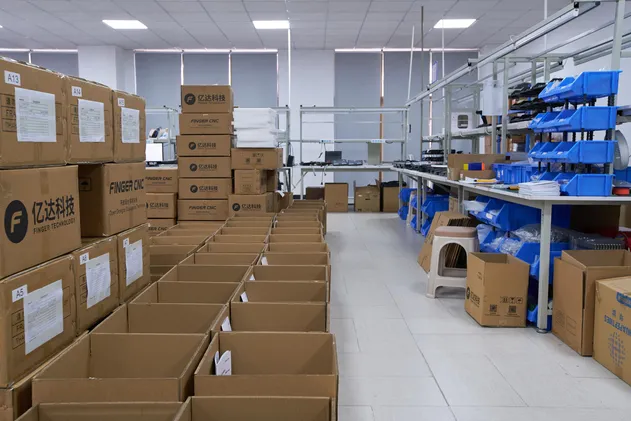

Production 1

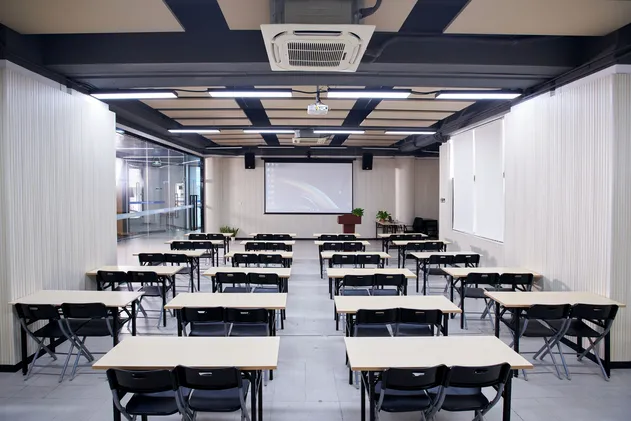

Production 2

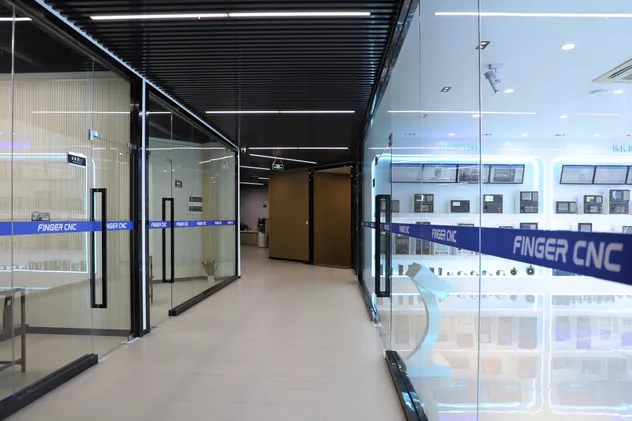

Production 3
Frequently Asked Questions
Why should you buy from us instead of other suppliers?
We provide high performance and complete development platforms and tools, including PLC, HMI, MACRO, CAD/CAM, etc. We are advocates of open CNC technology and provide customers with a cost-effective and convenient way to develop customized automation technologies, alongside reliable EtherCAT devices.
What are your main product applications?
We have accumulated rich experience in high-end turning and milling centers, grinding machines, spring machines, tooling machines, woodworking machines, wire winding machines, spinning machines, and 3C electronics.
What is the warranty policy for the parts?
Our professional engineers use perfected testing equipment to ensure 100% functionality before dispatch. We provide a lifetime software upgrade service via USB.
What should I do if the machine is not working properly?
Support is available 24 hours a day to check problems with engineers and provide solutions. If parts fail under normal use during the warranty period, new parts will be sent via air for free. Operation manuals and CDs are also provided for easy operation.
How long is the typical delivery time?
Generally, it is 14-30 days if the goods are in stock. For non-stock items or customized manufacturing, it typically takes 7-14 days depending on the quantity and requirements.
Can the system software be updated?
Yes, the system can be easily upgraded via a USB port. We offer lifetime software upgrade services to ensure your equipment stays current with the latest features.
