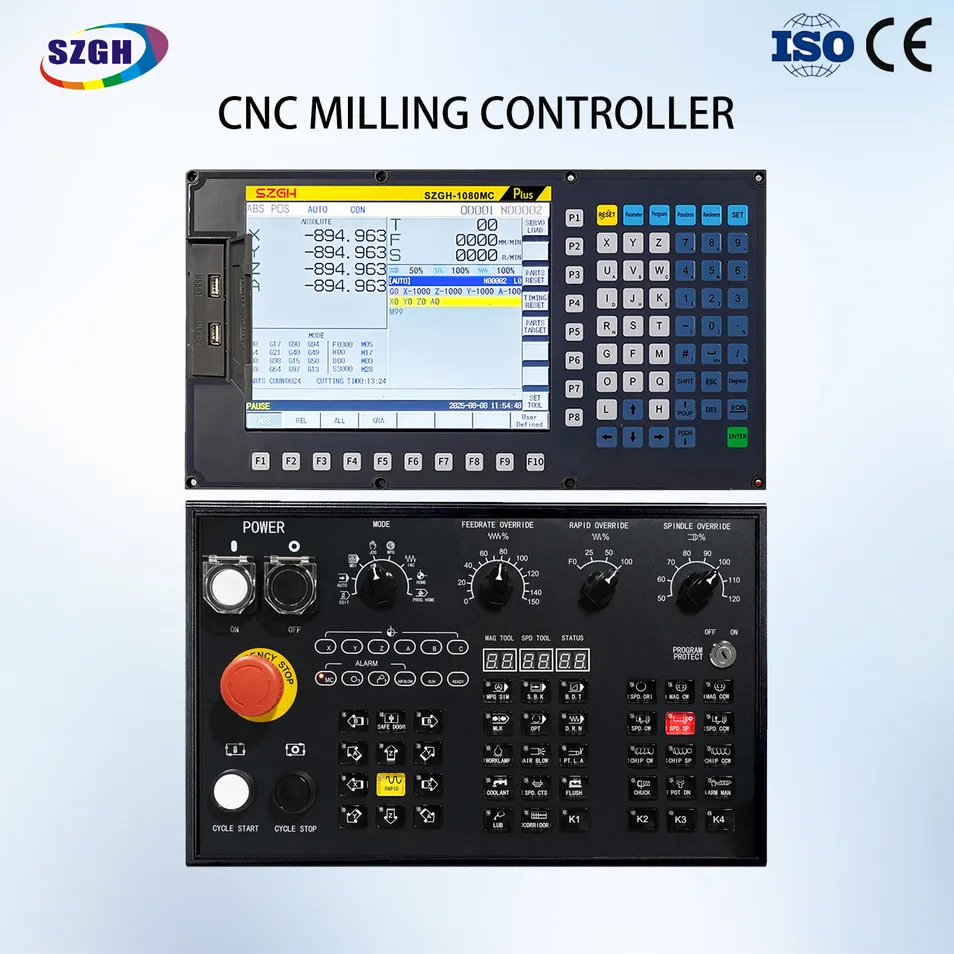

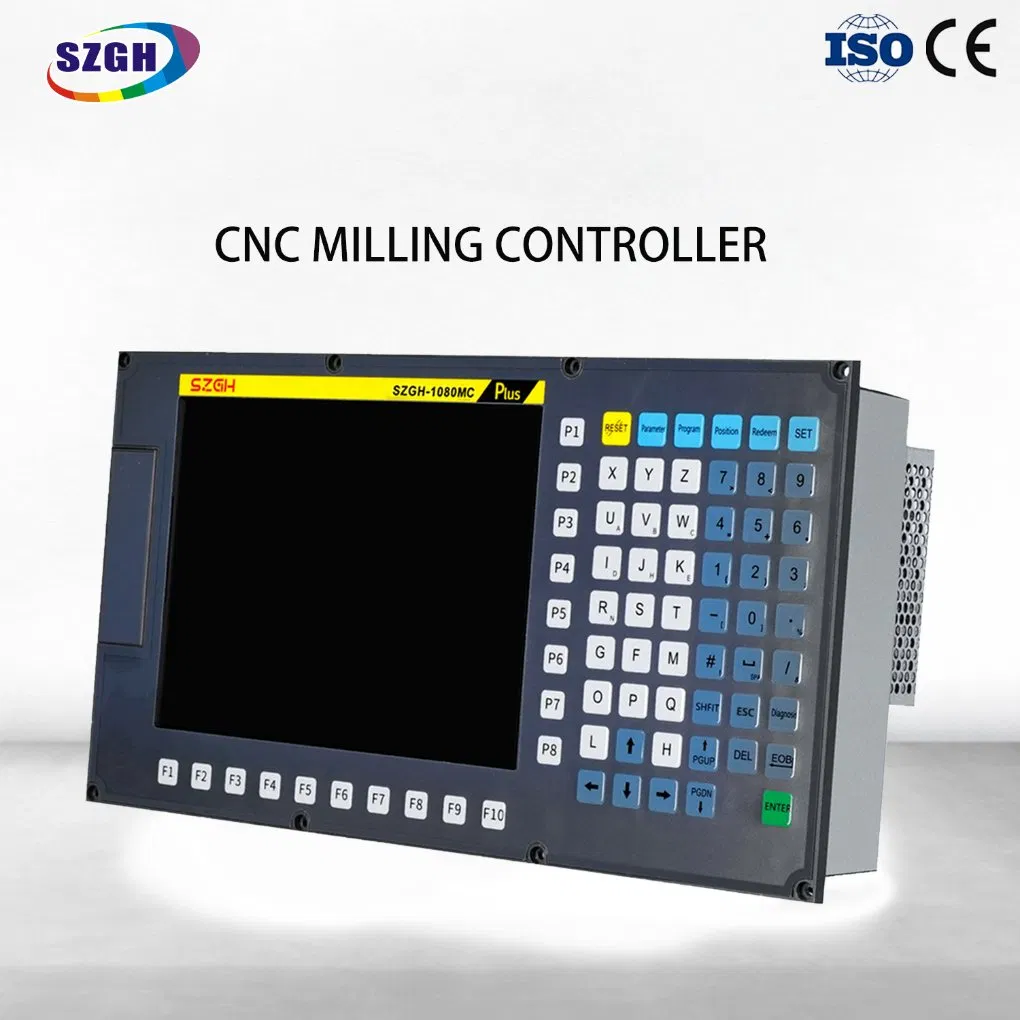

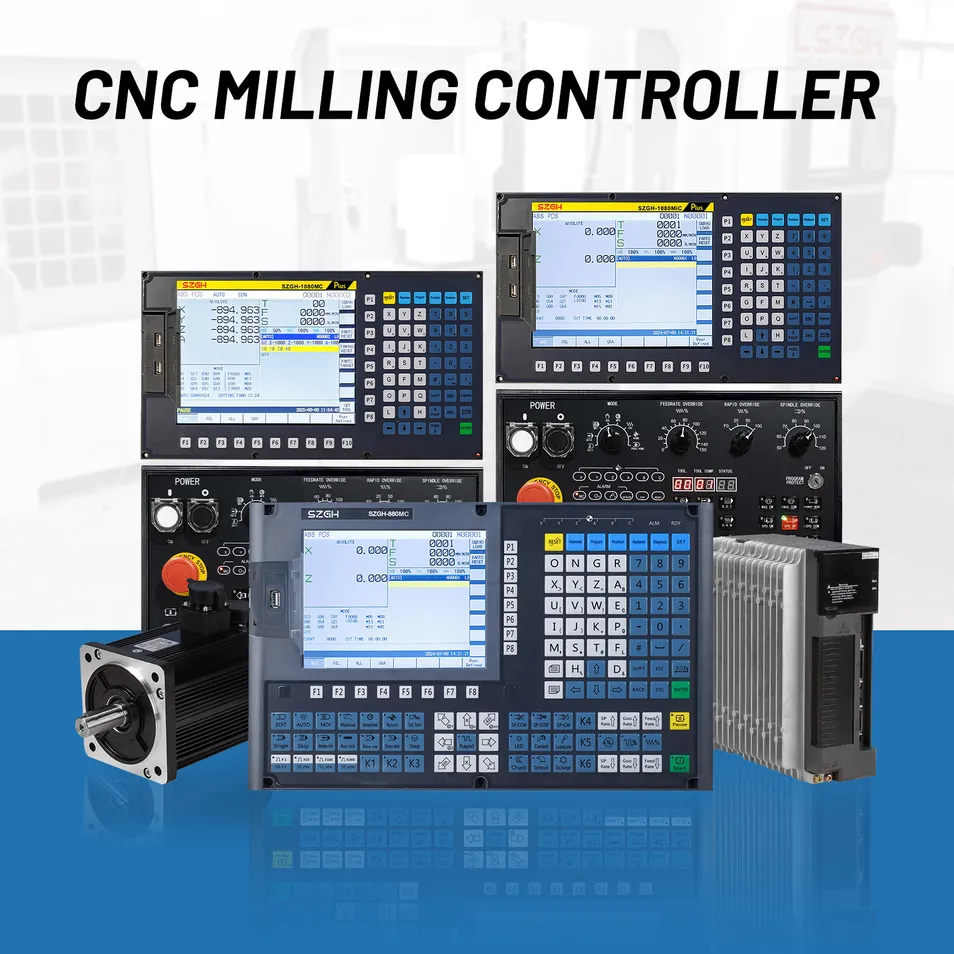

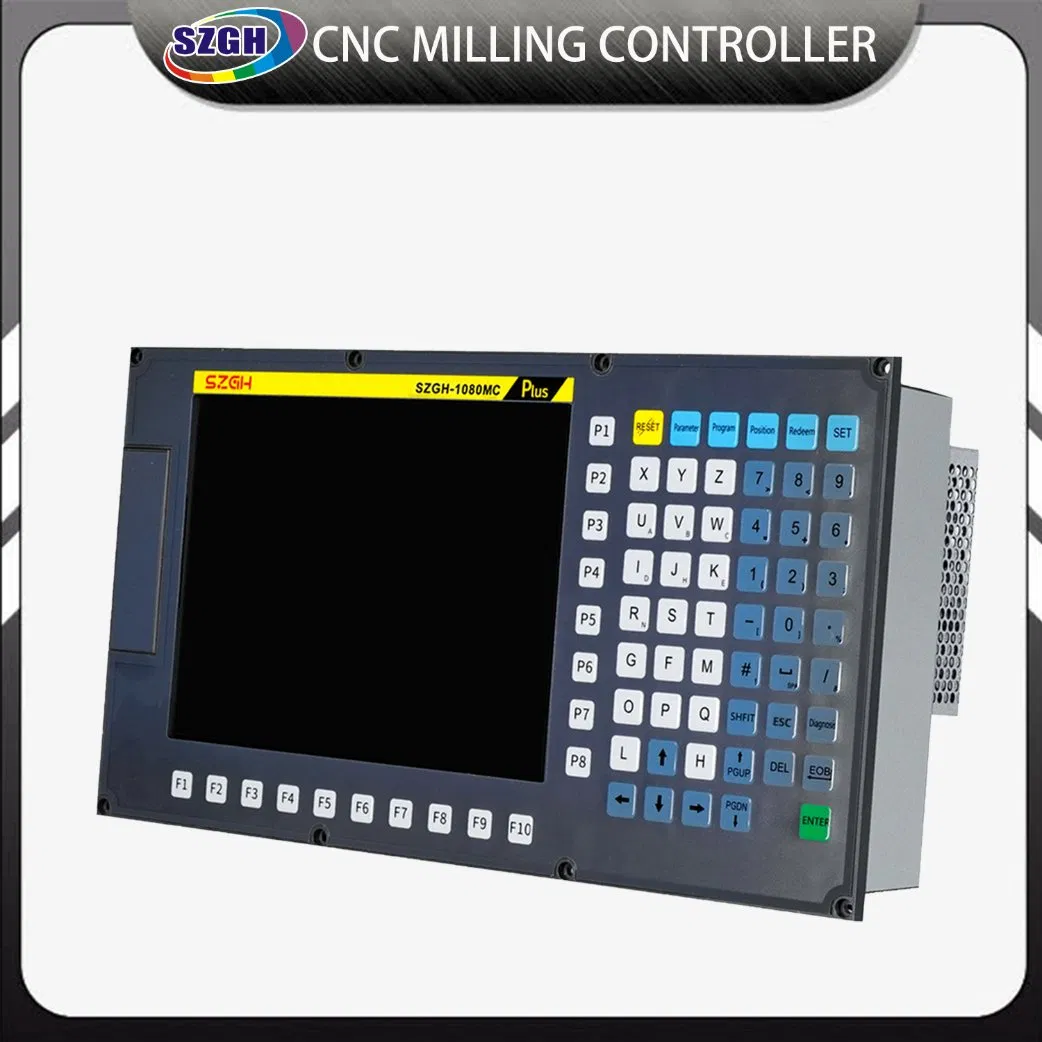

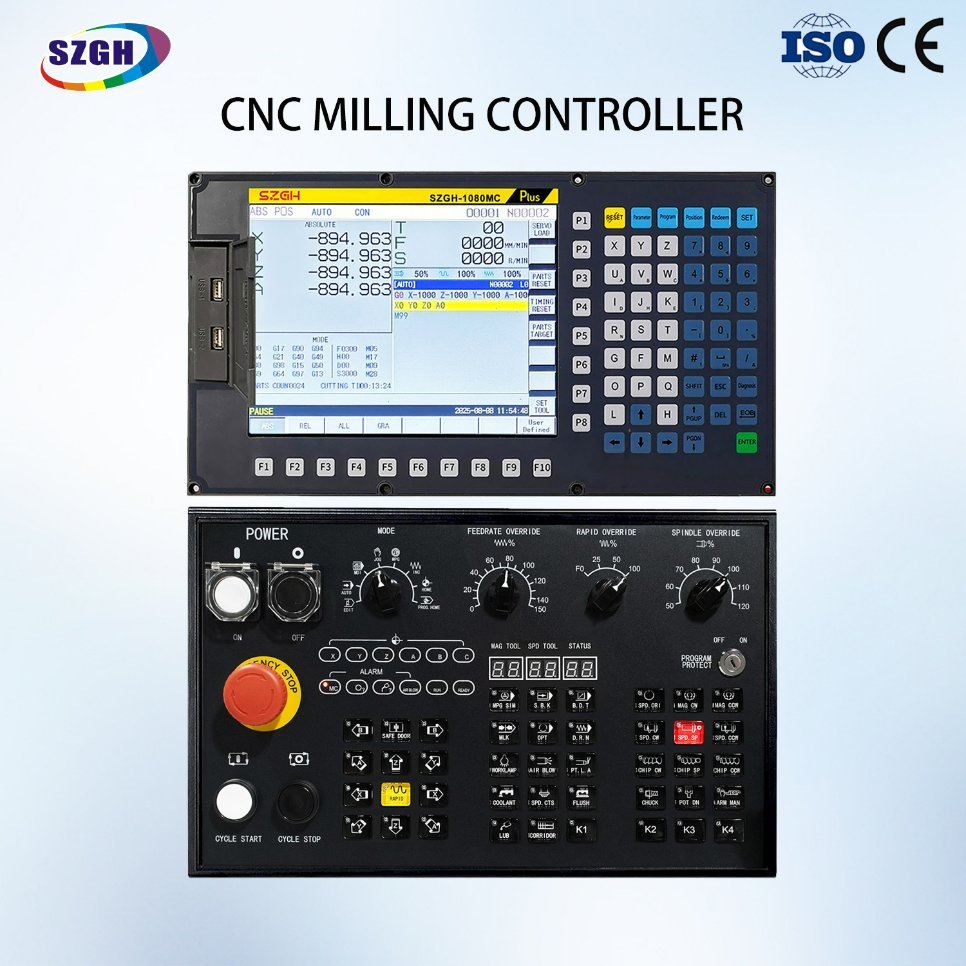

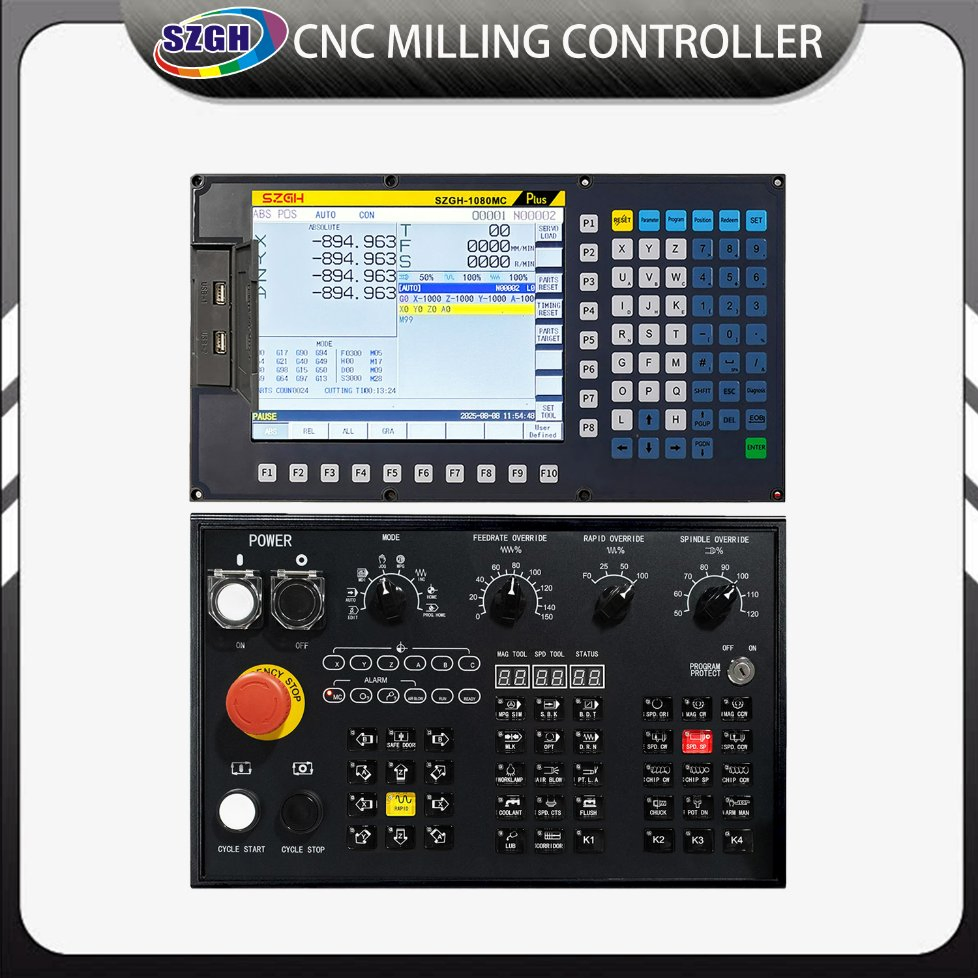

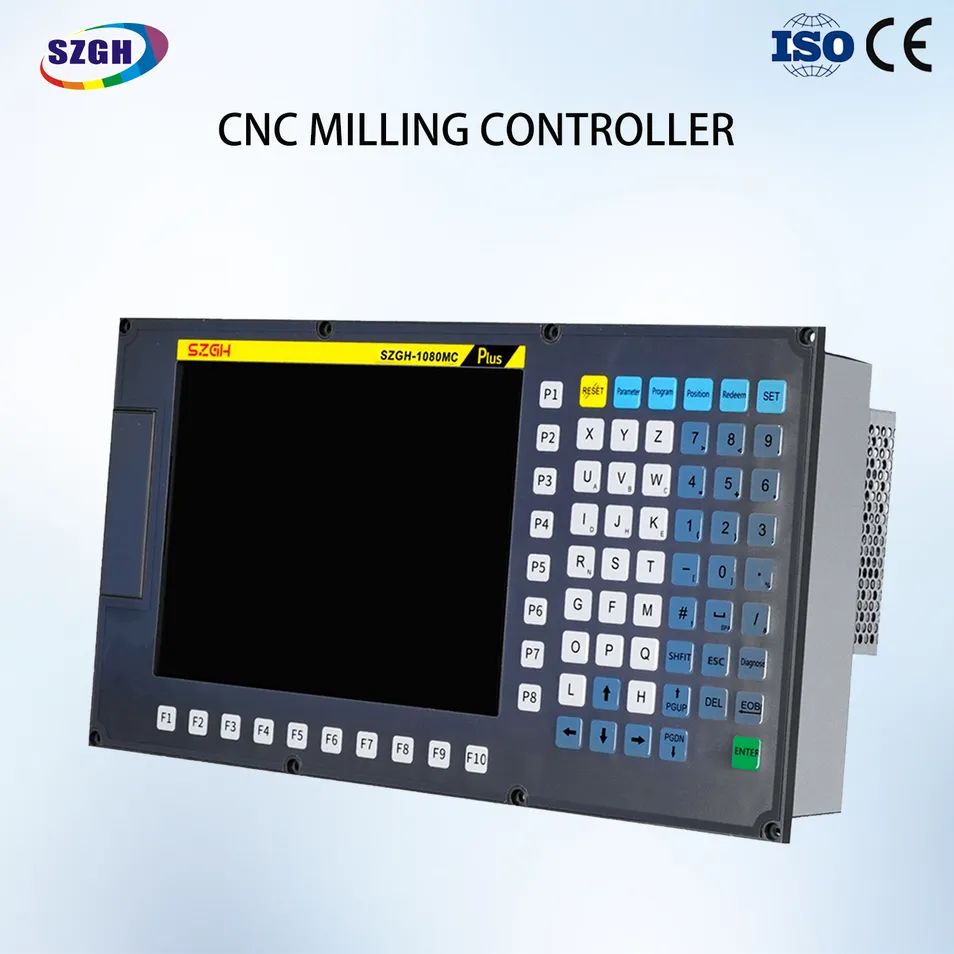

The SZGH-1080MC is a high-performance CNC controller designed for precision milling, routing, and various automated machining applications. Equipped with a 10.4" TFT true-color display (800×600 resolution), the system delivers clear visualization and an intuitive operating experience.
Powered by a dual-core ARM + FPGA platform with a 1.2 GHz main frequency and a 0.25 ms interpolation cycle, the controller provides excellent small-segment processing capability and 0.1 μm control accuracy. It features an open PLC environment for ladder diagram editing, diagnostics, and signal tracking, offering exceptional flexibility and expandability.
Key features include adaptive servo spindle control for rigid tapping, thread cutting, electronic gear functions, and a large program capacity of 256 MB supporting up to 1000 machining programs.
| No. | Product Feature | Description |
|---|---|---|
| 1 | Display | 10.4" TFT 800x600 True Color LCD |
| 2 | Machining Support | Supports milling operations, high-speed/high-precision small segment machining |
| 3 | Platform | Dual-core ARM+FPGA, 1.2GHz clock speed, 0.25ms interpolation cycle |
| 4 | Built-in PLC | Open-architecture PLC with ladder diagram online editing/diagnostics |
| 5 | Analog Output | 2-channel 0-10V analog output, supports dual spindle control |
| 6 | Adaptive Servo | Enables rigid tapping through adaptive spindle control |
| 7 | Capacity | 256MB memory, storage for 1000 machining programs |

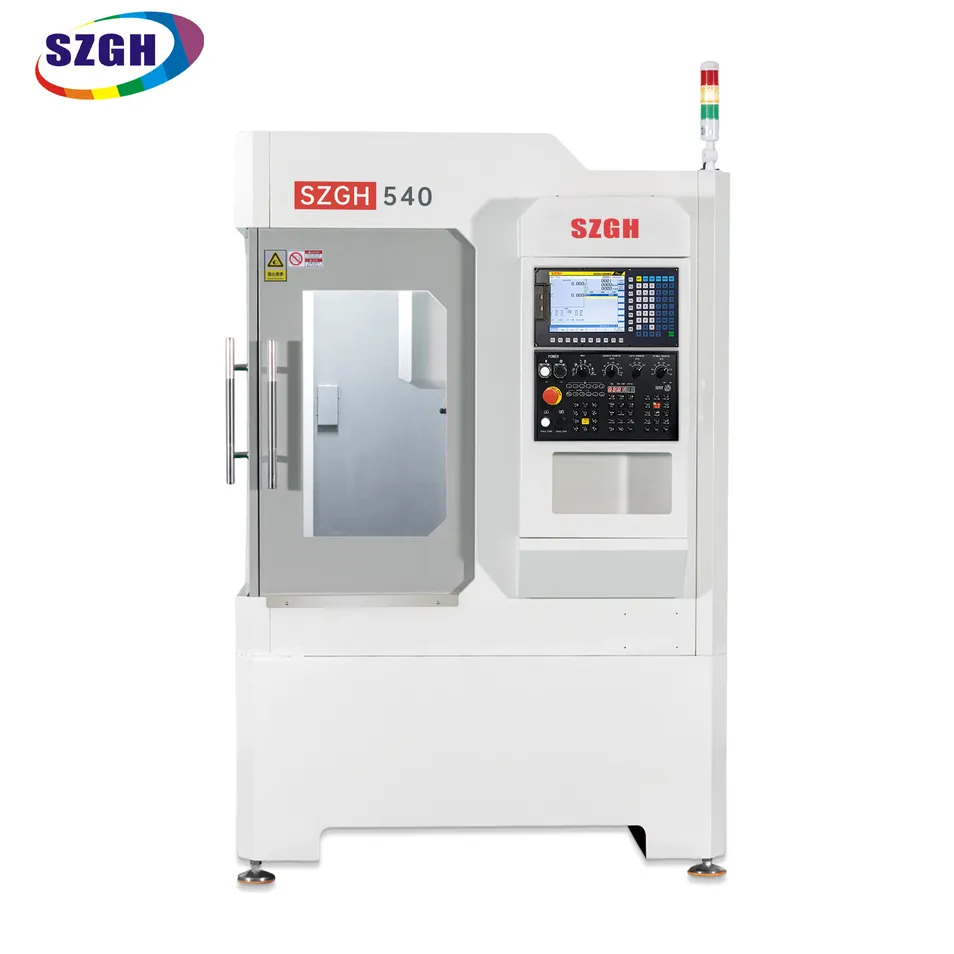

SZGH-540

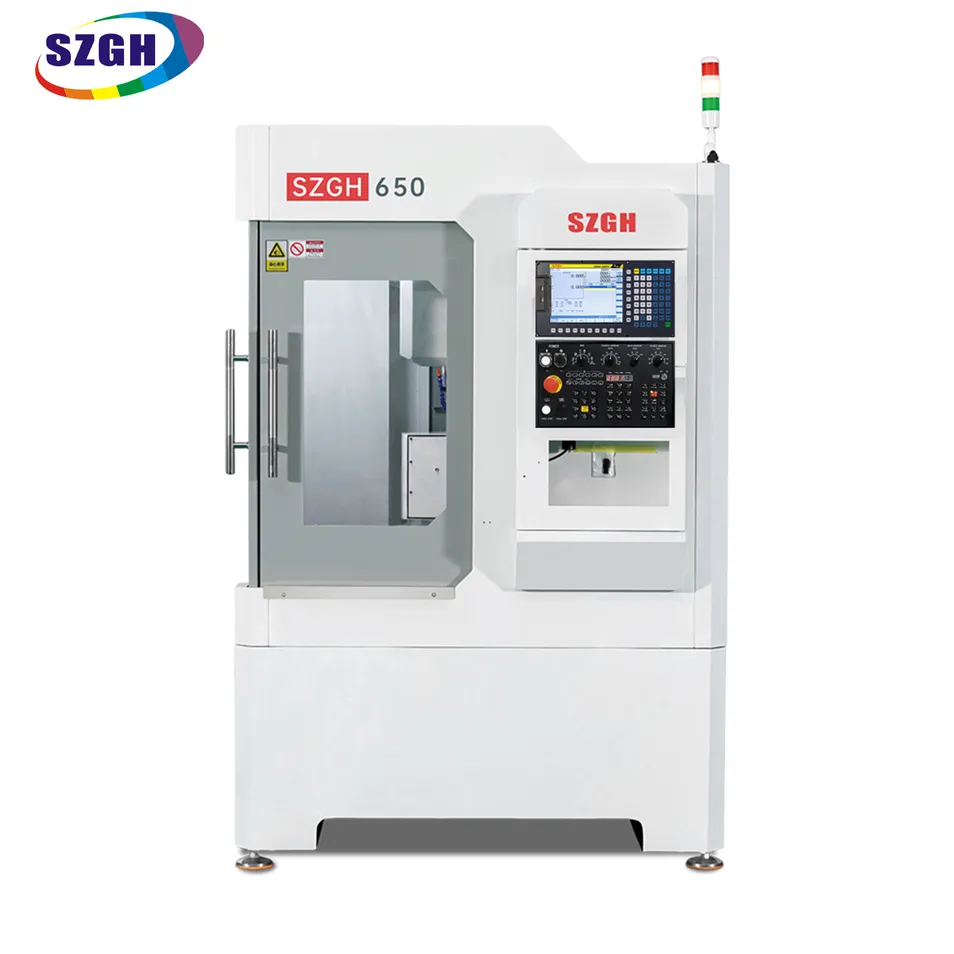

SZGH-650

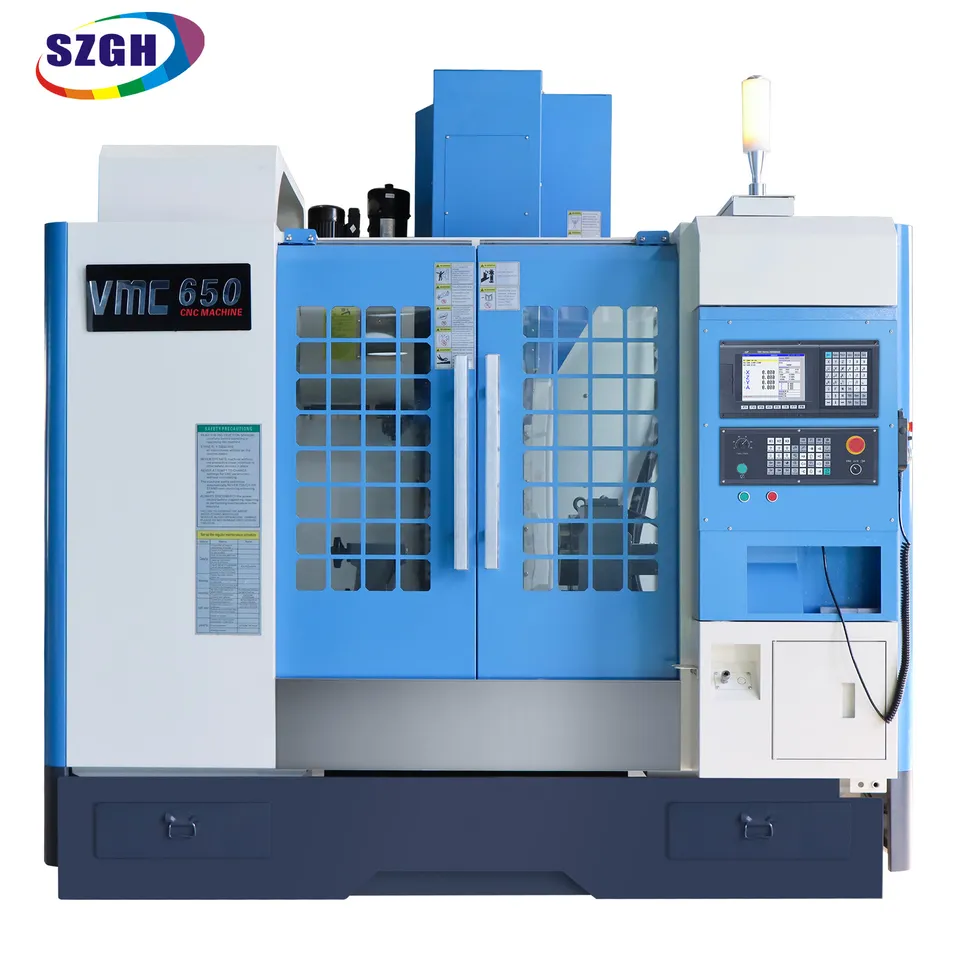

SZGH-850

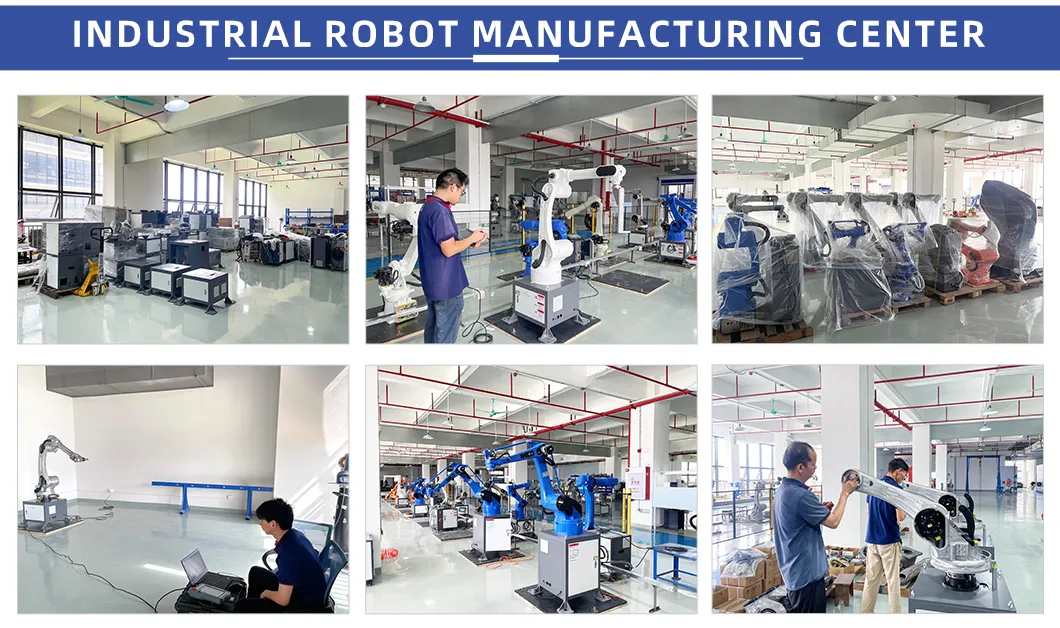

As a leading global supplier of intelligent manufacturing solutions, we are committed to replacing traditional manual operations with intelligent technologies. With over ten years of experience, we specialize in CNC design, machine tool transformation, and industrial robotic applications including welding, loading, and unloading.
Our solutions have been implemented in over 200 countries, supported by a core value system focused on innovation, responsibility, and sincere customer service.
