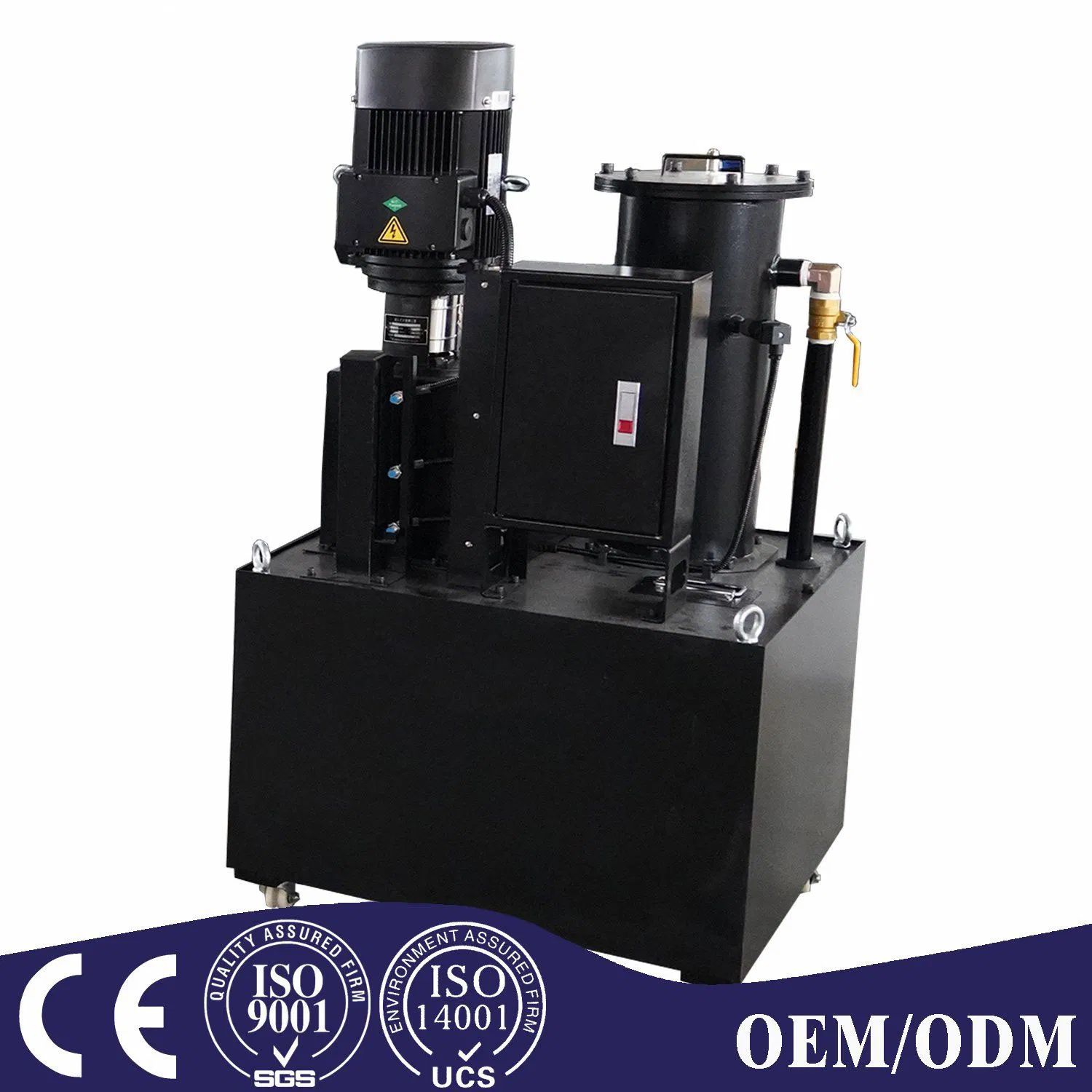

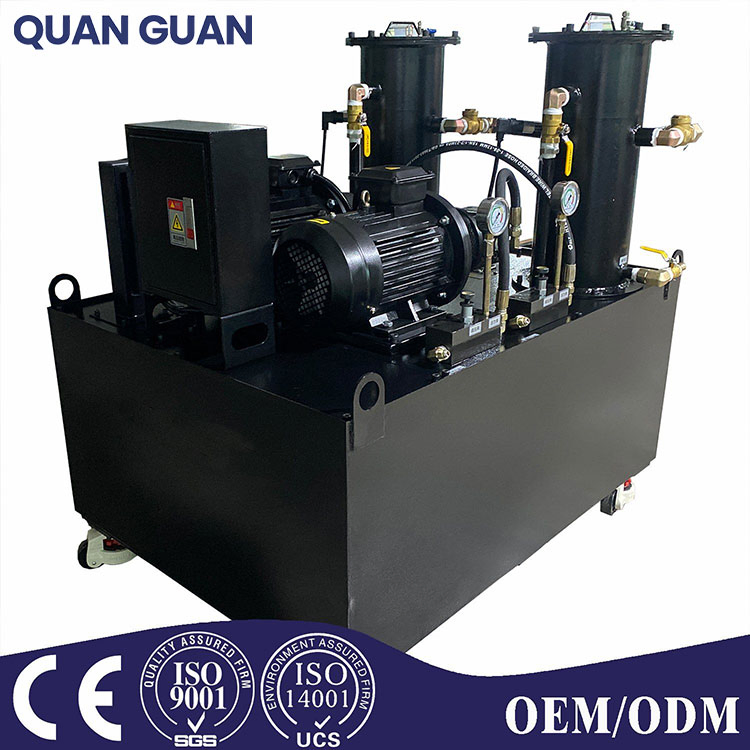

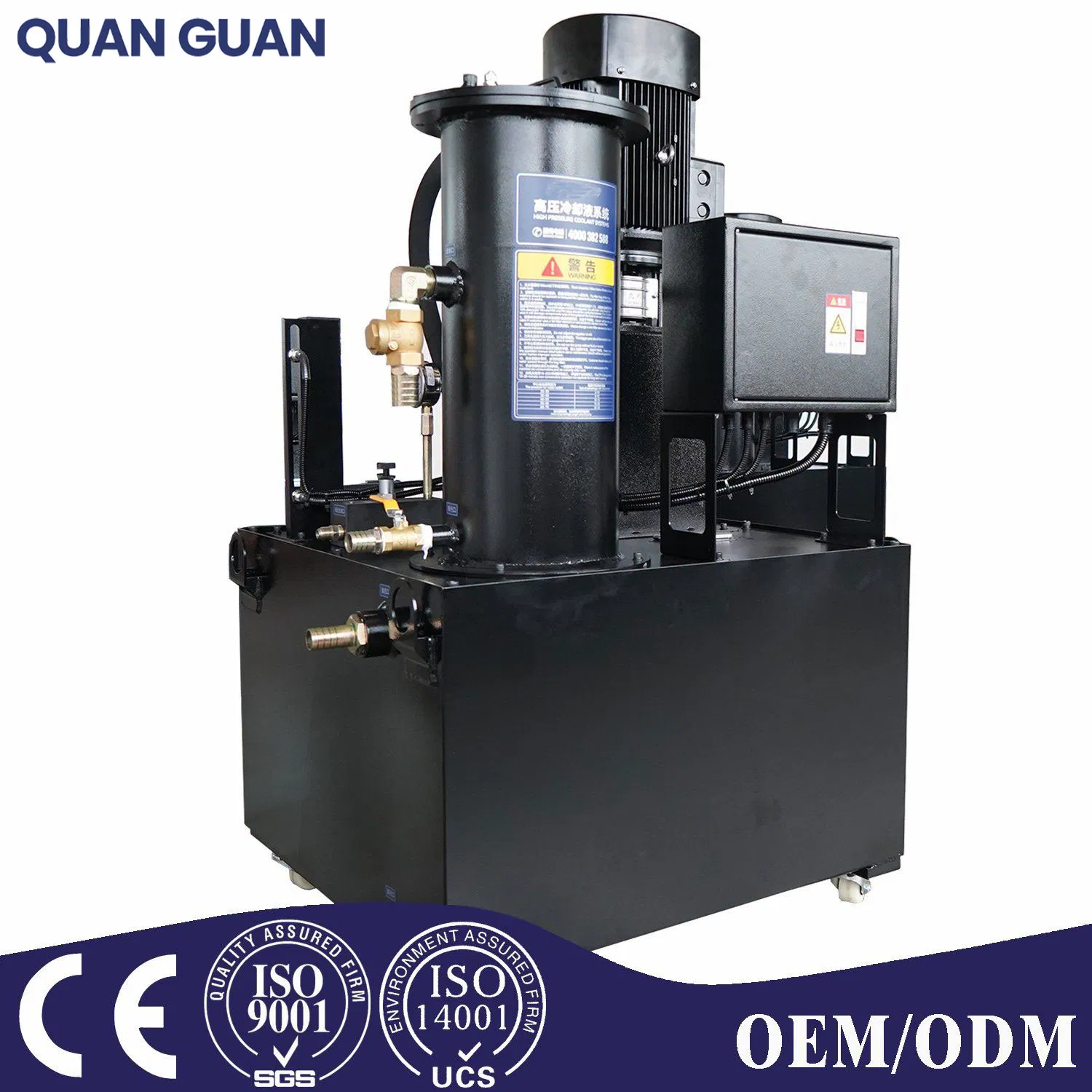

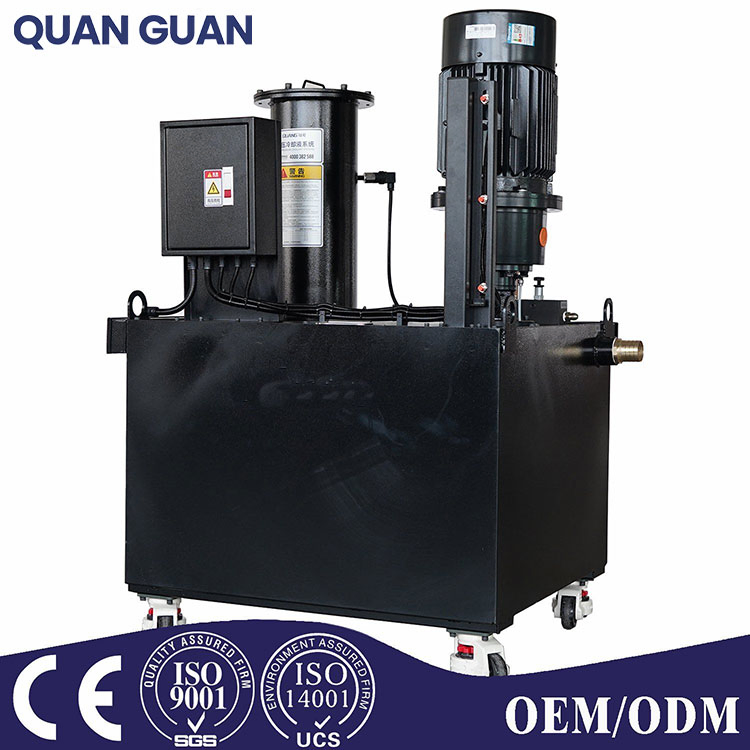

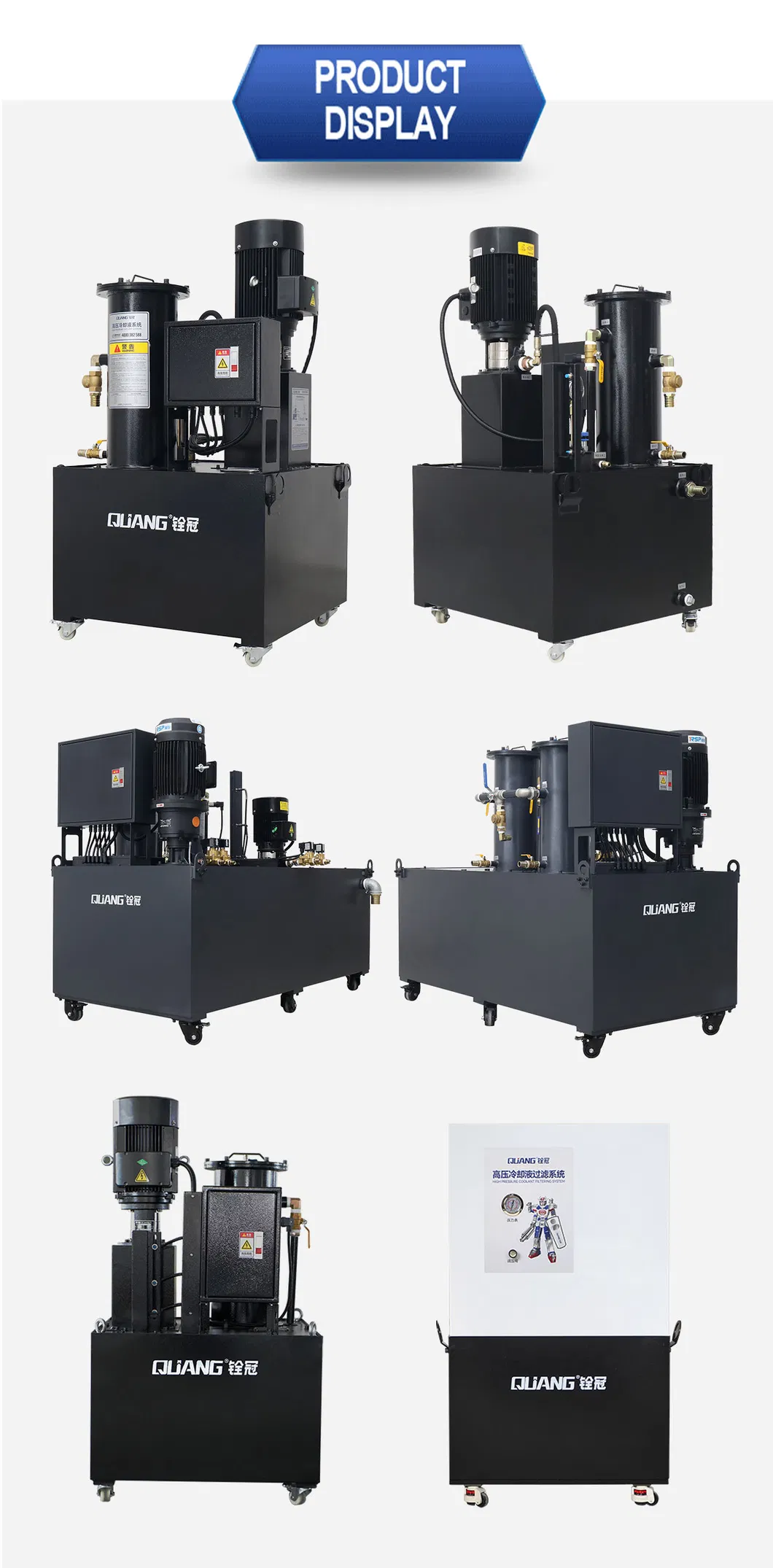

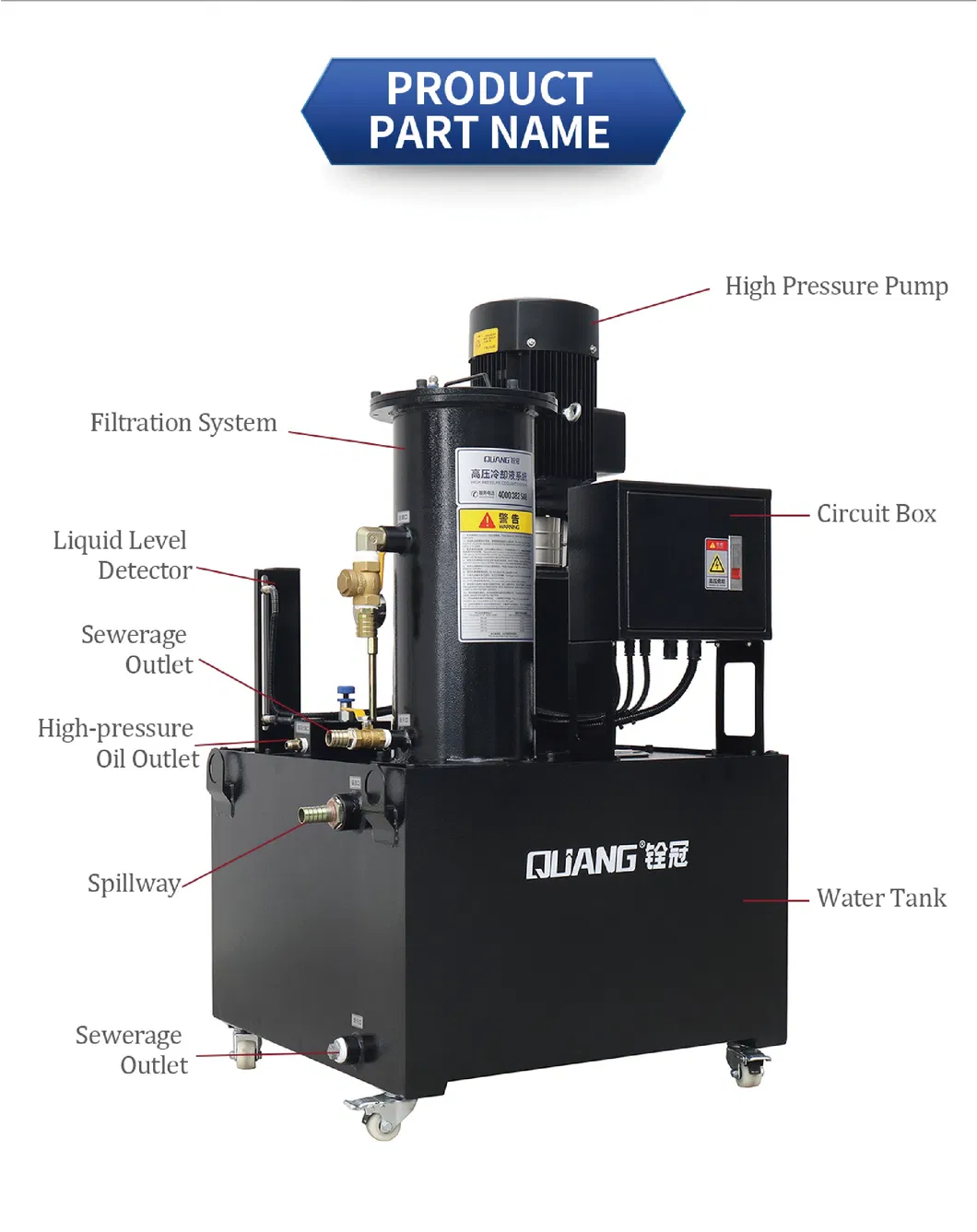

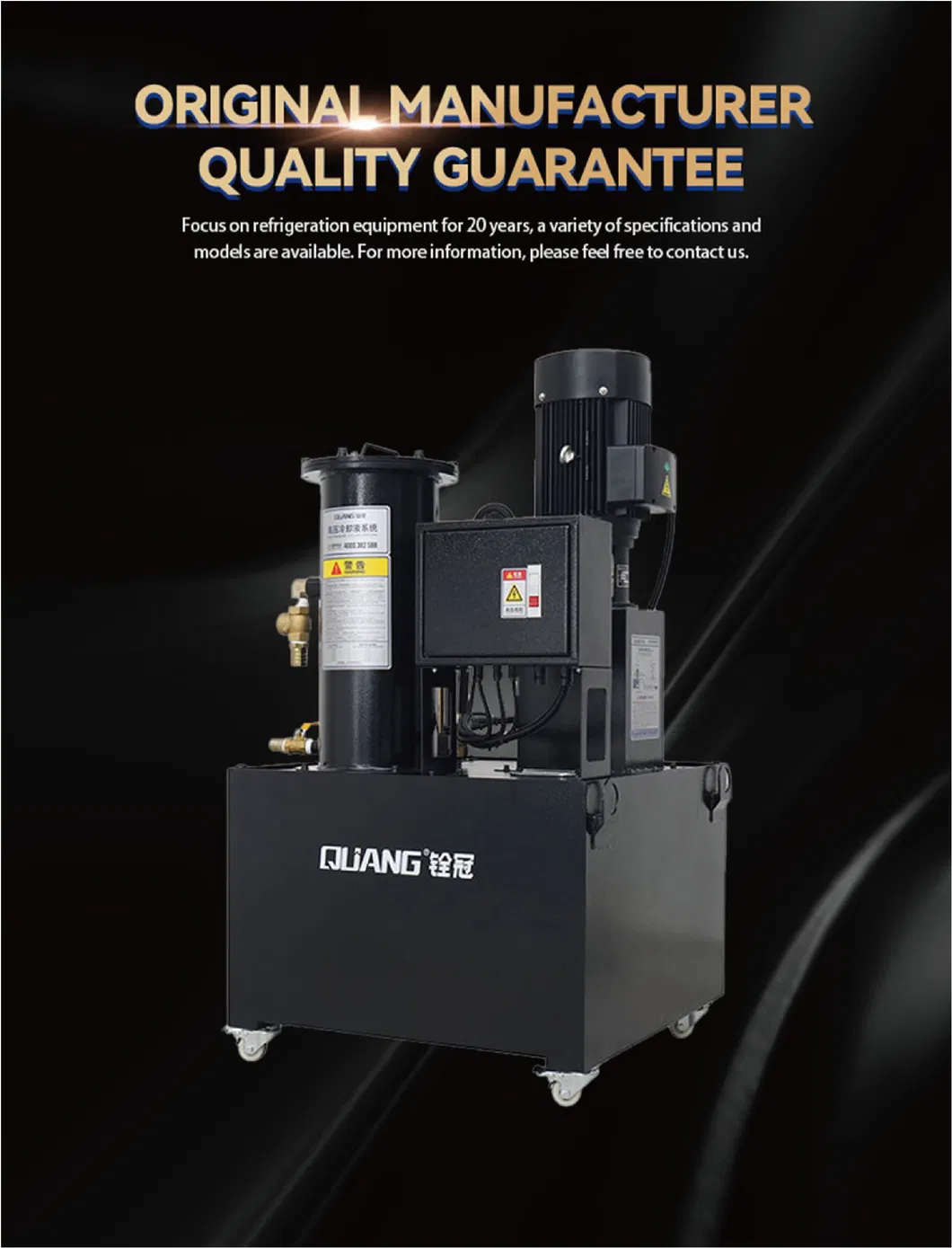

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.
| Item | QG-HPC-2MP-33LA-LX-1 | QG-HPC-3MP-33LA-LX-1 | QG-HPC-5MP-40LA-LG-1 | QG-HPC-7MP-40LA-LG-1 |
|---|---|---|---|---|
| Outlet pressure | 20Bar | 30Bar | 50Bar | 70Bar |
| Flow rate | 33L/min | 33L/min | 40L/min | 40L/min |
| Rated power | 2.2KW | 4.0KW | 5.5KW | 7.5KW |
| Input Power | 220V/380V 50HZ/60HZ | |||
| Bag filtration | Min 25μm | |||
| Pump type | Centrifugal pump | Centrifugal/Screw pump | Screw pump | Screw pump |
| Size | 700*700*1080mm | 700*700*1080mm | 770*880*1390mm | 770*880*1390mm |
| Water tank capacity | 220L | 220L | 350L | 350L |

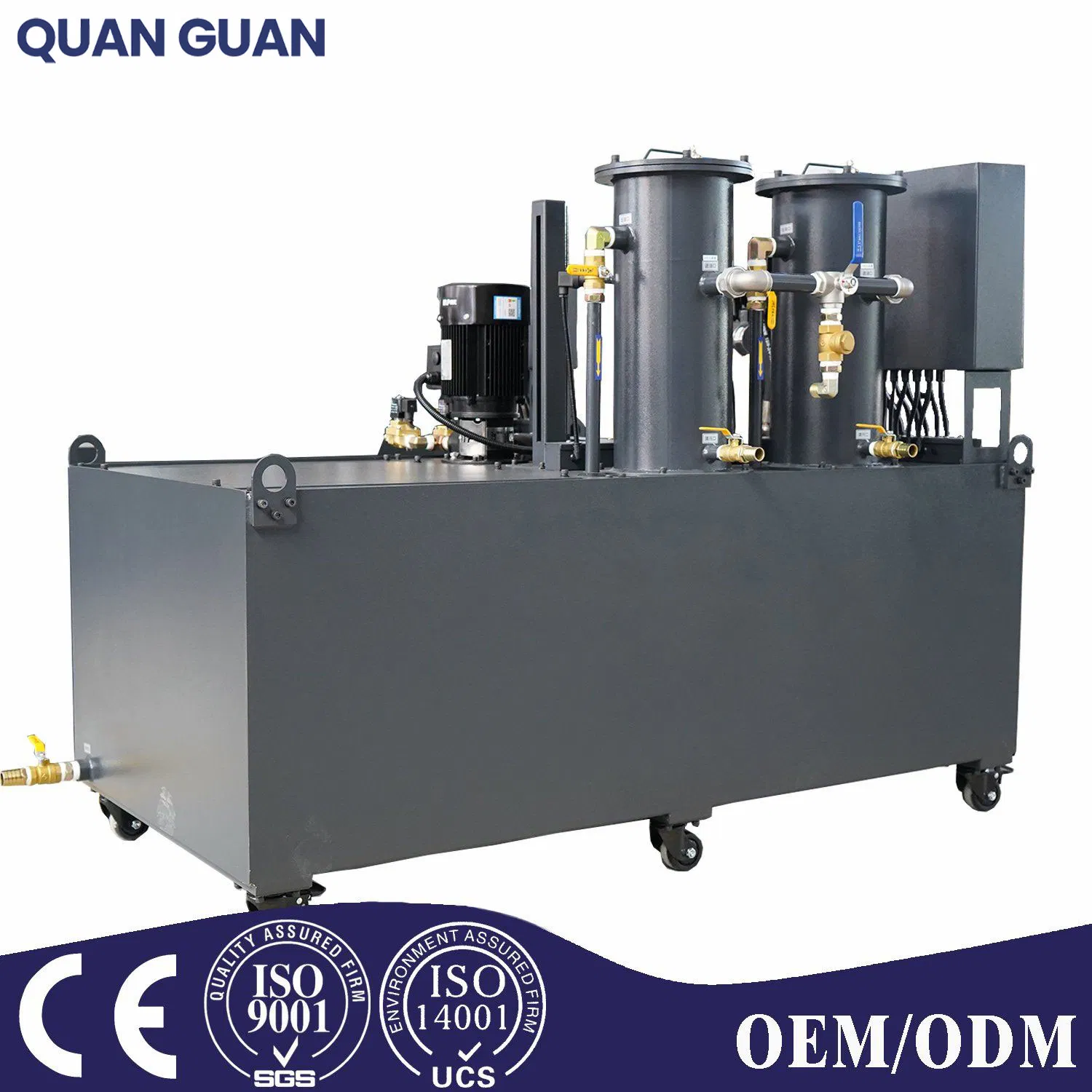

The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry machining centers, CNC lathes, deep hole boring and milling drilling machines, etc.
Commonly used in: Automotive component manufacturing, precision mechanical processing, batch intelligent production lines for workpiece and tool washing, cooling, lubrication, chip breaking, and chip removal.
