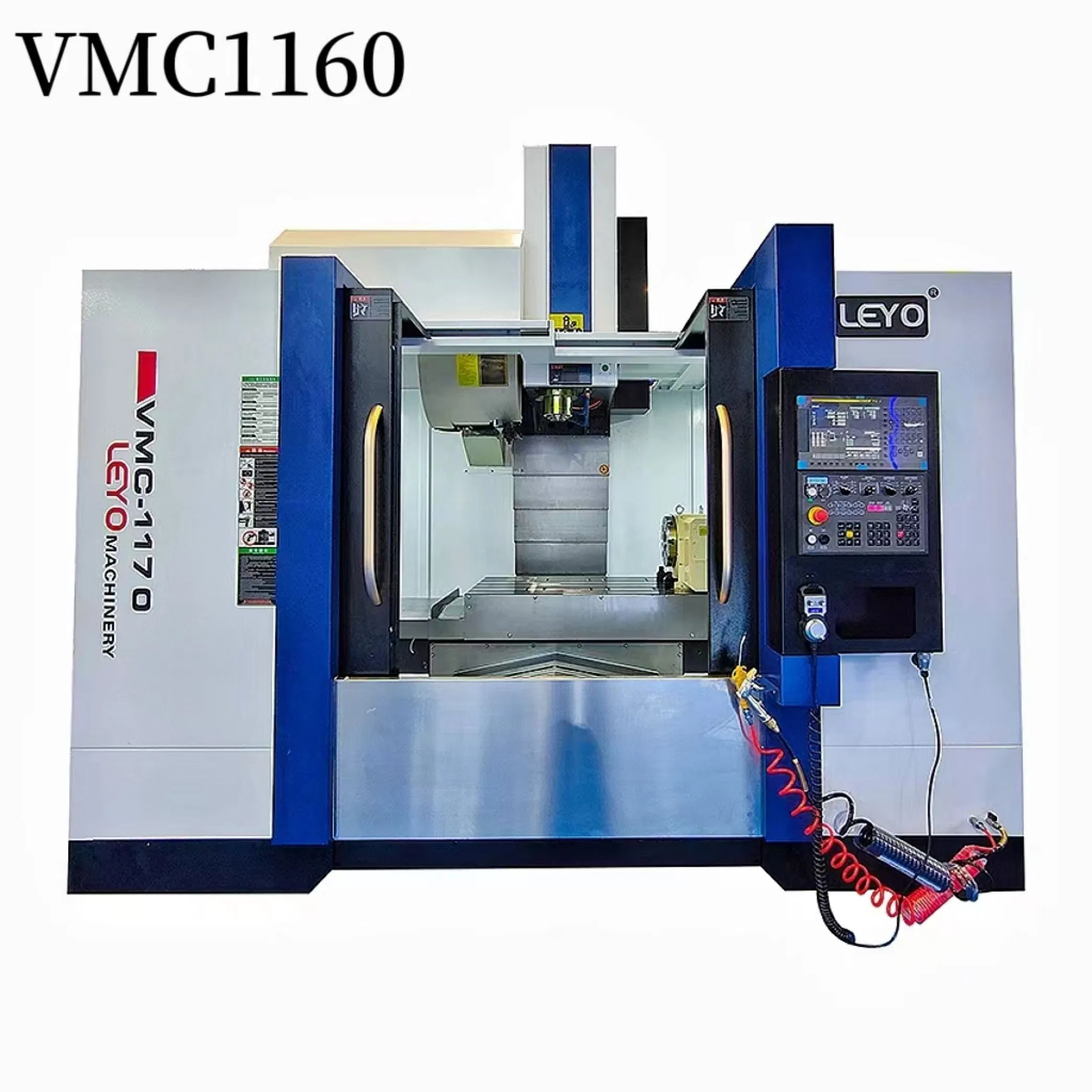

| Items | Unit | VMC1160 Specification |
|---|---|---|
| X/Y/Z axis travel | mm | 1100/600/600 |
| X/Y/Z rapid moving speed | m/min | 36/36/24 |
| X/Y/Z rapid feeding speed | m/min | 20 |
| Working table (L*W) | mm | 1200*620 |
| Working table max load | kg | 800 |

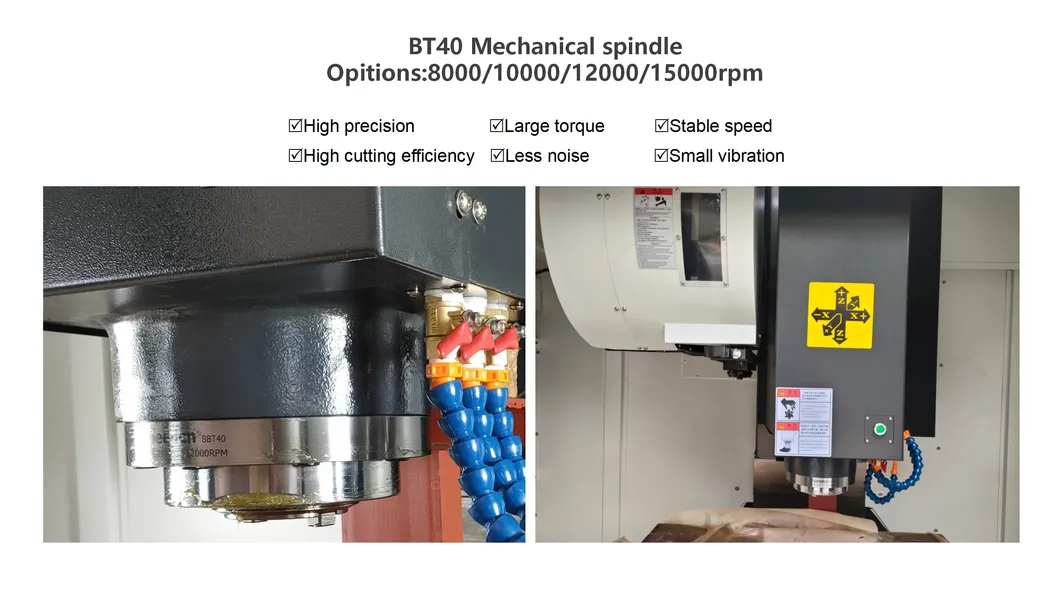

| Spindle taper hole | - | BT40 |
| Spindle type* | - | Belt/Direct |
| Spindle motor power* | kw | 11/15 |
| Spindle speed* | rpm | 8000/10000/12000 |
| Controller* | - | GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens |

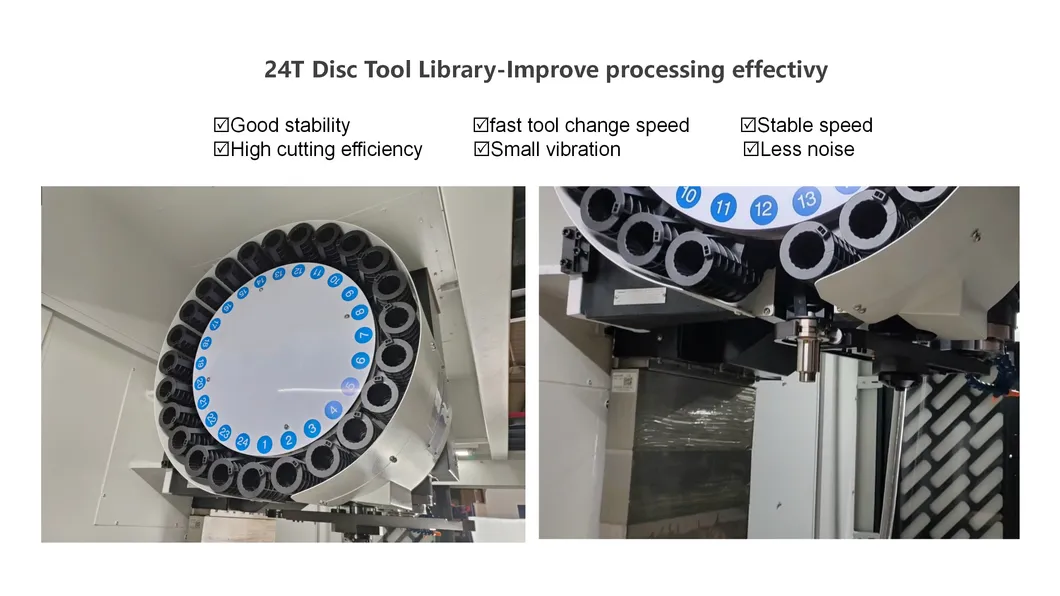

| Tool magazine capacity* | T | 24/None |
| X/Y/Z position accuracy | mm | ±0.005 |
| X/Y/Z reposition accuracy | mm | ±0.003 |
| Machine weight | kg | 7000 |
| Machine size | mm | 2850*2540*2390 |
Tip: The asterisk is optional, and price is different. Contact us for more requirements.
Manufacturing high-end 3-5 axis CNC milling machines, gantry milling machines, vertical machining centers, horizontal machining centers, and compact machining centers. These machines are mainly used for producing parts and molds in 3C electronics, automobiles, medical devices, aerospace, and 5G communication industries.
Design logo for free, custom sheet metal colors to match your brand, and tailored machine configurations (spindle speed, controller brand, guide rails, etc.). We also design automatic production lines.

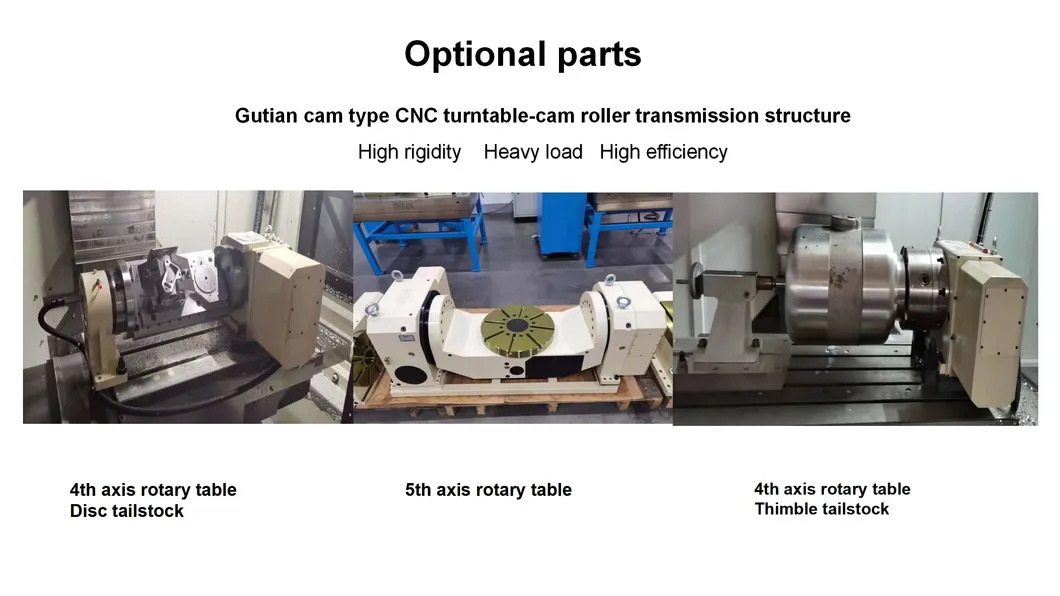

Providing 4th/5th axis turntables, tailstocks, tool setters, measuring heads, and consumables like tool holders and tool boxes.
One-year warranty with free spare parts and technical support. Lifetime free online after-sales technical guidance is provided for all models.
Standard production time can be arranged according to needs, with the fastest production time being 7 working days for urgent orders.

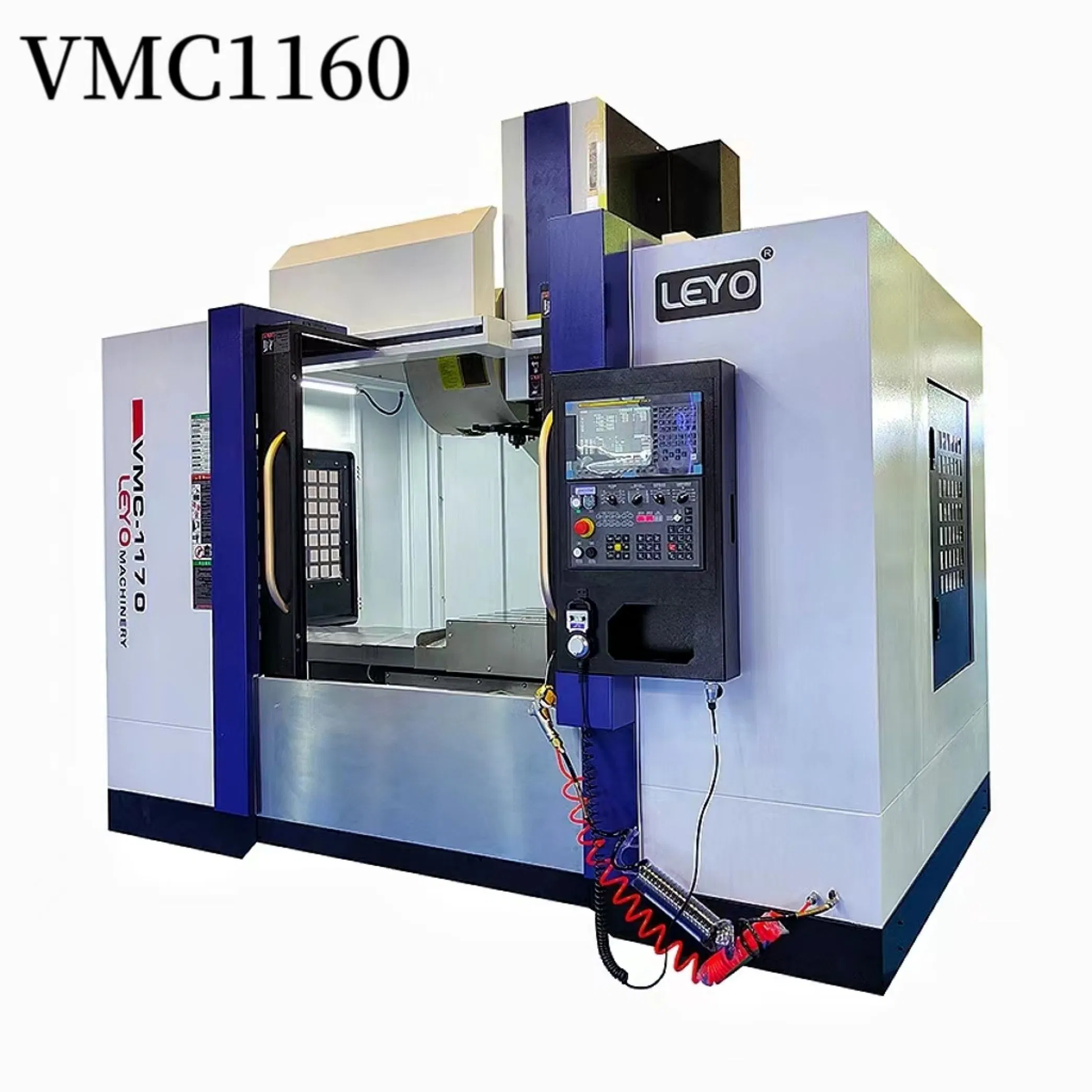

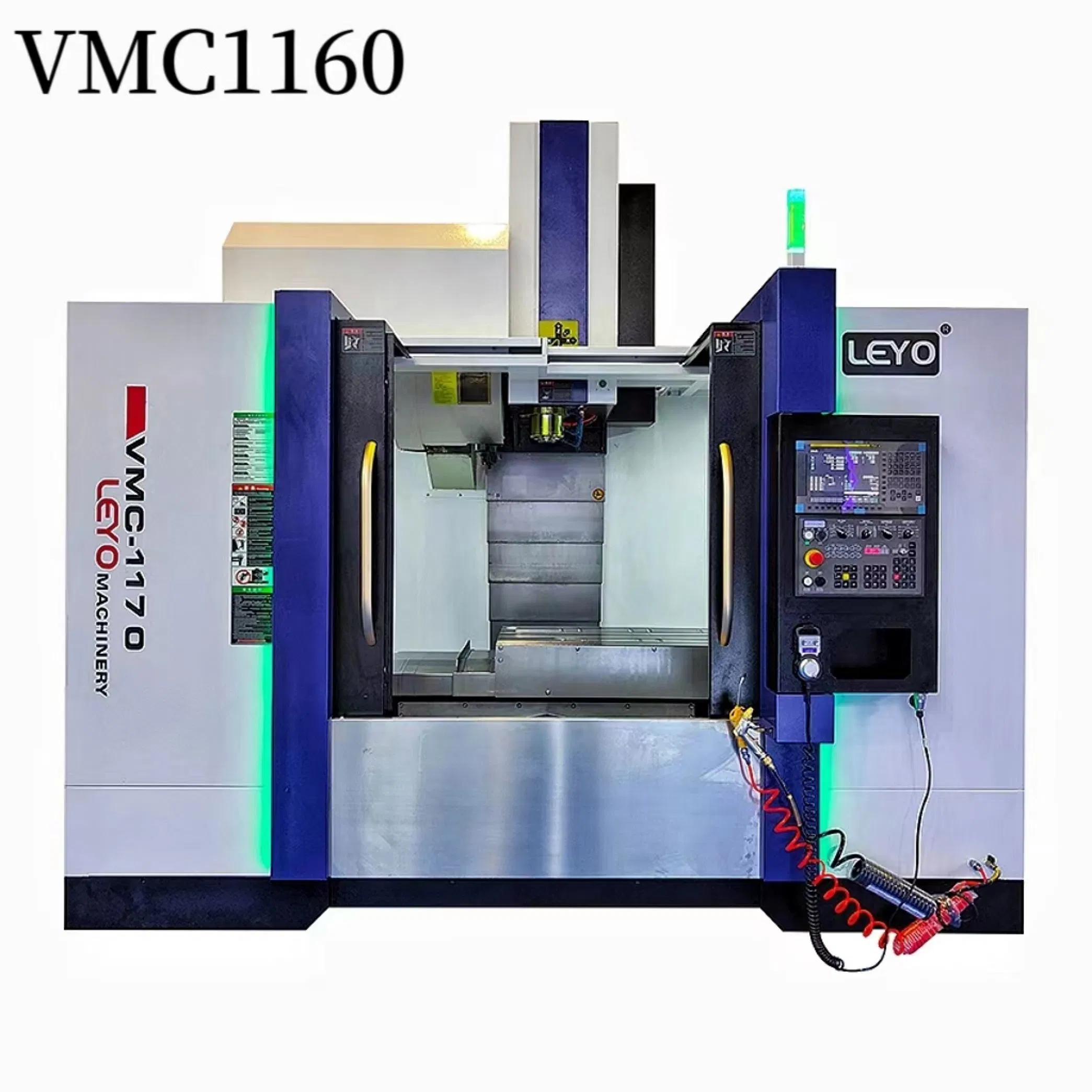

The VMC1160 offers high precision with a processing accuracy of 0.008 mm, a positioning accuracy of ±0.005 mm, and a repositioning accuracy of ±0.003 mm.

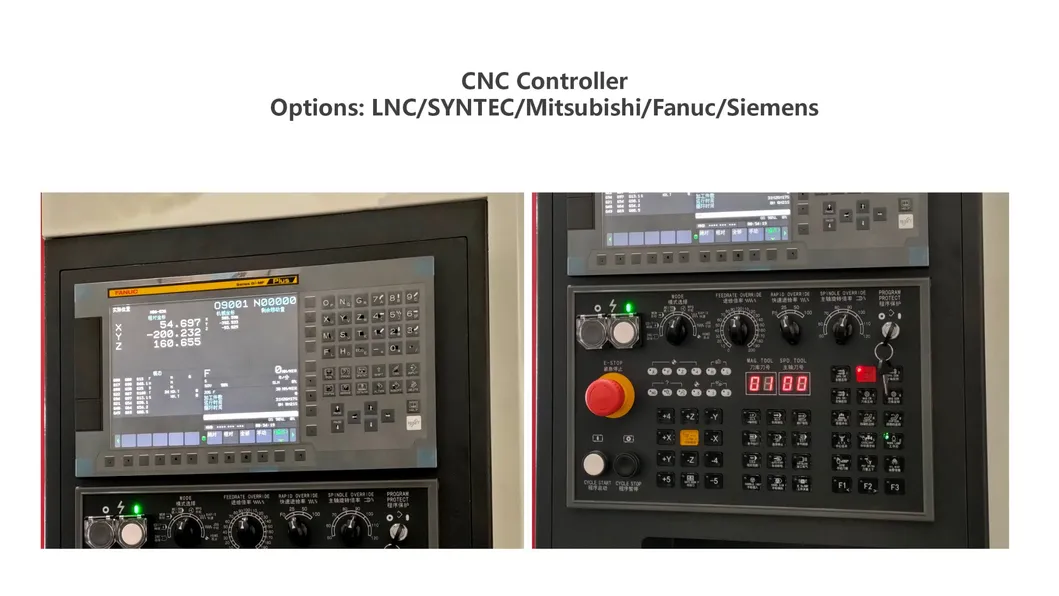

We support multiple industry-leading controllers including Fanuc, Siemens, Mitsubishi, Syntec, LNC, GSK, and HNC, allowing for seamless integration into your existing workflow.

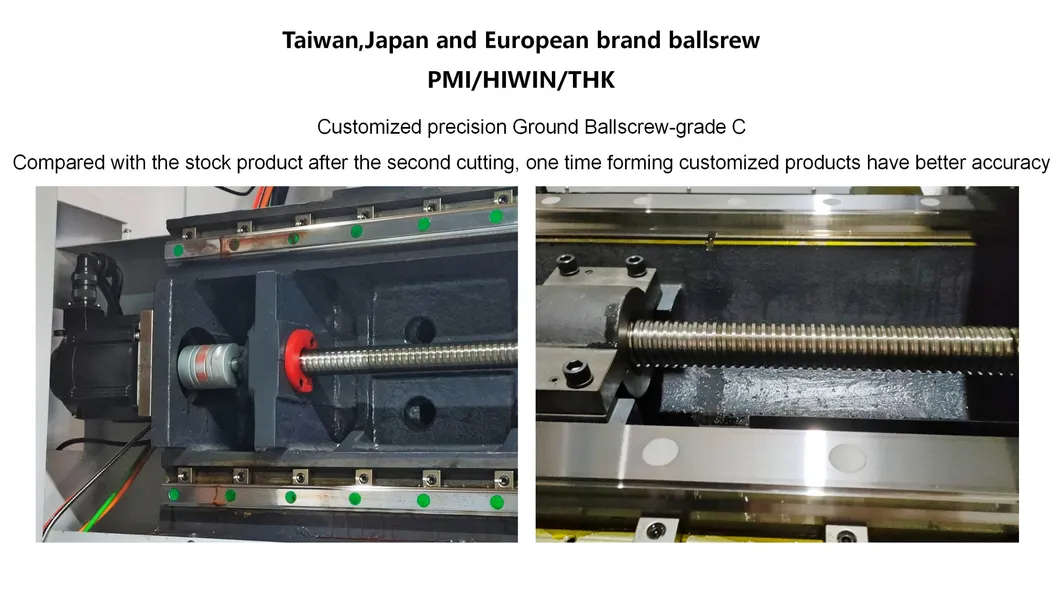

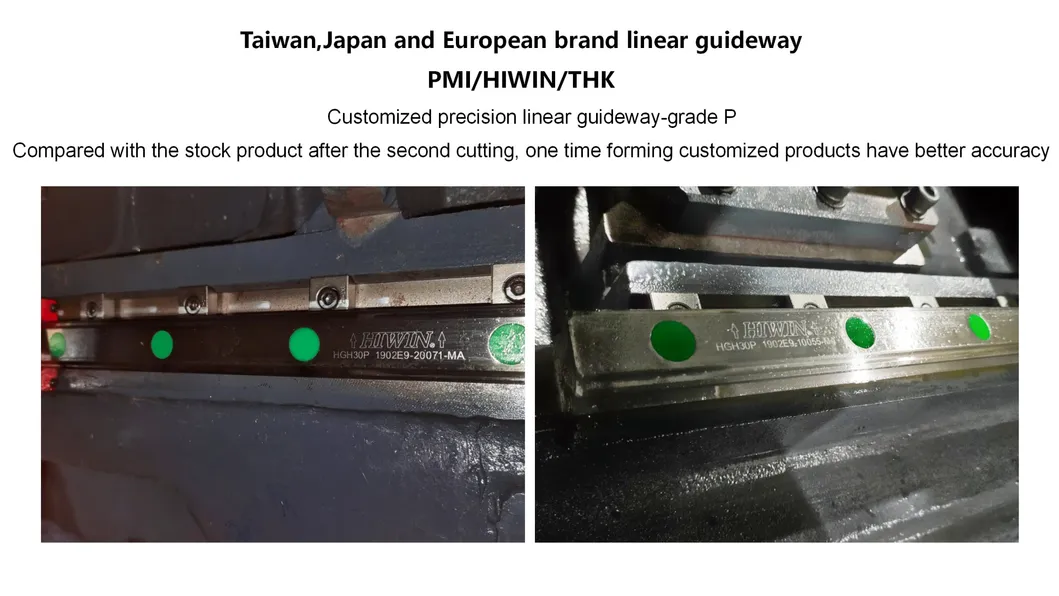

Yes, we provide free customized machine configuration. You can select specific brands for screw rods, linear guides, spindle power, and tool magazine types to suit your materials and processes.
The VMC1160 features a robust working table measuring 1200 x 620 mm with a maximum load capacity of 800 kg, making it suitable for heavy metal workpieces.
We offer a one-year warranty period with free spare parts. Additionally, we provide lifetime free online technical guidance and can arrange offline after-sales service if required.
Our standard production capacity is 50 sets per month. For urgent requirements, the fastest production time can be as short as 7 working days depending on the configuration.
