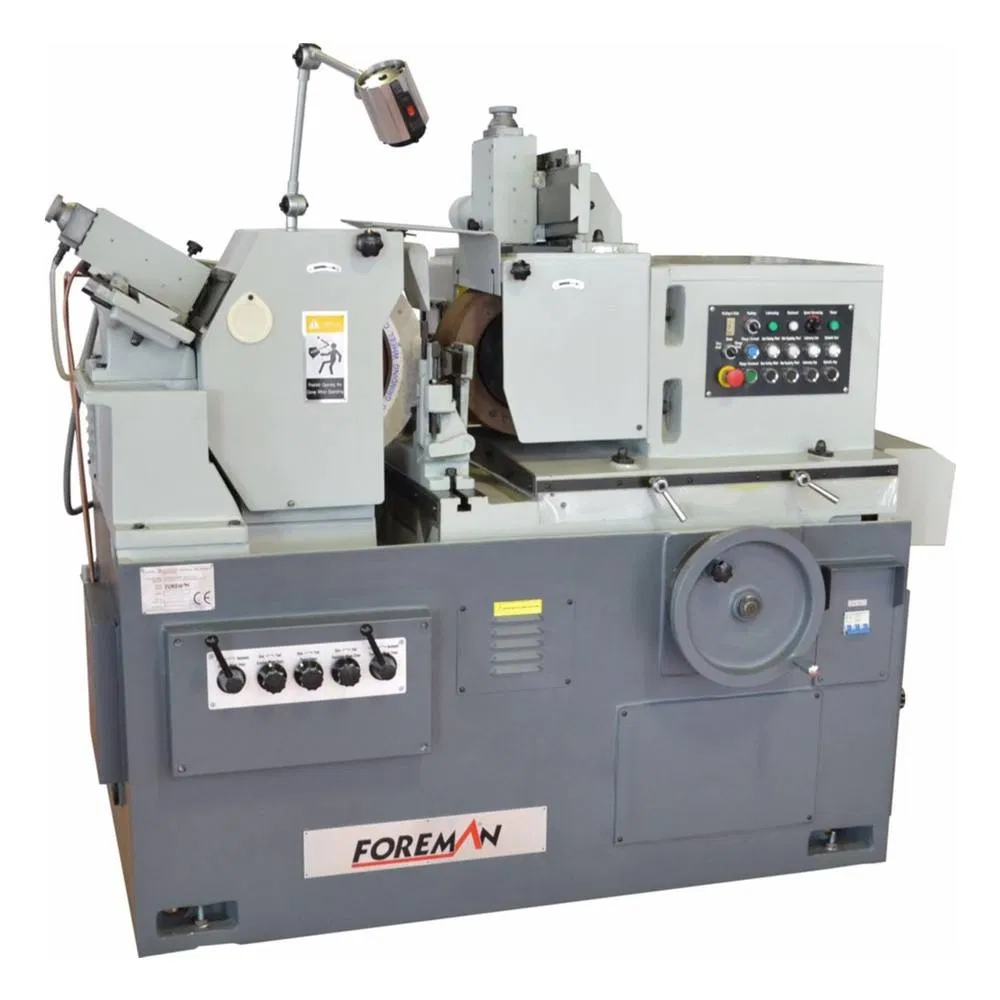

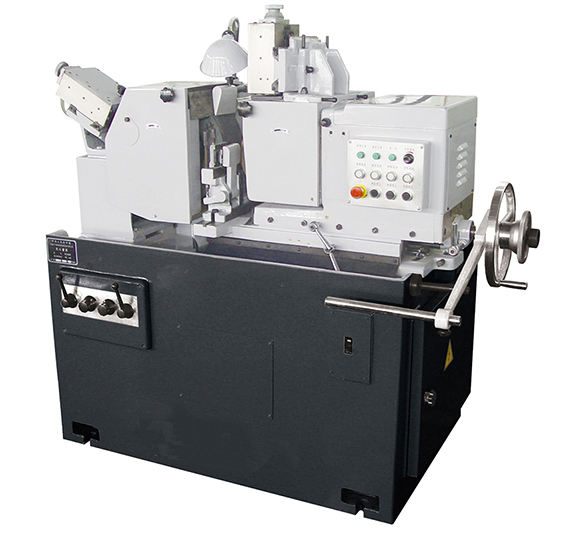

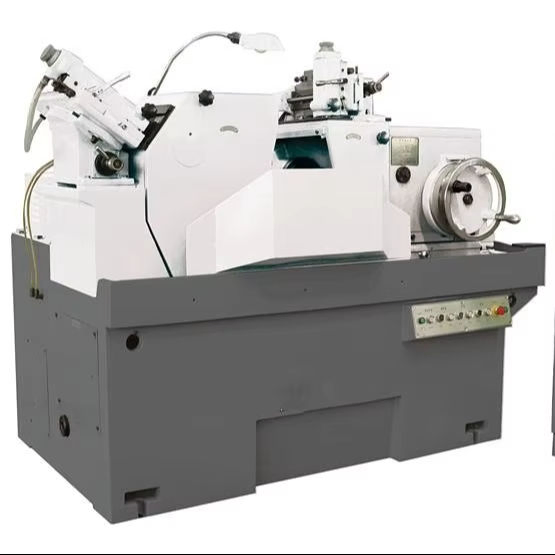

Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use
1 / 4
Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use
Precision M1080 Centerless Grinding Machine for Industrial Use

Precision M1080 Centerless Grinding Machine for Industrial Use

Customization: Available
After-sales Service: Overseas Service Center Provided Available
Warranty: One Year
Send Inquiry

Product Description

i

Basic Information

Model NO.
M1080
Type
External Grinding Machine
Abrasives
Grinding Wheel
Control Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO9001
Weight
3500kg
Power
15kw
Grinding Diameter
5-80mm
Production Capacity
300sets Per Month
P

Product Description

M1080 Centerless Grinding Machine

M1080 Centerless Grinder Specifications

  • Grinding diameter: 5-80mm
  • Grinding length: 180mm
  • Grinding wheel speed: 1300r/min

Salient Features

1. Grinding wheel and Regulating wheel

  • Structure of fixed grinding wheel and movable regulating wheel.
  • Cantilever type grinding wheel design with multi-plate long bearing bushed static-hydrodynamical oil film bearing.
  • Cantilevered regulating wheel with spindle supports solid bearing sliding (1:30 taper).
  • Swallow-tailed roller guideway & differential screw supports for regulating wheel feeding.

2. Electric & Hydraulics

  • AC frequency converter for precise regulating wheel speed control.
  • Hydraulic transmission & stepless speed regulation for dressing components.

3. Machine Body

  • Equipped with automatic plunge device.
  • High rigidity iron casting with natural aging process.
Technical Parameter Value
Thru-feed Grinding diameter5-80mm
Thru-feed Grinding length180mm
Plunge feed Grinding diameter5-80mm
Plunge feed Grinding length140mm
Grinding wheel specificationsP500*150*305mm
Regulating wheel specificationsPSA300*150*127mm
Grinding wheel speed1300r/min
Regulating wheel speed (stepless)14-180r/min
Total power of machine17kw
Machine weightapprox. 3500kg
Roundness Accuracy0.002mm
Surface RoughnessRa0.32um
M

Machine Photos

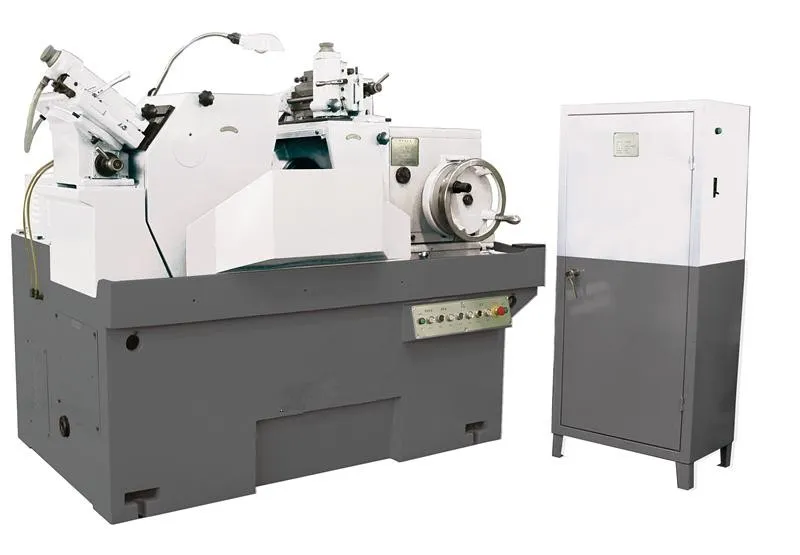

Machine Photo 1
Machine Photo 2
Machine Photo 3
S

Service & Inspection

  • Quality Inspection: Each machine is thoroughly inspected before leaving the factory.
  • Negotiation Support: Inquiry and consulting support within 35 minutes; Sample testing available.
  • After-Sales Service: Operational training and engineer support available overseas.
  • Guarantee: One-year guarantee under normal working conditions (excluding wearing parts).
  • Technical Support: 24-hour support via call/email during the guarantee period.

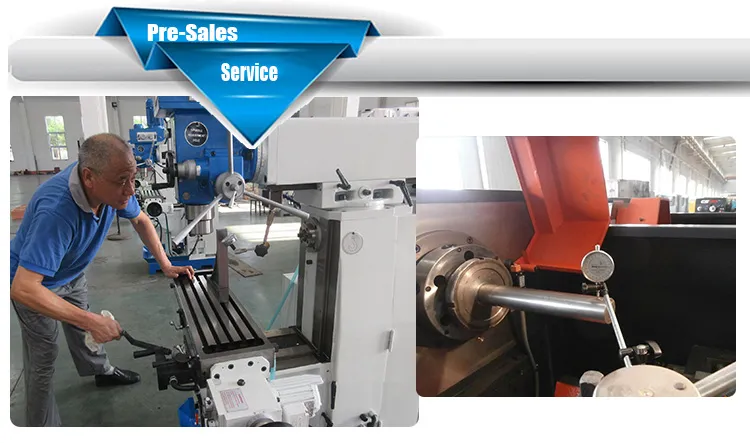

Technical Service Process Display
W

Wearing Parts List

No.Item
1Blade in feed
2Blade through feed
3Worm
4Worm wheel
5Grinding wheel
6Regulating wheel
+

More Products

Product Range 1
Product Range 2
Full Product List 1 Full Product List 2

Frequently Asked Questions

Q1: What is the maximum grinding diameter of the M1080 machine?
A1: The M1080 centerless grinding machine can process diameters ranging from 5mm to 80mm.
Q2: What are the precision levels of this grinder?
A2: The machine achieves a roundness accuracy of 0.002mm and a surface roughness of Ra0.32um.
Q3: Does the machine come with any certifications?
A3: Yes, the machine is CE and ISO9001 certified, ensuring compliance with international quality and safety standards.
Q4: What is the lead time for delivery?
A4: For a single unit, the typical lead time is 60 days. Larger orders are subject to negotiation.
Q5: What kind of support is provided for overseas customers?
A5: We provide training on how to install and use the machine, and our engineers are available for overseas machinery service if required.
Q6: How long is the warranty period?
A6: We offer a one-year guarantee under normal working conditions, excluding standard wearing spare parts.
