Precision CNC Vertical Drilling and Milling System for Professionals

1 / 5

Precision CNC Vertical Drilling and Milling System for Professionals

Customization:	Available
Certification:	CE
Condition:	New

Send Inquiry

Product Description

📋 Basic Specifications

Control System

CNC, PLC

Warranty

12 Months

Max. Glass Size

2500*4200mm

Dimensions

12700*4200*4200mm

Min. Glass Size

500*500mm

Glass Thickness

5-25mm

Spindle Speed

0-12000rpm

Spindle Power

7.5kw*2

Total Power

22kw

Air Compression

0.7MPa

Voltage

3*380V/50Hz or Customized

Weight

7500kg

Structure Type

Vertical CNC Drilling & Milling

Origin

China

🏭 Overview

We are a leading provider of high-quality flat glass processing machinery, service, and supplies. We focus on the most innovative and reliable equipment for fabricating, handling, and processing flat glass. Our equipment is characterized by innovative features, long-lasting durability, and high reliability.

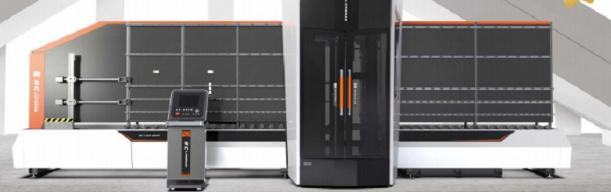

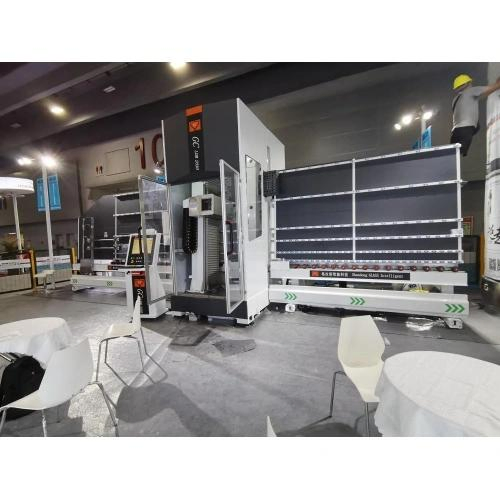

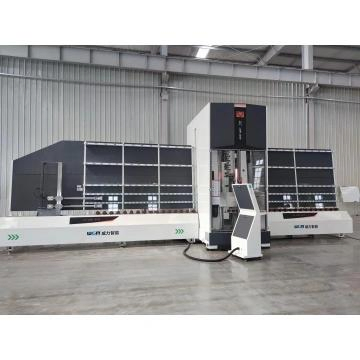

⚙ CNC Vertical Drilling and Milling Machine

Model: GC-LDM-III2542

The GC-LDM series is a high-tech vertical working center designed for the deep glass processing industry. It can perfectly complete complex work in a short time and process high-quality, high-precision glass, reducing the accuracy issues typical of manual drawing and cutting.

The system adopts advanced numerical control and drive to realize dynamic management of each axis and precise speed control. It is suitable for structural glass such as frameless doors and glass curtain walls.

Core Functions:

✓ Milling by single router
✓ High-precision Grinding
✓ Automatic Arrising
✓ Professional Polishing (Optional)

🛠 Structural Features & Advantages

The GC-LDM series vertical glass working center is designed to occupy less floor space while providing simple positioning. The vertical structure reduces obstruction and minimizes glass surface scratches.

🚀 High Rigidity: Welded structural steel main frame for fast response and stability.

🎯 Precision Components: Equipped with Taiwan HIWIN ball screws and linear guide rails.

🔂 Durability: Maintains high precision even after years of heavy use with low wear.

💧 Efficient Maintenance: Centralized oil supply system for all moving parts.

🛡 Stainless Protection: Main protective parts made of 201 stainless steel with dual observation doors.

📊 Technical Parameters

Parameter	Specifications
Model No.	GC-LDM-II
Max. Glass Size	20003000mm / 25004200mm / 3000*6000mm
Min. Glass Size	500*500mm
Glass Thickness	5-25mm
Spindle Speed	0-12000rpm
Spindle Power	7.5KW * 2
Tool Positions	62 / 82 (Optional)
Tool Taper	BT30
Number of Axis	5 Axis
Weight	6700kg / 7500kg / 8200kg

💻 Key Components

Component	Brand/Origin	Qty
Control System	Mitsubishi (Japan)	1 Set
Servo Drive/Motor	Mitsubishi (Japan)	5 Pcs
Inverter	Inovance (China Top Brand)	2 Pcs
Low Voltage Electric	Schneider (France)	1 Set
Pneumatic Parts	AirTAC (Taiwan)	1 Set
Spindles	OEM for Glass Grinding (0-12000 rpm)	2 Pcs
Software	Easy CAM (GC)	1 Set
Linear Guides/Screws	Hiwin (Taiwan)	1 Set
Lubrication System	BAOTN	1 Set

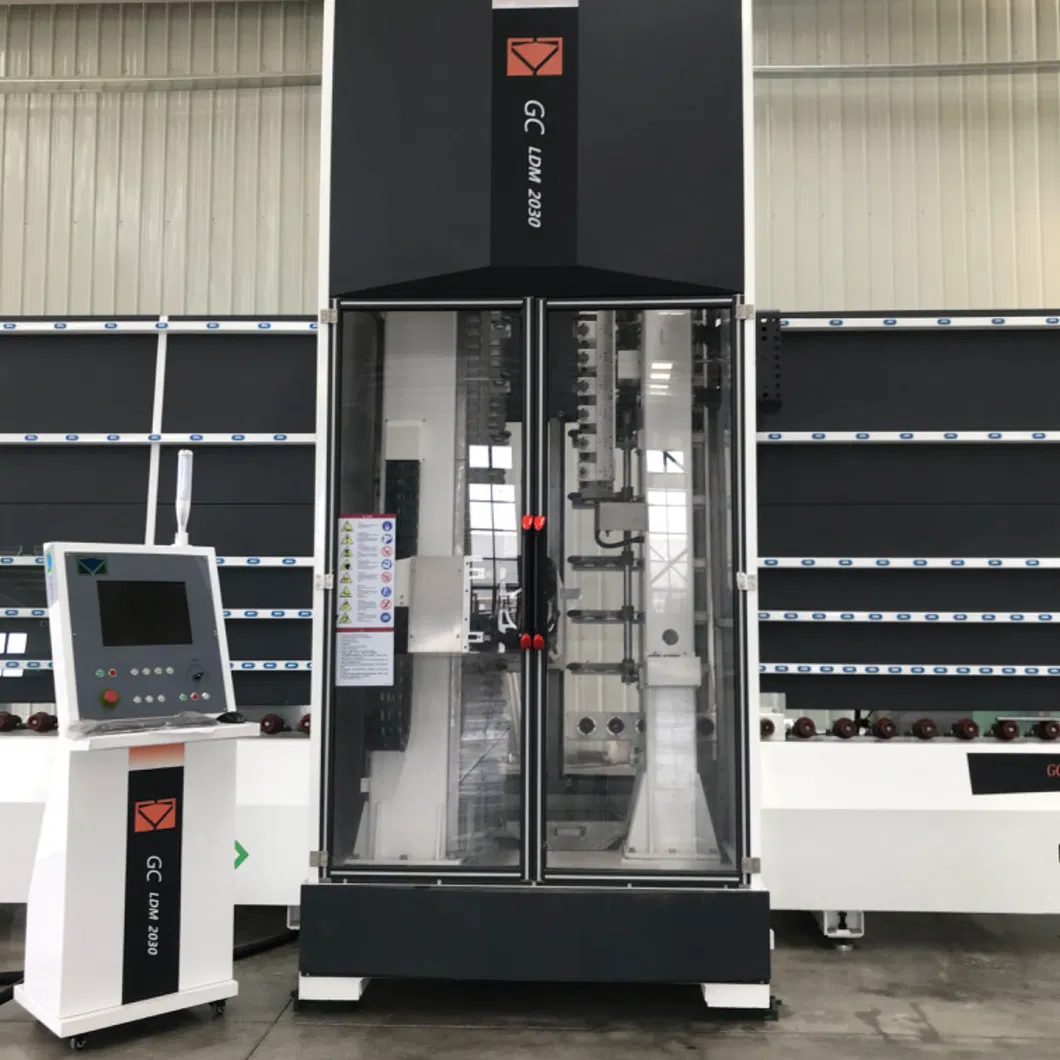

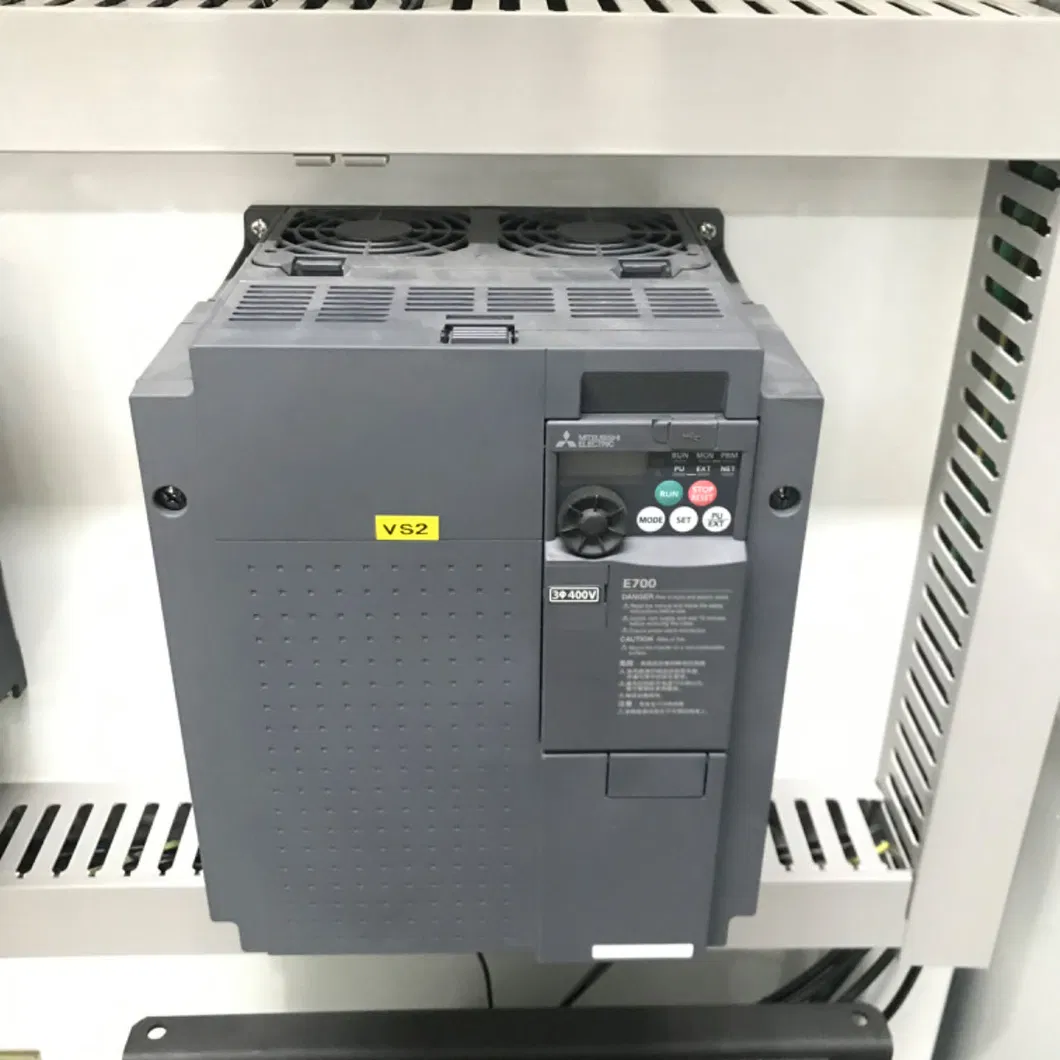

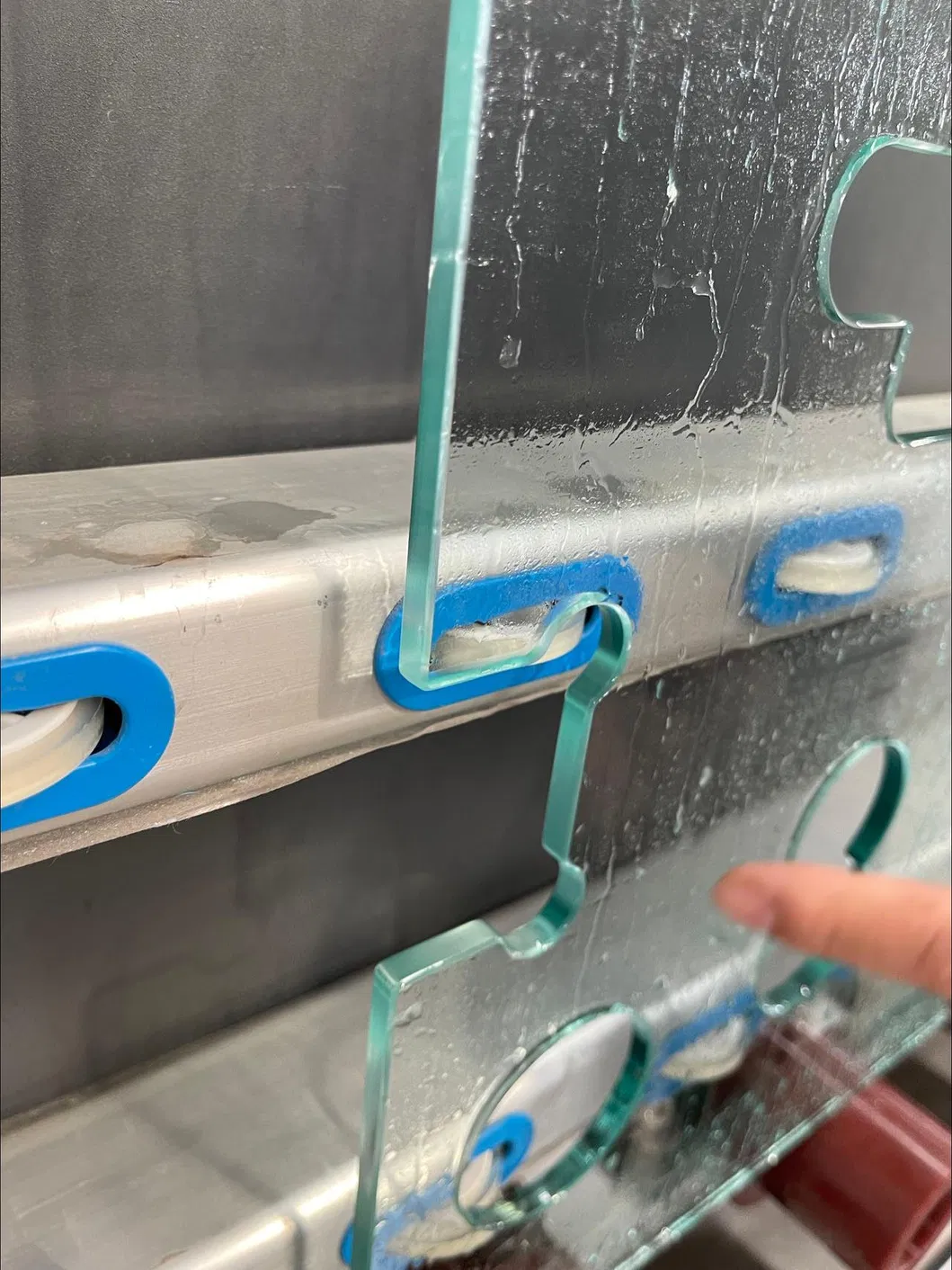

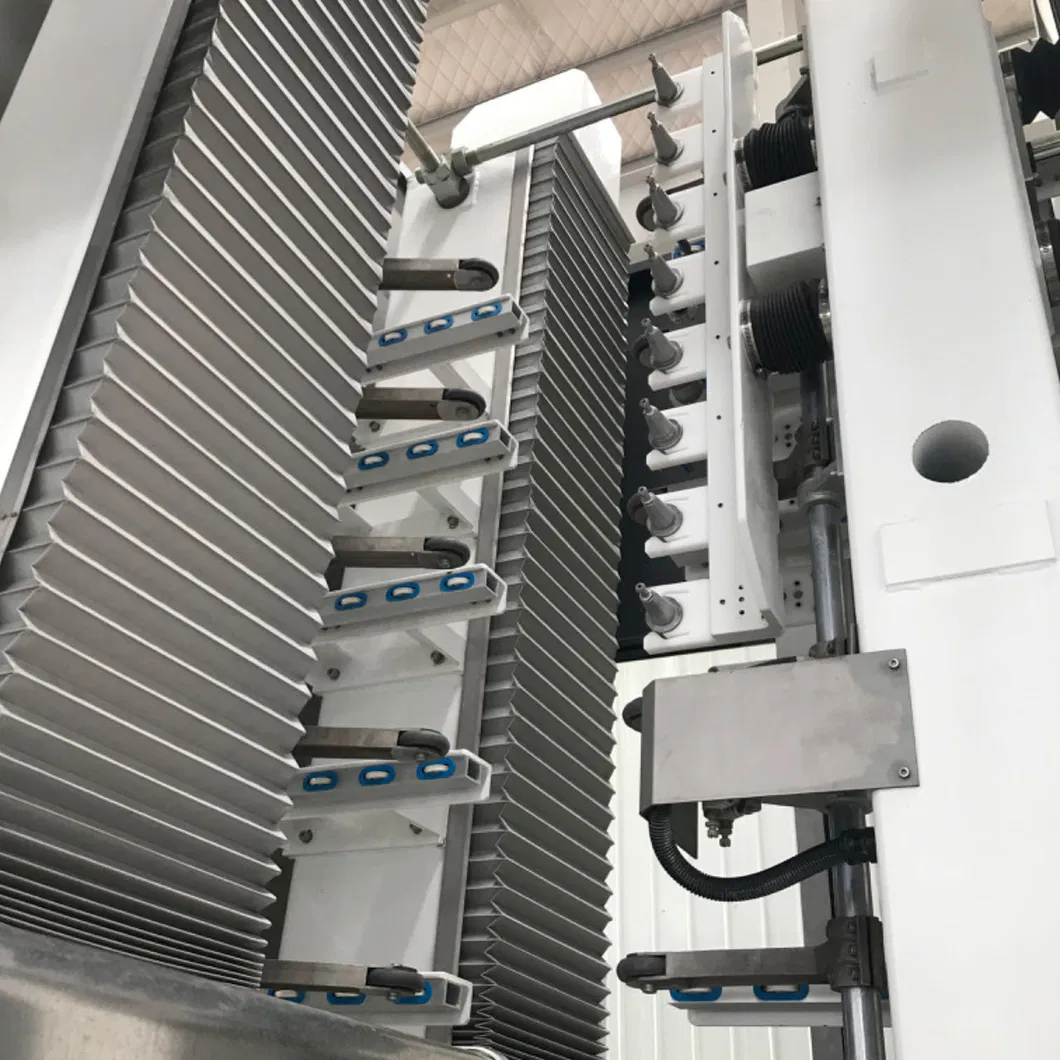

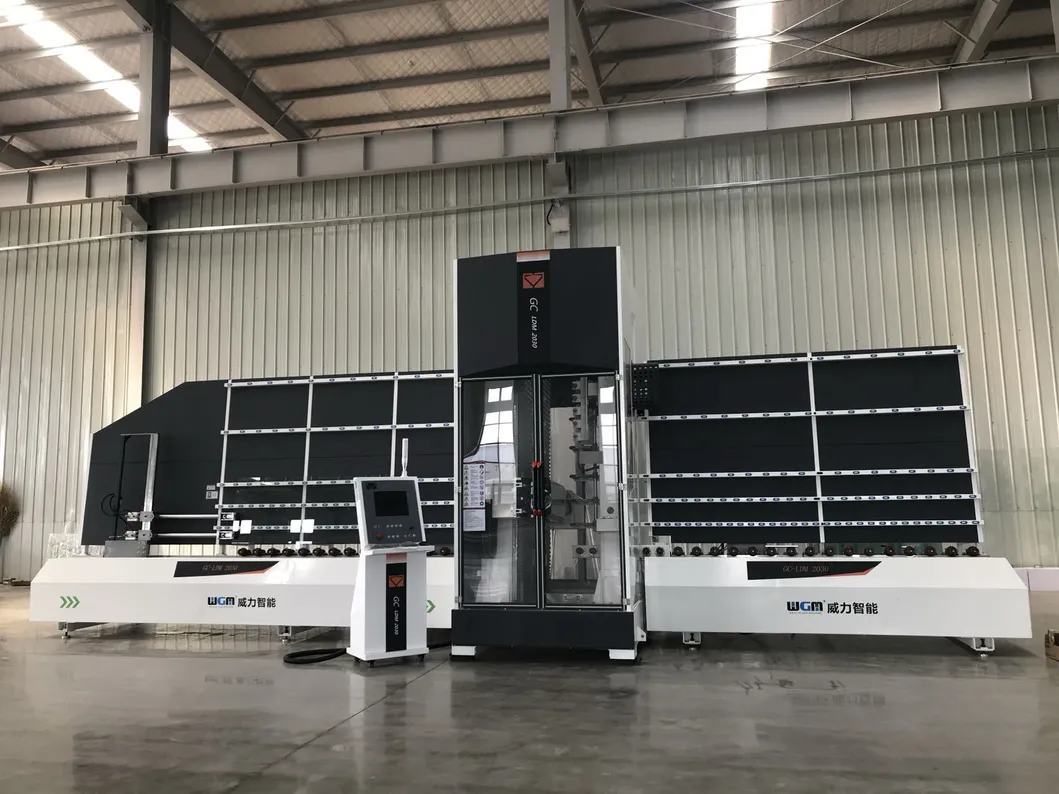

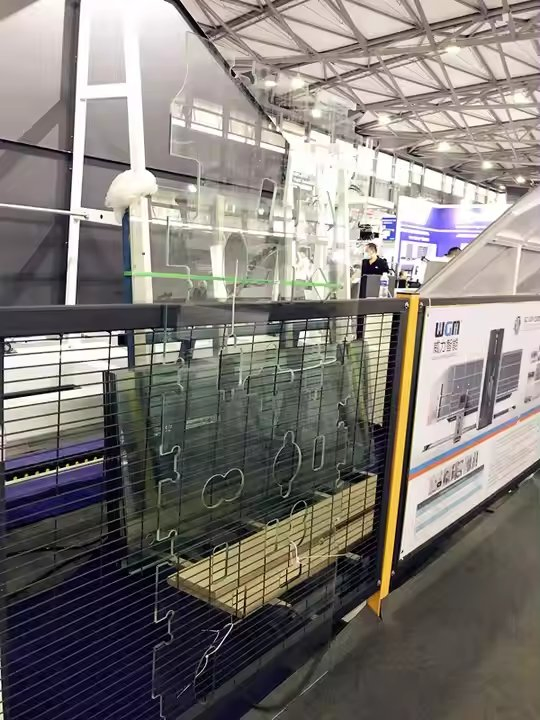

📸 Detailed Gallery

❓ Frequently Asked Questions

What functions can this CNC vertical machine perform?

The GC-LDM series performs automatic drilling, milling, grinding, and arrising. Polishing is also available as an optional function.

What is the maximum glass thickness supported?

The machine is designed to handle flat glass with a thickness ranging from 5mm up to 25mm.

Which control system is used for high-precision operations?

The equipment utilizes the advanced Mitsubishi (Japan) CNC control system and servo drives to ensure precise dynamic management of all 5 axes.

What kind of glass products are suitable for this machine?

It is ideal for high-precision structural glass processing, including frameless glass doors and glass curtain wall panels.

How is the machine protected against moisture and wear?

Major structural parts are protectively covered using 201 stainless steel. It also features a centralized automatic lubrication system for all linear guides and ball screws to ensure longevity.

What is the spindle speed range?

The high-performance spindles operate at a variable speed range from 0 to 12,000 rpm, allowing for both heavy milling and fine finishing.
