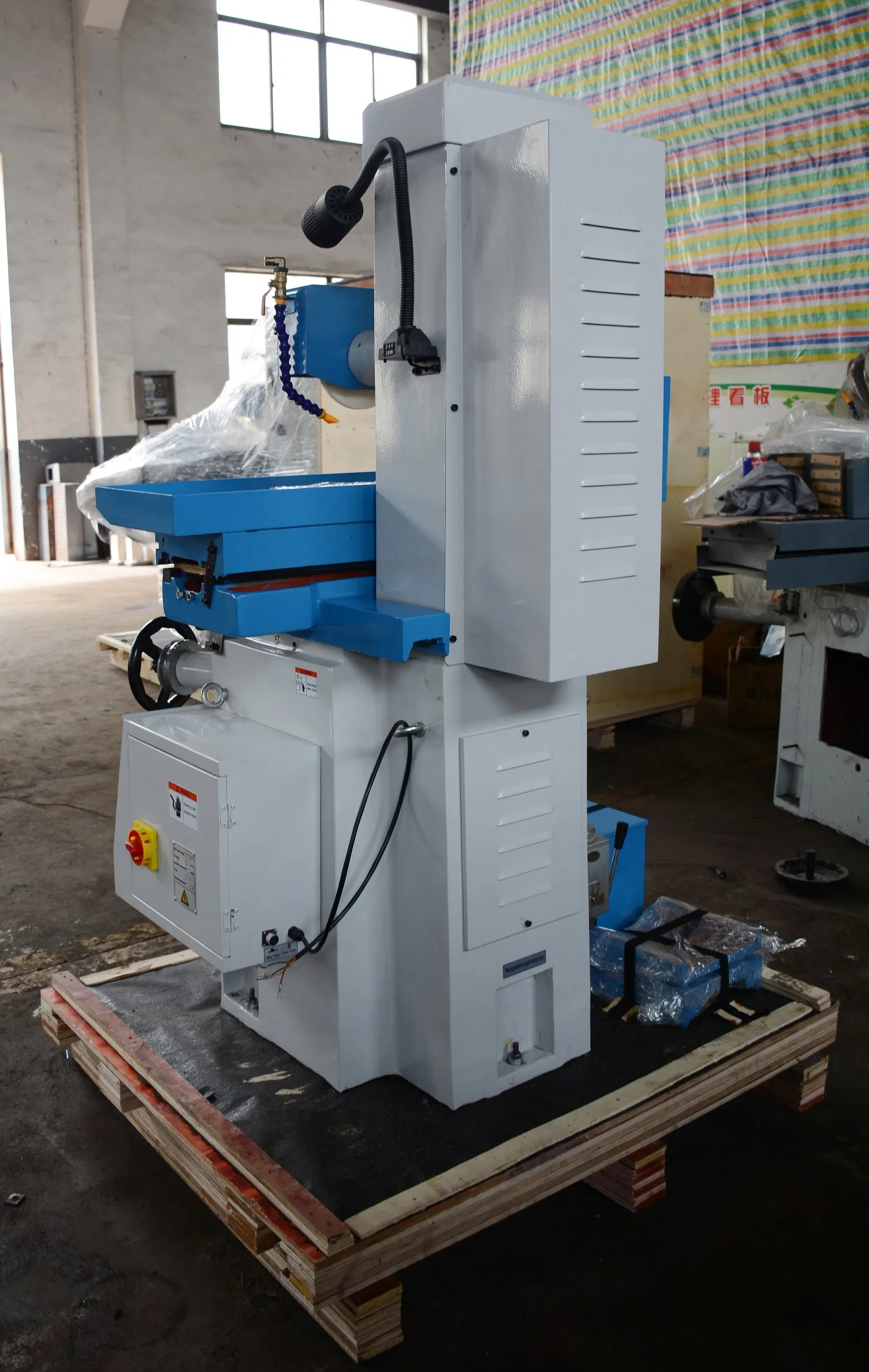

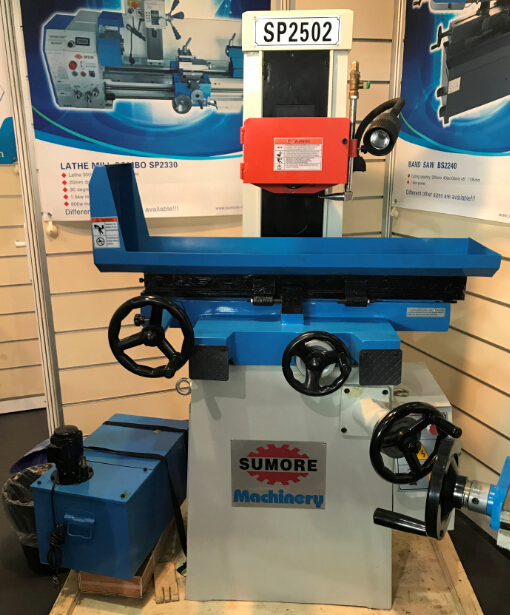

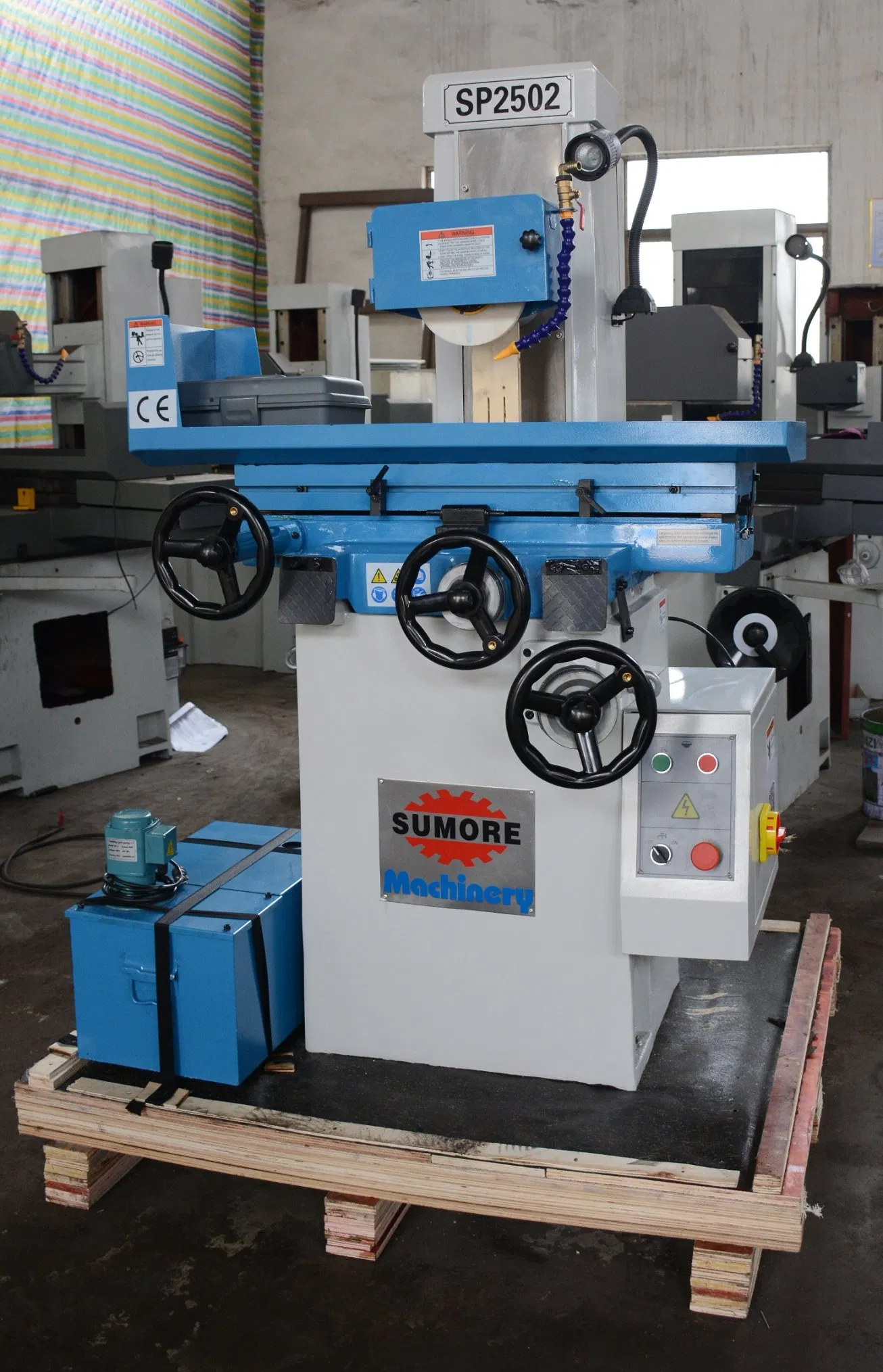

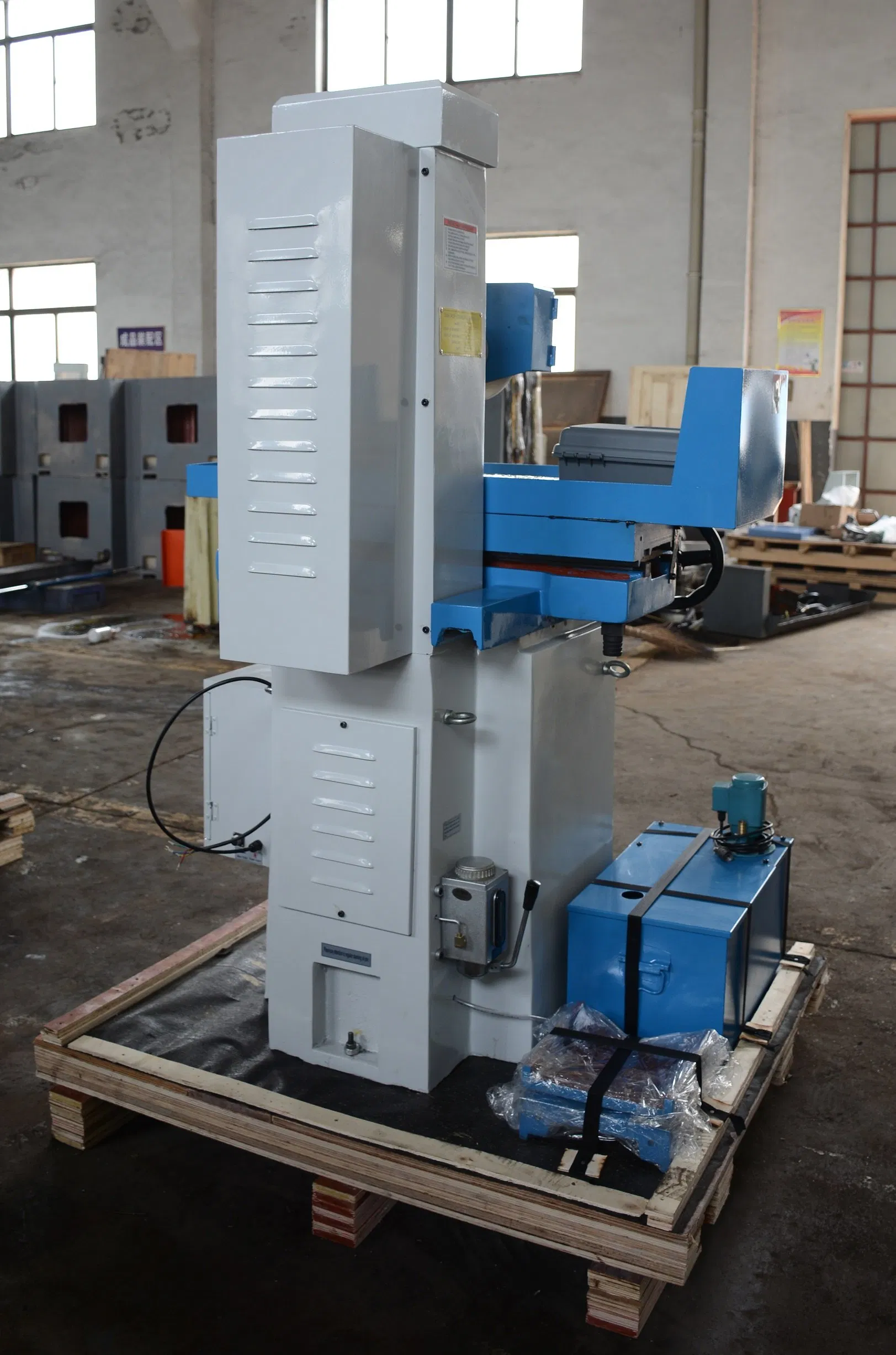

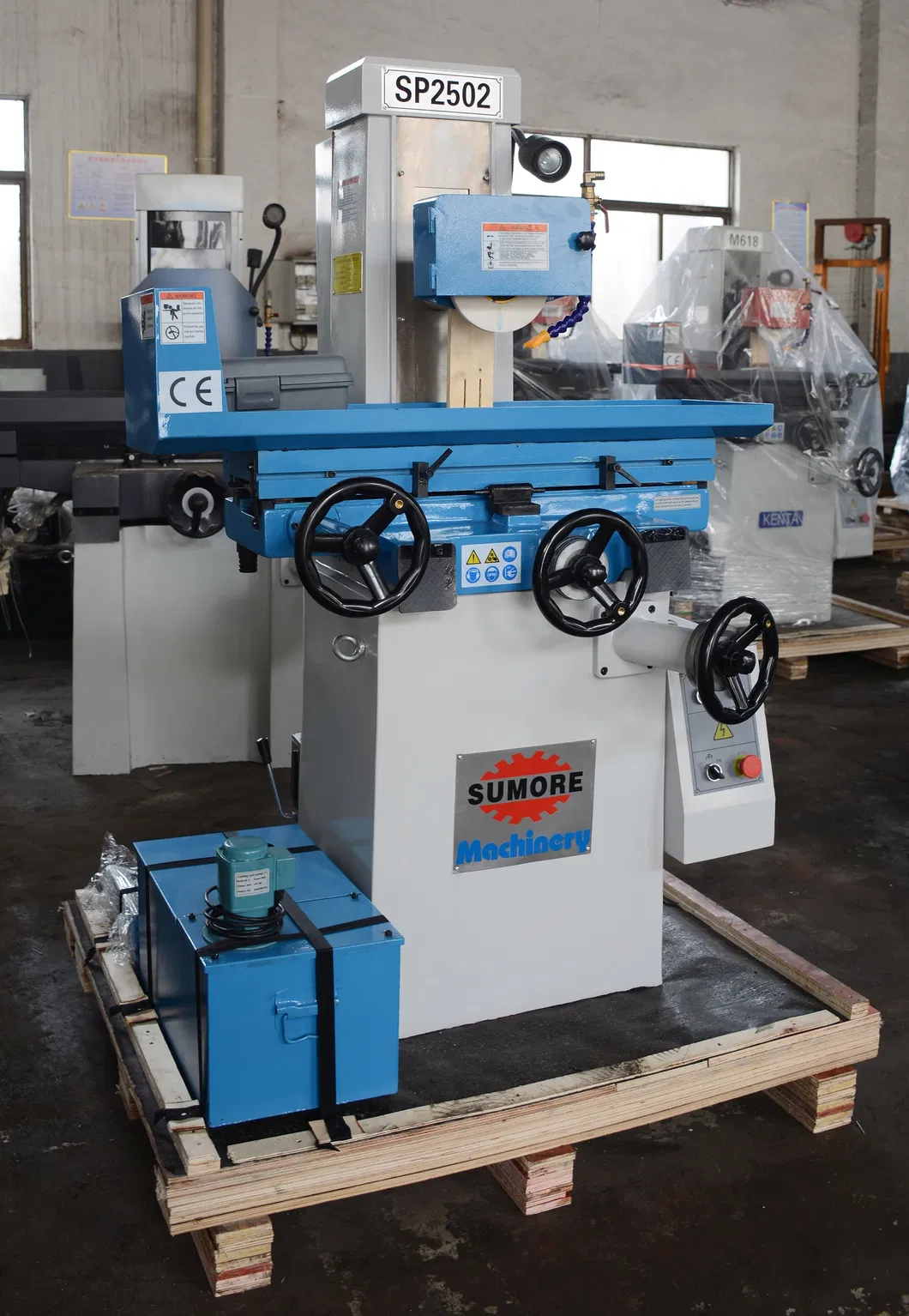

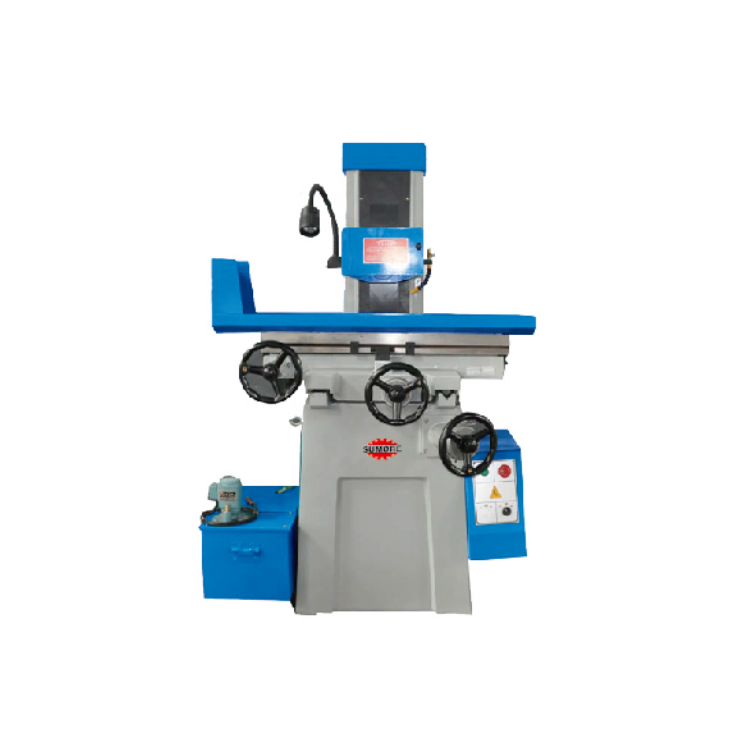

High-Performance Manual Surface Grinding Machine
The SP2502 manual surface grinding machine is a high-quality metalworking solution engineered for precision and durability. Designed with advanced structural integrity, it offers performance comparable to world-class grinding standards.
Key Features:

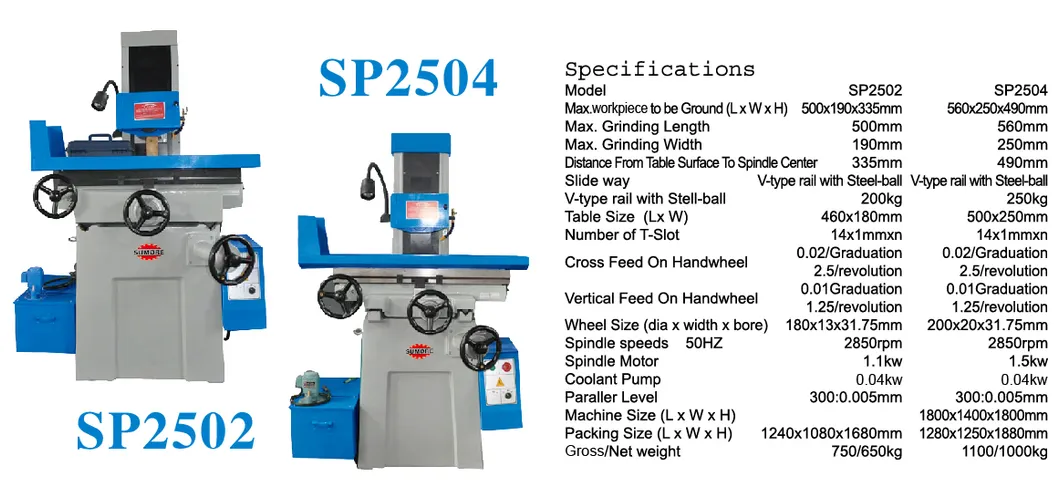

| Specifications | Unit | SP2502 Data | |
|---|---|---|---|
| Working Table | Table Size (L×W) | mm | 460×180 |
| Max Movement (L×W) | mm | 500×190 | |
| T-Slot Number × Width | mm | 1×14 | |
| Grinding Head | Max Distance Spindle Center to Table | mm | 335 |
| Wheel Size (OD×W×ID) | mm | φ180×13×Φ31.75 | |
| Wheel Speed | 50Hz / 60Hz | r/min | 2850 / 3440 |
| Motor Power | Spindle Motor | kw | 1.1 |
| Coolant Pump Motor | w | 40 | |
| Working Precision | Parallelism to Base Level | mm | 300:0.005 |
| Surface Roughness | μm | Ra0.32 | |

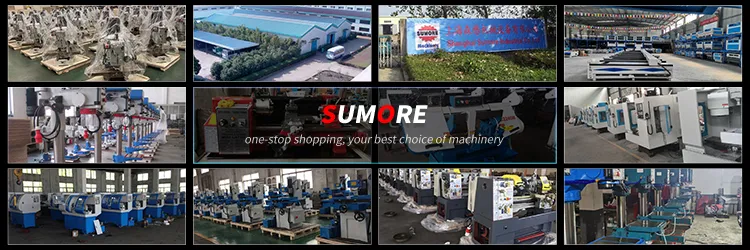

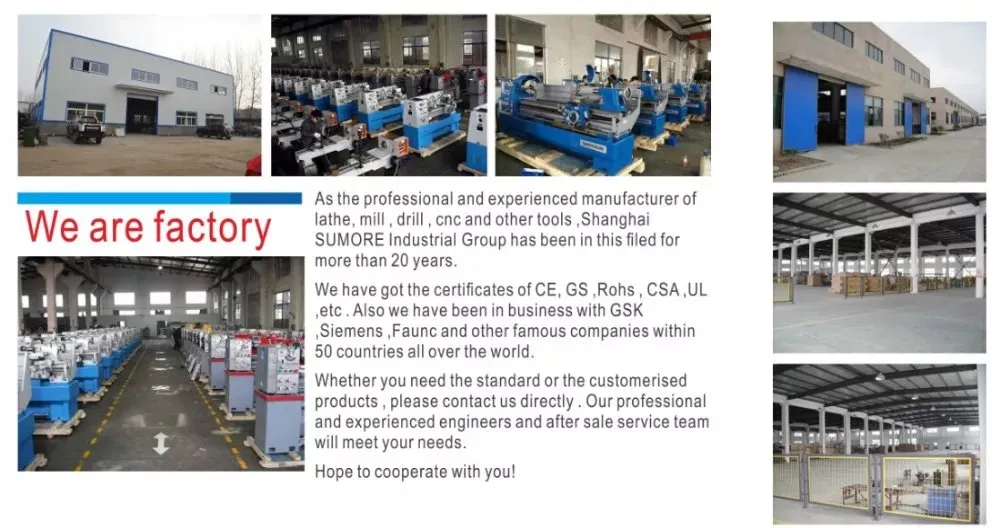

As a professional and experienced manufacturer of lathes, mills, drills, CNC, and other industrial tools, our group has been established in this field for over 20 years. We are committed to delivering precision-engineered machinery to global markets.
Our products hold international certifications including CE, GS, RoHS, and UL. We have successfully collaborated with renowned technology partners and serve customers in over 50 countries worldwide.
Whether you require standard models or customized industrial solutions, our experienced engineers and after-sales service teams are dedicated to meeting your specific requirements.
