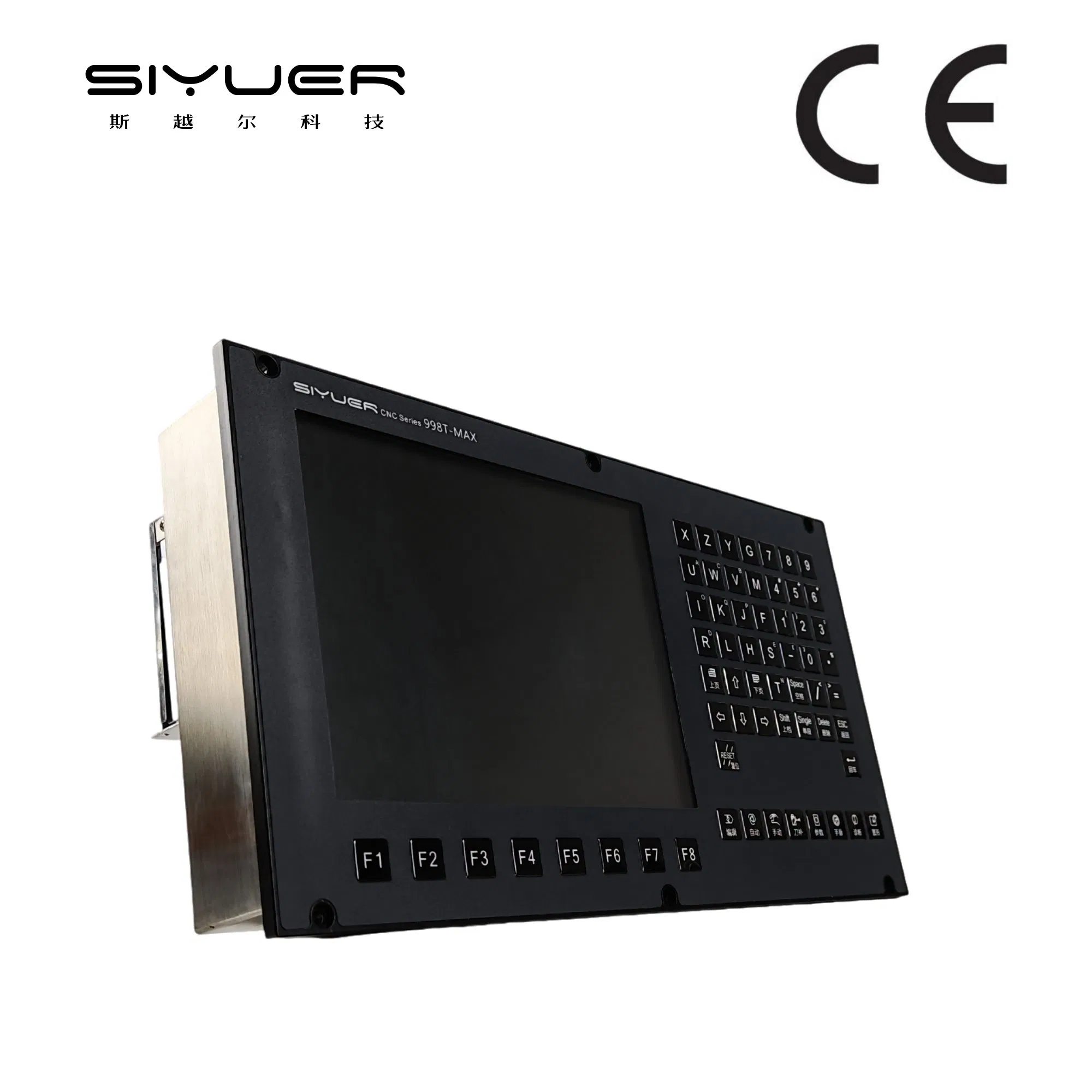

High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
1 / 5
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine
High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine

High Quality Precision 998t-Max 2axis CNC System Used for Mini Machine Tool Lathe Milling Grinding Machine

Customization: Available
Warranty: 3 Years
Logo Printing: with Logo Printing
Send Inquiry

Product Description

i Overview & Basic Information
Model NO.:
998T-MAX
Type:
CNC Controller
Axis Num:
2-6 Axis
CPU:
32bits+Fpga
Display Screen:
10.4 Inch
Material:
Stainless Steel / Aluminum Alloy
Accuracy:
0.1um
Interpolation Cycle:
1ms
User Store Room:
128MB
Certification:
GS, CE
Speed:
30m/Min
I/O Num:
56/32
★ Product Description

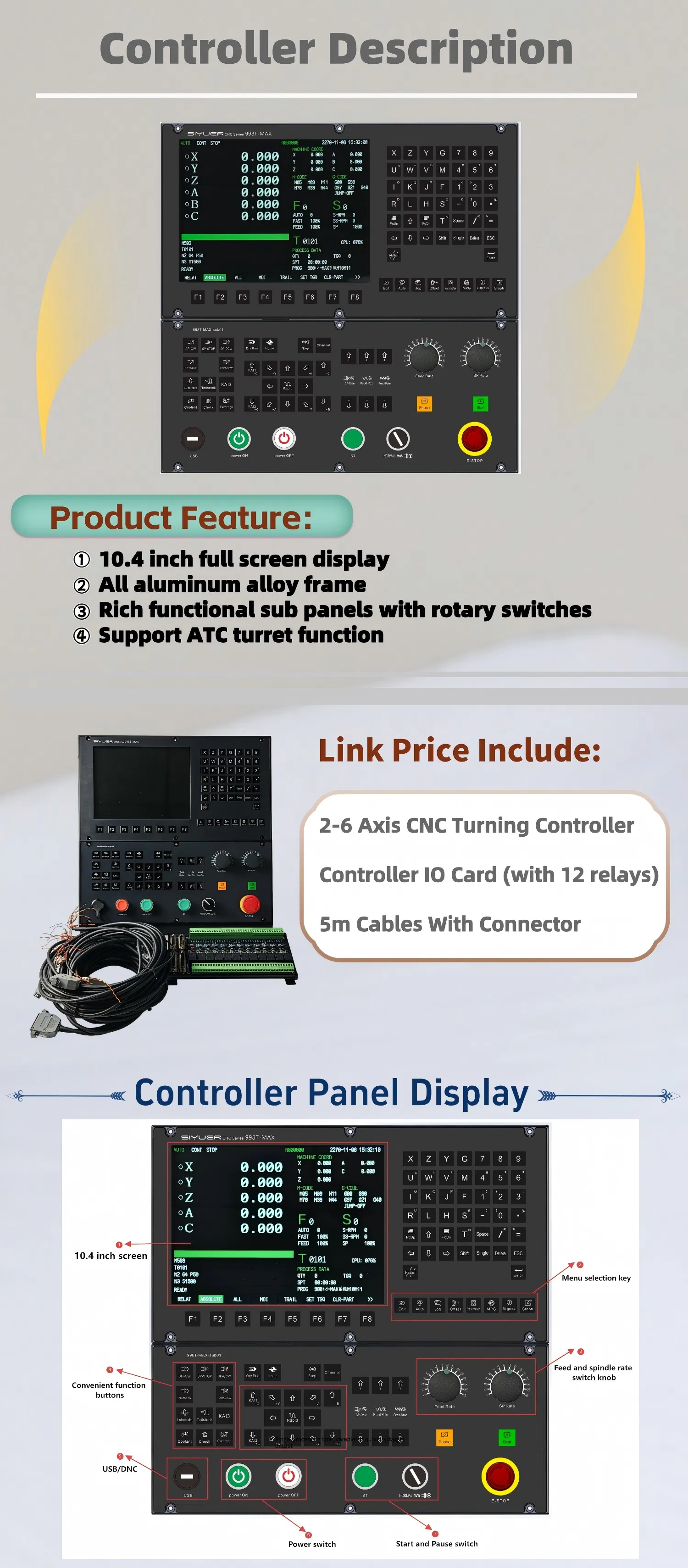

CNC System Overview

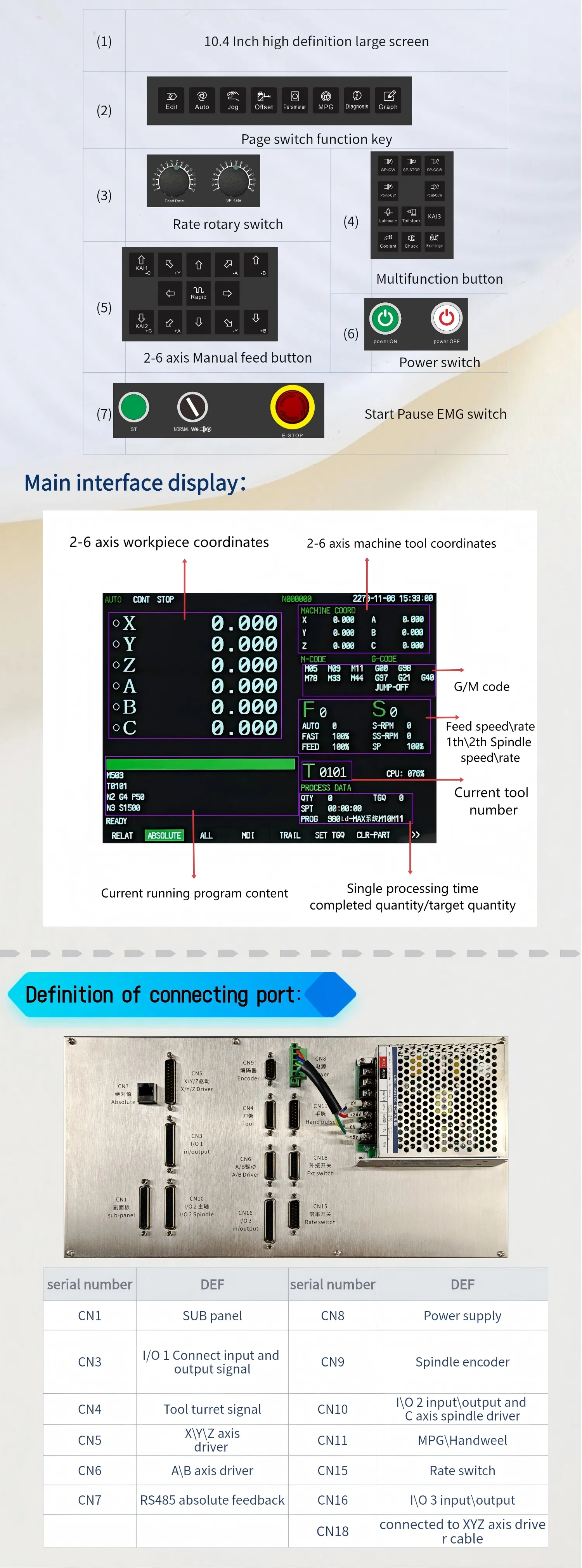

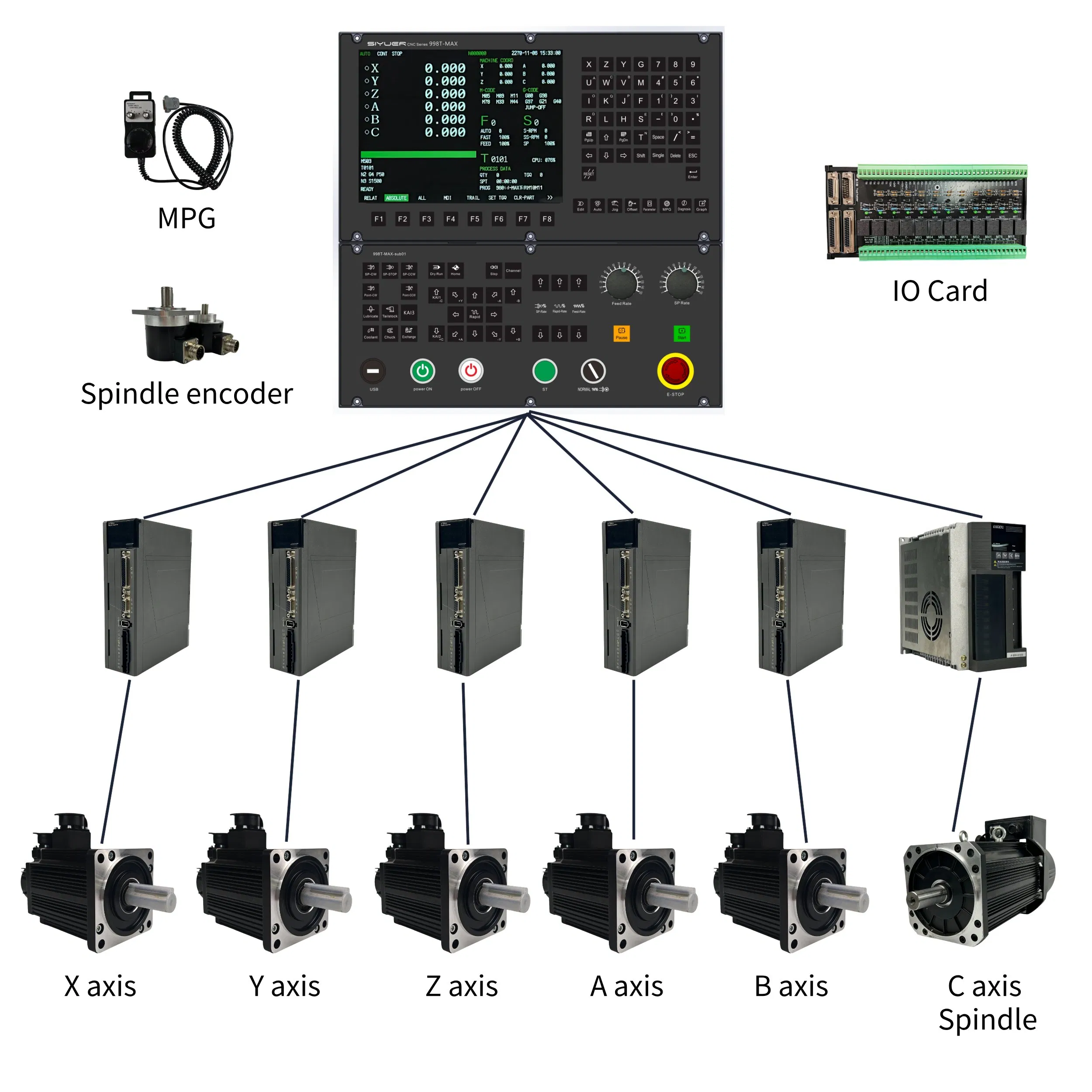

Technical Layout

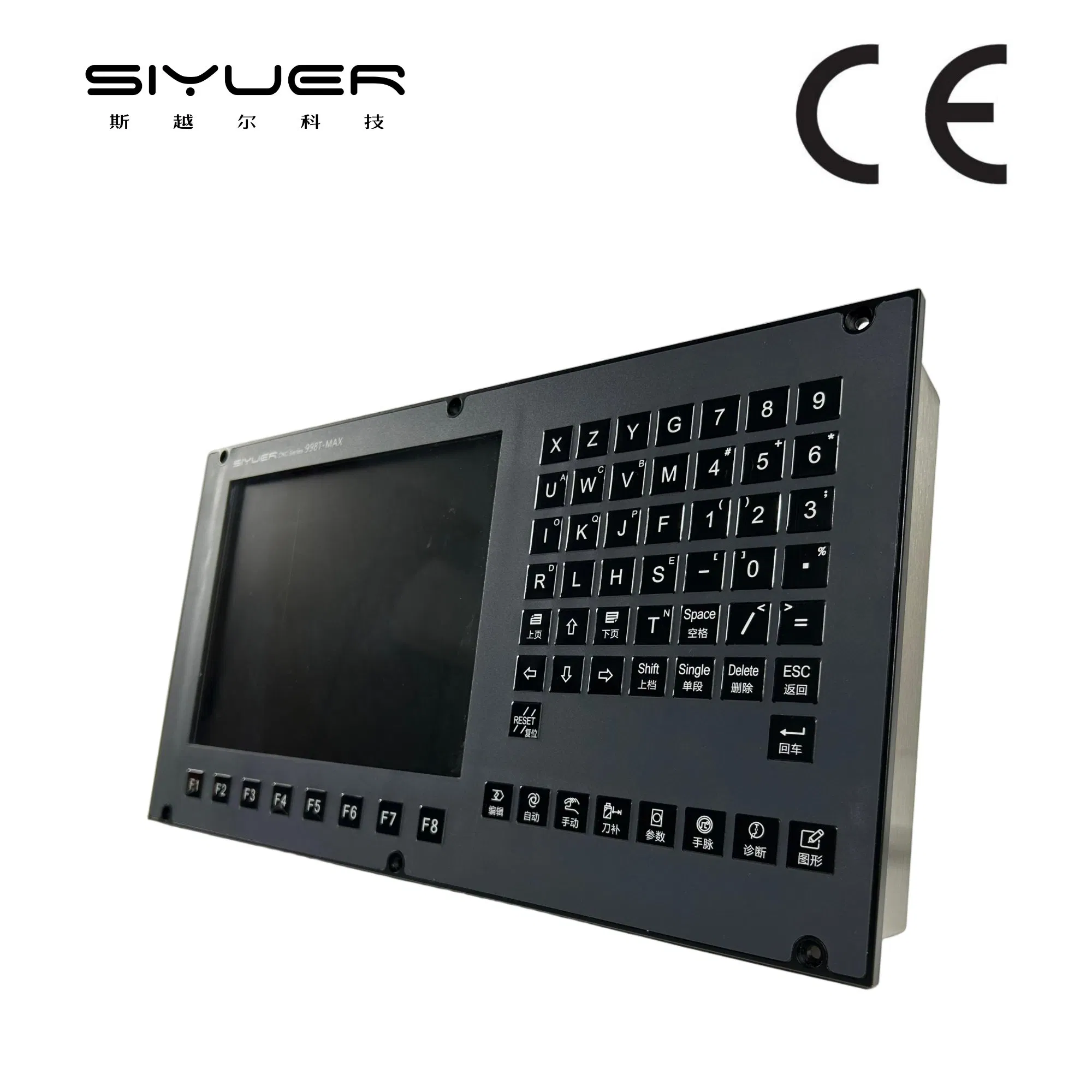

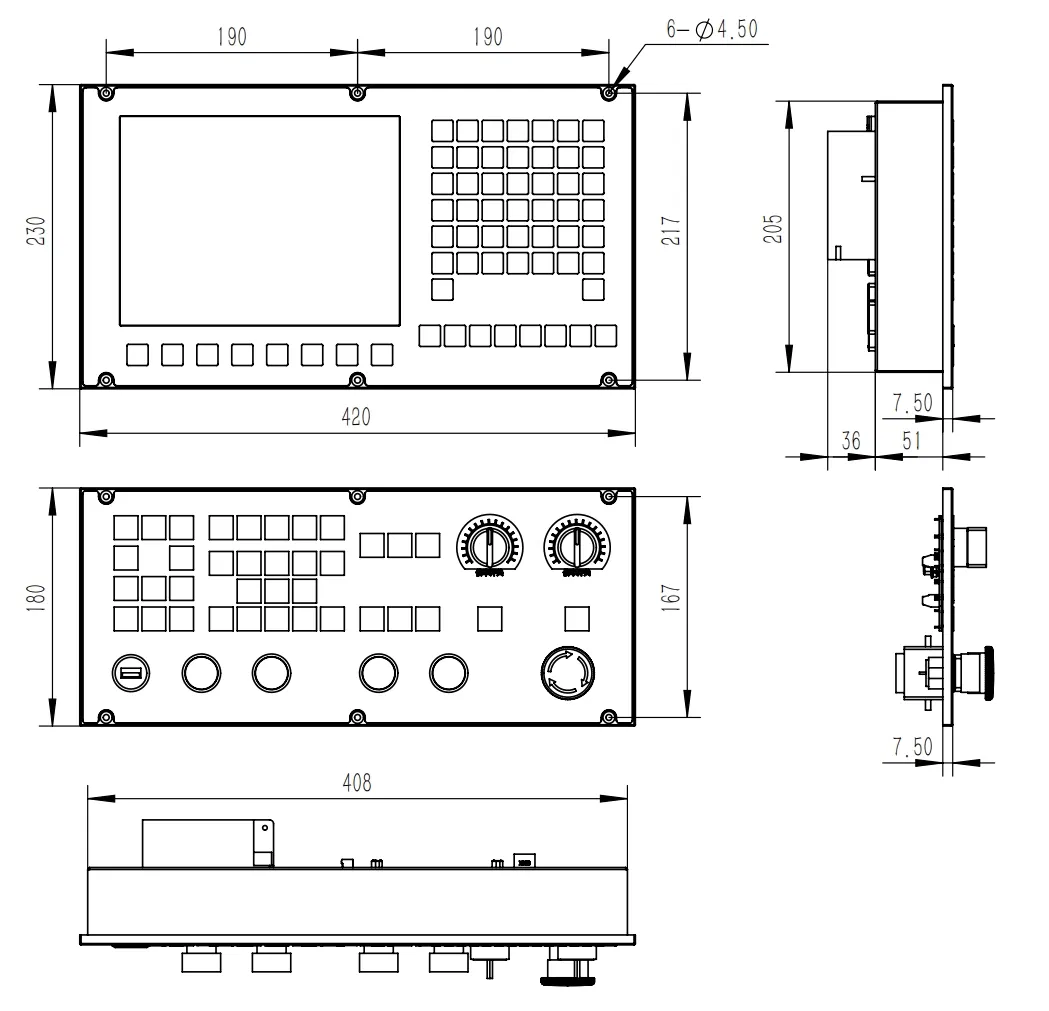

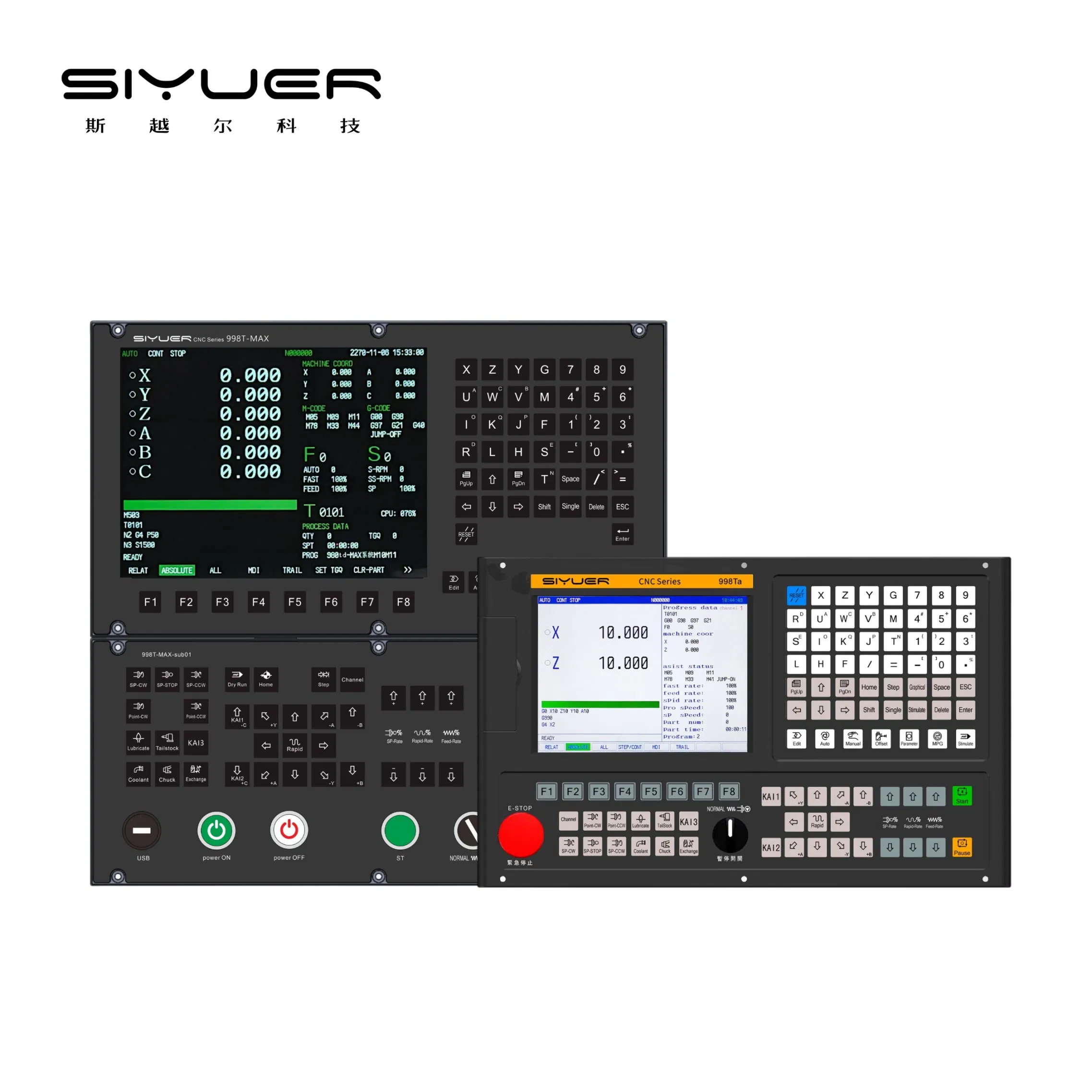

Device Front View

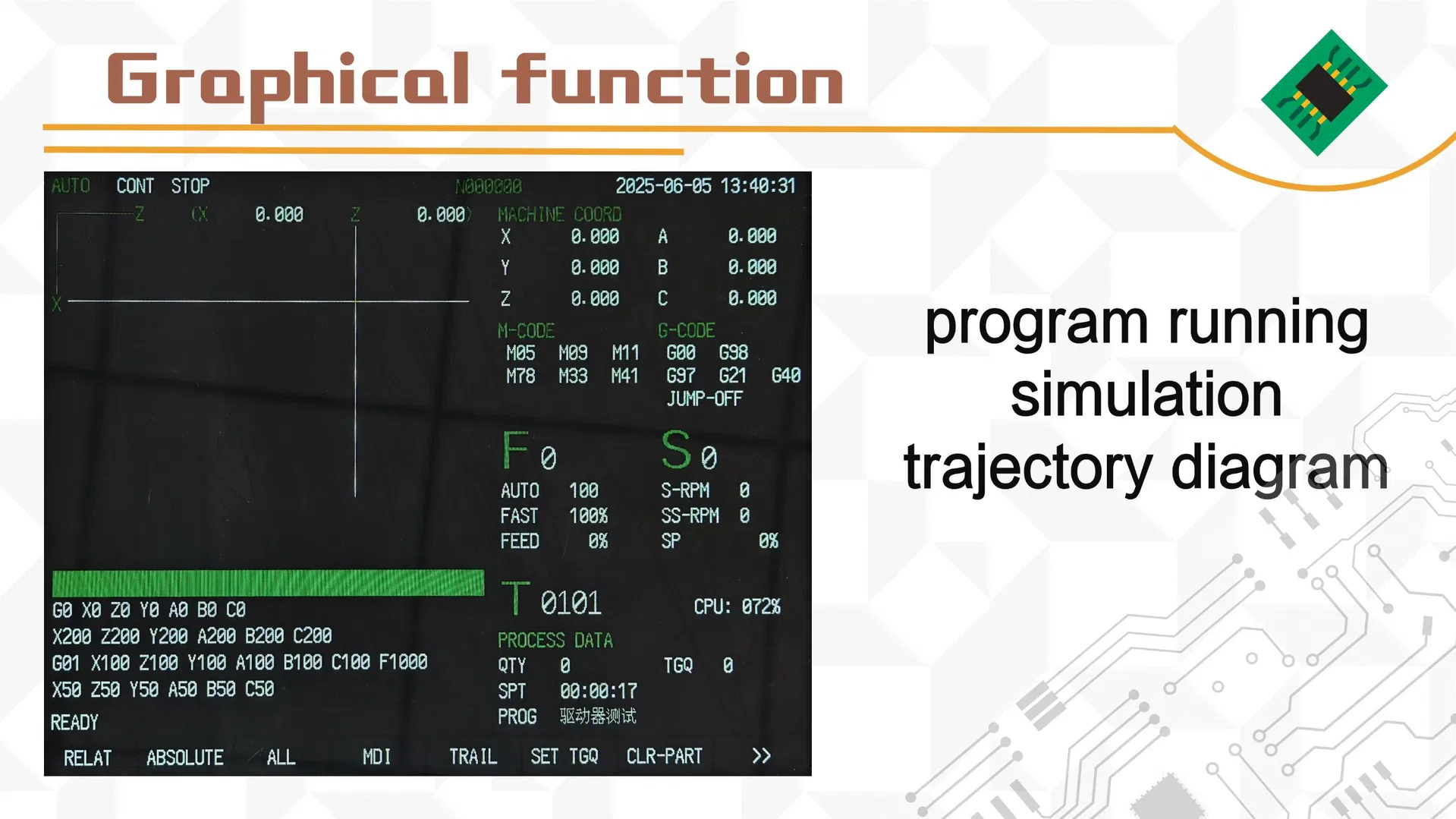

Control Interface

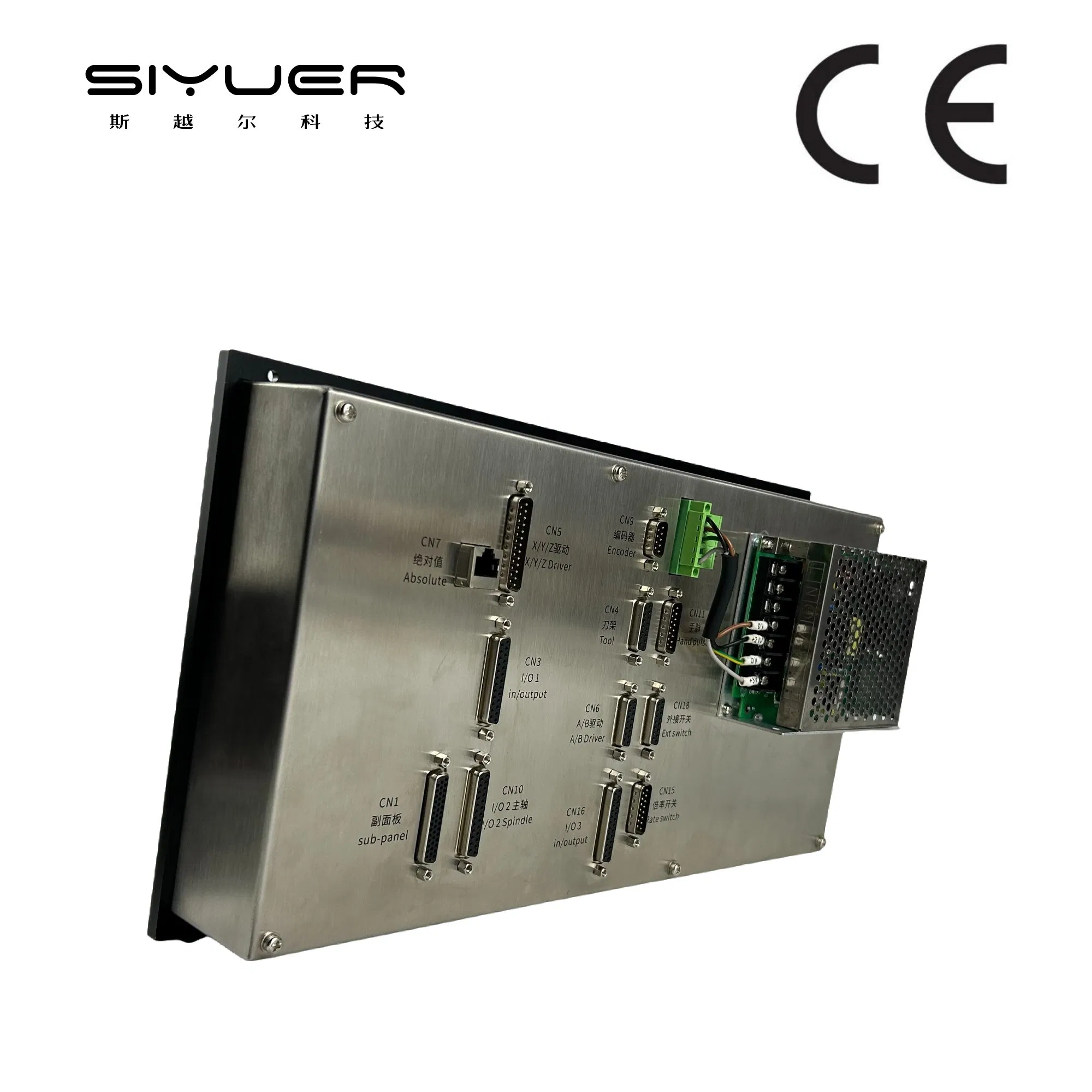

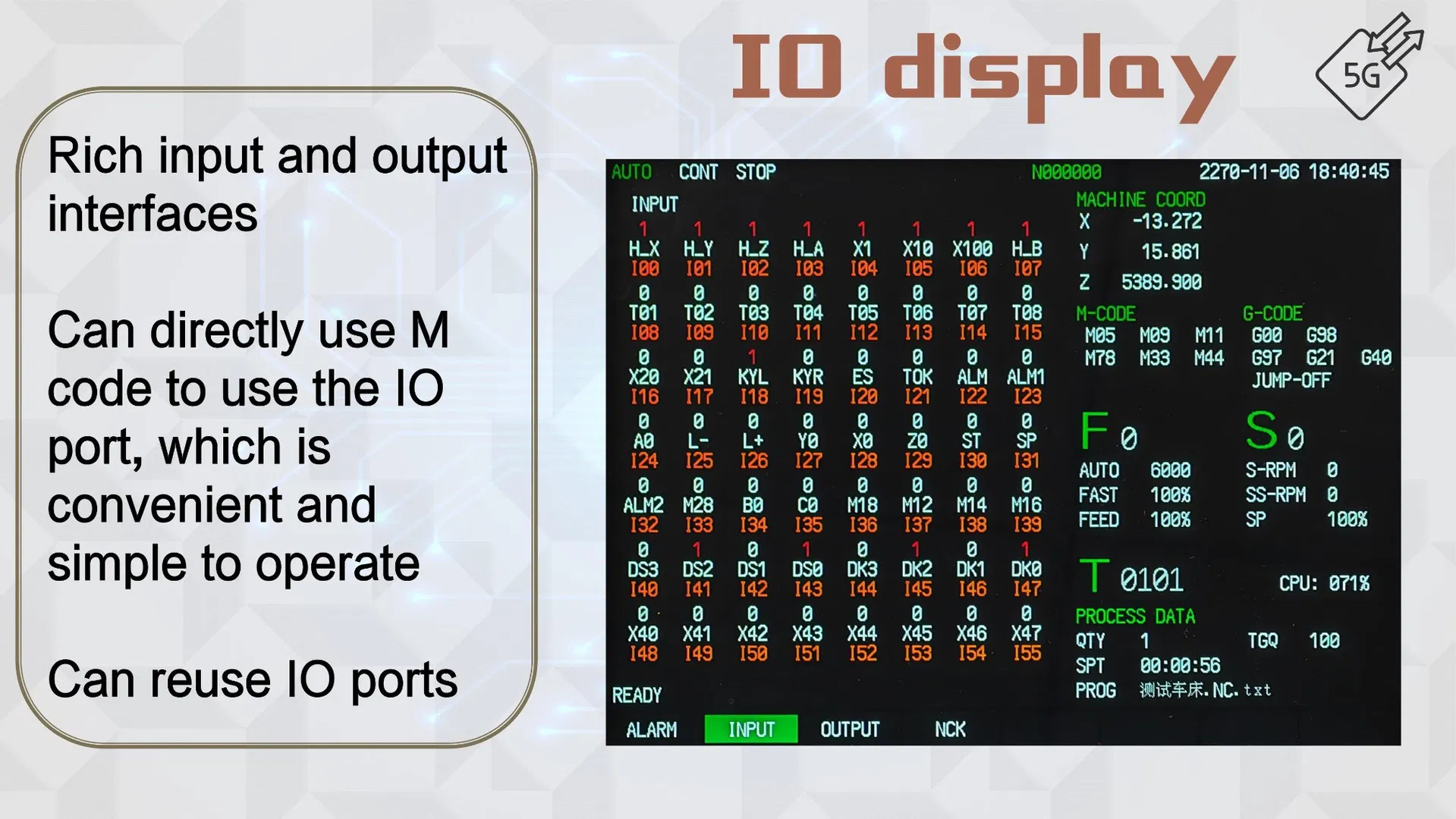

Back Panel

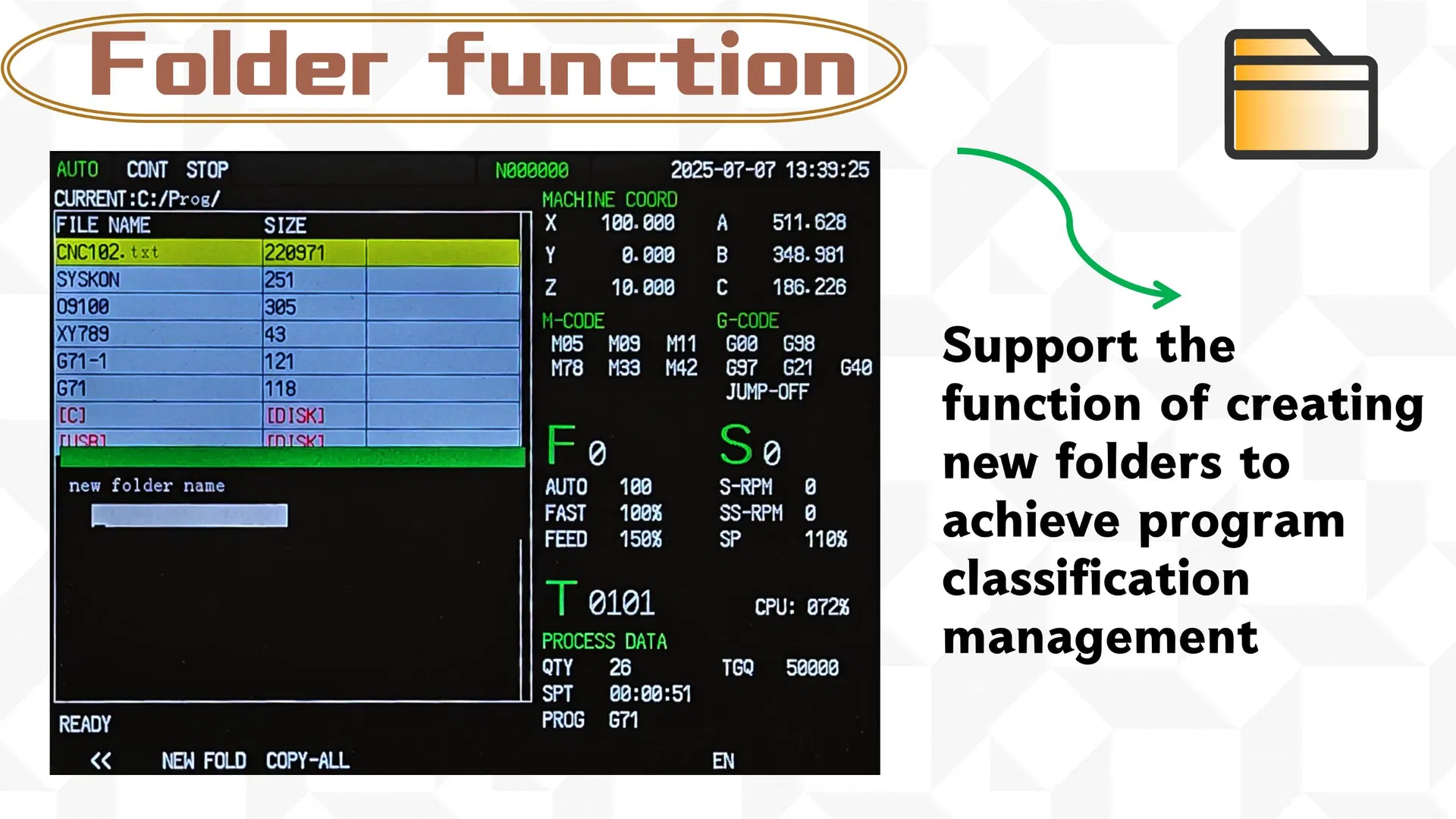

Wiring Ports

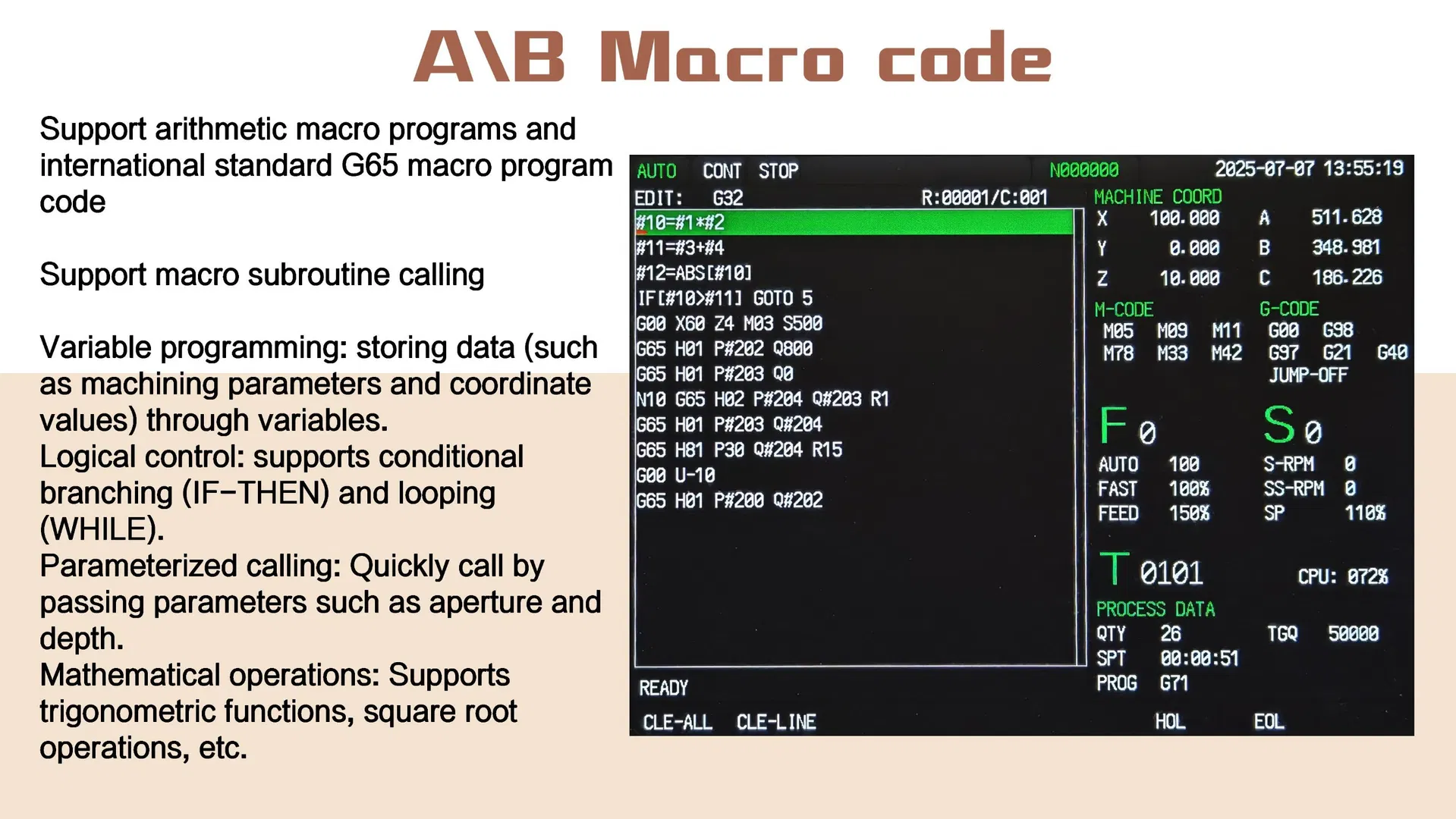

Application 1

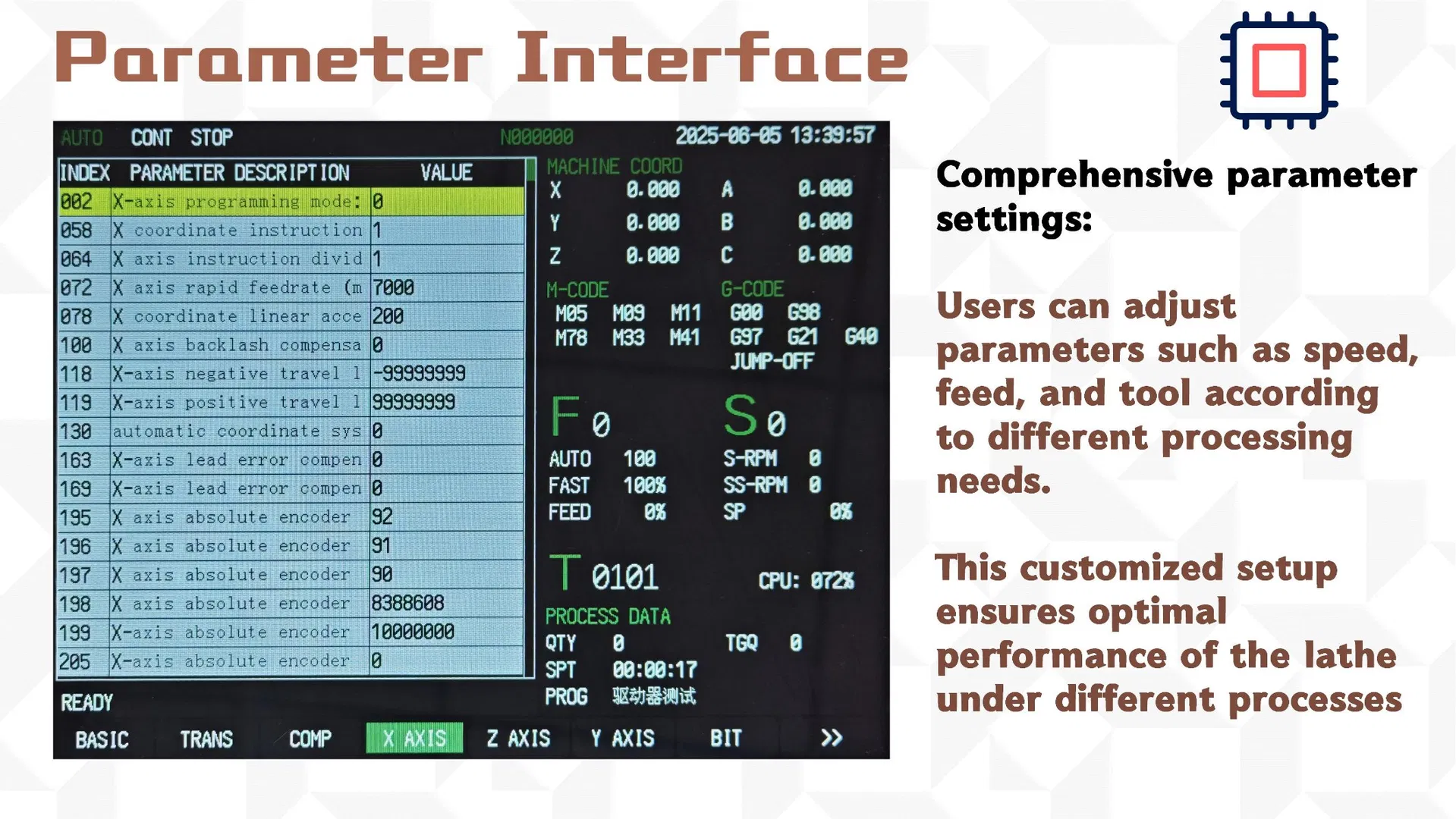

Application 2

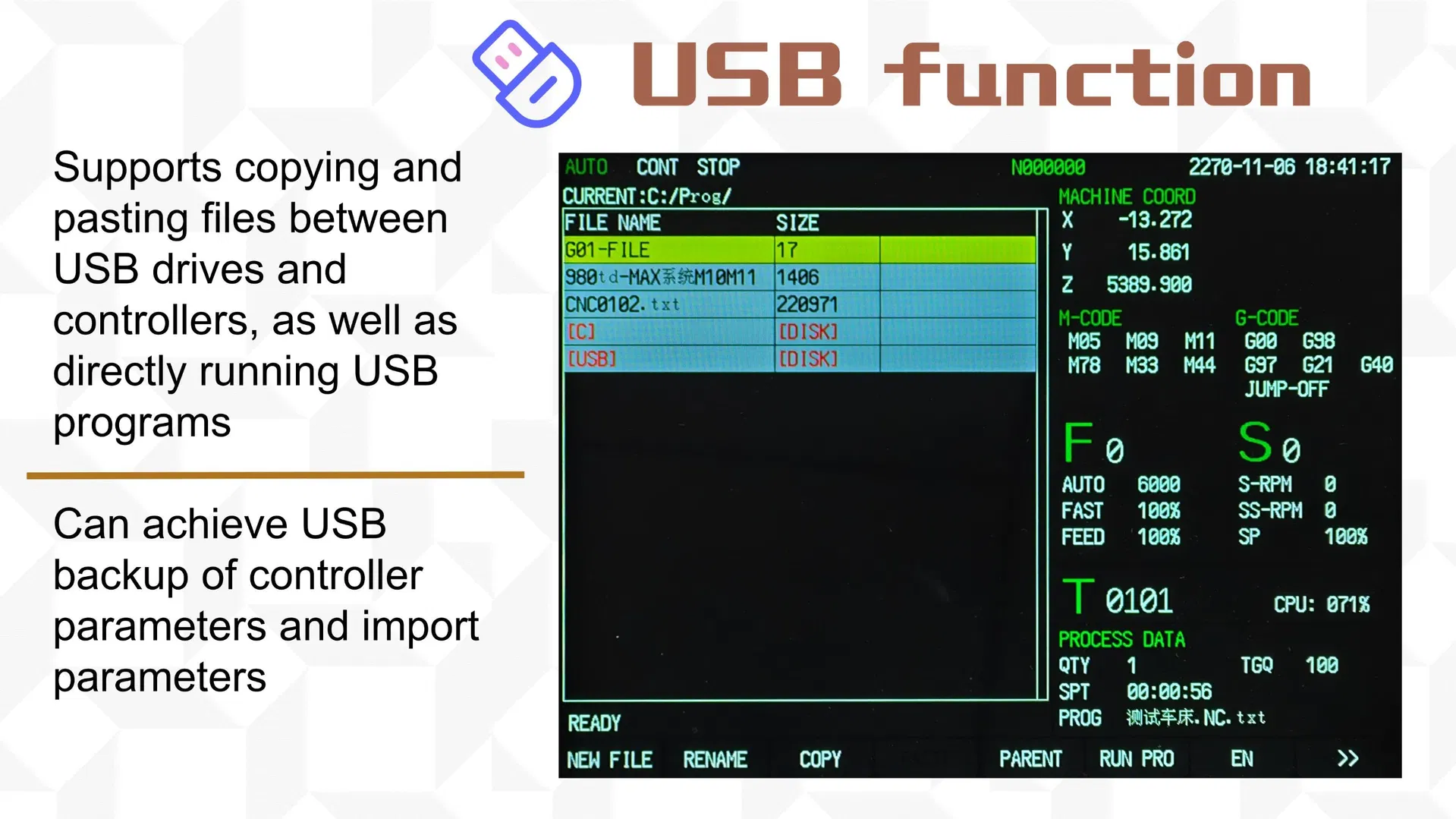

Application 3
📋 Technical Specifications
Function Details
Movement Control • Control axes: X, Z, Y, A, B, C; servo spindle C axis
• Signal: Pulse + direction, suitable for AC servo or stepper motors
• Min command unit: 0.001mm; Electronic gear: 1~32767
• Max speed: 30000mm/min; Cutting feed: 15000mm/min
G Codes 29 kinds: G00-G04, G28, G32, G34, G40-G42, G70-G76, G90, G92, G94-G99, macro G65 (logic operations & jumps).
Thread Machining Supports single/multi-head metric, tapered, end face, and variable pitch threads (0.0001mm to 500mm pitch).
Accuracy Compensation Reverse gap compensation (0-2.000mm), 512 pitch error compensation points, 32 sets of tool length/tip radius compensation.
Spindle Control 0-10V analog voltage dual-channel, supports S or SS speed giving, four main shaft gears, and frequency conversion.
Display & Editing 10.4-inch LCD (800x600), Multi-language (English/Chinese), 100M program capacity, full-screen editing.
📦 Packaging & Delivery
Package Size:
55.00cm * 33.00cm * 42.00cm
Gross Weight:
12.000kg
Standard Lead Time:
5 - 7 Workdays
To better ensure the safety of your goods, professional, environmentally friendly, and efficient packaging services (including export wooden crates for CNC Lathes) will be provided.
CNC Controller Package

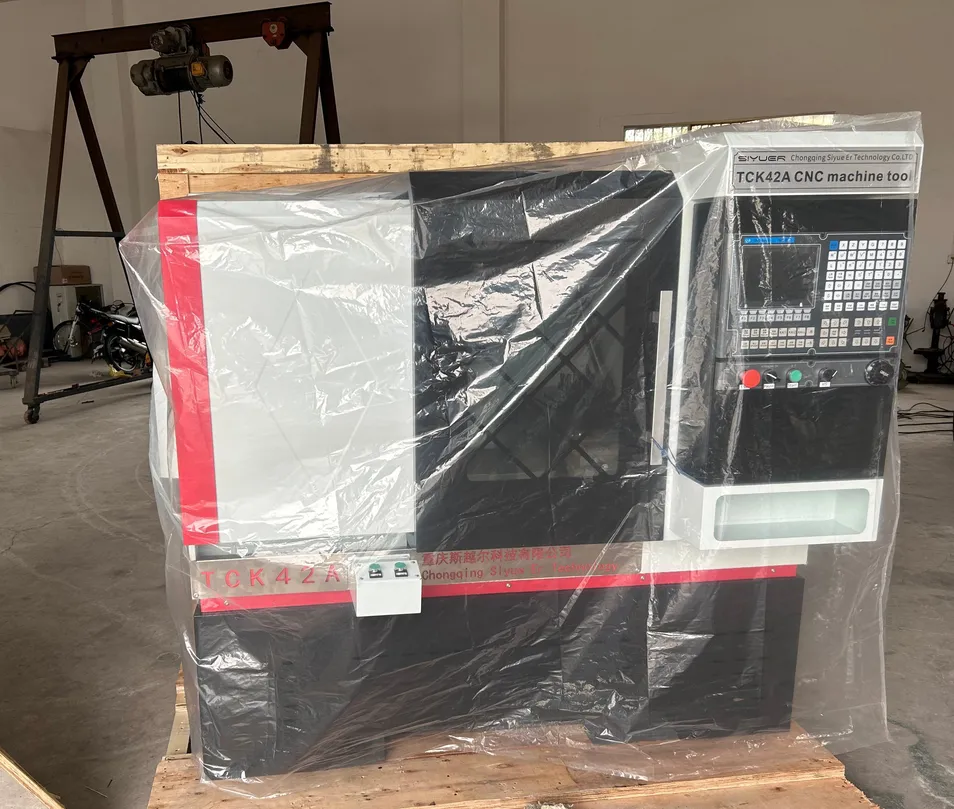

CNC Lathe Package
Manufacturing Facility

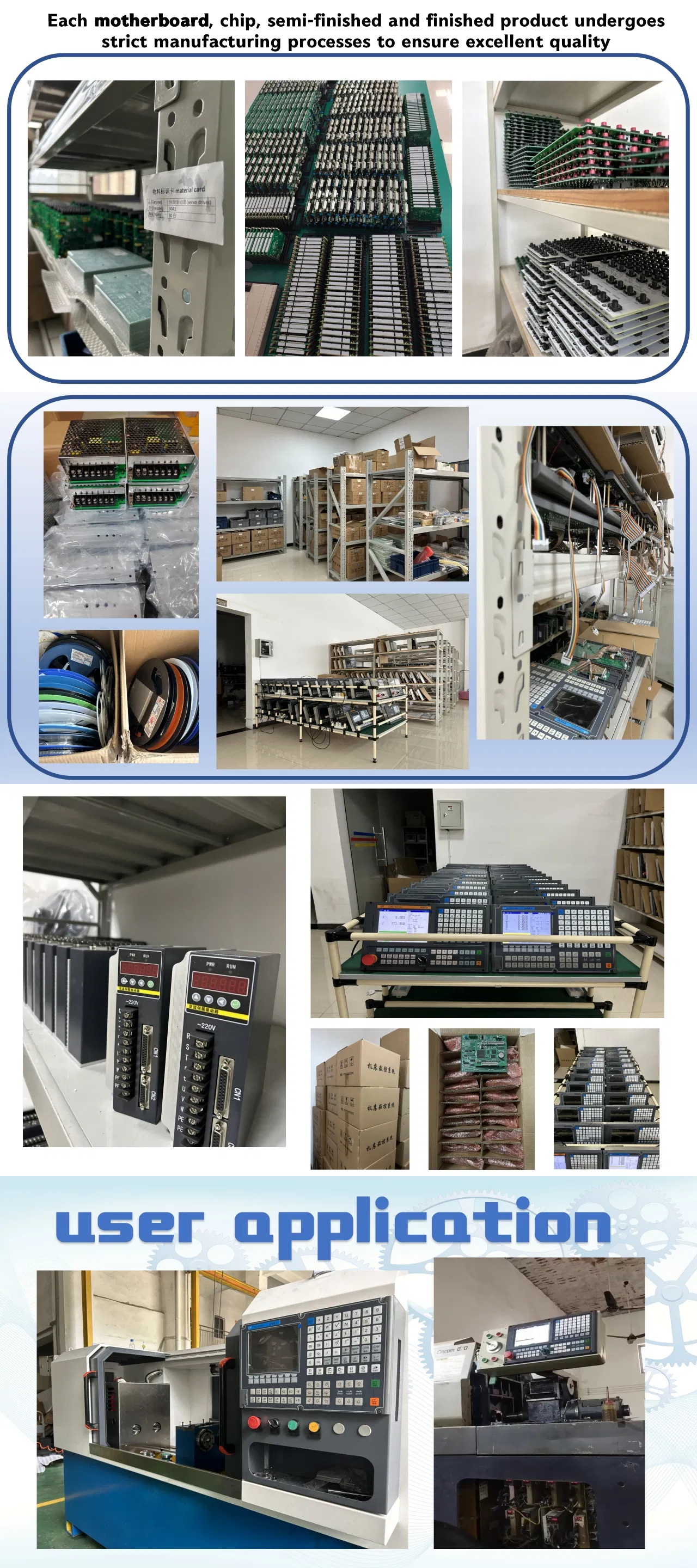

Testing Lab

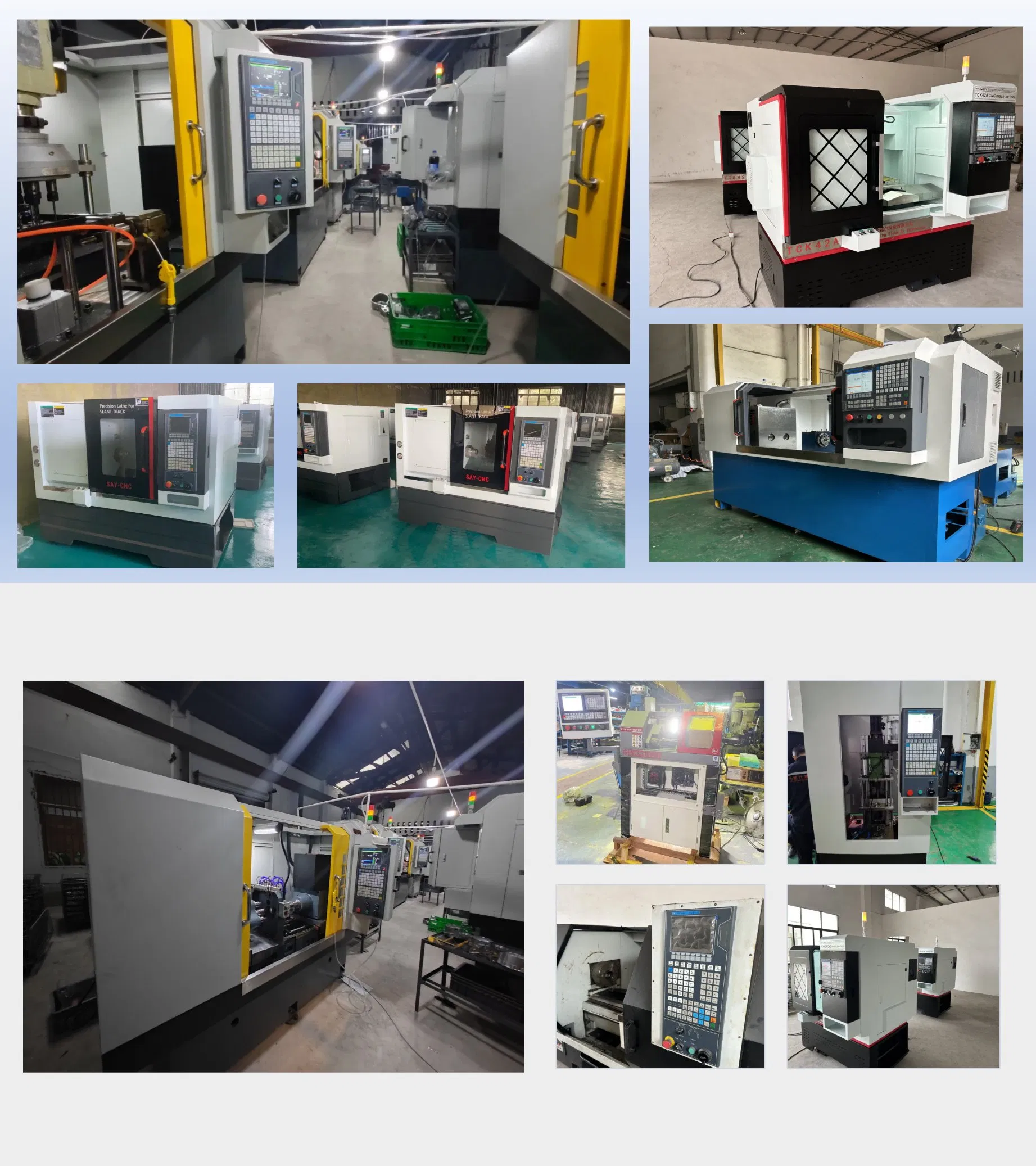

Production Line
Product Quality Certification
? Frequently Asked Questions
1. What machines can this CNC system control?
The 998T-MAX is designed for high-precision control of mini machine tools, lathes, milling machines, and grinding machines, supporting 2 to 6 axes.
2. Does the system support Automatic Tool Changers (ATC)?
Yes. It supports electric, servo, and counting turrets for lathes via custom macros, as well as linear, umbrella, and arm-type magazines for milling.
3. What are the spindle control options?
The controller provides dual-channel 0-10V analog voltage output for speed control, compatible with servo spindles or frequency converters.
4. Is custom branding available for the boot screen?
Yes, we support custom boot logos to meet your specific branding requirements.
5. What is the typical lead time for an order?
Standard orders are typically processed within 5–7 workdays. Customized solutions may require negotiation based on requirements.
6. How is quality assurance handled?
Every system undergoes pre-production testing by professional engineers and a 100% final inspection before shipment.
