It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts.
The system has complete and reliable interlock, safety protection, and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage, which can achieve DNC processing.
| TECHNICAL PARAMETERS | ||
|---|---|---|

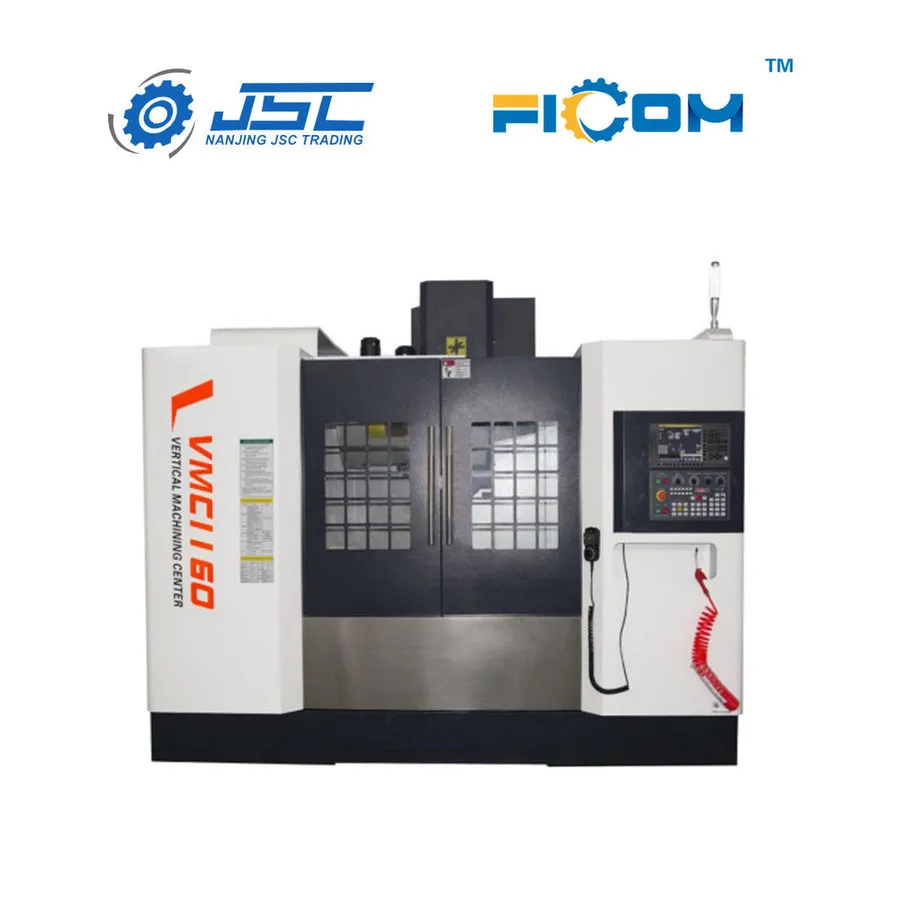

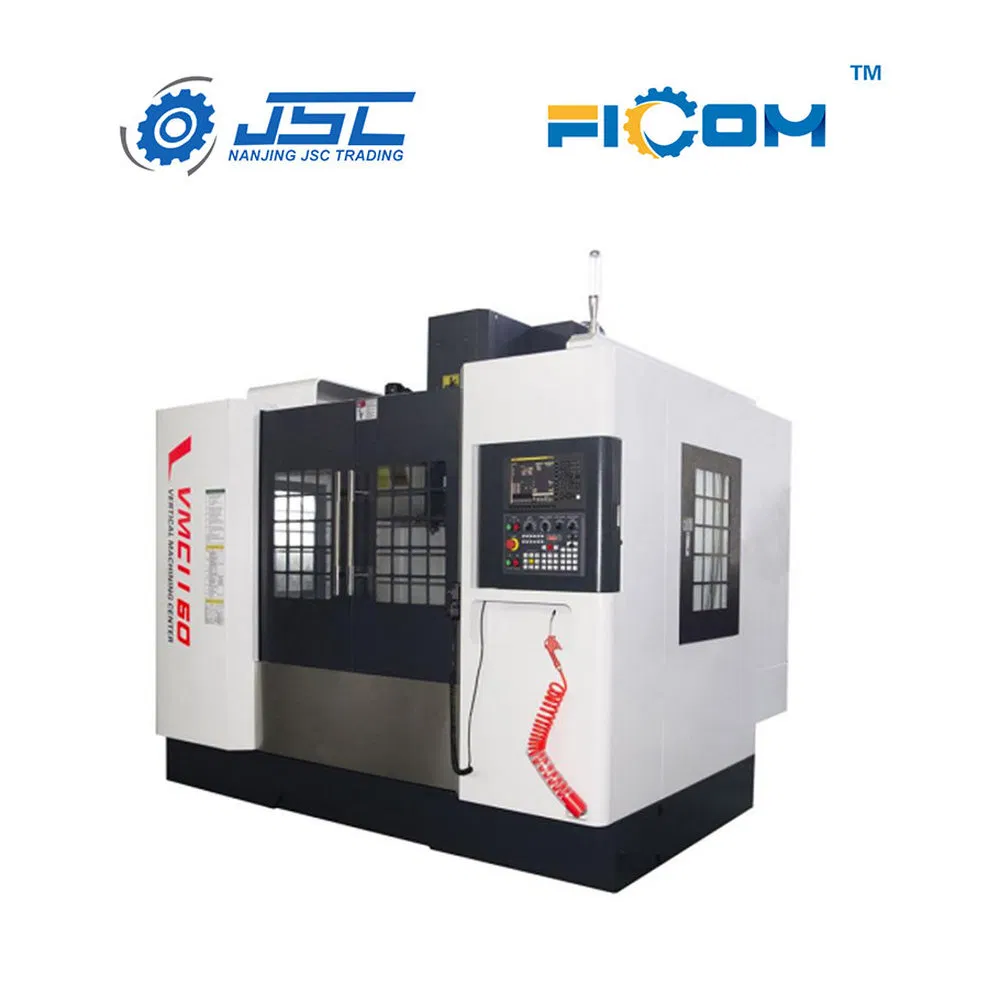

| Model No. | VMC1160 | |
| Travel | X-Axis | 1100mm |
| Y-Axis | 600mm | |
| Z-Axis | 600mm | |

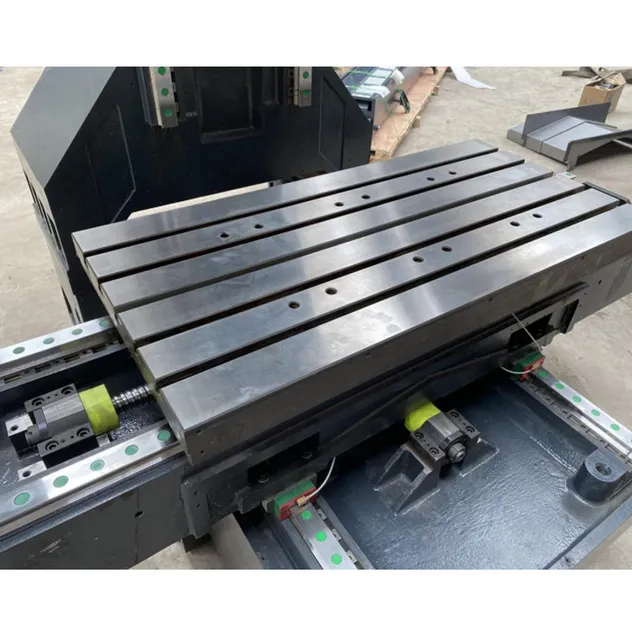

| Worktable | Table Size | 1200×600mm |
| Max. Loading | 800kg | |
| Spindle | Spindle Taper | BT40 |
| Spindle Speed | 8000rpm | |
| Accuracy | Position Accuracy | ±0.01mm |
| Repeat Positioning Accuracy | ±0.003/300mm | |
| MOTOR & SYSTEM | ||
|---|---|---|
| XYZ Axis | AC Servo Motor (Torque 22/22/22 N.M) | |
| Power Supply | Form | 3-Phase AC380V±10% 50Hz |
| Coolant | Tank Capacity | 200L |
| Dimensions | Overall Size | 3350×2300×2550mm |
| Weight | Net Weight | 6200Kg |
