📊 Detailed Specifications
| Parameter |
Specification (M1320-1000) |
| Diameter of grinding | Dia.8~200mm |
| Maximum grinding length | 1000mm |
| Maximum spindle load-bearing | 50kg |
| Maximum travel of working table | 1080mm |
| Speed of working table | 100~4000mm/r/min |
| Rotary angel of working table | -3~+7° |
| Rotary angel of headstock | -30~90° |
| Center height | 125mm |
| Grinding wheel size | 400*40/50*203 |
| Speed of grinding wheel | 1780r/min |
| Power of grinding wheel motor | 4kw |
| Dimensions (L*W*H) | 3100*1450*1650 |
| Weight | 3000kg |
Precision Performance: Roundness 0.002mm | Cylindricity 0.003mm | Roughness Ra0.32

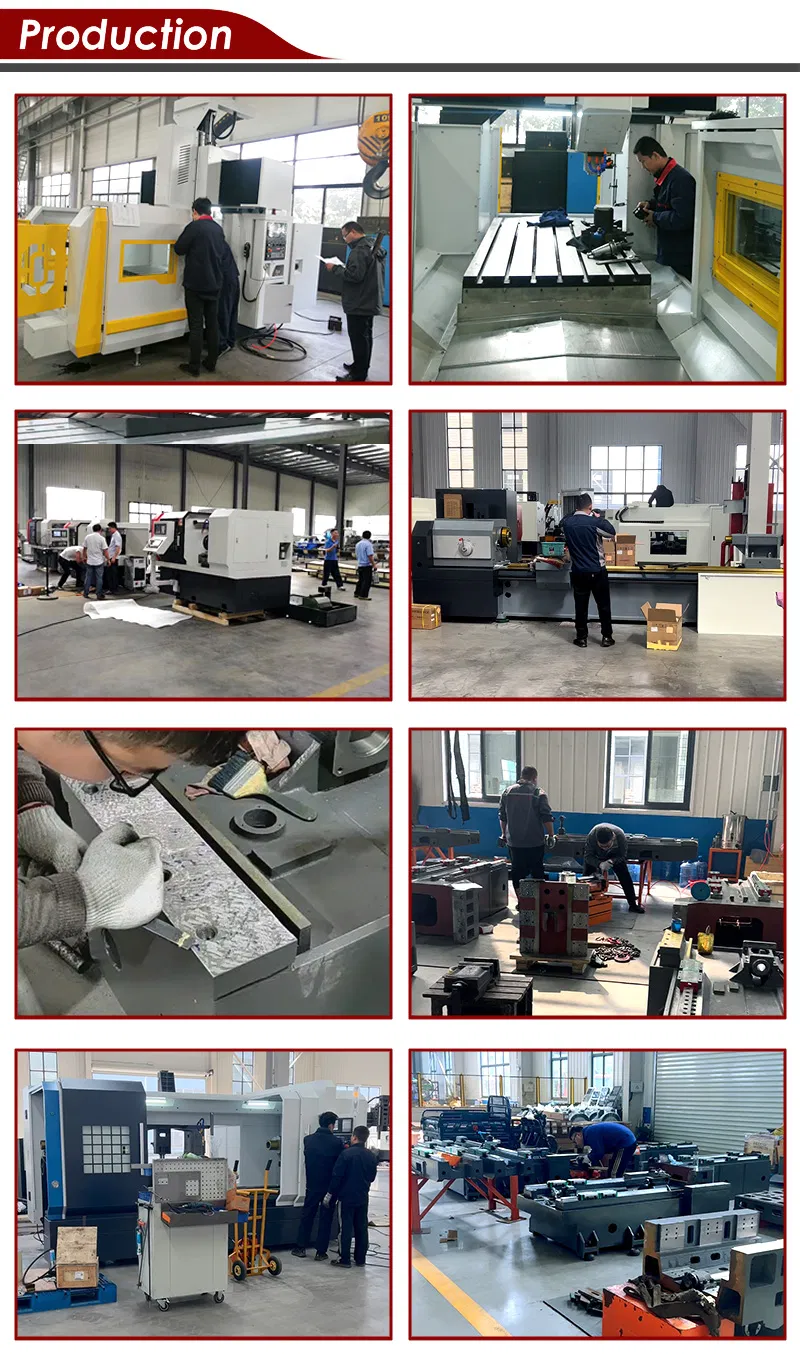

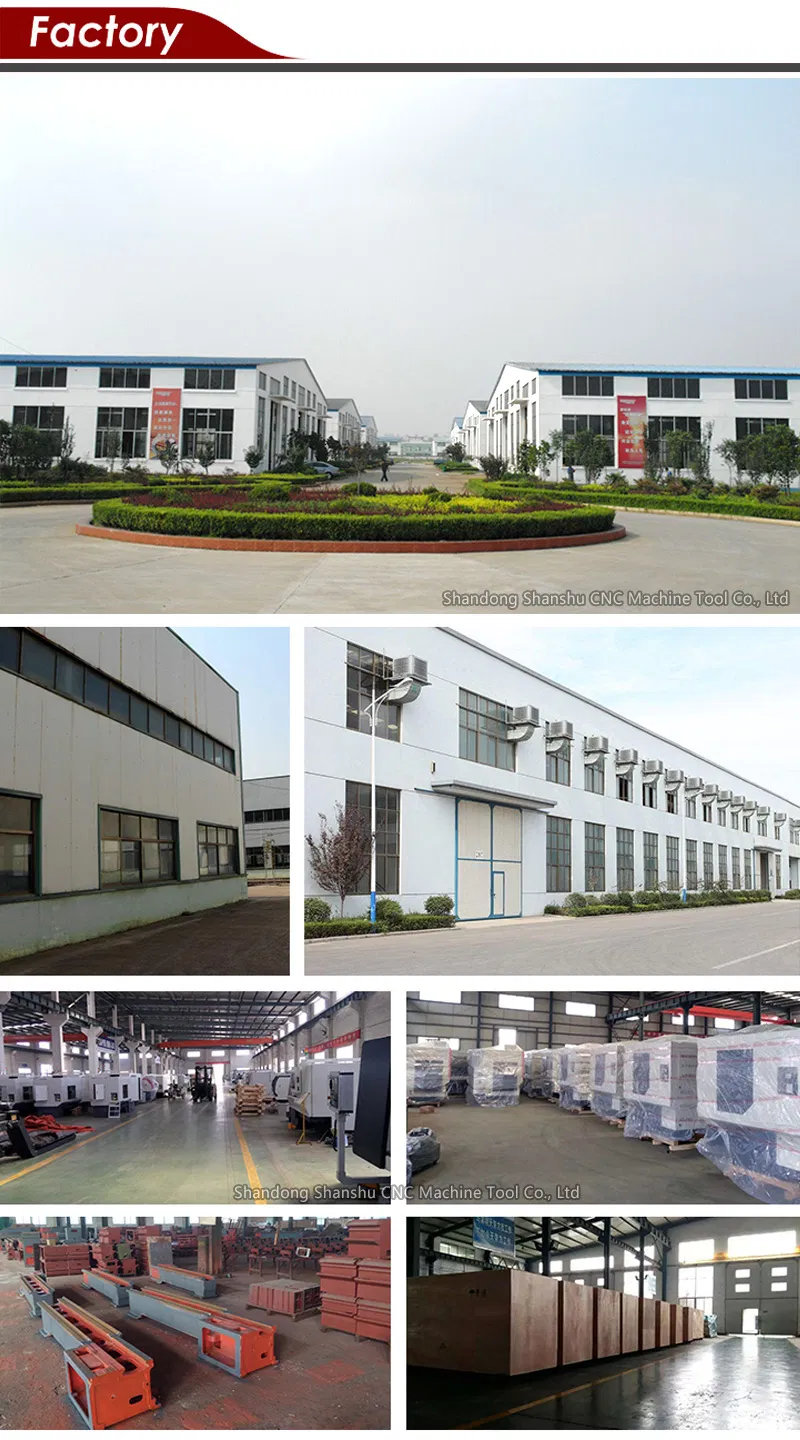

🏢 Manufacturing Profile
A professional engaged in CNC machine tool development and machinery manufacturing manufacturers. With strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment including CNC lathes, machining centers (horizontal and vertical), CNC vertical lathes, CNC pipe thread lathes, CNC milling machines, CNC drilling machines, CNC slotting machines, CNC sawing machines, ordinary lathes, and radial drilling machines.
❓ Frequently Asked Questions

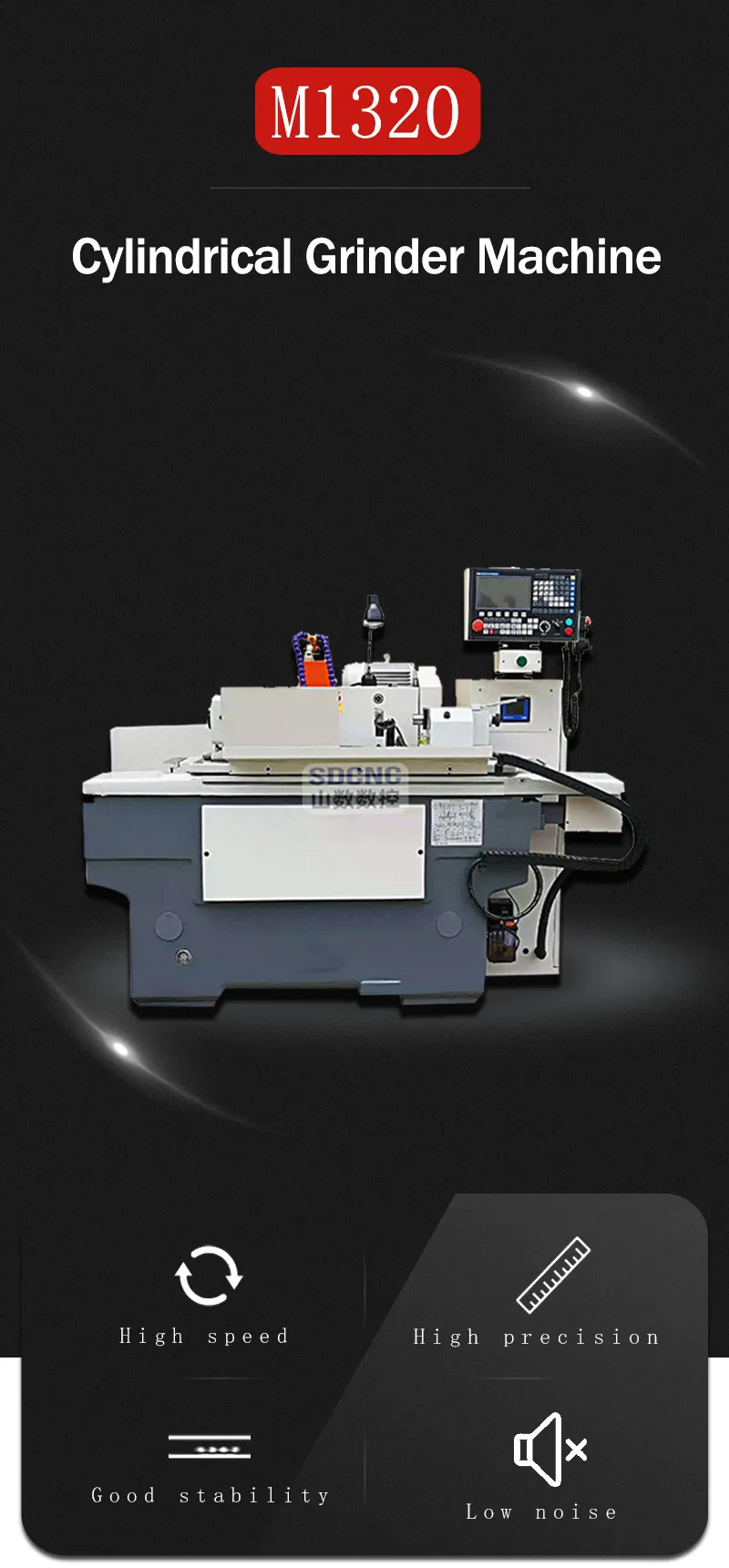

1. What is the maximum grinding diameter of the M1320?
The M1320 universal cylindrical grinding machine can process workpieces with a diameter ranging from 8mm to 200mm.
2. What is the precision capability of this machine?
This high-precision machine achieves a roundness of 0.002mm, cylindricity of 0.003mm, and a surface roughness of Ra0.32.
3. Can the working table and headstock be rotated?
Yes, the working table has a rotary angle of -3 to +7°, and the headstock can be adjusted from -30 to 90° for versatile grinding tasks.
4. What certifications does the equipment hold?
The machine is fully certified with GS, CE, and ISO 9001 standards, ensuring international quality and safety compliance.
5. What type of materials or objects is this machine designed for?
It is primarily used for processing external cylindrical surfaces and is highly effective for gear processing and other high-precision mechanical components.
6. How is the machine packaged for international shipping?
The machine is secured in professional wood packaging to ensure safety during transit, with a gross weight of approximately 3000kg.
