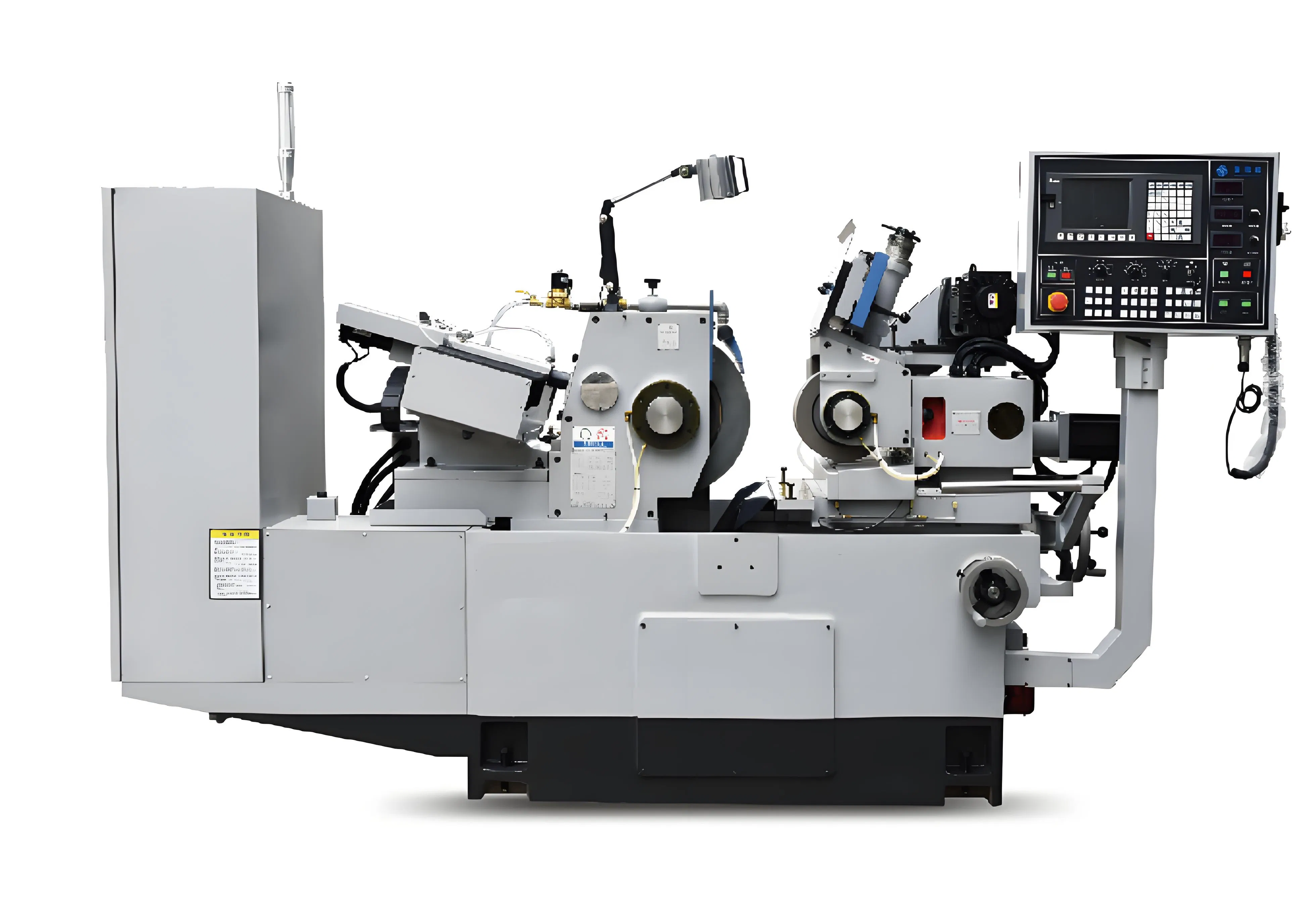

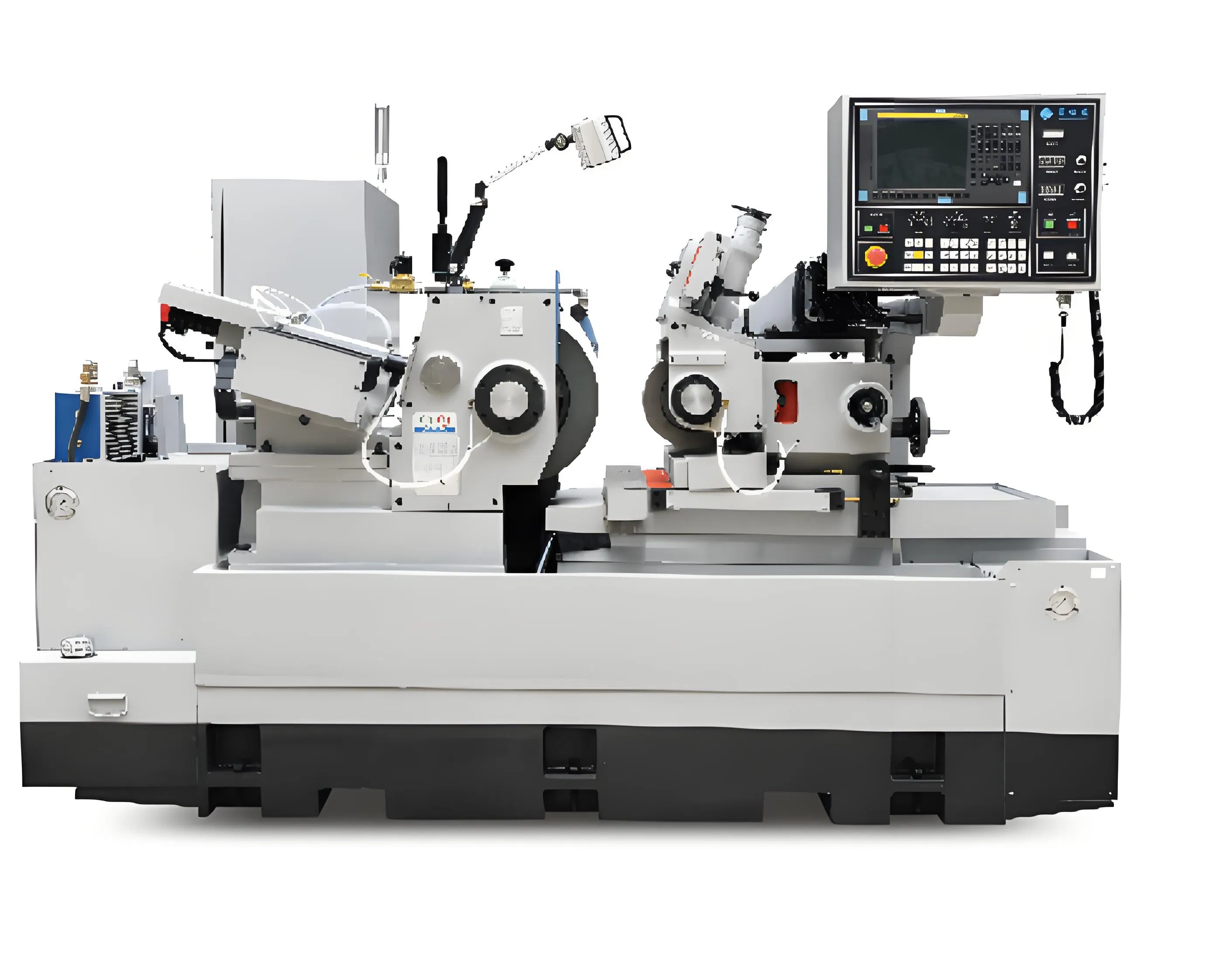

Every centerless grinder is derived from application requirements.

• The HC full series of centerless grinders have corresponding solutions for a grinding range of 0.08 to 200mm.
• Hydrodynamic spindles, hydrostatic spindles, and bearing spindles are available for selection.
• Hydrostatic guideways and rectangular square guideways are provided for different applications.
• The CNC series with various combinations of 1 to 6 axes can meet various grinding requirements.

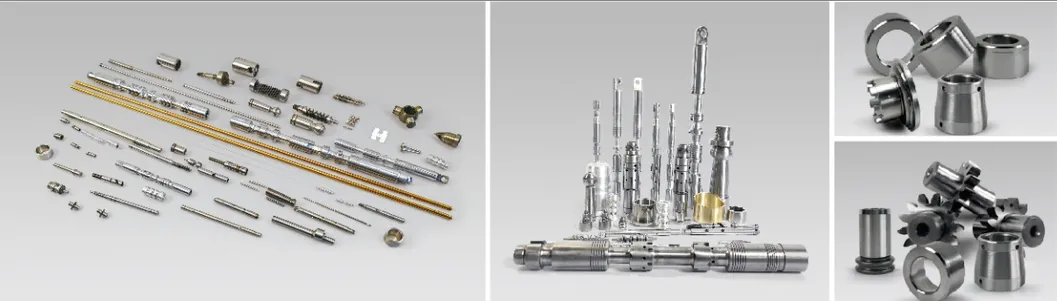

The applications of centerless grinders are everywhere. They are essential for precision manufacturing across various industries.

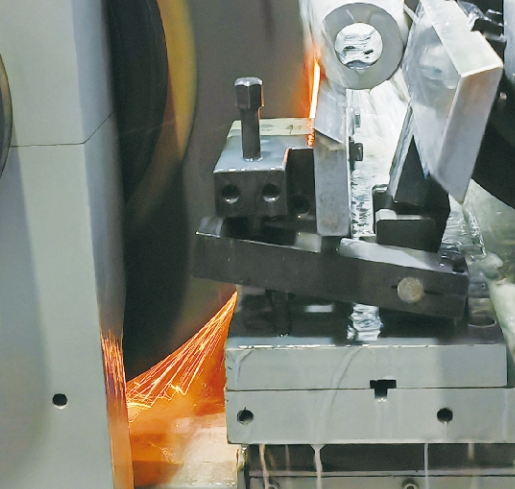

• Through grinding: Suitable for cylindrical shaft parts of various sizes.
• Stop grinding: Ideal for multi-stepped parts of various sizes and parts with complex shapes.

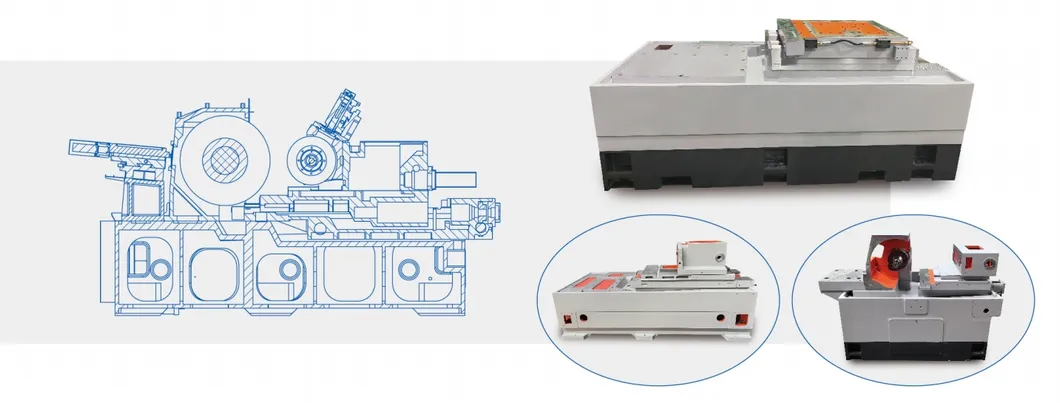

Track Systems

• Double V Tracks: Manually scraped for excellent movement performance throughout the entire stroke.
• Rectangular Square Tracks: Used for large-scale grinders, combining sliding sensitivity with ultra-high rigidity.
• Hydrostatic Tracks: Features orifice throttling where the track floats on high-pressure oil film (friction coefficient < 0.001), achieving feed accuracy of 0.0001mm.

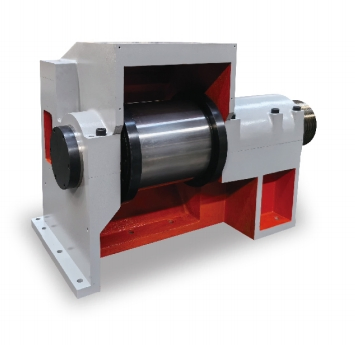

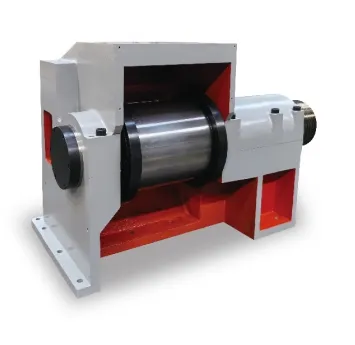

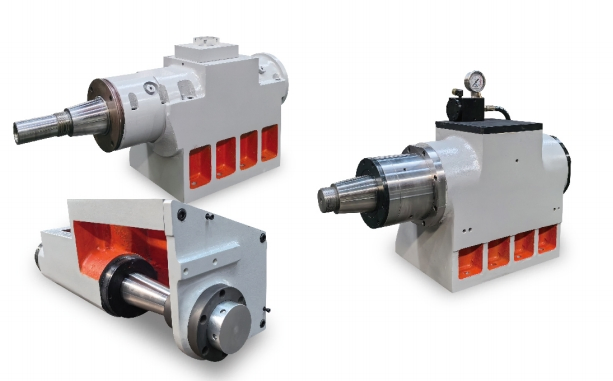

Spindle Technology: Core shafts are made of Japanese SNCM-21H alloy steel. Hydrostatic spindles are supported by a high-pressure oil film, eliminating contact friction and improving shock absorption for high-speed cutting.

Rolling Bearing Spindle: Utilizes ultra-precision double row cylindrical roller bearings. The unique design eliminates the need for a flange, perfect for high-precision grinding with zero maintenance requirements.

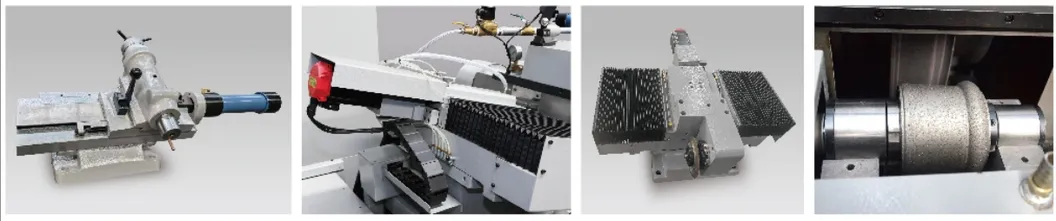

Trimming & CNC: The trimming seat is driven by hydraulic pressure or servo motors. The CNC control system allows for automatic dressing and compensation for complex shapes, reducing manual operational difficulty.
