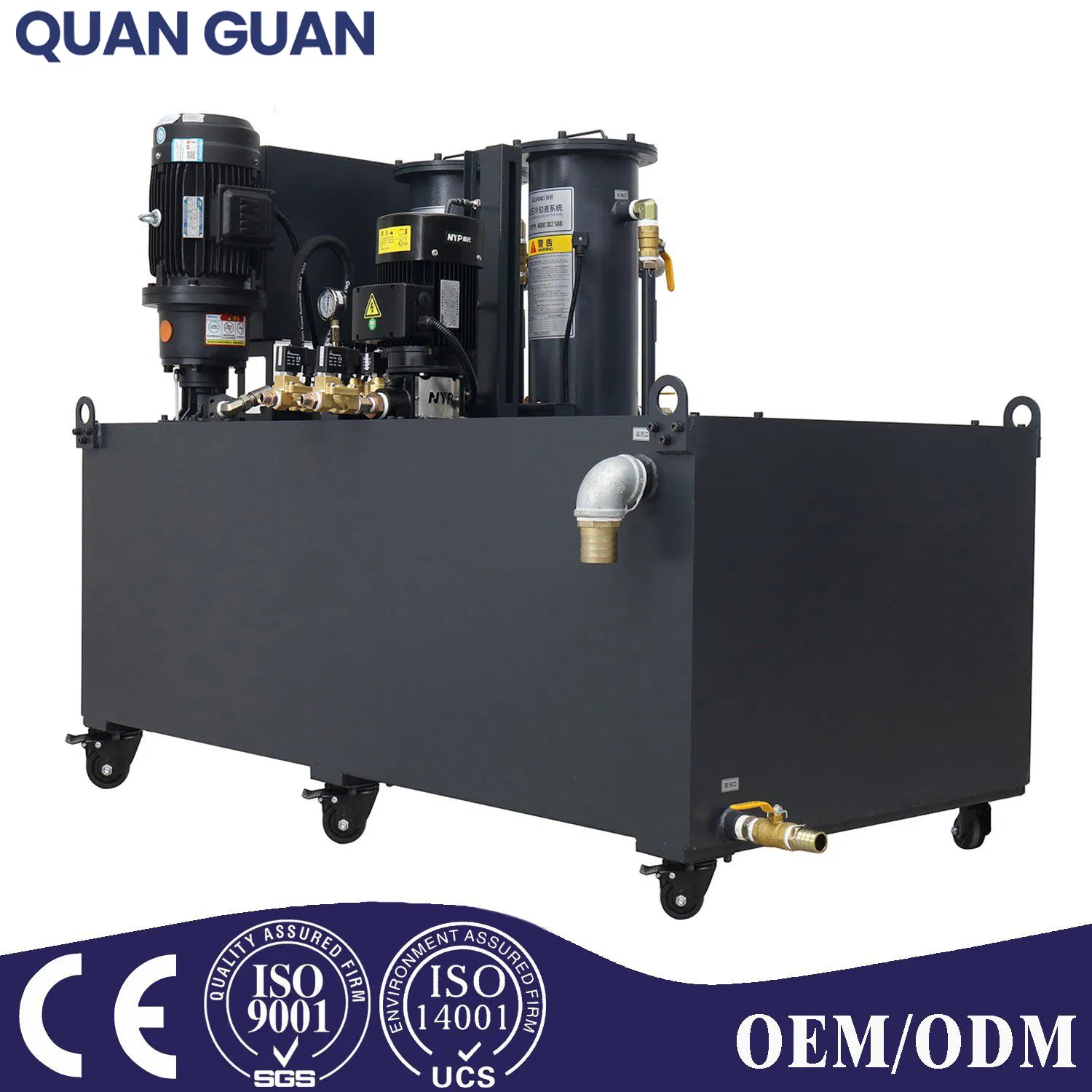

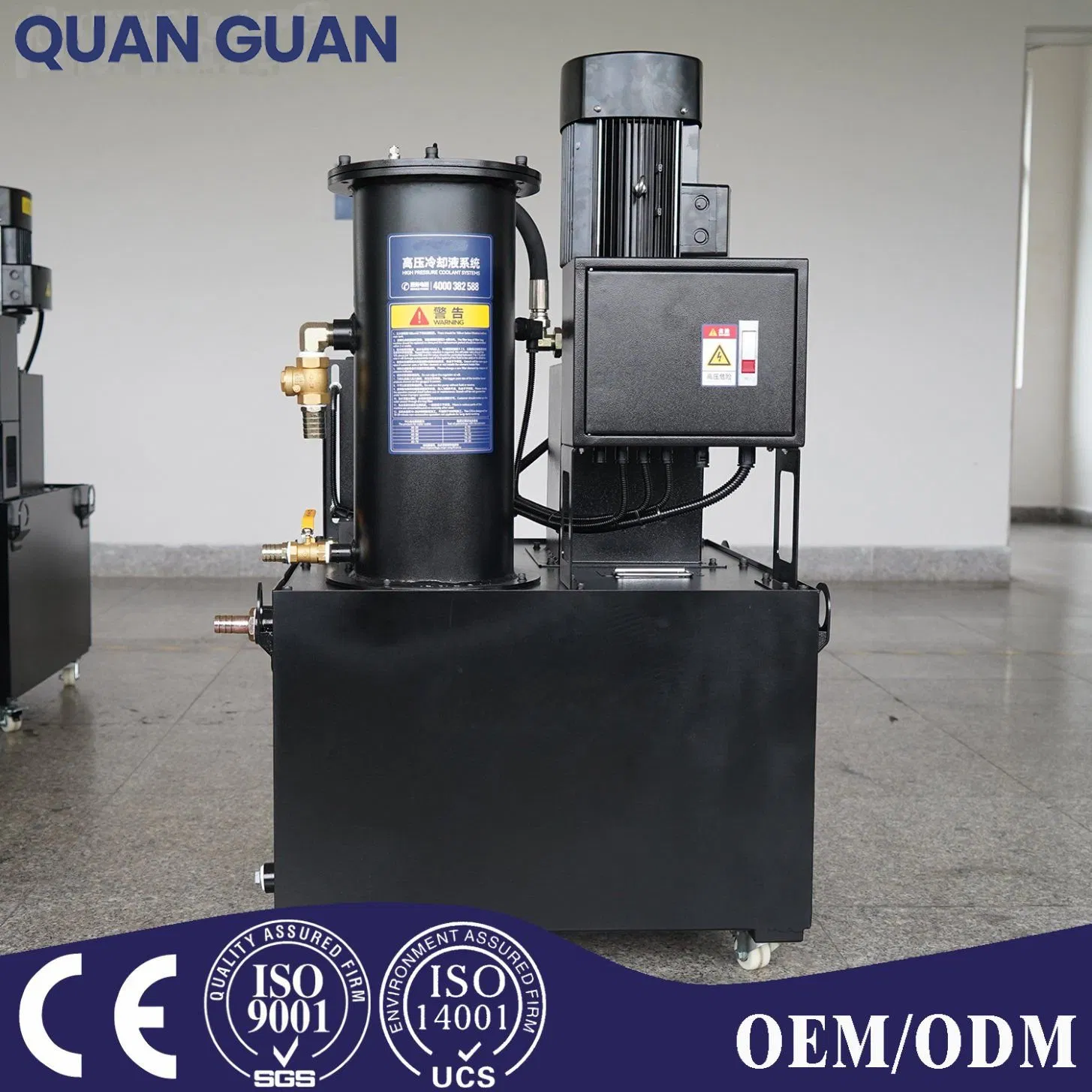

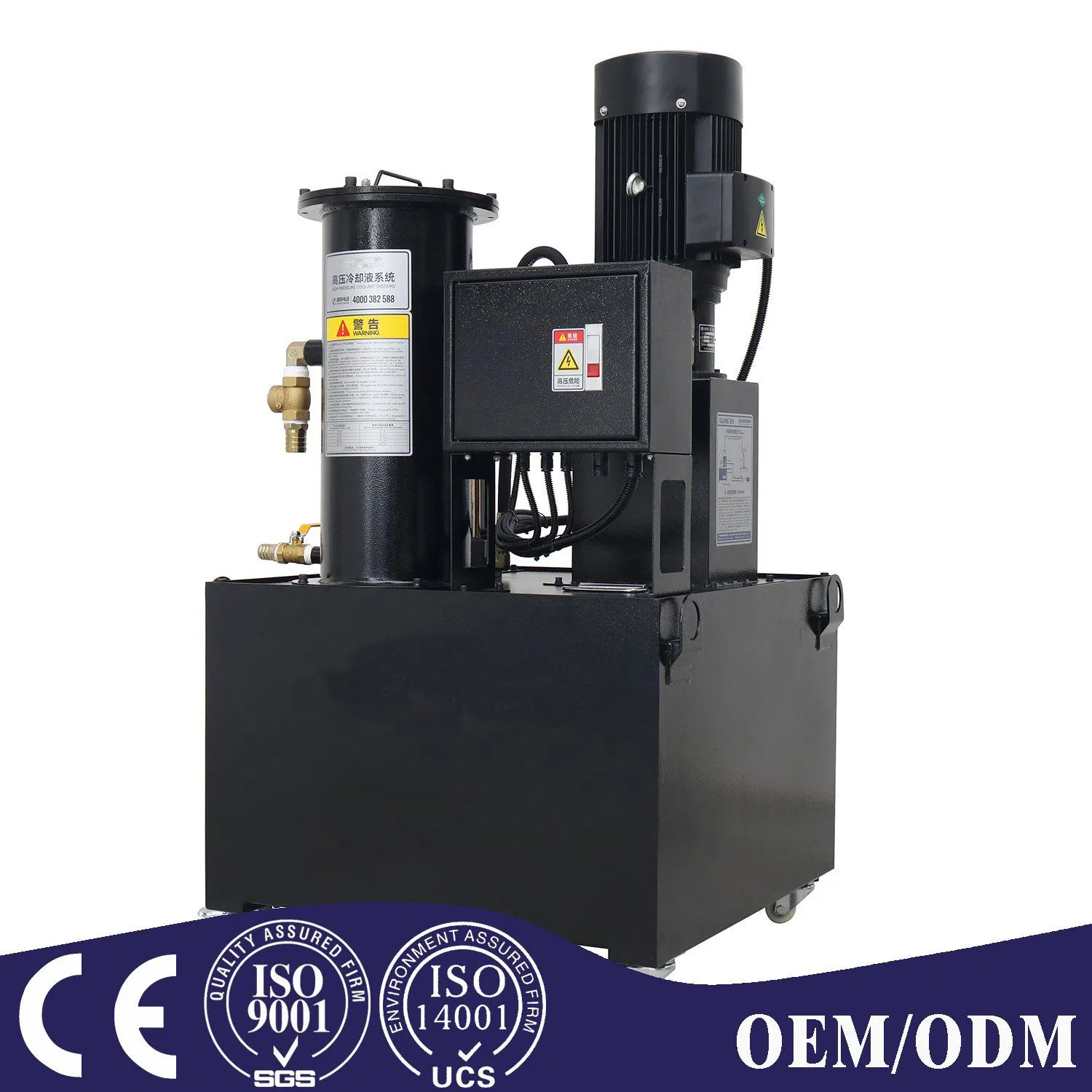

High Speed High Pressure Coolant System for Injection Pump CNC Milling Machine

1 / 5

High Speed High Pressure Coolant System for Injection Pump CNC Milling Machine

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:High Pressure Coolant System

Type:Water-Cooled

Cooling Water:Industrial Water

System Type:Combined

Fans Species:Frequency Fan

Noise Level:Low

Application:Precision Machining, Turning, Milling and Drilling

Certification:ISO, CE

Condition:New

Flow Rate:35L/Min

Filter Accuracy:Less 25um

Power:AC220V/AC380V

Packaging & Delivery

Package Size:770.00cm * 88.00cm * 1390.00cm

Gross Weight:100.000kg

Transport:Wooden Box

Product Description

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.

Technical Parameters

Item	QG-HPC-2MP-33LA-LX-1	QG-HPC-3MP-33LA-LX-1	QG-HPC-5MP-40LA-LG-1	QG-HPC-7MP-40LA-LG-1
Outlet pressure	20Bar	30Bar	50Bar	70Bar
Flow rate	33L/min	33L/min	40L/min	40L/min
Rated power	2.2KW	4.0KW	5.5KW	7.5KW
Bag filtration	Min 25μm
Pump type	Centrifugal pump	Centrifugal / Screw pump	Screw pump	Screw pump
Tank capacity	220L	220L	350L	350L

Product Features

⚙️

Avoid iron filings entangled on parts and tools, ensuring smoother production.

⚡

Increase chip cutting speed and tap into more productivity in production.

📉

Reduced tool wear and extended tool life by reducing local machining temperatures.

💎

Improve surface smoothness of parts and enhance market competitiveness.

✅

Improve quality stability and qualification rate of parts processing.

🛠️

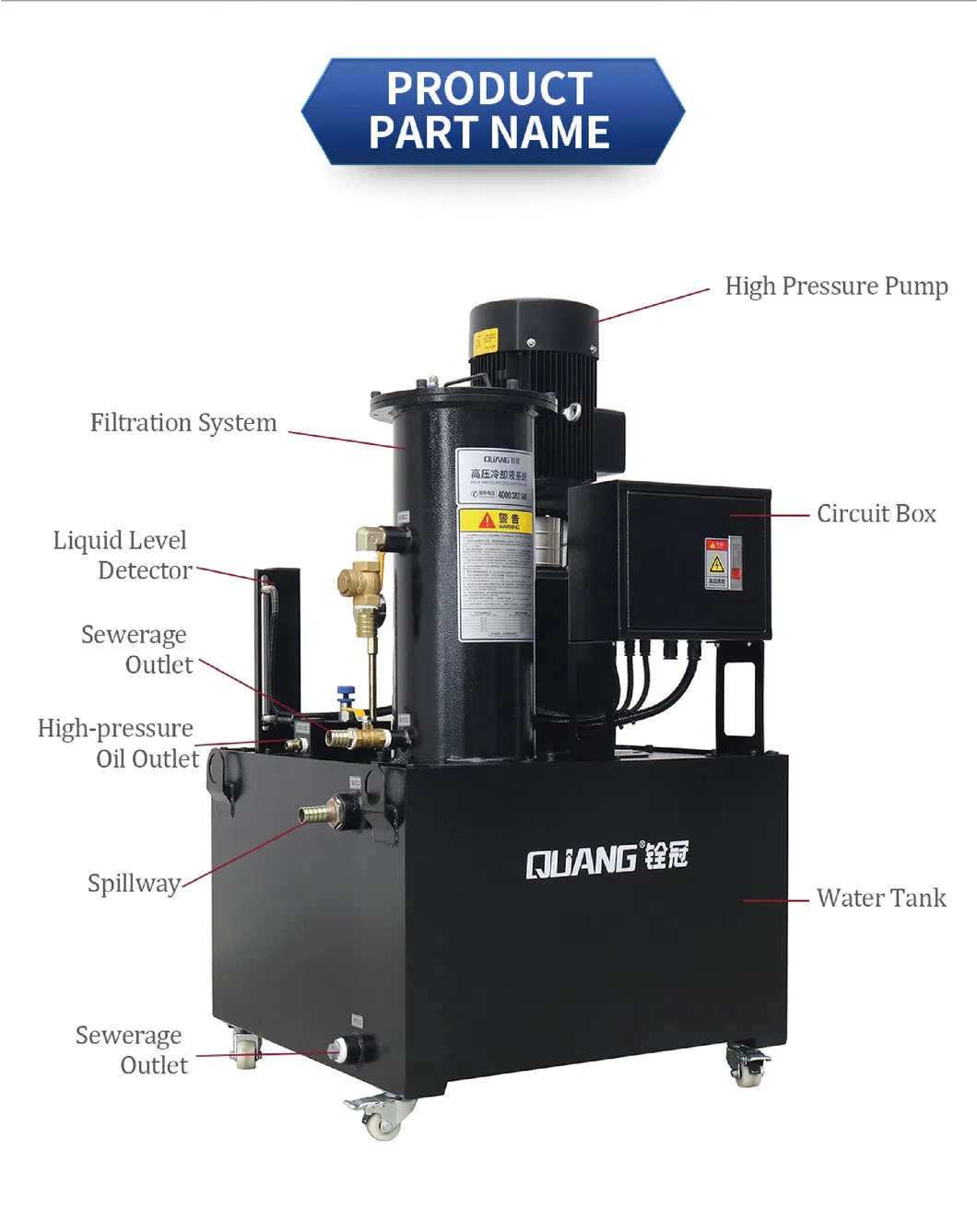

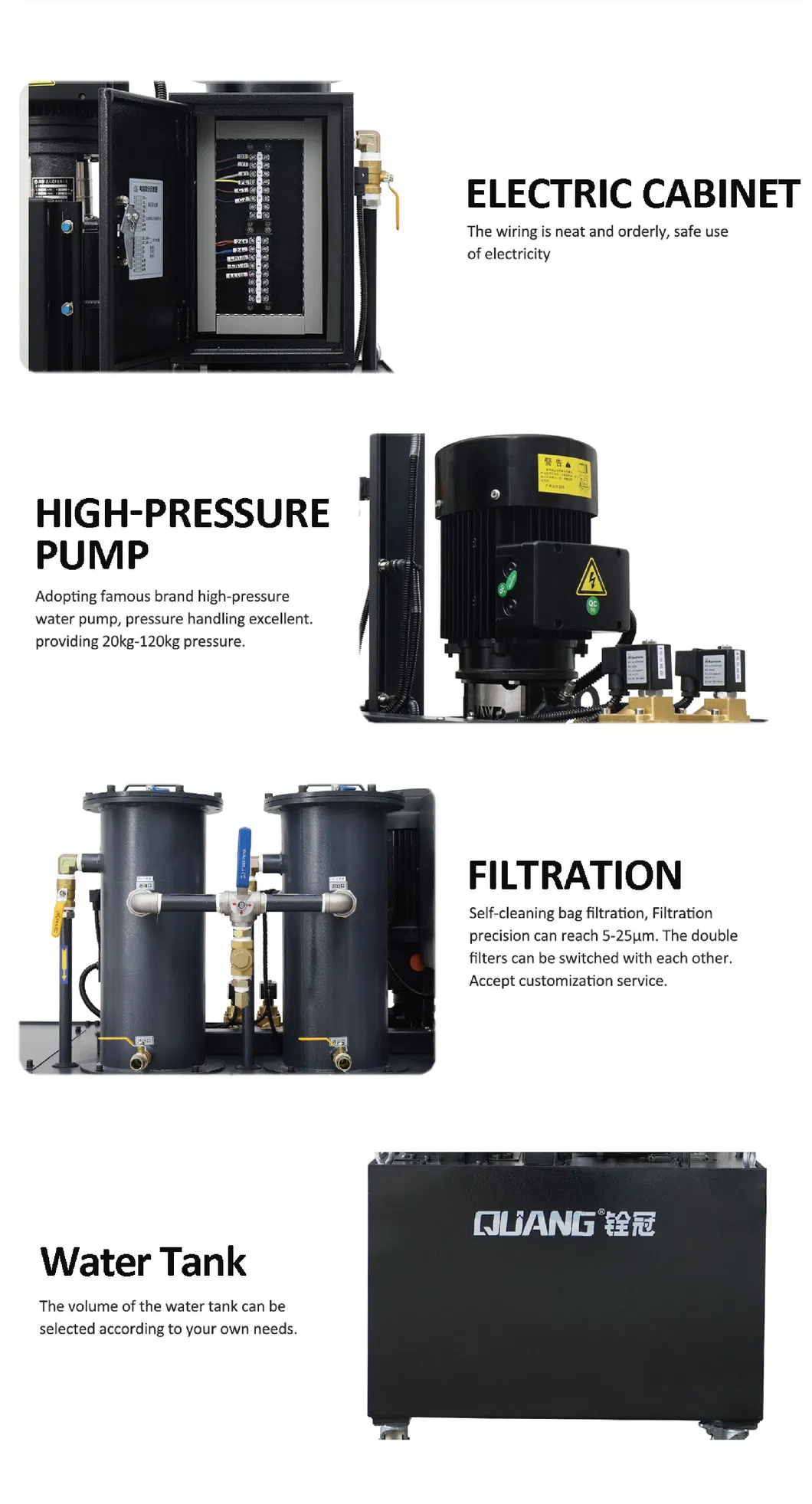

Designed with an automatic cleaning filter element for easy maintenance.

Applications

The spindle center water outlet system is mainly applicable to metal processing equipment, such as spindle water outlet CNC machining centers, deep hole drilling and milling machines, crankshaft grinders, gear grinding machines, CNC turning and milling composite machining machines, gantry drilling and milling machines, and CNC lathes.

Widely used in automotive component manufacturing and precision mechanical processing for lubrication, chip breaking, and chip removal.

Frequently Asked Questions

What is the primary function of a High Pressure Coolant System?

It delivers coolant directly through the spindle to the tool's cutting edge to cool the tool and effectively wash away metal chips, preventing entanglement.

What is the filtration accuracy of this system?

The system features a bag filtration design with a minimum filtration accuracy of 25μm.

Which types of machines are compatible with this system?

It is ideal for CNC machining centers, deep hole drilling machines, crankshaft grinders, gear grinding machines, and CNC lathes.

What pump options are available?

Depending on the model, we offer centrifugal pumps and screw pumps. Customers can also specify preferred water pump brands.

How does this system improve production quality?

By maintaining low temperatures and removing chips instantly, it reduces tool wear, improves surface finish, and increases part qualification rates.

Is the maintenance of the filter difficult?

No, the system is designed with an automatic cleaning filter element function, making it easy and fast to disassemble and maintain.
