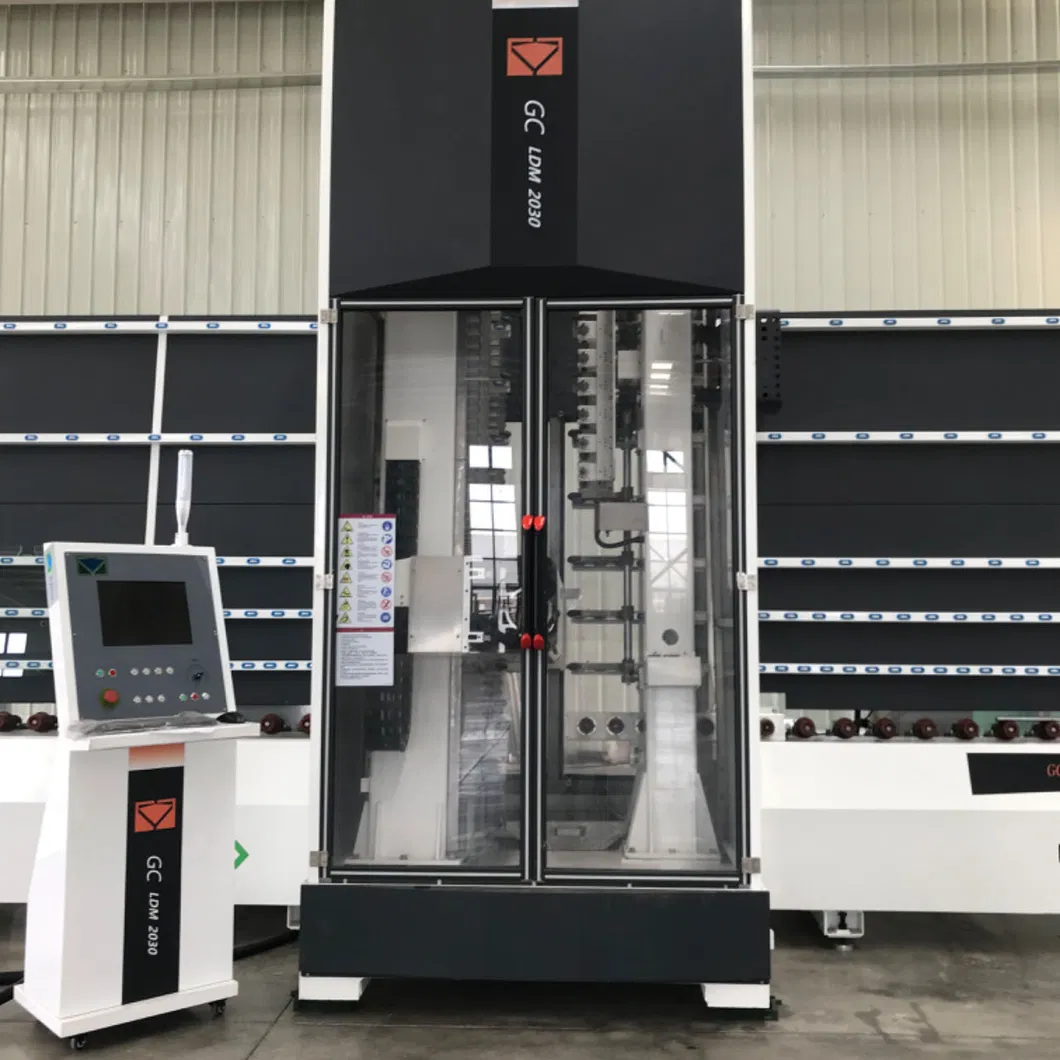

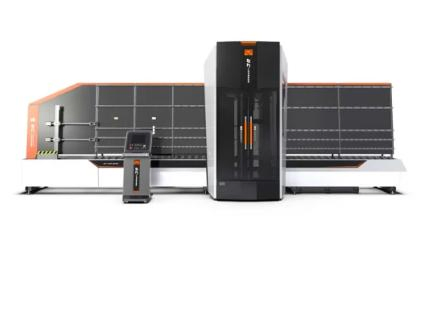

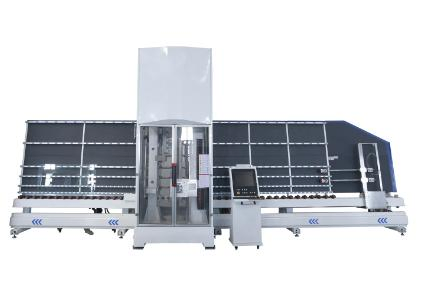

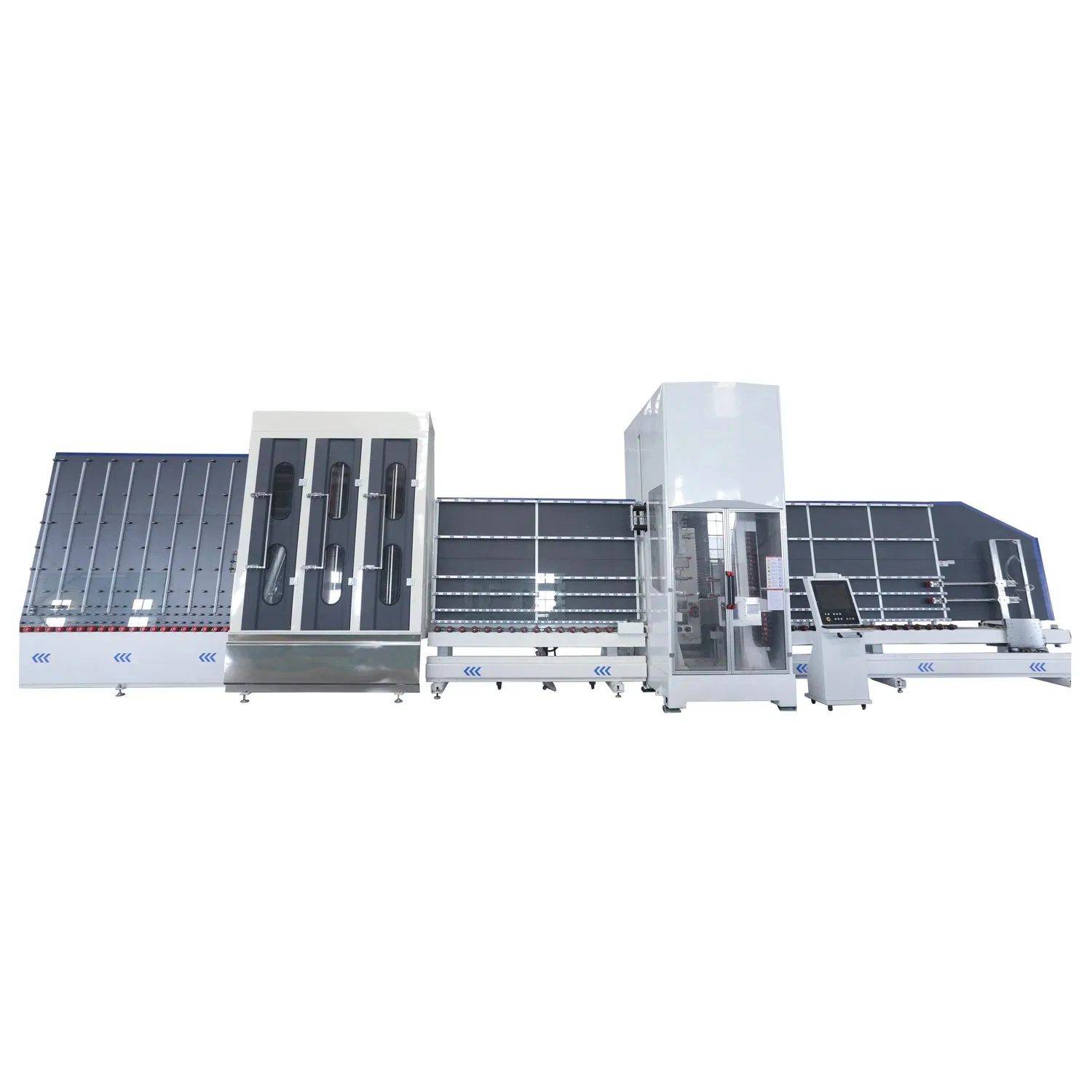

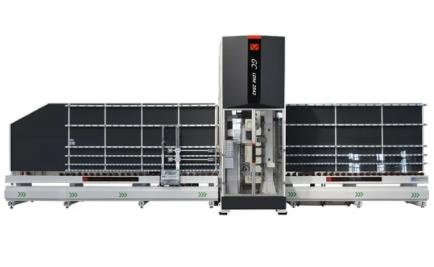

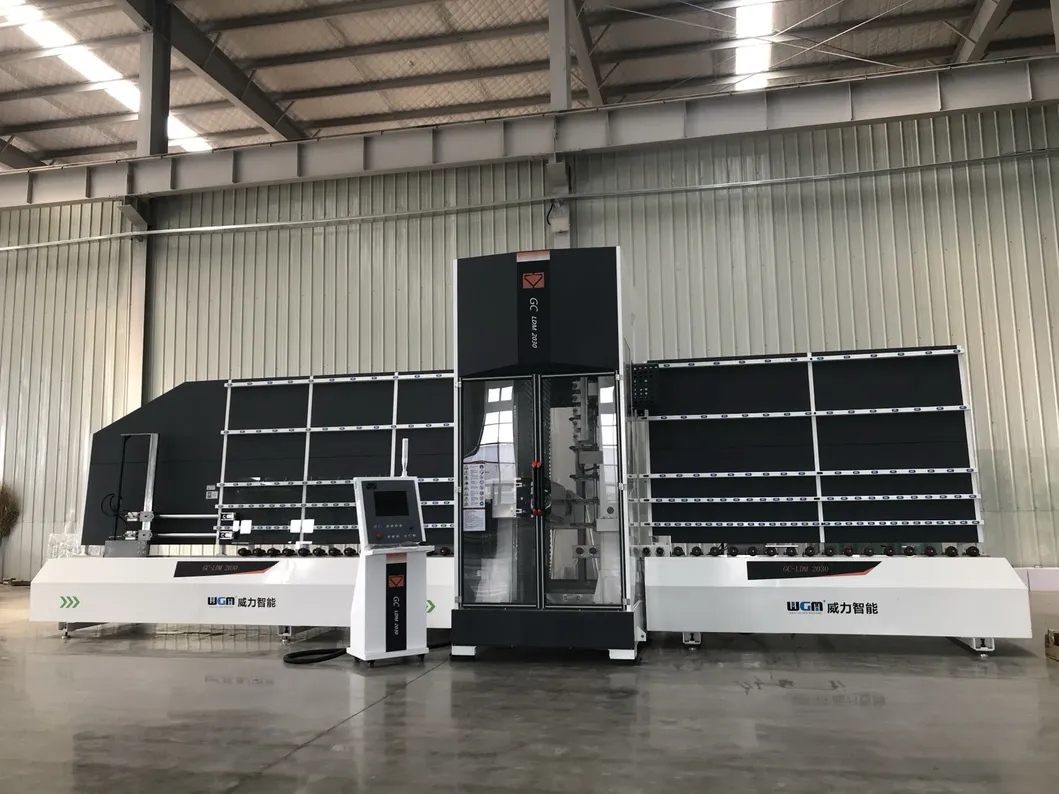

CNC Vertical Drilling and Milling Machine -- GC-LDM-III2542

The GC-LDM-II is a high-tech vertical working center for the deep glass processing industry. It can perfectly complete complex work in a short time and process high-quality and high-precision glass, thereby reducing the problem of poor accuracy associated with manual drawing and cutting.

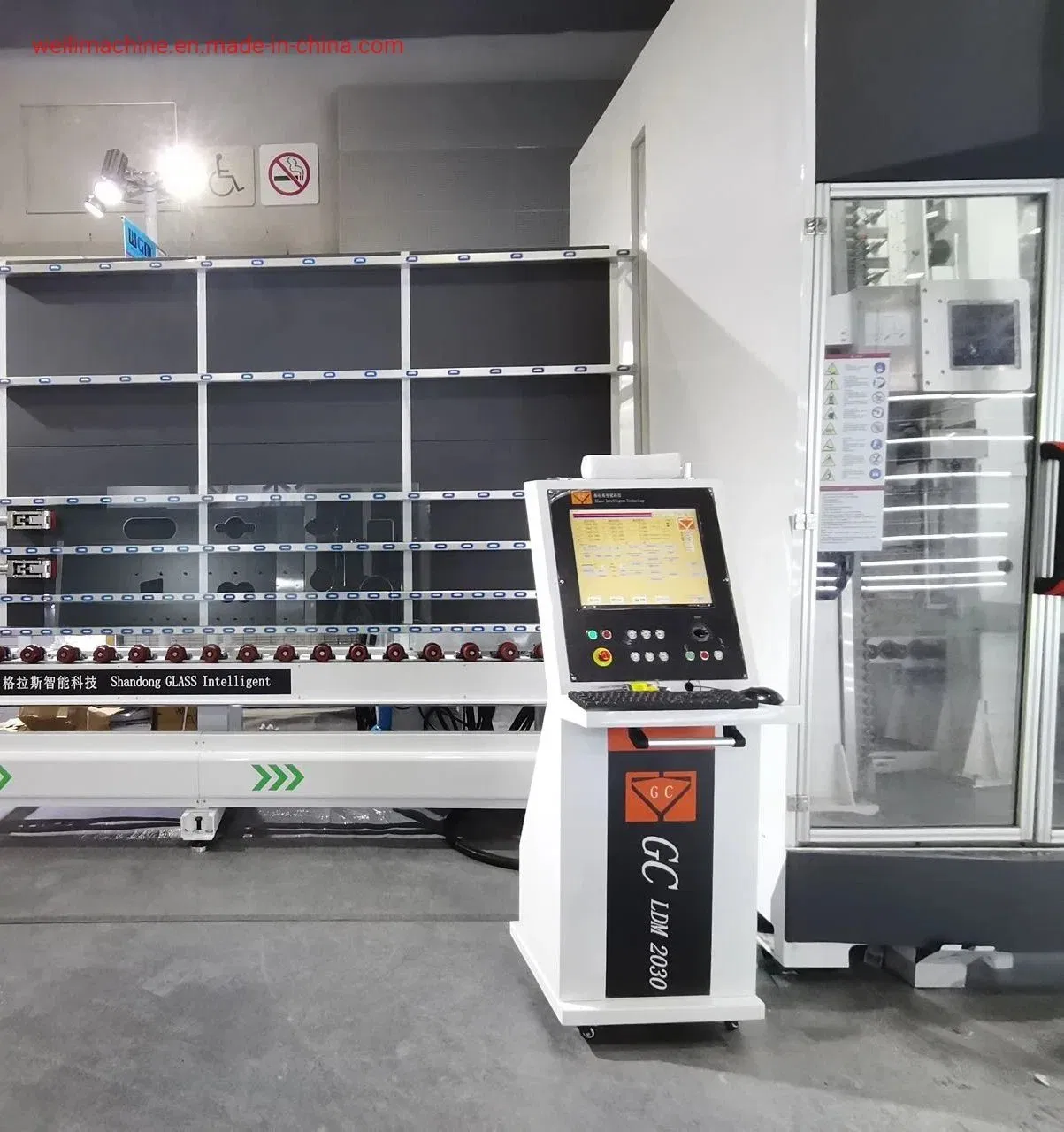

The machining center adopts the international advanced numerical control system and drive to realize the dynamic management of each axis and precise speed control. This machine is suitable to process structural glass such as frameless doors and glass curtain walls.

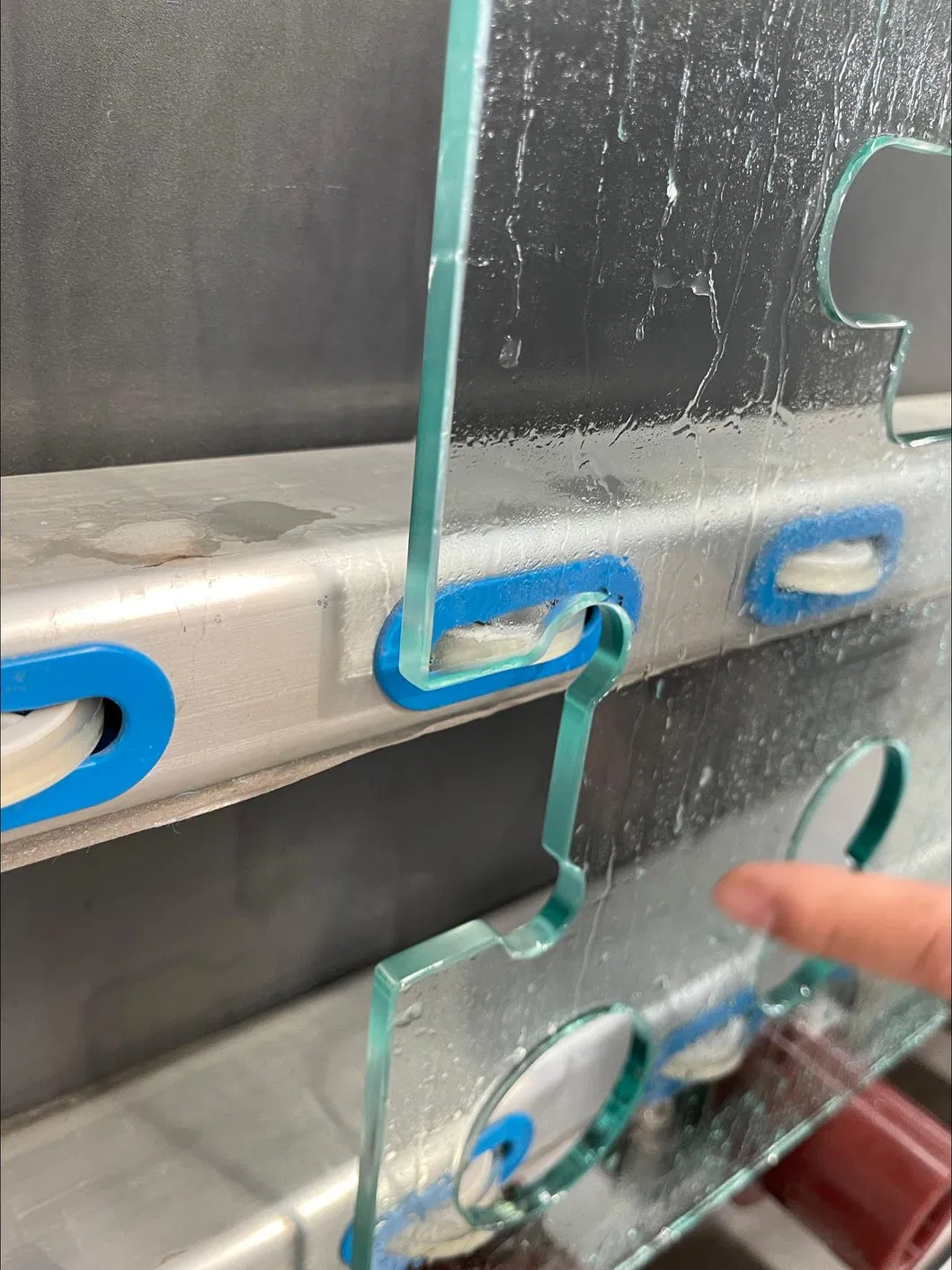

• Milling by single router
• Grinding and Arrising
• Polishing (Optional)

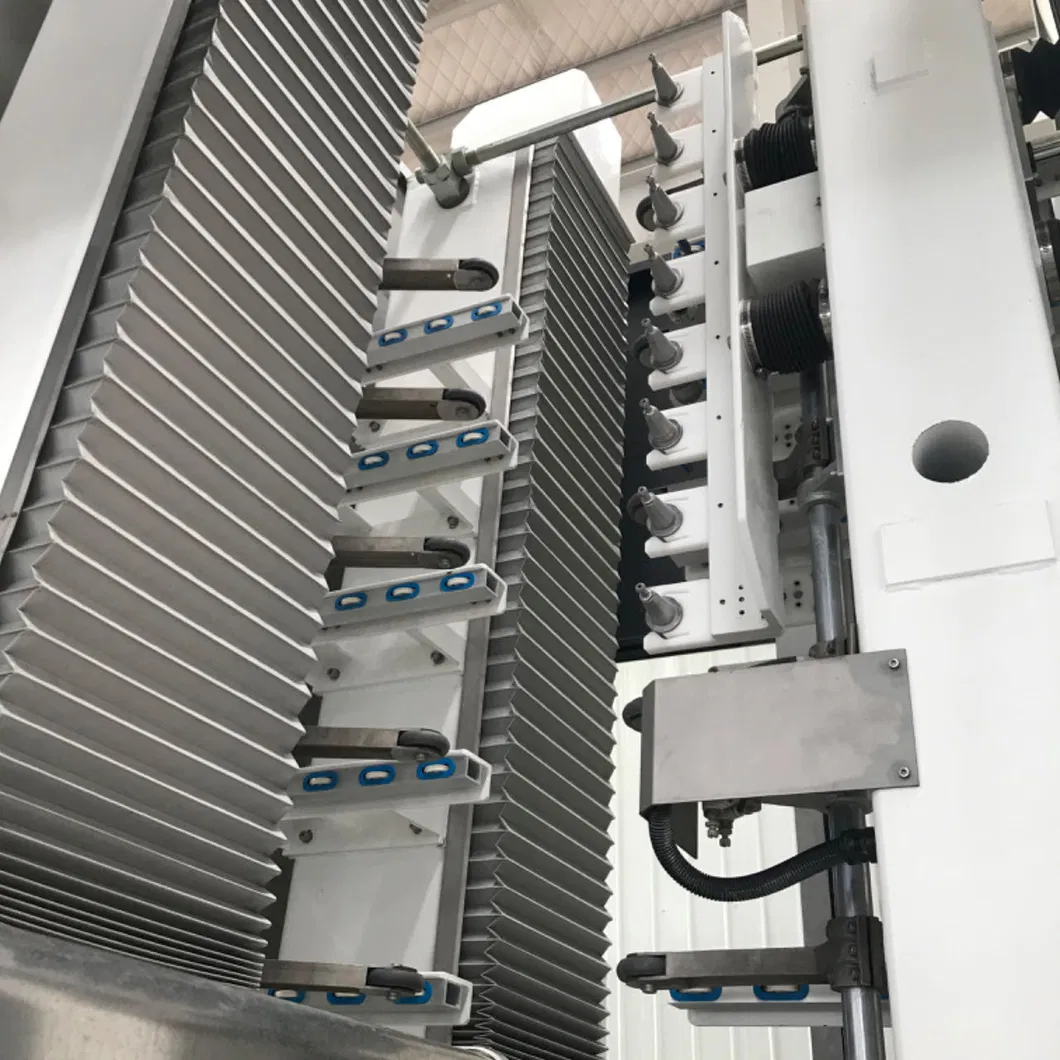

All major parts are protectively covered. The vertical structure occupies less area and simplifies positioning. X, Y, V, Z, and W linear axes are driven by high-precision ball screws on linear slide ways. X-axis controls glass movement, while Y and V axes control the up and down movement of the two Spindles.

• ✔ Good rigidity and fast response for high-speed operations.
• ✔ High-precision Hiwin ball screws and guide rails ensure precision production.
• ✔ Low wear and tear design; maintains high precision after years of use.
• ✔ Centralized oil supply system for automatic lubrication of moving parts.
• ✔ Protective cover made of 201 stainless steel with dual observation doors.
