High-Speed CNC System for Aluminum Profile Milling

Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Send Inquiry

Product Description

📋 Basic Product Information

Model NO.

808M

Type

CNC Controller

Axis Num

3-5 Axis

CPU

32bits+Fpga

Screen Size

8.4 Inch

Material

Stainless Steel / Aluminum Alloy

Accuracy

0.1um

Certification

GS, CE

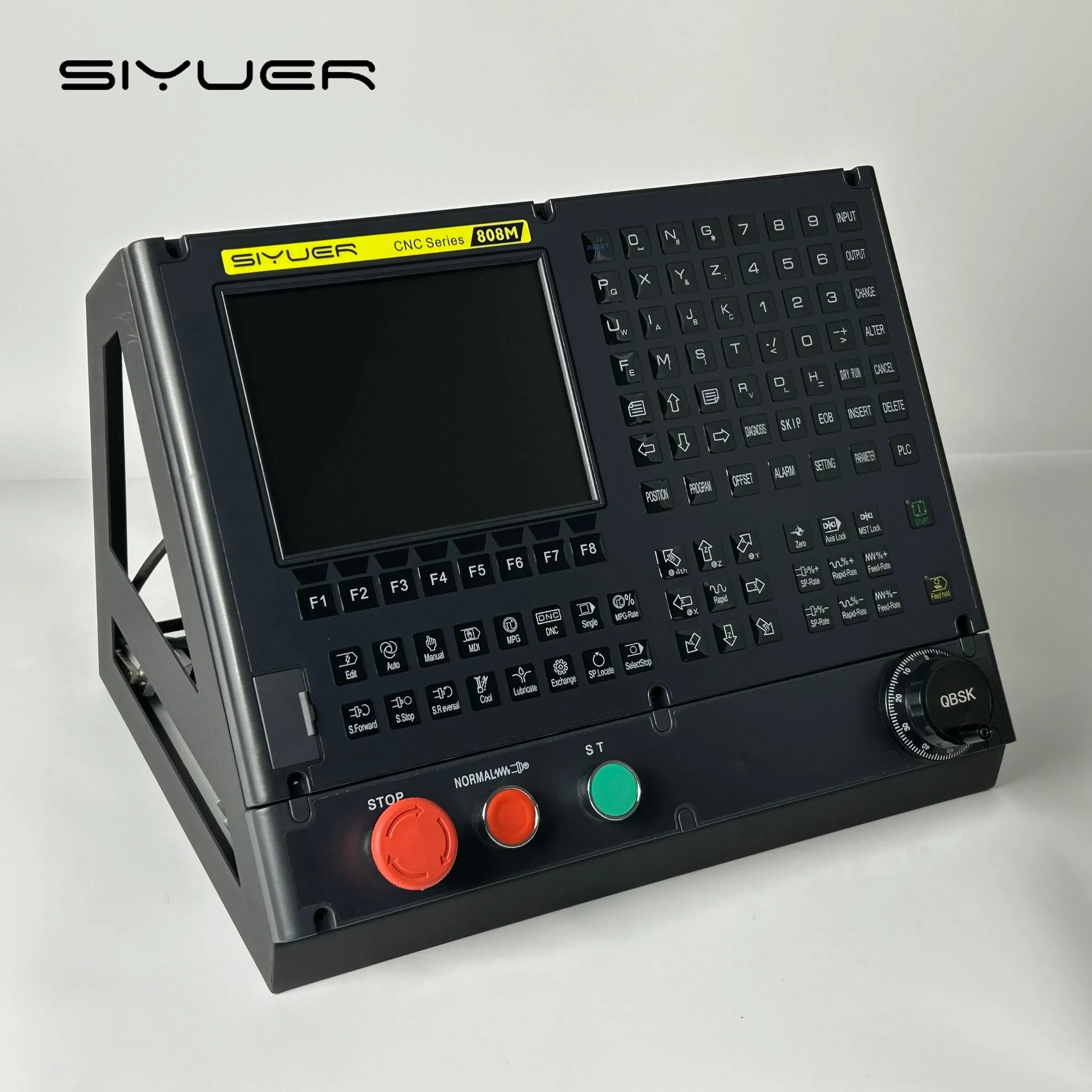

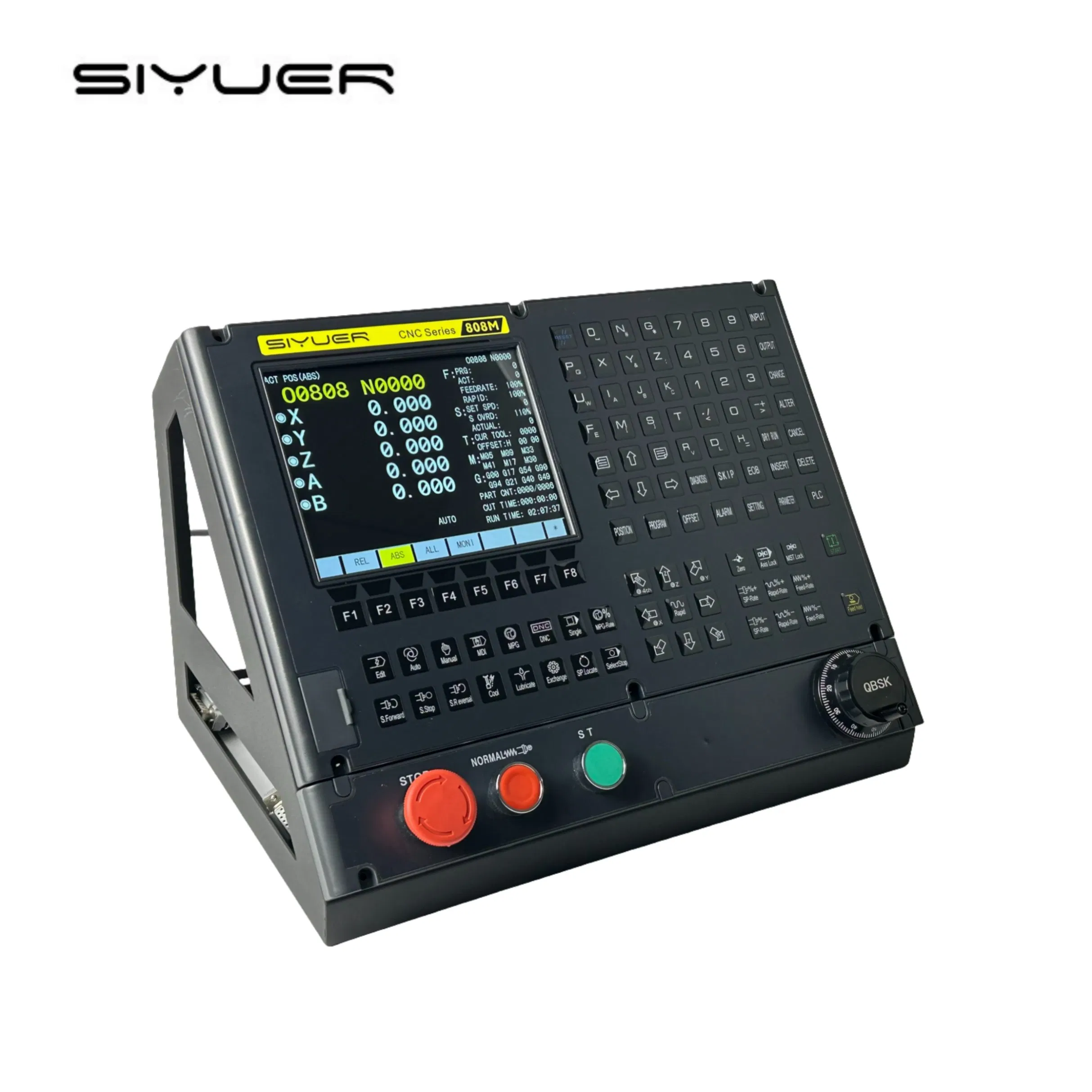

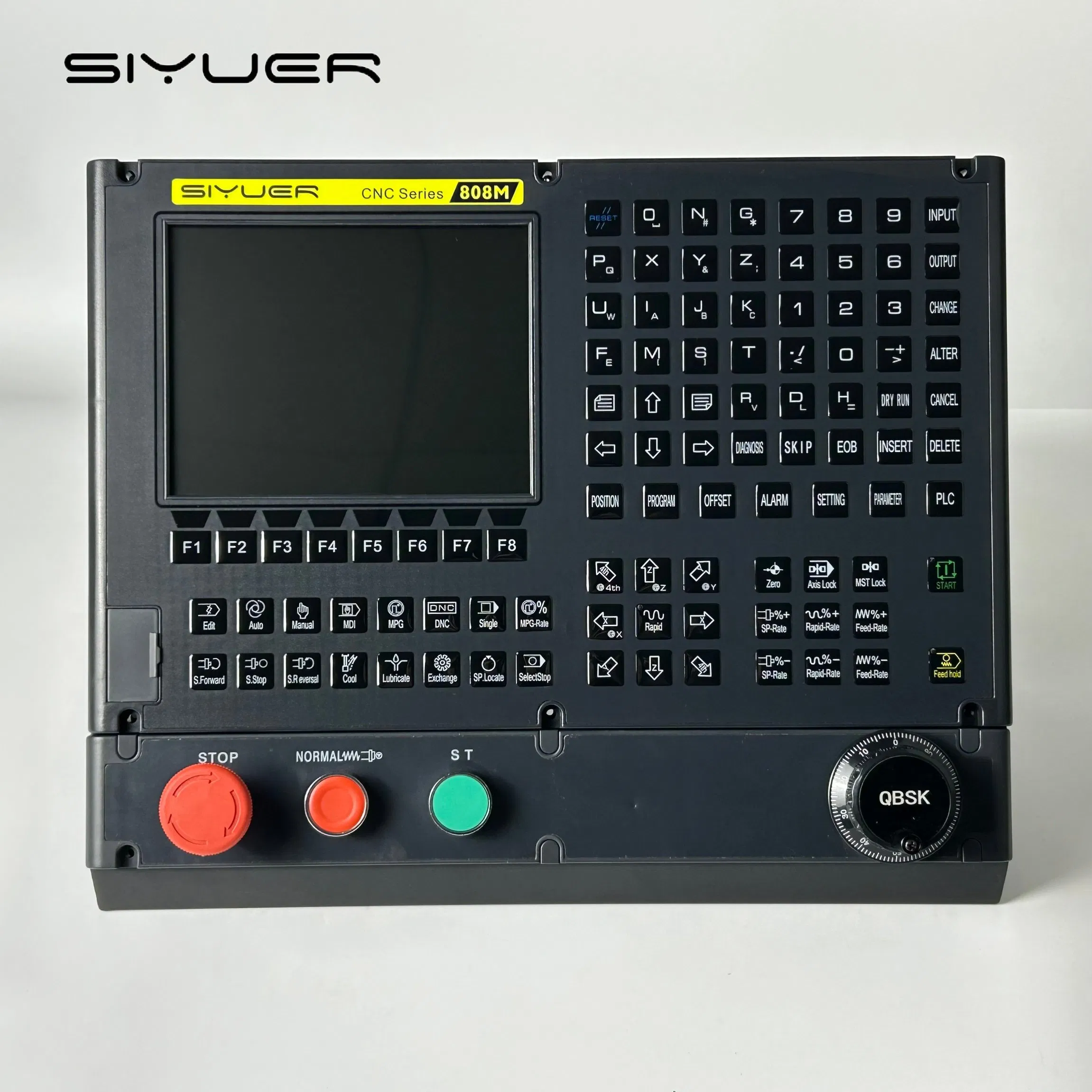

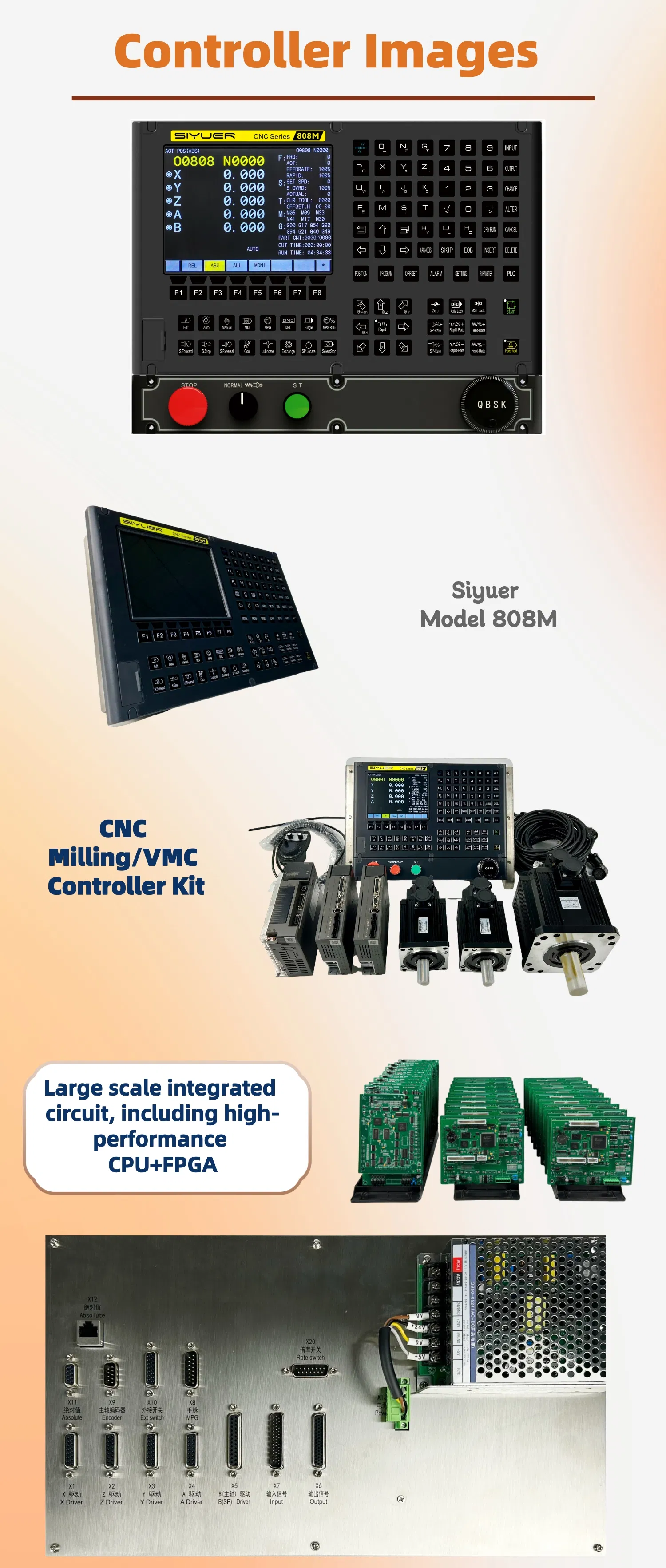

🖼️ Product Display

⚙️ Technical Specifications

Axis Number	5 feed axis (X, Y, Z, A, B), 3 axis linkage for arc, 5 axis for straight line, 1 analog spindle
Interpolation Cycle	1ms interpolation cycle, 0.1um control accuracy
Spindle	1 path -10V ~ 10V analog voltage output, support servo spindle control

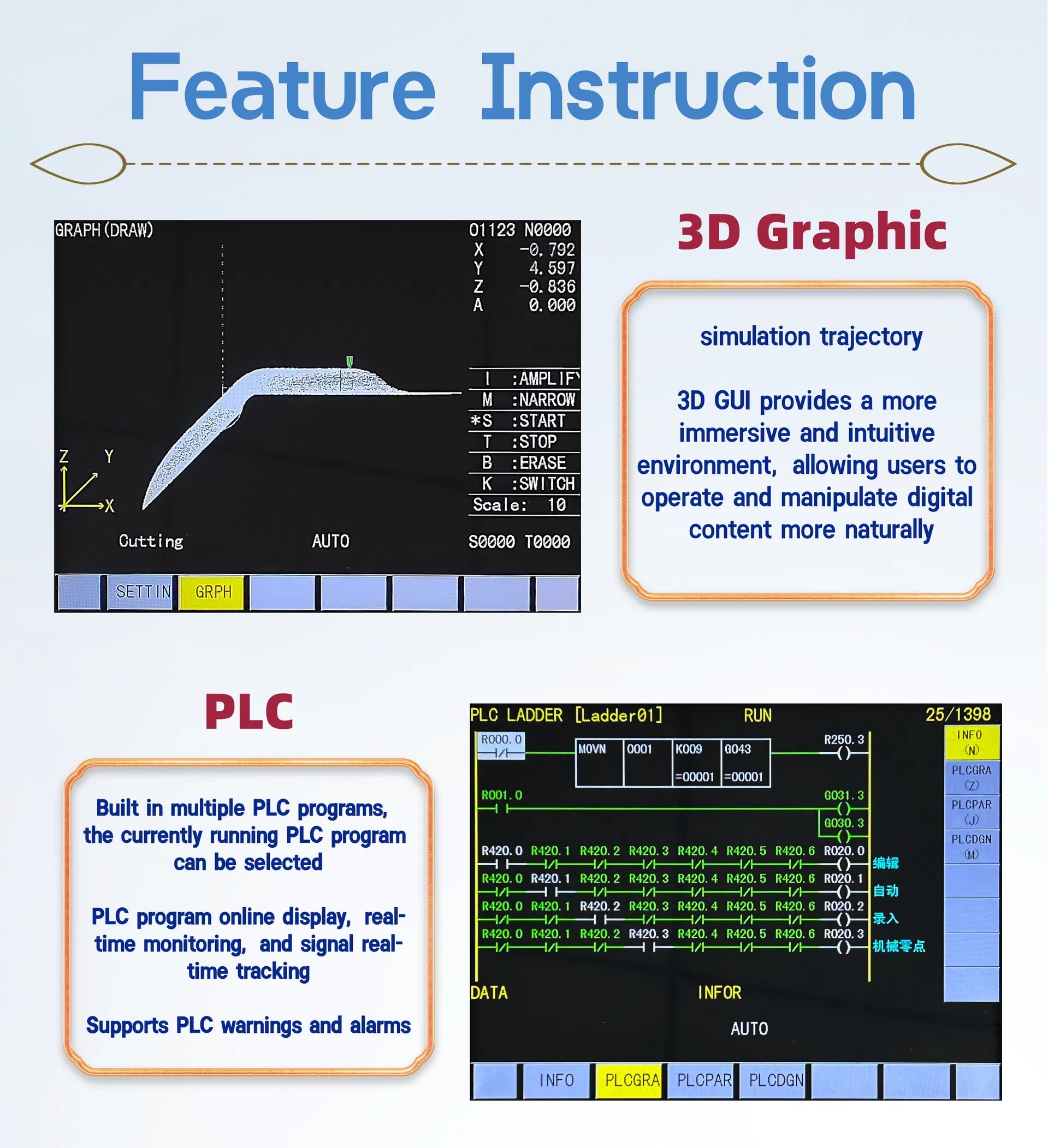

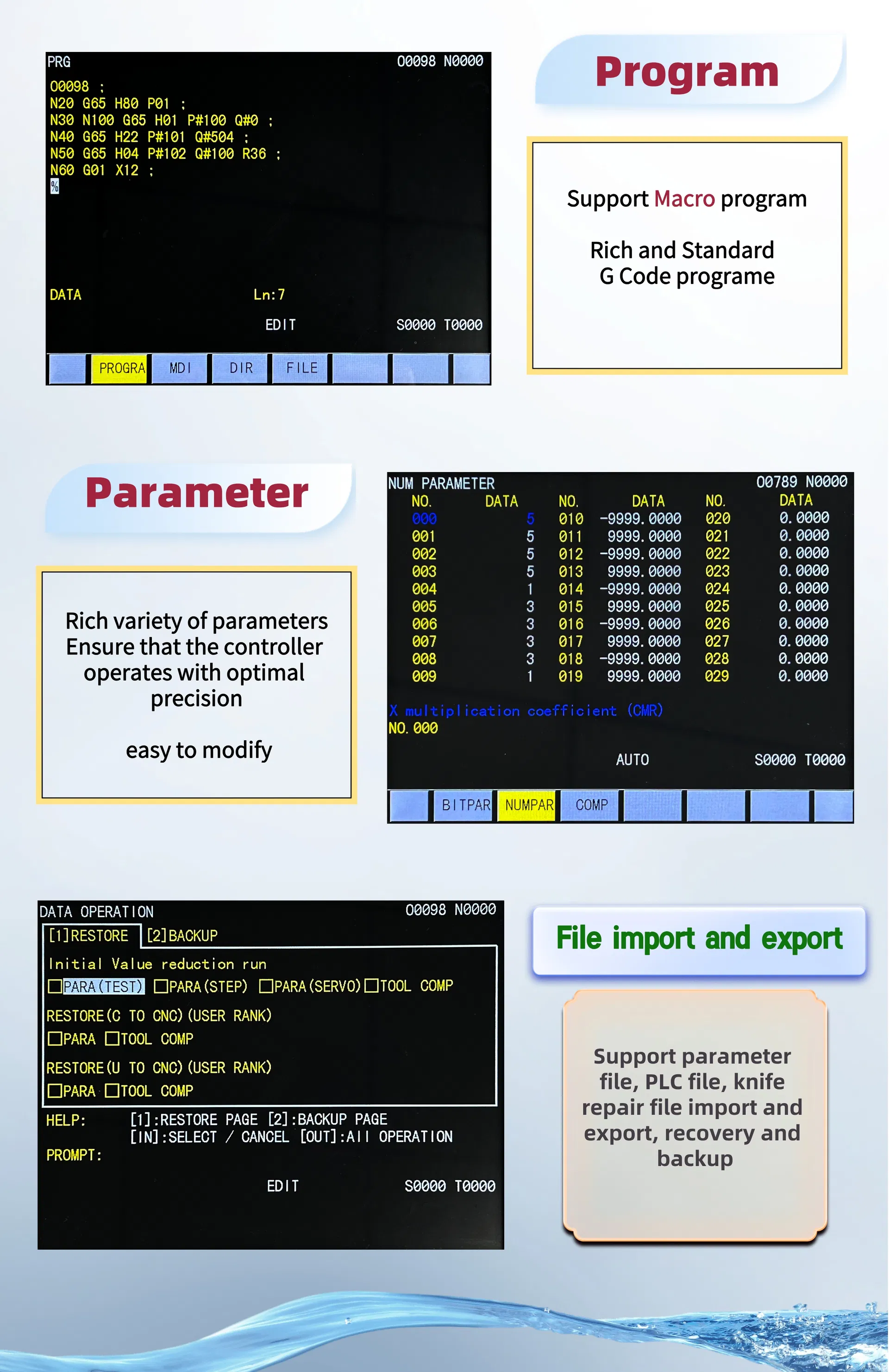

PLC	Built-in multiple PLC programs, online real-time monitoring and signal tracking
Macro	Supports statement macro code programming and parameterized macro program calls
I/O Unit	32 universal inputs / 32 universal outputs
Resolution	8.0 inch screen LCD, 800 x 600 resolution

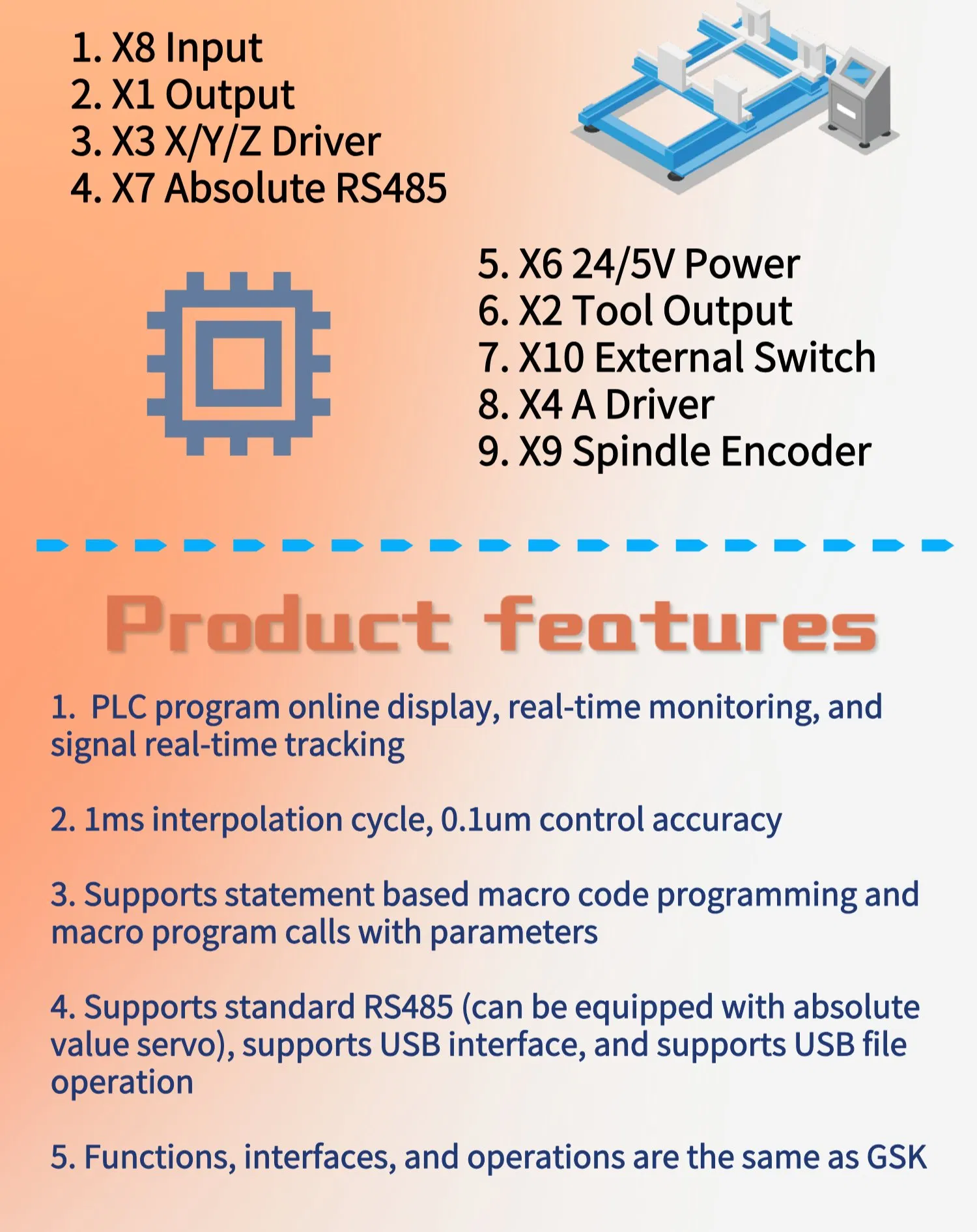

🚀 Key Features & Capabilities

Motion Control: High-speed positioning up to 60m/min and cutting feed speed up to 15m/min. Features forward-looking function reading up to 15 segments of NC program for smooth small line interpolation.

✅

Acceleration/Deceleration: Multiple modes including linear, exponential, and S-type for precise motion control.

✅

Compensation: Supports tool length compensation, blade tip radius compensation (C type), pitch error compensation, and reverse clearance compensation.

✅

Data & Communication: 56MB program capacity (up to 400 programs). Supports USB and RS232 for file transmission, DNC processing, and system upgrades.

📦 Packaging & Delivery

Package Size

50.00cm * 40.00cm * 22.00cm

Gross Weight

9.000kg

❓ Frequently Asked Questions

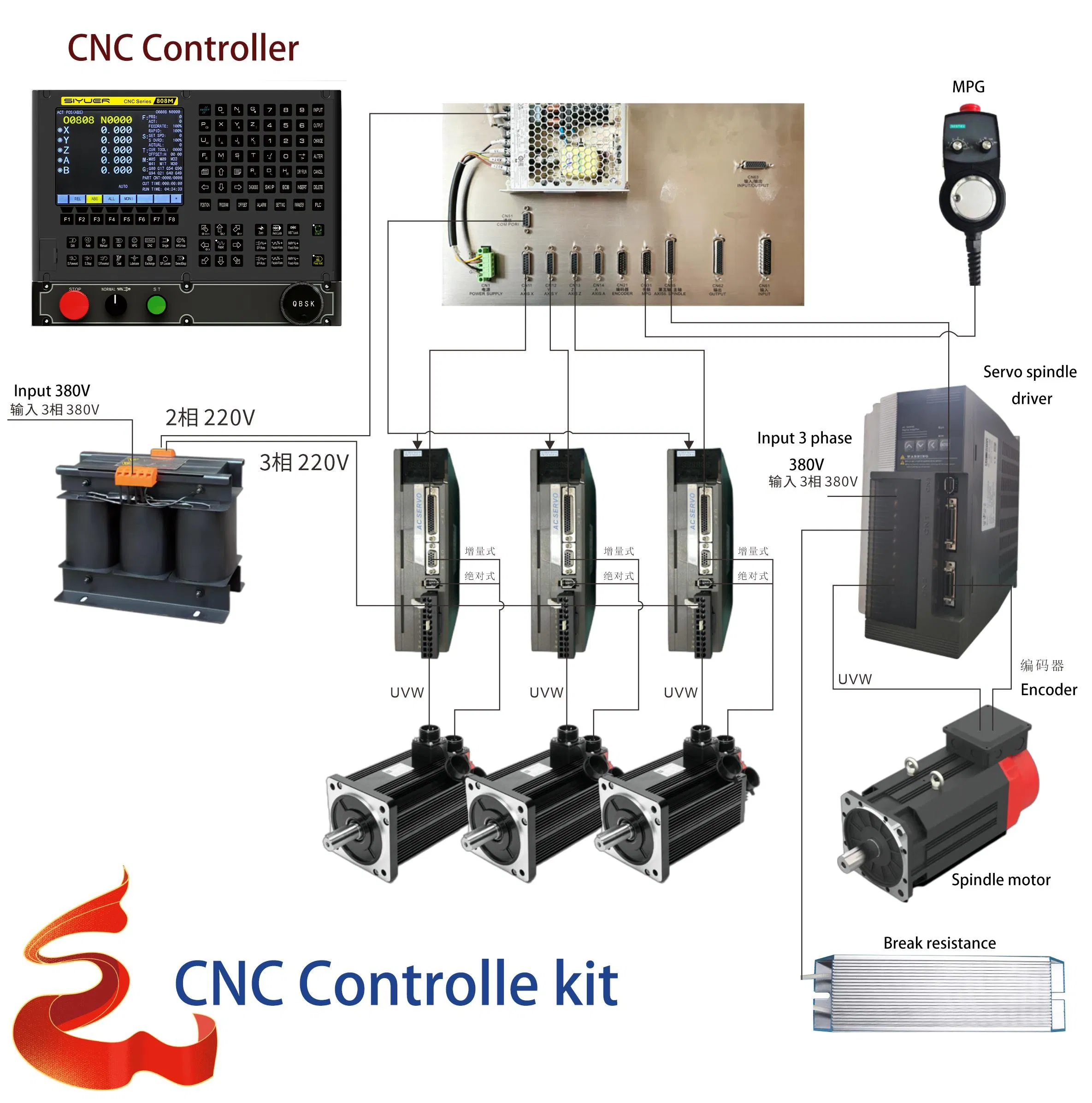

What is included in a total CNC system solution?

We provide complete plug-and-play systems, including CNC controllers, spindle and axes drivers/motors, as well as all necessary cables and accessory kits.

How is product quality ensured before shipment?

All systems undergo rigorous pre-production testing by professional engineers and a 100% final inspection before they are dispatched.

What are the standard lead times for orders?

Standard orders typically have a lead time of 5–7 workdays. Customized solutions are available with negotiable delivery schedules.

Does the CNC controller support Automatic Tool Changers (ATC)?

Yes. It supports electric, servo, and counting turrets for lathes via custom macros, and linear, umbrella, or arm-type magazines for milling machines.

What spindle control modes are available?

The system supports analog voltage output (0–10V) for precise speed control and is compatible with various servo spindle systems.

Can the system be customized with our own branding?

Yes, we support custom boot logos and multi-level permission management to suit your branding and operational needs.
