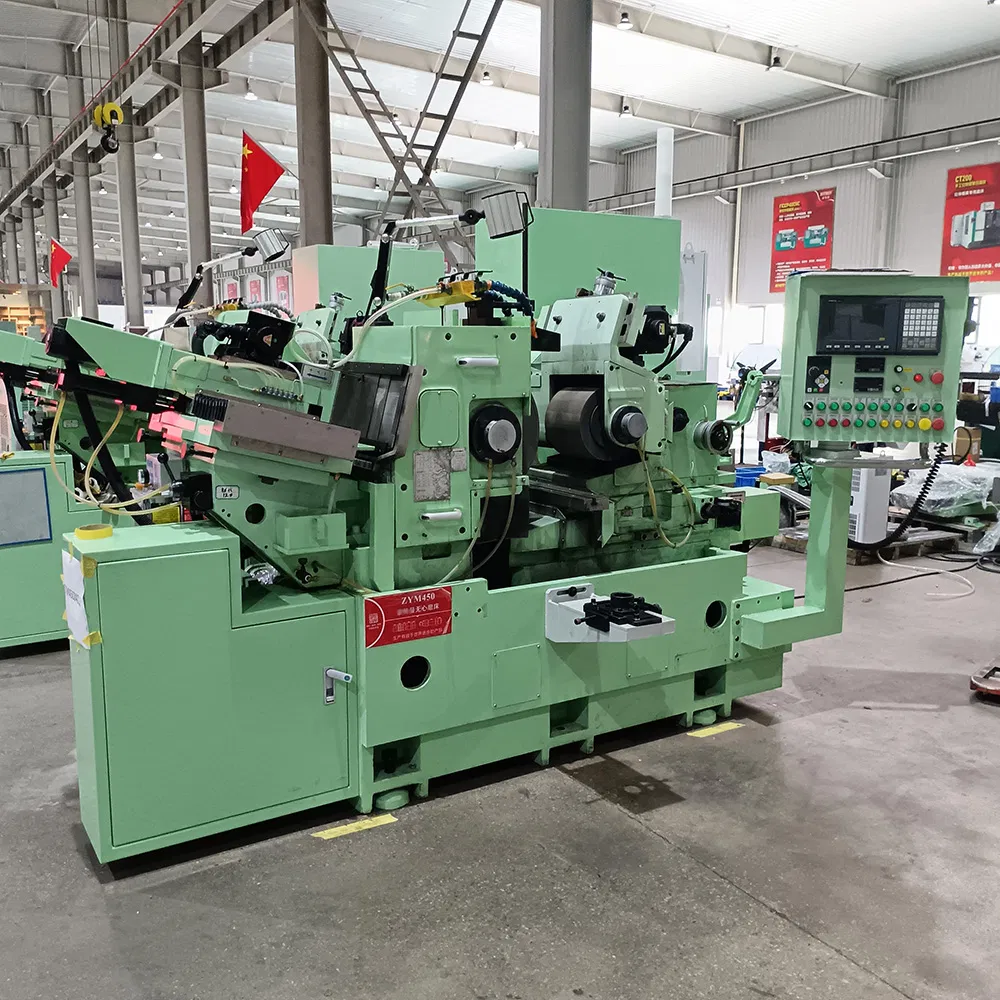

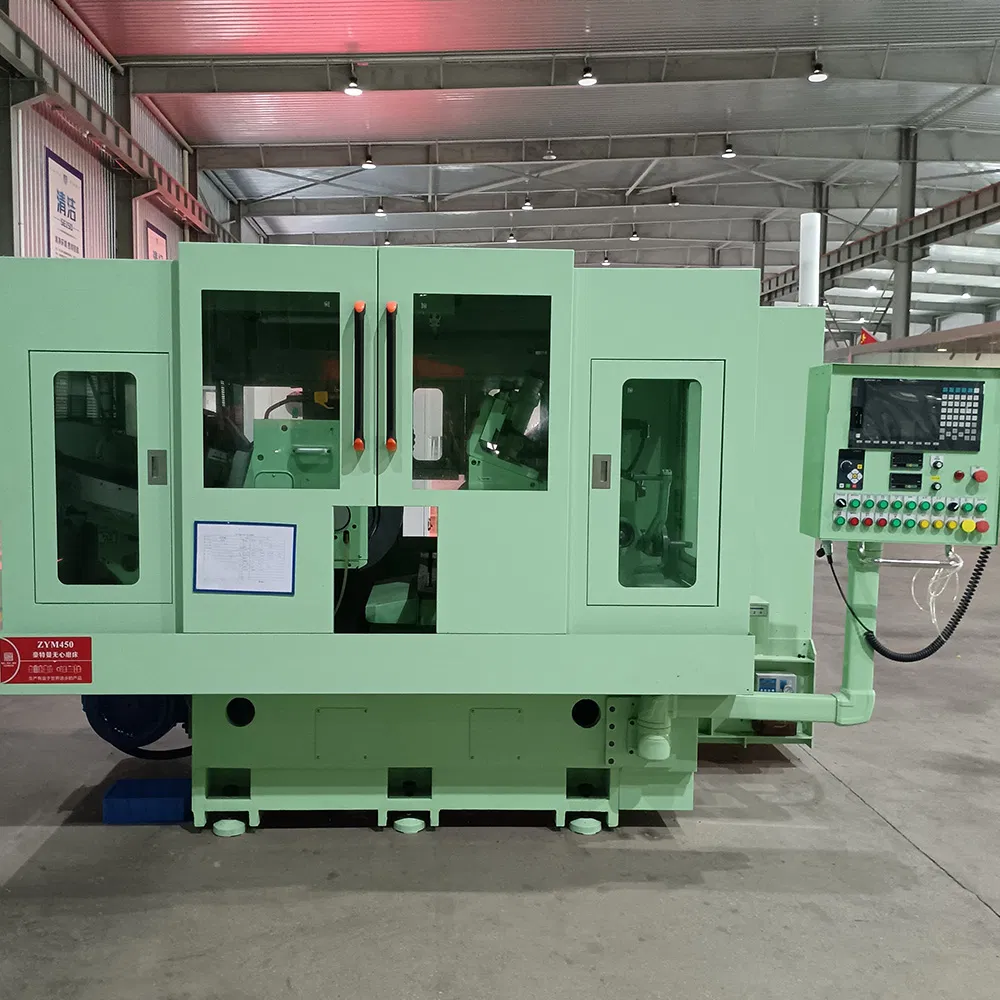

High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
1 / 5
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder
High Precision CNC Centerless Grinding Machine Centerless Grinder

High Precision CNC Centerless Grinding Machine Centerless Grinder

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information

Type:Centerless Grinding Machine
Processing Object:Crank Shaft
Abrasives:Grinding Wheel
Controlling Mode:CNC
Automatic Grade:Automatic
Precision:High Precision
Certification:CE
Condition:New
Specification:2350×1960×1550mm
Production Capacity:300set/Month

📦 Packaging & Delivery

Package Size:235.00cm * 196.00cm * 155.00cm
Gross Weight:3000.000kg
Transport Package:Wooden Case

🔍 Product Description

The machine tool is a high-precision centerless grinder with two processing modes: through grinding and cut in grinding. Capable for electronics, ceramics, metals and other industries. The machine is suitable for cylindrical grinding of single piece and batch production lines. The grinding diameter range of the outer circle is 1-50mm, and the grinding length of the standard support frame is 5-200mm.

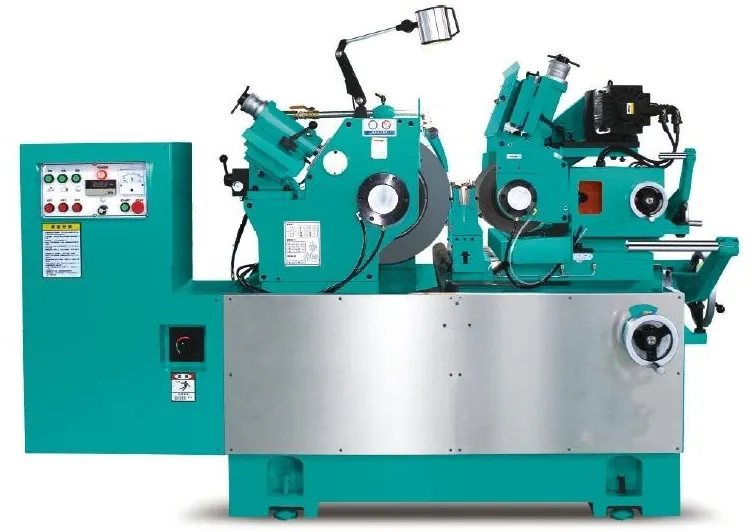

High Precision CNC Centerless Grinding Machine

💡 Product Features

  • The Machine Is Made Of Milhanna Cast Iron With Shock Absorption And High Stability. After Proper Heat Treatment, The Internal Stress Is Eliminated To Ensure Long-term Thermal Stability.
  • Dynamic/Static Pressure Spindle (Optional): The Grinding Wheel And Adjusting Wheel Spindle Are Made of Nickel-chromium Alloy Steel.
  • Advanced Heat Treatment: Using Osmotic and Cryogenic Heat processes to improve wear resistance and ensure the spindle material is stable and deformation-free.
  • Precision Control: The Adjusting Wheel is driven by a Servomotor for higher rotation accuracy and digitally controlled for segment-free transmission.
  • High Efficiency: This series of models is easy to operate with no special adjustment needed, offering high cost performance.

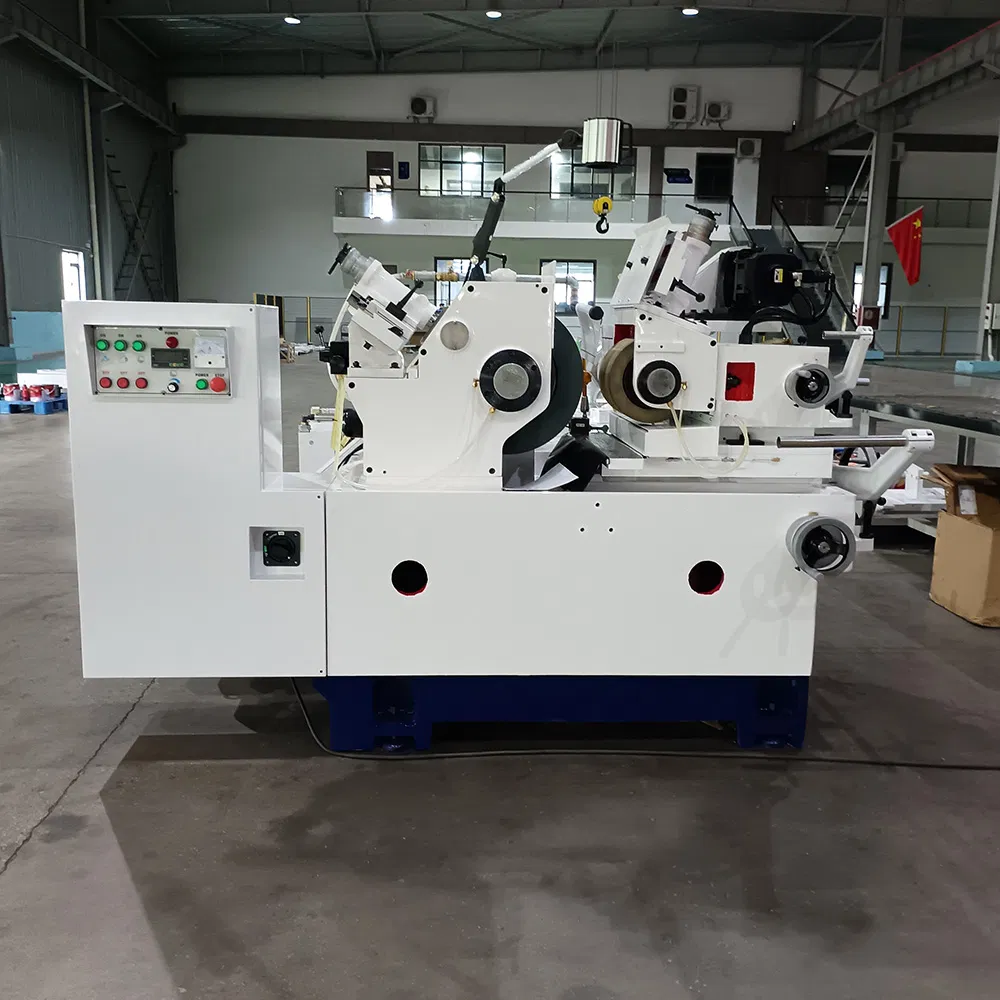

Grinder Detail 1

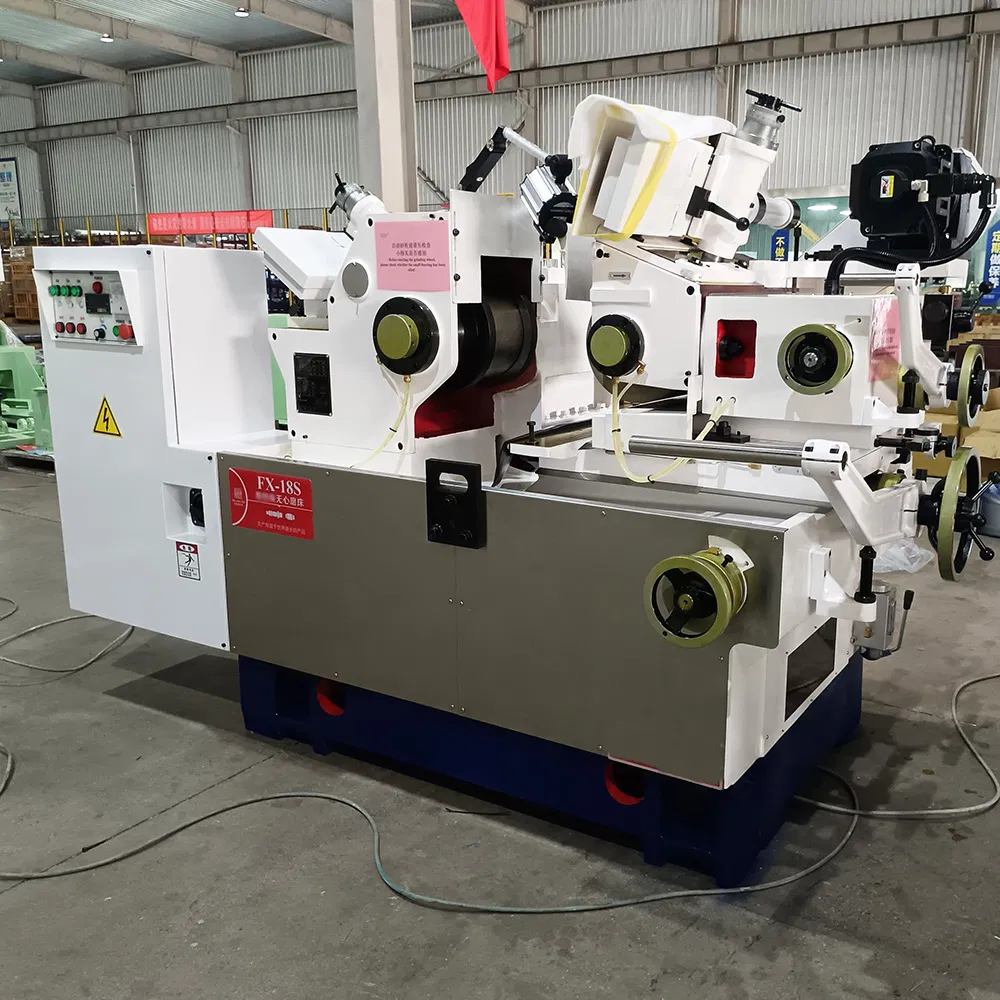

Grinder Detail 2

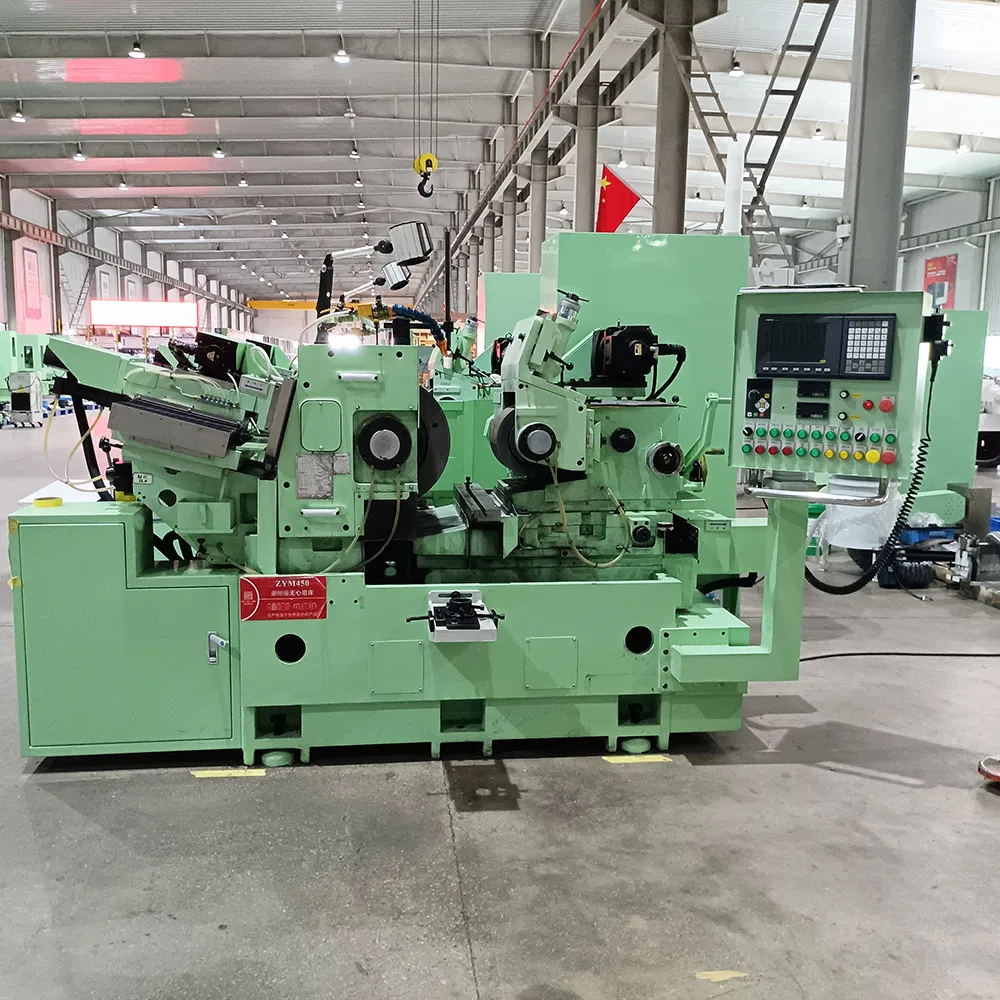

Grinder Detail 3

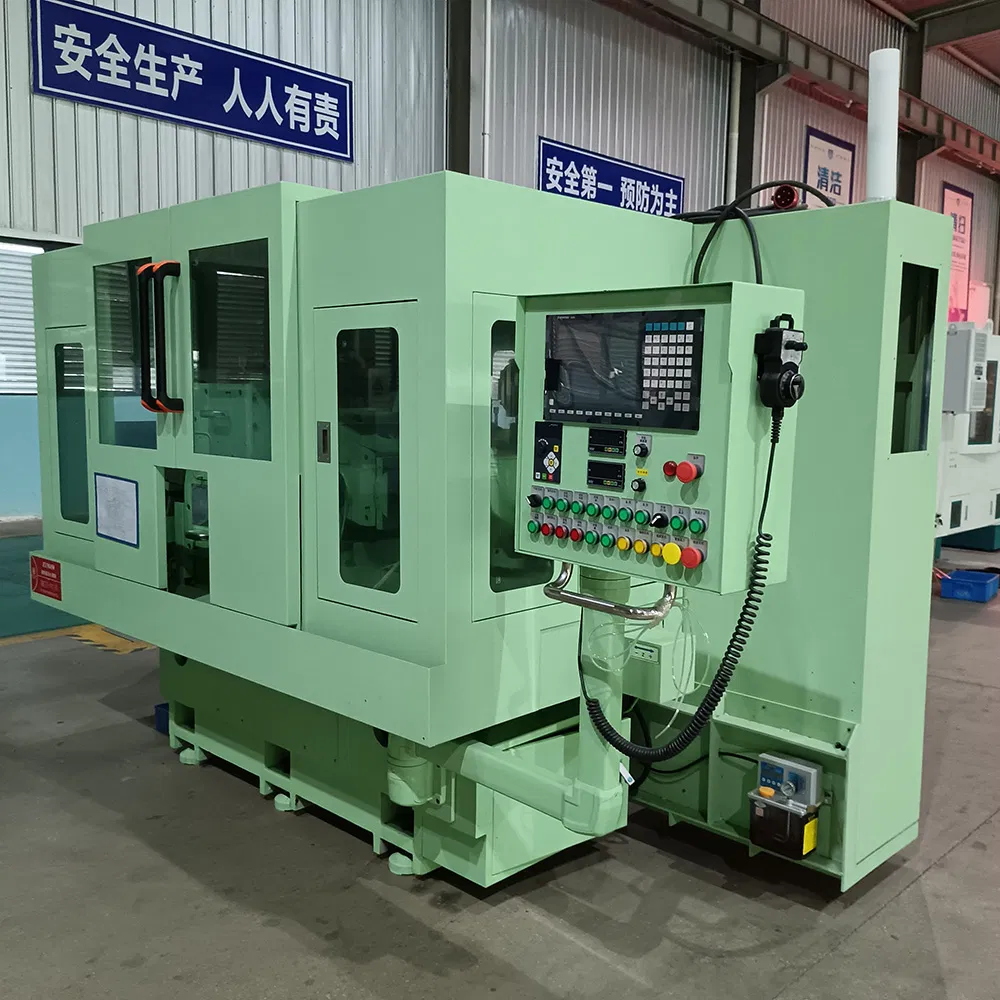

Grinder Detail 4

📋 Product Parameters

Item FX-18S Specification
Part diameter (in standard worktable)Ø1 ~ Ø60 mm
Grinding wheel sizes (OD×W×ID)Φ455*205*Φ228.6 mm
Regulating wheel sizes (OD×W×ID)Φ255*205*Φ111.2 mm
Grinding wheel rotary speed1500 RPM
Regulating wheel rotary speed0~250 RPM
Grinding wheel driving motor11KW (15 HP)
Regulating wheel driving motor3KW (4HP) servo motor
Hydraulic pump driving motor1.5KW (2HP)
Cooling pump driving motor1/4 HP (0.2 KW)
Regulating wheel fine feeding0.1mm/rev., 0.001mm/grid
Machine sizes (L×W×H)2350×1960×1550mm
Machine weight3000 kg

🛠️ Product Details

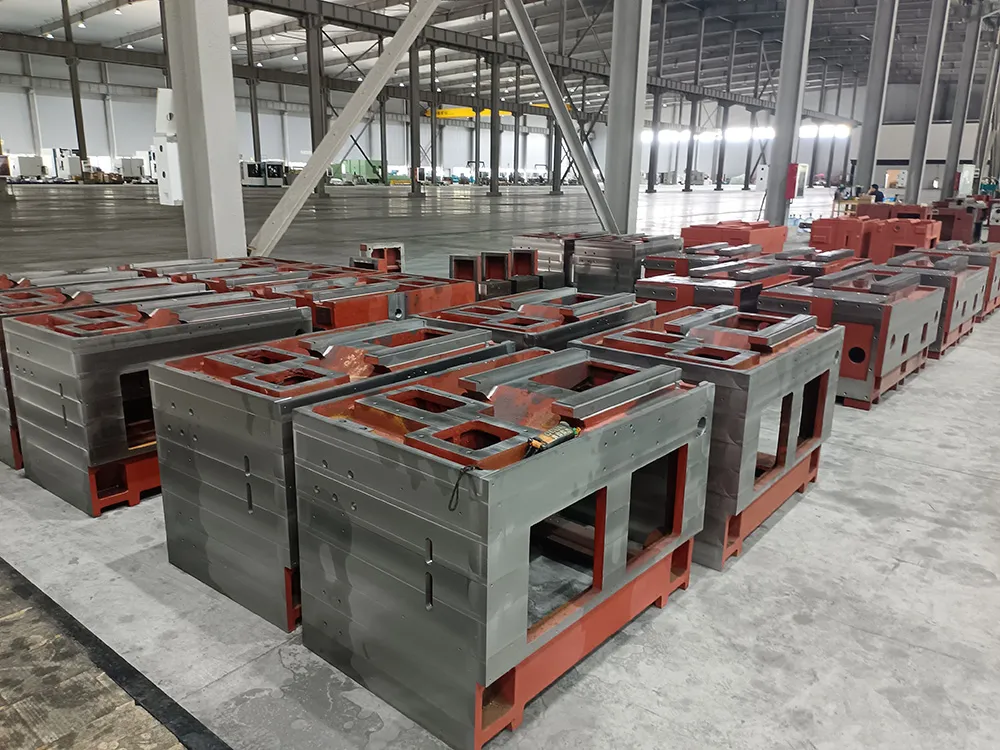

Product Detail View 1

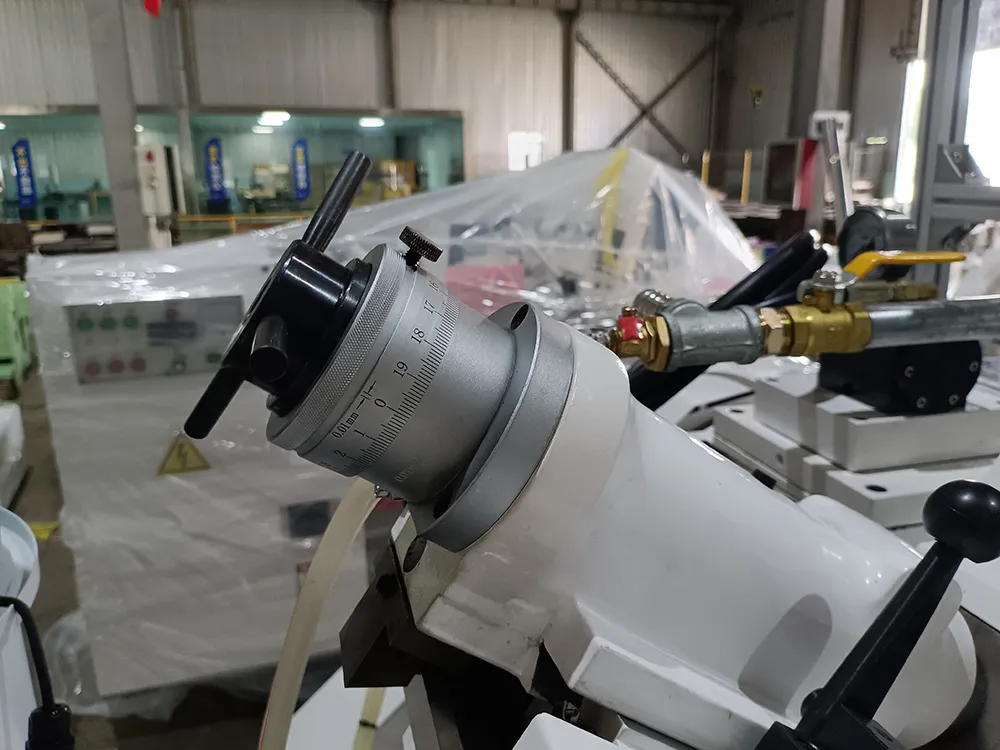

Product Detail View 2

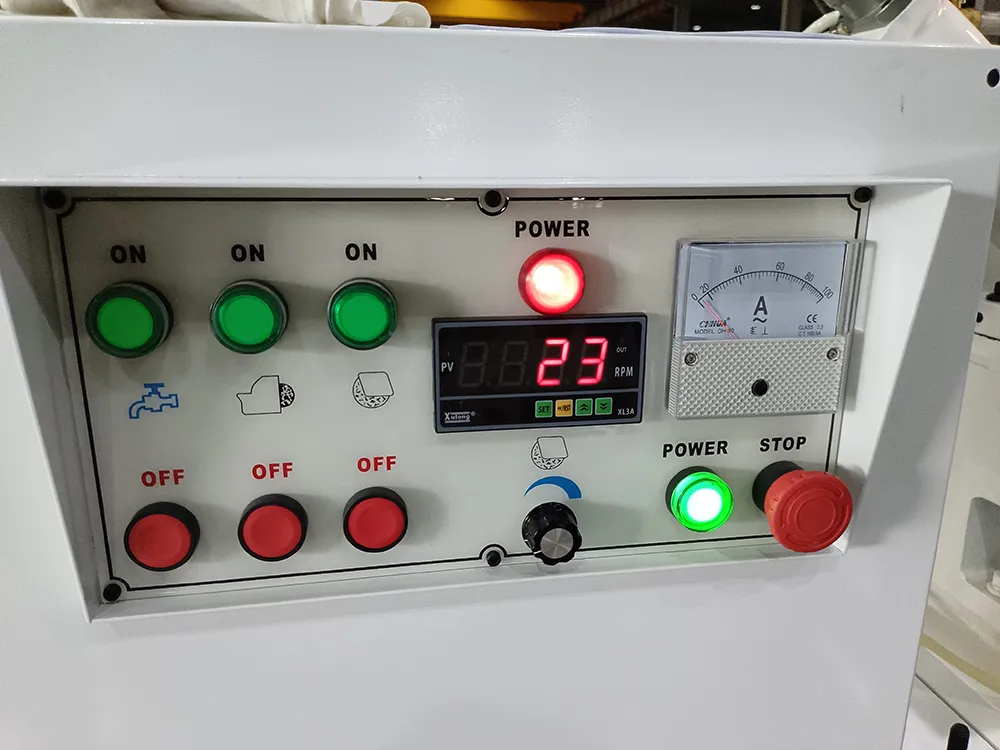

Product Detail View 3

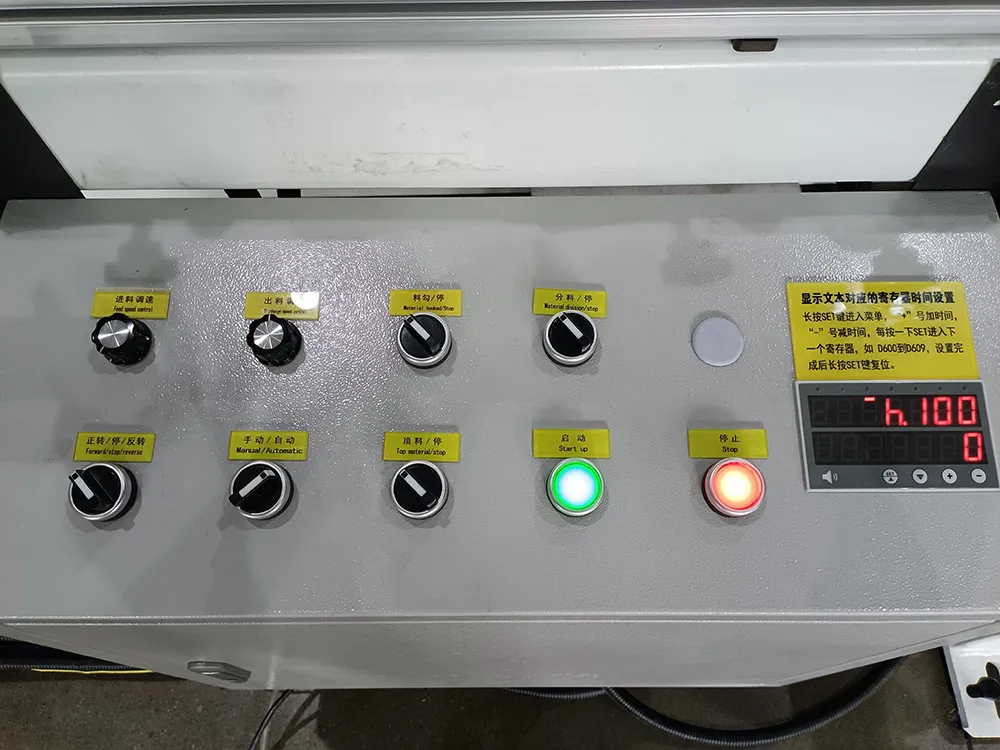

Product Detail View 4

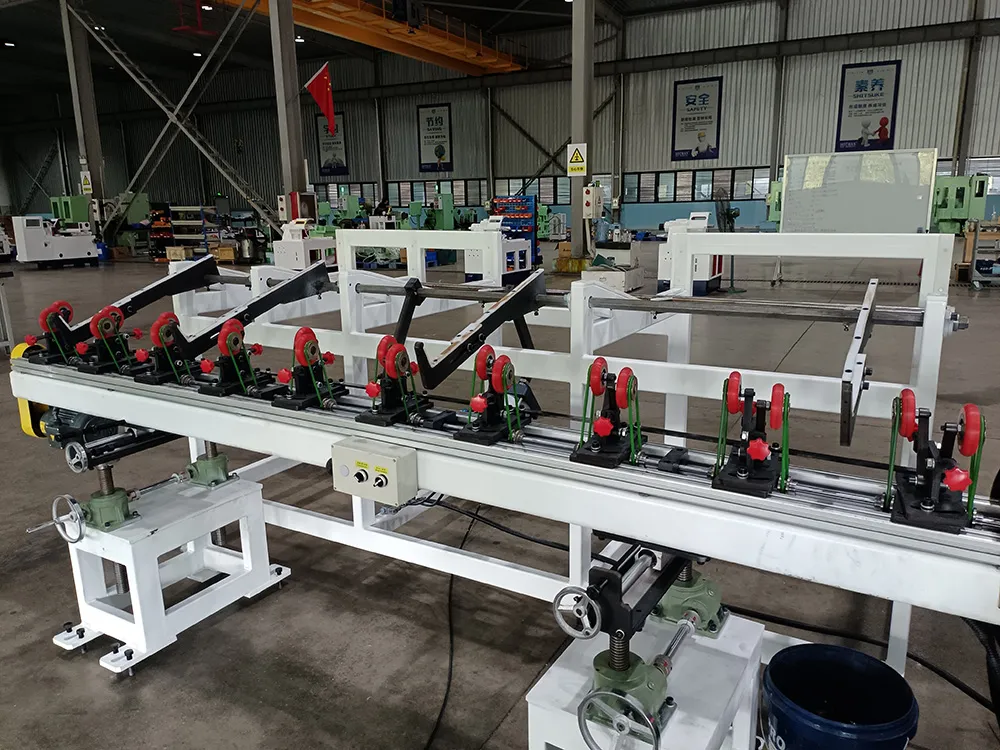

Product Detail View 5

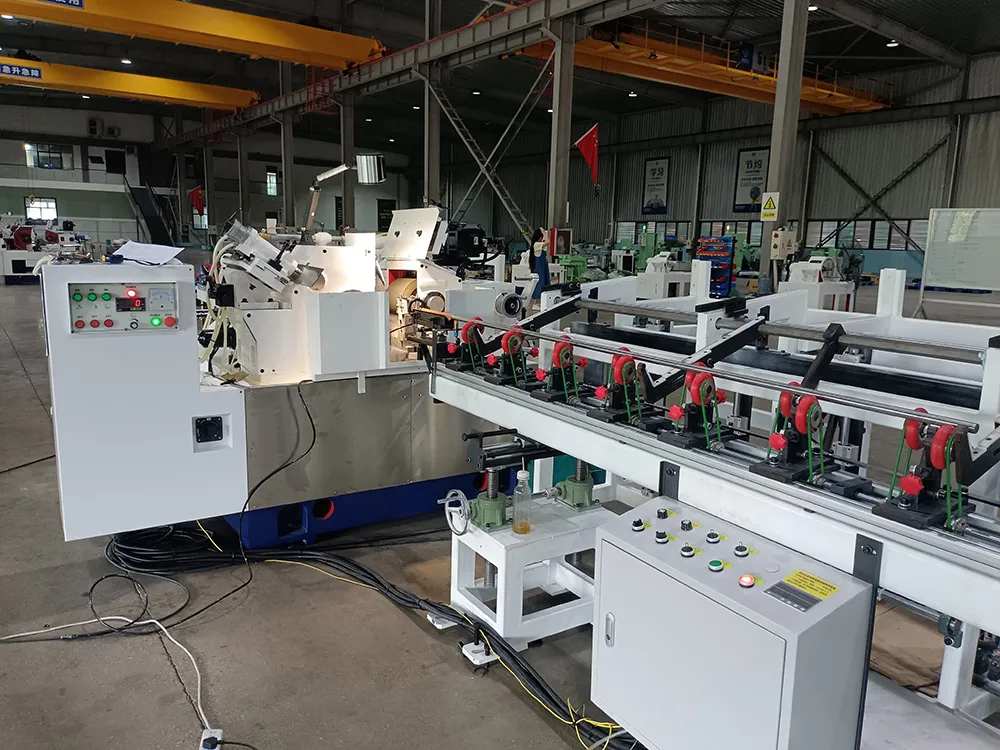

Product Detail View 6
Full Machine View

❓ Frequently Asked Questions

1. What is the grinding diameter range for this centerless grinder? The machine supports a grinding diameter range of 1mm to 50mm for the outer circle (standard setup up to 60mm).
2. Which materials can be processed with the FX-18S? It is highly versatile and suitable for electronics, ceramics, metals, and other industrial materials.
3. What processing modes does the machine offer? The machine features two primary processing modes: through grinding and cut-in grinding.
4. How is the stability of the machine bed ensured? The body is made of Milhanna Cast Iron, which provides excellent shock absorption. It undergoes heat treatment to eliminate internal stress for long-term thermal stability.
5. Is the regulating wheel speed adjustable? Yes, the regulating wheel is driven by a servomotor and is digitally controlled for segment-free transmission, ranging from 0 to 250 RPM.
6. What certifications does this machine have? The machine is CE certified, ensuring it meets high safety and environmental standards.
