High-Performance Ht500 CNC Lathe and Vertical Milling System

Customization:	Available
After-sales Service:	Technical Support
Type:	Vertical Lathe

Send Inquiry

Product Description

Product Overview

Model NO.

HT500

Processing Accessory

Centre CNC Lathe

Guide Rail

Horizontal Guide Rail

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Certification

ISO 9001

Condition

New

Product Introduction

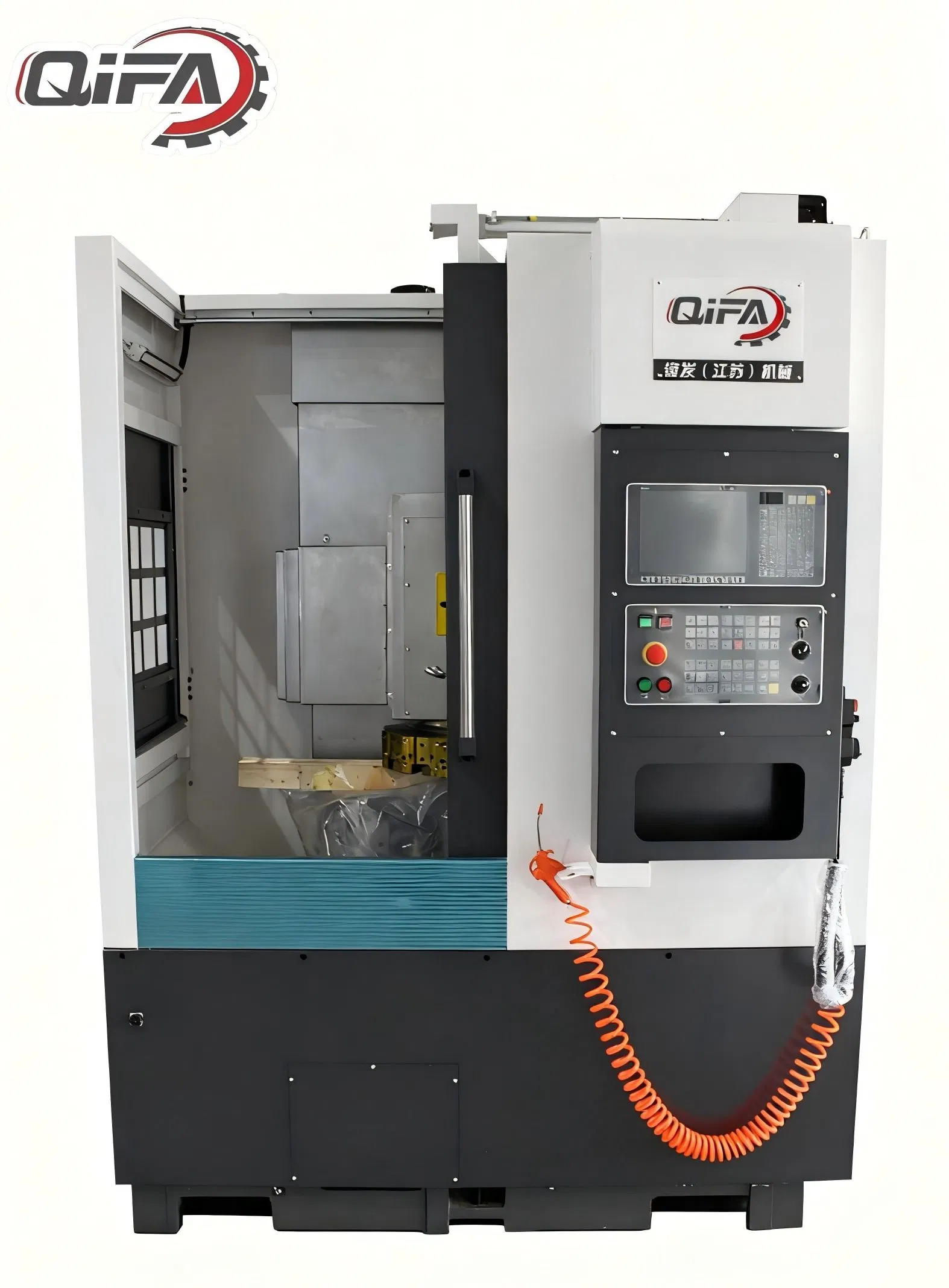

The HT500 CNC vertical lathe is a high-efficiency single-column moving beam system designed for modern market demands. Featuring a worktable diameter of 250mm and a maximum rotary diameter of 500mm, it excels in precision machining of complex components up to 400mm in height.

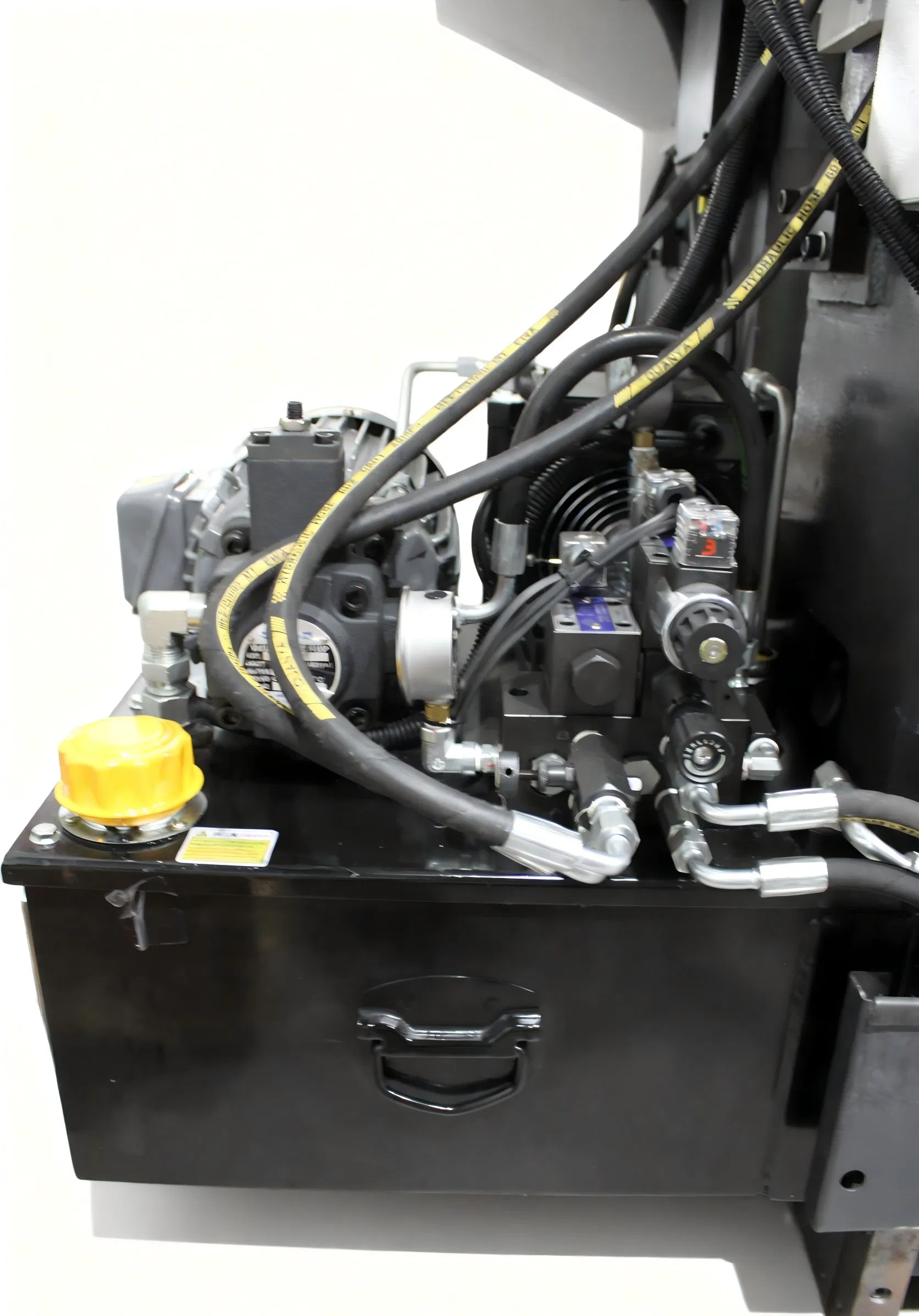

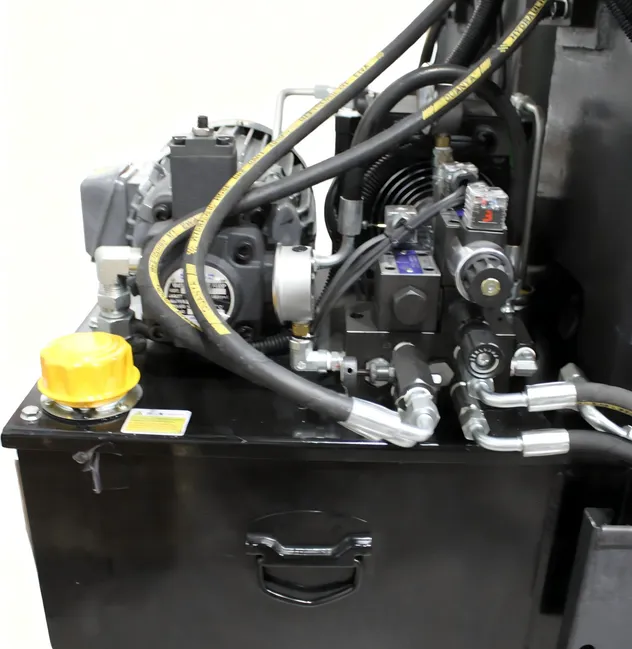

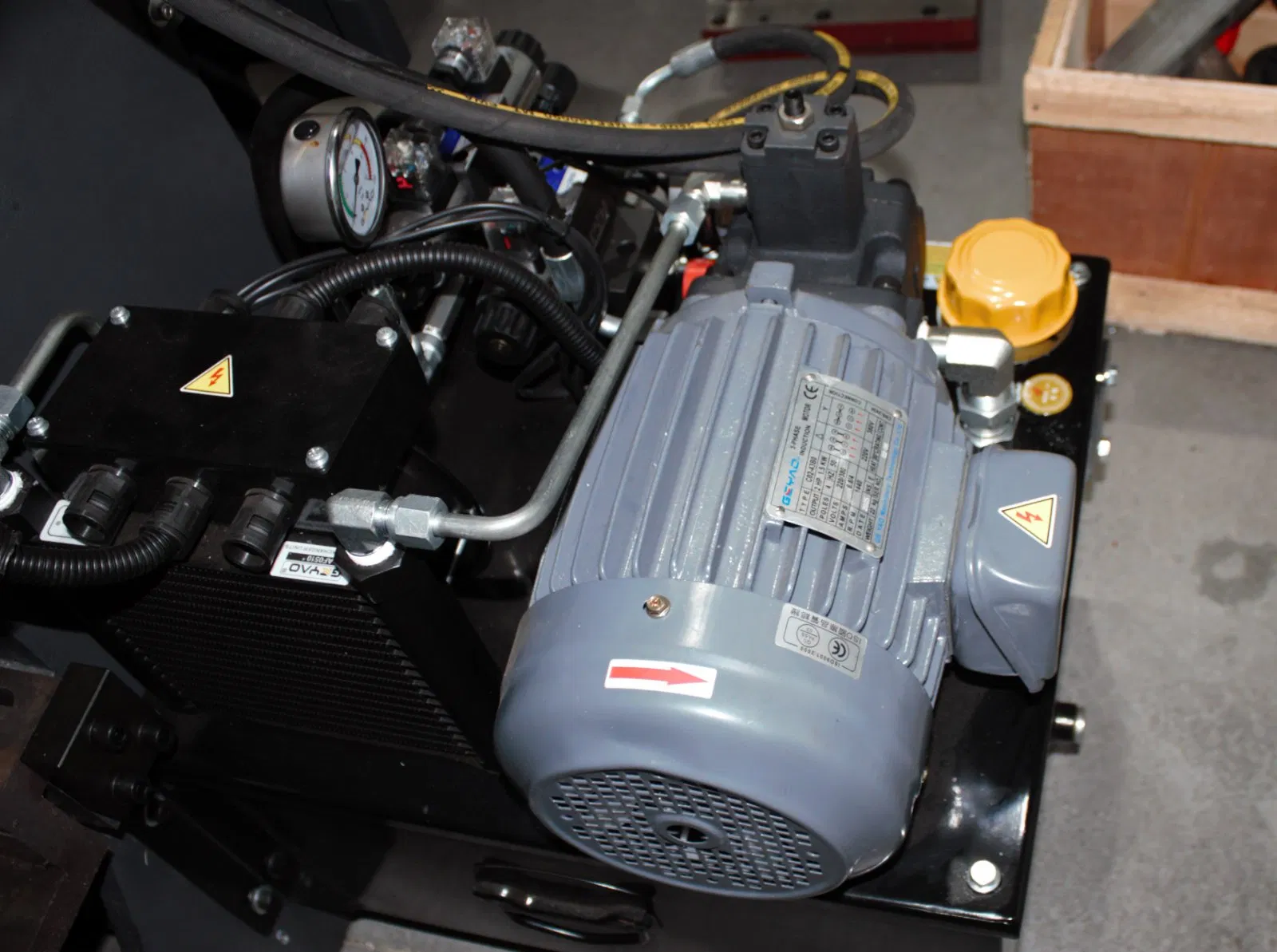

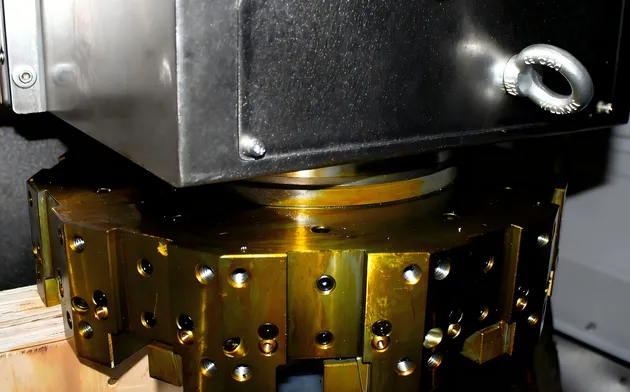

Equipped with a hydraulic tool turret, the machine enables automatic tool changing, significantly reducing downtime and labor costs while maintaining high rigidity and reliability through imported core components.

Product Features

Large Spindle Diameter: Options include Type B (82mm) and Type C (105mm) to suit various workloads.
High Rigidity Structure: Entire body made of resin sand high-phosphorus castings, optimized via finite element analysis.
Durable Guideways: High-frequency quenched and precisely ground for long-term accuracy and service life.
Operator Safety: Longitudinal large lead screw features metal shielding protection.
Dynamic Balance: Spindle system is dynamically balanced for high-speed cutting technology.

Technical Specifications

No.	Item Description	Specification Data
1	Max. swing dia. over bed	500mm
2	Max. turning dia. of workpiece	250mm
3	Distance between centers	1000/1500mm
4	Bed form	Flat
5	Rapid feed X/Z	4/6m/min
6	Spindle speed	100-1500RPM
7	Spindle bore	82mm
8	Power of main motor	7.5KW
9	Positioning accuracy X/Z	0.015/0.02mm
10	Overall dimensions	2600x1700x1750mm

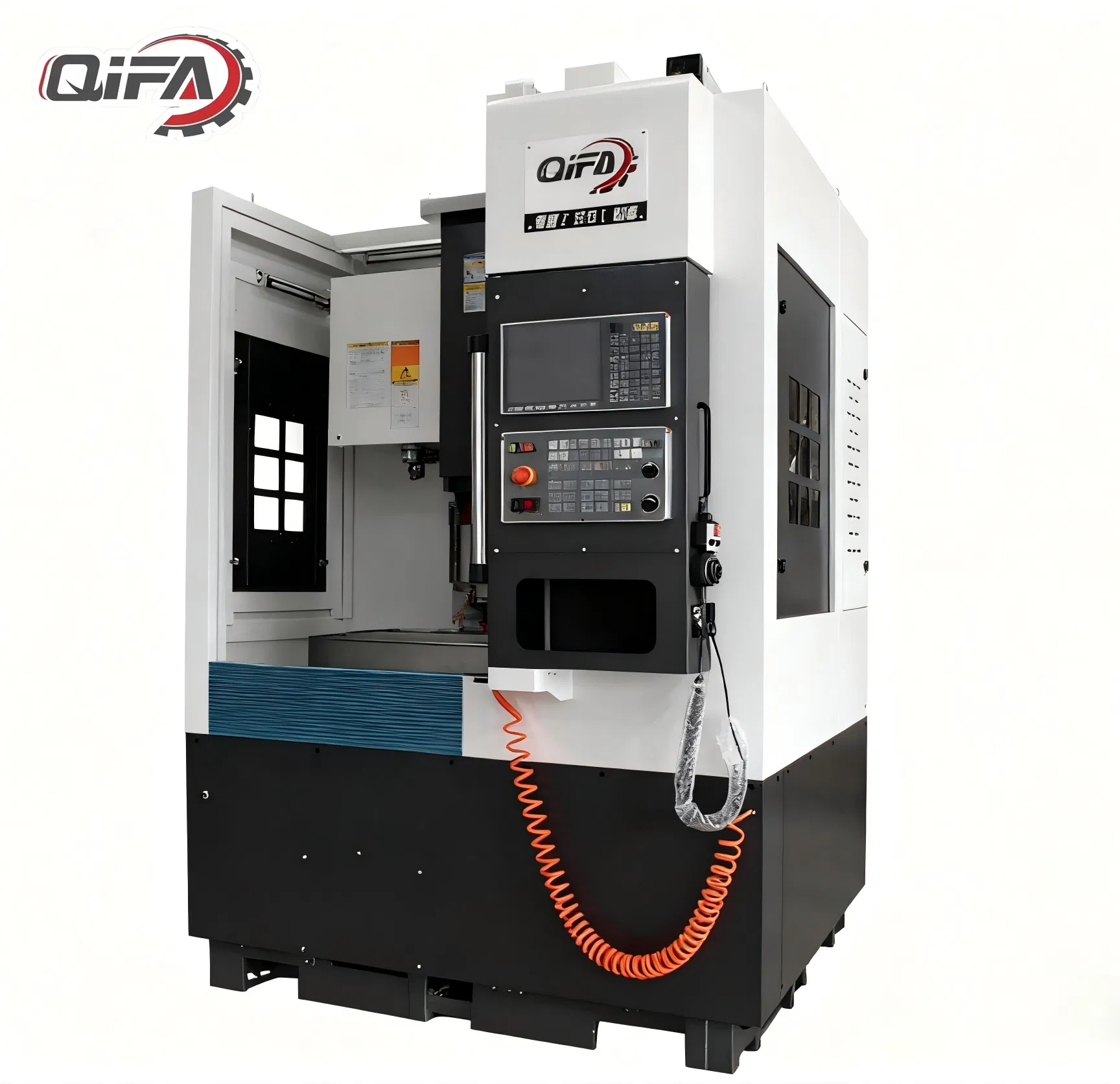

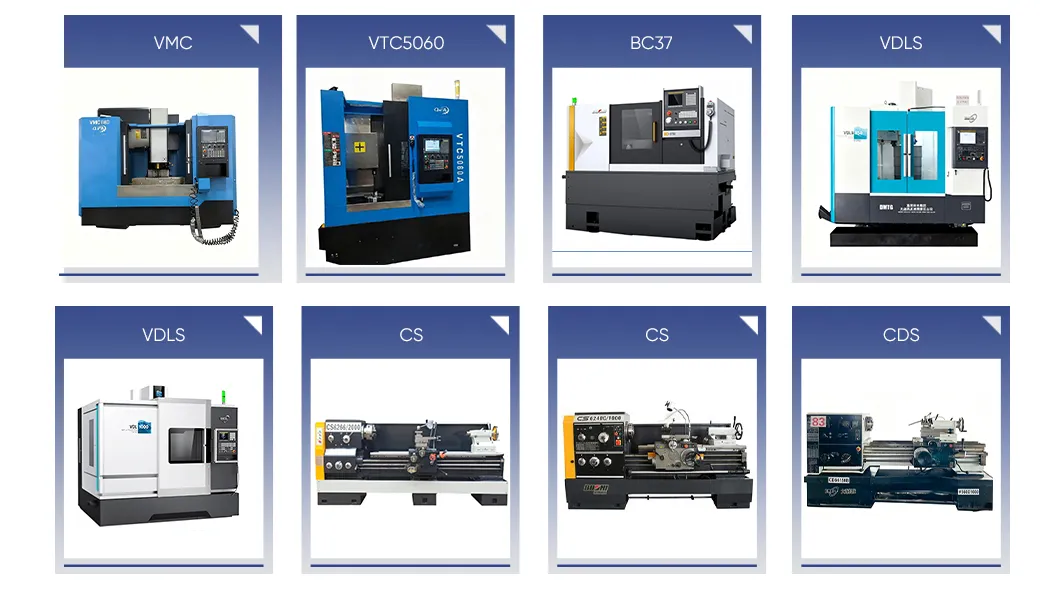

Main Product Display

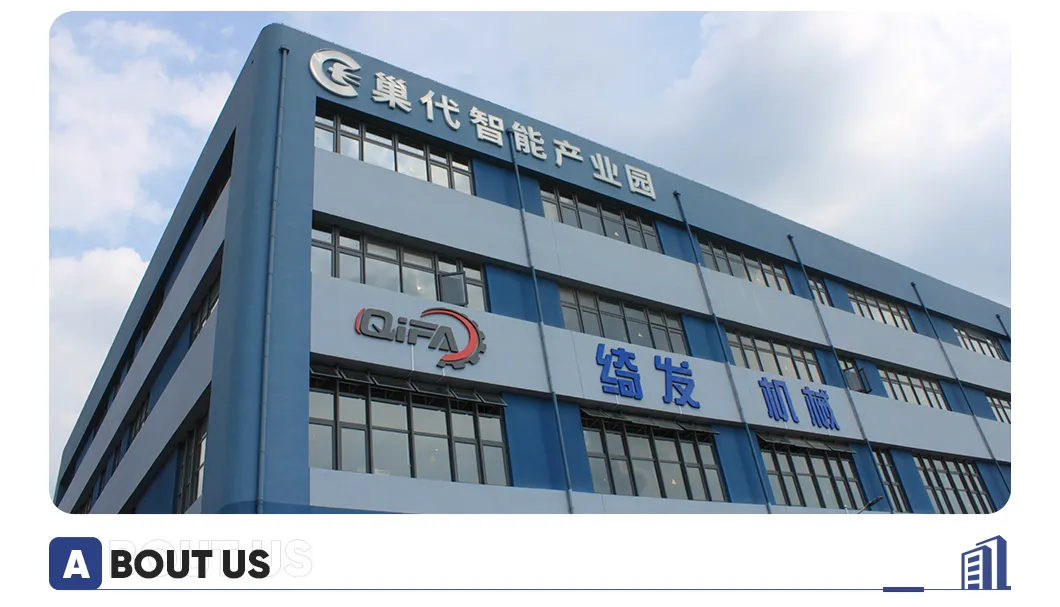

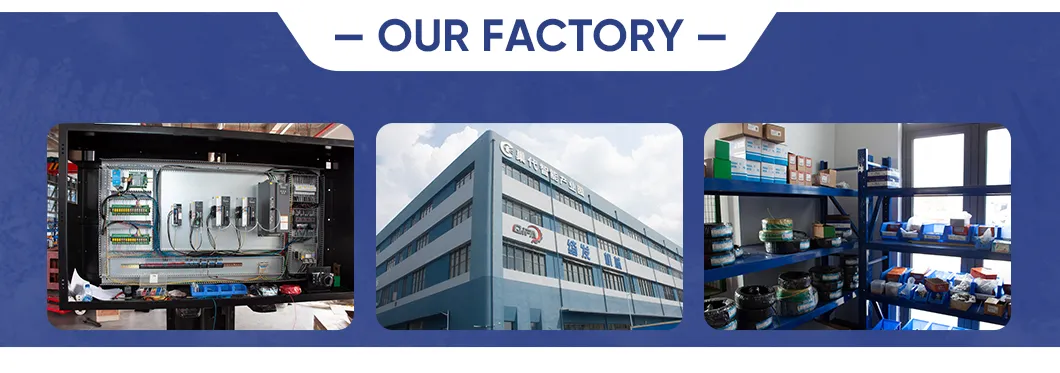

Manufacturing Capabilities

Our facility specializes in manufacturing vertical machining centers, horizontal machining centers, gantry, and moving column products. Our machines are widely utilized in aerospace, automotive, 3C electronics, and precision mold industries. We are committed to developing high-end five-axis simultaneous motion technology to provide superior performance for our clients.

Certifications & Quality Control

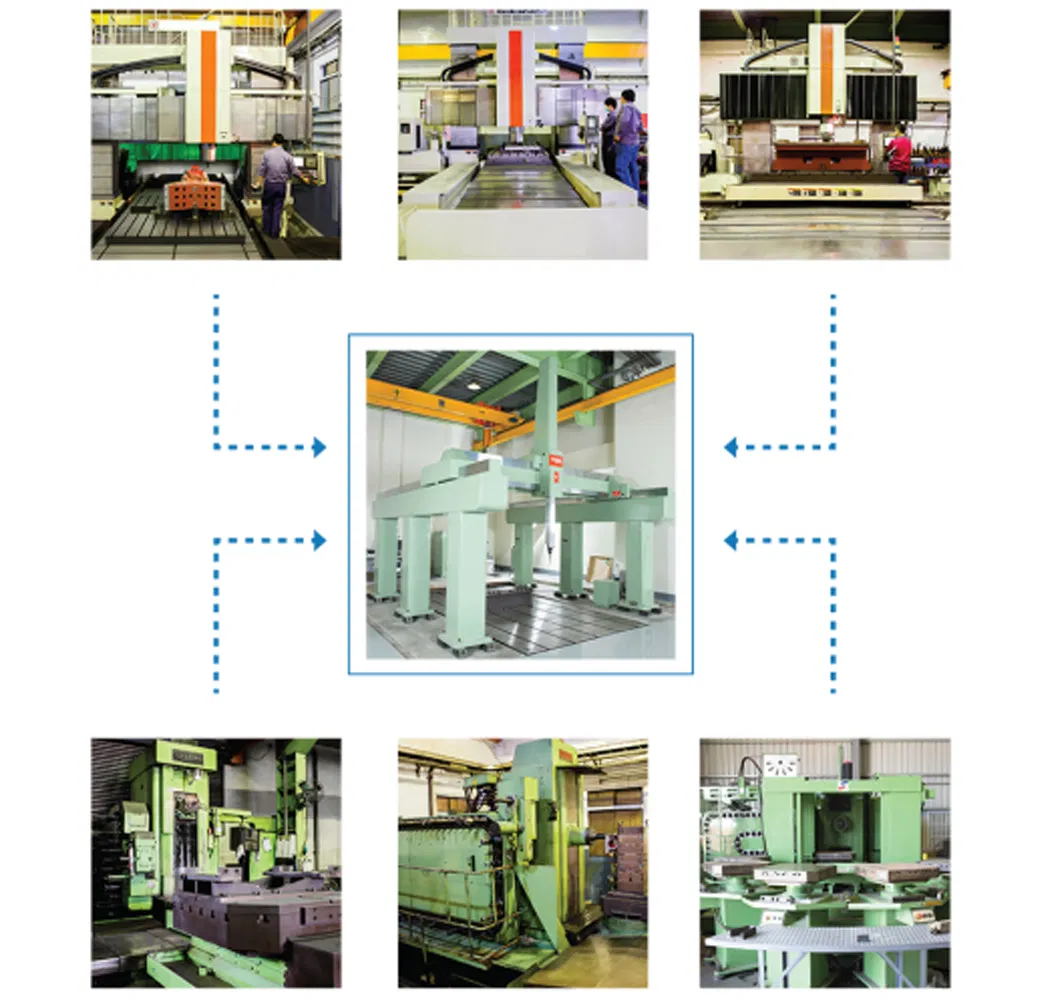

Production Excellence

🛡️

CUSTOMER VALUE COMMITMENT

Free operation training (operation, maintenance, troubleshooting). Software upgrades provided free of charge. Hardware upgrades at cost price. 12-month warranty period with free parts replacement for quality issues.

Packaging & Shipping

Frequently Asked Questions

Q1: Can we visit your factory before placing an order?

A1: Absolutely. We welcome all visitors to our factory. We can assist with station or airport pick-up and help with accommodation booking to ensure a smooth visit.

Q2: Do you maintain stock for immediate delivery?

A2: We maintain stock for popular models. Please contact our sales team to confirm the current availability for specific configurations.

Q3: What is the warranty period for the HT500 CNC Lathe?

A3: We provide a 12-month warranty from the date of final acceptance. This includes free repair or replacement of parts for quality-related issues.

Q4: Is technical training provided for operators?

A4: Yes, we offer comprehensive free training covering equipment operation, daily maintenance, and basic troubleshooting to ensure your team is fully proficient.

Q5: Can you handle custom brand requirements?

A5: We have partnerships with various manufacturers. If you have specific branding or component requirements, we are able to accommodate those needs.

Q6: What are the main application areas for this machine?

A6: The HT500 system is ideal for aerospace, automotive, precision mold making, and electronic communication components (3C) due to its high rigidity and accuracy.
