🔵 Basic Info
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Certification
GS, CE, ISO 9001
Key Selling Points
Automatic, High Safety Level, High-Accuracy
🔵 Product Description
Scope of Application:
Mainly suitable for parts processing in industries such as aerospace, automotive molds, military products, energy products, large electronic products, precision mechanical parts, and large molds; Targeting the processing of small and complex parts of black and non-ferrous metals.
| Item |
PM-3027L |
PM-4027L |
PM-5027L |
PM-6027L |
PM-8027L |
| Workbench size (mm) |
2300x3000 |
2300x4000 |
2300x5000 |
2300x6000 |
2300x8000 |
| X-axis Stroke (mm) |
3000 |
4000 |
5000 |
6000 |
8000 |
| Y-axis Stroke (mm) |
2700 (with a side trip of 3050) |
| Z-axis Stroke (mm) |
1000/1250 |
| Spindle Specs |
BT50-200 |
| Load Capacity (1t) |
10 |
12 |
15 |
18 |
18 |

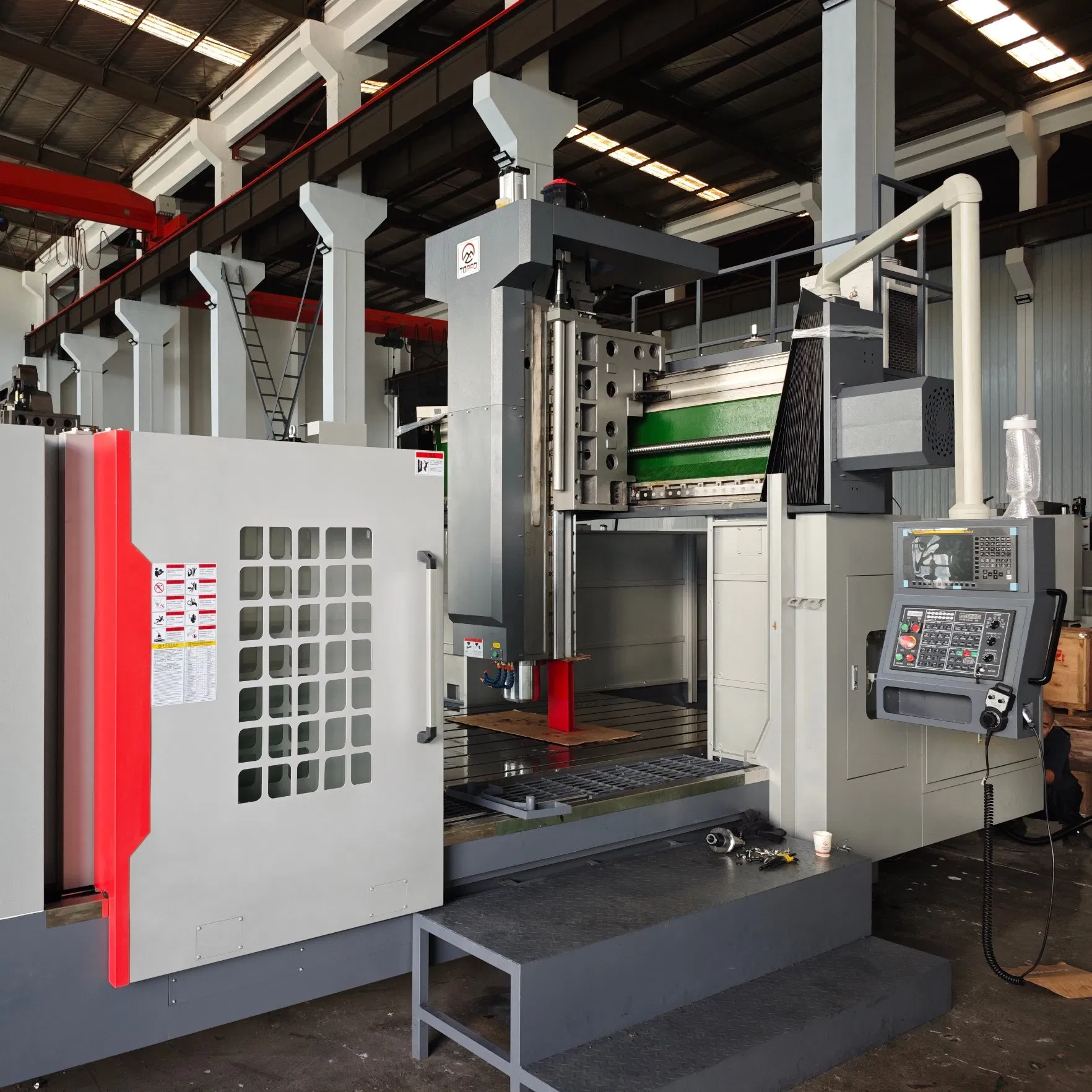

Key Features:

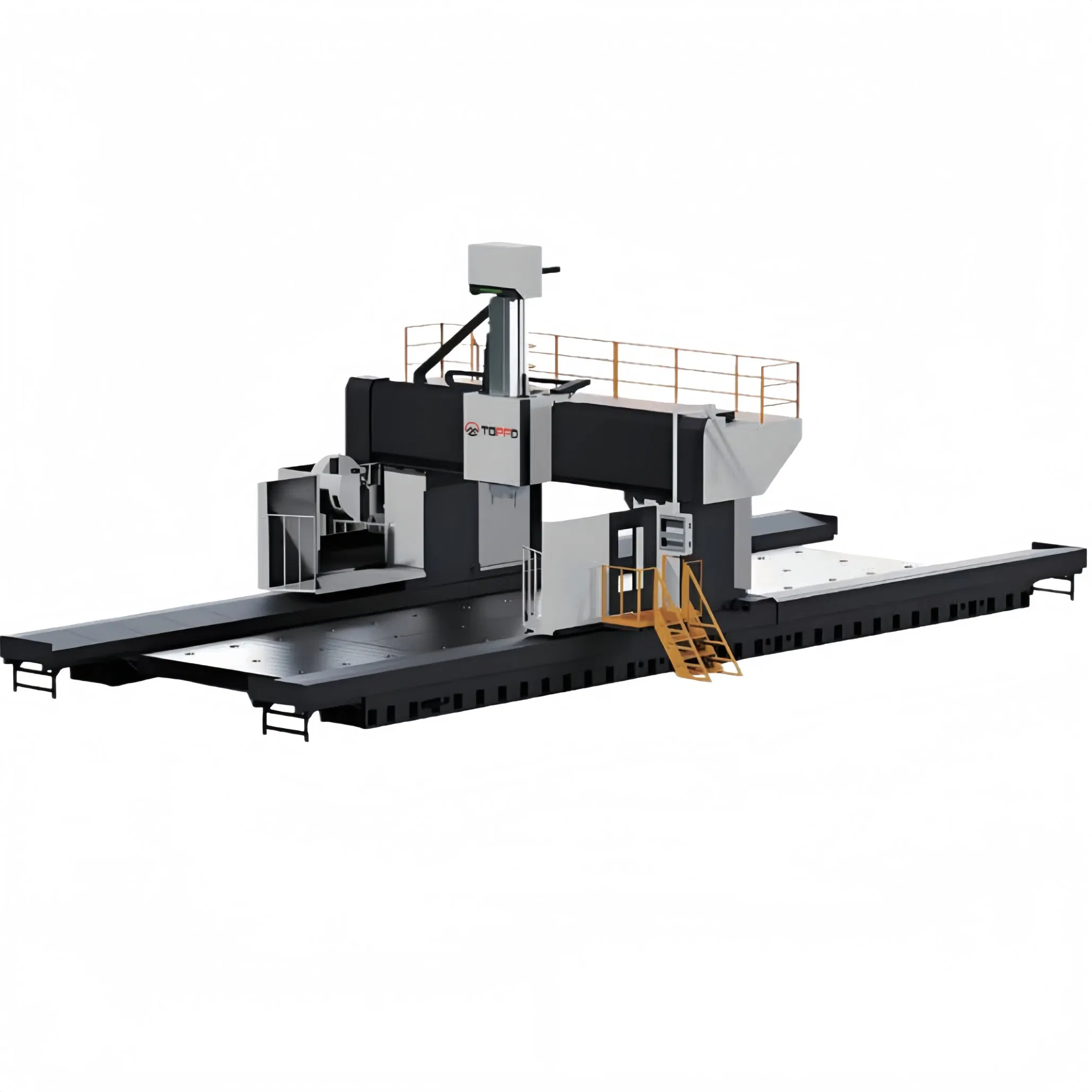

Single column fixed structure, worktable mobile structure, high rigidity of basic components, lightweight of mobile components, fully meet the needs of users. Capable of completing milling, boring, drilling, tapping and other processes in one clamping operation.
• High rigidity • High vibration resistance • High precision • High thermal stability • High dynamic response

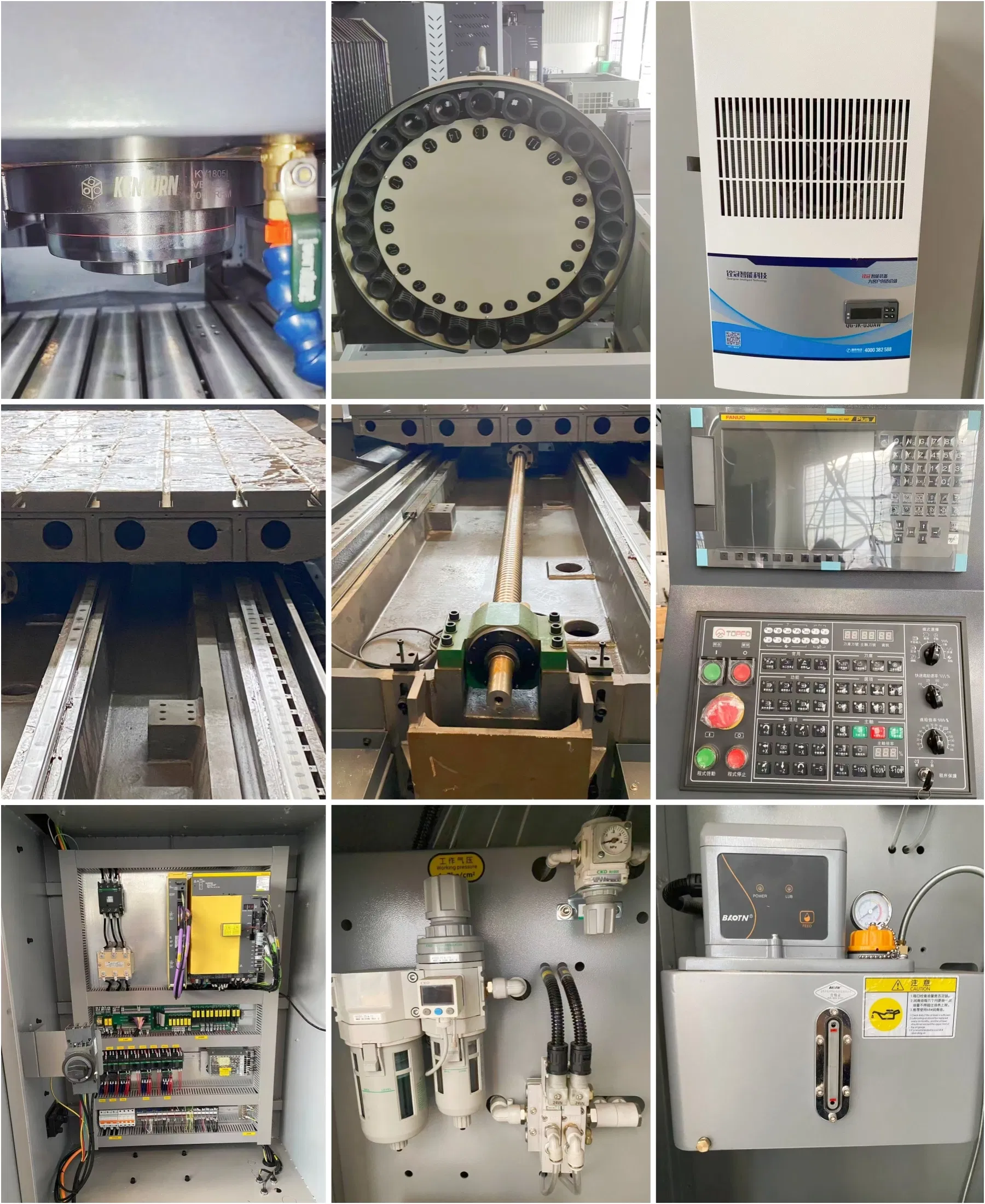

🔵 Technical Details

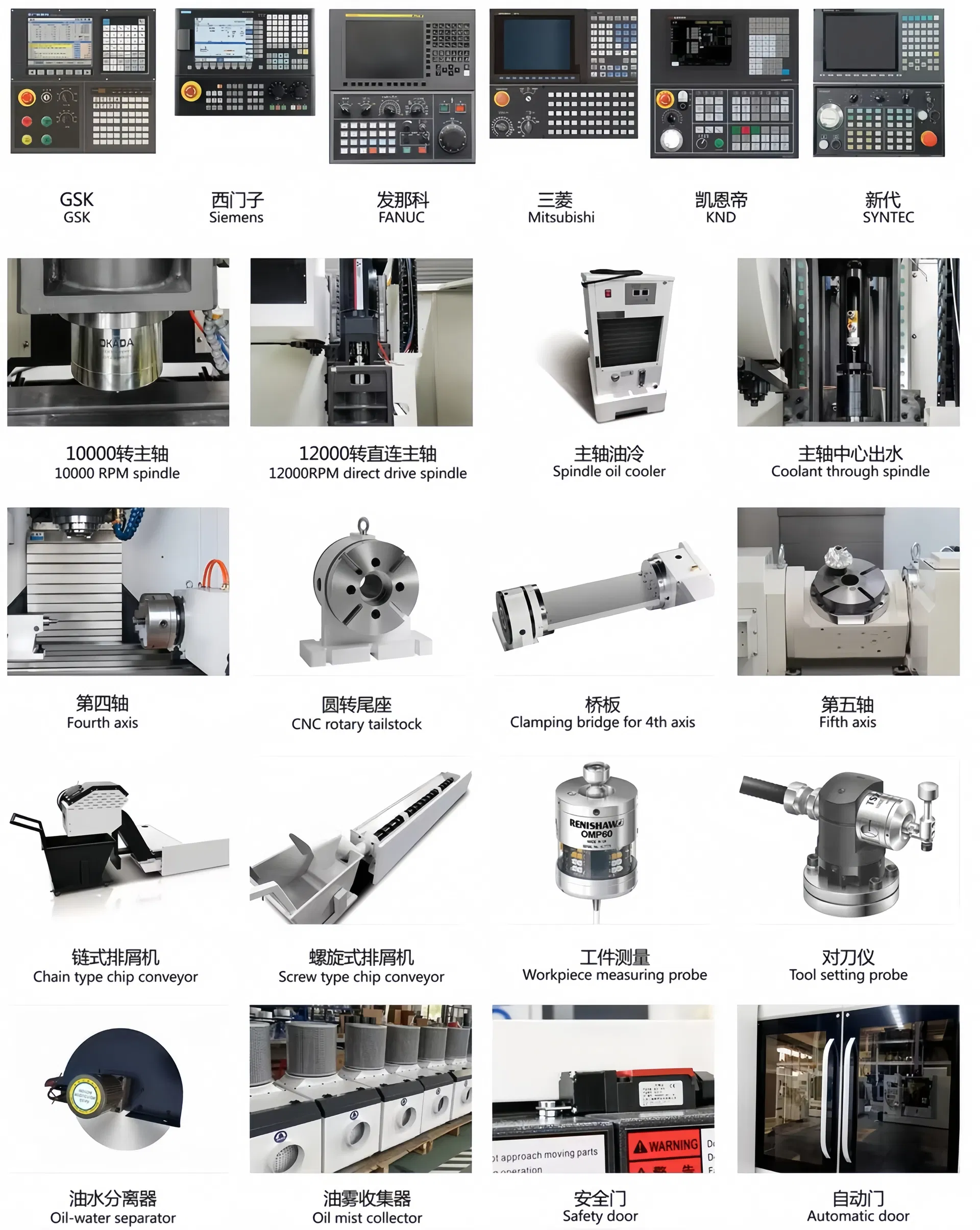

🔵 Optional Configuration

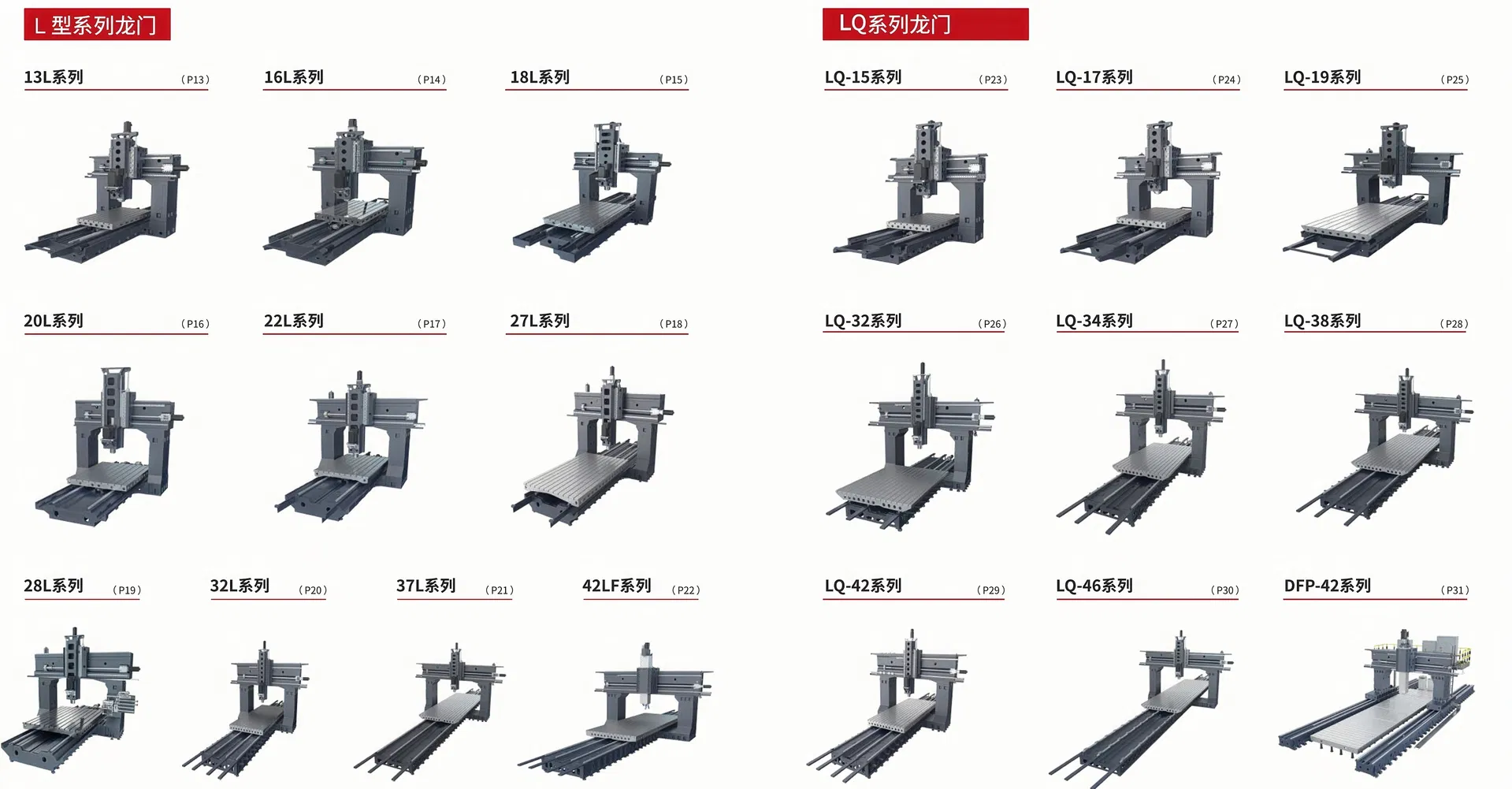

🔵 Related Products & Advantages
- Highly modular design with high flexibility and adaptability in configuration.
- Basic components made of high-quality cast iron with aging treatment.
- Optimized structural rigidity through finite element analysis.
- Inspected by imported high-precision measuring and testing equipment.
🔵 Application Industries
Wide coverage including: 3C Industry (Mobile phones), Communication (Filters), Automobiles (Wheel hubs), Industrial Equipment (Valves), Mould (Stamping dies), Aerospace (Landing gear), and Energy.
🔵 Professional Services
Pre-Sales Guidance:
Experienced engineers provide comprehensive technical support, providing economical and efficient equipment configuration solutions and factory planning.
After-Sale Service:
Free installation and debugging services; guides on correct machine usage; 24/7 quick response and lifelong maintenance support.

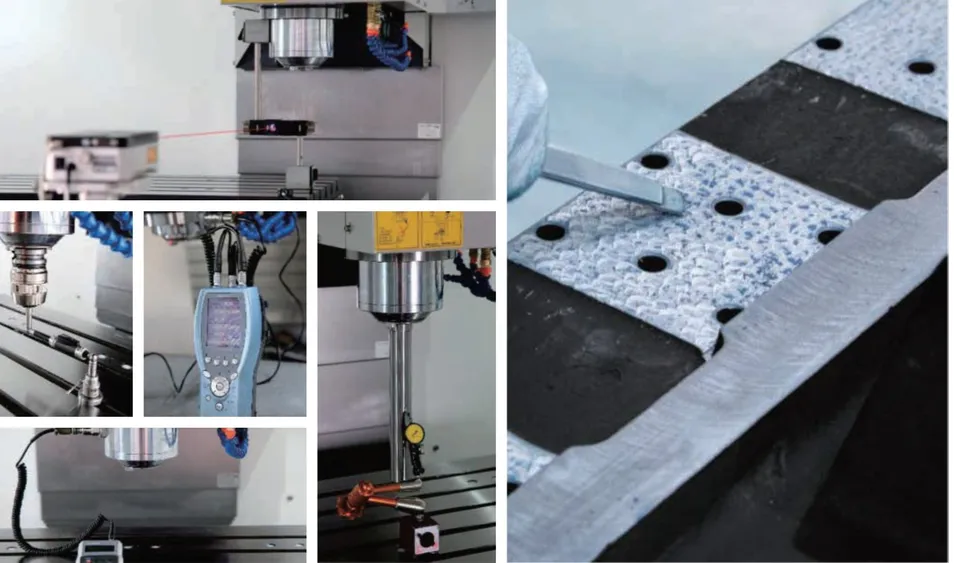

🔵 Quality Assurance

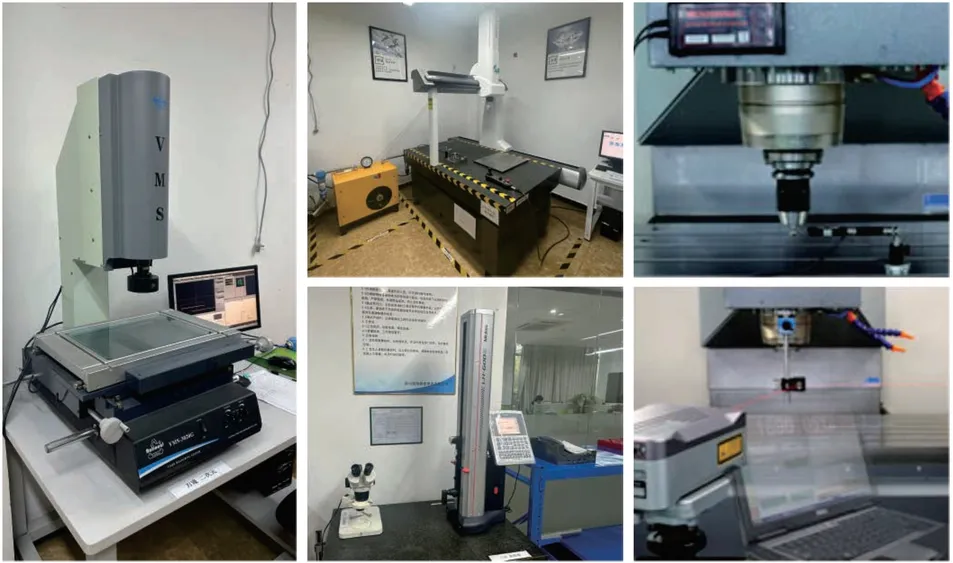

Dedicated to high-performance CNC machine tools using world-renowned processing equipment. Our assembly process involves geometric accuracy inspection, electrical function verification, and heavy cutting tests to ensure stable performance.
🔵 Packing & Delivery
🔵 Company Profile

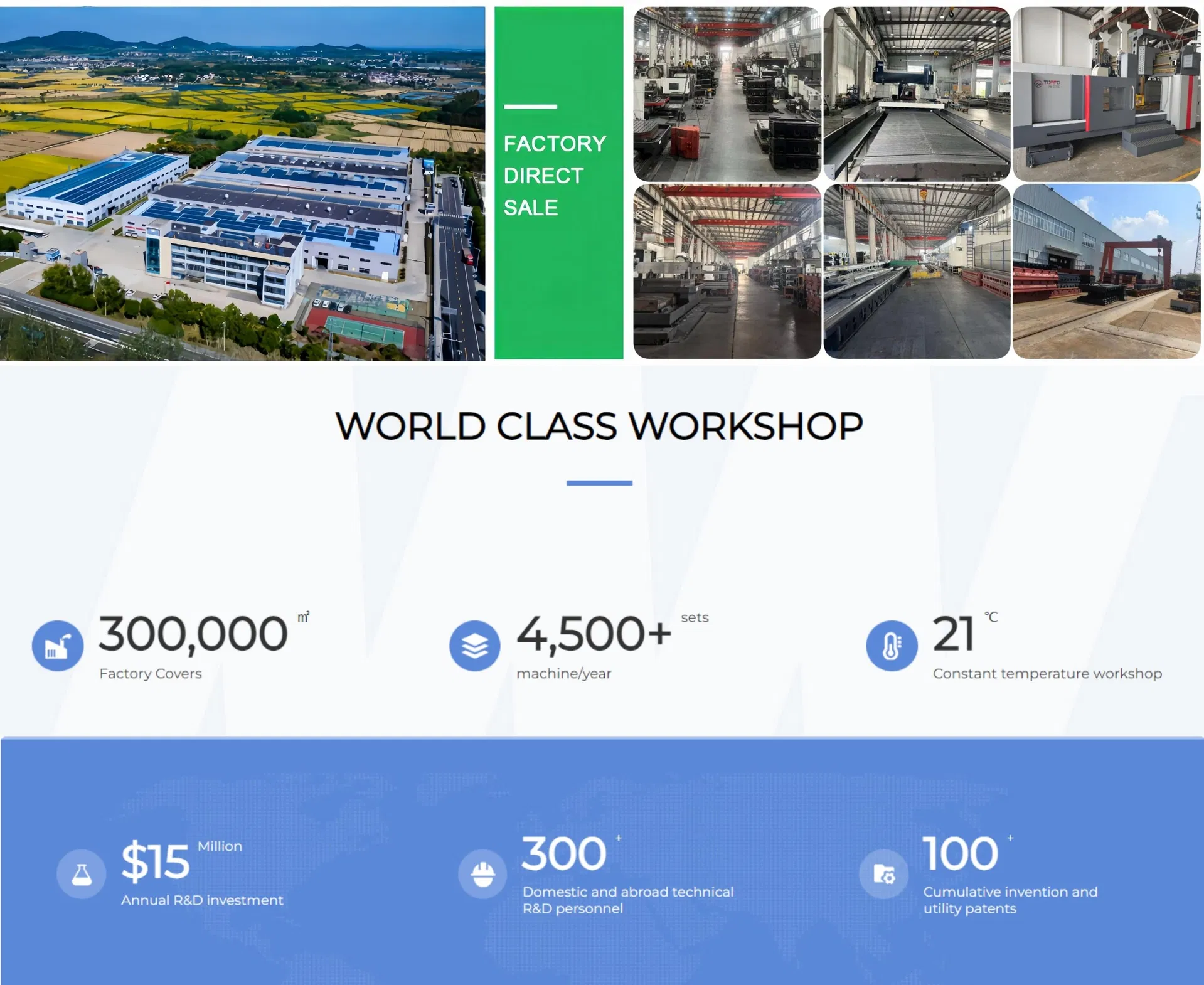

We are a professional CNC machine tool manufacturer specializing in high-speed drilling and tapping machines, vertical machining centers, horizontal machining centers, and gantry machining centers. Our products serve global industries including automotive, shipbuilding, and aerospace.
With a focus on "Details Achieve Perfection", we meticulously craft every component. Through attention to detail, we achieve quality, and through quality, we forge value for our global clients.
🔵 FAQ
1. How can I choose the most suitable machine?
Please provide your technical specifications or product drawings, and our engineers will recommend the most suitable model based on your processing requirements.
2. What are your main machine products?
We specialize in a wide range of CNC machines, including Double Column Gantry Machines, Vertical Machining Centers, CNC Lathes, and Drilling Machines.
3. Can I visit your manufacturing facility?
Yes, you are warmly welcomed to visit our factory to see our production processes and quality control systems firsthand.
4. What are the acceptable trade terms?
We accept standard international trade terms including FOB, CFR, and CIF.
5. What are the payment terms for orders?
Standard terms are T/T with a 30% initial payment upon order and 70% balance before shipment, or Irrevocable LC at sight.
6. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our high-precision CNC equipment.
