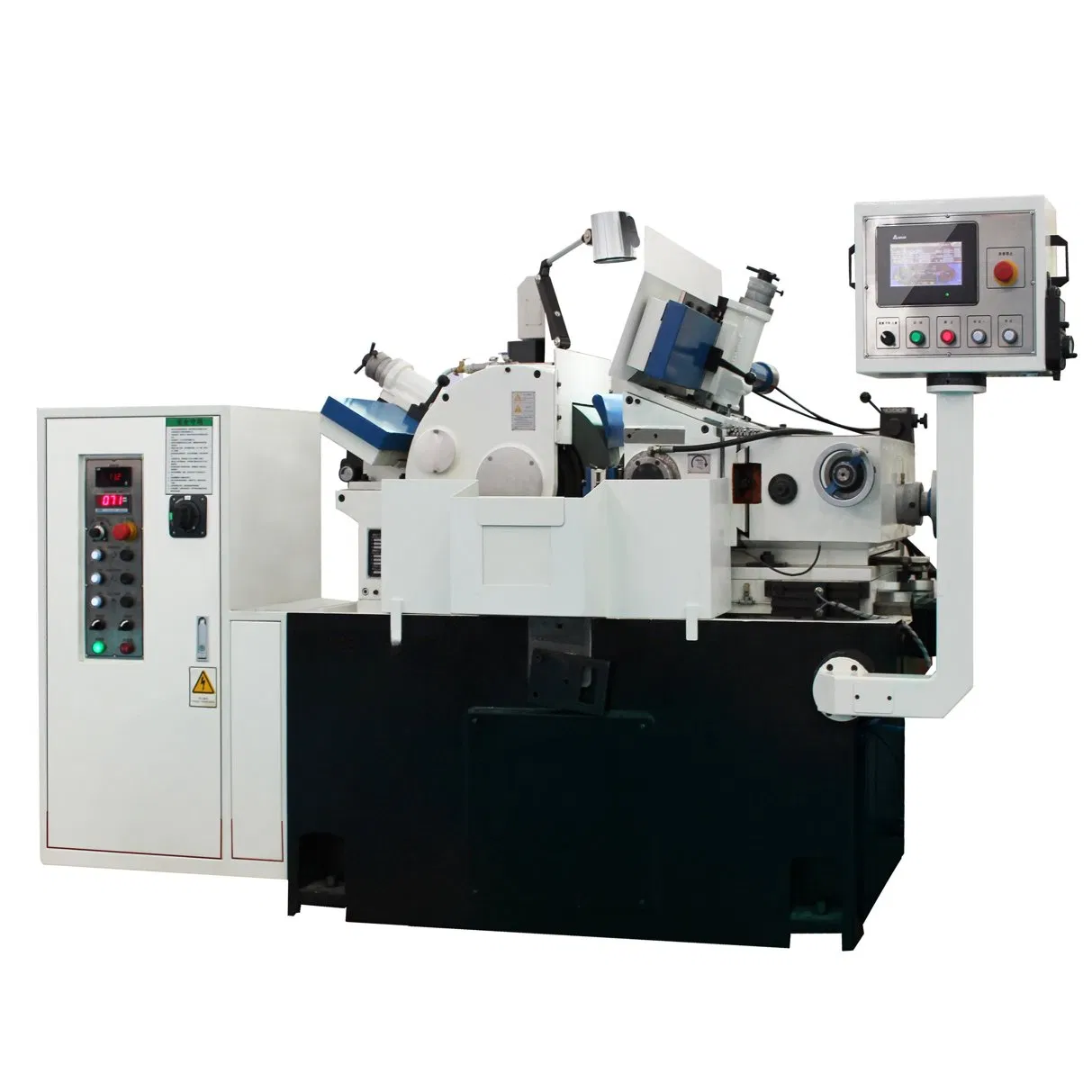

Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
1 / 5
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm
Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm

Hfc-2008hnc CNC Centerless Grinding Machine Used on Cylindrical External Grinder for Curved Surface with Dia: 1-50mm

Customization: Available
After-sales Service: Lifetime After-Sales Service
Warranty: 12months Free Maintenance
Send Inquiry

Product Description

Basic Information
Model NO.
HFC-2008HNC
Type
Centerless Grinding Machine
Processing Object
Curve
Controlling Mode
CNC
Precision
High Precision
Work Diameter
1-50mm
Grinding Wheel Speed
1350rpm
HS Code
8460241900
Gross Weight
3200kg
Package Size
240x220x180cm
Product Description

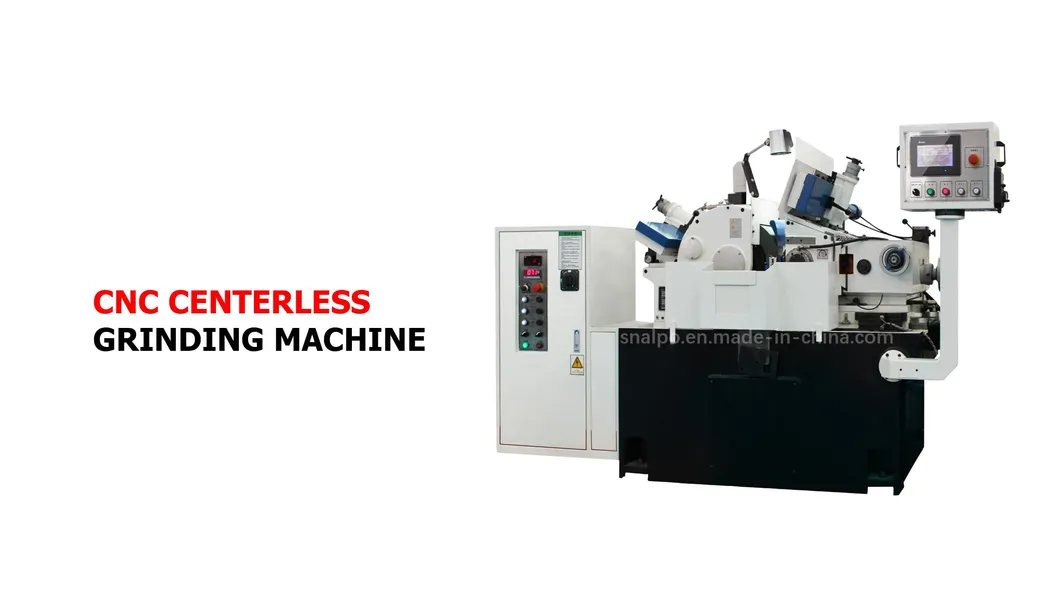

CNC Centerless Grinding Machine Overview
⚙
High Quality Construction: Utilizes high-quality cast iron with low frequency melting furnace treatment. Natural aging for 1.5 years eliminates internal stress, ensuring bed accuracy and zero deformation.

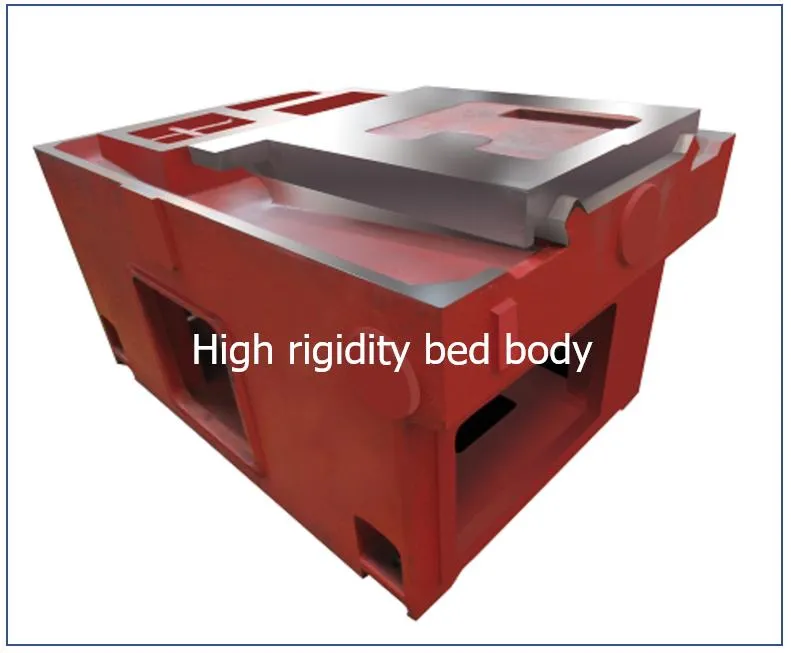

Machine Structure

Guide rail surface undergoes high-frequency quenching and manual scraping for high wear resistance.

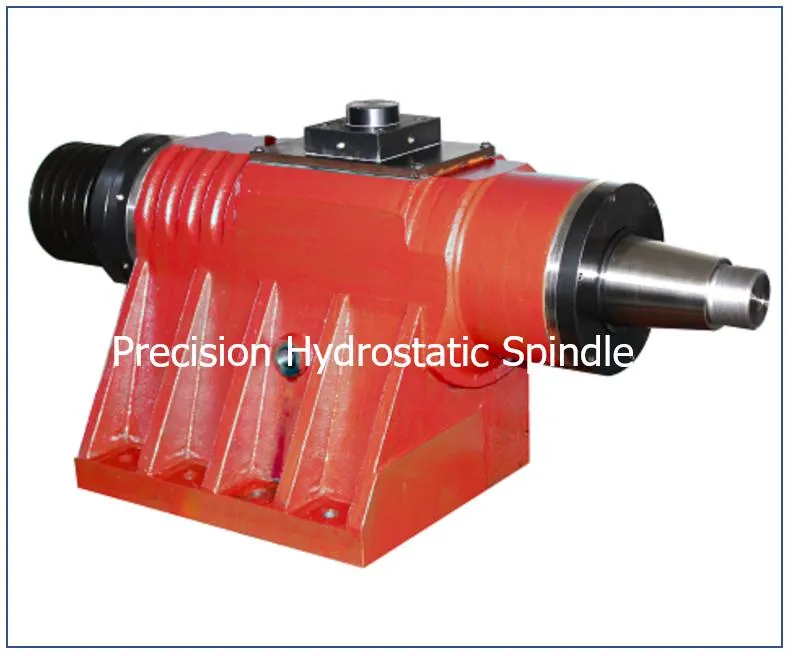

Spindle System

Spindle made of SNCM-220H high-grade alloy steel from Japan, quenched and precision ground.

💧
Hydrostatic Pressure Patent: Spindle seat forms a high-pressure oil film (20-25KG/cm2), allowing the spindle to suspend without friction, ensuring ultra-long life and high rigidity.

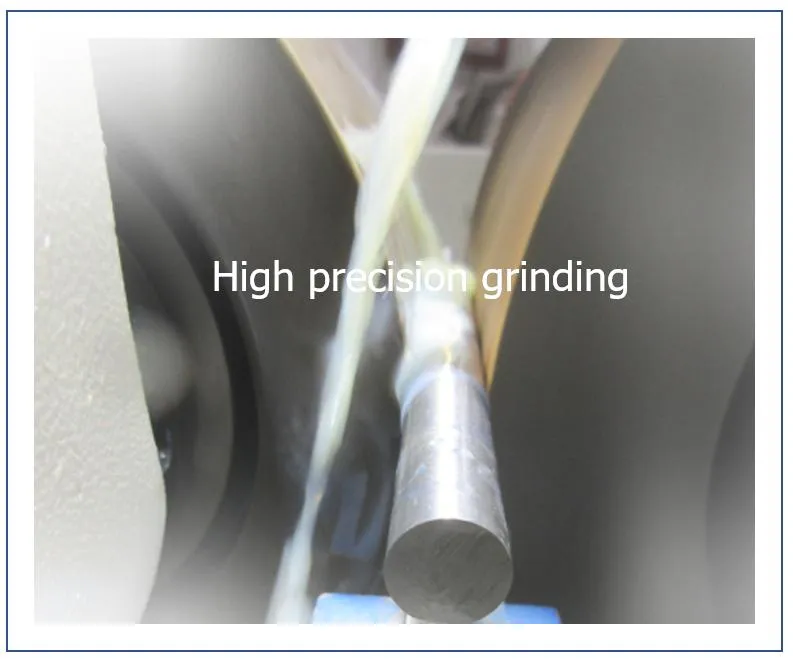

Grinding Performance

Rotation accuracy < 1.5 μm. Grinding wheel speed up to 50m/s for optimal surface smoothness.

Automatic System

Capable of processing steps, chamfers, curved surfaces, and conical surfaces with high precision.

Product Parameters
Parameter Item Technical Data Unit
Work DiameterΦ1-Φ50mm
Grinding Wheel SizeΦ510*Φ254*205mm
Guide Wheel SizeΦ305*Φ127*205mm
Spindle Rotation Accuracy0.0015mm
Grinding Wheel Speed600-1800rpm
Guide Wheel Speed0-300rpm
Min. Workbench Feed0.001mm
Guide Wheel Tilt Angle+6/-5°
Total Weight2950kg
Overall Size (L*W*H)2350*1960*1550mm
Detailed Photos & Work Pieces

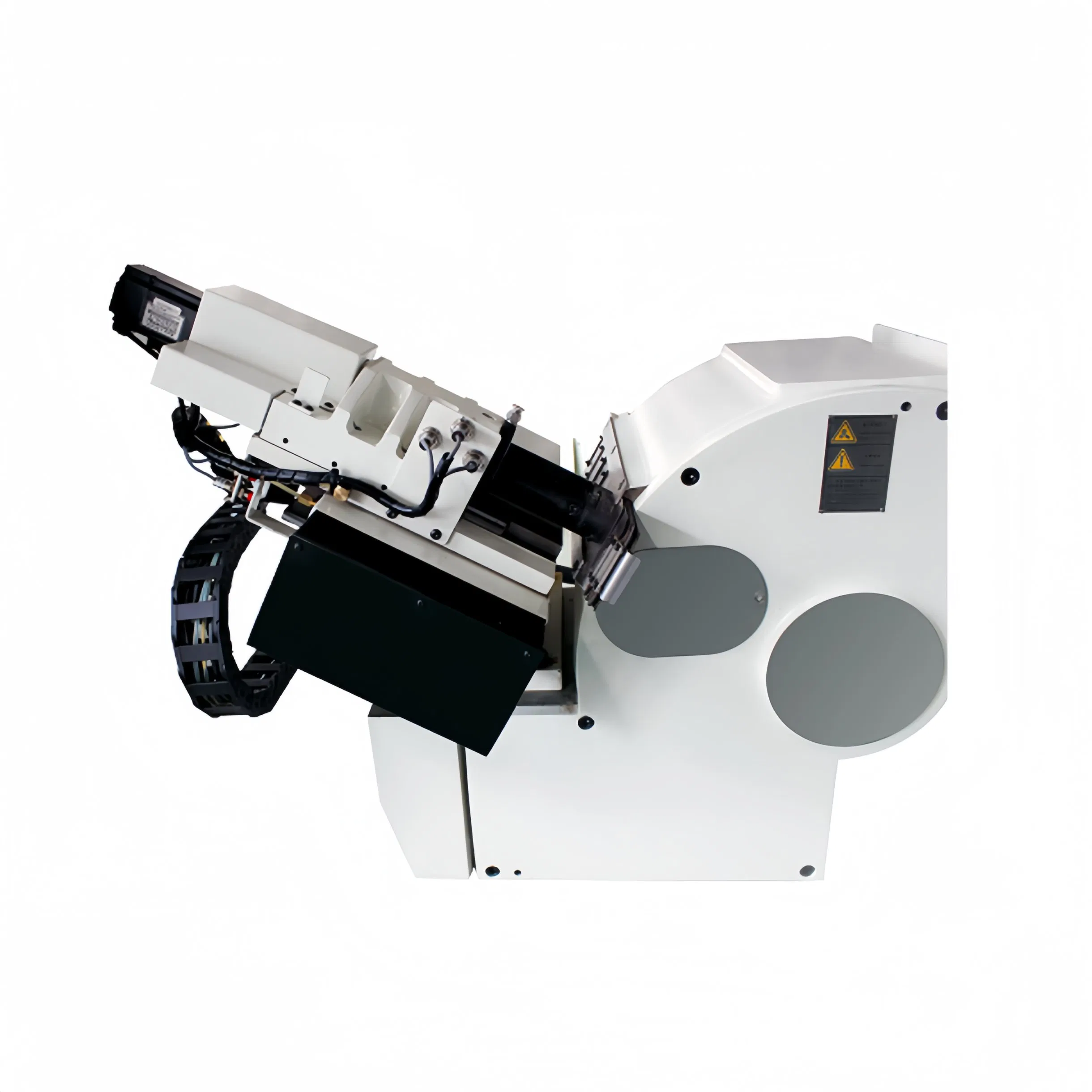

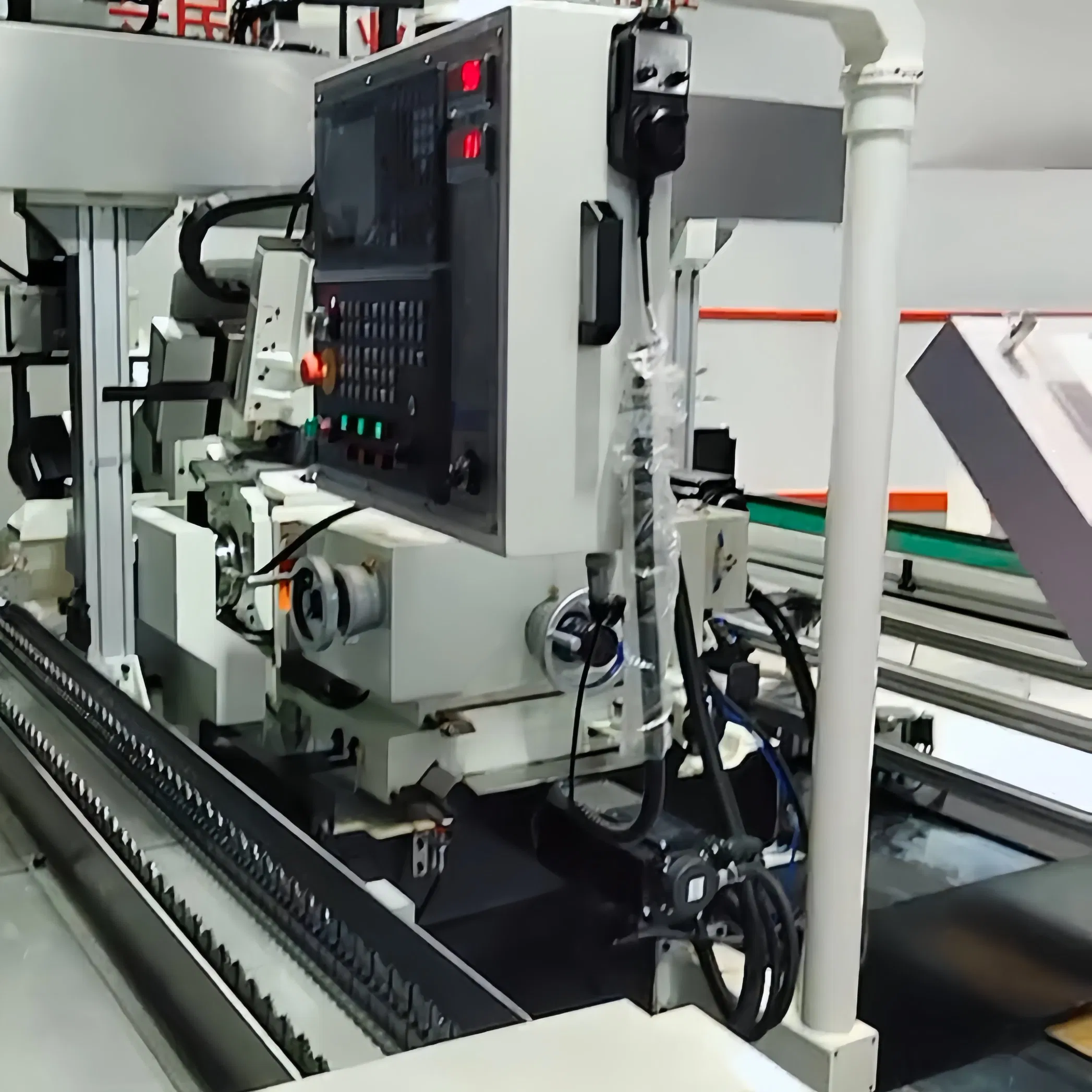

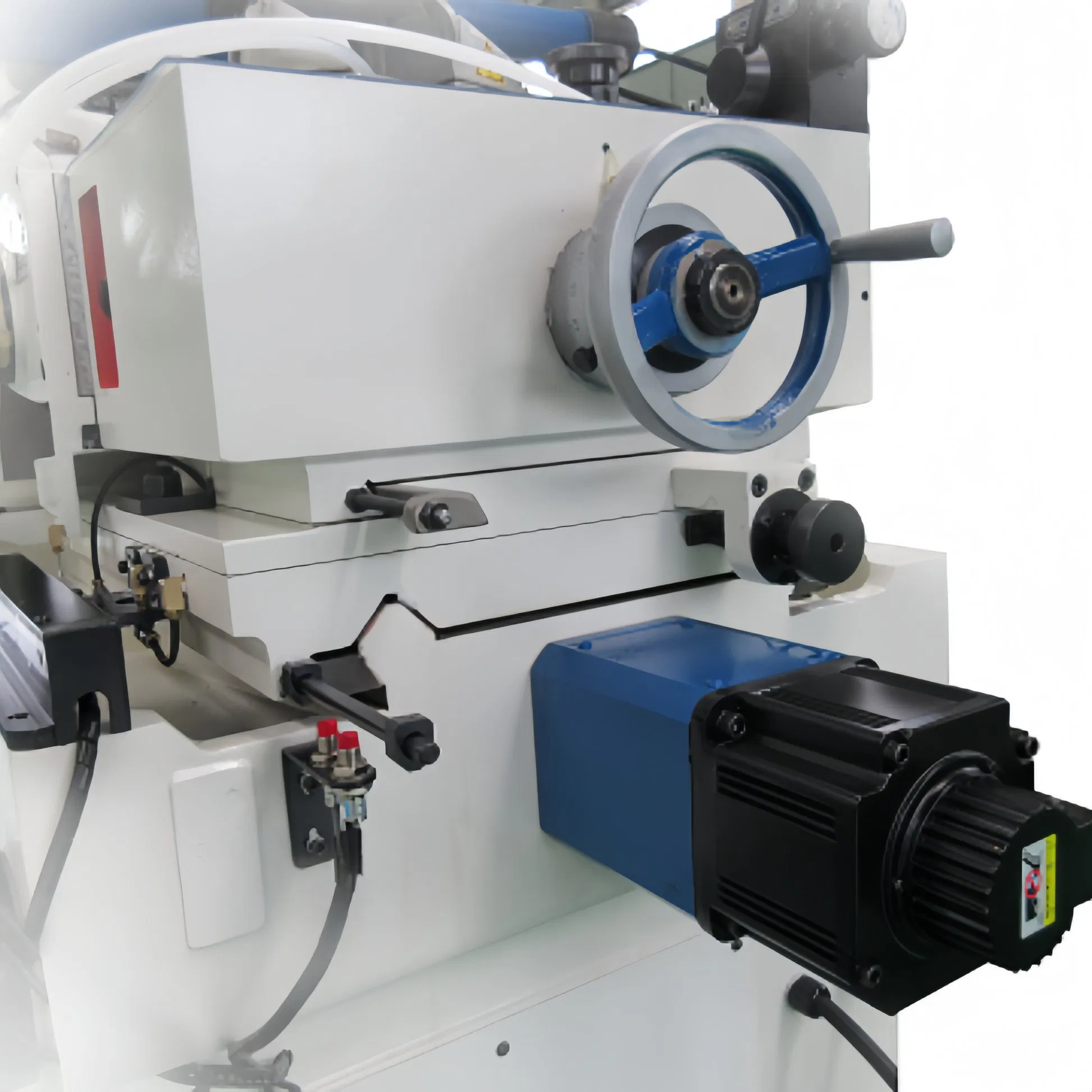

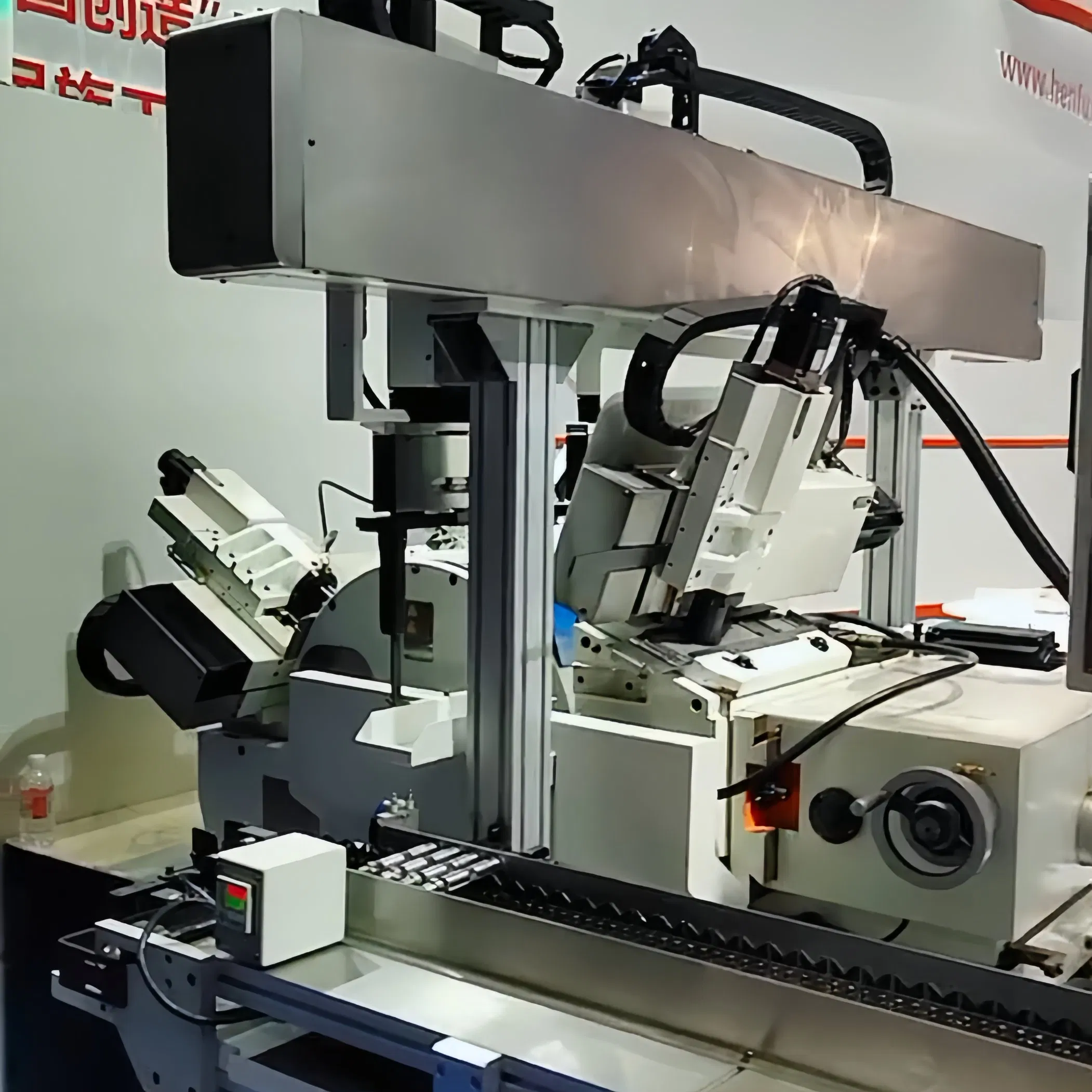

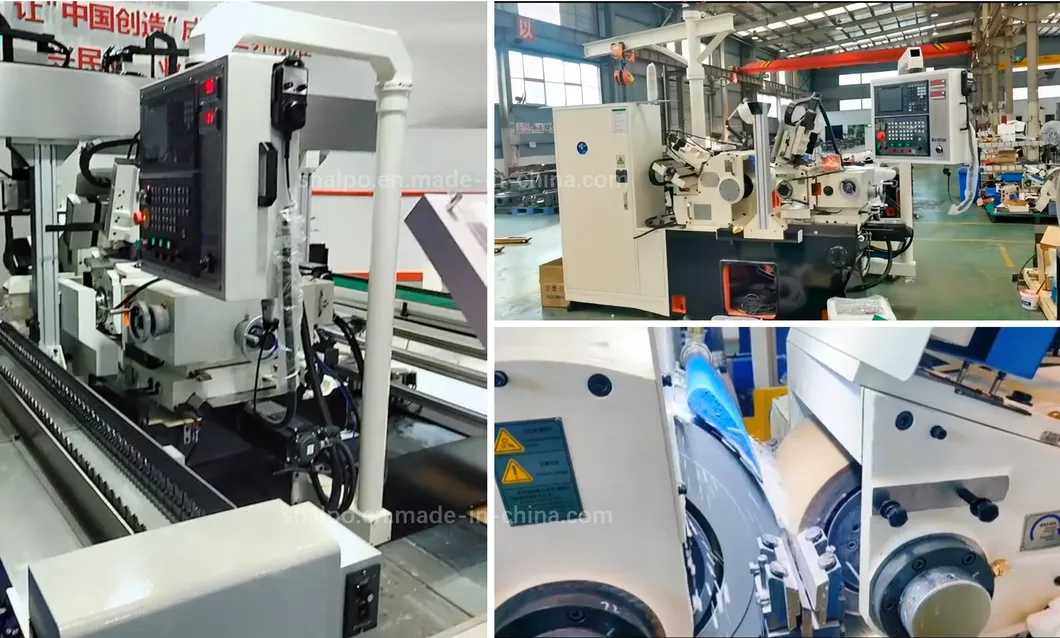

Detailed Machine Photo

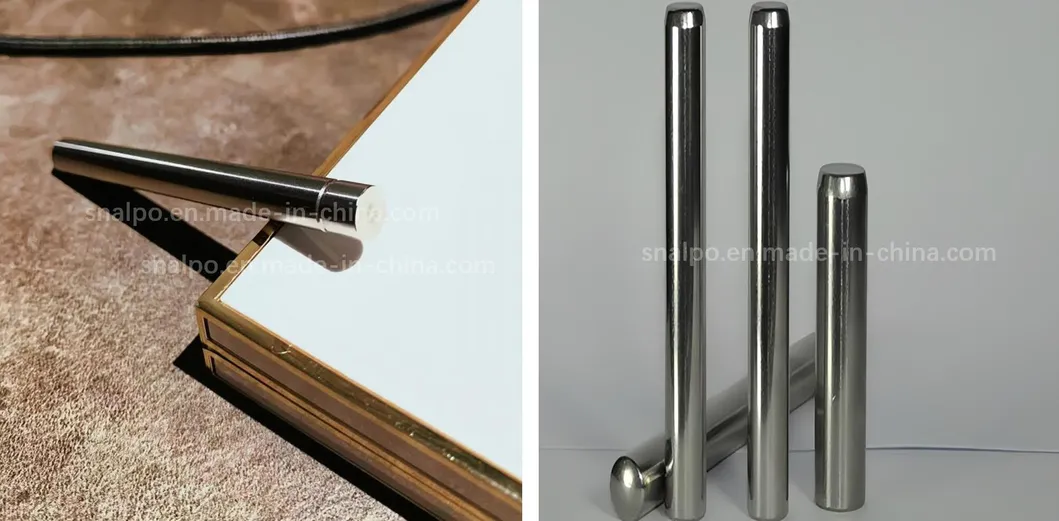

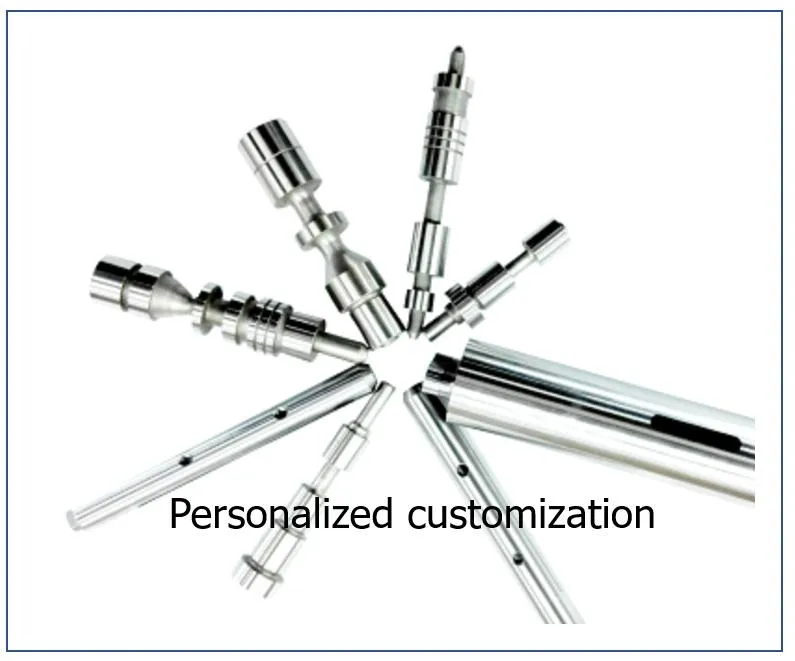

Work Piece Samples
Packaging & Shipping

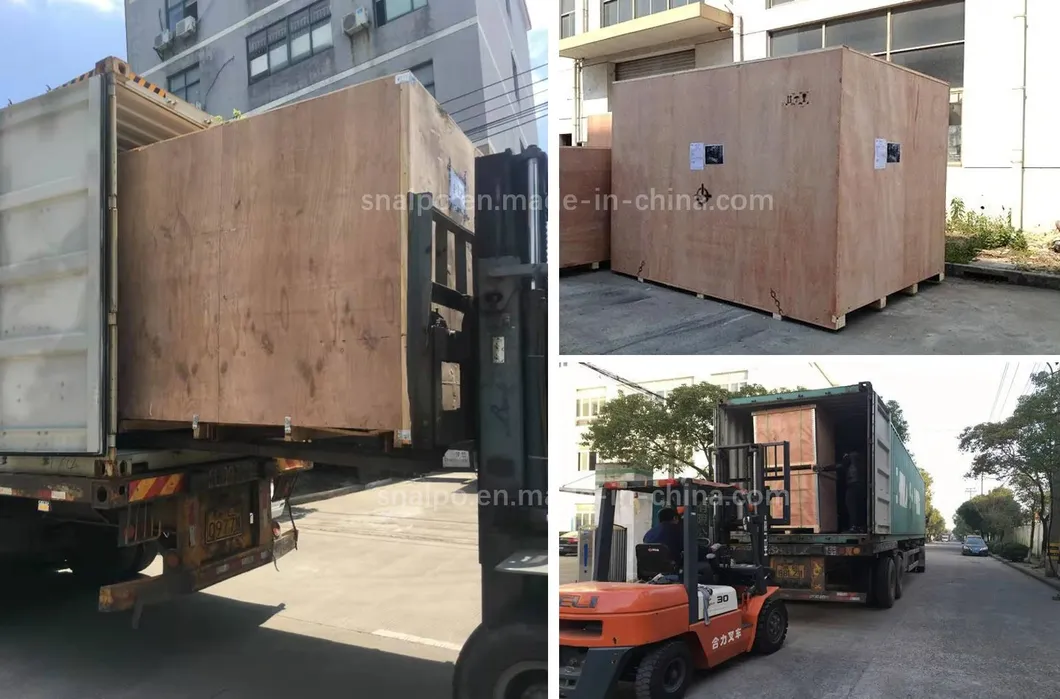

Packaging Process

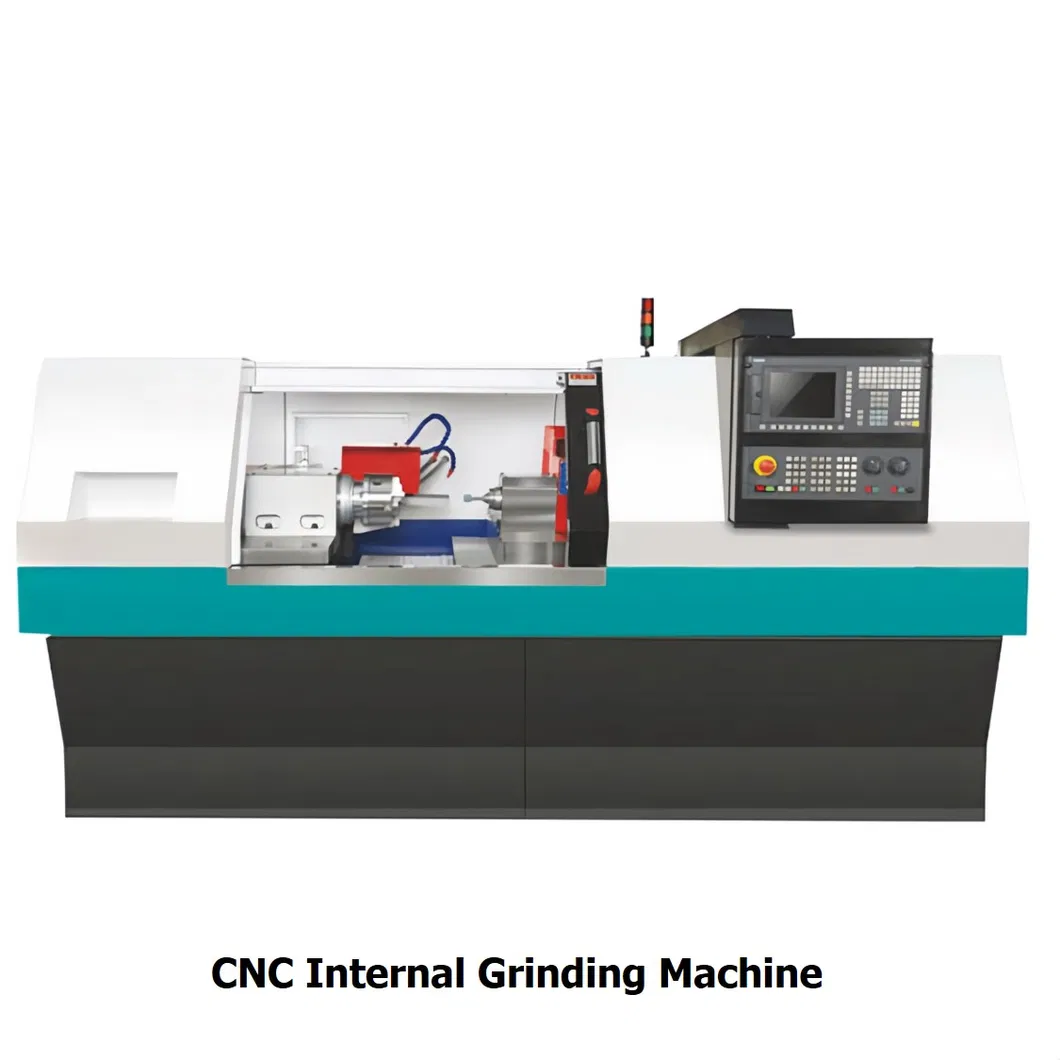

Related Grinder 1

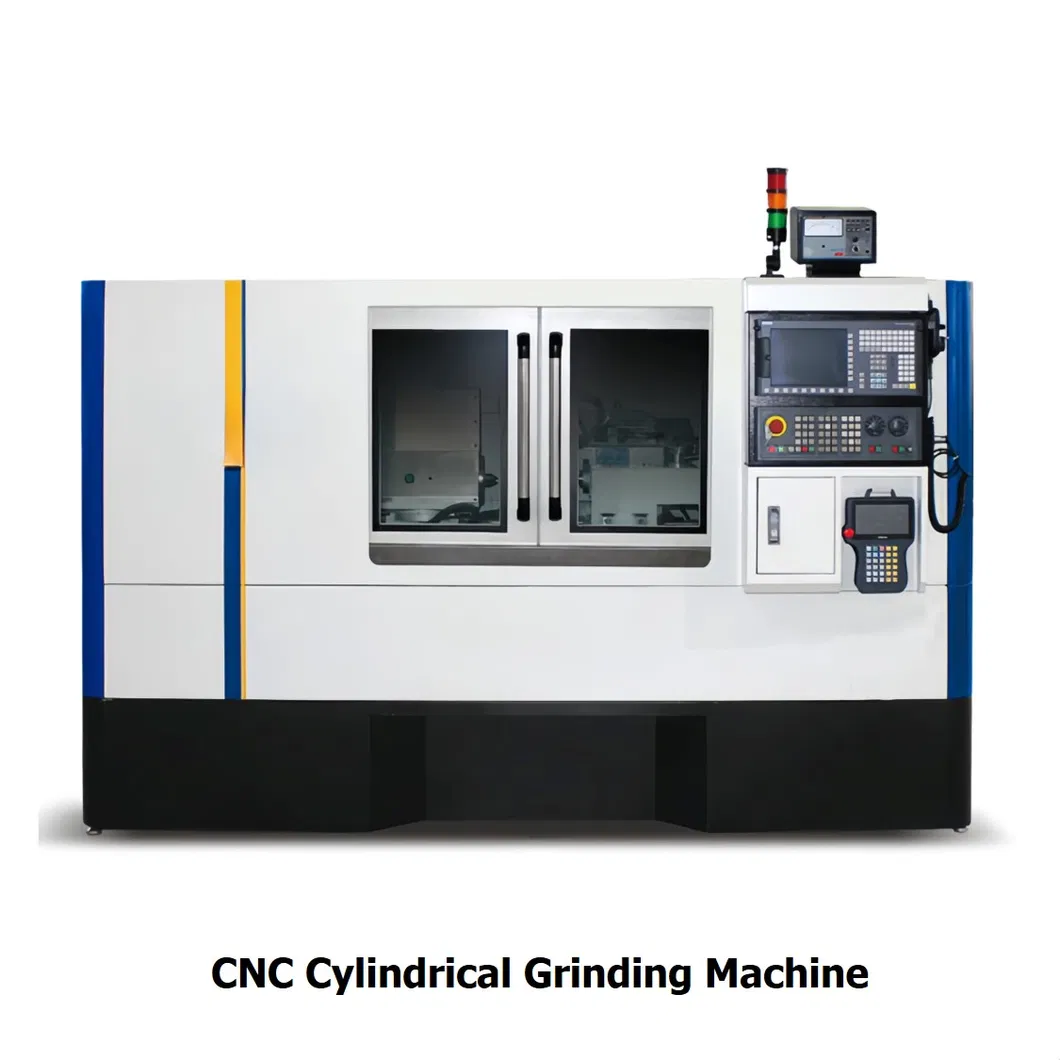

Related Grinder 2

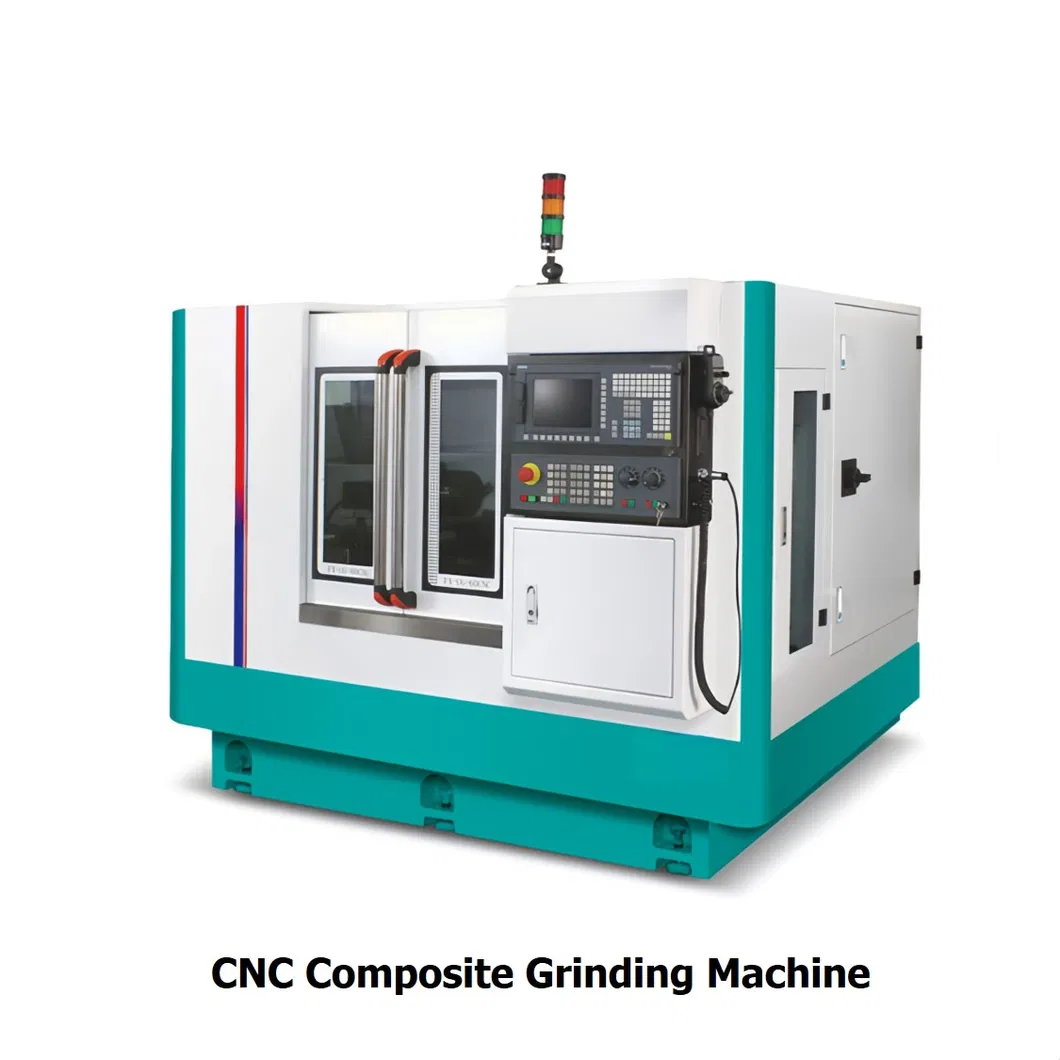

Related Grinder 3
Hot Products

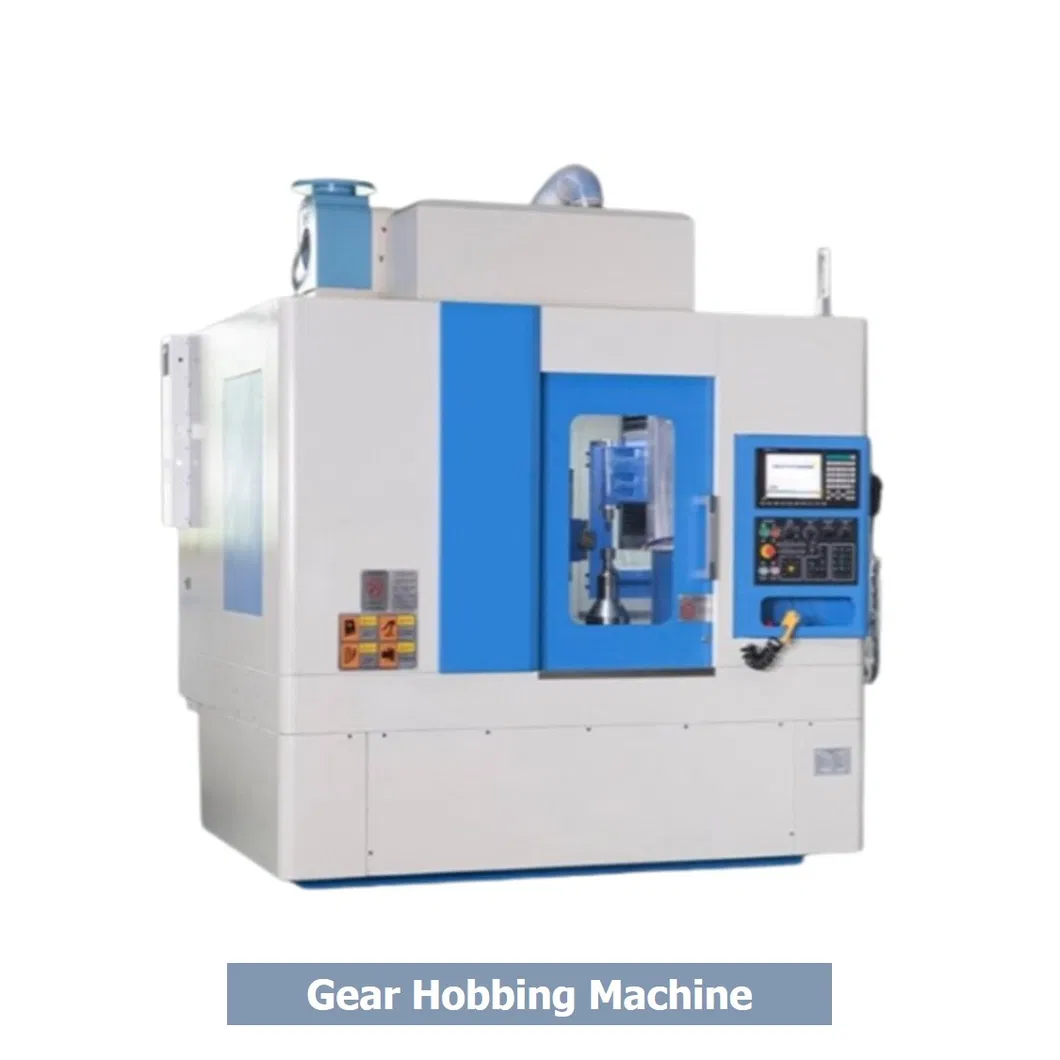

Gear Hobbing Machine

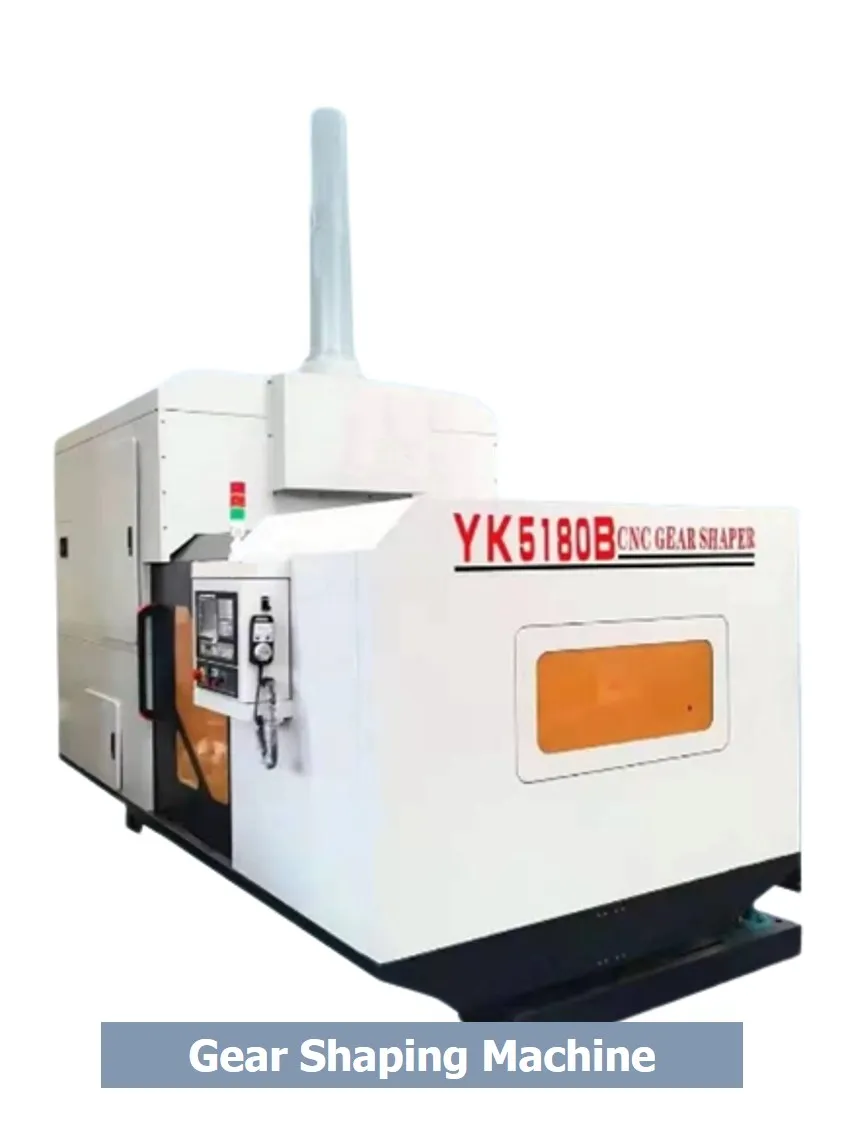

Gear Shaping Machine

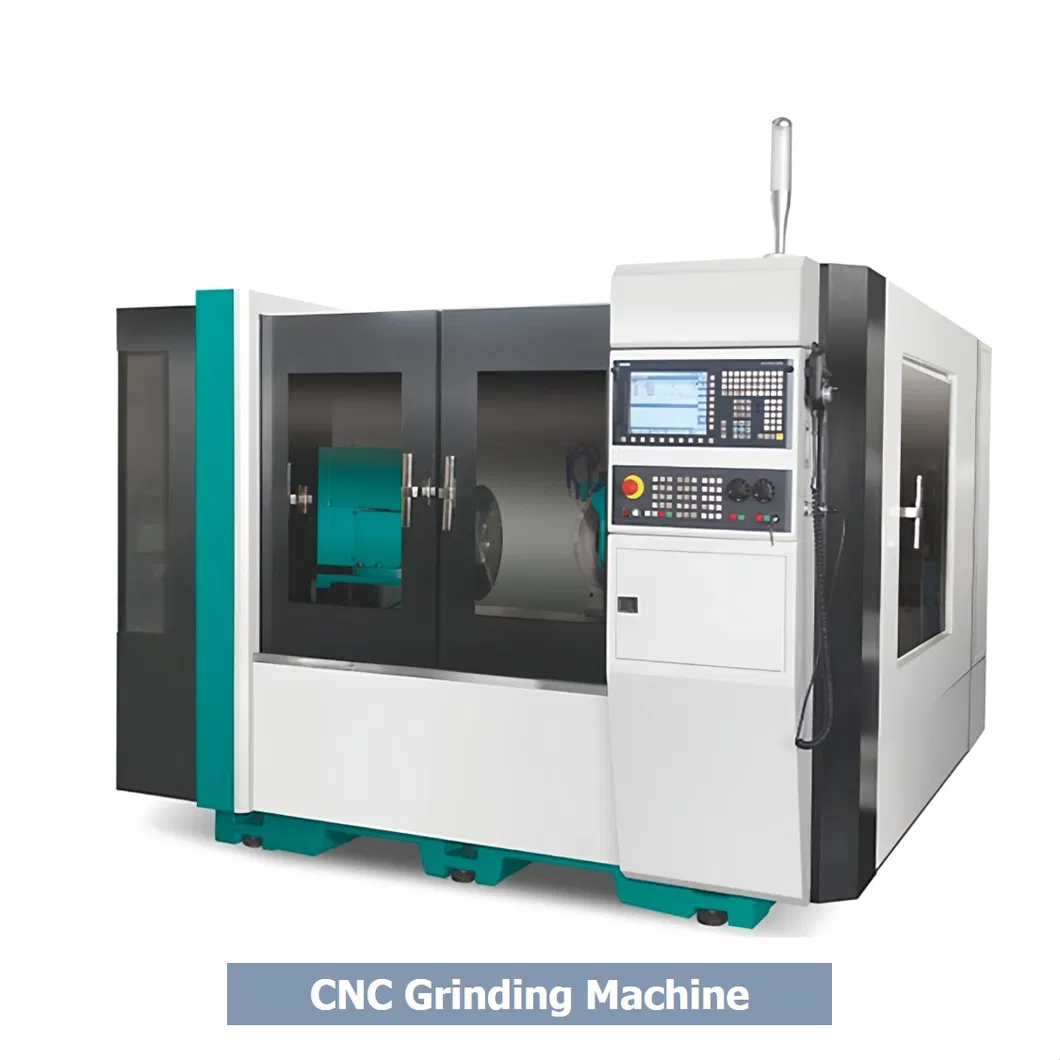

Composite Grinding Machine
FAQ
1. What is the maximum work diameter this centerless grinder can handle? The HFC-2008HNC model can process workpieces with a diameter ranging from 1mm up to 50mm.
2. What makes the machine bed durable and accurate? The bed is made of high-quality cast iron, treated through normalization and 1.5 years of natural aging to eliminate internal stress, ensuring long-term precision without deformation.
3. What is the spindle rotation accuracy? The spindle is assembled through standard procedures to achieve a rotation accuracy of less than 1.5 μm.
4. Can this machine process complex shapes? Yes, it is designed to process special shaped workpieces including steps, chamfers, curved surfaces, and conical surfaces with high precision.
5. What type of maintenance does the spindle require? Thanks to the high hydrostatic pressure patent that allows the spindle to suspend in an oil film, there is no direct contact or friction, and the spindle provides 3-year maintenance cycles.
6. What is the weight and dimensions for shipping? The machine has a net weight of 2950kg (gross weight 3200kg) and measures approximately 2350mm x 1960mm x 1550mm.
