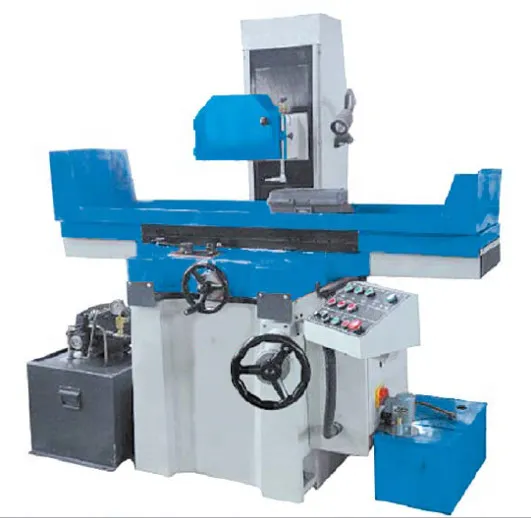

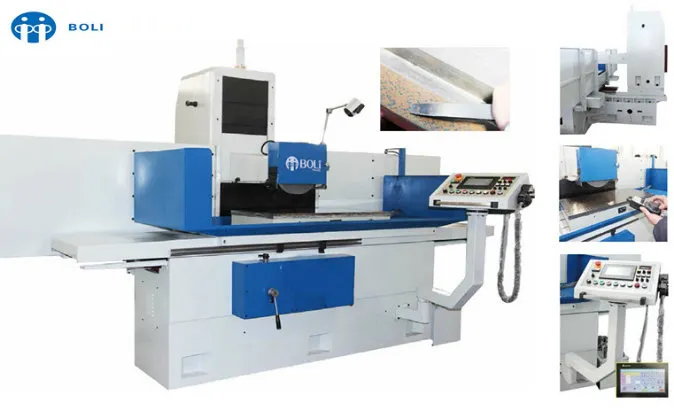

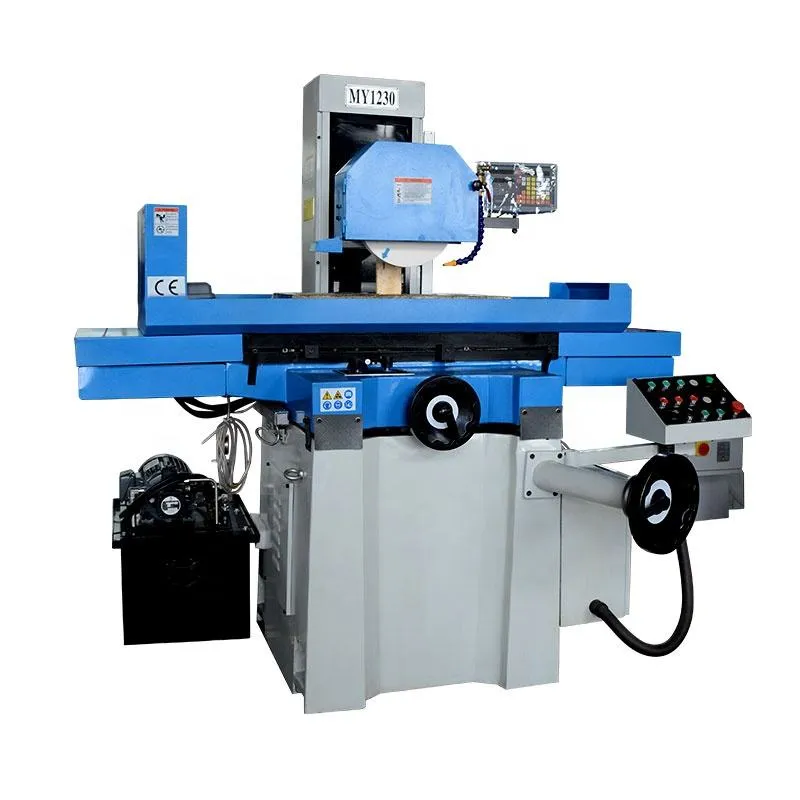

External hydraulic unit ensures low temperature rising and supply stability power.
Auto-Center lubrication unit.
Very easy to set auto ground program include rough, finish, and sparkout stroke.
Precision grinding spindle runs in maintenance-free, supported by preload high precision angular ball bearing.
Designed for continuous operating at maximum speed, quiet operation, and maximum accuracy.
Machine bed, table, and column are high grade casting pieces providing a strong base. Slideway is coated with wearable material and manual precision scrapped.
Technical Parameters
Model No.
Unit
FSG-50100NC
FSG-50160NC
Table size (W×L)
mm
500×1000
500×1600
Max. grinding size (W×L)
mm
500×1000
500×1600
Max. distance table to spindle
mm
600
Magnetic chuck size (Optional)
mm
500×1000×1
500×1600×2
Table longitudinal speed
m/min
5~25
Cross move: Auto intermittent feed
mm/t
1~20
Cross move: Rapid speed
mm/min
50~1500
Cross move: Feed of MPG
mm/div
0.005
Vertical move: Auto feed
mm/t
0.005, 0.01 to 0.04
Vertical move: Rapid speed
mm/min
50~500
Grinding wheel size
mm
355×(20~50)×127
Motor of spindle
kW
7.5
Package size
cm
399×225×228
564×225×228
G.W.
kg
5500
6000
Frequently Asked Questions
Q1: What are the control modes for the FSG-50 NC Series?
The machine features CNC controlling modes with support for Manual, Semi-Auto, and Full Auto operation depending on the specific requirements.
Q2: How does the machine handle temperature control during heavy operation?
It is equipped with an external hydraulic unit which ensures low temperature rising and provides stable power for continuous grinding tasks.
Q3: Is the grinding spindle maintenance-free?
Yes, the high-precision grinding spindle is designed to be maintenance-free and is supported by preloaded high-precision angular ball bearings.
Q4: What materials are used for the machine's structural components?
The machine bed, table, and column are constructed from high-grade casting pieces. The slideways are coated with wearable material and are manually precision-scrapped for durability.
Q5: Can I program different grinding stages automatically?
Yes, the auto ground program is very easy to set and includes stages for rough grinding, finish grinding, and spark-out strokes.
Q6: What is the maximum grinding size supported by this series?
Depending on the model, the maximum grinding size ranges from 500×1000mm (FSG-50100NC) to 500×1600mm (FSG-50160NC).
