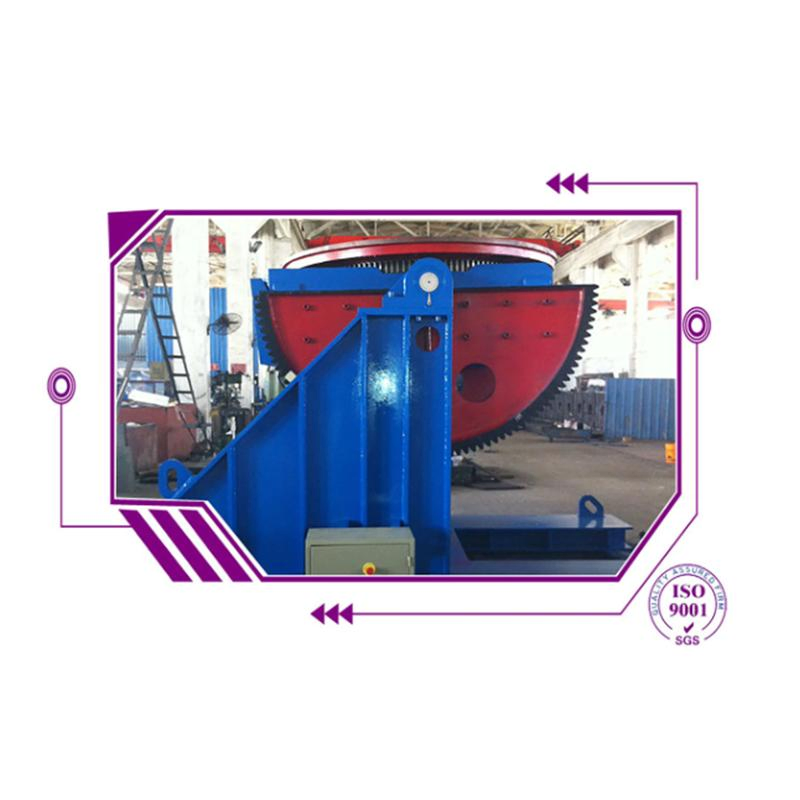

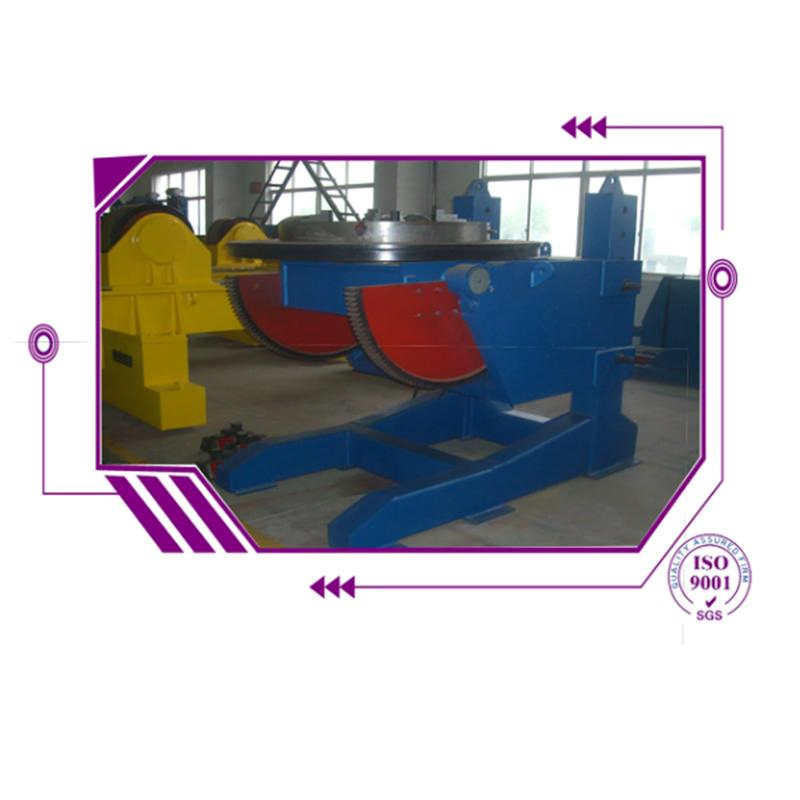

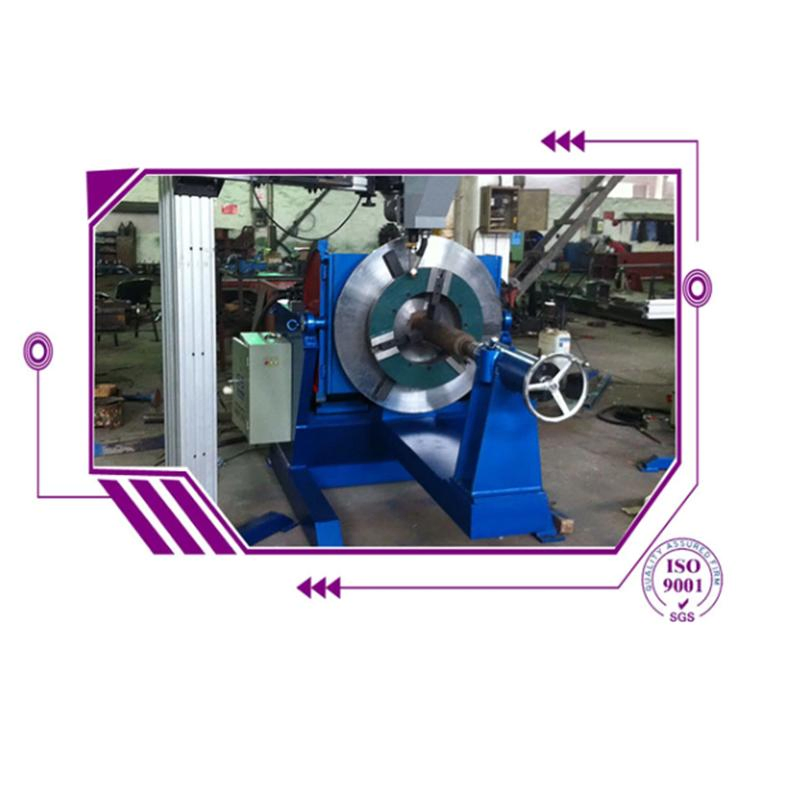

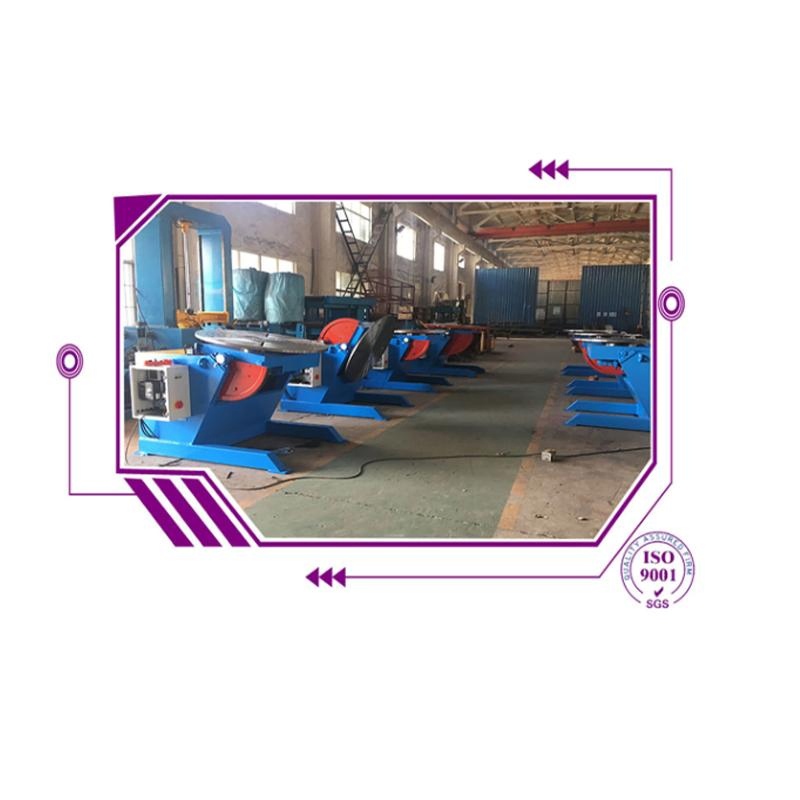

Welding positioner is mainly used to placed the work piece in the best position for welding and assembling with the work bench elevating, turning, tilting. Its series includes tilting, head and tail stocks, elevating, and double turning positioner, cradle type.
The positioner can be supplied for interfacing with robot or welding manipulators to realize the welding automation. At the same time, we can design and customize various type of special positioner according to the technological requirement and different work piece given by the customer.

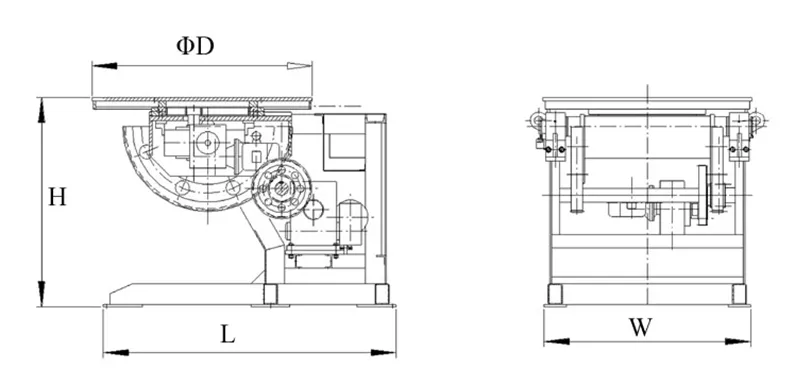

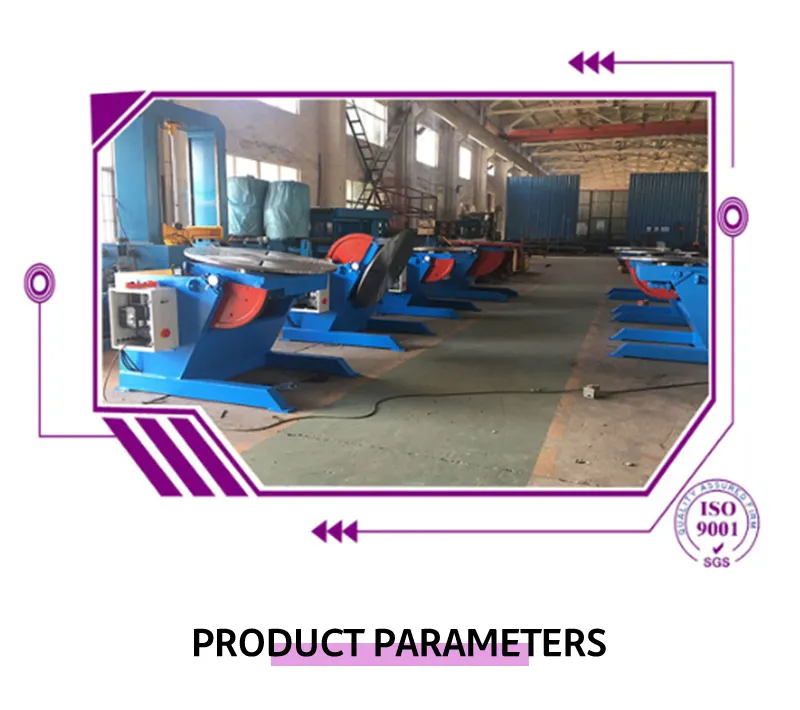

| Model (WP Series) | Rated load Cap (tons) | Power (kW) | Max Gravity height (mm) | Max centroid Eccentricity (mm) | Speed (RPM) | Table Diameter ΦD (mm) | Dimensions L*W*H (mm) | Weight (tons) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Rotation | Tilt | Rotation | Tilt | |||||||
| WP 0.1 | 0.1 | 0.06 | manual | 150 | 100 | 0.4-4.0 | manual | 400 | 560*400*420 | 0.2 |
| WP 0.3 | 0.3 | 0.37 | manual | 200 | 150 | 0.1-1.0 | manual | 600 | 930*660*720 | 0.3 |
| WP 0.6 | 0.6 | 0.75 | 0.75 | 200 | 150 | 0.1-1.0 | 1.1 | 1000 | 1200*900*850 | 0.7 |
| WP 1 | 1 | 1.1 | 1.5 | 250 | 200 | 0.05-0.5 | 0.67 | 1200 | 1400*1200*1200 | 1 |
| WP 2 | 2 | 1.1 | 1.5 | 300 | 200 | 0.05-0.5 | 0.23 | 1400 | 2100*1500*1350 | 2 |
| WP 5 | 5 | 2.2 | 3 | 300 | 200 | 0.05-0.5 | 0.14 | 1500 | 2200*1500*1450 | 3.7 |
| WP 10 | 10 | 3 | 5.5 | 400 | 200 | 0.02-0.2 | 0.14 | 2000 | 2700*2000*1850 | 5.8 |
| WP 20 | 20 | 4 | 7.5 | 450 | 200 | 0.015-0.15 | 0.1 | 2300 | 3300*2230*2000 | 11 |
| WP 50 | 50 | 11 | 15 | 500 | 200 | 0.04-0.4 | 0.1 | 3000 | 4525*3500*4100 | 27 |
| WP 100 | 100 | 15 | 18.5 | 600 | 300 | 0.05-0.5 | 0.05 | 4000 | 5600*4200*4500 | 65 |
