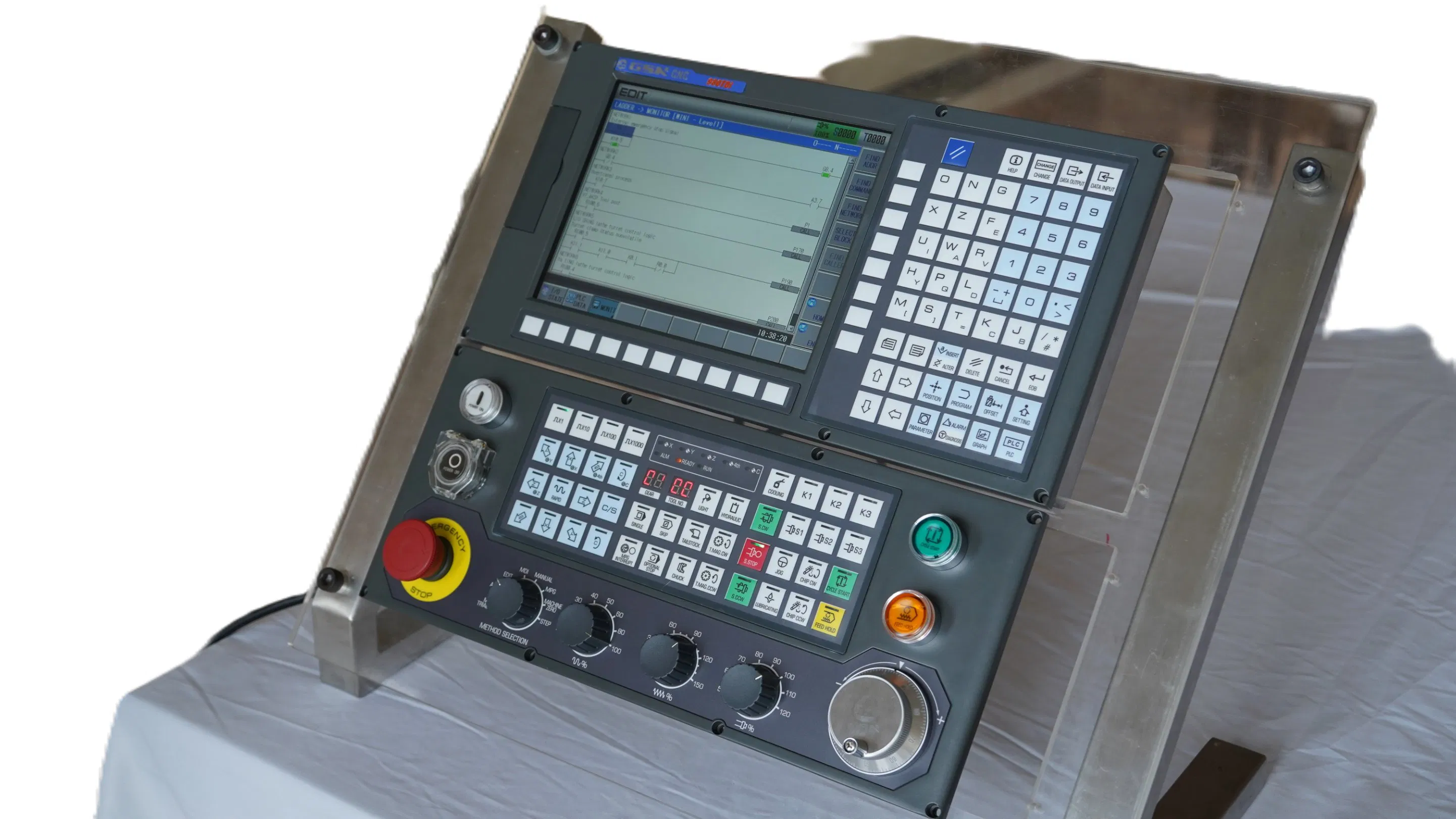

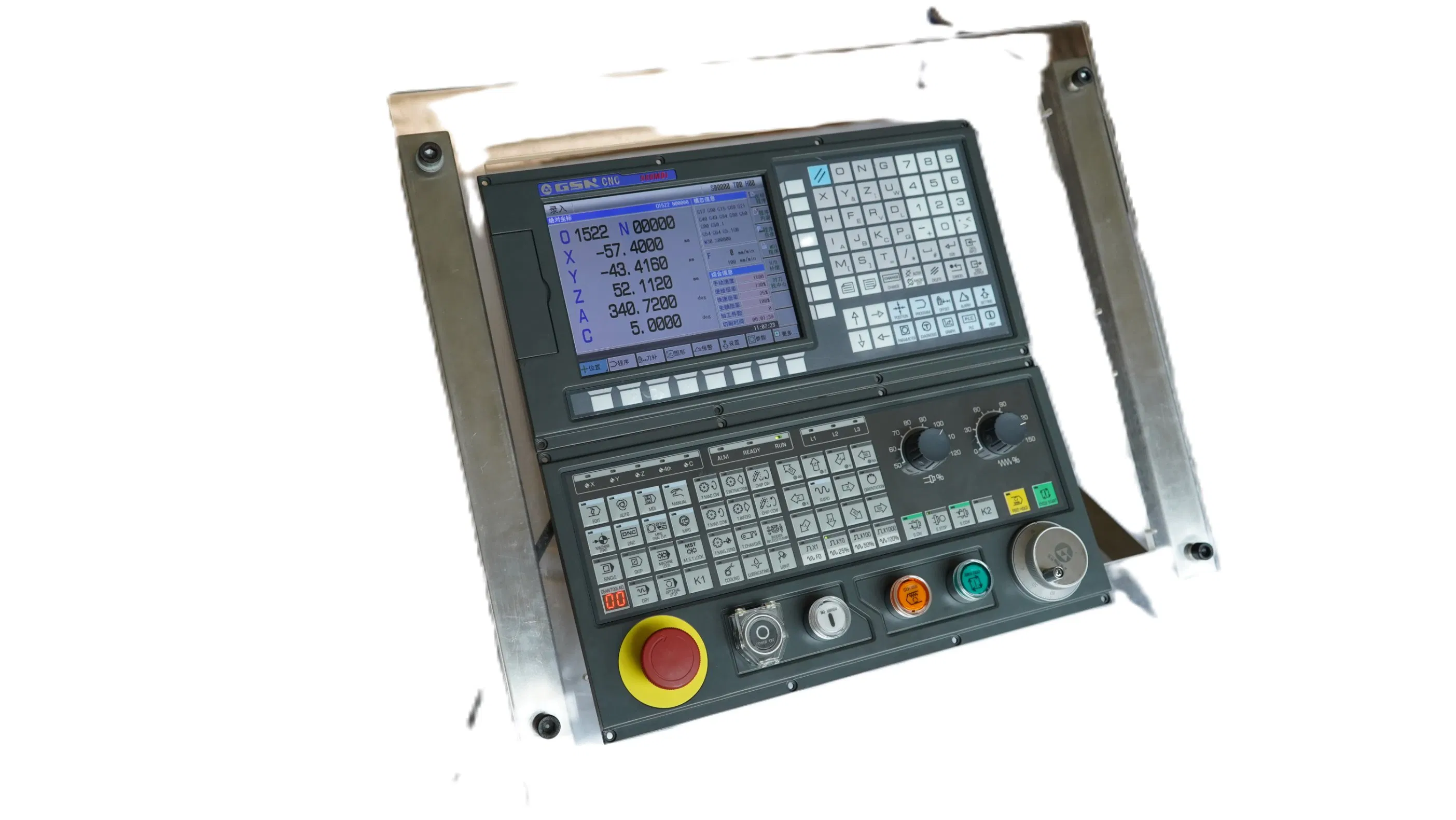

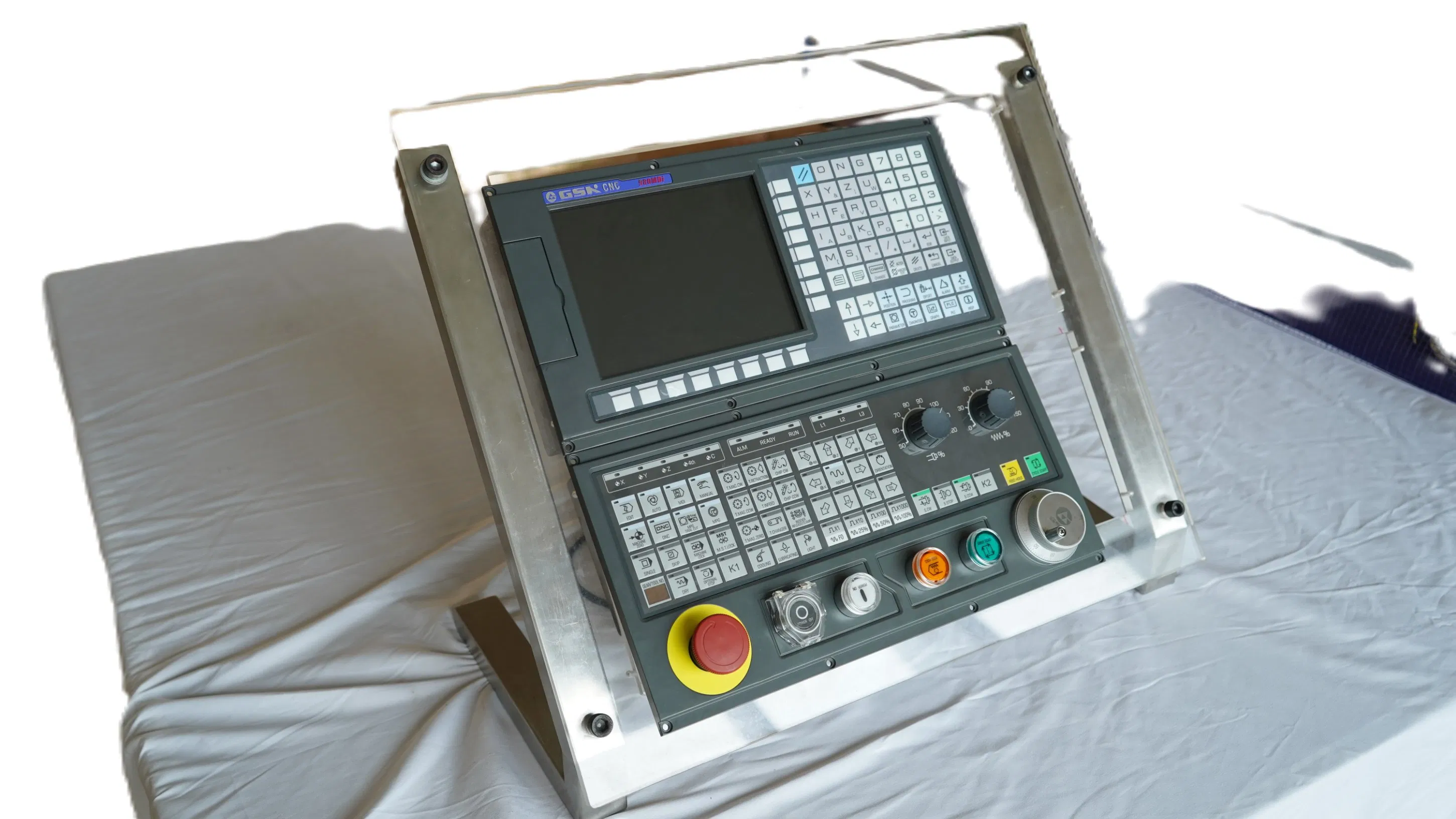

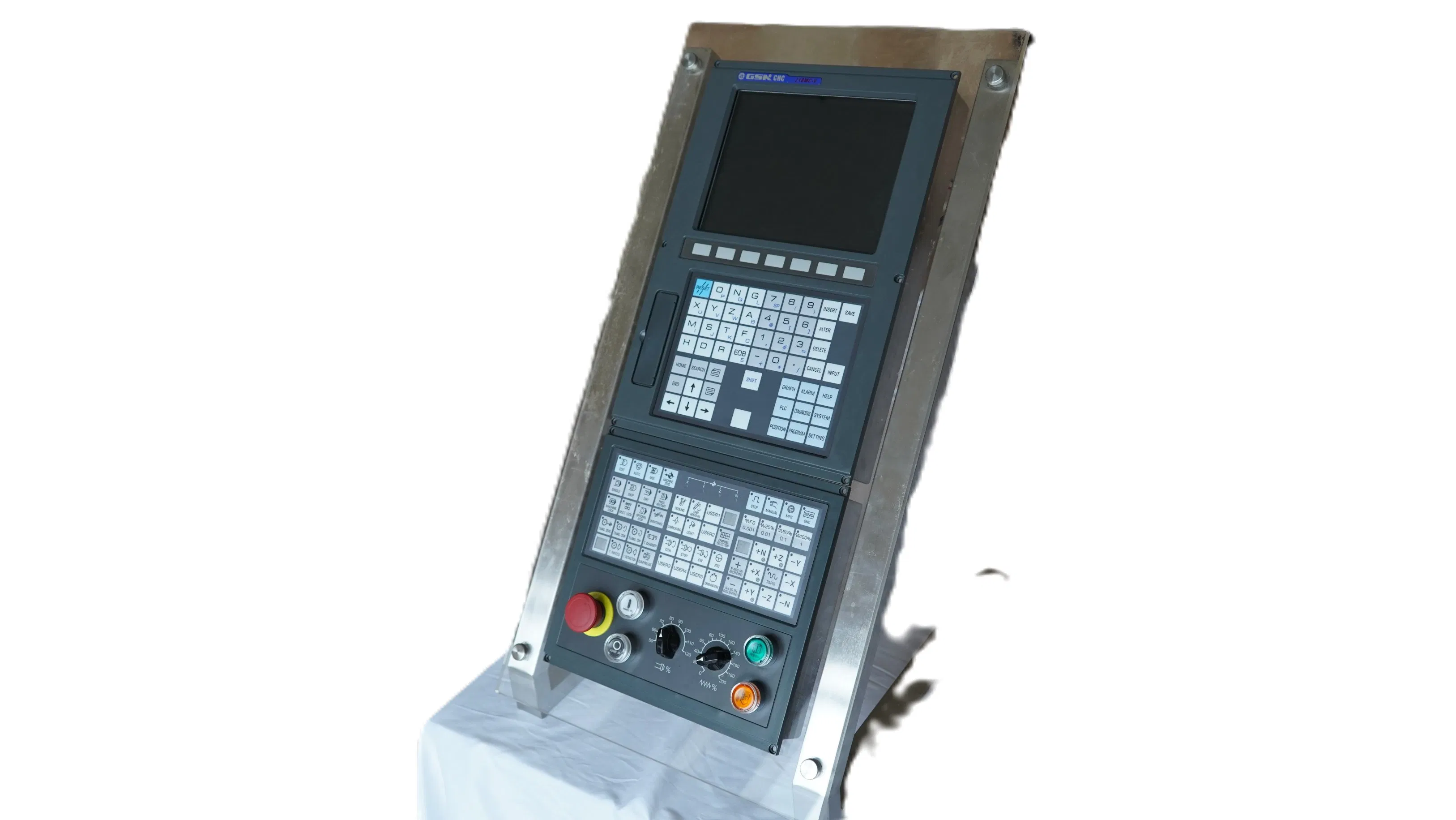

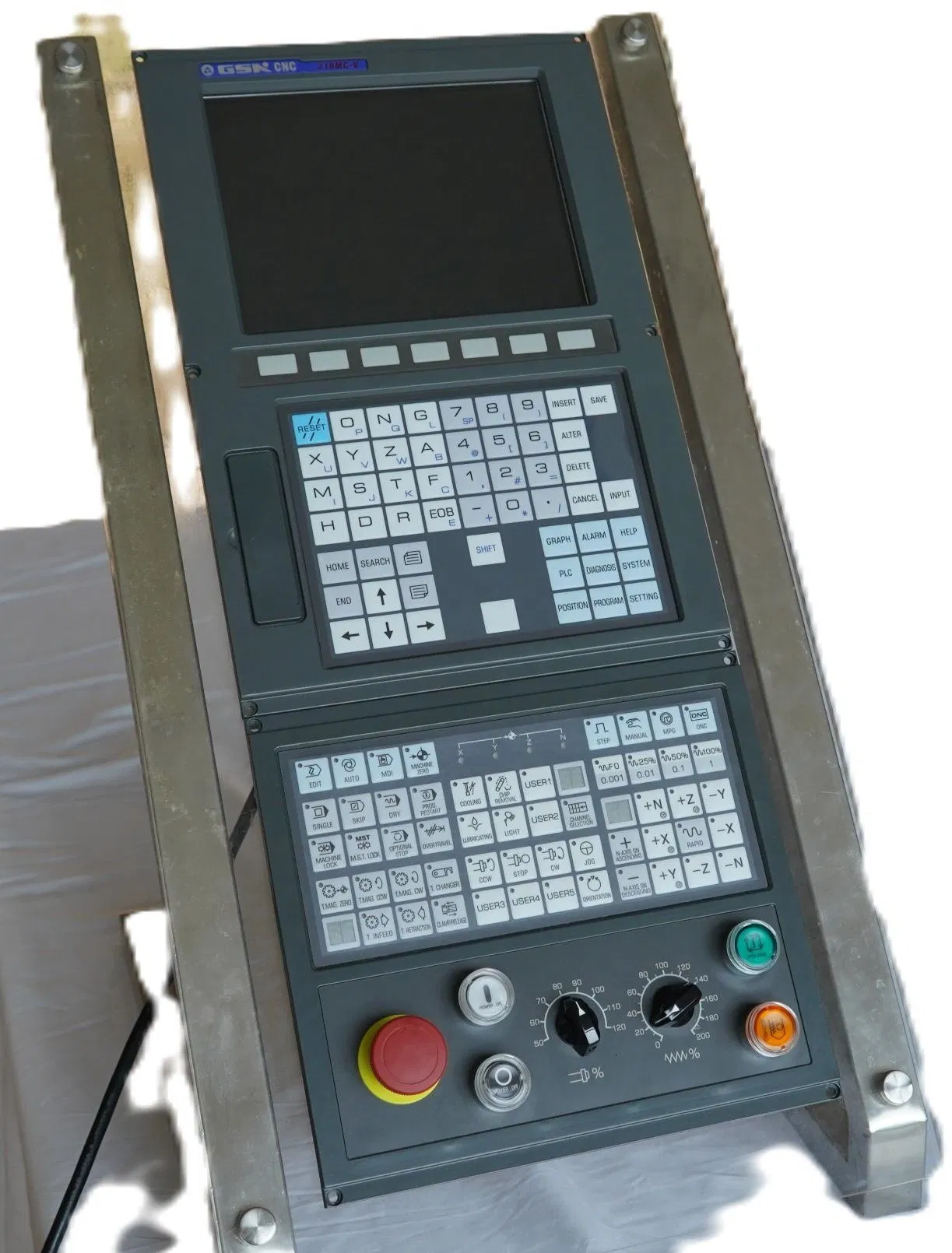

The GSK 25iMC Series represents the pinnacle of innovation in CNC systems. This cutting-edge CNC system encapsulates the latest advancements, delivering unparalleled performance and reliability. With its robust functionality, ease of operation, and versatile applications, it stands as a testament to modern engineering excellence.

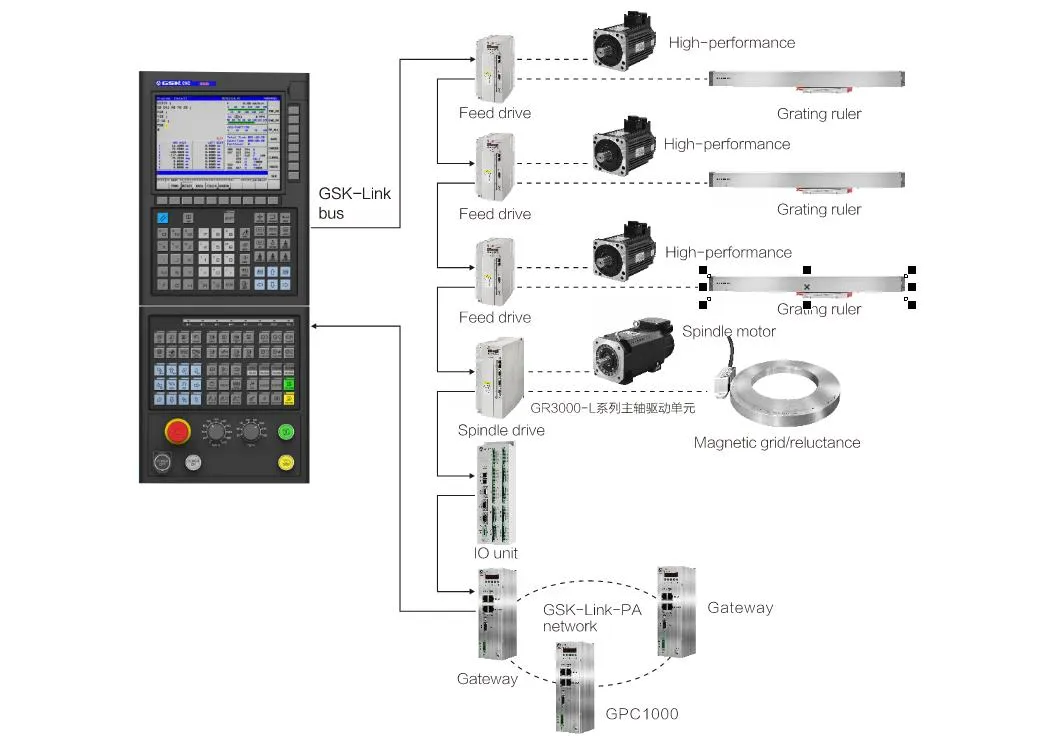

Equipped with a state-of-the-art CNC controller, the system ensures lightning-fast data processing and exceptional stability. Its advanced control functions support multi-axis linkage and bus control, achieving remarkable speeds and precision.

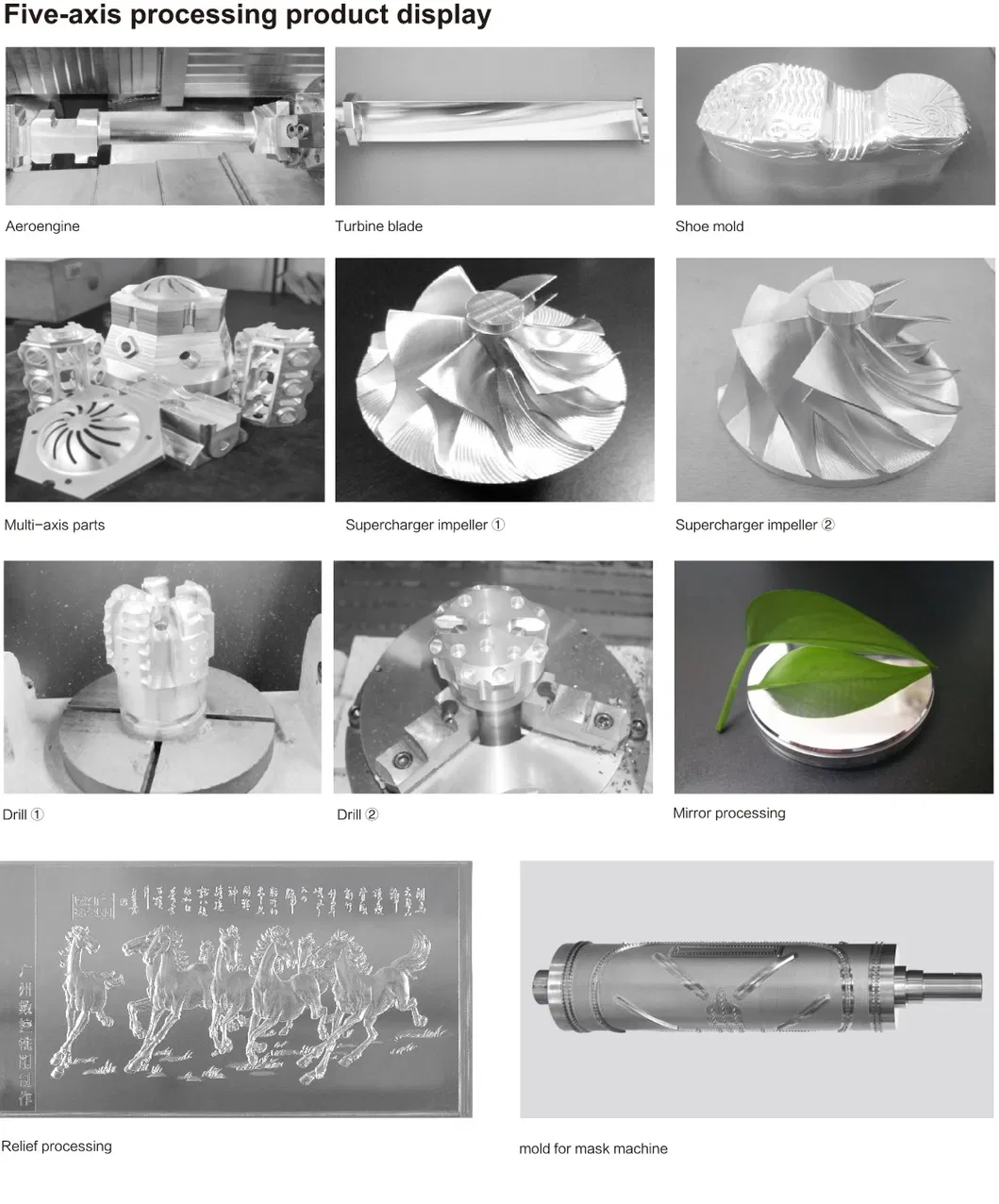

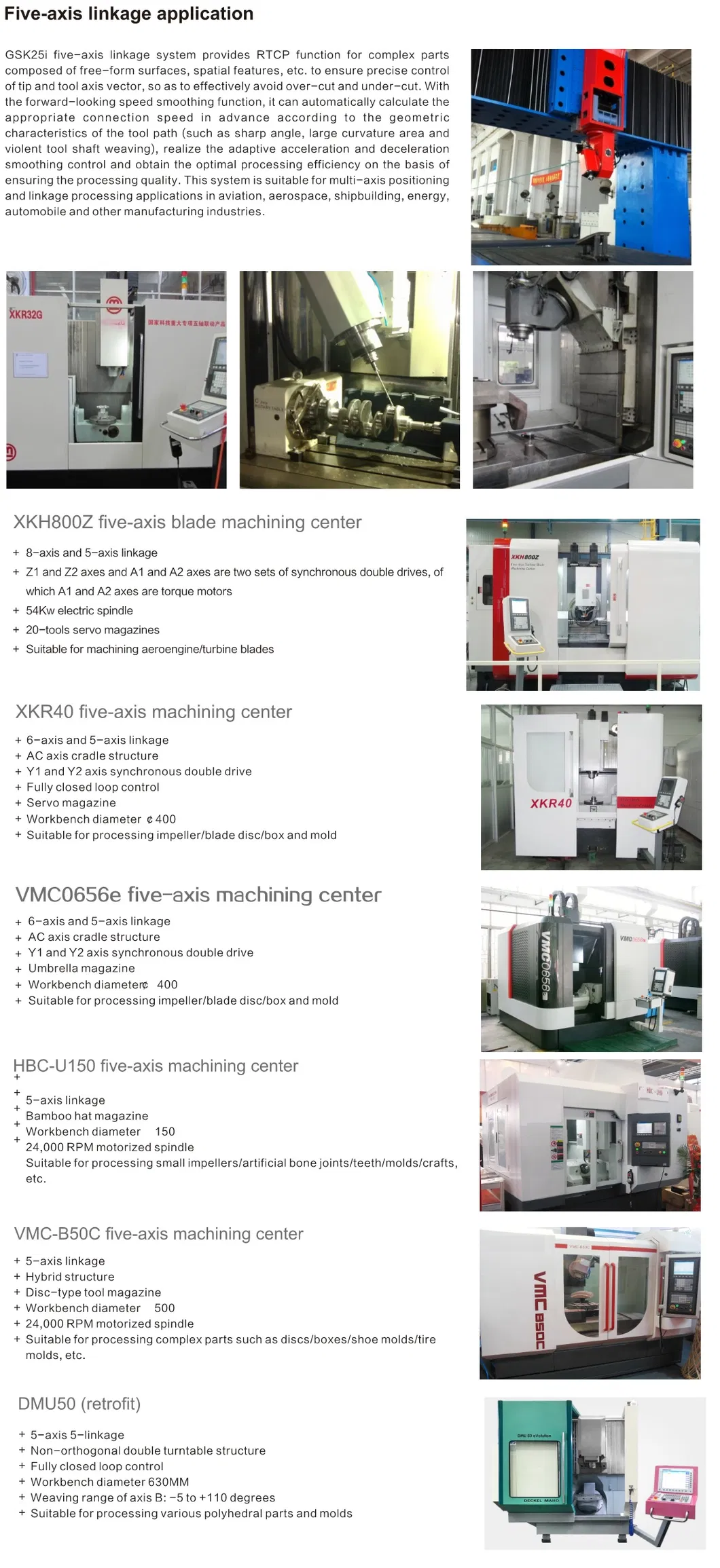

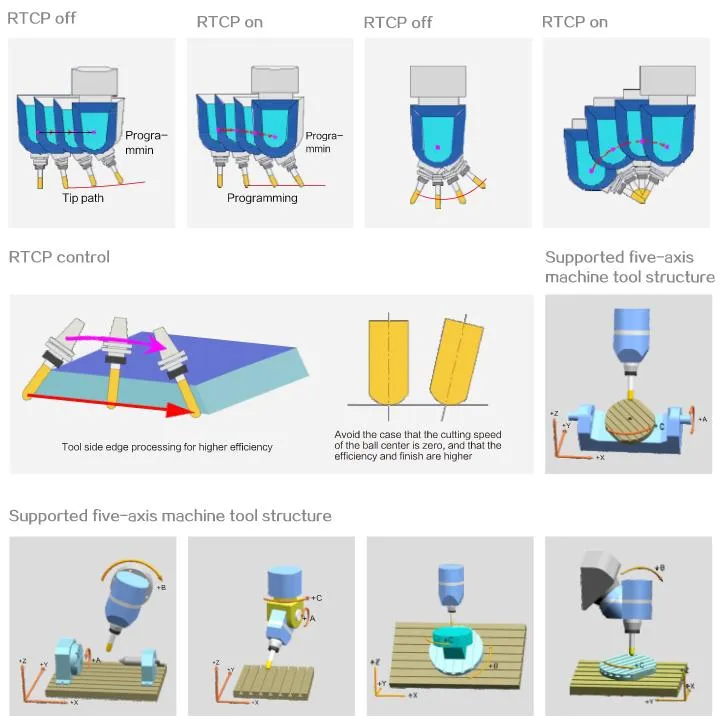

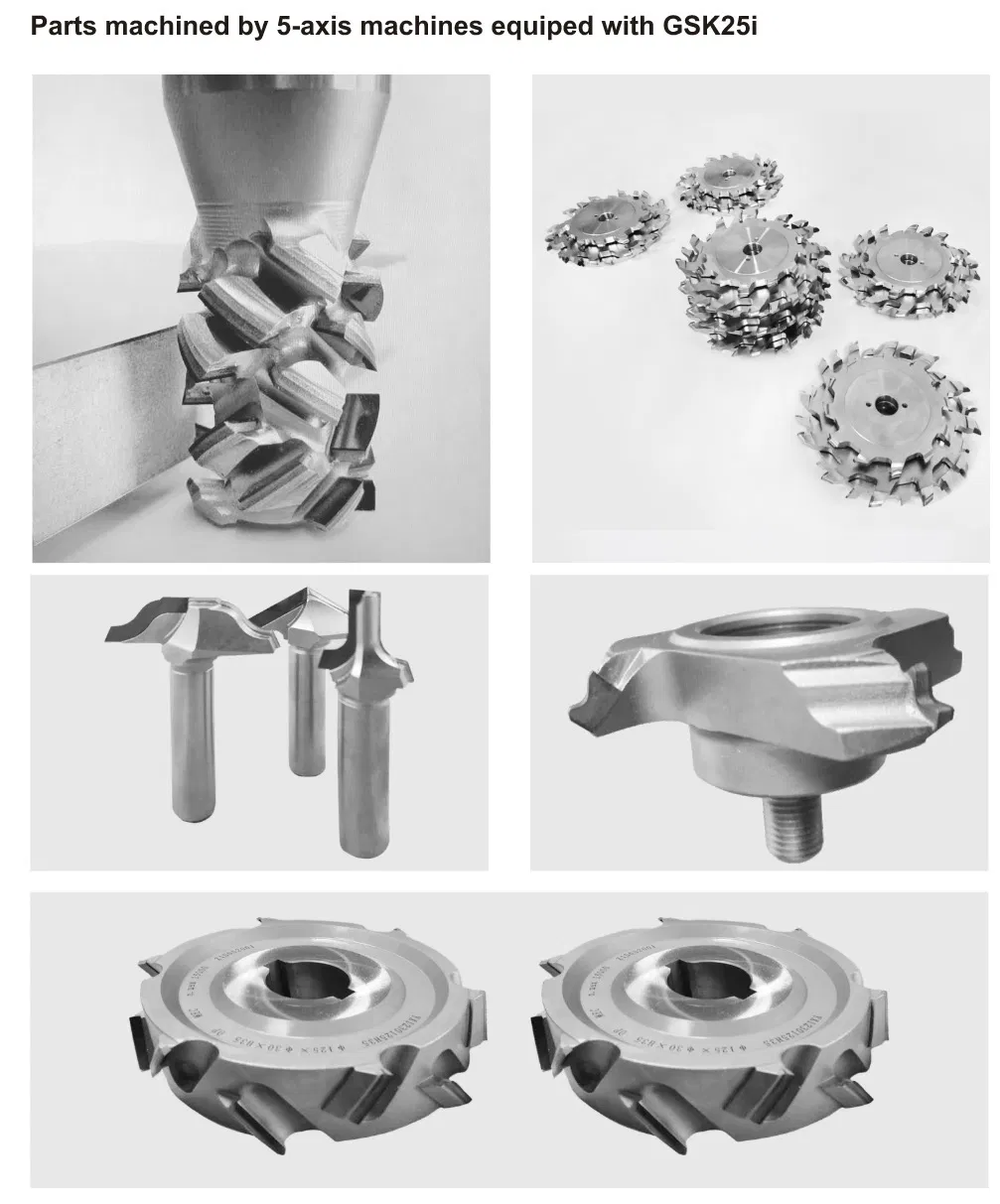

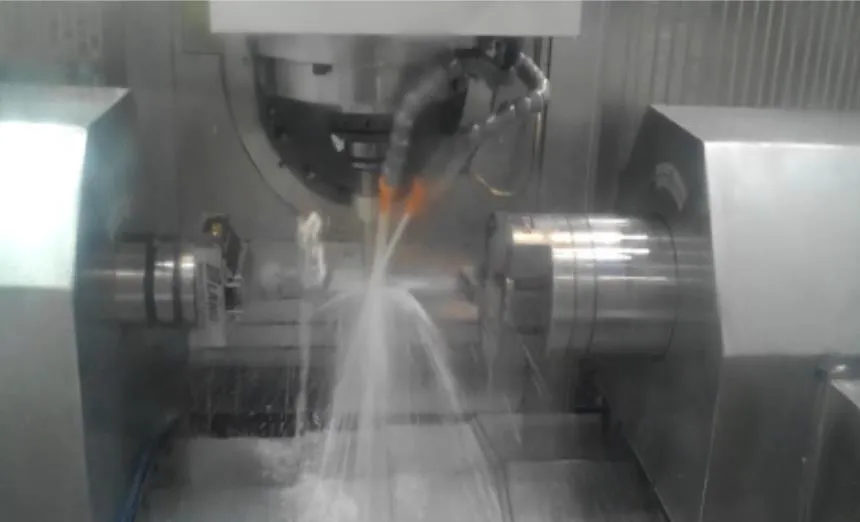

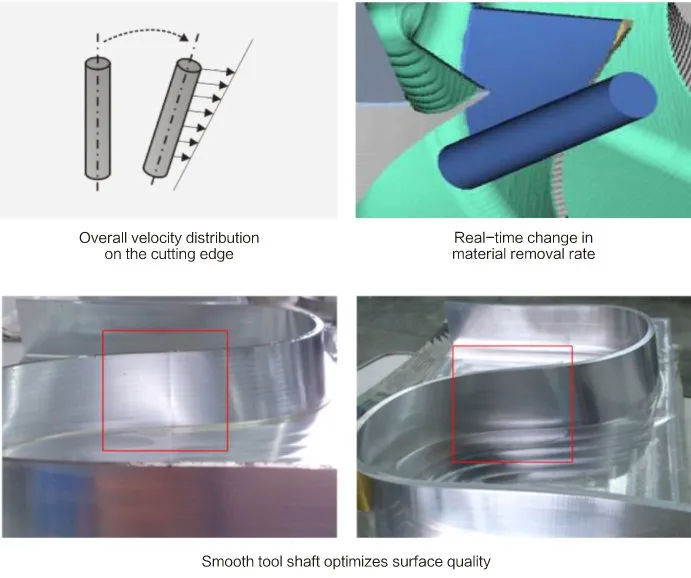

Optional 5-Axis Machining with RTCP: Supports 8-axis and 5-linkage configurations, ideal for processing complex components like aeroengine and steam turbine blades. Features include RTCP (Tool Center Point Control), inclined plane (3+2 positioning), and tool path fairing.

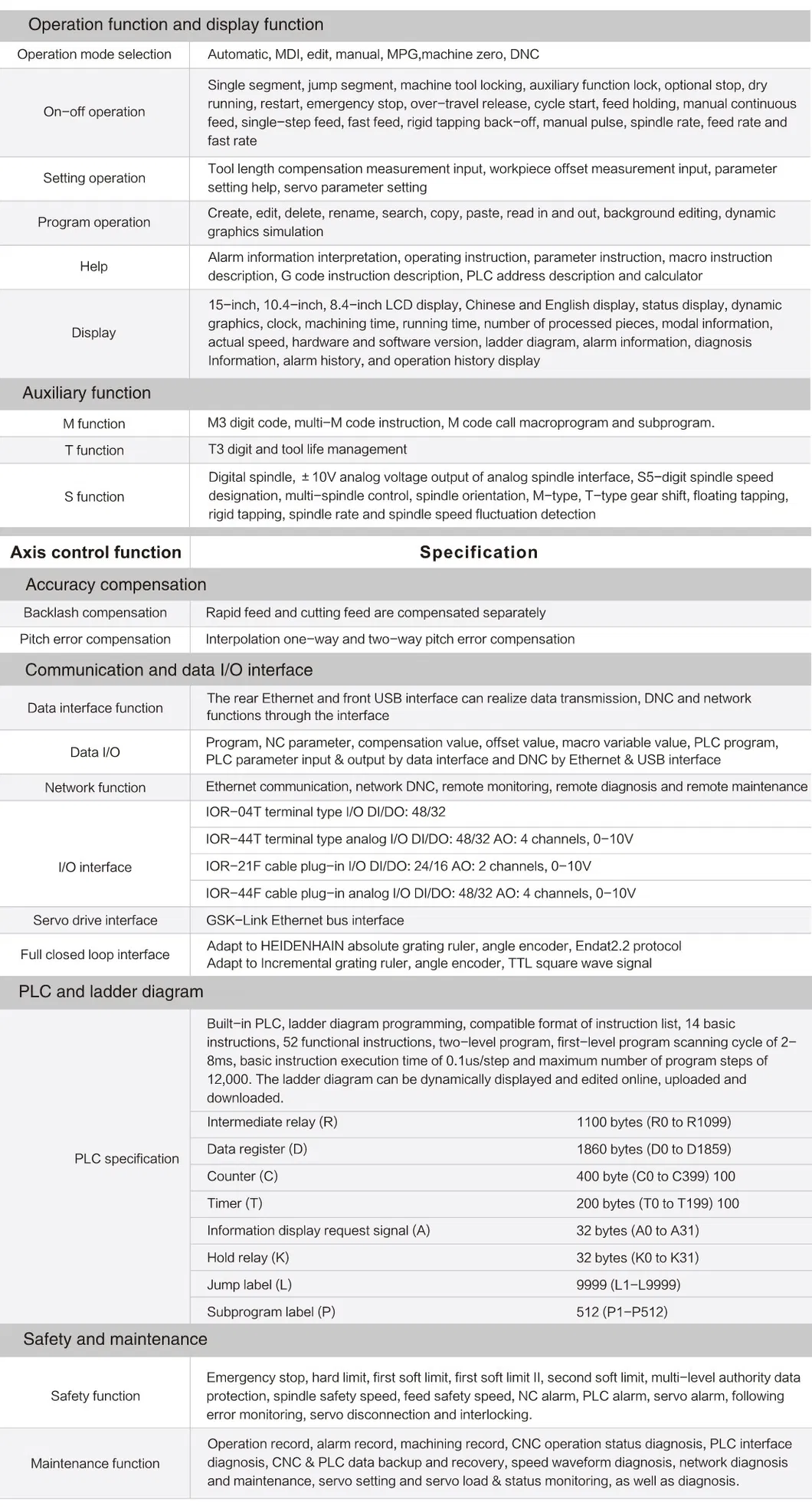

| Axis Control Function Specification | |
|---|---|
| Maximum Control Axes | 8 feed axes plus 2 servo spindles |
| Linkage Axes | 4-axis or 5-axis linkage |
| PLC Controlled Axes | Up to 8 axes |
| Synchronous Control | Up to 4 groups |
| Closed Loop Control | Supports incremental, absolute encoder or grating ruler |
| Minimum Instruction Unit | 0.001mm (IS-B) / 0.0001mm (IS-C) |
| Maximum Feed Speed | 200m/min |
| Acceleration/Deceleration | Linear before interpolation, S-curve, jerk control |
| High-precision Machining | G05 small line segment look-ahead (up to 1000 segments) |
| RTCP Function (Optional) | Tool center point control G43.4 |
| Inclined Surface | Five-axis positioning (3+2) machining G68.2 |
| Programming & Storage Function | |
|---|---|
| Program Format | ISO instruction standard |
| Coordinate Systems | 48 groups (G52-G59) and extended (G54.1) |
| Tool Compensation | C tool compensation, 400 sets |
| Program Storage | 4G Memory, up to 400 programs |
| Skip Function | G31 for tool and workpiece measurement |
Dedicated to basic equipment research and advancement, providing comprehensive solutions in CNC systems, servo drives, and motors. As a pioneer in industrial robotics and all-electric injection molding machines, the focus remains on elevating product value through relentless innovation and enhancing technological standards in the national equipment manufacturing sector.
