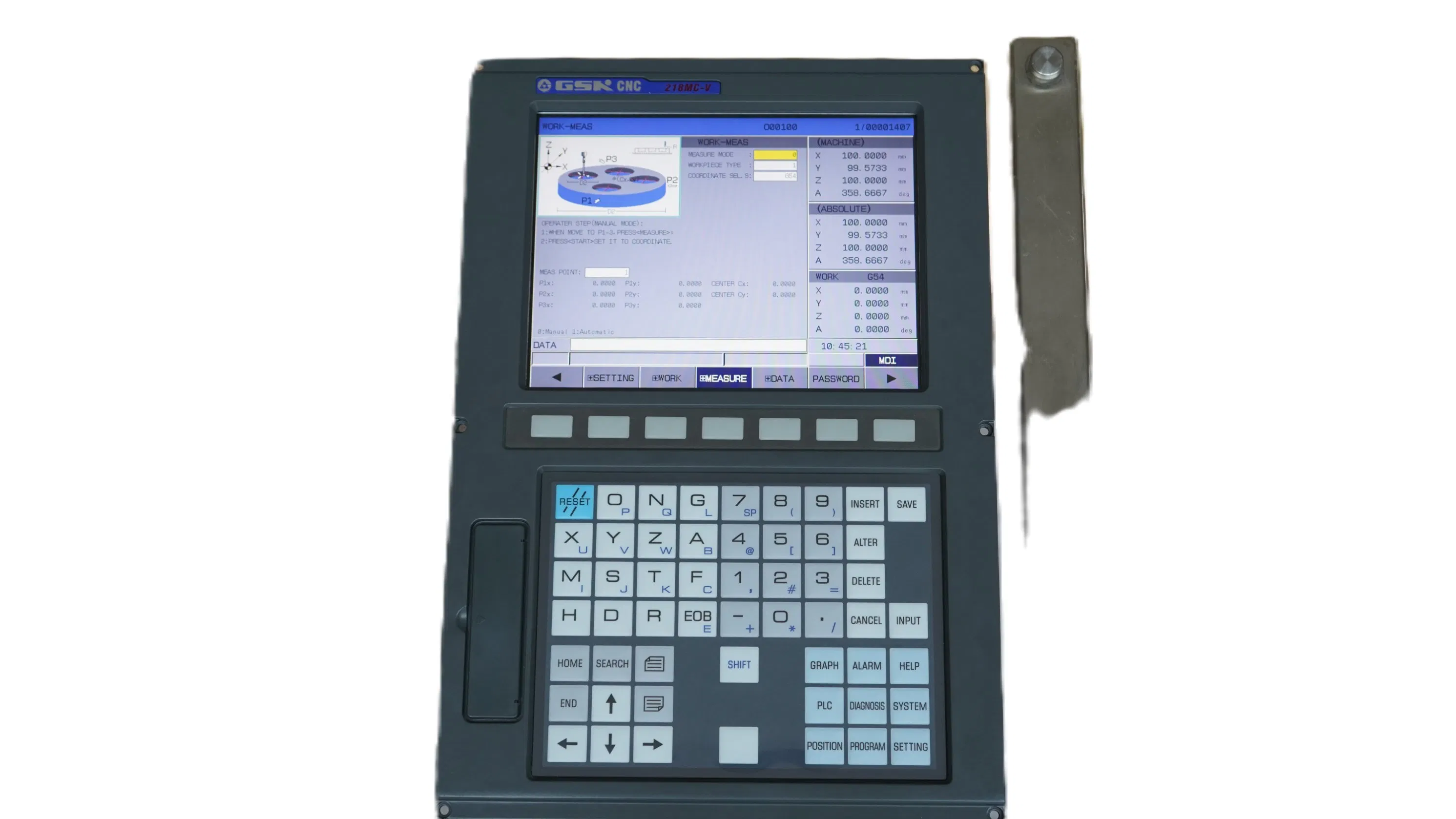

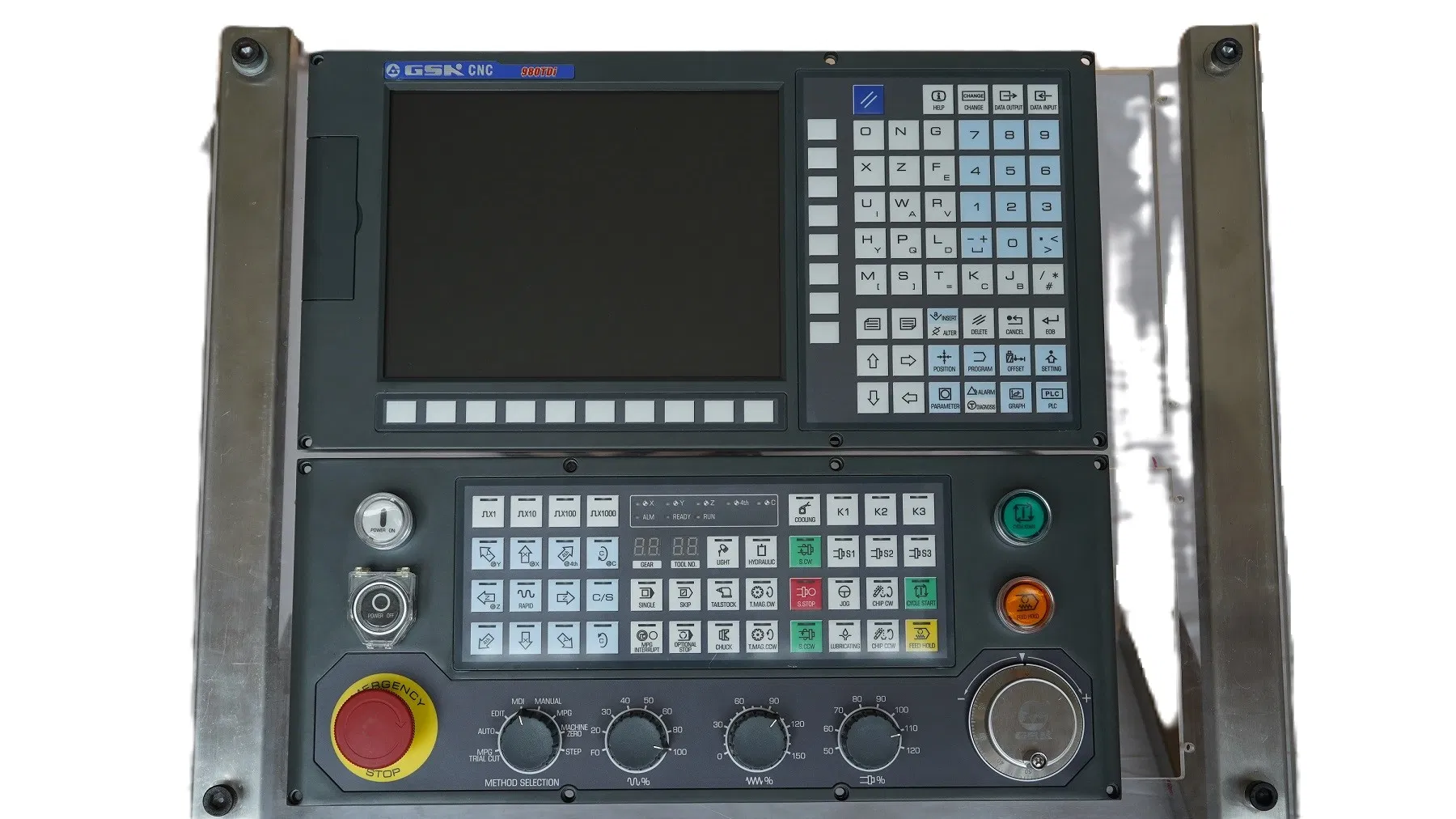

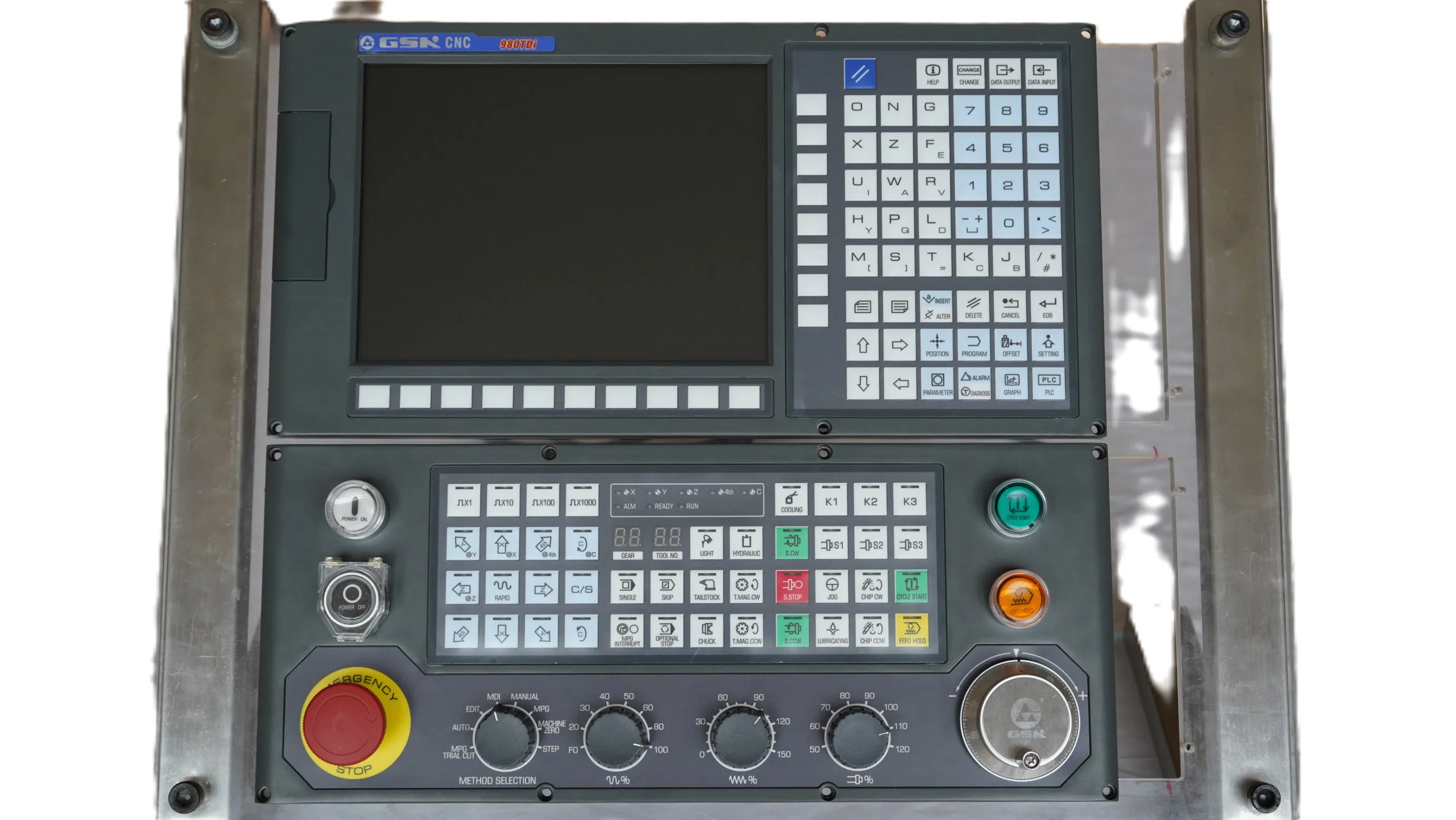

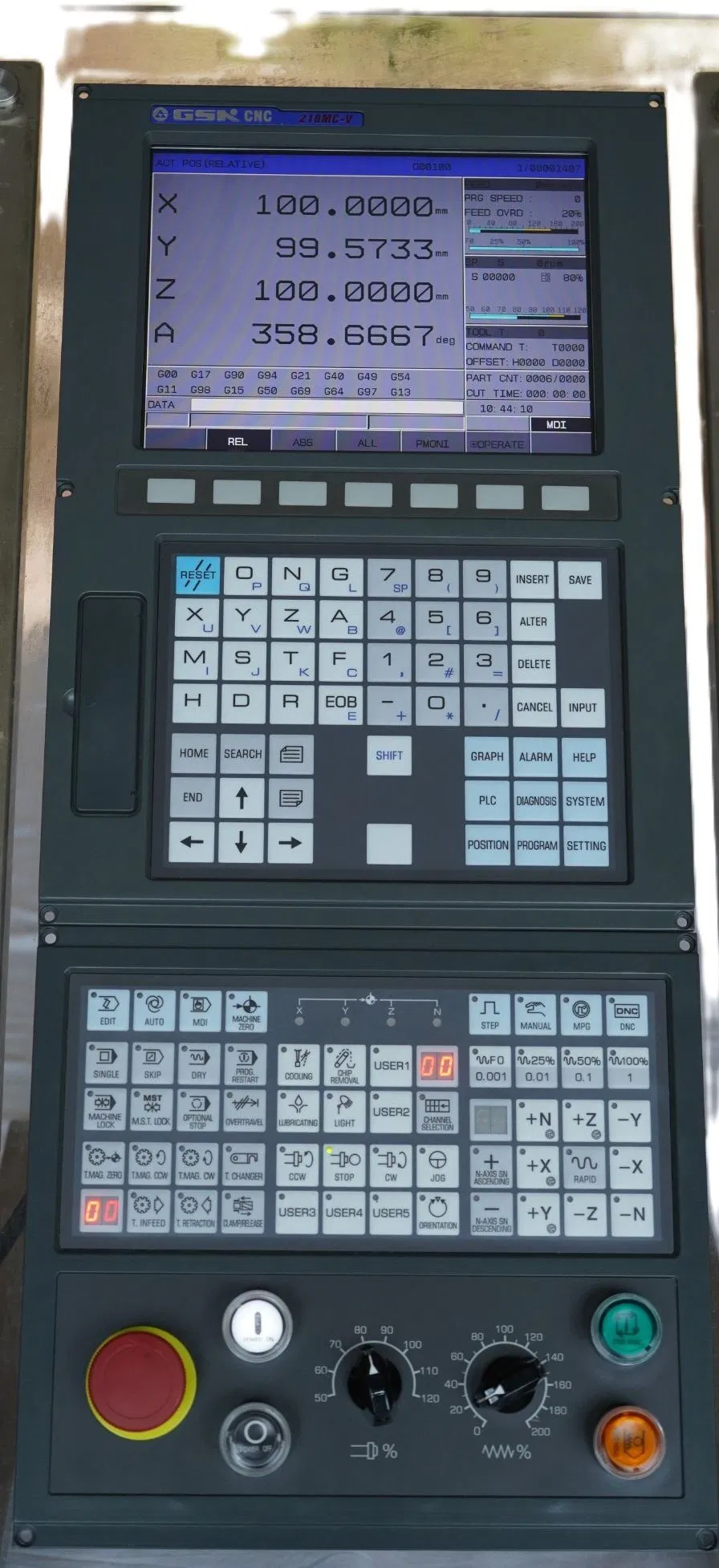

GSK 25iMC Series 10.4-Inch LCD Display CNC System for Milling Tools

1 / 5

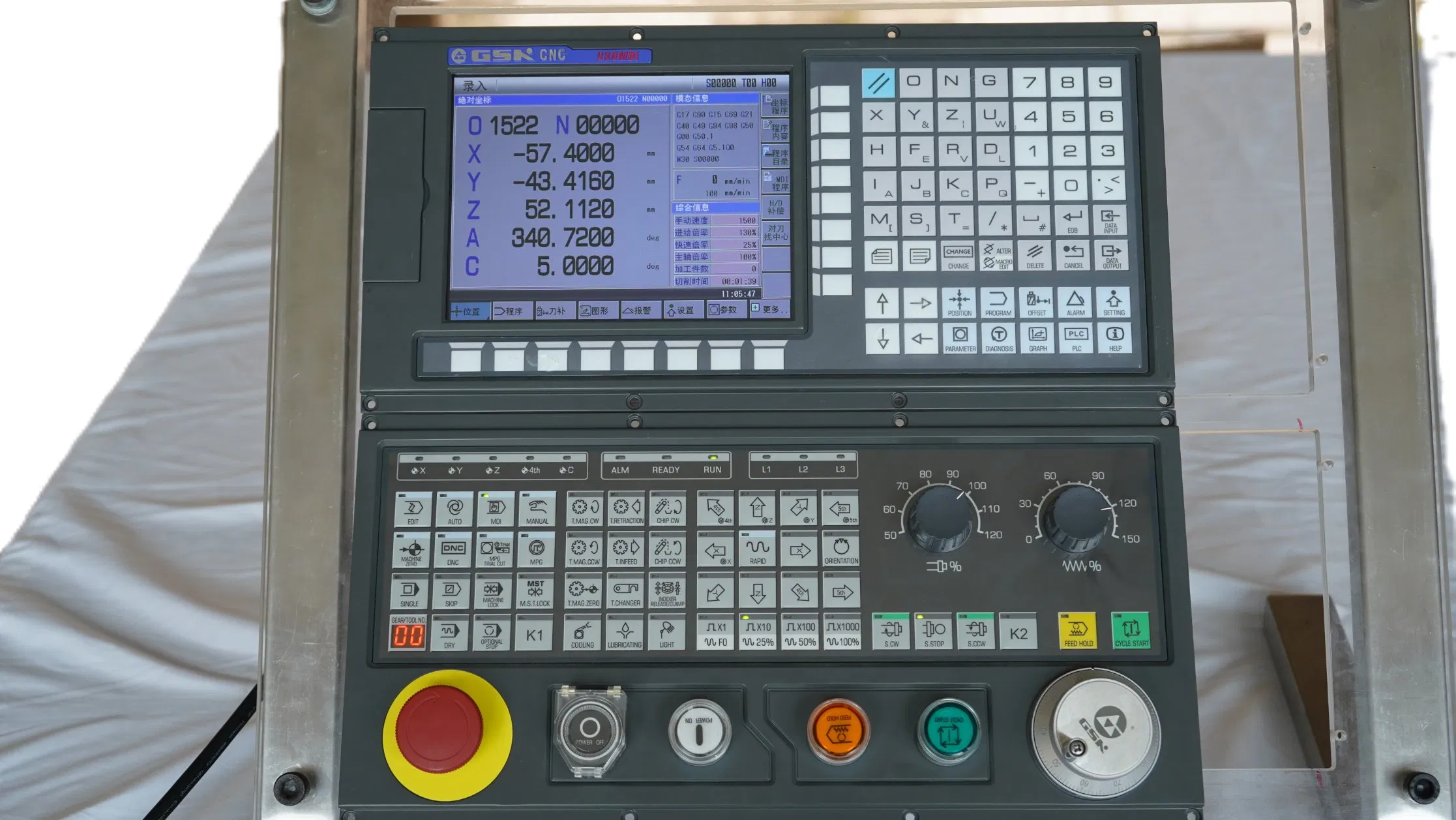

GSK 25iMC Series 10.4-Inch LCD Display CNC System for Milling Tools

Customization:	Available
After-sales Service:	1years
Warranty:	1years

Send Inquiry

Product Description

Basic Specifications

Model

25iMC Series

Application

Metal, Wood Cutting

Control Method

Closed-Loop Control

Precision

0.0001mm

Display

8.4 / 10.4 / 15-Inch LCD

Linkage Axes

4 or 5-Axis Linkage

RTCP Function

Tool Center Point Control G43.4

Program Storage

4G Memory, up to 400 Programs

Product Overview

The 25iMC Series represents a breakthrough in CNC technology, embodying a next-generation platform characterized by exceptional performance and reliability. This innovative system integrates the latest advancements in CNC technology to deliver robust functionalities, user-friendly operations, and a broad spectrum of applicability.

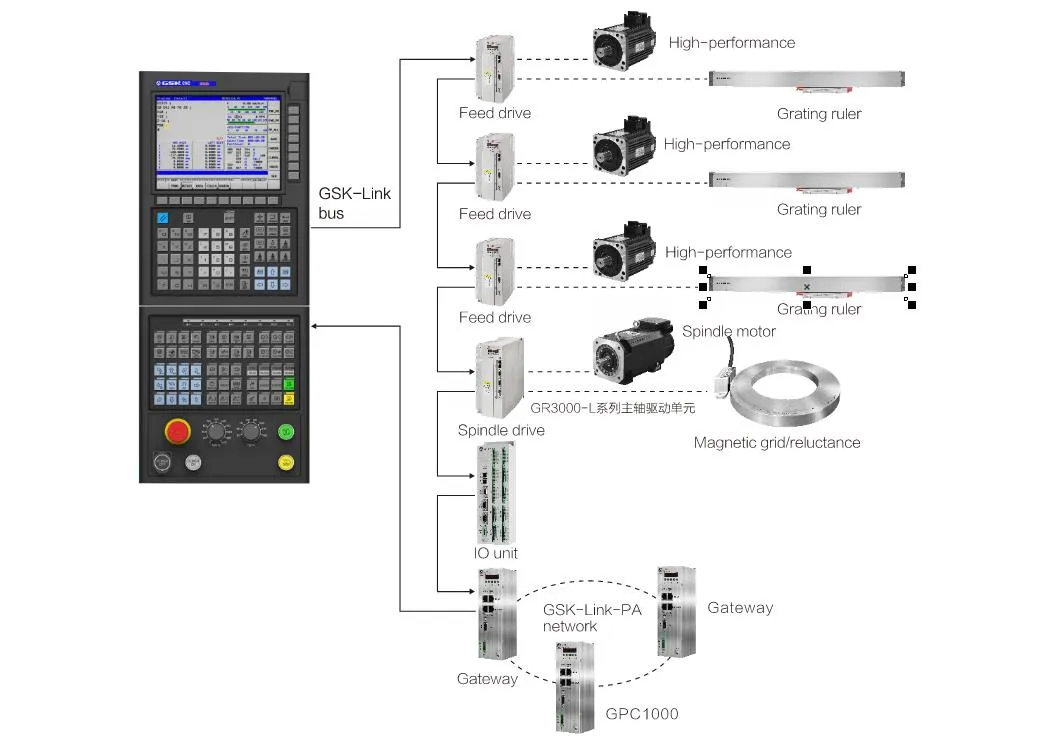

At the heart of the system is a cutting-edge CNC controller that enhances data processing speed and system stability. It offers superior control capabilities with multi-axis linkage, bus control, ensuring rapid, precise operations along with absolute encoder reliability.

★

Industrial Impact: Adopted widely in automobile manufacturing, energy, hardware molding, and 3C industries for precise motion control.

★

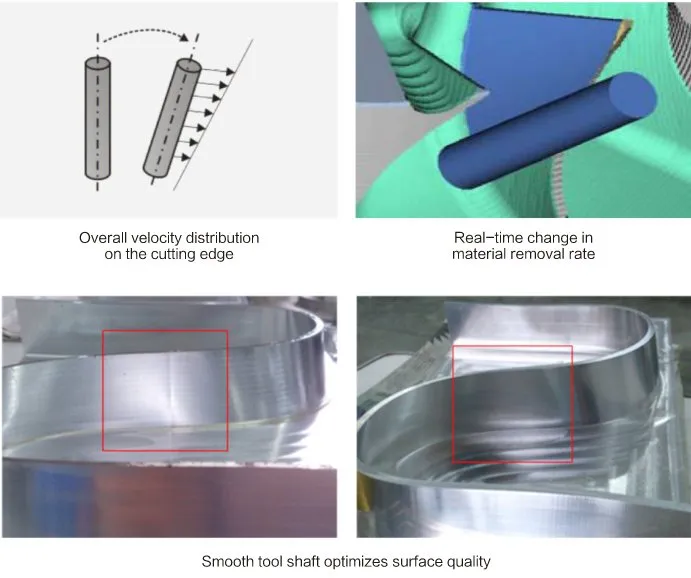

Adaptive Feed Rate: Excels in 5-axis side edge machining, ensuring optimal performance and precision.

Advanced Features

Pitch Compensation: Load REN files via a single key to swiftly complete parameter settings, ensuring zero-operation pitch compensation and data accuracy.

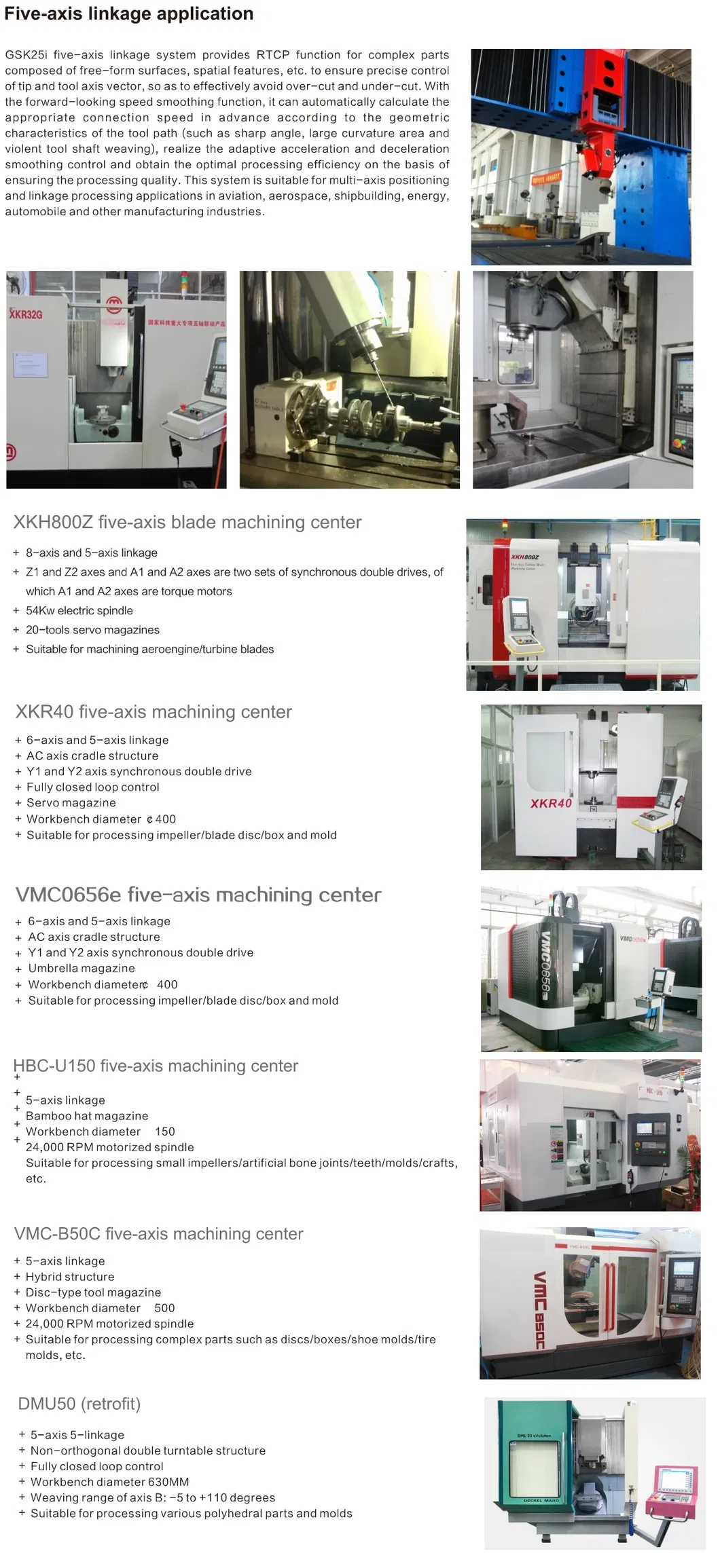

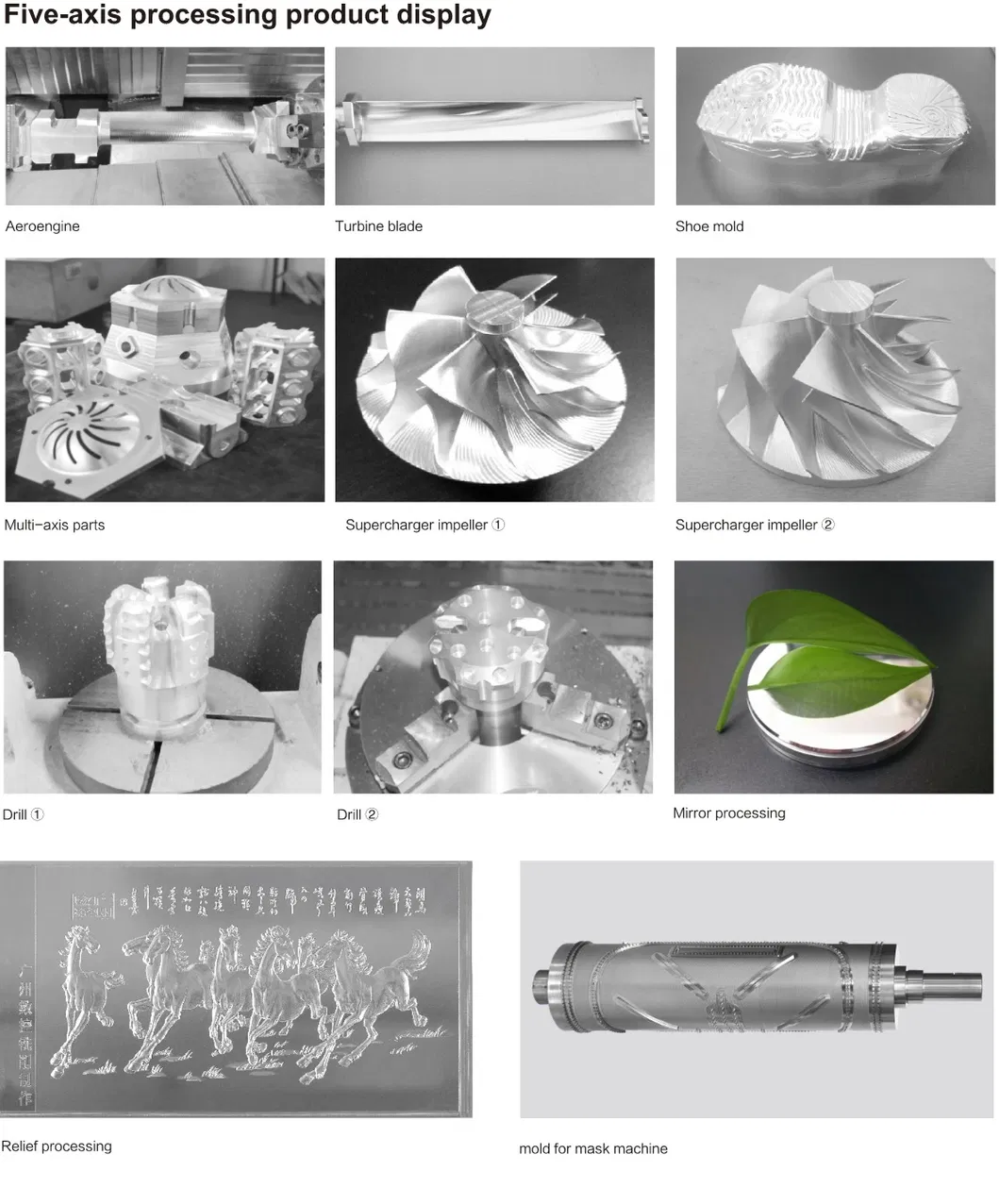

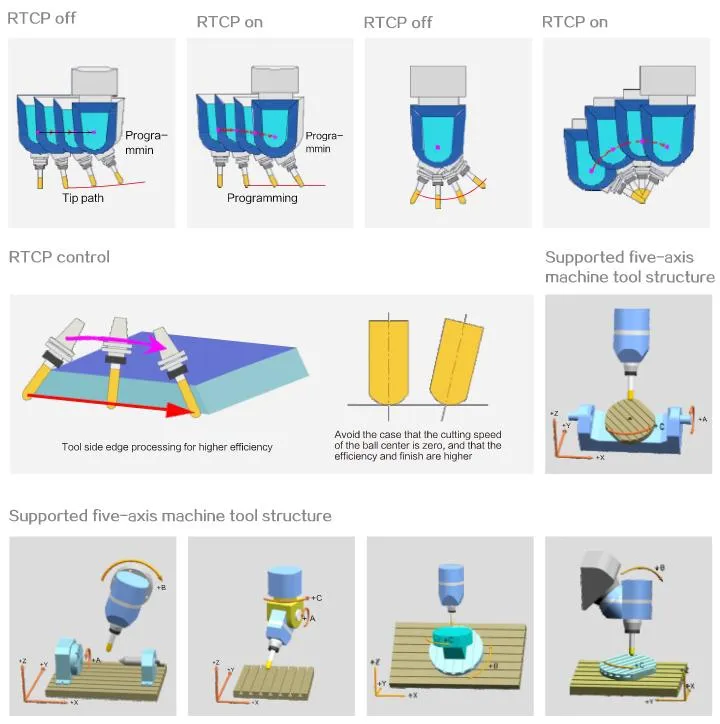

Optional 5-Axis Machining with RTCP: Supports 8-axis and 5-linkage configurations. Ideal for complex components like aeroengine blades, utilizing RTCP (tool center point control) and inclined plane (3+2) positioning.

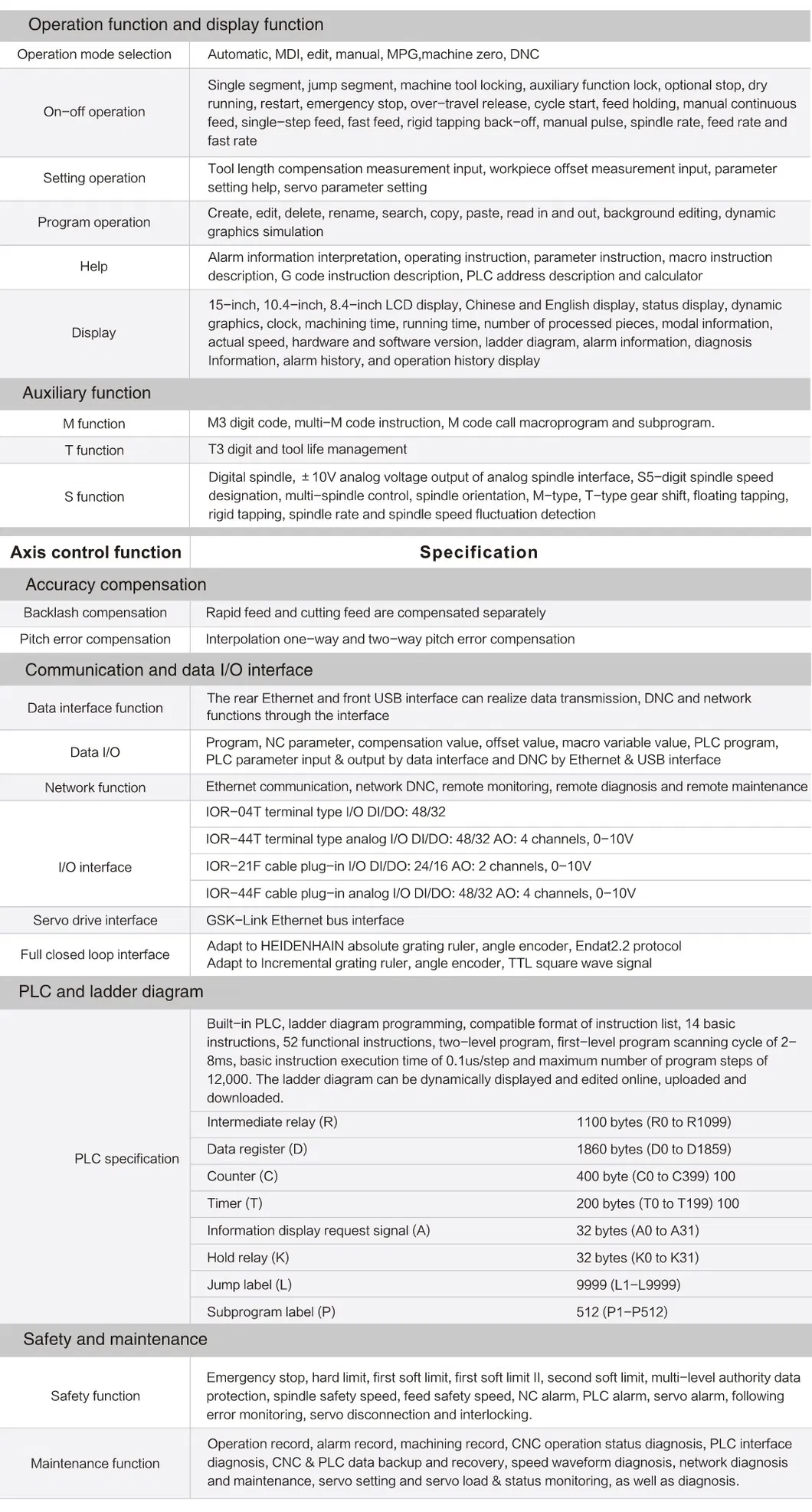

Technical Specifications

Axis Control Function	Specification Details
Max Controlled Axes	8 feed axes plus 2 servo spindles
Linkage Axes	4-axis or 5-axis linkage
PLC Controlled Axes	Up to 8 axes
Minimum Detection Unit	0.0001mm / 0.00001inch / 0.0001° (IS-C)
Max Feed Speed	200m/min
Acceleration/Deceleration	Linear before interpolation, S-curve, Jerk control
High-speed Machining	G05 small line segment look-ahead (up to 1000 segments)
RTCP Function	Tool center point control G43.4
Programming Format	ISO instruction standard
Coordinate Systems	48 groups of basic (G52-G59) + Extended (G54.1)
Tool Compensation	C tool compensation, 400 sets

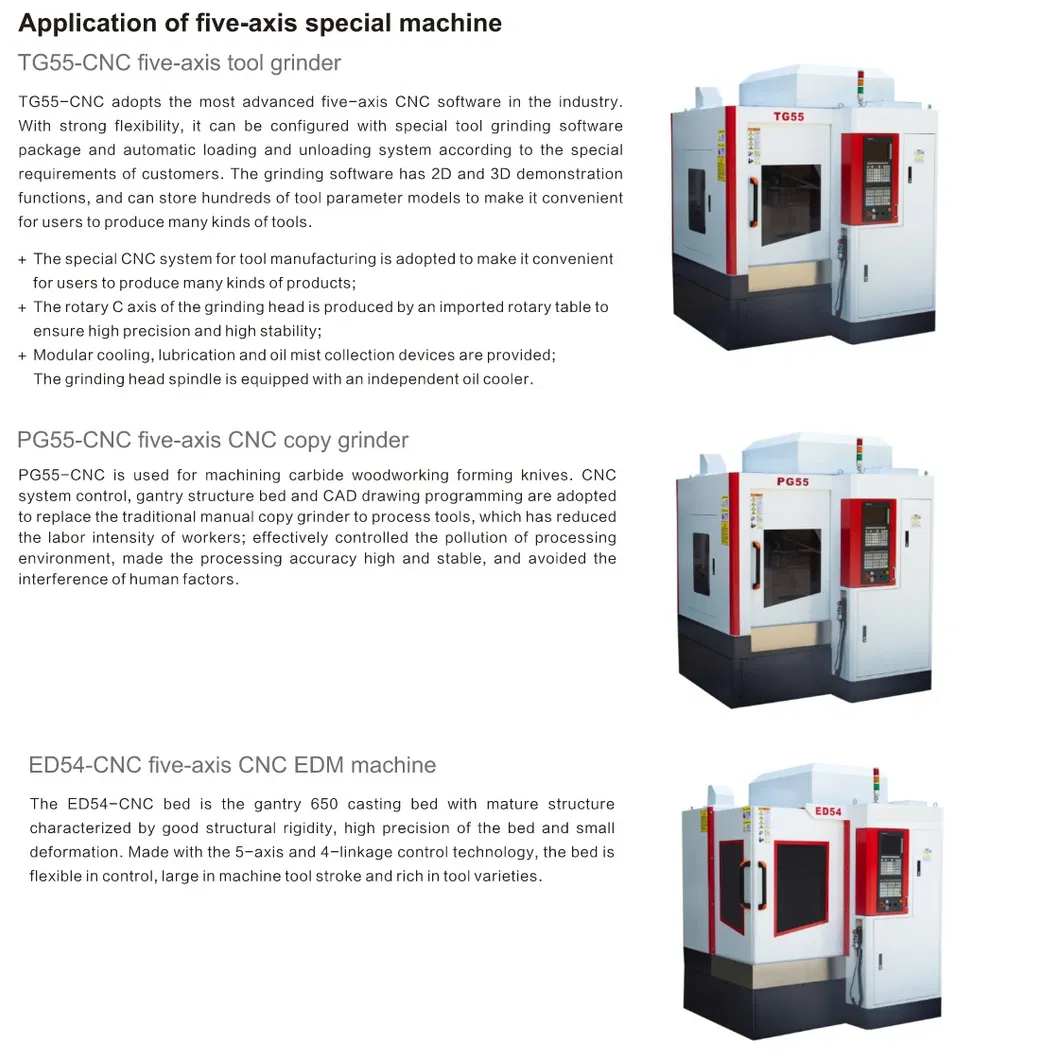

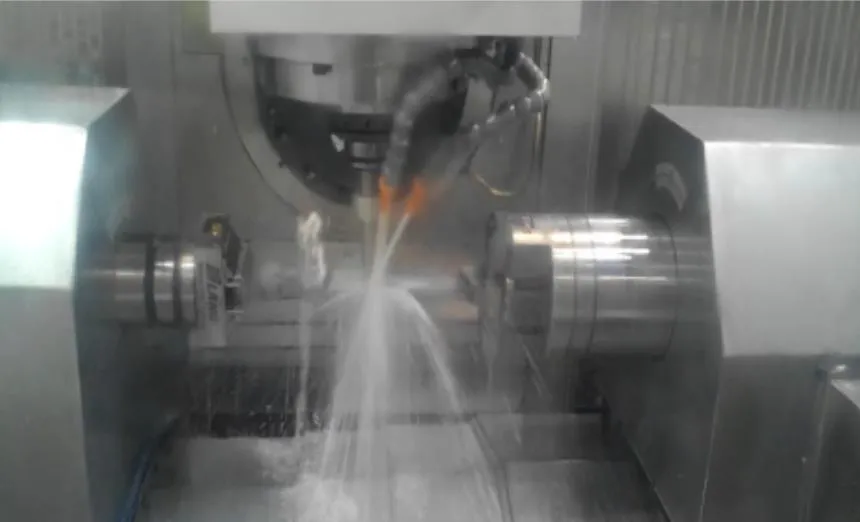

Applications & Industrial Use

Industrial Solutions

Offering comprehensive packaged solutions encompassing CNC systems, servo drives, and motors. These systems power industrial robots and all-electric injection molding technologies, enhancing customer value through technological innovation.
