DSCUT CNC
1 / 5

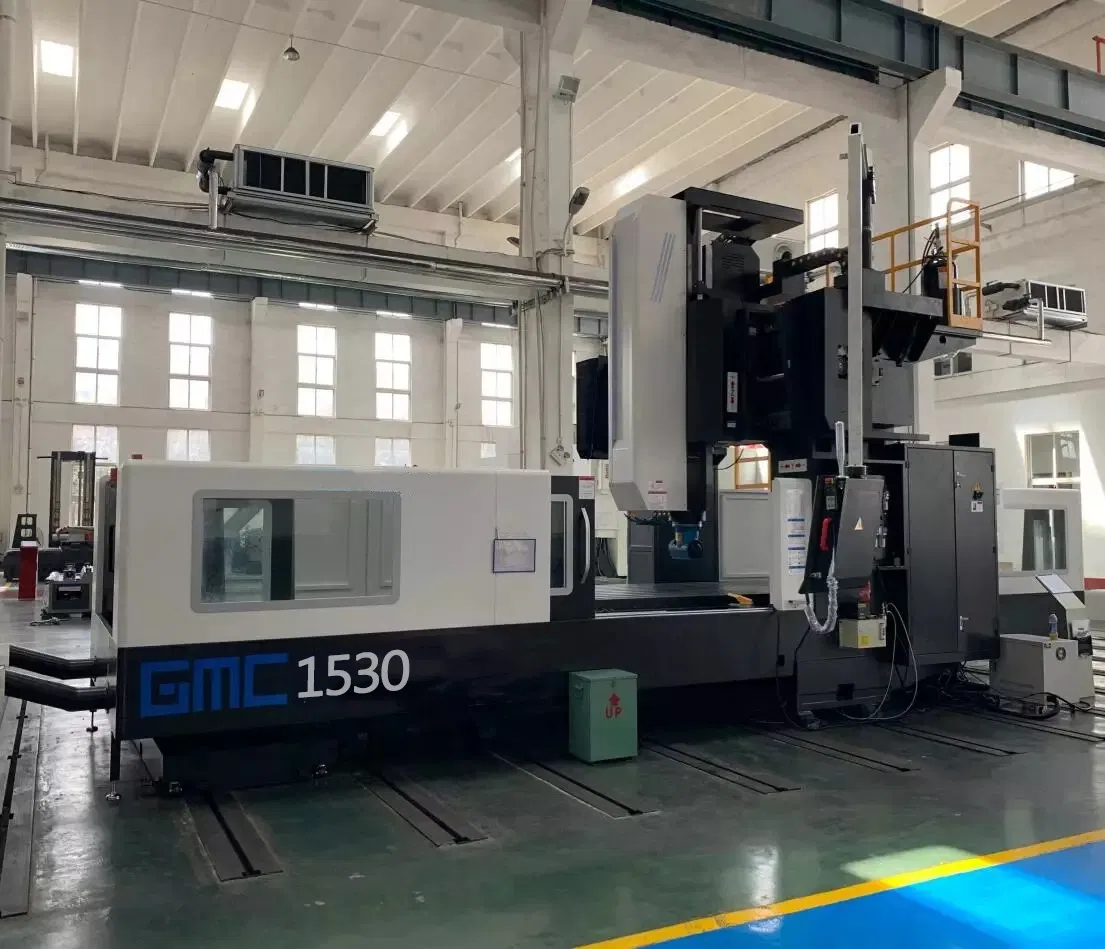

| Model NO. | GMC1530 | Application | Metal |
|---|---|---|---|
| Process Usage | Metal-Cutting CNC Machine Tools | Movement Method | Linear Control |
| Control Method | Semi-Closed Loop Control | Numerical Control | CNC/MNC |
| Processing Precision | 0.02~0.03(mm) | Certification | GS, CE |
| Worktable Size | 3000X1800mm | Max. Load | 8000kg |
| Spindle Speed | 3000rpm | Main Motor Power | 15/18.5kw |

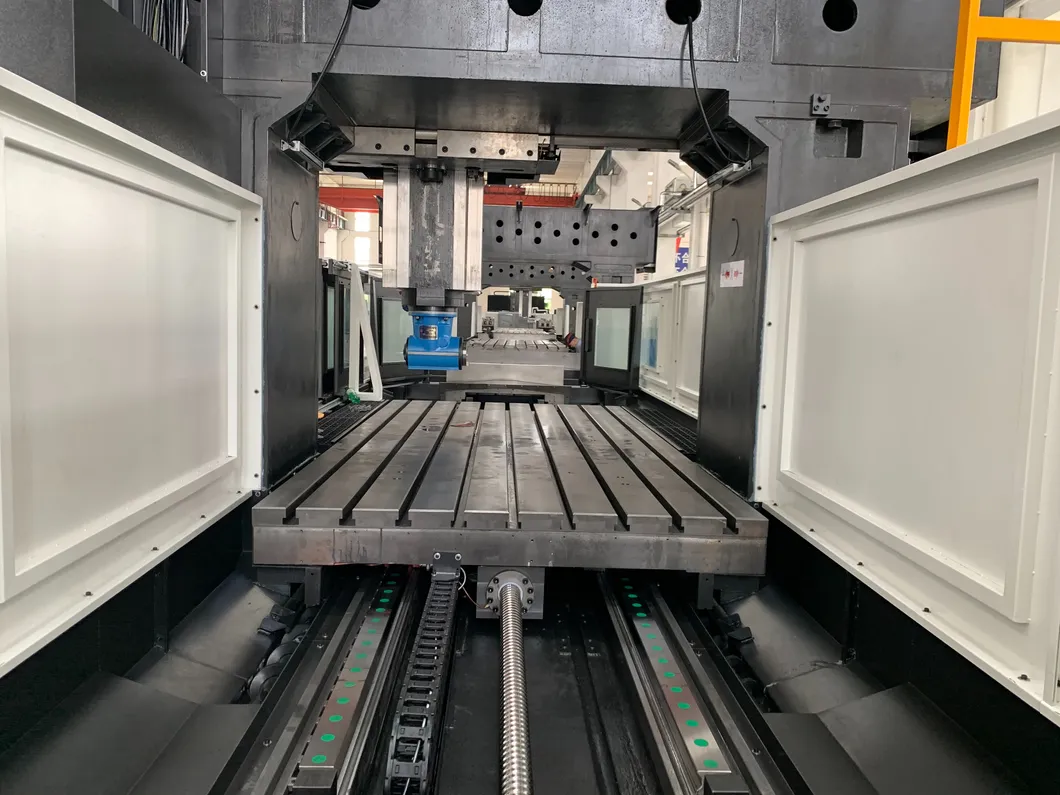

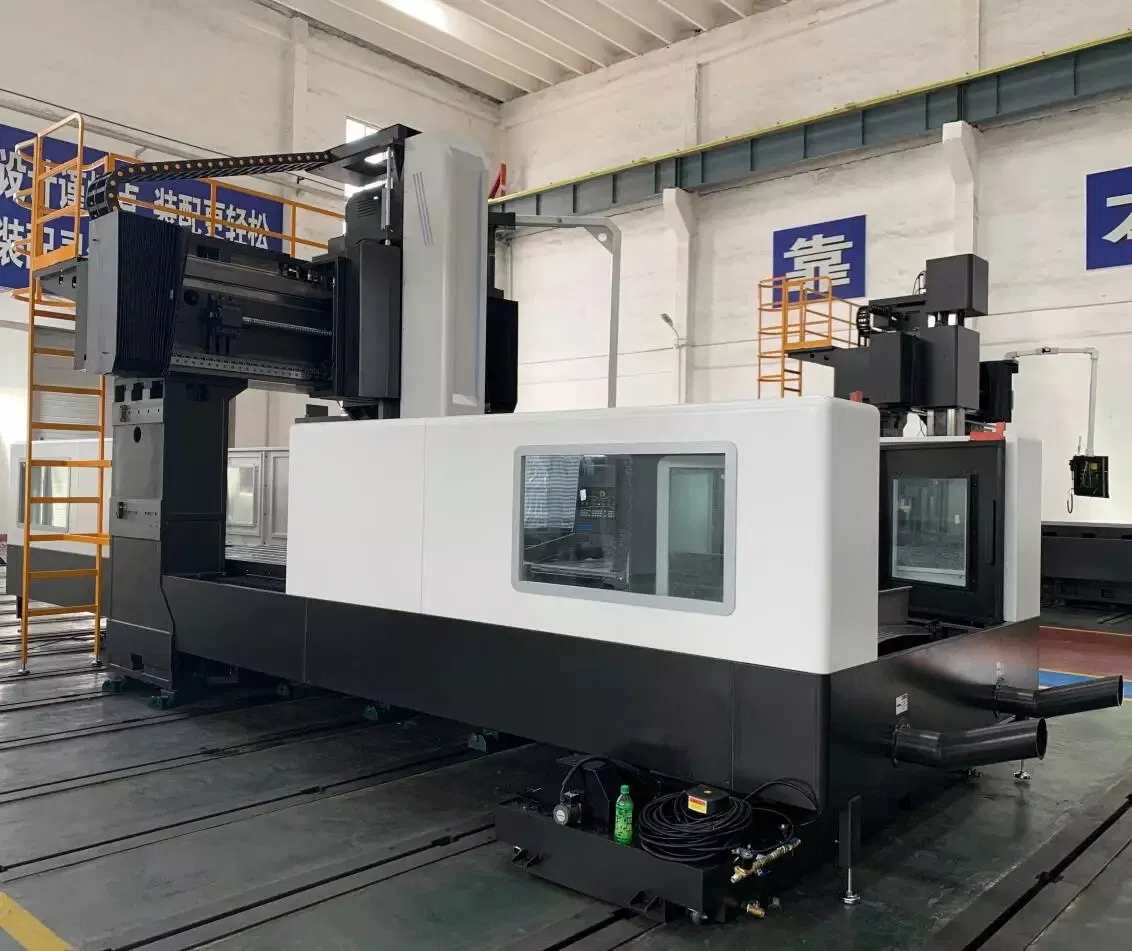

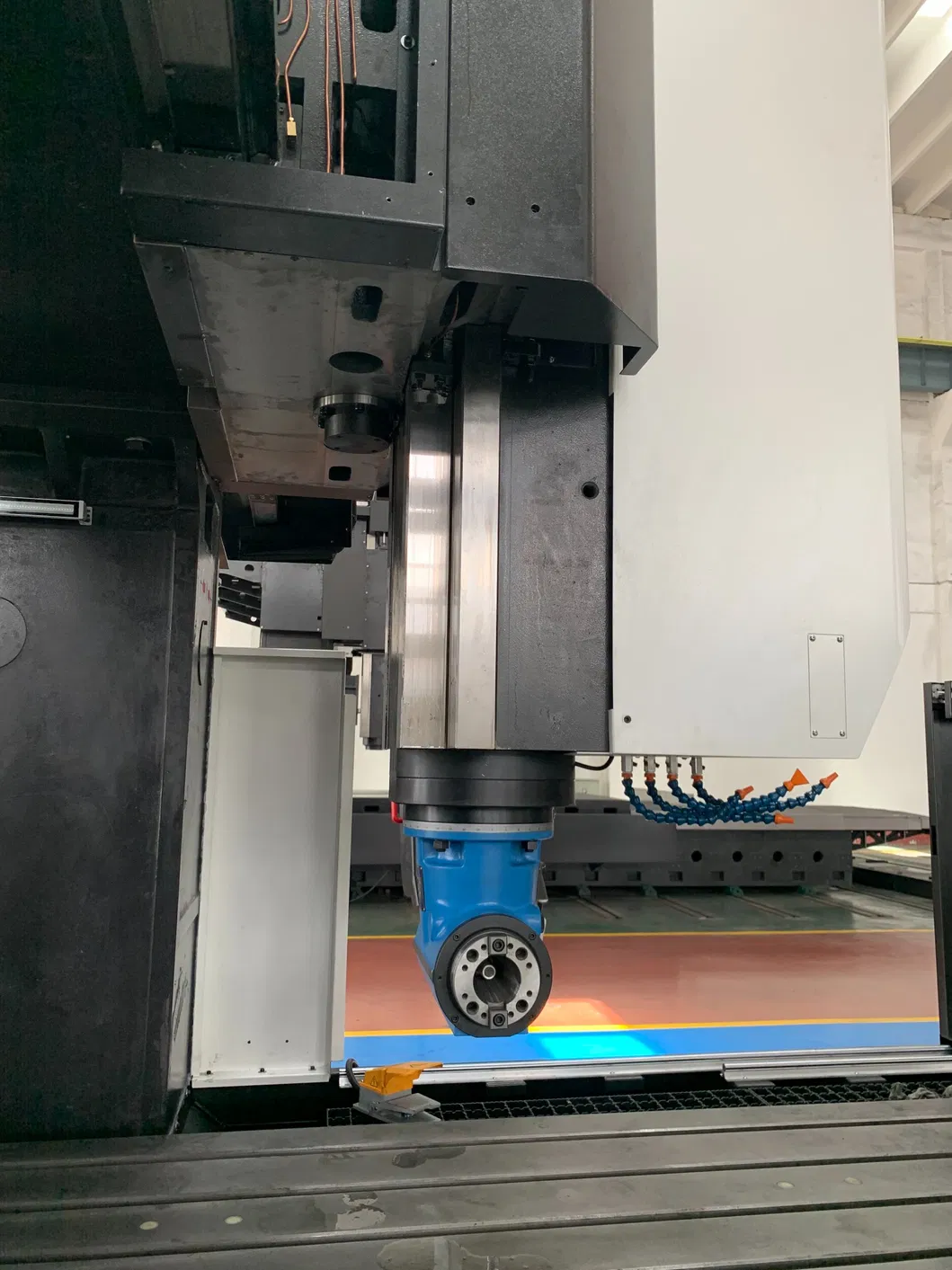

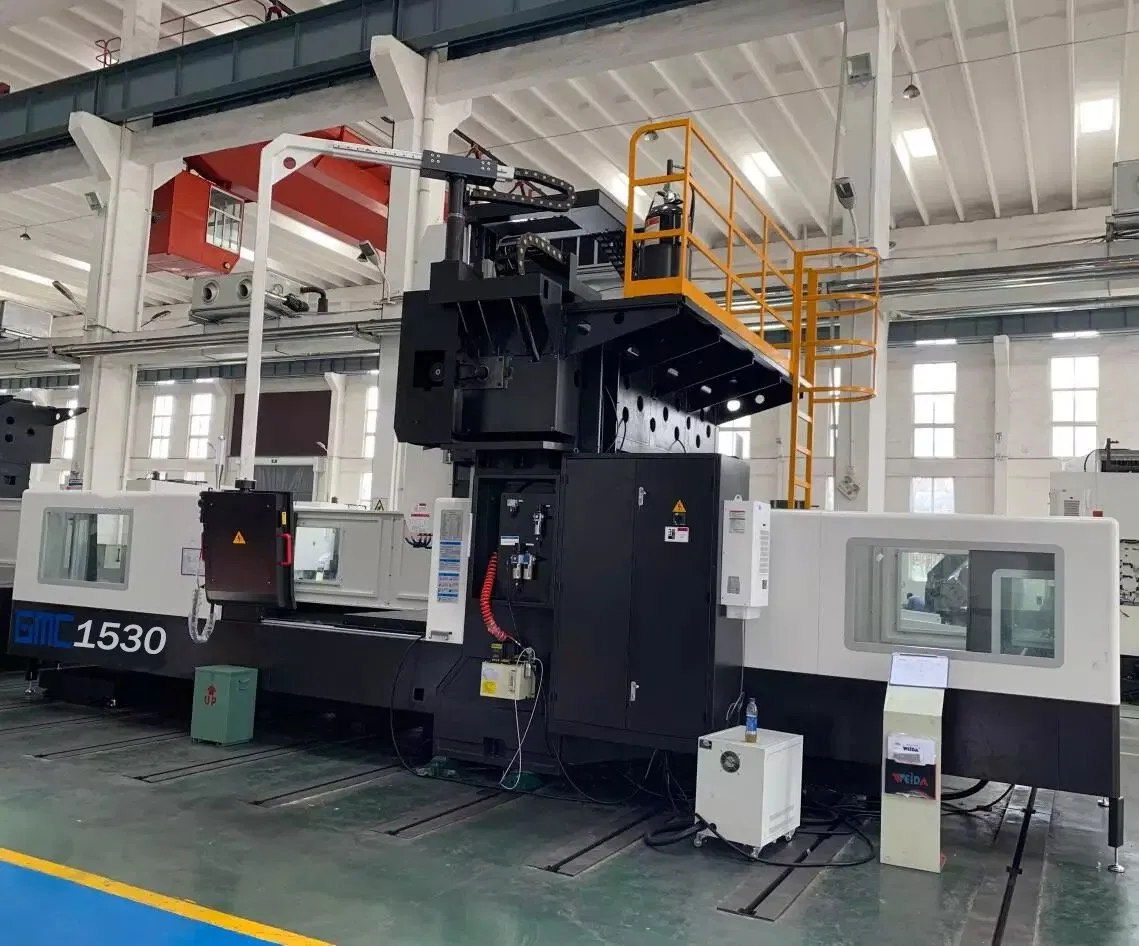

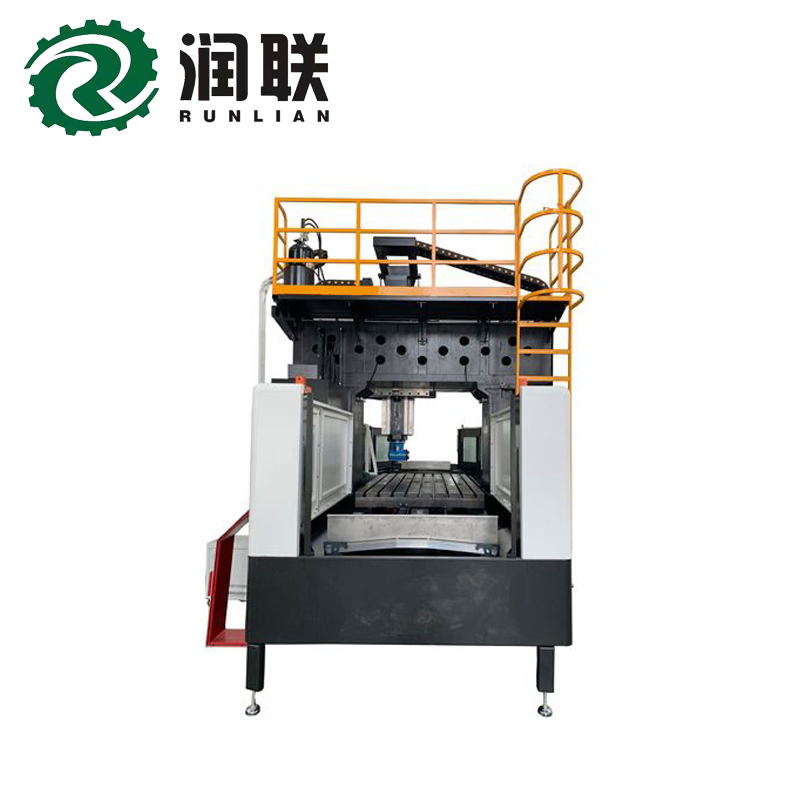

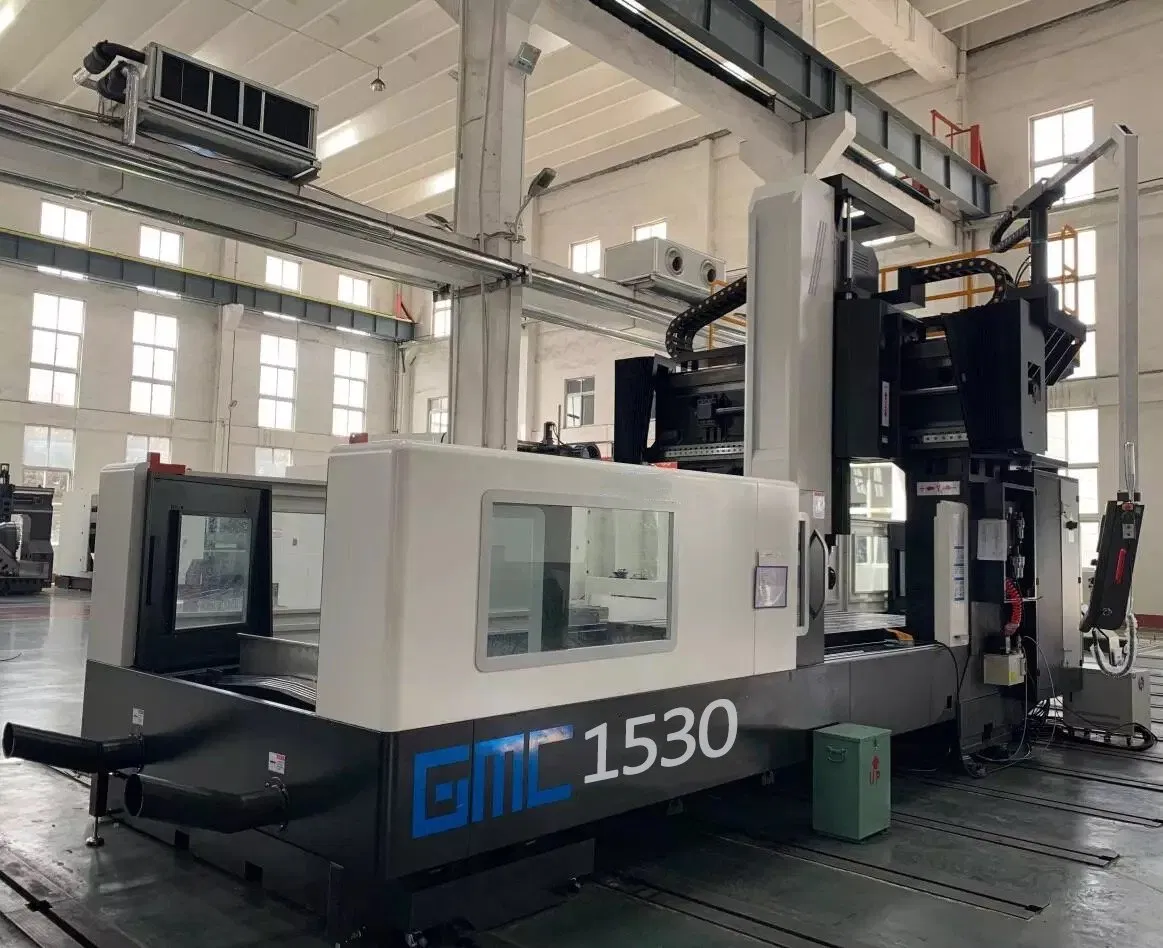

The gantry machining center comes with a frame structure and a grinding sliding guide, providing excellent rigidity and strong shock absorption. It offers a wide range of stability during processing. This machine integrates multiple functions including milling, boring, drilling (drilling, expansion, hinge), tapping, and countersink processing. It can be equipped with various accessory milling heads with manual change functions to expand the machine's processing range. Parts can complete a number of processing steps simultaneously, ensuring product structure maturity, quality, and stability.
| Category | Item | Unit | Specification |
|---|---|---|---|
| Machining Range | Table Size (W x L) | mm | 1500 x 3000 |
| Max Load of Table | kg | 8000 | |
| Effective Width of Gantry | mm | 1900 | |
| Distance Spindle to Table | mm | 150~1150 | |
| Travel | X axis | mm | 3200 |
| Y axis | mm | 2000 | |
| Z axis | mm | 1000 | |
| Spindle | Motor Power | kW | 15 / 18.5 |
| Speed Range | rpm | 4000 | |
| Max Torque | N.m | 318 | |
| Accuracy | Positioning (X/Y/Z) | mm | 0.025 / 0.022 / 0.025 |
| Repeatability (X/Y/Z) | mm | 0.015 / 0.013 / 0.015 | |
| Surface Roughness | Ra | ≤Ra1.6 (Boring) / ≤Ra3.2 (Milling) |

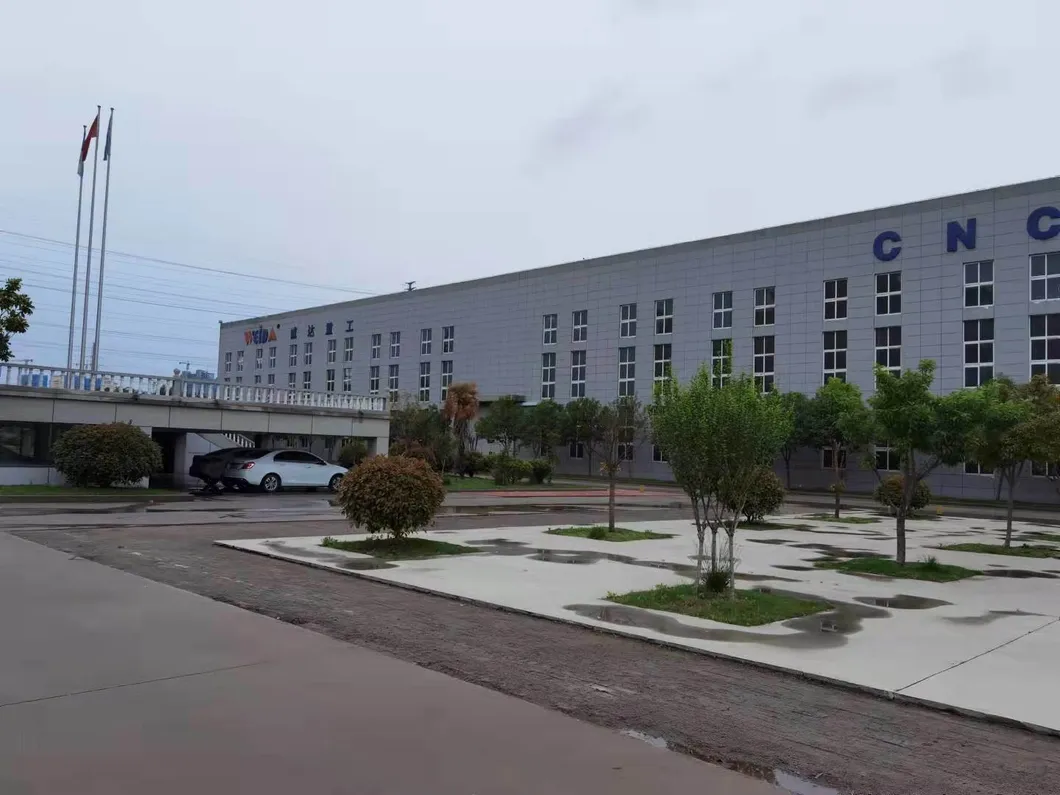

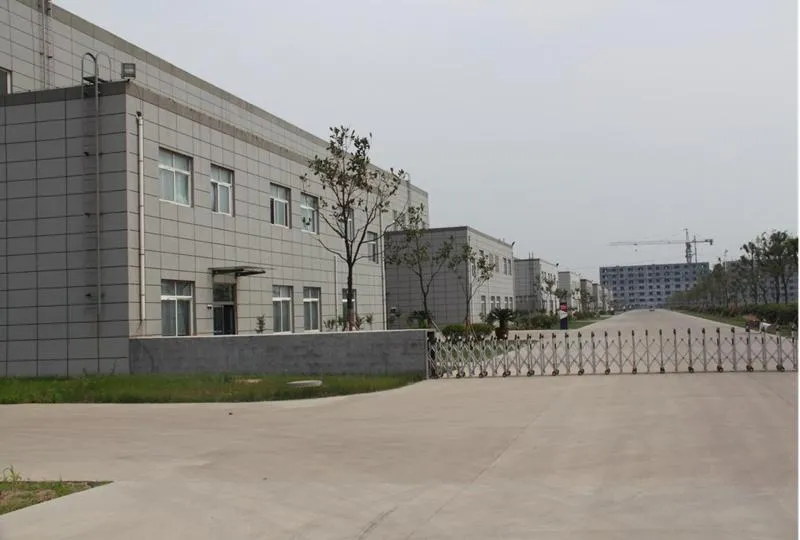

A professional domestic high-end machine tool equipment and accessories enterprise specializing in metal cutting machines, grinding tools, measuring tools, and CNC devices. Adhering to the core value of "customer satisfaction is our purpose", we leverage nearly 20 years of industry experience to provide global customers with the most suitable products and industrial services. Our expertise includes metal forming machines, lubricating grease, and mechanical processing technology consulting.
