Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
1 / 5
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems
Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems

Five-Axis Machining Center for Curved Surfaces and Multi-Angle Hole Systems

Customization: Available
After-sales Service: Video Support for Free
Warranty: 1year
Send Inquiry

Product Description

📊 Basic Info

TypeVertical Lathe
Processing AccessoryCurved Surface CNC Lathe
Guide RailInclined Guide Rail
Tool HolderDouble-tool Holder CNC Lathe
Controlling ModeCNC
Automatic GradeAutomatic
PrecisionHigh Precision
CertificationCE, ISO 9001
ConditionNew
OriginChina

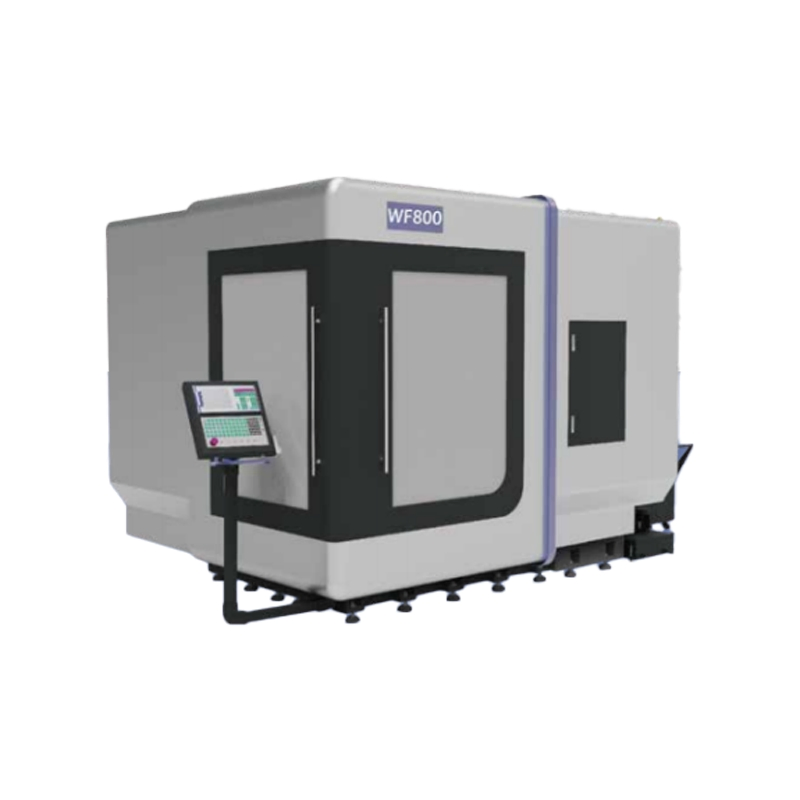

⚙️ WF Series 5-Axis Cradle-Type Machining Center

  • Applications: Precision machining of large boxes, discs, plates, deep cavities, irregular cavities, and complex curved surfaces.
  • Superior Stability: Horizontal structure features a low center of gravity and a robust bed, effectively suppressing vibration during heavy cutting.
  • Efficient Setup: The "one-setup, complete machining" system leverages five-axis linkage to handle multi-face machining, reducing downtime.
  • Clean Operation: Horizontal layout allows gravity for natural chip removal, preventing chip accumulation and protecting workpiece surface quality.
  • Precision Features: Capable of multi-angle hole systems, intricate cavities, and highly complex curved surface features.

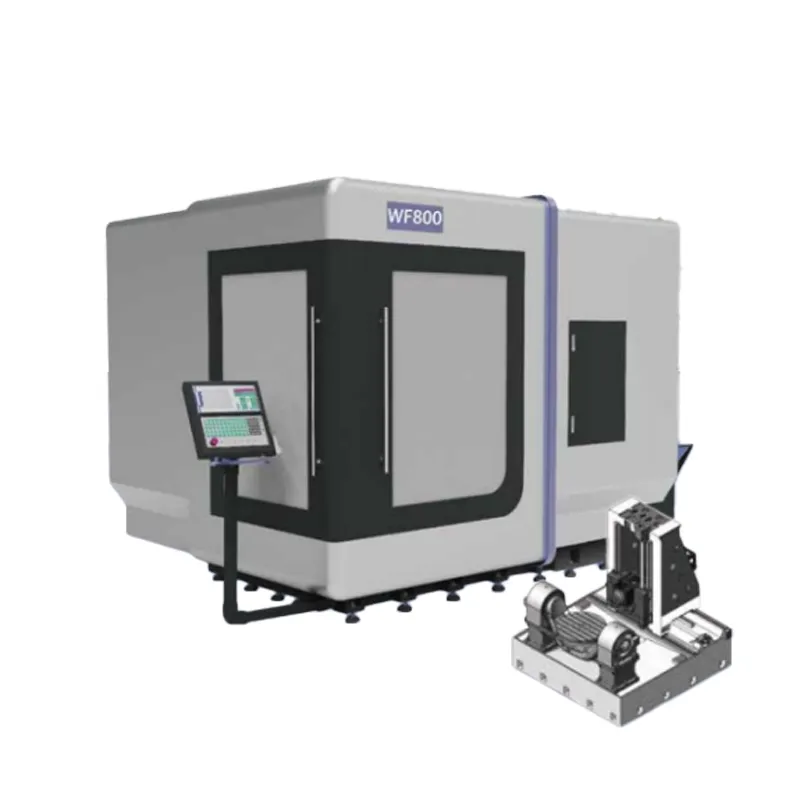

Five-Axis Machining Center Overview

📋 Technical Specifications

(Custom configurations available upon request)

ITEM Unit WF400 WF500 WF650 WF800
Journey X/Y/Z Axis Travel mm 450/500/400 550/600/450 800/750/550 1000/800/750
A/C Rotation Range ° ±120/± Nx 360 ±120/± Nx 360 ±120/± Nx 360 ±120/± Nx 360
Spindle Nose to Table mm 100-500 150-600 150-600 150-600
Workbench Size mm Φ 400 Φ 500 Φ 650 Φ 800
Max Load kg 300 500 600 800
Speed Rapid Traverse m/min 60/60/60 60/60/60 60/60/60 60/60/60
A/C Axis Rotational r/min 60/90 60/90 60/90 60/90
Spindle Spindle Speed r/min 18000 18000 18000 18000
Control System - Siemens ONE Siemens ONE Siemens ONE Siemens ONE

📸 Product Gallery

Showcase 1
Showcase 2

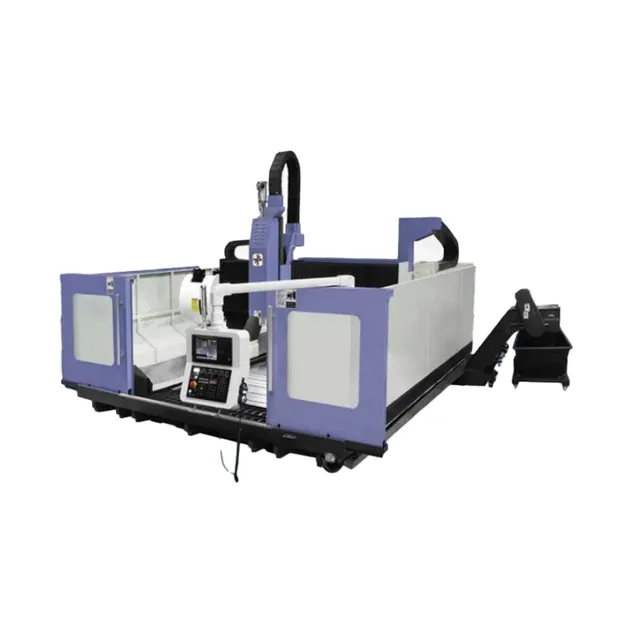

Showcase 3

🛠️ After-Sales Service

  • Standard Warranty: 12 months after shipping.
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and service group.
  • Free Training: Complimentary on-site or remote operation and maintenance training.

🏭 Factory Profile

High-tech enterprise specializing in R&D, production, and sales of high-end CNC equipment. Facilities include precision assembly workshops, CMM rooms, and electrical automation centers.

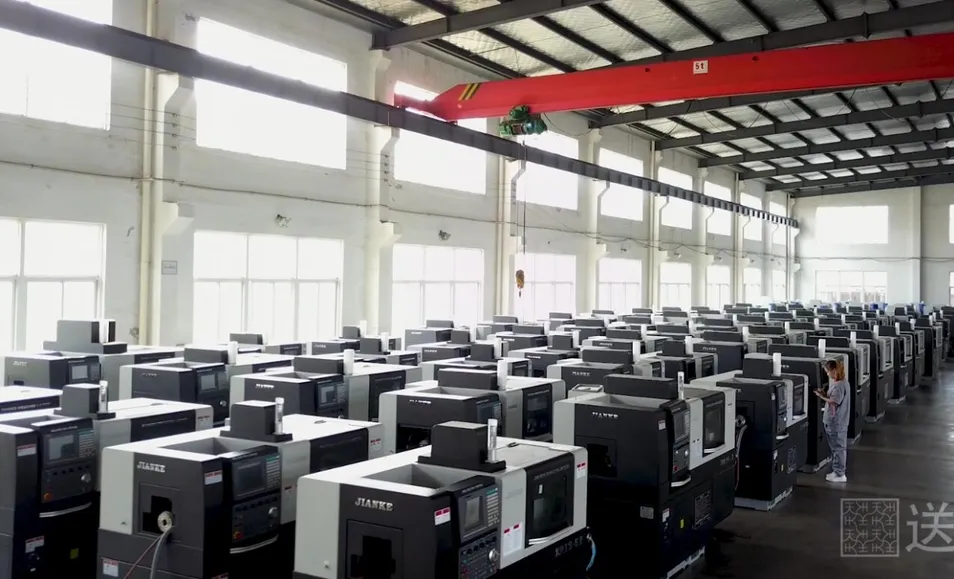

Factory Facility

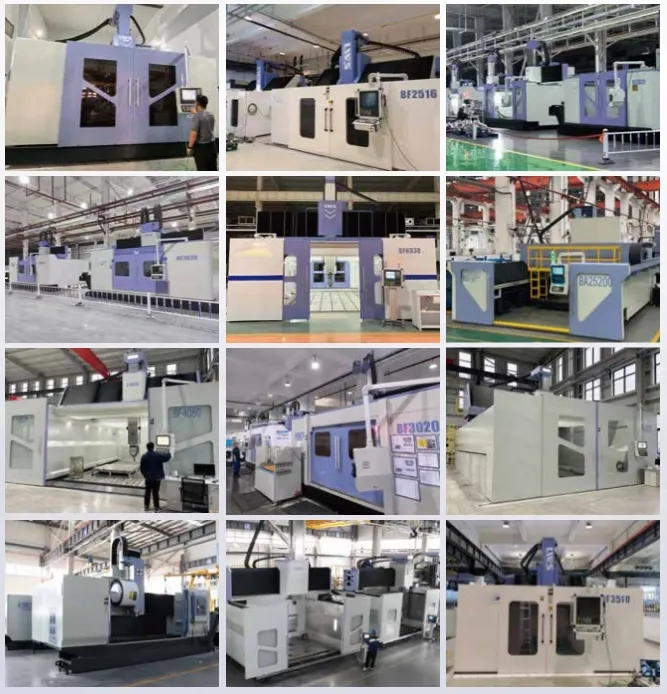

CNC Manufacturing Process

🚀 Industry Applications

Our business covers multiple high-demand sectors including:

✈️ Aerospace
🚆 Rail Transport
🚗 Automotive
🌬️ Wind Power
🚢 Shipbuilding
🛠️ Mold Making

❓ Frequently Asked Questions

Are you a direct manufacturer for these CNC machines?
Yes, we are a factory dedicated to manufacturing lathes and machining centers. We also collaborate with specialized suppliers to provide complete turnkey solutions for our clients.
What is the typical delivery time for the WF Series?
For standard models, delivery usually takes 1-3 months. We maintain stock for certain high-demand items, while customized or special projects may require additional lead time.
What payment methods do you accept for international orders?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) for machine purchases. For tools and smaller accessories, other payment options can be discussed.
How quickly can I receive a technical quotation?
Normally, we reply to inquiries within 1 hour. A detailed technical quotation for standard machines is usually provided within 3 days, while complex customized projects may take up to 1 week.
Does the machine support 5-axis simultaneous linkage?
Yes, the WF series is designed for 5-axis linkage machining, making it ideal for complex curved surfaces and multi-angle hole systems found in aerospace and automotive parts.
Is training included with the machine purchase?
Absolutely. We provide free operation and maintenance training, which can be conducted on-site at your facility or remotely via video conferencing to ensure your team is fully proficient.
