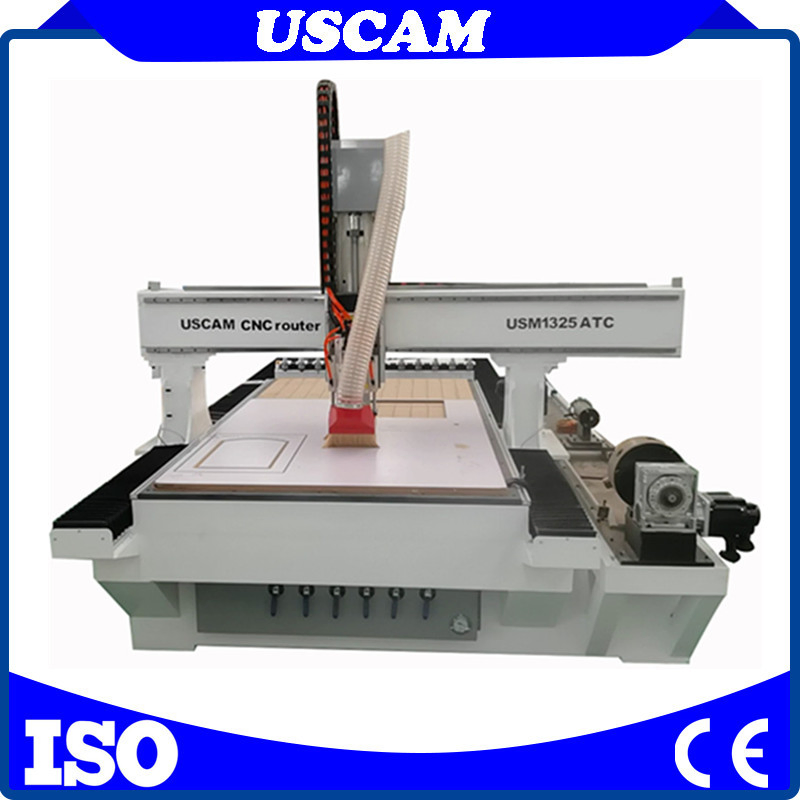

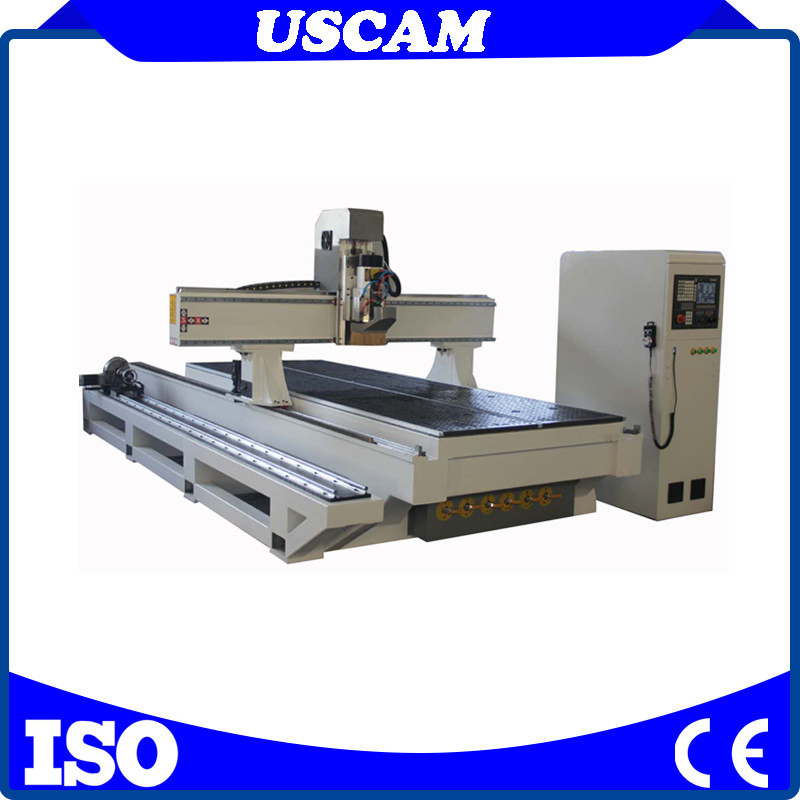

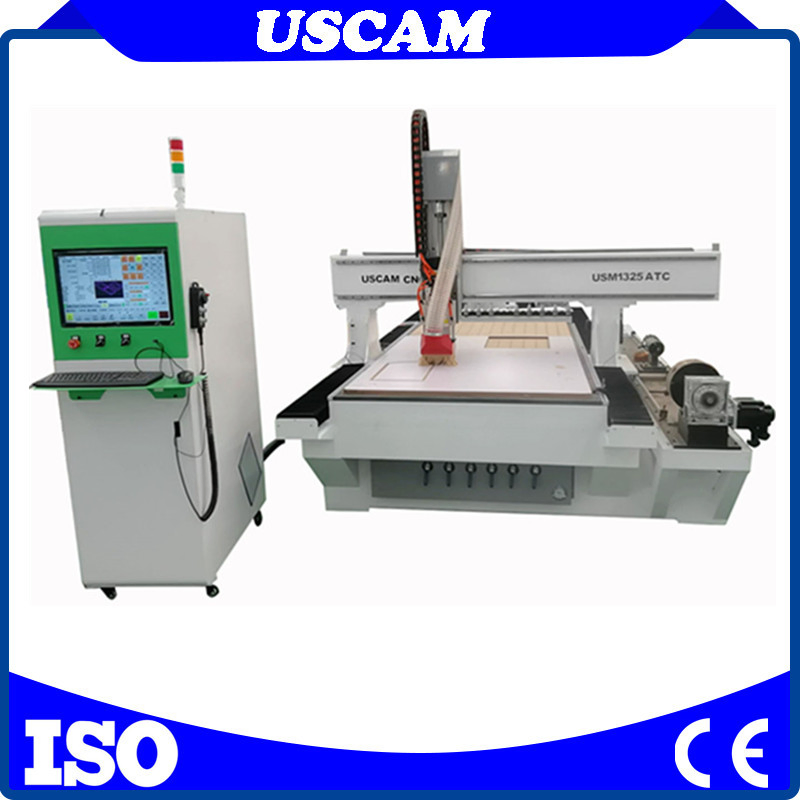

1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis
1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis
1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis
1 / 3
1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis
1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis
1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis

1325 1530 Cost Effective CNC Router Kits with Linear Automatic Tool Changer Spindle Atc CNC Machining Center Machine with Rotary Axis

Customization: Available
Certification: CE, ISO 9001
Usage: Woodworking, Plastic, Glass, Stone, Advertising
Send Inquiry

Product Description

📊

Basic Specifications

Current:
AC
Power:
9.0kw
Control:
CNC
Drive Type:
AC Servo Drive
Working Area:
1300*2500*200mm
Spindle:
9kw Air Cooling Spindle
Tool Changer:
Auto Tool Changer (Linear)
Rail:
Taiwan Square Rail
Inverter:
Fuling Inverter
Motor:
Leadshine Servo Motors
Table:
Vacuum Combination Table
Transmission:
X,Y Gear; Z-Axis Taiwan TBI Ball Screw
Voltage:
380V 50Hz
HS Code:
8479899990
🛠️

Product Description

1325 1530 Cost-effective CNC Router Kits with Linear Automatic Tool Changer

ATC CNC router machine applications include woodworking, advertising, mold making, and musical instruments. This 4-axis machining center is equipped with a tool magazine to significantly improve working efficiency.

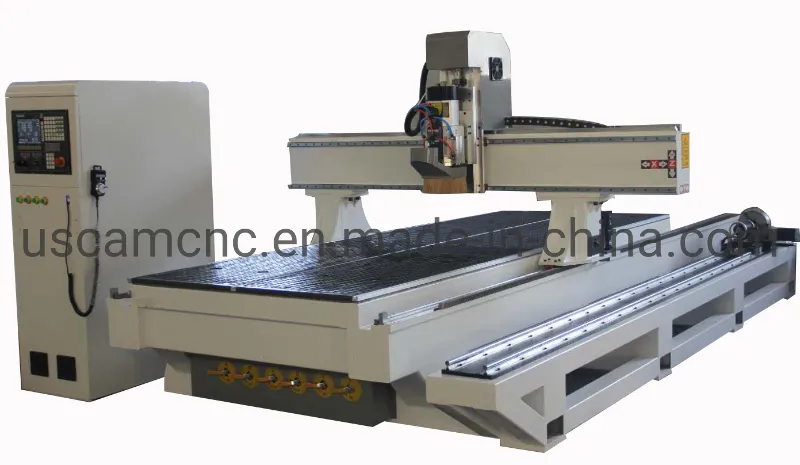

CNC Router Kits
  • High Efficiency: 12-tool automatic changer reduces downtime significantly.
  • Advanced Features: Stable rotary device for cylinder engraving (columns, pillars, chair legs).
  • Precision Components: Equipped with Taiwan LNC controller and Leadshine servo motors.
  • Durability: Heavy-duty structure with 8mm thickness steel.
📋

Technical Parameters

Feature Specification Details
Model1325/1530/2030 Liner ATC CNC ROUTER
Working area1300X2500X200mm / 1500X3000X200mm
Spindle9.0KW ATC air-cooling spindle
Tool changer10/12 straight tool changer
Control systemLNC controller
Servo systemLeadshine Servo motor and driver
InverterFuling inverter (Optional: Taiwan Delta)
Guide railTaiwan LP square 30 rails
TransmissionX, Y high-precision gear and rack; Z Taiwan TBI ball screw
Working accuracy0.01mm
Spindle speed0-24000RPM
Voltage3PH 380V 50HZ/60HZ
Net weight1600kg
✅

Quality Control & Service

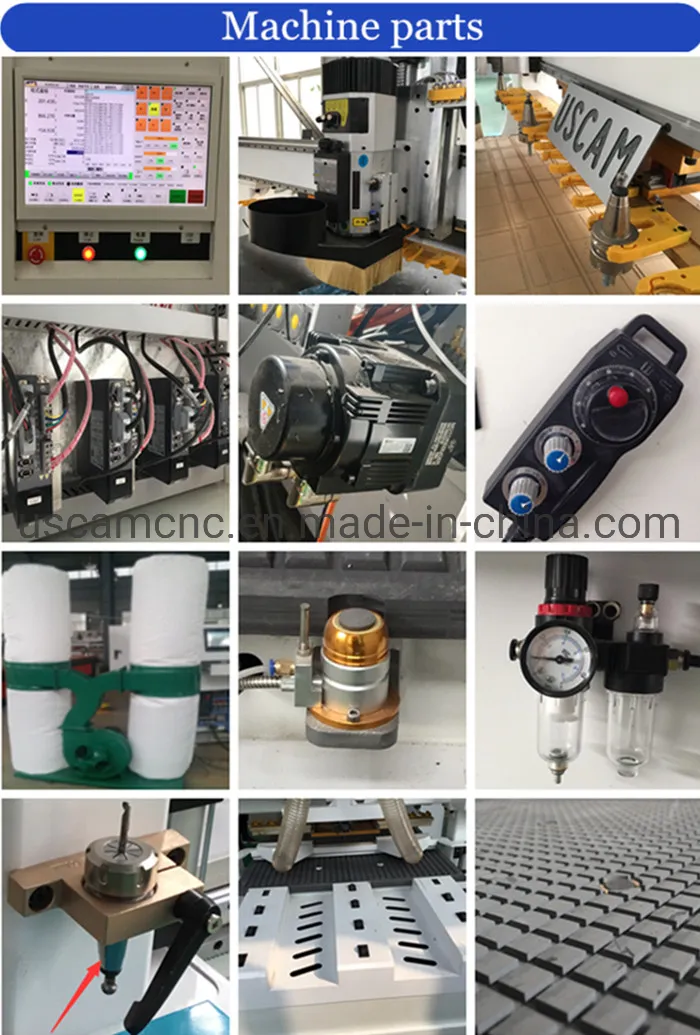

Quality Control
Application Samples

Every machine undergoes a rigorous 8-hour testing phase before delivery. We provide a 24-month guarantee for the entire machine and lifetime maintenance support. Consumable parts are available at agency prices.

📦

Packaging & Delivery

Packaging Detail

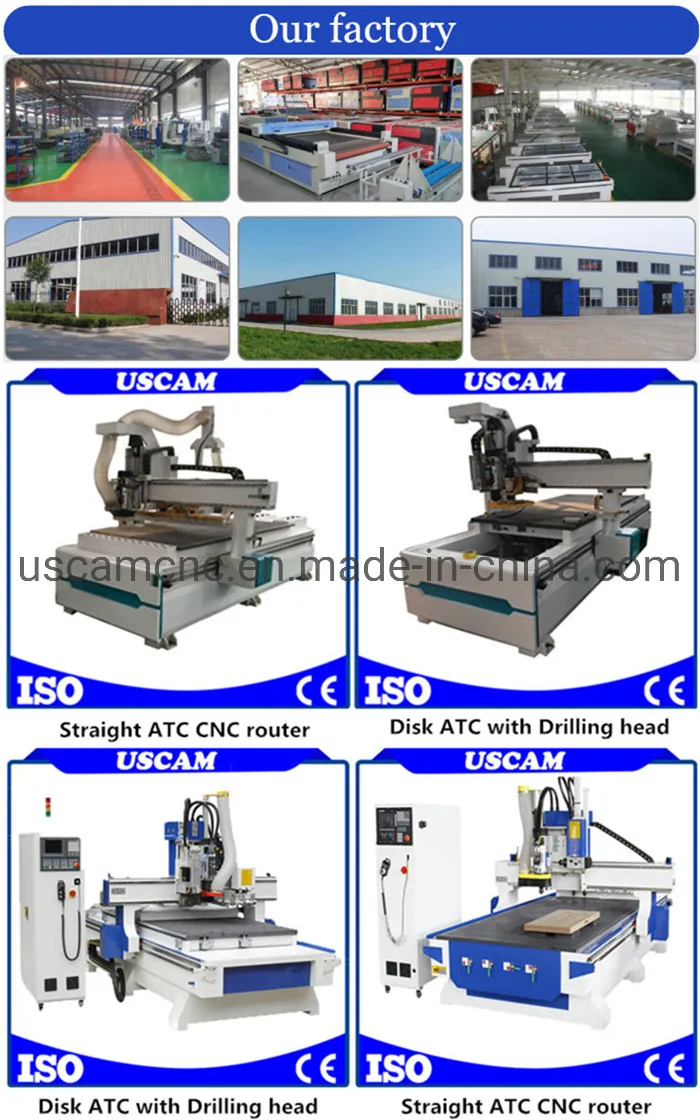

Shipping
  • Standard plywood case with high compressive strength.
  • Waterproof and leakproof internal wrapping.
  • Fumigation-free materials for easy import procedures.
  • Delivery within 7-15 days after payment.
❓

Frequently Asked Questions

Q: What kind of package is used for shipping? A: We use a 3-layer package: a waterproof plastic bag inside, protective foam in the middle, and a sturdy export-grade wooden craft case outside.
Q: Will the machine be damaged during transportation? A: Our packaging considers all potential damage factors. With experience exporting to 180 countries, we ensure the machine arrives in good condition.
Q: How do I install and operate the CNC router? A: The machine is mostly pre-installed. We provide detailed training videos and English manuals. 95% of customers successfully set it up themselves.
Q: What is the warranty period for the machine? A: We offer an 18 to 24-month guarantee on the whole machine. Main parts (excluding consumables) are replaced free of charge during this period.
Q: Do you provide technical support if something goes wrong? A: Yes, we offer 24-hour online support via various platforms. If necessary, engineers can be sent to your location for adjustment or training.
Q: Is the design software compatible with common programs? A: Absolutely. It is compatible with Type3, Artcam, Castmate, CorelDraw, Wentai, and other standard design software.
Final View
