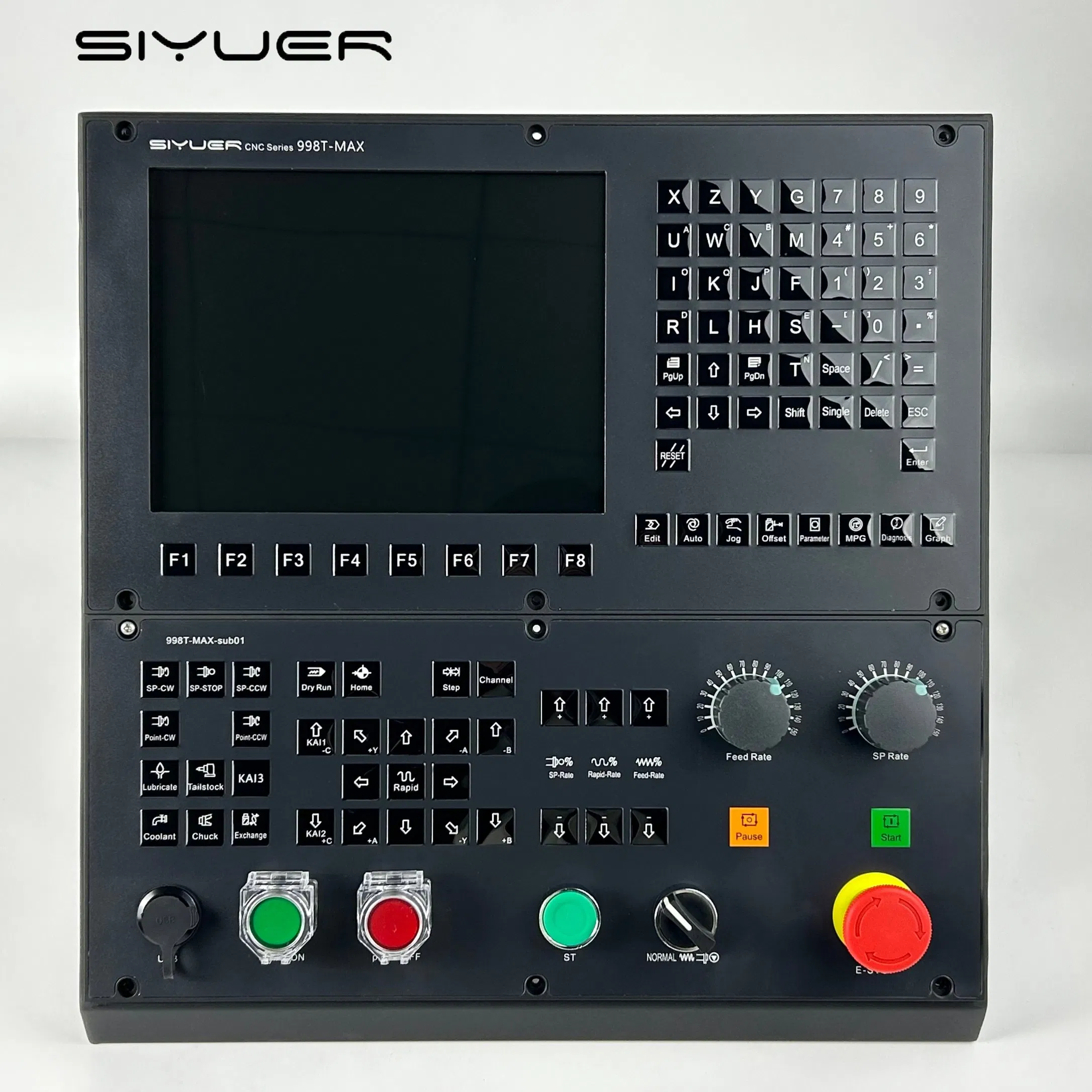

DSCUT CNC
1 / 5
| Movement Control | Control axes: X, Z, Y, A, B, C; interlinked (interpolation) axis, servo spindle C axis. Axis output signal: pulse + direction and orthogonal pulse. Fast moving speed: up to 30000mm/min. |

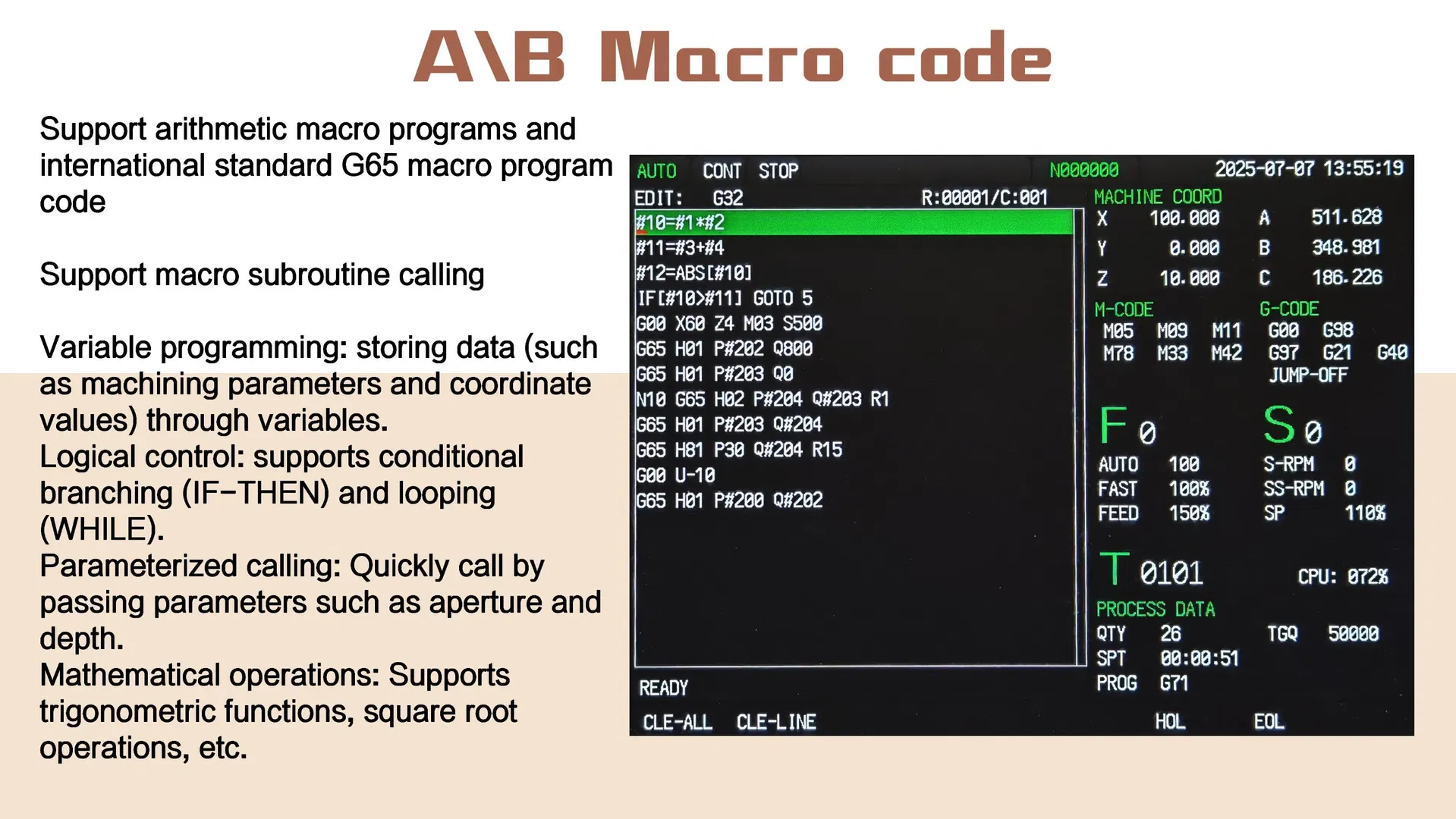

| G Functions | 29 kinds of G codes: G00-G04, G28, G30-G34, G40-G42, G50-G51, G65, G70-G76, G90-G99, etc. Supports macro instruction G65 and class B operation macro programs. |
| Thread Machining | Single or multi-head external metric straight threads, tapered threads, end face threads, and variable pitch threads. Pitch range: 0.0001mm to 500mm. |
| Accuracy Compensation | Reverse gap compensation: 0mm~2.000mm. Pitch error compensation: 512 points. Tool compensation: 32 sets of tool length and radius compensation. |
| M Codes | Special M instructions: M02, M30, M98, M99, etc. Standard configuration including M03 (Spindle CW), M04 (CCW), M05 (Stop), M08 (Coolant ON). |

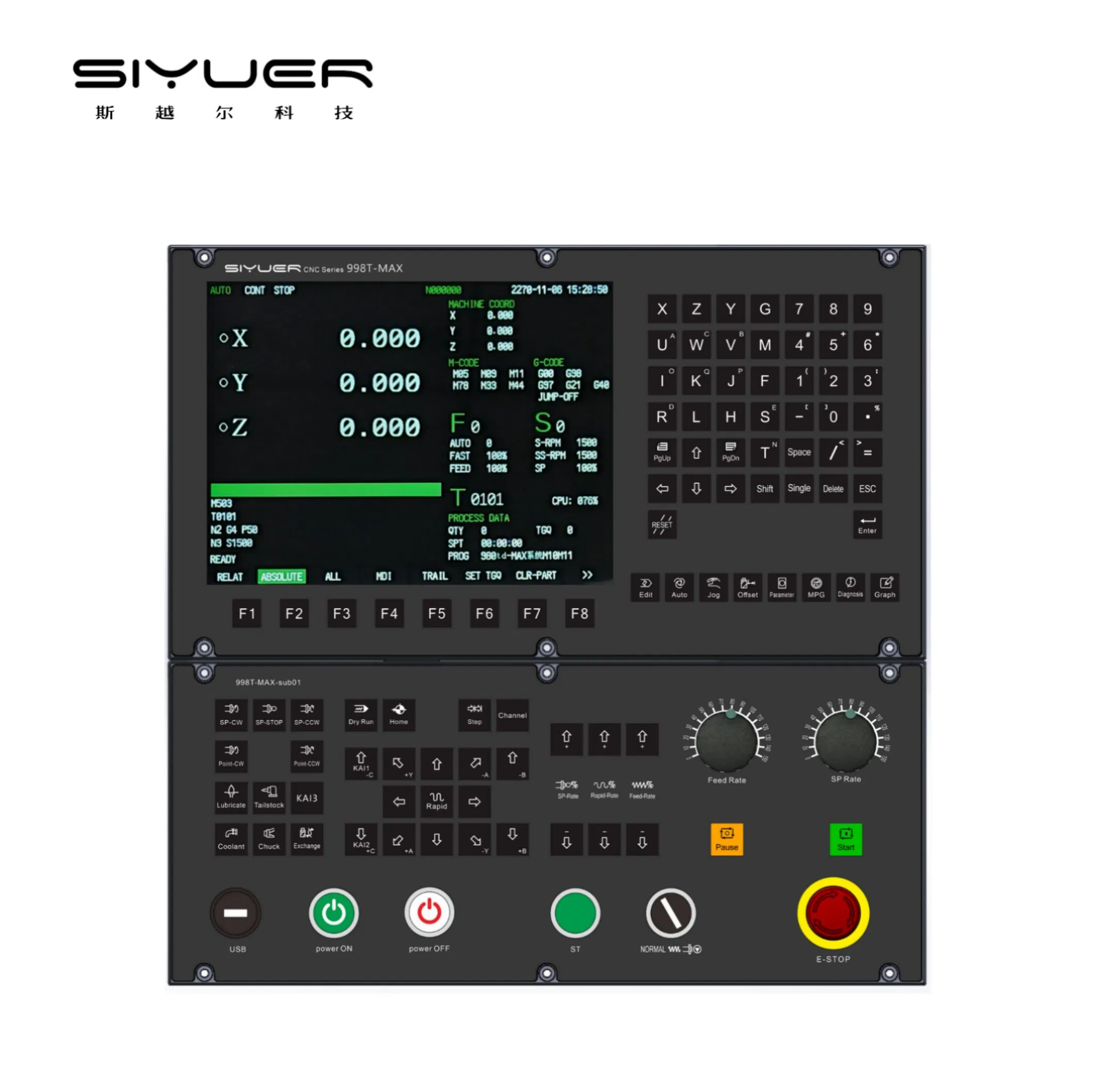

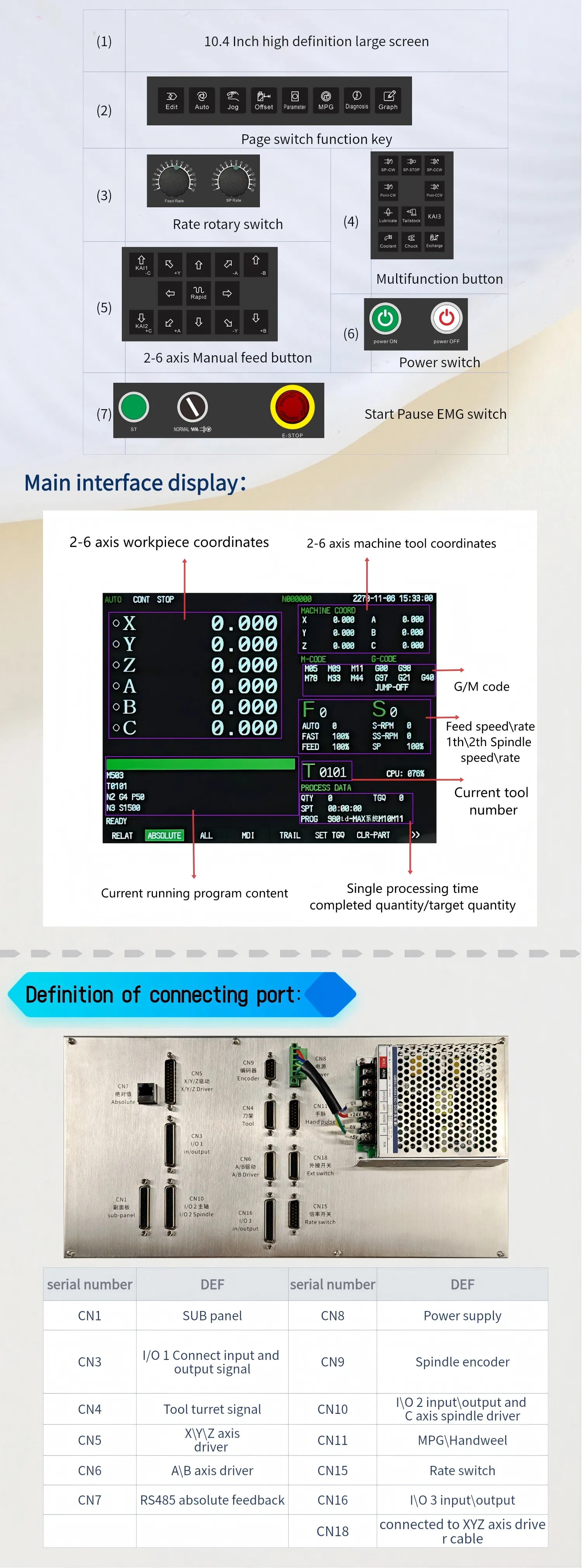

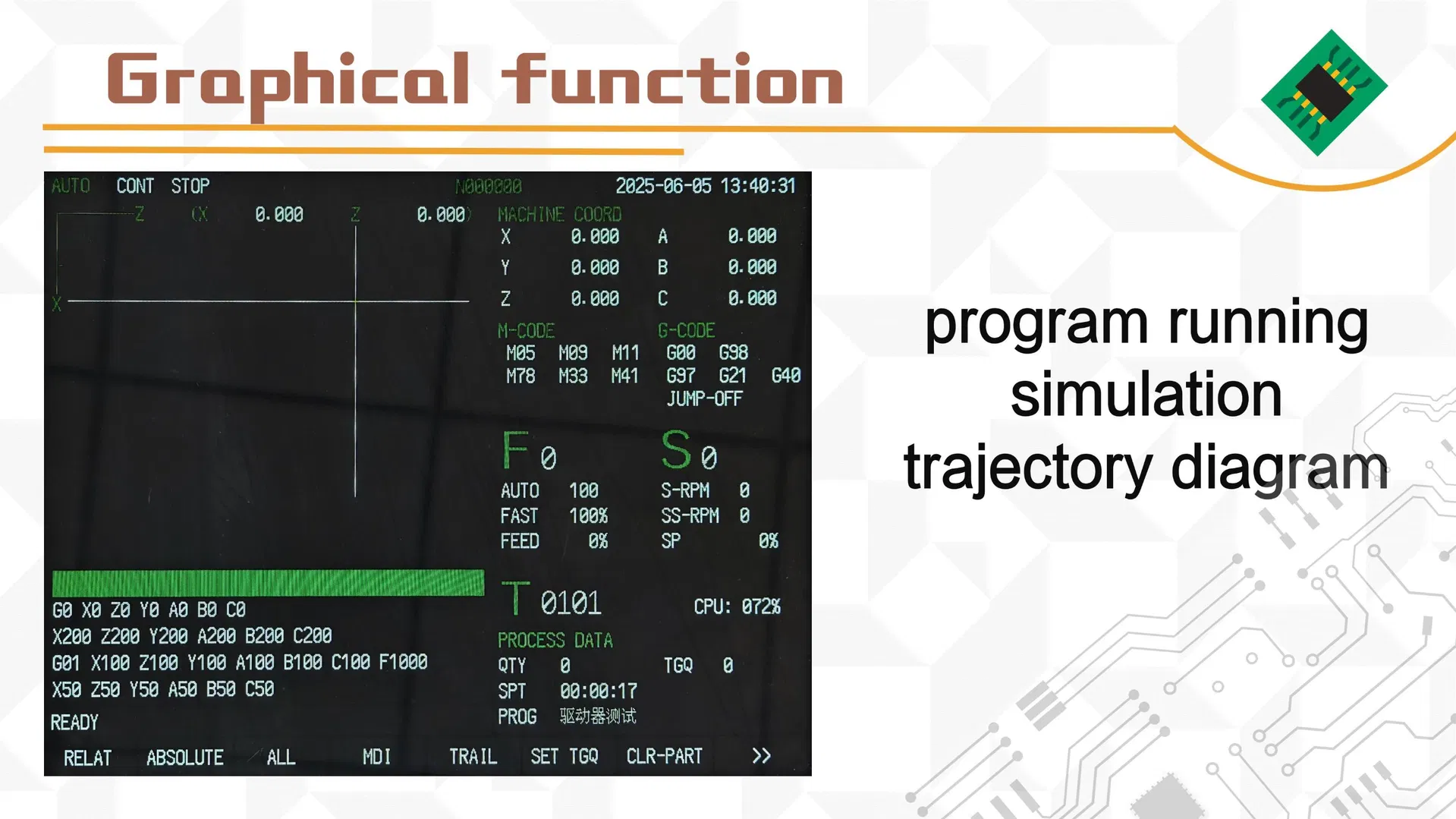

| Display Interface | 10.4-inch LCD display (800 x 600 dot matrix). Supports Chinese/English interface and real-time processing trajectory graphics. |

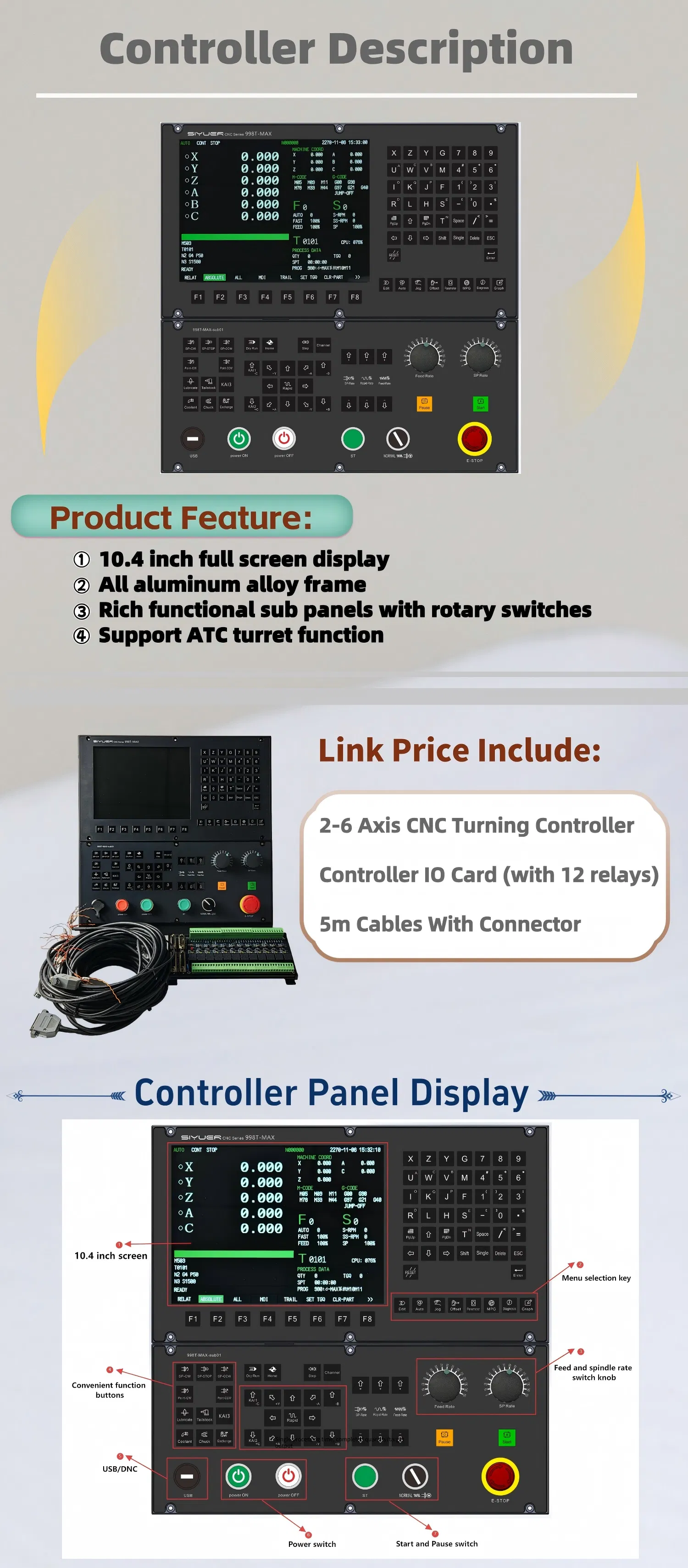

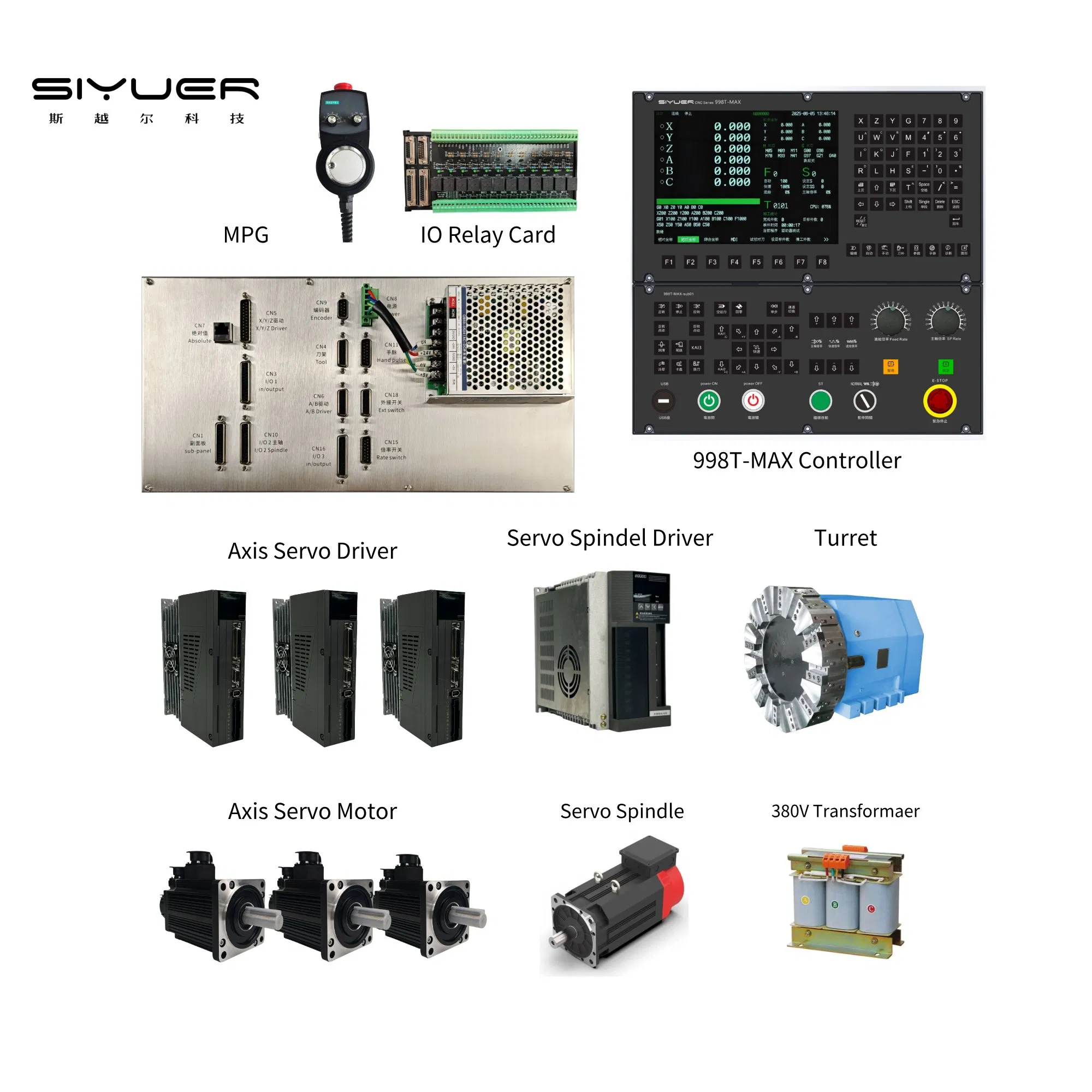

CNC Controller Package

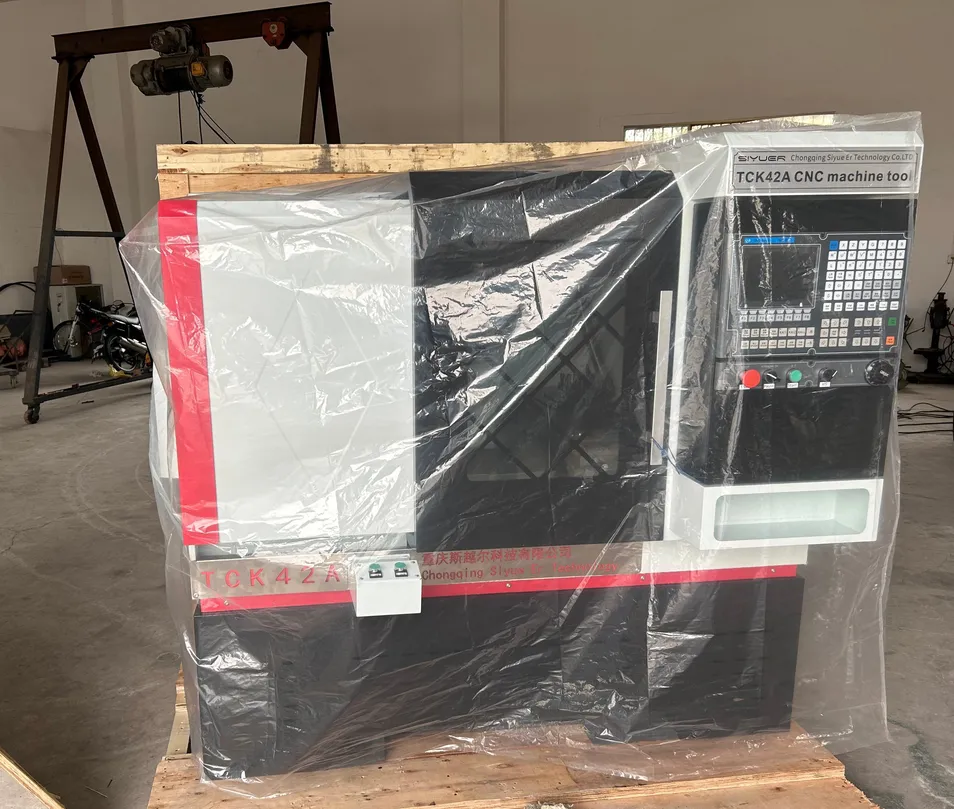

CNC Lathe Package
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided, including export wooden crates for heavy machinery.
