Basic Information
Transport Package
Wooden Box
Specification
2800x1500x1800mm
Packaging & Delivery
Package Size
230.00cm * 140.00cm * 180.00cm
Product Presentation
Equipment Features
Suitable for end milling of window and curtain wall profiles

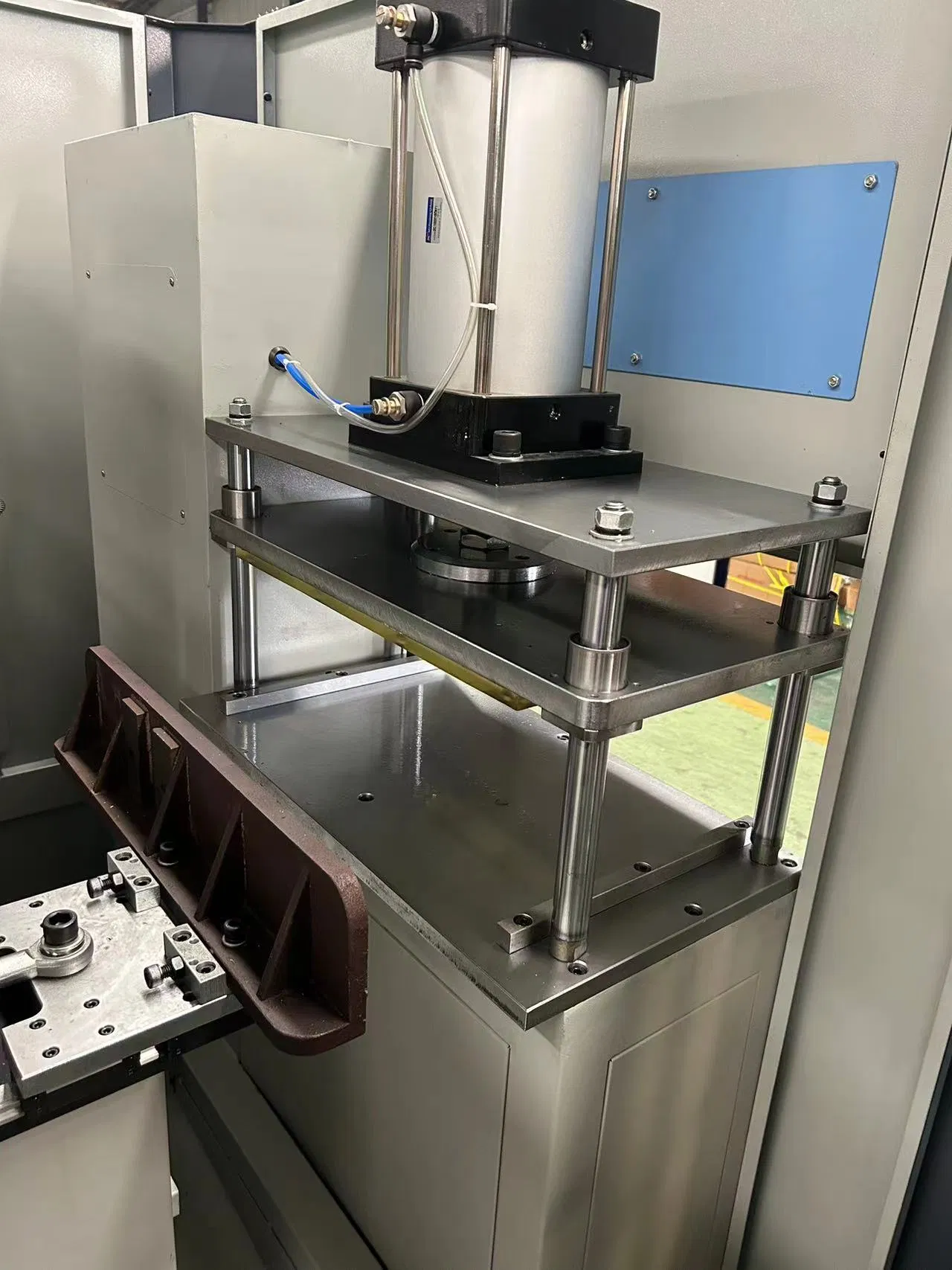

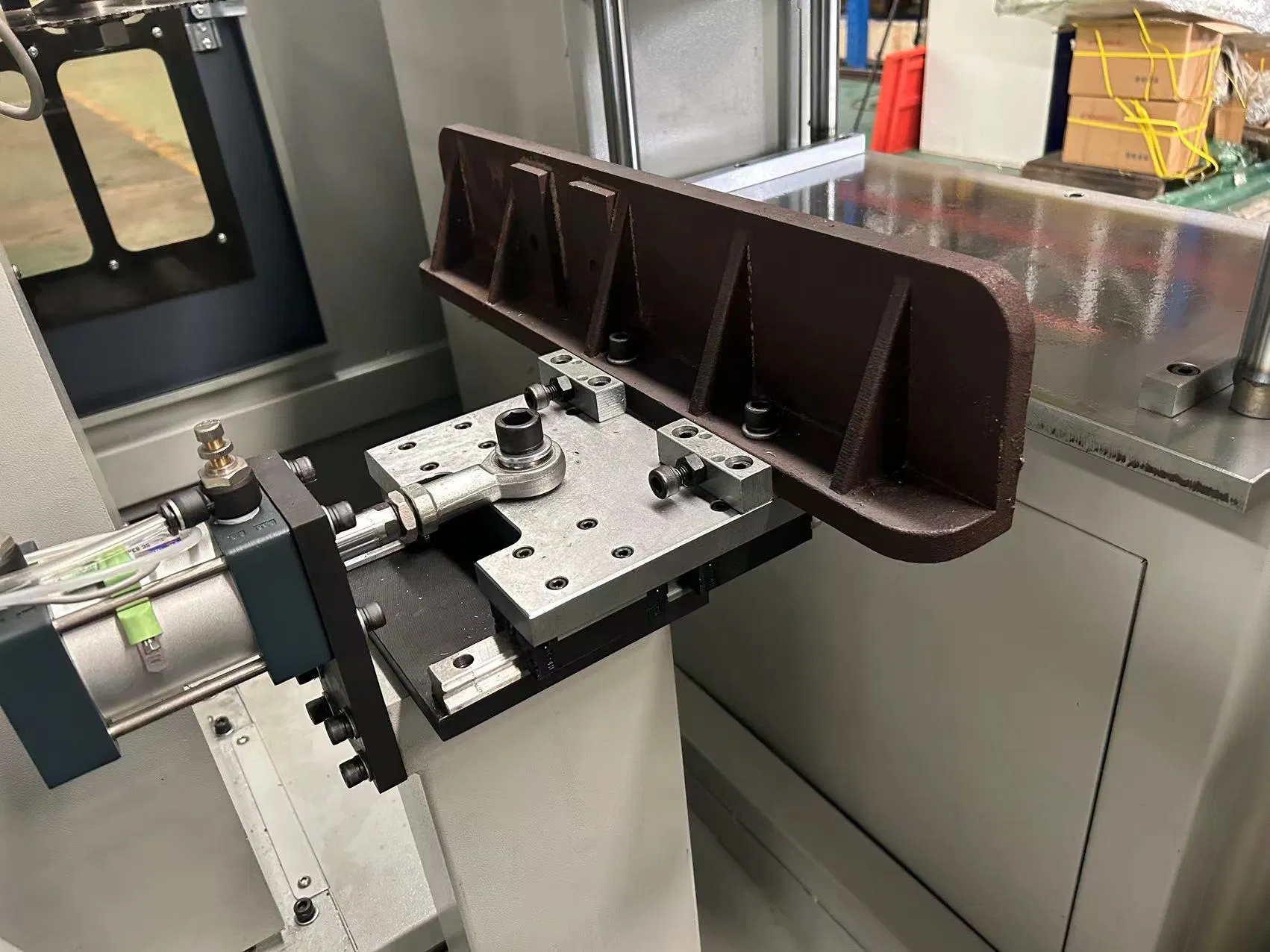

One clamping for multiple profiles processing

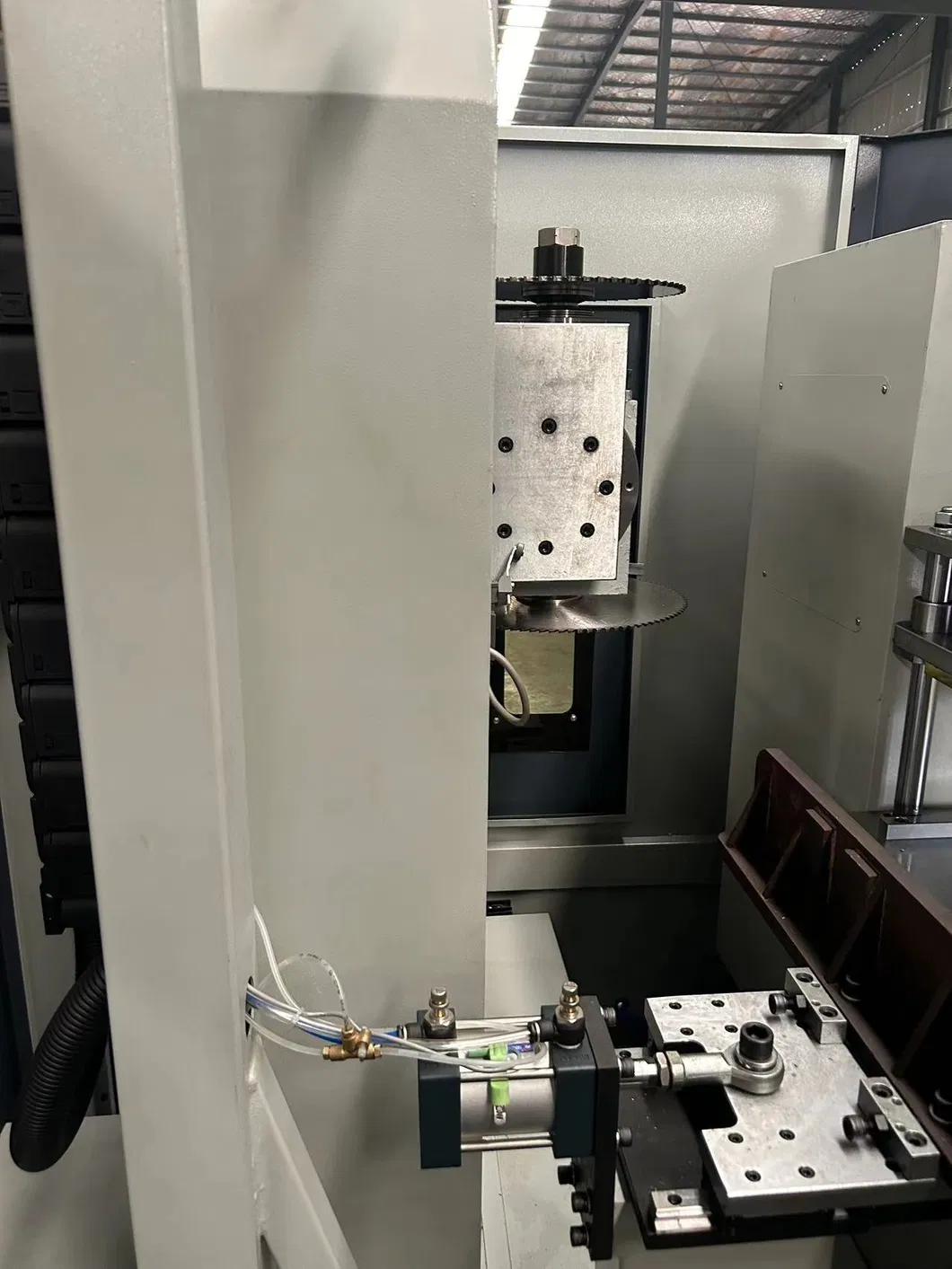

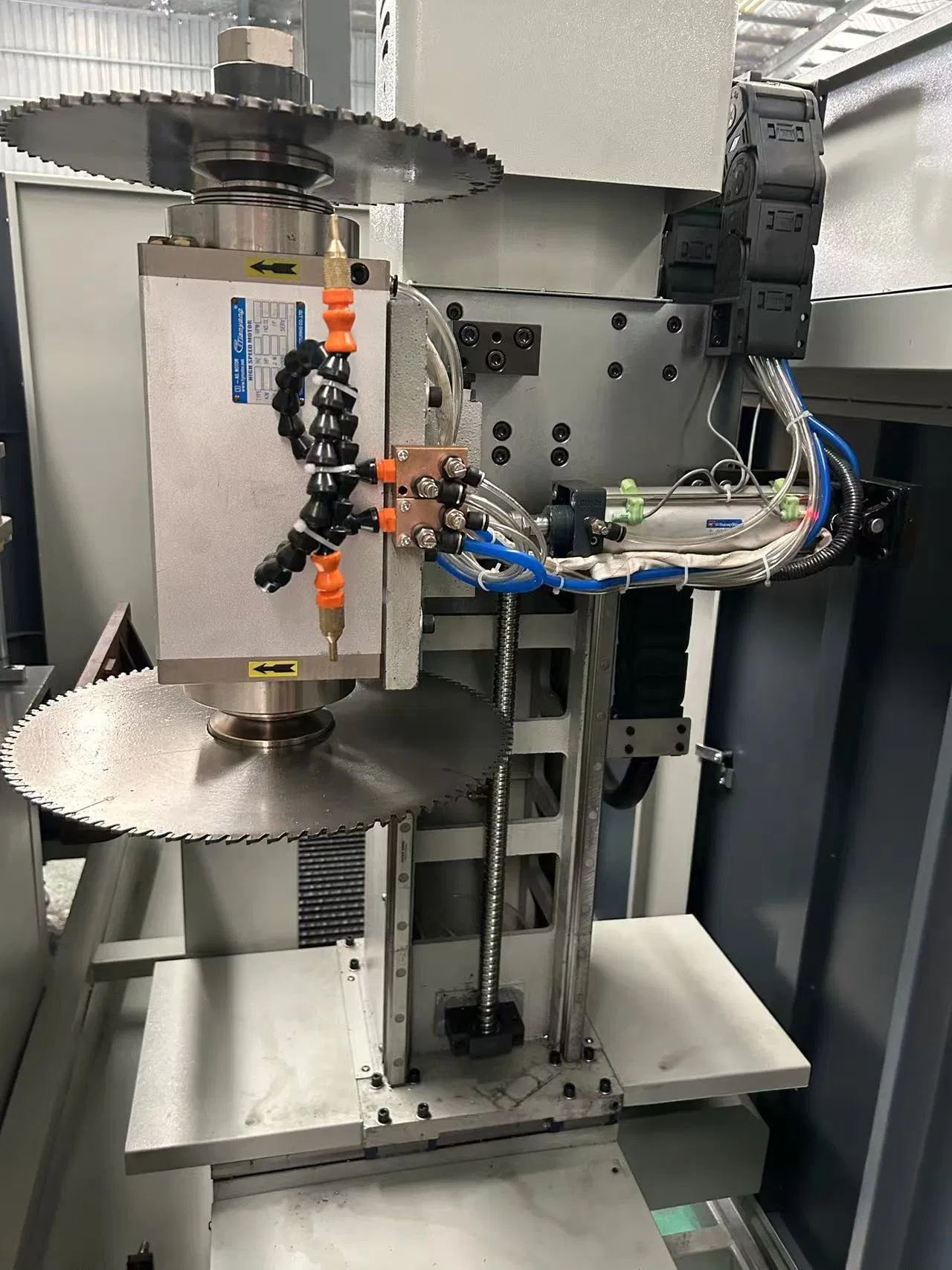

High precision 4K double spindle motor for stable cutting
Imported cutter head for high production efficiency

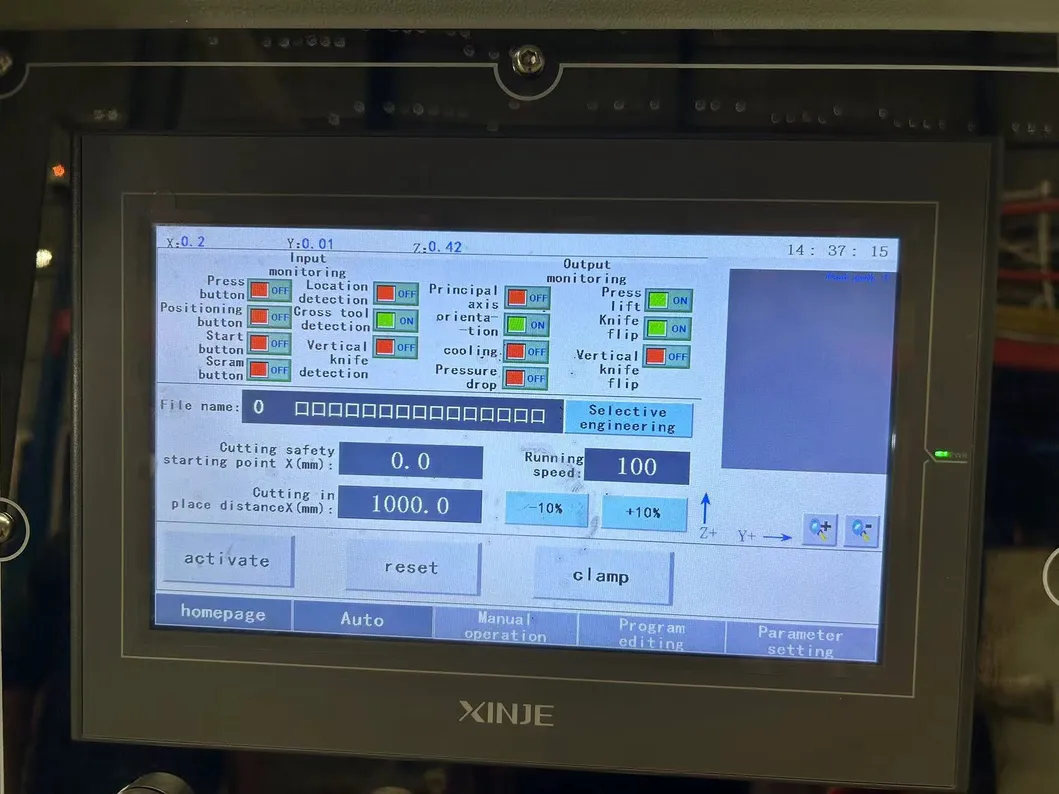

Bus servo control system with accurate positioning
XY1Y2Z1Z2 five-axis CNC system (no custom tools needed)
Horizontal and vertical milling for different tenons
300mm diameter milling cutter for higher accuracy
Simple operation and reliable maintenance
Technical Parameters
| Specification Item |
Parameter Value |
| Input Power | 5.25 kW |
| Input Voltage | 380 V, 50 Hz |
| Work Pressure | 0.5-0.8 MPa |
| Gas Consumption | 30 L/min |
| Milling Speed | 2800 r/min |
| Cutter Specifications | D = 300 mm, d = 30 mm |
| Milling Height | 200 mm |
| Milling Depth | 80 mm |
Detailed Description

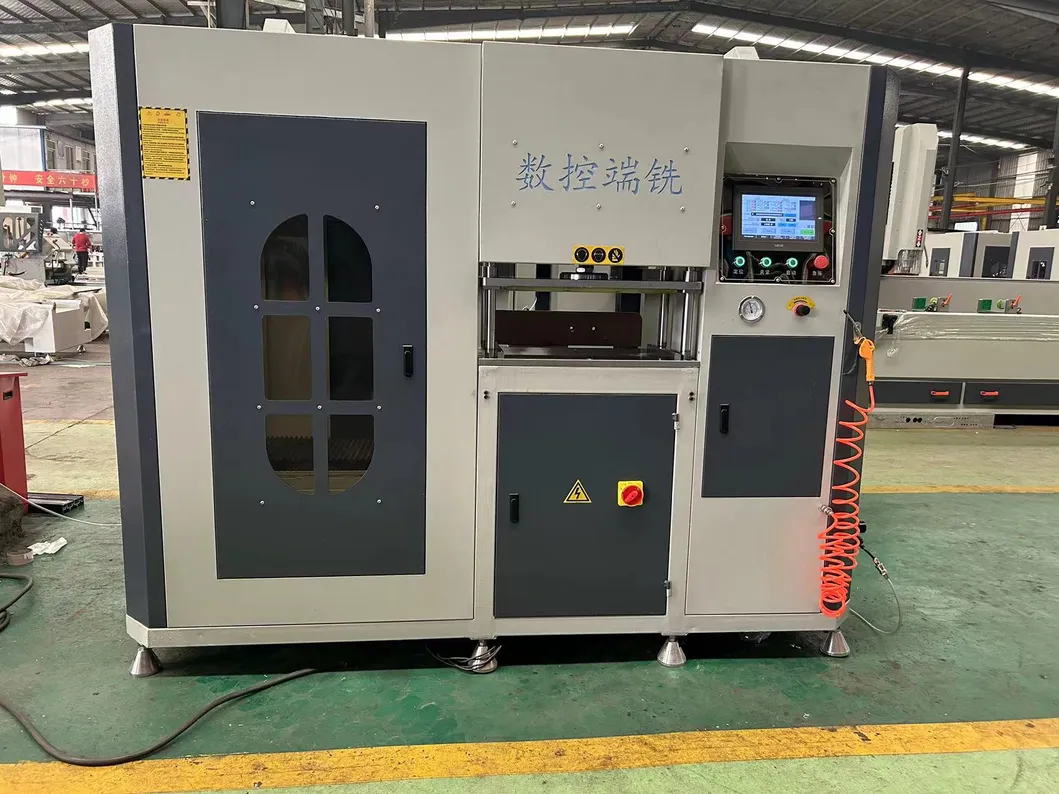

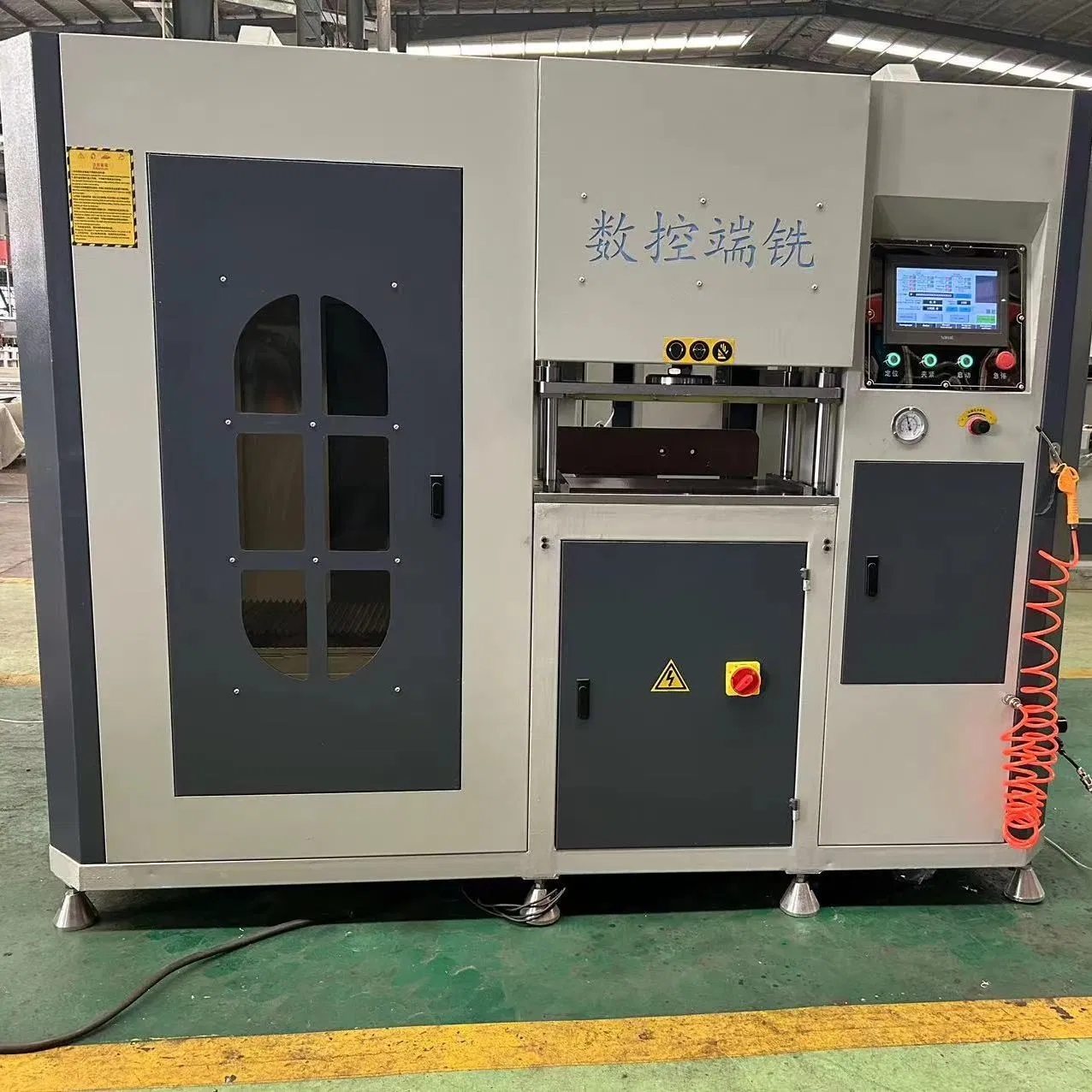

The CNC End Face Milling Machine for Aluminum Profiles & Curtain Walls is designed to process the end faces of aluminum profiles with high precision. It is an essential solution for curtain walls, doors, windows, and structural frames.
Key Advantages:
- High Precision: CNC control ensures smooth end faces for perfect component fitting.
- Flexible Processing: Supports various shapes and sizes for architectural applications.
- Multi-Angle Milling: Capable of milling at 45°, 90°, etc., for complex designs.
- Advanced Cooling: Integrated system to prolong tool life and prevent overheating.
- Safety: Integrated guards and emergency stop mechanisms for operator protection.
Applications
Curtain Walls: Frames for large facades in high-rise buildings.
Doors & Windows: Precision milling for residential and commercial profiles.
Structural Components: Fabrication of aluminum frames and beams.
FAQ
What is the maximum milling height and depth for this CNC machine?
The machine supports a maximum milling height of 200 mm and a maximum milling depth of 80 mm, providing versatility for various profile sizes.
Can the machine process multiple profiles at once?
Yes, the equipment is designed so that one clamping can complete the end processing of multiple profiles, significantly improving production efficiency.
Does this machine require custom cutting tools?
No, thanks to the XY1Y2Z1Z2 five-axis CNC system, it does not require custom cutting tools. The milling cutter can achieve different tenon processing horizontally and vertically.
What kind of control system is used for positioning?
It utilizes an advanced Bus servo control system, which ensures high positioning precision and reliable performance.
Is the machine capable of milling at specific angles?
Yes, the machine is capable of multi-angle milling (e.g., 45°, 90°), which is essential for creating tight joints in complex architectural curtain wall designs.
What materials is this machine suitable for?
This machine is specifically designed for the high-precision processing of aluminum profiles used in windows, doors, and large-scale curtain wall structures.
