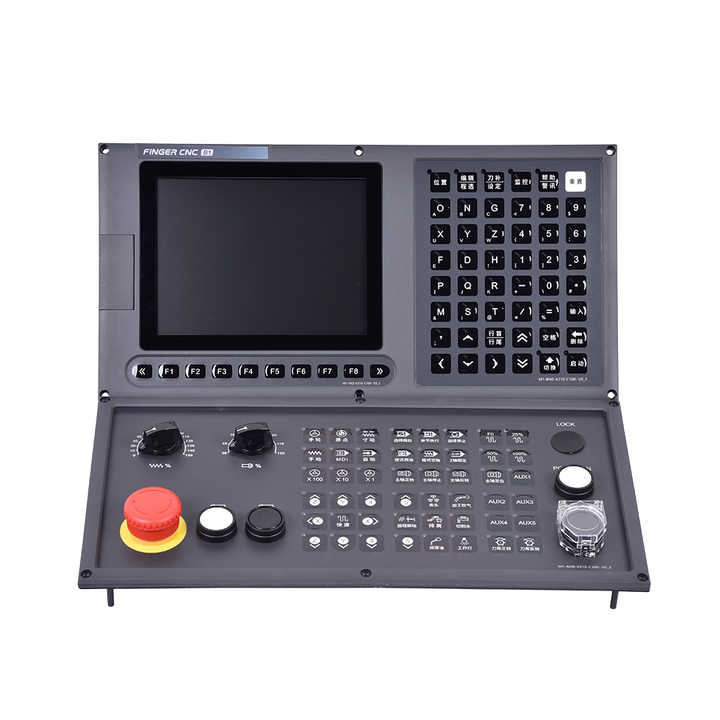

Rtcp PLC Control Supported 4 Axis 5 Axis CNC Controller CNC Milling Control System for PLC+Atc Milling Machine

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

Basic Information

Model NO.

800MC2-H

Material

Metal

Certification

CE

Application

Lathe and Turning Center

Operating System

Rt Linux

Display

8 Inch LCD

RAM / Capacity

2GB / 8GB

Control Axis

4 Axis / 5 Axis Supported

Product Description

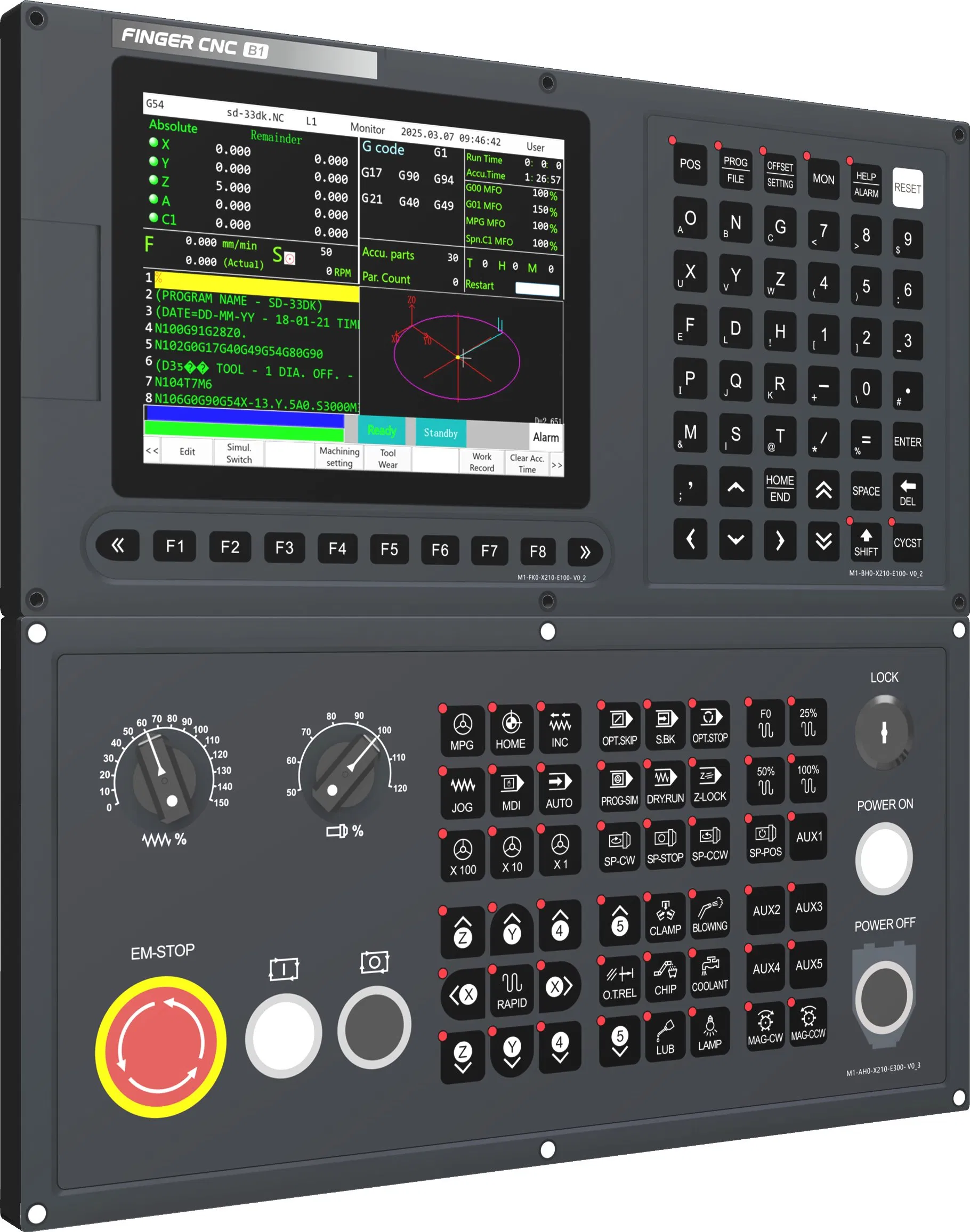

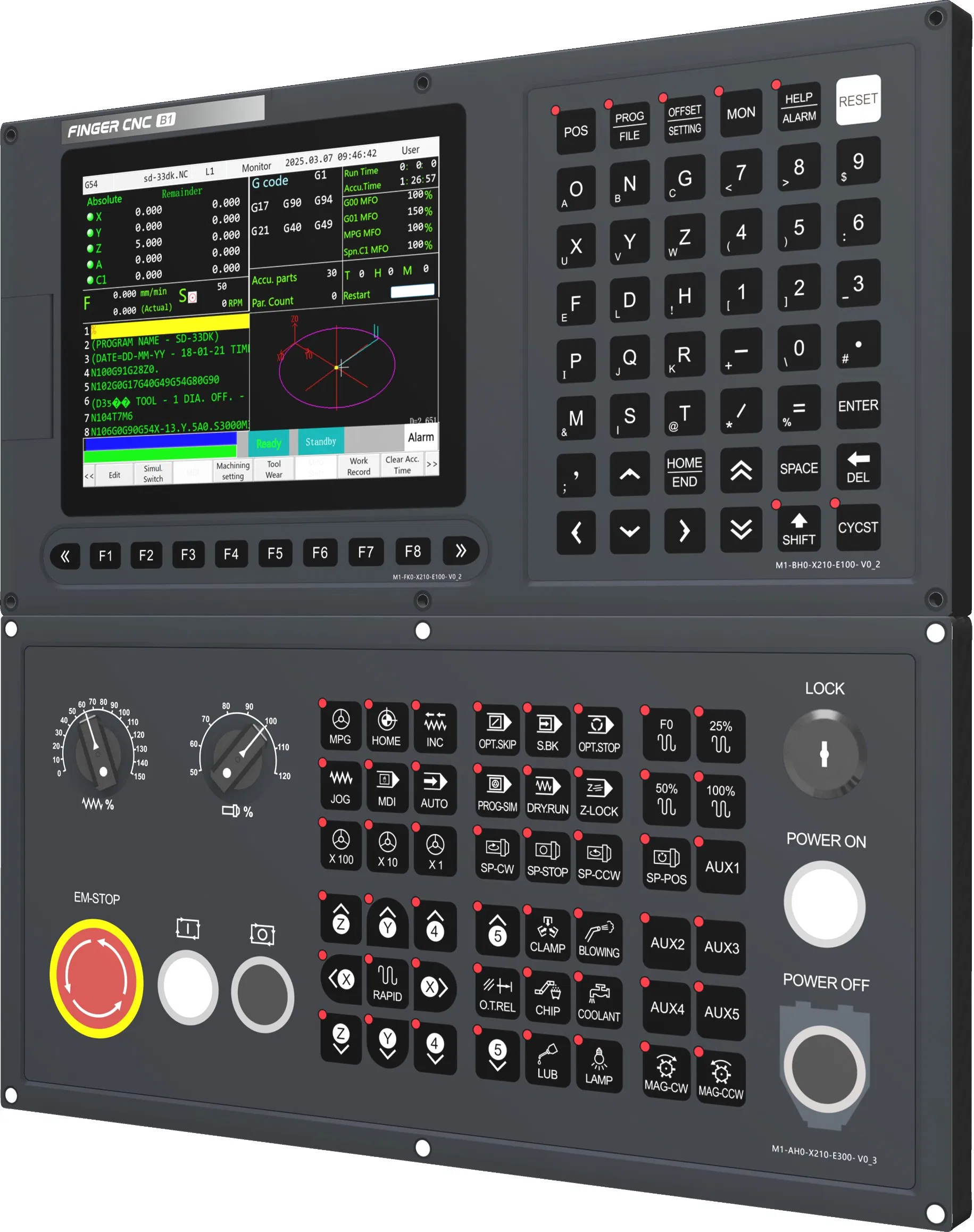

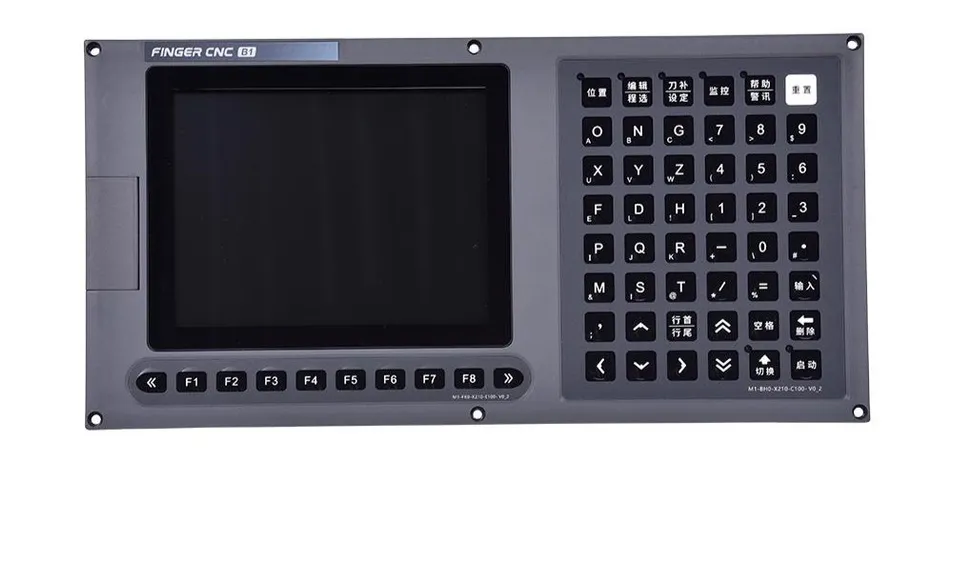

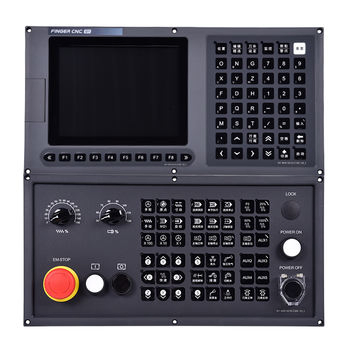

Feature And Function Introduction

USB communication port
F1-F8 function selection buttons
Quick menu key
Normal editing and operation area
Speed ratio selection

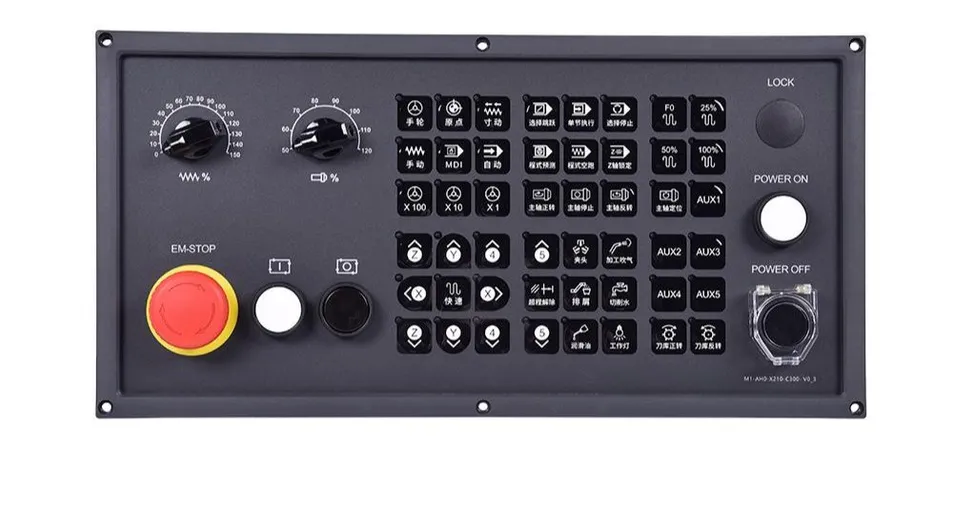

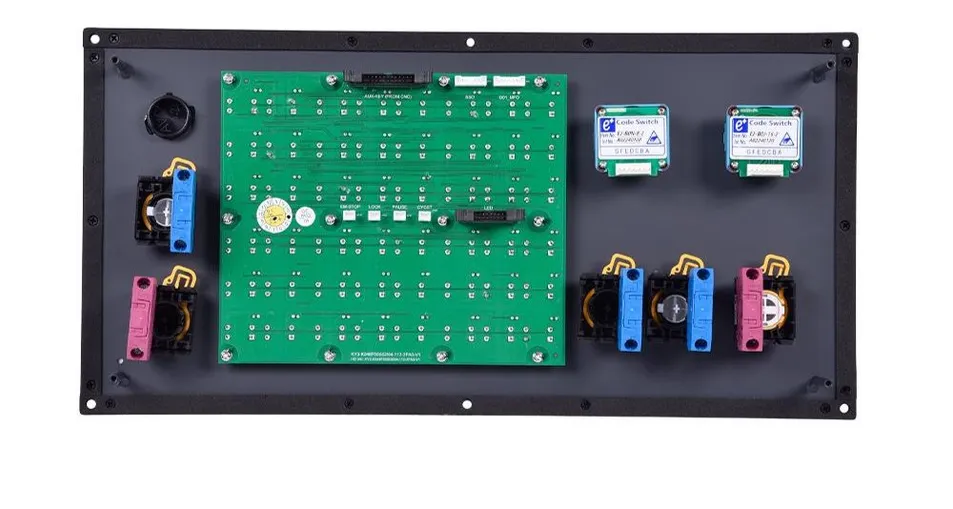

Auxiliary Panel
Program lock
Emergency-stop switch
Cycle start and stop buttons
JOG feedrate switch (slow, fast)

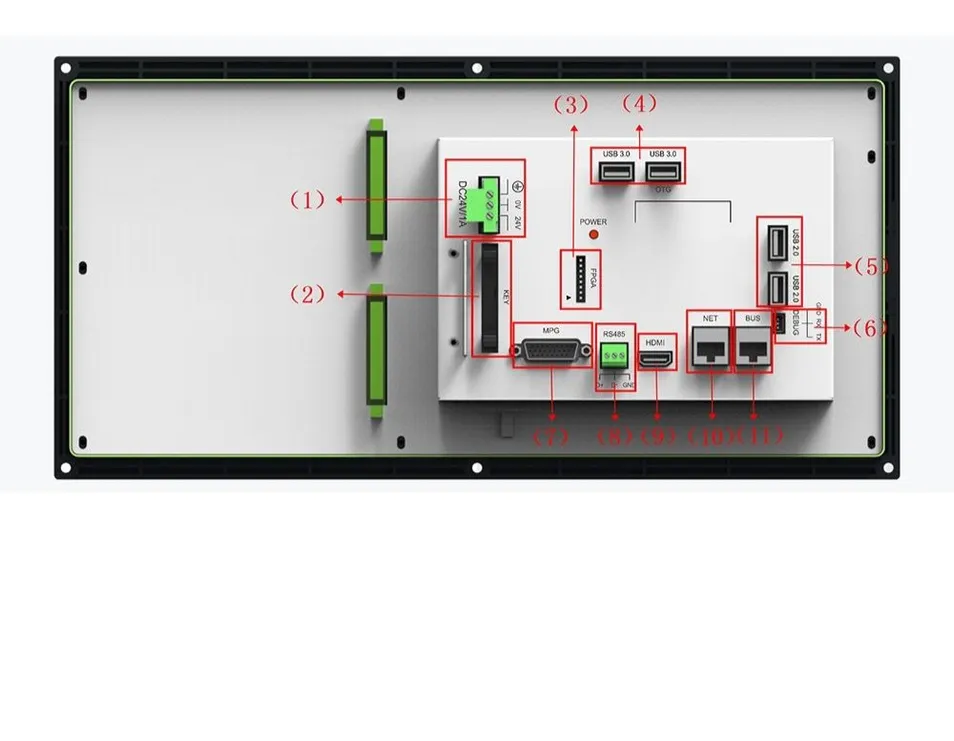

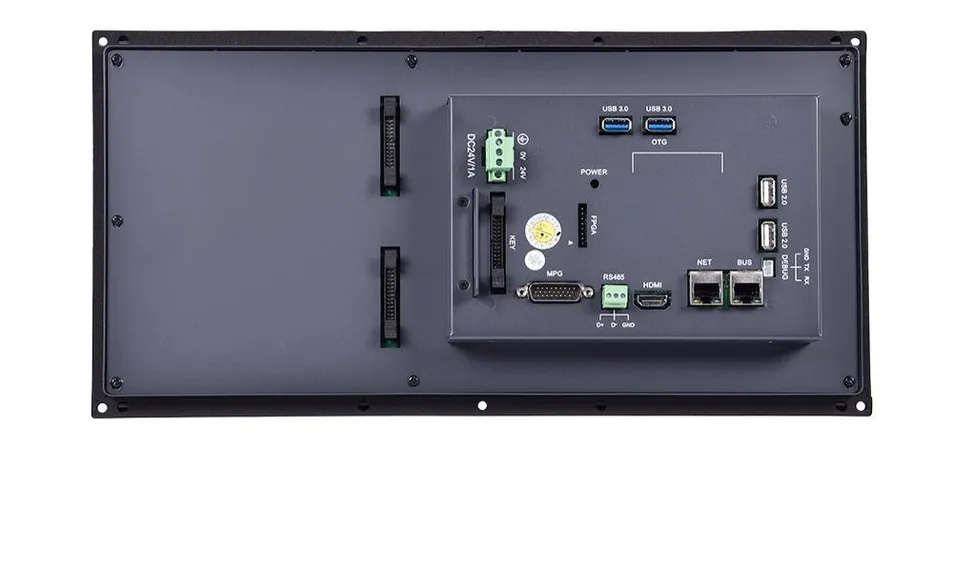

Interface Introduction (Back)

DC 24V power supply port
System keypad port
Firmware updating port
USB 3.0 & 2.0 ports
MPG & Debug ports
RS485 communication
HDMI interface for external display
LAN (OPC-UA, Modbus TCP, FTP)
Field Bus (EtherCAT/MⅢ)

System Specifications

Parameter	Specification Details
Installation Method	Horizontal
Standard Axis Number	Standard 7 (Maximum 28)

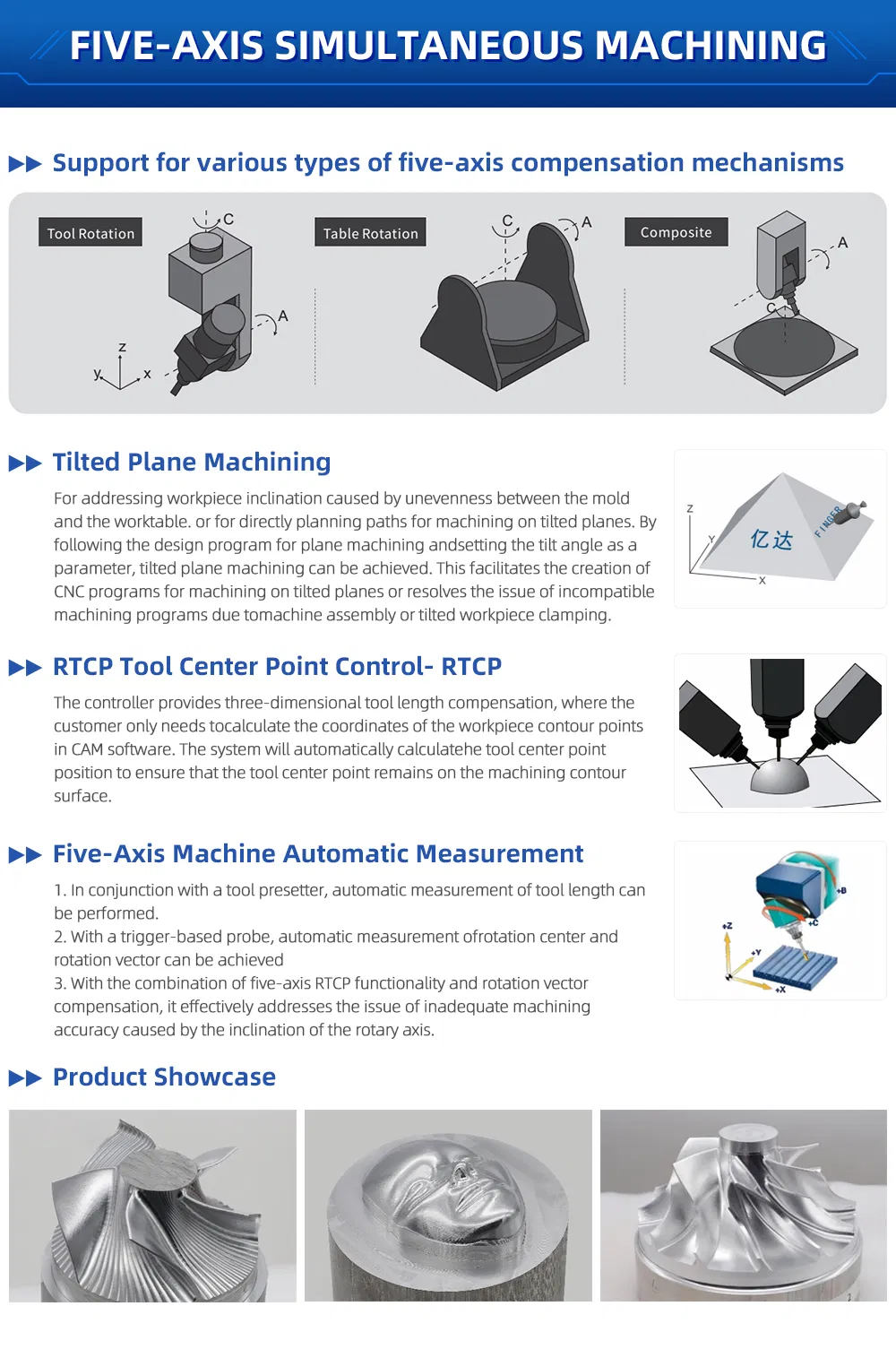

Maximum Linked Axis	5 (XYZAB/XYZAC/XYZBC) with RTCP
Program Pre-fetch Speed	8000 b/s
Control Accuracy	0.00001mm
Tool Compensation	160 groups
Transmission Interface	USB / RS485 / LAN / WIFI
Standard I/O	I16 / O16 (Expandable to I128/O128)

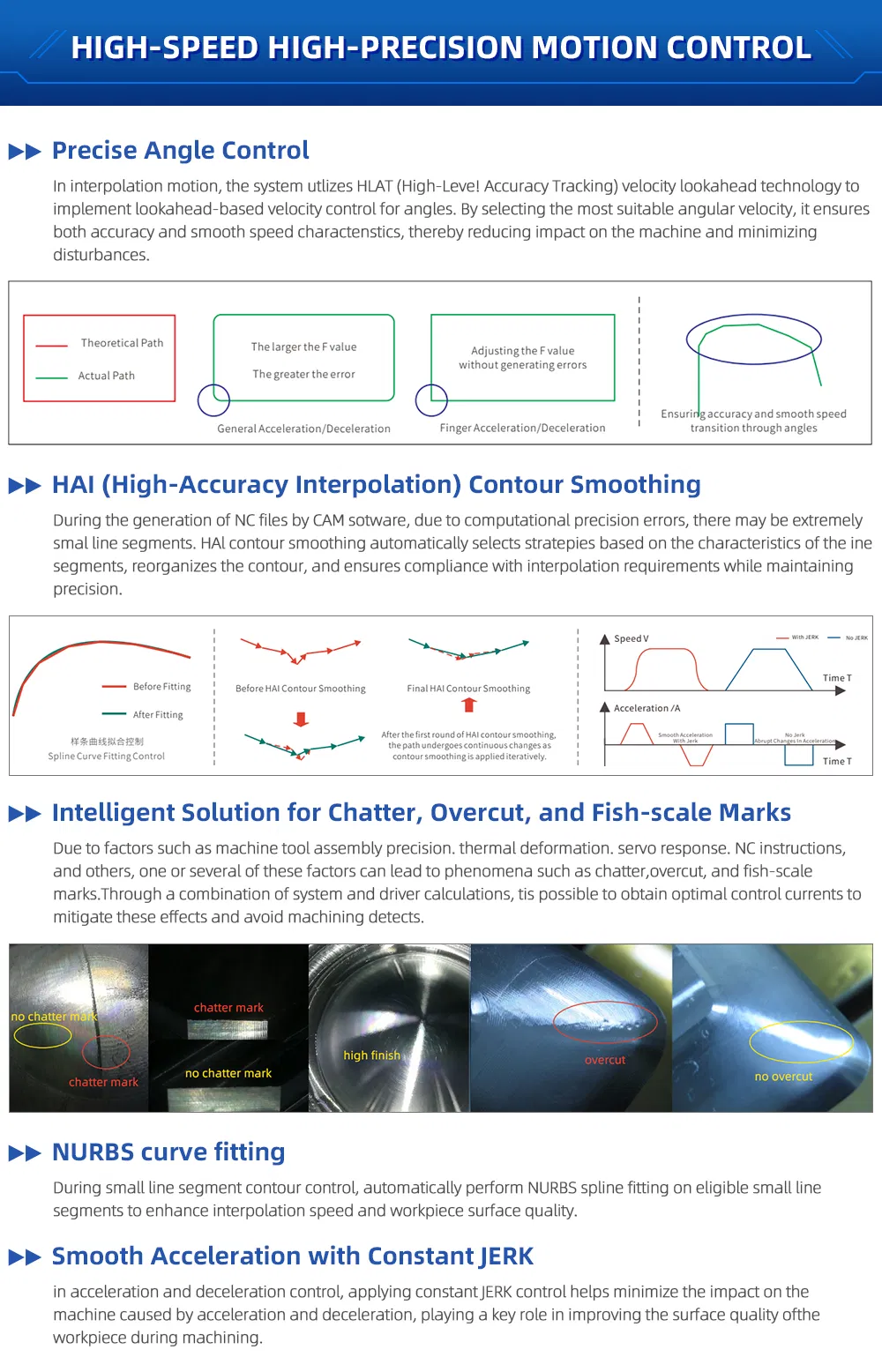

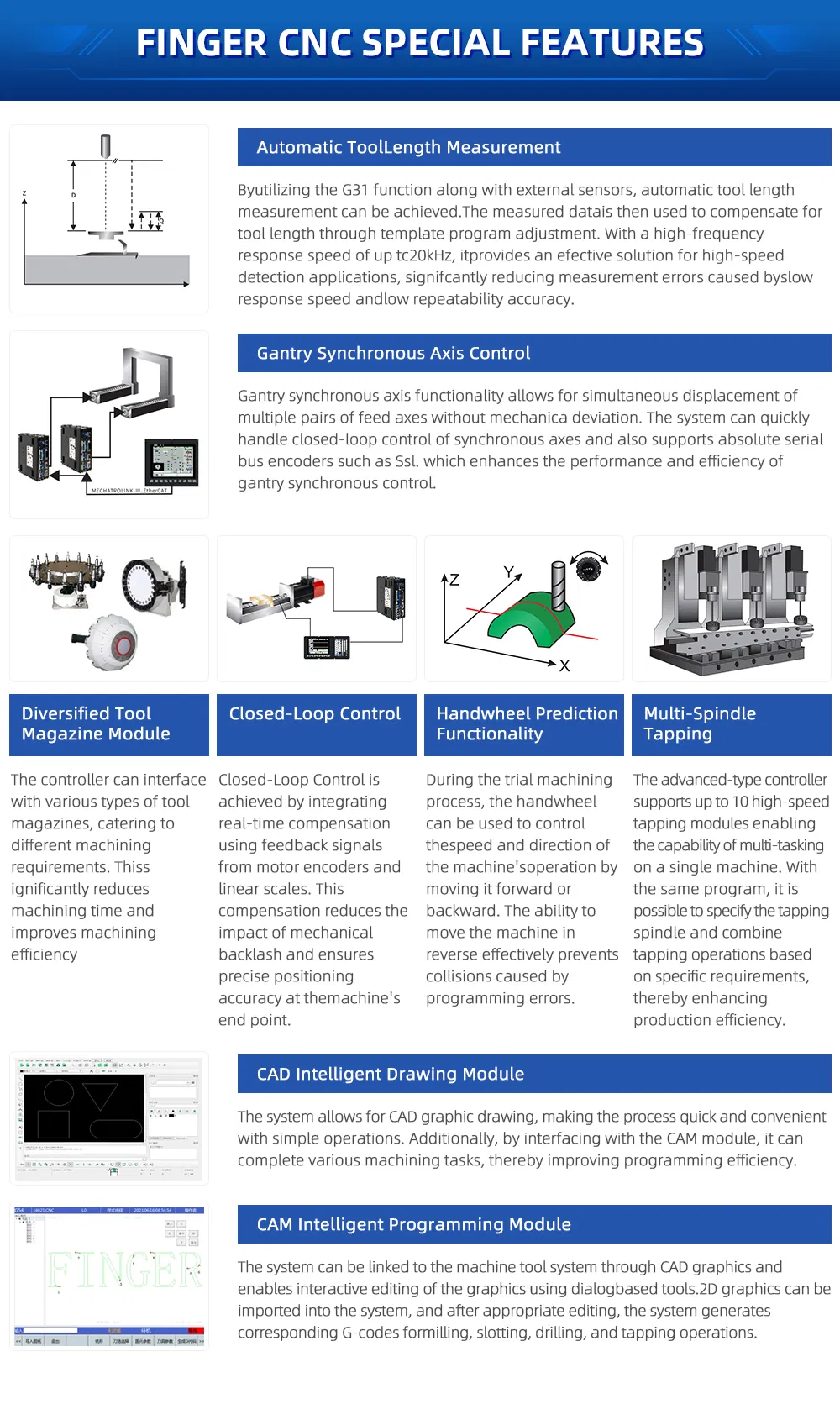

Special Features & Applications

Packing & Delivery

Company Profile

We are committed to creating high-performance open CNC systems, making automation development simpler. As one of the leading high-performance controller manufacturers, we focus on customer needs and continually push the boundaries of technological innovation. Our comprehensive automation ecosystem offers differentiated solutions and convenient services, including motion control, HMI, PLC, machine vision, CAD/CAM, IoT, and 3D simulation.

Our technology is firmly rooted in CNC but extends to edge computing controllers, Open CNC platforms, and industrial IoT. Our solutions are widely used in lathes, milling machines, grinding machines, spring machines, woodworking machinery, and 3C electronics industries.

Frequently Asked Questions

Why should you choose our CNC controllers over other suppliers?

We provide high-performance, open CNC technology with complete development platforms including PLC, HMI, MACRO, and CAD/CAM. Our systems offer a cost-effective way to develop customized automation with high-speed motion control and reliable EtherCAT device support.

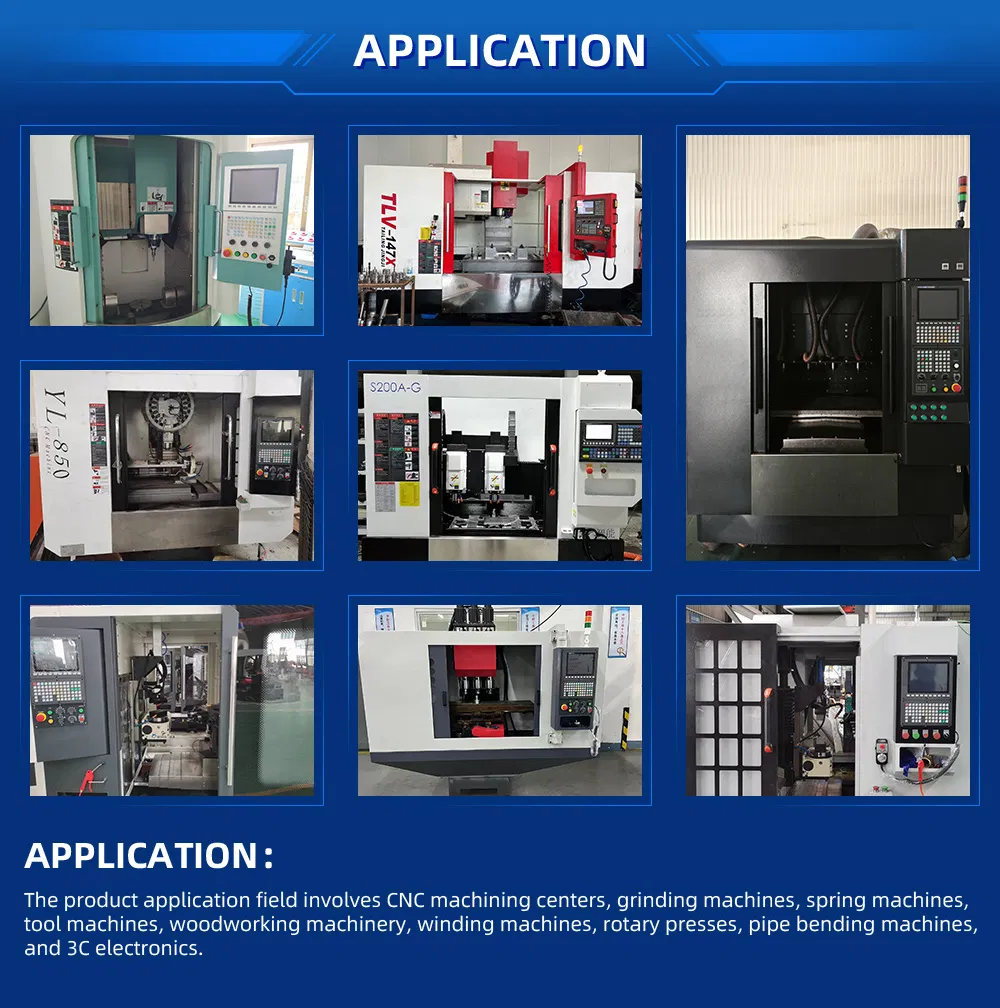

What are the main product applications?

Our controllers have extensive applications in high-end turning and milling centers, grinding machines, spring machines, woodworking machines, tube bending machines, and 3C electronics manufacturing.

What is the warranty and support for the parts?

We offer a two-year warranty for machine parts under normal use. Our professional engineers ensure 100% functionality before dispatch. We also provide lifetime software upgrade services via USB.

What should I do if the machine is not operating correctly?

Technical support is available 24 hours a day to troubleshoot with engineers. We provide an operation CD and manual with every machine. If a part fails under warranty, replacement parts are sent via air freight at no cost.

What is the typical delivery timeframe?

Generally, delivery takes 14-30 days for in-stock items. If items are not in stock or require customization, the lead time is approximately 7-14 days depending on the specific manufacturing quantity.

Does the system support external hardware and networking?

Yes, our systems include USB 3.0, RS485, LAN, and WIFI interfaces. They support industrial protocols such as OPC-UA, Modbus TCP, and FTP for seamless IoT integration.
