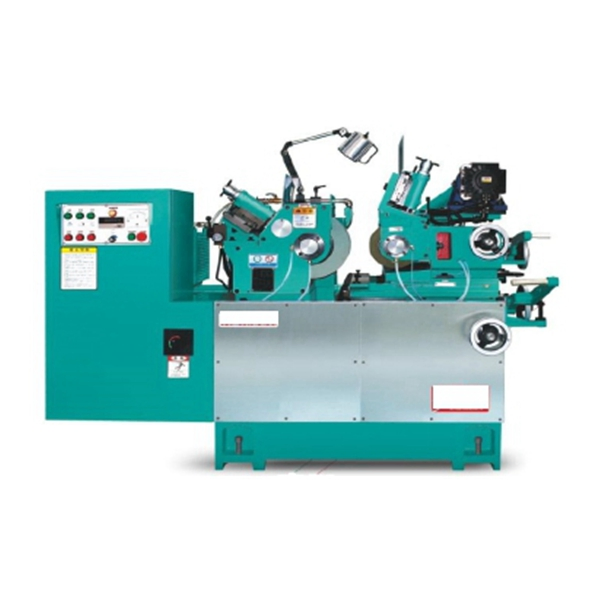

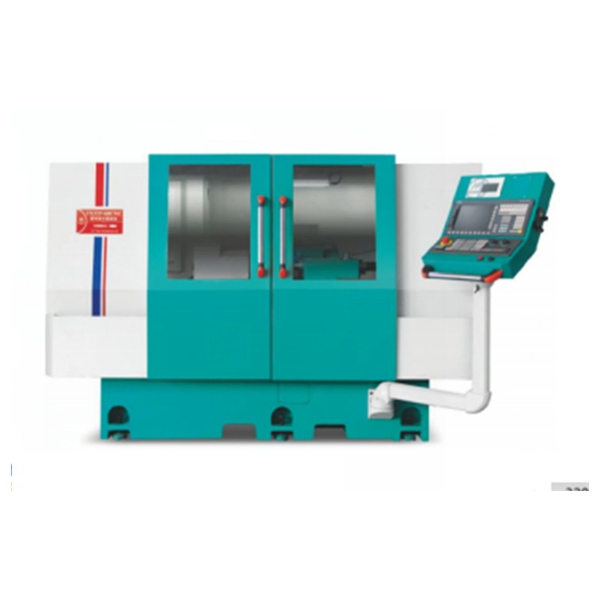

CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
1 / 5
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools
CNC Cylinder Centerless Grinding Machine Tools

CNC Cylinder Centerless Grinding Machine Tools

Customization: Available
After-sales Service: Video Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
FFX
Type
Centerless Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial / Manual
Precision
High Precision
Certification
CE, ISO 9001
Dimensions
1800× 1400× 1450mm
HS Code
8460909000
Product Description
1
Machine Body Structure The body and components are cast in one go using high-grade cast iron FC30. They undergo manual normalization heat treatment and natural aging treatment for more than six months. Processed with world-class equipment (YASDA, MITSUI SEIKI, TOSHIBA, ELB), ensuring micron-level precision.
2
Advanced Spindle System Spindle made of SNCM-21H alloy steel. Features quenching, tempering, carburizing heat treatment, and computer-controlled cryogenic treatment. Surface hardness reaches above HRC-62°. The FX-12S adopts a dynamic pressure oil film spindle.
3
Adjusting Wheel Transmission Equipped with Servo Motors (Delta/YASKAWA) with speed control 0~320rpm CNC. Maintained linear speed ensures workpiece smoothness. The direct drive synchronous belt design overcomes inertia loss and avoids frequent chain replacement.
Items Unit Model: FFX-12CNC-3
Machining diameter rangemm0.5-40
Grinding wheel size (OD x W x ID)mmΦ305*150*Φ120
Adjust wheel size (OD x W x ID)mmΦ205*150*Φ90
Grinding wheel speedRPM1950
Maxi linear speed of grinding wheelm/s35
Feed speedmm/min8000
Adjust wheel speedRPM0-350 (stepless)
Grinding wheel drive motorKW5.5
Adjust wheel drive motorKW2.0
Auto dressing drive motorKW1.5
Oil pump drive motorKW0.75
Mini accuracy of servo feedmm0.001
Machine dimensionmm1800×1400×1450
Machine net weightKG2200

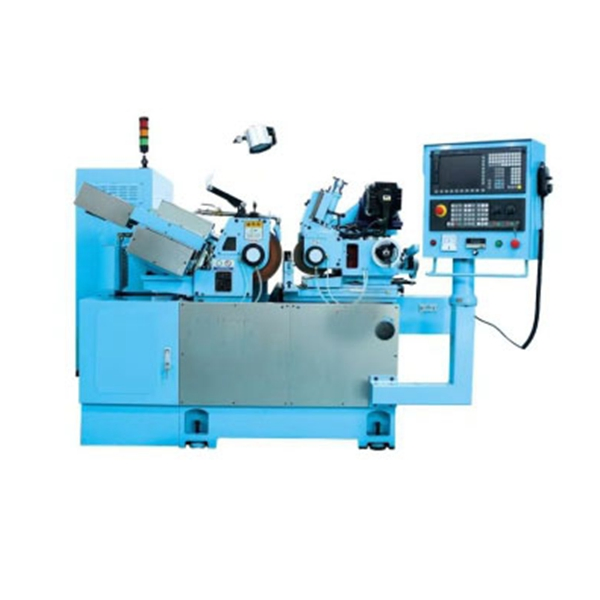

CNC Cylinder Centerless Grinding Machine

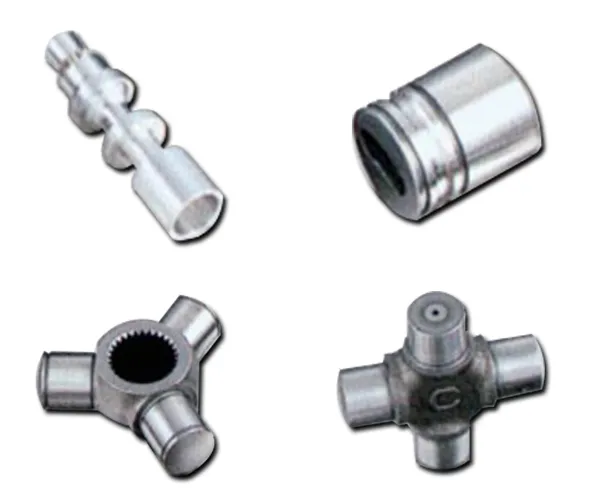

Grinder Components

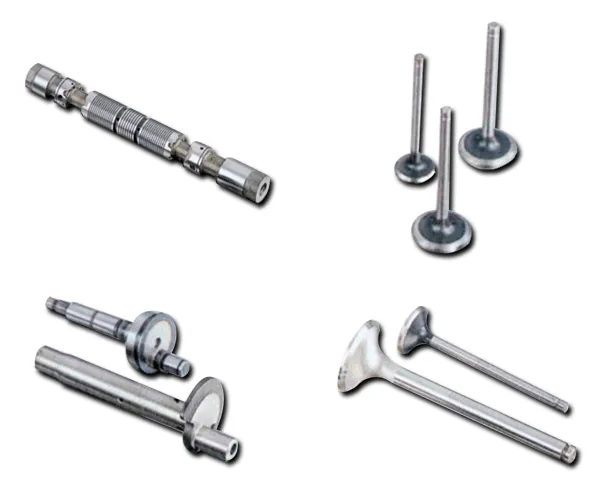

Precision Grinding
Machine Detail

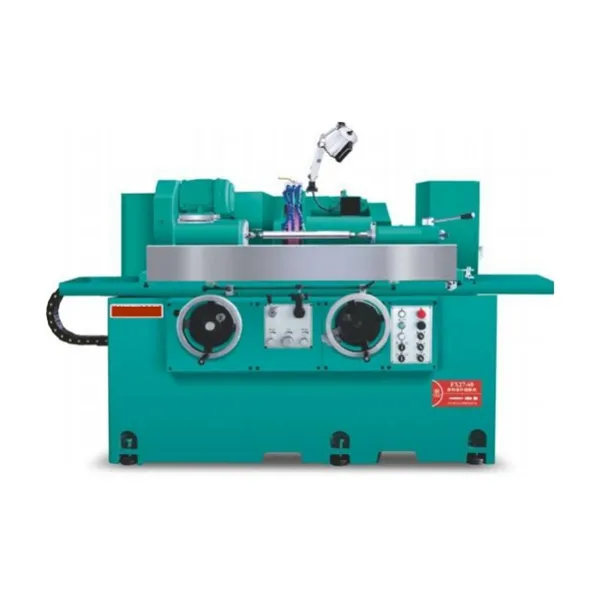

CNC System

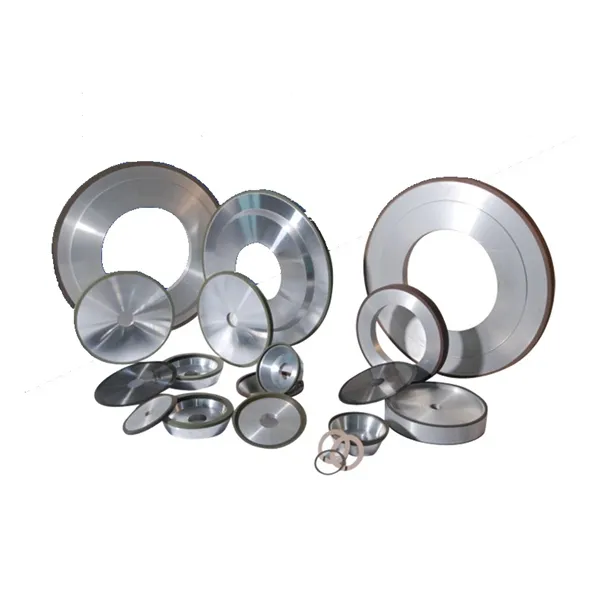

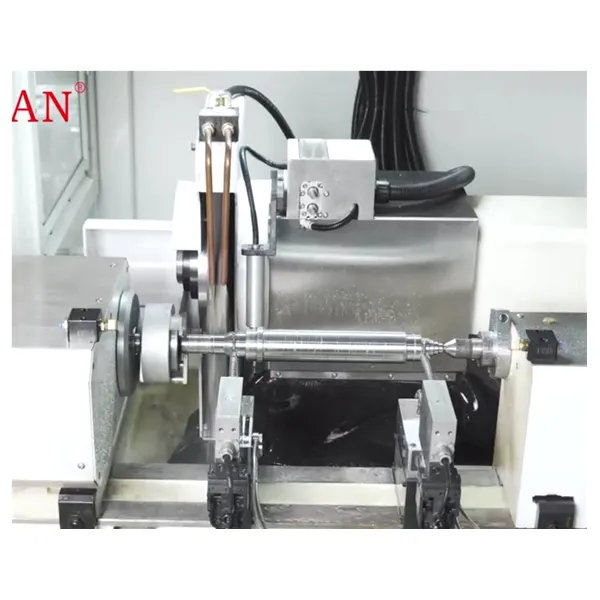

Grinding Wheel

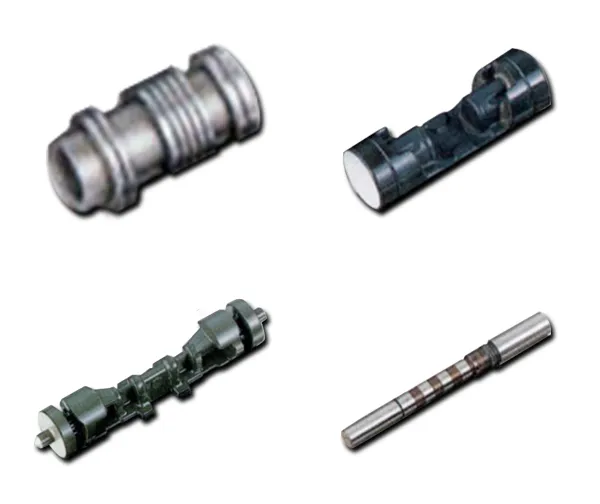

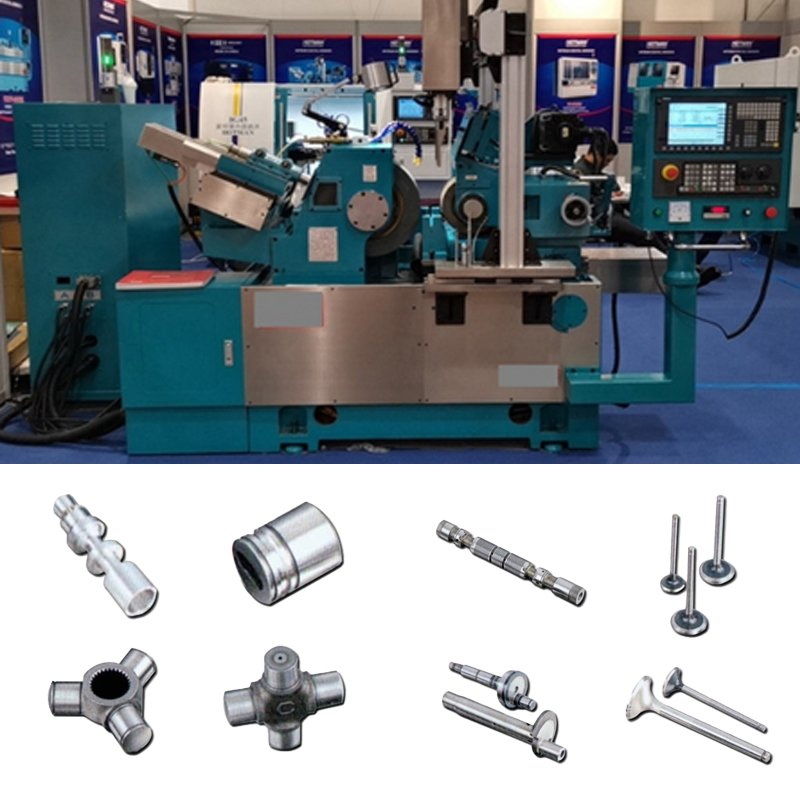

Processing Example
Industrial Grinder
Centerless Grinder Machine
Technical Drawing 1
Technical Drawing 2
Frequently Asked Questions
What is the typical delivery time?
Some models are in stock and can ship within 10 days. Customized orders are typically ready within 30 days.
How can I place an order?
We analyze your specific grinding requirements to provide a solution. Once confirmed, we proceed with the contract and payment arrangements before starting production.
What shipping options are available?
We offer flexible shipping via air, sea, and truck to accommodate different international requirements.
What is the machine's body material quality?
The machine uses high-grade FC30 cast iron, treated with manual normalization and natural aging for over six months to ensure long-term stability.
How is the after-sales technical support?
Our professional team provides support via video diagnostics for troubleshooting. International managers also conduct factory video calls to ensure precision checks.
What is the hardness of the spindle?
The spindle undergoes carburizing and cryogenic treatment, reaching a surface hardness of above HRC-62° for maximum durability.
