Belt Grinding Machine Centerless Grinder Saw Sharpen Cylinder Belt Head Grinding Machine for Steel

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
KY-1022
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Net Weight
750kgs
Gross Weight
880kgs
Packing Size
1400X1150X1980mm
Table Size
155*400mm
Power (Kw)
1.29
Origin
Fujian, China
HS Code
8447120000

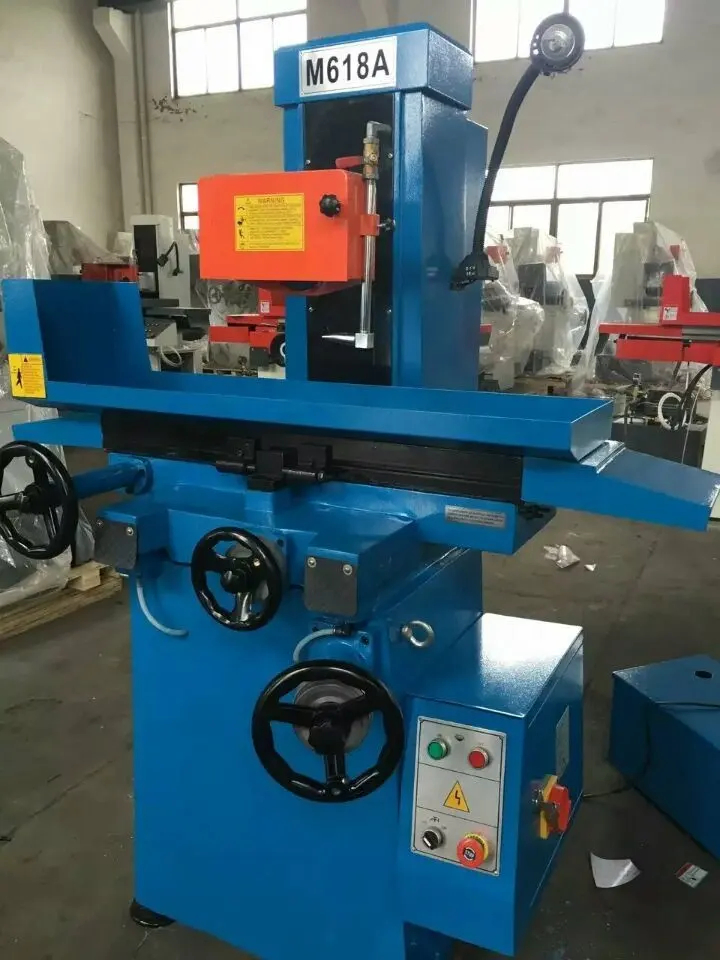

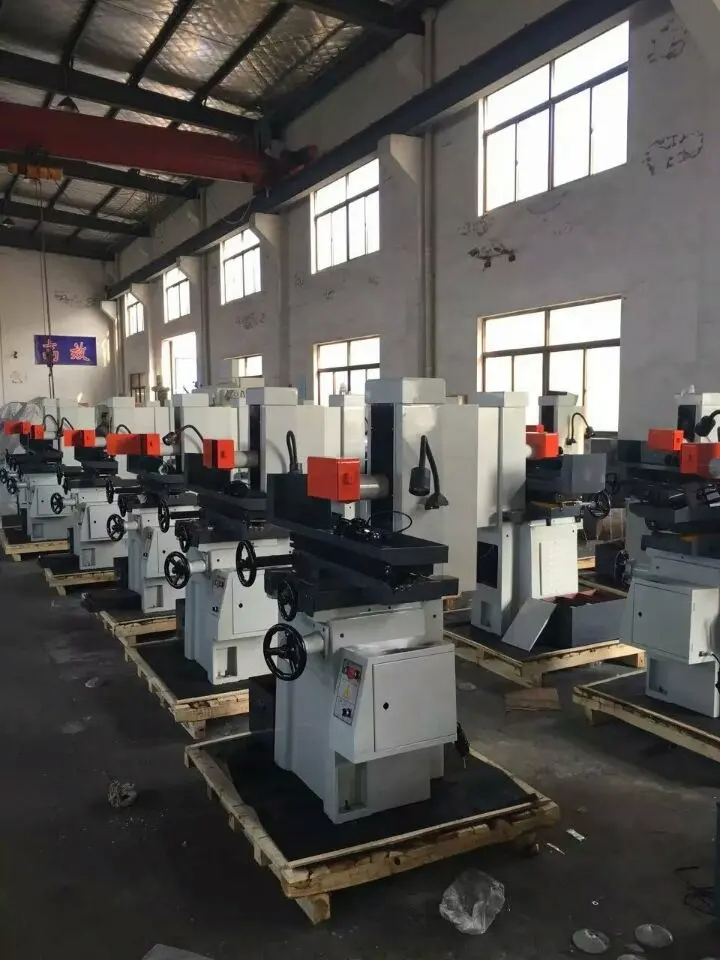

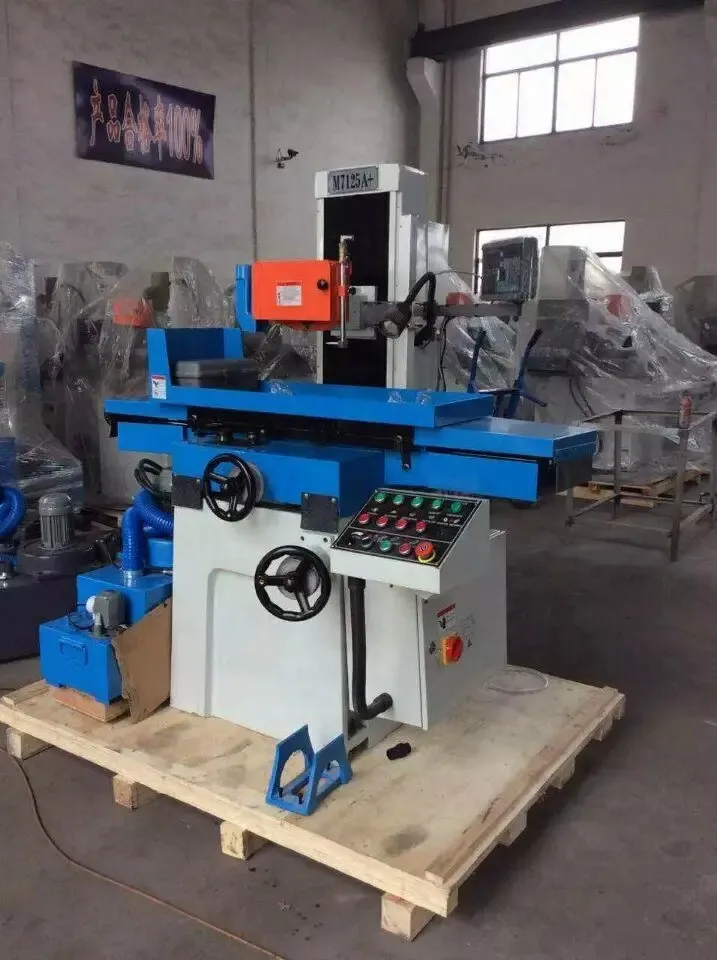

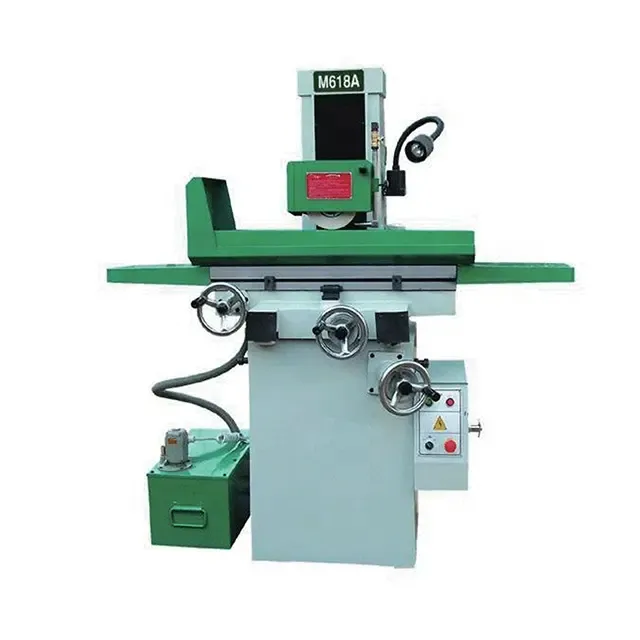

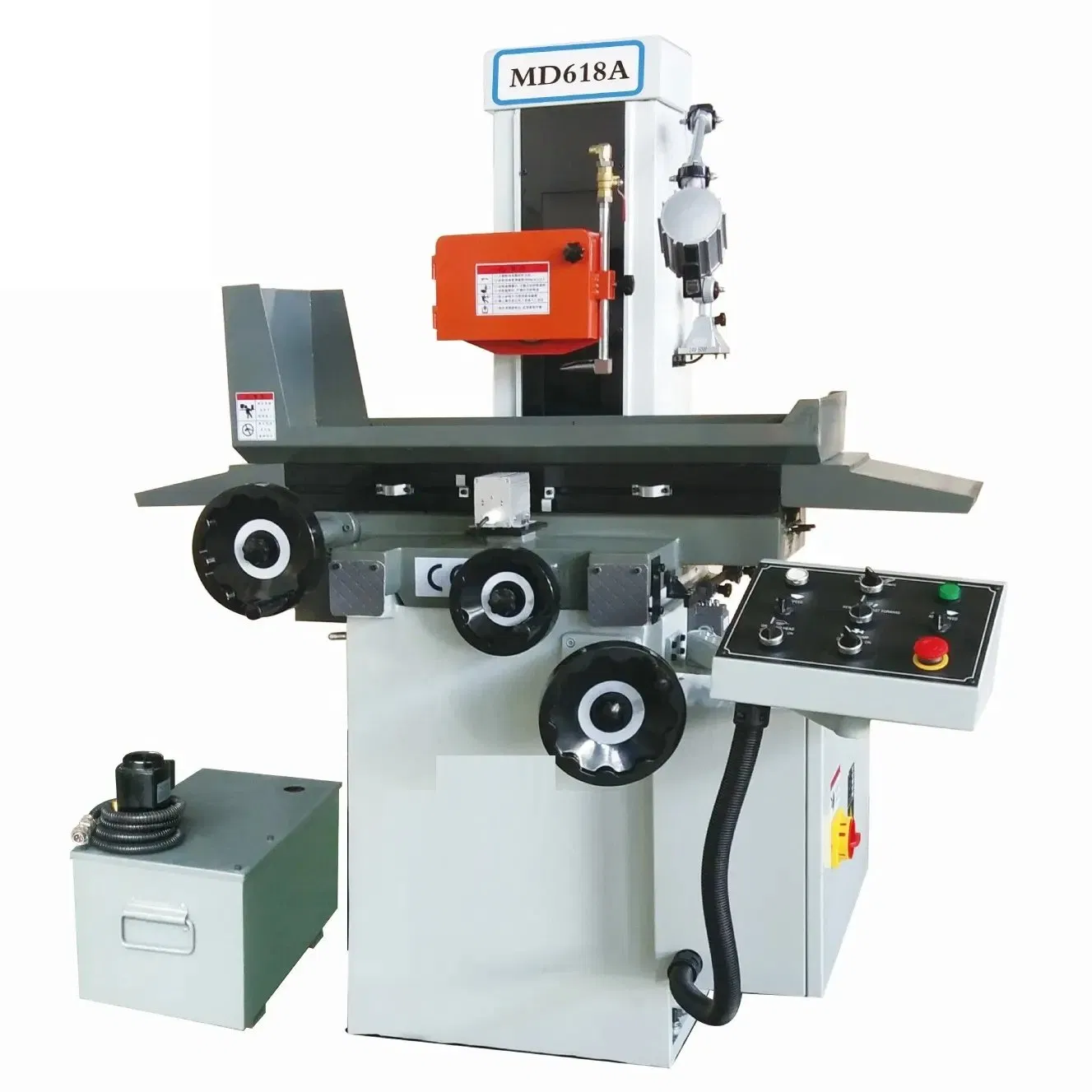

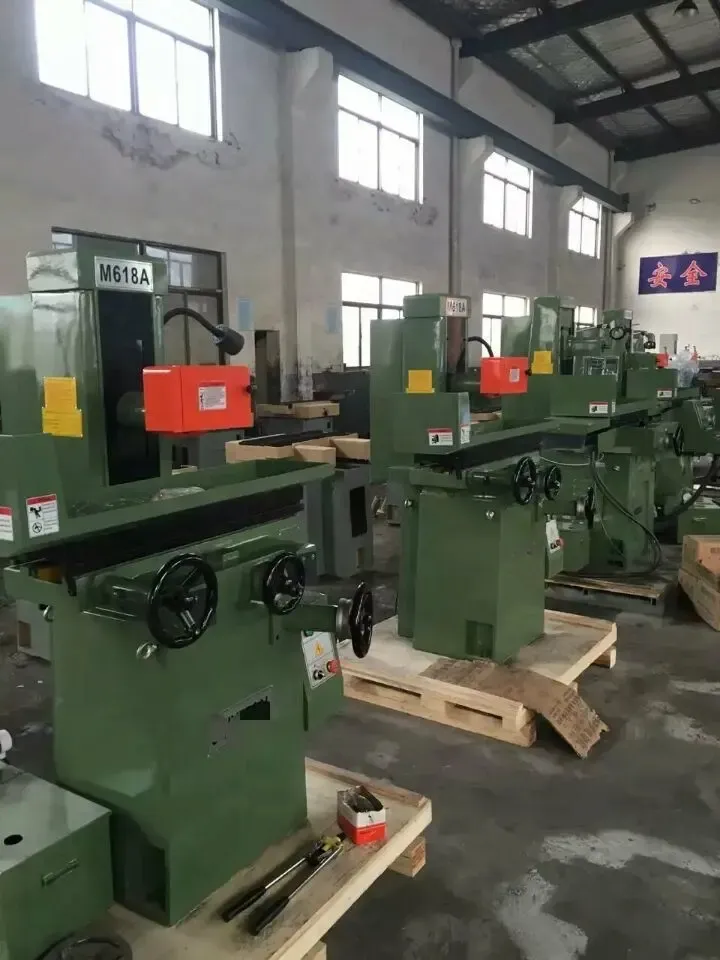

Detailed Photos
Product Parameters
Content KY-618
Work table size150x457mm
The largest grinding width160mm
The spindle to work surface distance350-400mm
The standard size of disk150x400mm
About feed/manual485mm
Feed/manual before and after stroke180mm
Hand wheel before and after each calibration feed0.02mm
Tum hand wheel before and after each feeding5mm
Lifting feed every scale feed/the handwheel0.005mm
Every turn the handwheel to feed1mm
Grinding wheel size (D+W+R)180x16x32mm
The spindle speed 50/60 hz)3600/3000rpm
The spindle motor1.5 or 2HP
Machine Features
1
The main casting is annealed and quartined without deformation precision spondle, direct junction B-3 motor (1.5 horsepower).
2
The main column and splndle unit have strong rigidity, more suitable for super hard workpart forming grinding.
3
Automatic lubrication system: Using closed loop type lubrication system design, automatic import electromagnetic oil pump oil. Forced lubrication is carried out on the front and back, left and right screws and slides, which can be greatly reduced low slide wear. An oil mirror is installed above the column to monitor the lubrication situation.
Company Profile

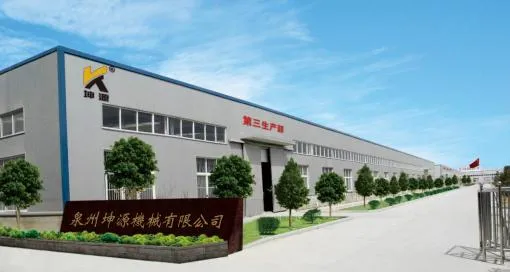

Production Facility
The facility is a collection of production, supply and sales for integration with more than 60 employees. We passed the ISO9001 quality system certification in 2019. We have professional processing teams and complete machine assembly teams. The plant covers an area of about 15,000 square meters. It has two sets of 2.5-ton medium frequency induction furnaces, four resin sand production lines and large annealing furnaces. Monthly output is more than 1200 tons. The enterprise has won various titles for science and technology and holds 18 practical patents and one invention patent. Main products include ductile iron and gray cast iron parts for grinding machines and knitting machines.
FAQ
Where is the production facility located?
The headquarters and manufacturing facility are located in Fujian province.
Are all main spare parts produced in-house?
Yes, all main spare parts of the machine are produced by our facility using advanced processing technology.
Is the machine tested before delivery?
Yes, every machine is thoroughly tested and adjusted before delivery to ensure high precision performance.
What is the warranty period for this machine?
We offer a warranty for approximately one year after the customer receives the products.
Does the machine feature an automatic lubrication system?
Yes, it uses a closed-loop automatic lubrication system with an electromagnetic oil pump to reduce wear on screws and slides.
What certifications do your products have?
Our facility and products have passed the ISO 9001 quality system certification.
