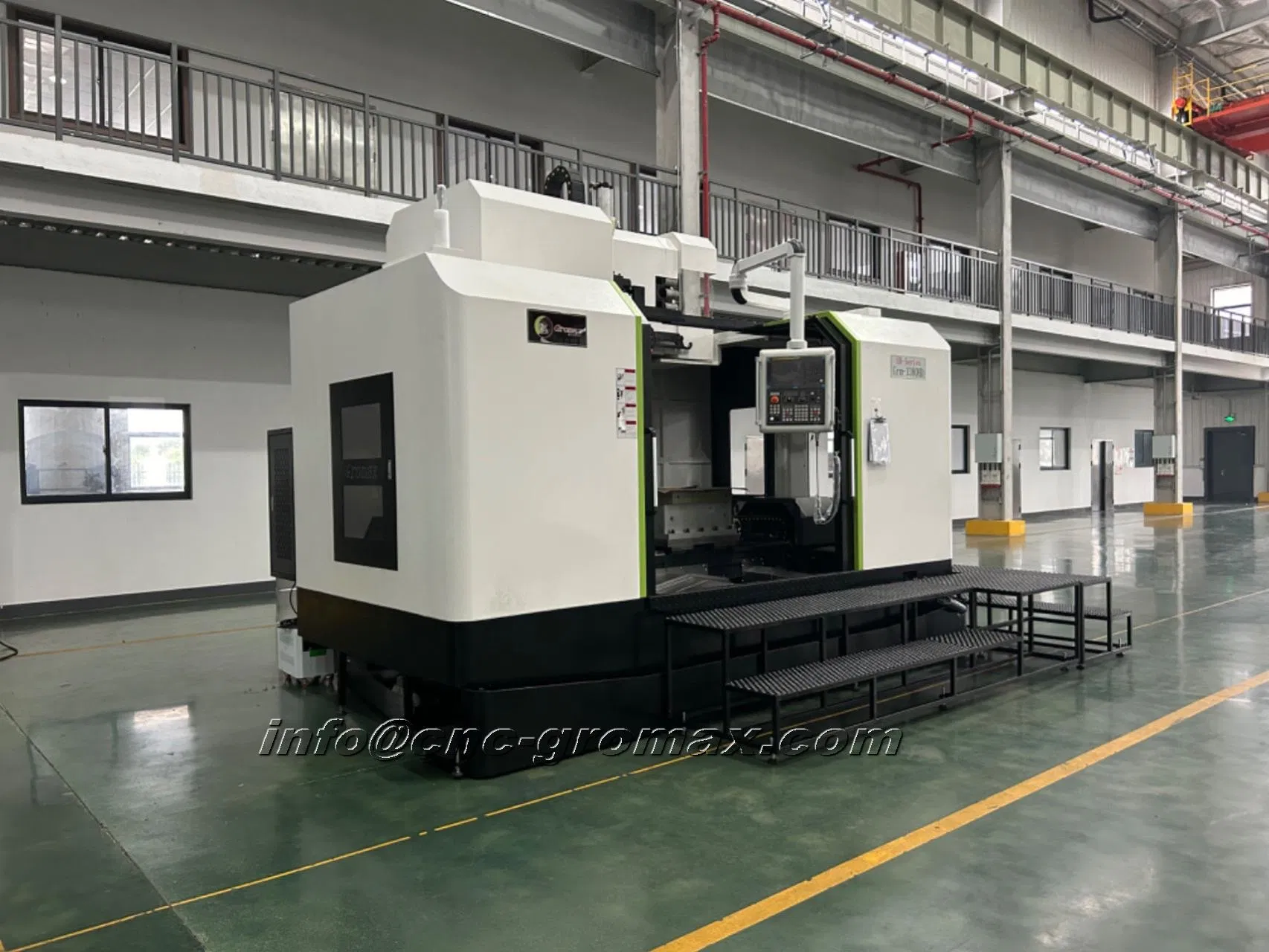

Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
1 / 3
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160

Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160

Customization: Available
After-sales Service: Remote After Sales Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Info.
Model NO.
GRM-1160VC
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Specification
5600*3600*3150mm
Production Capacity
1500 Sets/Year
HS Code
845710
Product Description
Advanced CNC Vertical Multi-Axis Machining Center Vmc 1160
Our series of Vertical Machining Centers are designed for high-precision metal cutting, featuring robust mechanical structures and advanced CNC control systems.
Mechanical Specification Header
Specification Unit Grm-640V Grm-850V Grm-1060V Grm-1160V Grm-1370V
Worktable Size mm 700x400 1000x550 1100x580 1240x610 1400x700
X-axis Travel mm 600 800 1000 1100 1300
Y-axis Travel mm 400 520 600 640 700
Z-axis Travel mm 450 560 680 650 650
Spindle Speed rpm 20000 12000 10000 10000 10000
Rapid Traverse (X/Y/Z) m/min 15/15/15 48/48/48 30/30/30 30/30/30 30/30/30
Tool Capacity set 20 24 24 24 24
Machine Weight kg 3000 5600 6500 7500 8200
Detailed Photos
CNC Machining Center Detail 1
CNC Machining Center Detail 2
CNC Machining Center Detail 3
Production Excellence

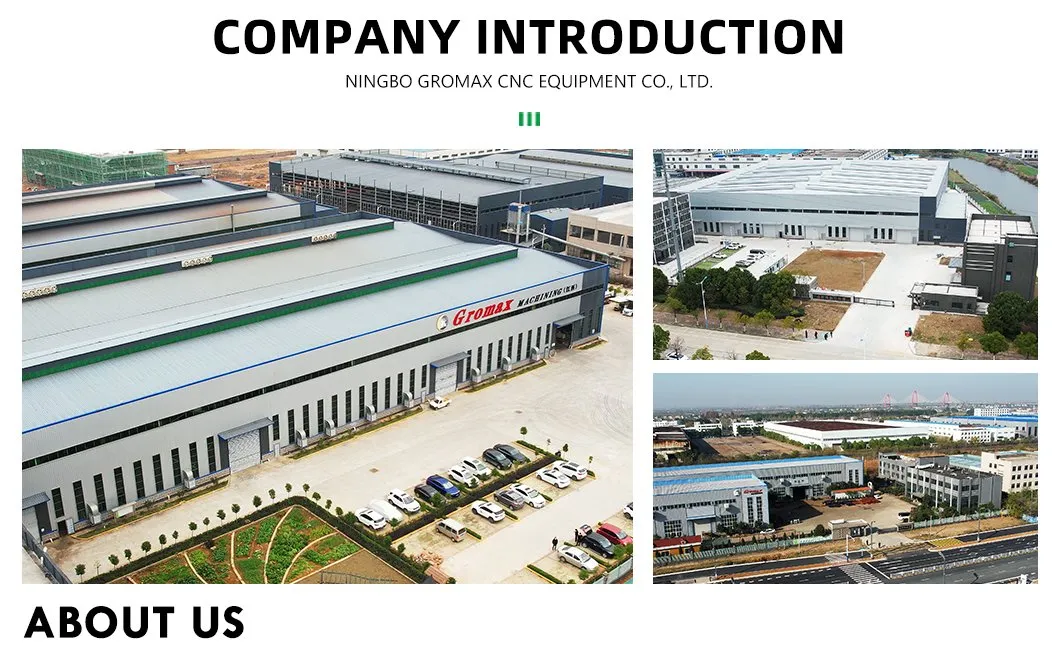

Production Facility 1
Founded in 1985, we specialize in manufacturing CNC machining centers. With an assembly base established in October 2014, our focus remains on the development, production, and service of high-standard CNC machines. We follow strict quality control and market demands to provide high-standard products for the global industry.

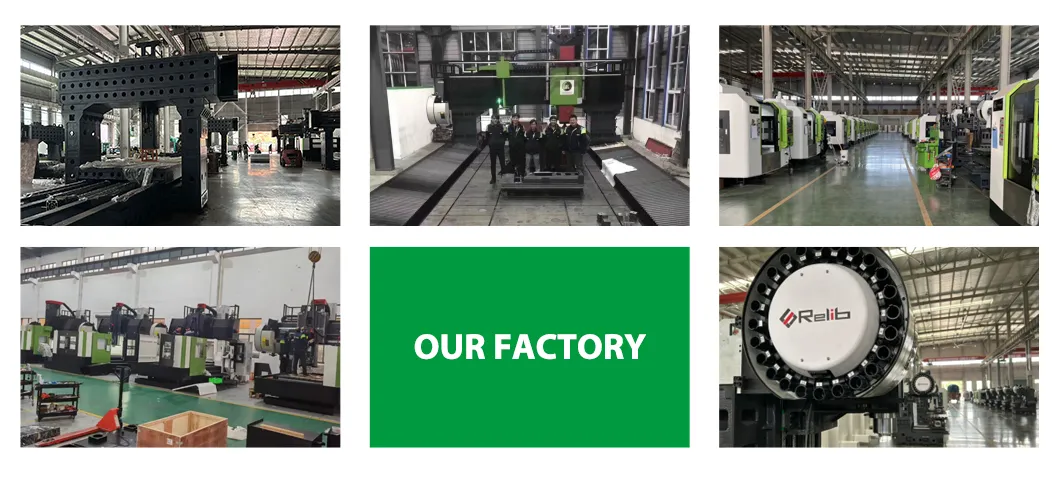

Workshop
Machine Assembly

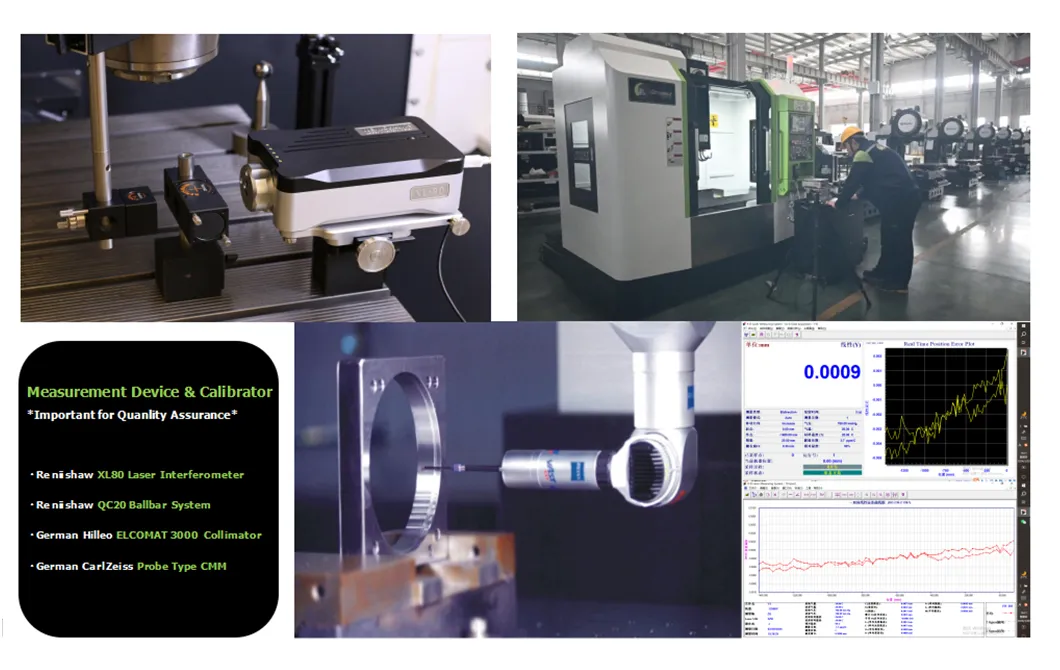

Testing Area

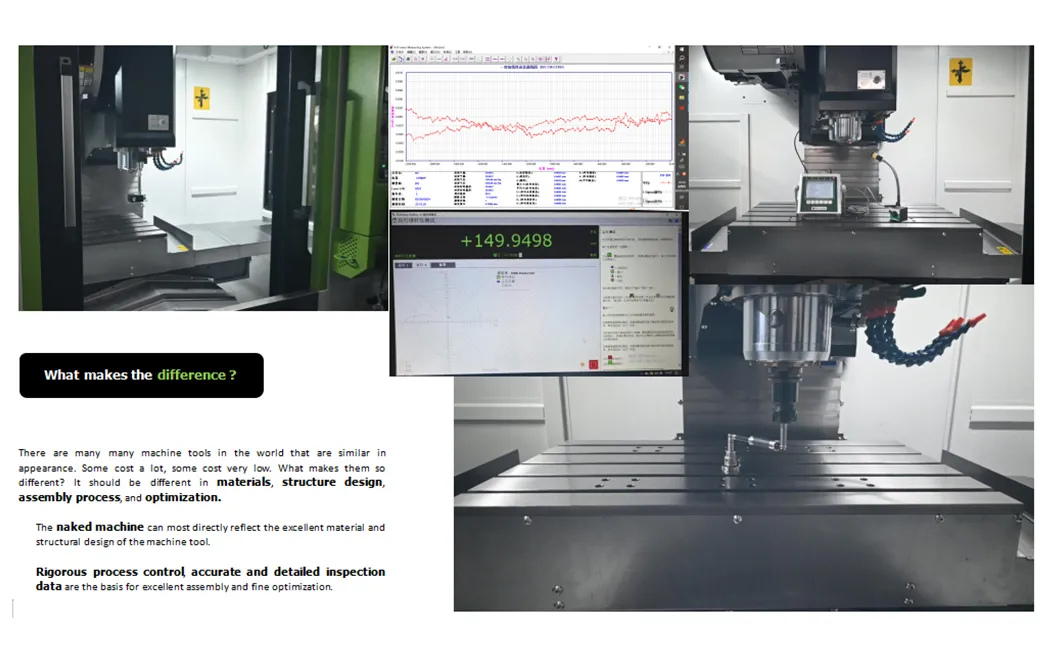

Processing Example
Control System
Precision Components
Quality Inspection
Technical Specifications Sheet
Frequently Asked Questions
What is the processing precision of the GRM series?
The processing precision for these CNC machine tools is maintained between 0.01mm and 0.02mm, ensuring high-quality output for complex metal parts.
Which control systems are used in these machines?
The standard configuration features the Mitsubishi M80B System. However, optional configurations for Fanuc and Siemens systems are also available.
Are the machines suitable for heavy-duty metal cutting?
Yes, the machines are specifically designed for metal-cutting processes using a closed-loop control method for stability and power.
What kind of spindle drive is used?
The series utilizes a Direct Drive spindle system, which provides better surface finishes and higher efficiency compared to traditional belt drives.
What safety and maintenance features are included?
Standard features include a fully enclosed cover, automatic lubrication system, spindle air curtain dust protection, and an electrical cabinet heat exchanger.
What certifications do your CNC machines hold?
All our machining centers are certified under CE and ISO 9001 standards, complying with international safety and quality requirements.
