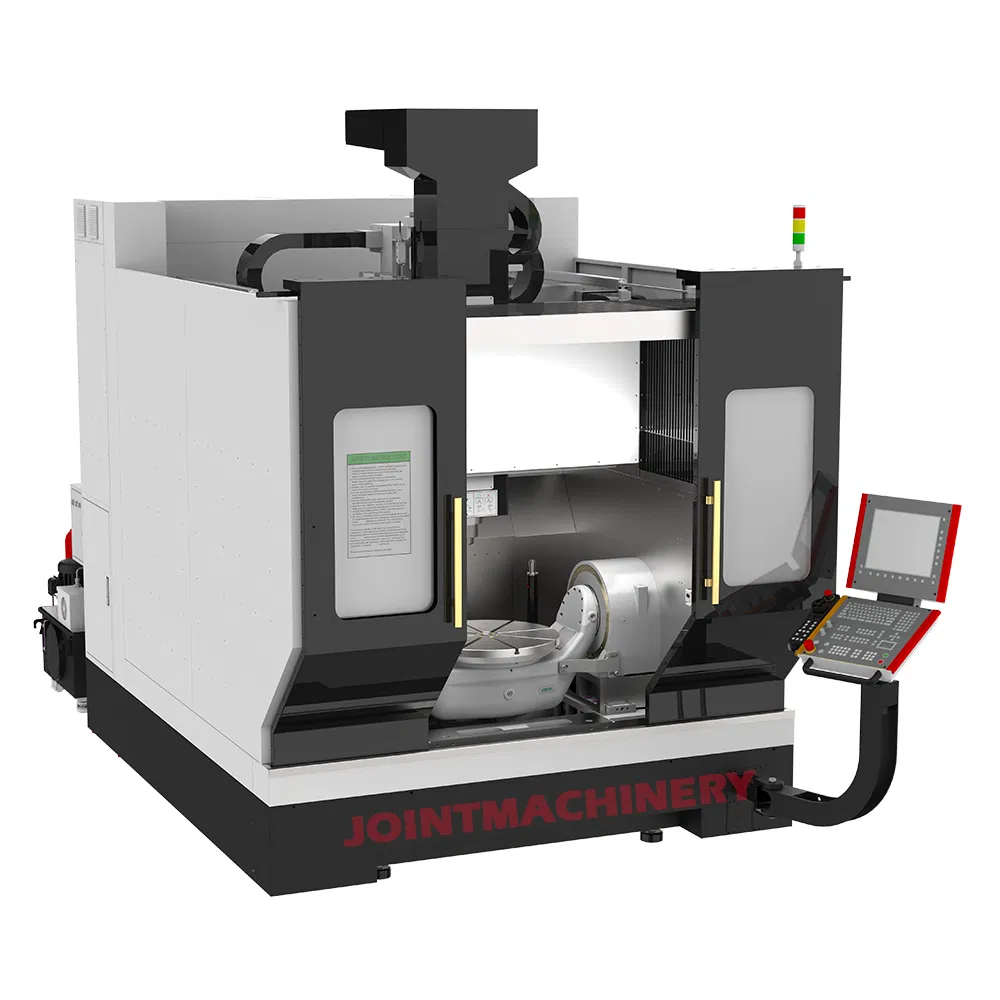

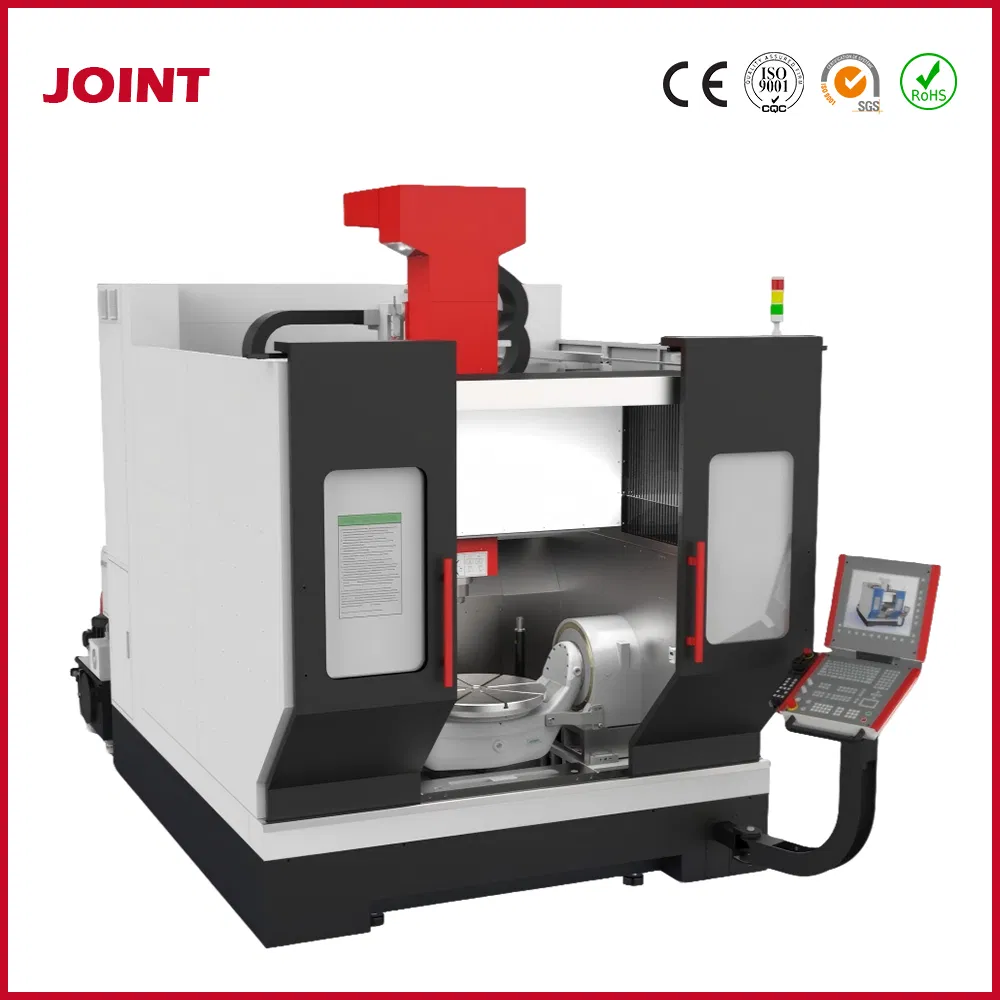

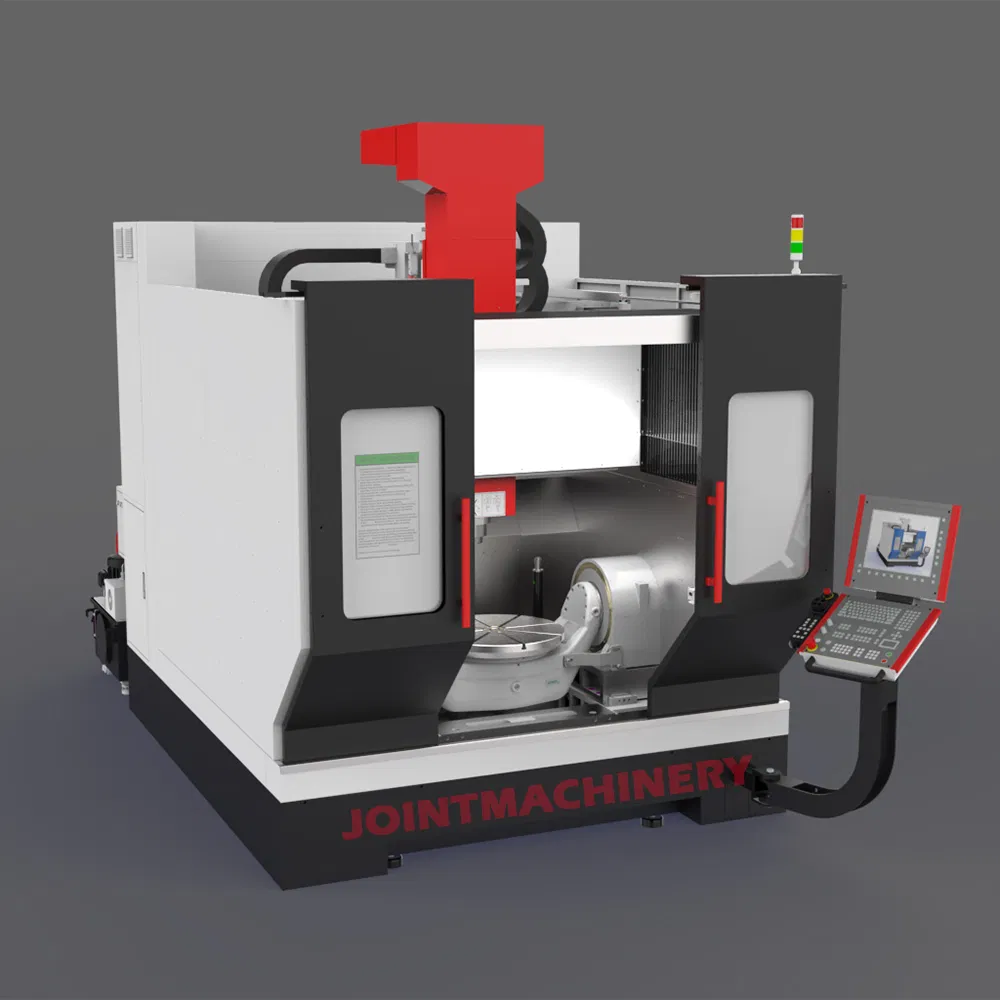

5-Axis Machining Center

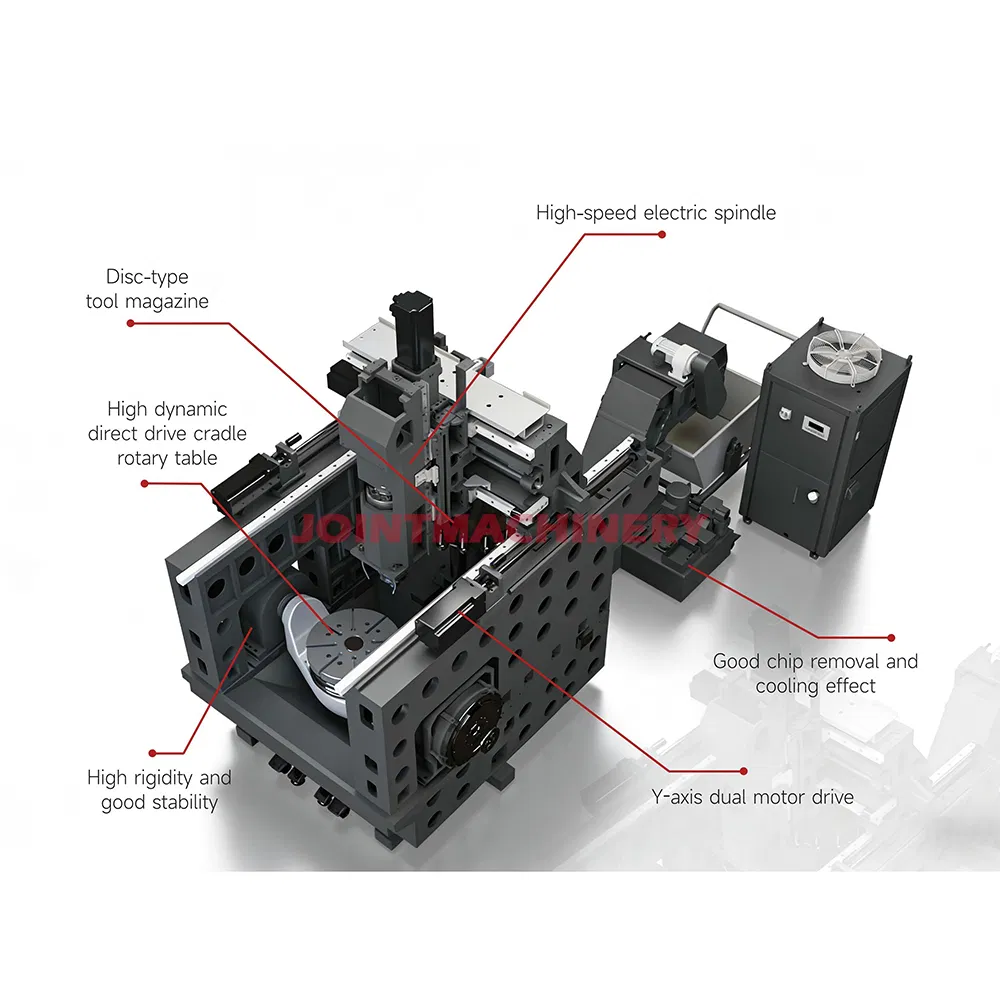

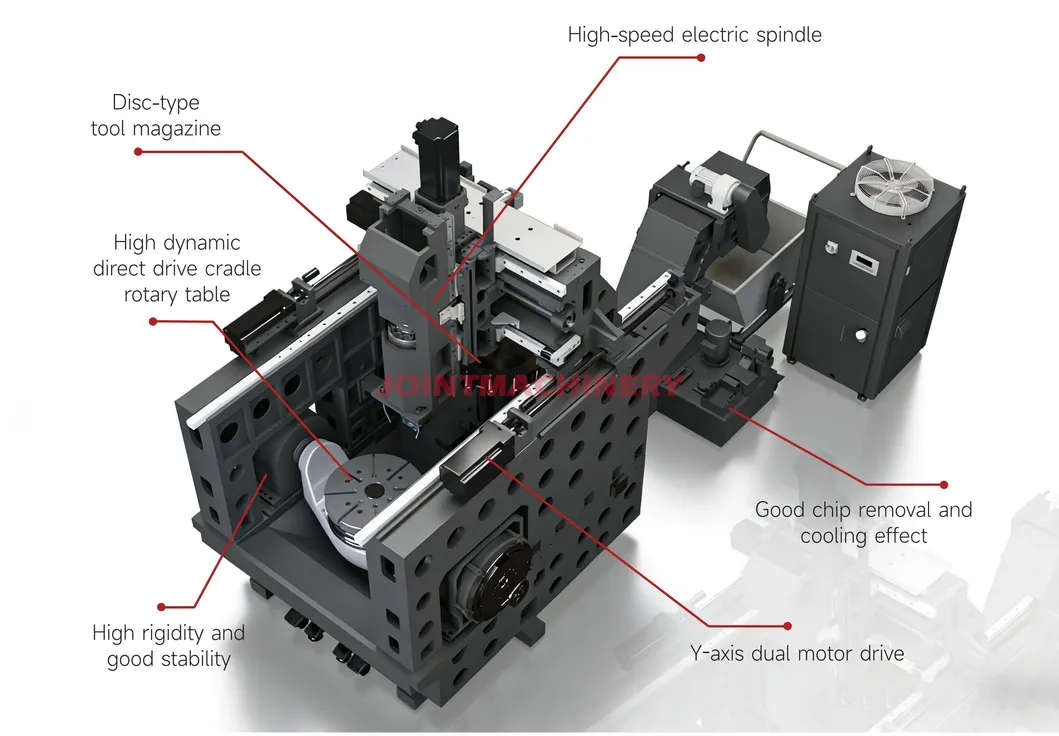

The overhead crane structure 5-axis CNC machining center is a high-precision and high-efficiency CNC machine tool. Utilizing a gantry frame design, the bed and crossbeam possess extremely high rigidity, making it ideal for heavy cutting and machining large workpieces, effectively reducing vibration and deformation.

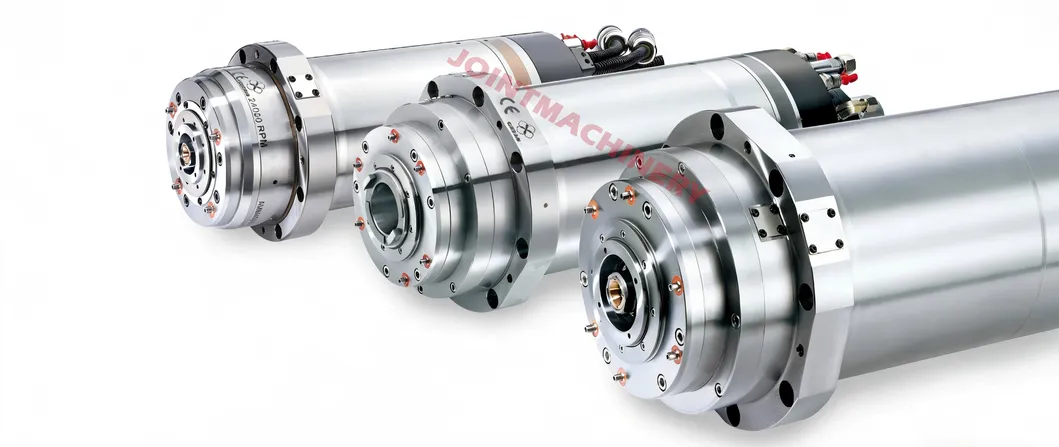

Built-in Spindle: High Torque, High Rotation Speed (HSK-A63 18000rpm). Ensures heavy cutting at low speeds and superior finish at high speeds.

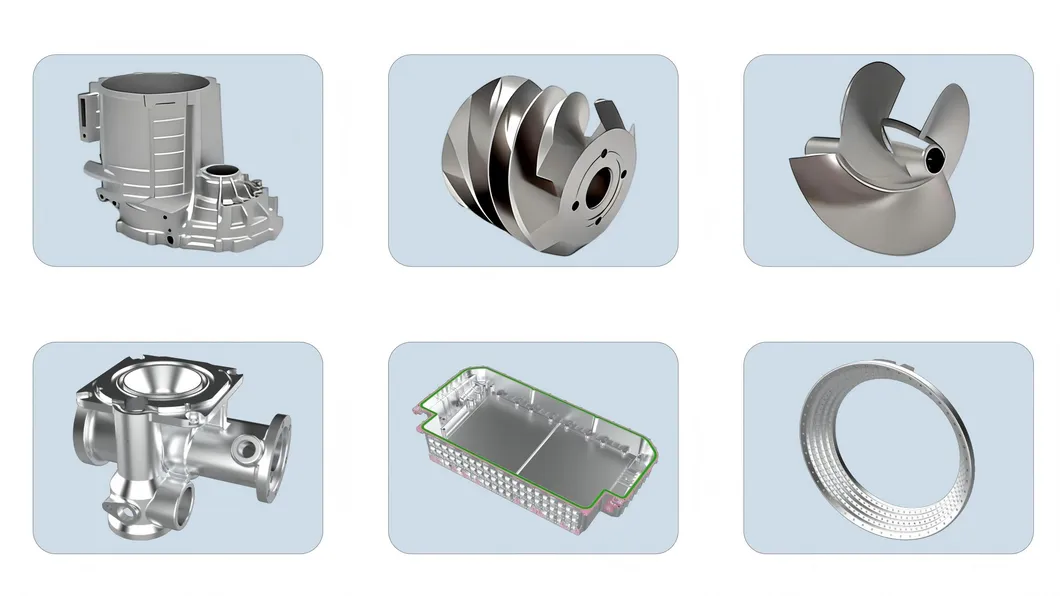

1. Aerospace: Titanium alloy wings and engine blades.
2. Energy Equipment: Hydroelectric turbine blades and nuclear components.
3. Mold Industry: High-precision injection and die-casting molds.
4. Transportation: Large structural components for ship and rail.
| Model | Description | Unit | MU-800 |
| Work Table | Work Table Size | mm | Φ 800 |
| Max Loading | Kg | 1200 | |
| Travel | X/Y/Z Axis Travel | mm | 850/850/1000 |
| Spindle Nose to Table | mm | 150-800 | |

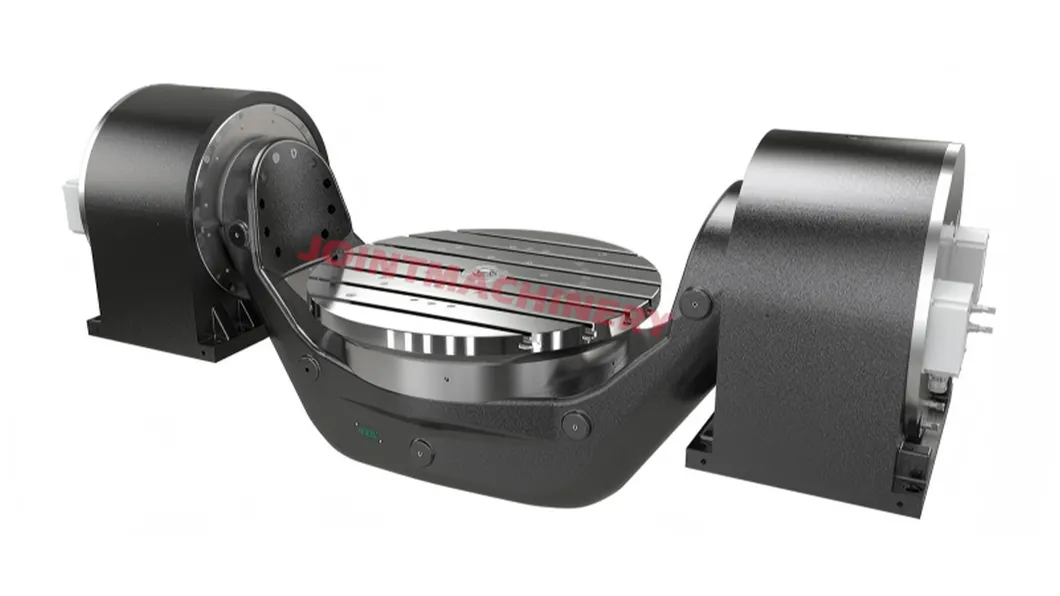

| A-axis Travel | / | ±120° | |
| C-axis Travel | / | ±360° | |
| Spindle | Max Rotation Speed | rpm | 50-20000 |
| Rated Torque | Nm | 71 | |
| Spindle Spec | / | HSK-A63 | |
| Feed | A/C Axis Drive Torque | Nm | 7800/3900 |
| X/Y/Z Max Feed | m/min | 30/30/30 | |
| A/C Max Feed | rpm | 60/90 | |
| Tools | Magazine Capacity | pcs | 24 |

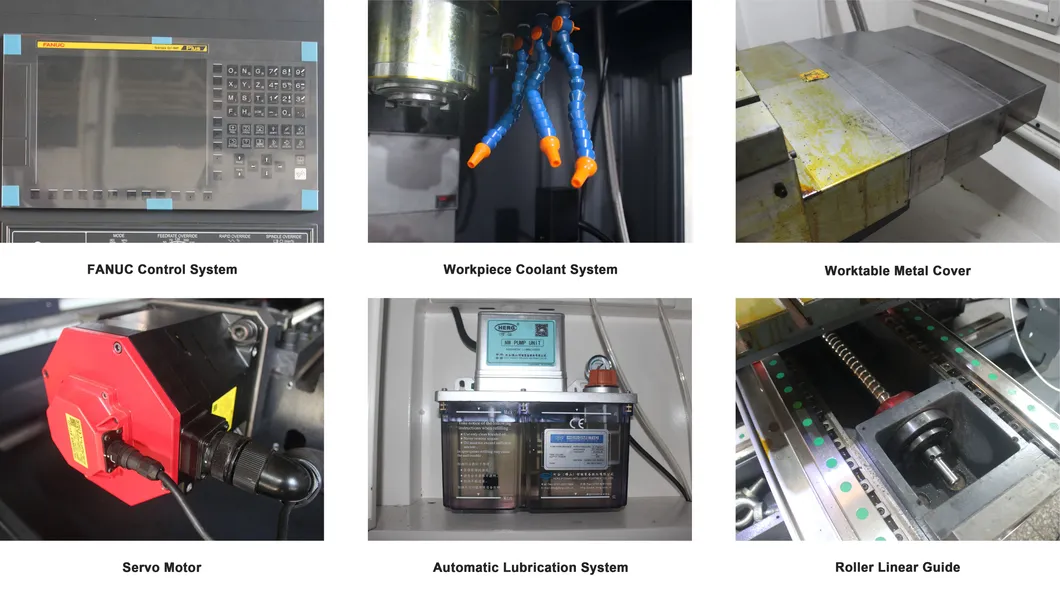

Standard Configuration

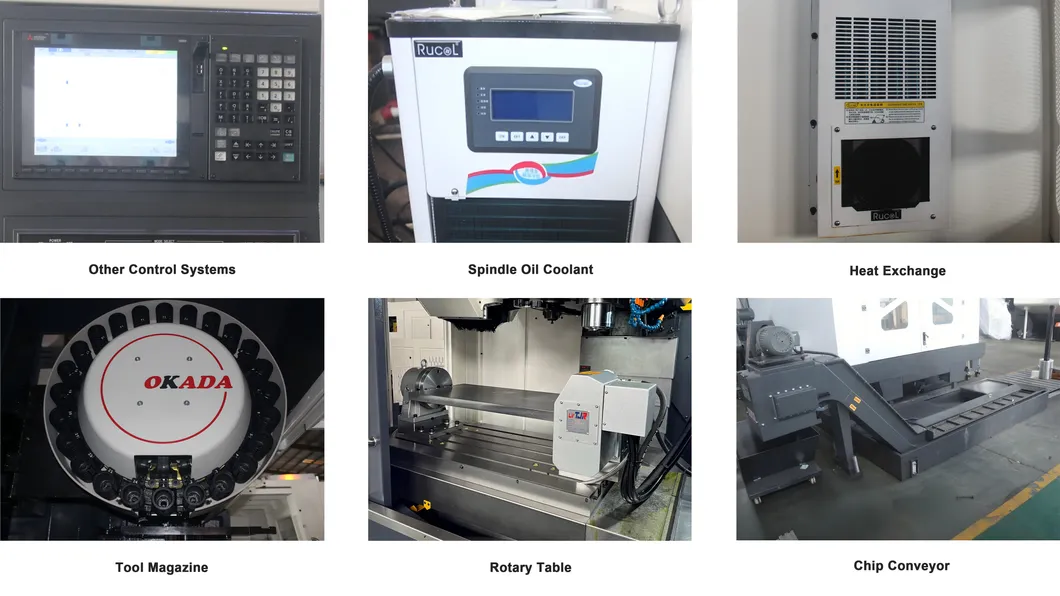

Optional Configuration
