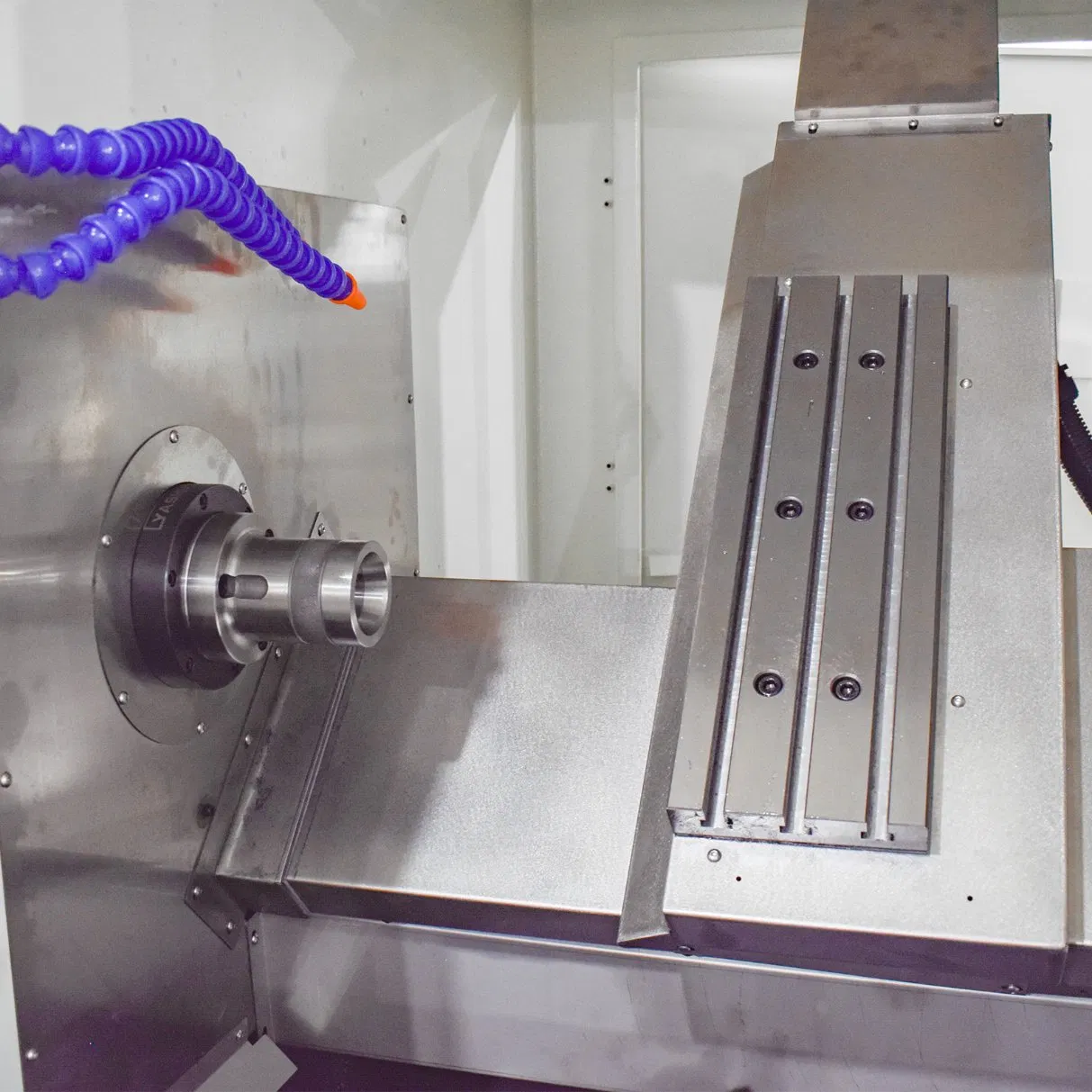

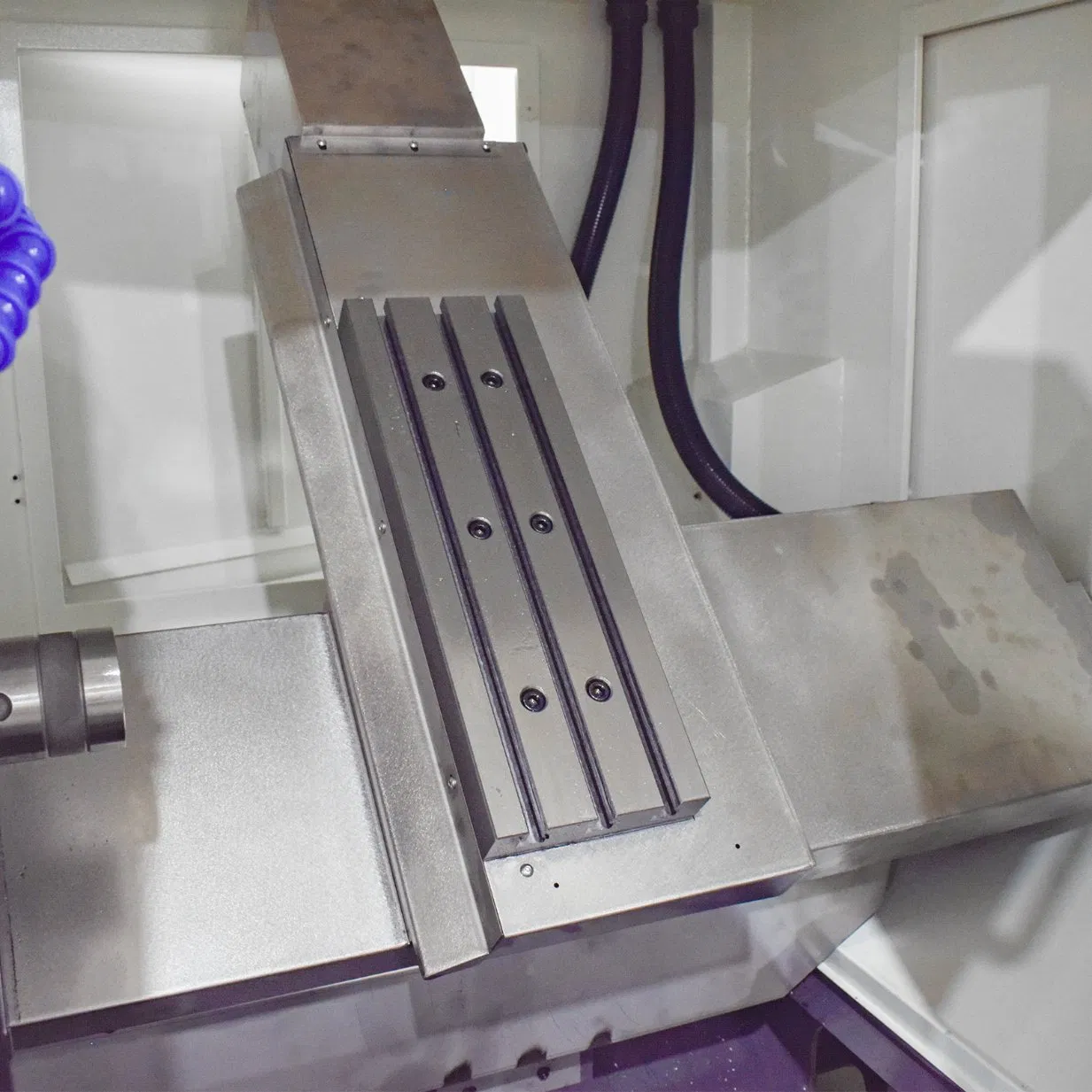

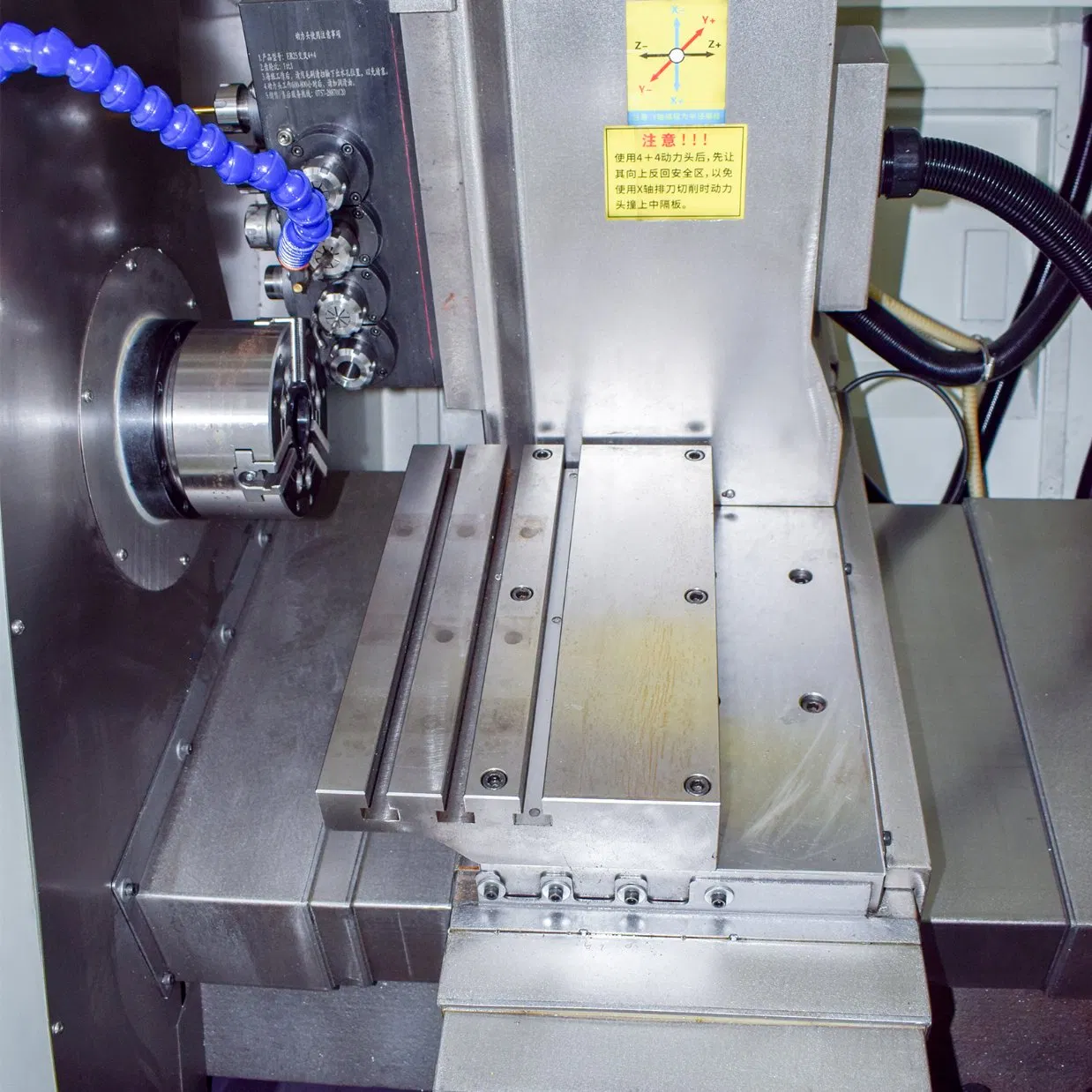

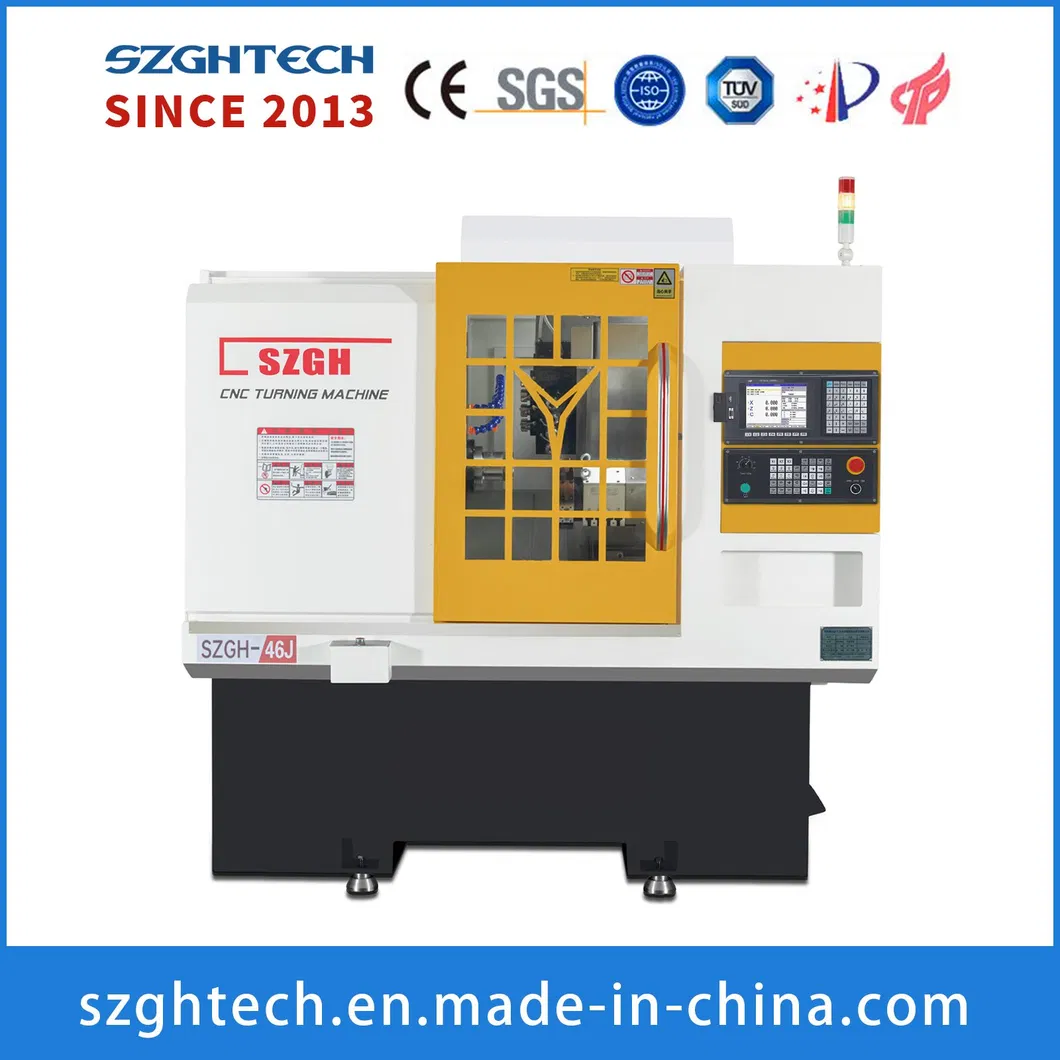

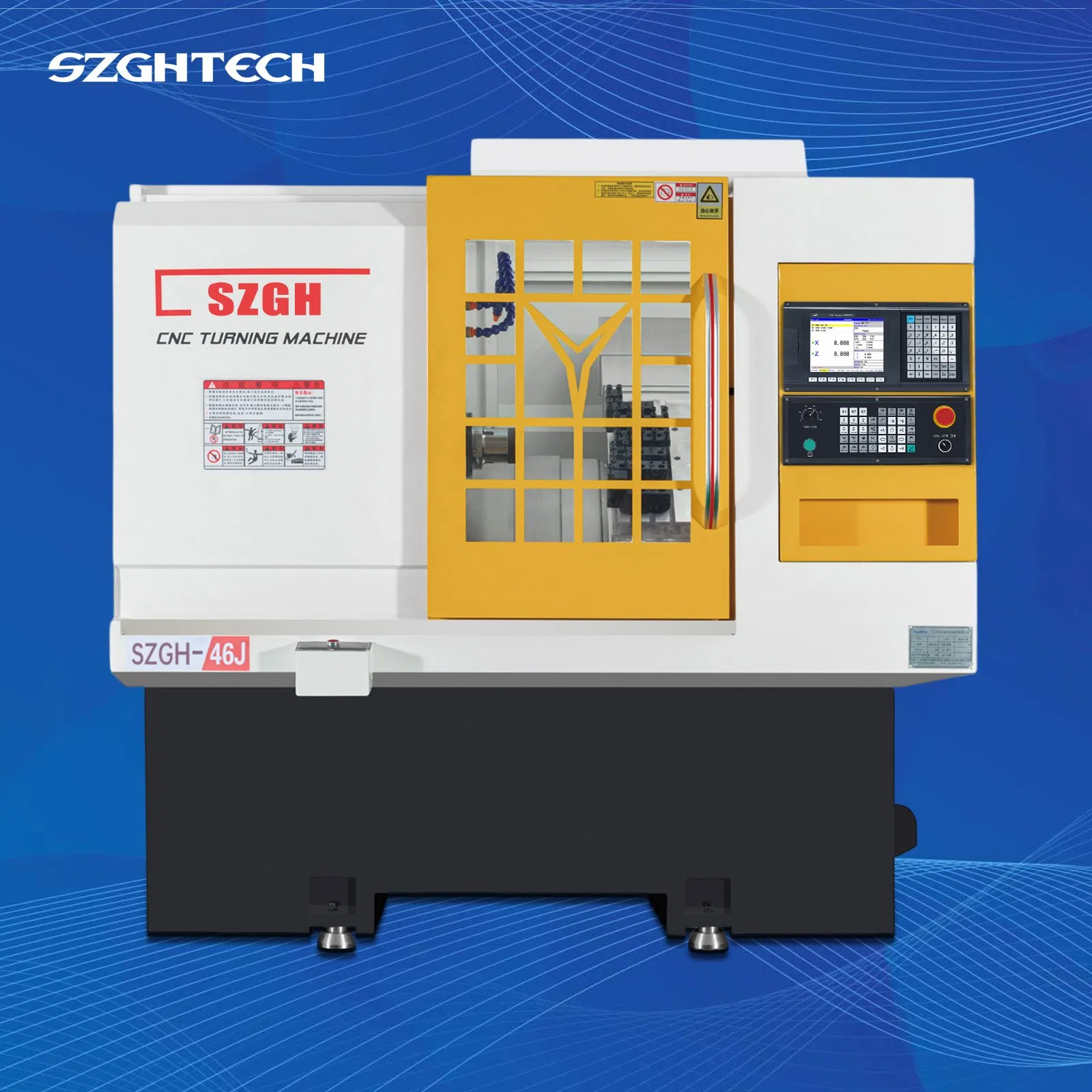

SZGH-46J Axis For Milling Slant Bed CNC Machine
The SZGH-46J CNC lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.
Adopting high precision CNC control package, making the process highly efficient!Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6.
| Category | Item | Unit | Standard Value | Max Value |
|---|---|---|---|---|
| Processing Capacity | Max. diameter of bar bore | mm | 45 | - |
| Max. particle diameter | mm | 400 | 420 | |
| Max. length of workpiece | mm | 380 | 400 | |
| Machining accuracy | mm | ±0.0075 | - | |
| Travels | X-axis effective travel | mm | 1000 | - |
| Z-axis effective travel | mm | 400 | - | |
| Spindle | Max. Spindle Speed | rpm | 3500 | 4000 |
| Spindle Motor Power | kW | 5.5kw servo | 7.5kw servo |
1) 2-5 Axis Fully English Type CNC lathe controller.
2) 800x600 8.4 inch real color LCD displayer.
3) Support ATC, Macro function, and PLC function.
4) Max speed 60m/min, feeding speed 24m/min.
5) 32 bits ARM microprocessor + FPGA Technology.
