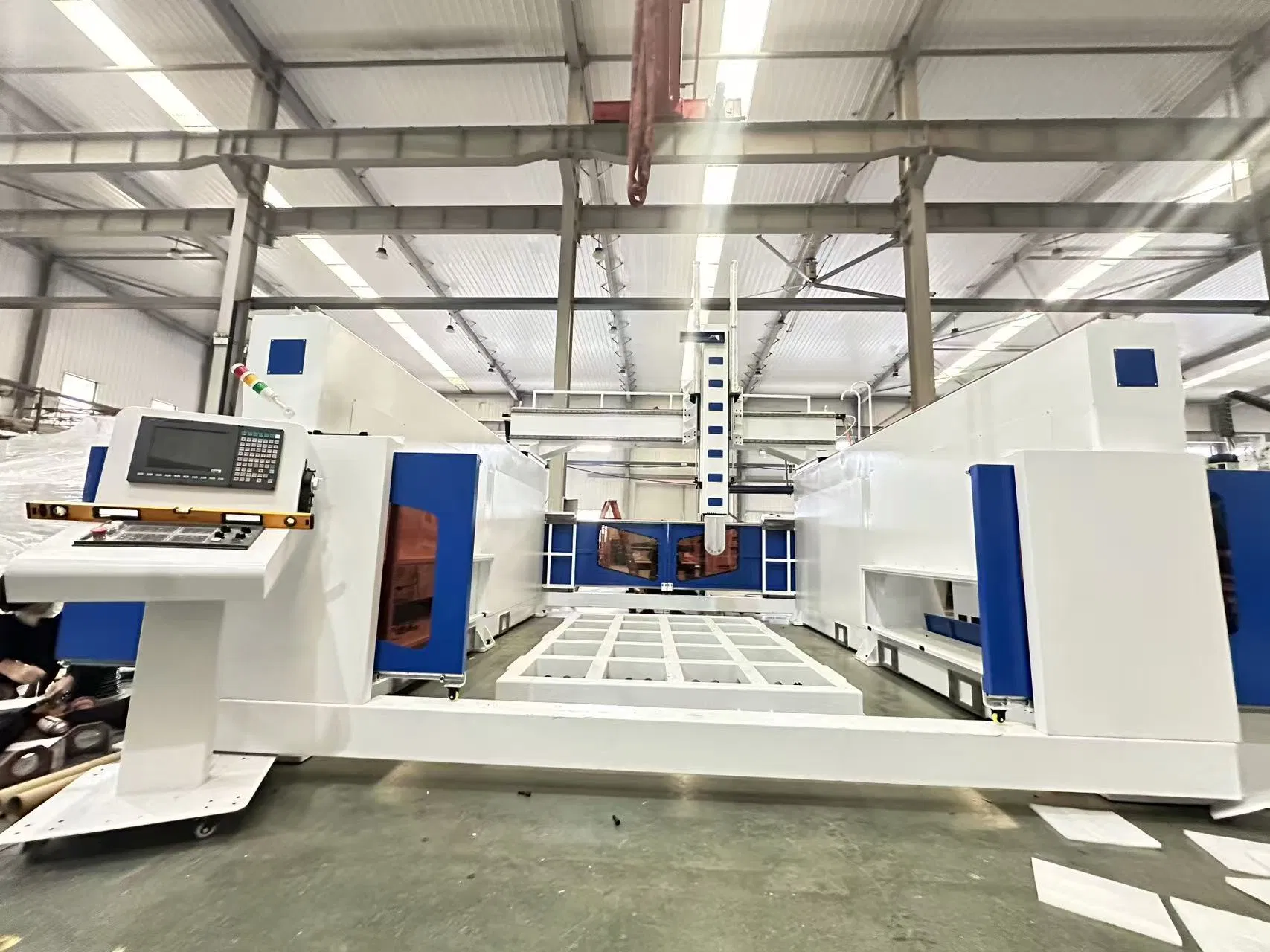

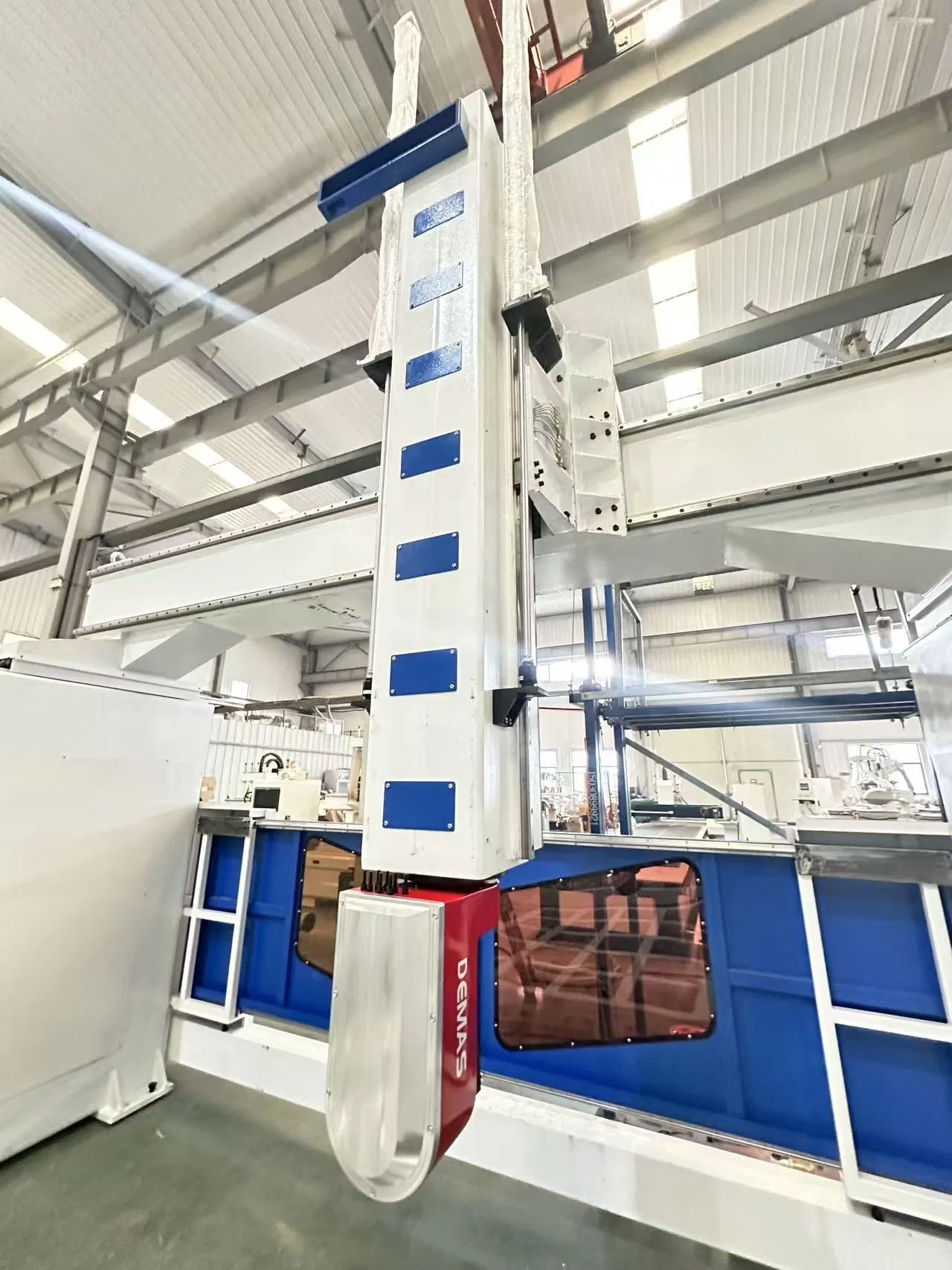

The New Wood Router Cutter 5 Axis Machining CNC Router Kitchen Cabinet Making Machine is a high-performance 5 Axis CNC Milling Machine designed for precision and versatility in mold making and furniture production.
| Basic Specifications | |
|---|---|
| Model NO. | RSKM25-B |

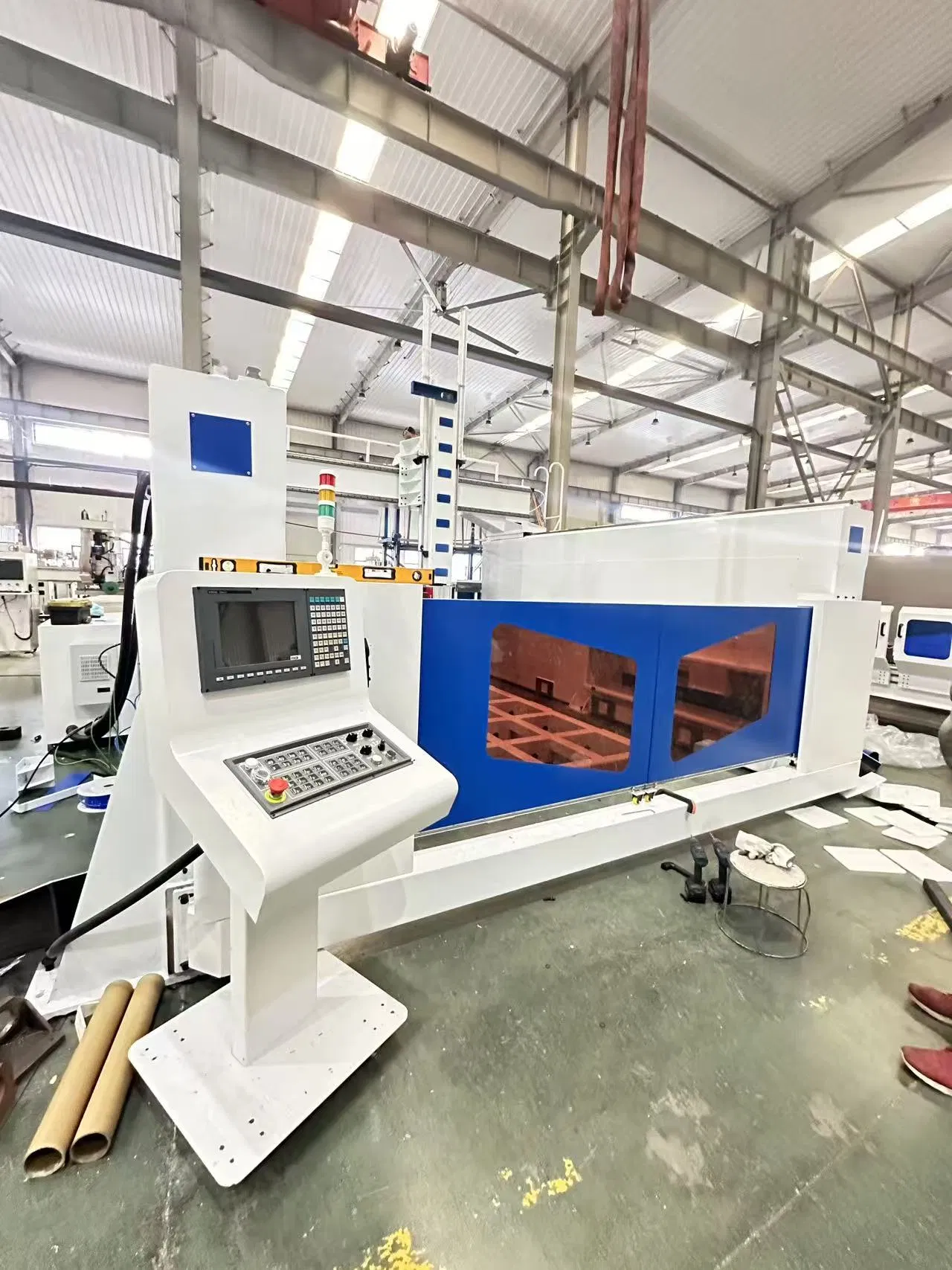

| Controlling Mode | CNC (RTCP Function Included) |

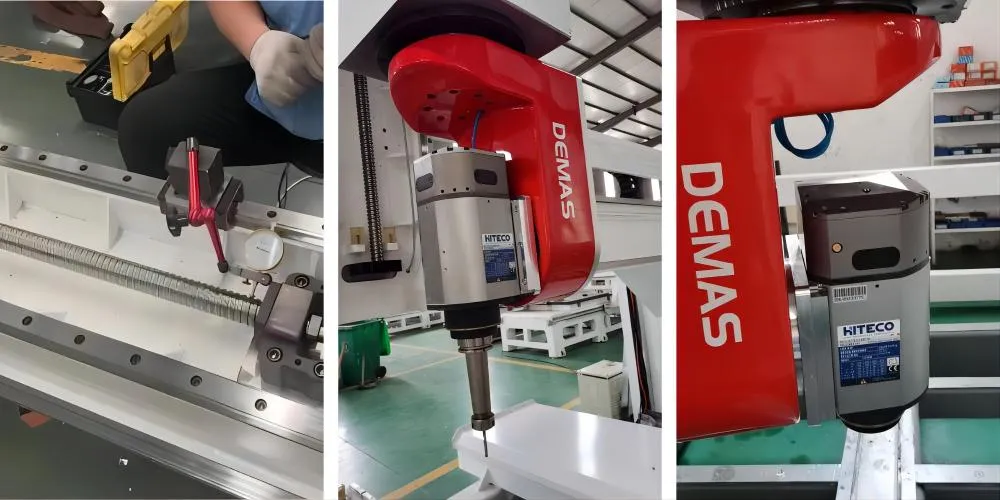

| Spindle | ATC 5 Axis Italy Hiteco 13kw/15kw |
| Motor | Syntec 1.3kw Servo Motor Drivers |
| Working Size | 2000mmx4000mm / 2000mmx6000mm (Customized) |
| 5 Axis Head | Germany Dames 5 Axis Head |

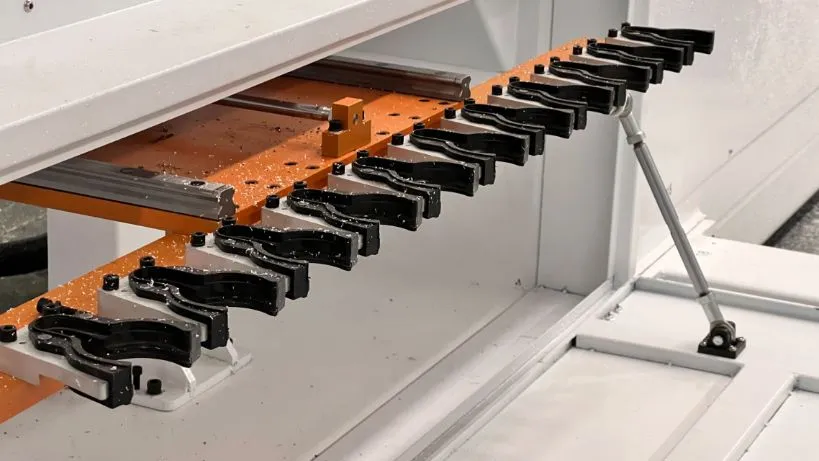

| Tool Magazine | Linear Tool Magazine 10-20 PCS |
| Rails | Hiwin 45 / PMI 45 Rails |
| Rotary Speed | 0-24000rpm |

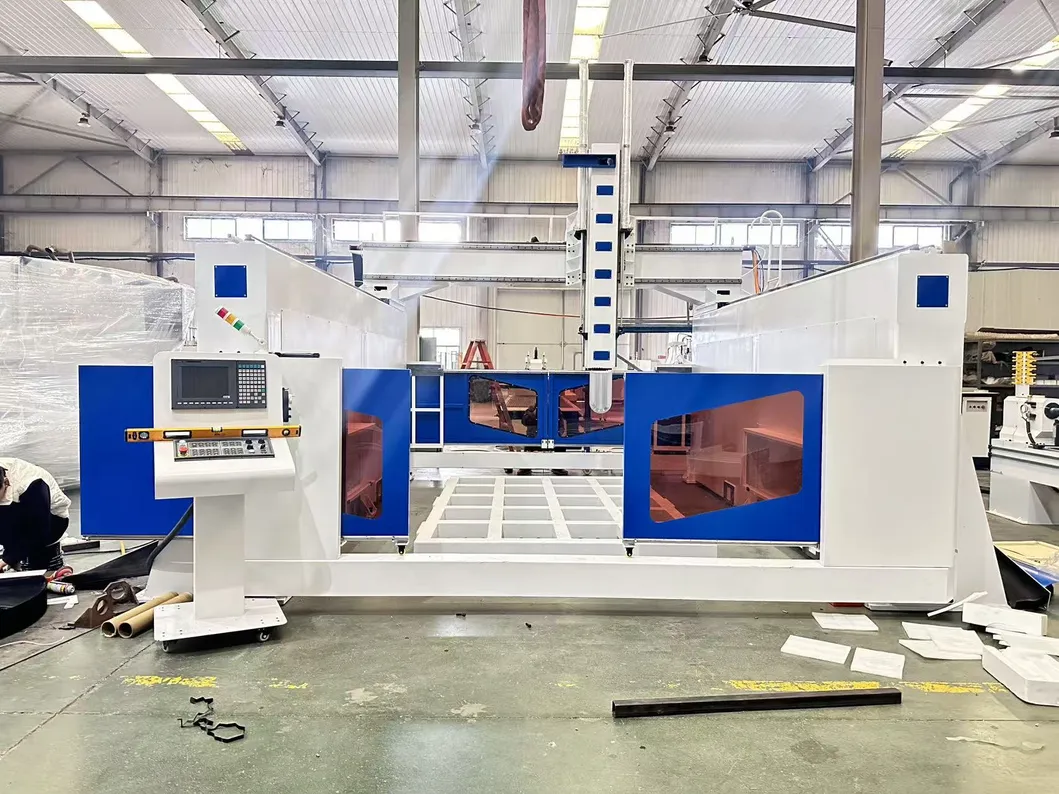

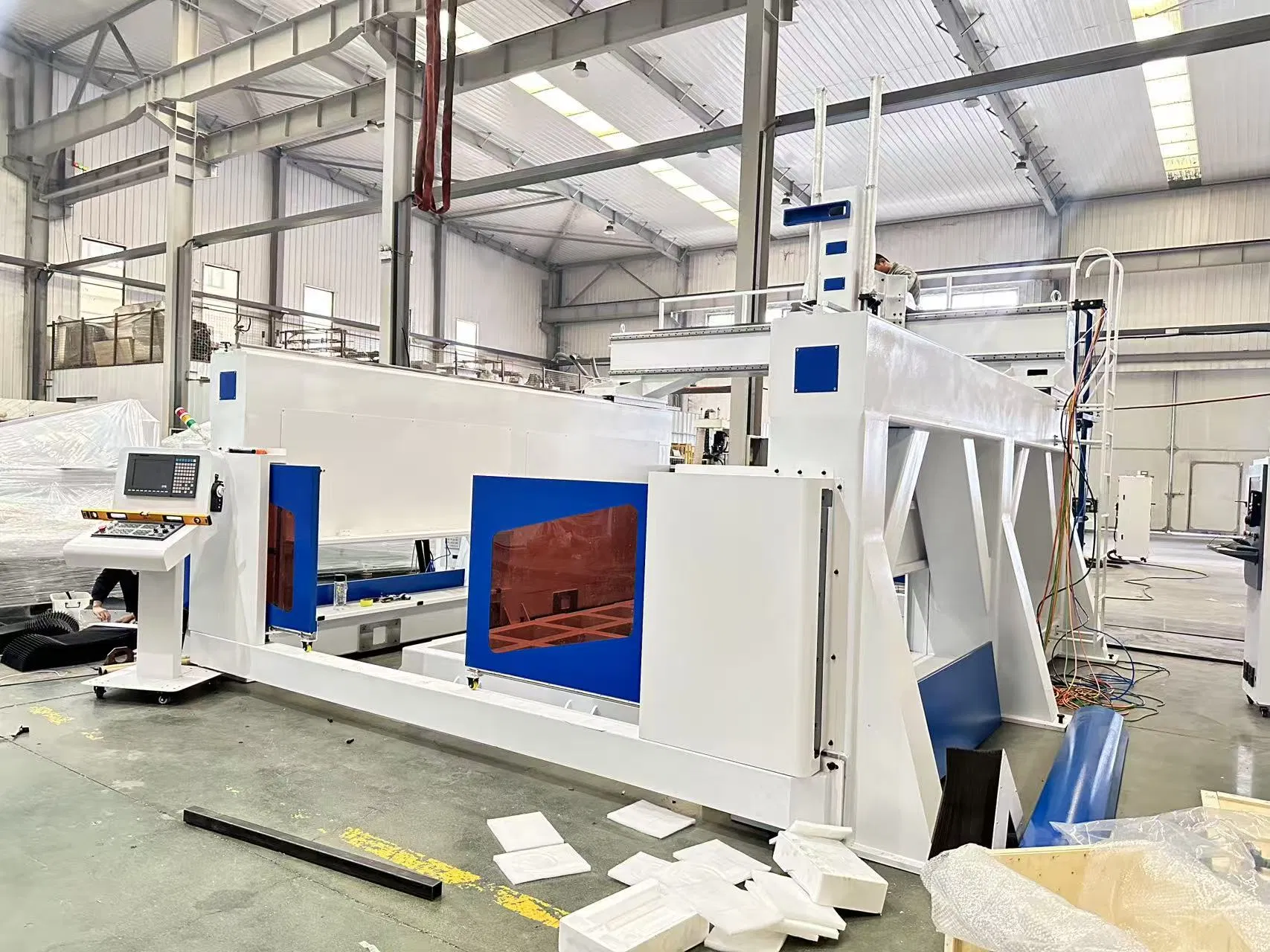

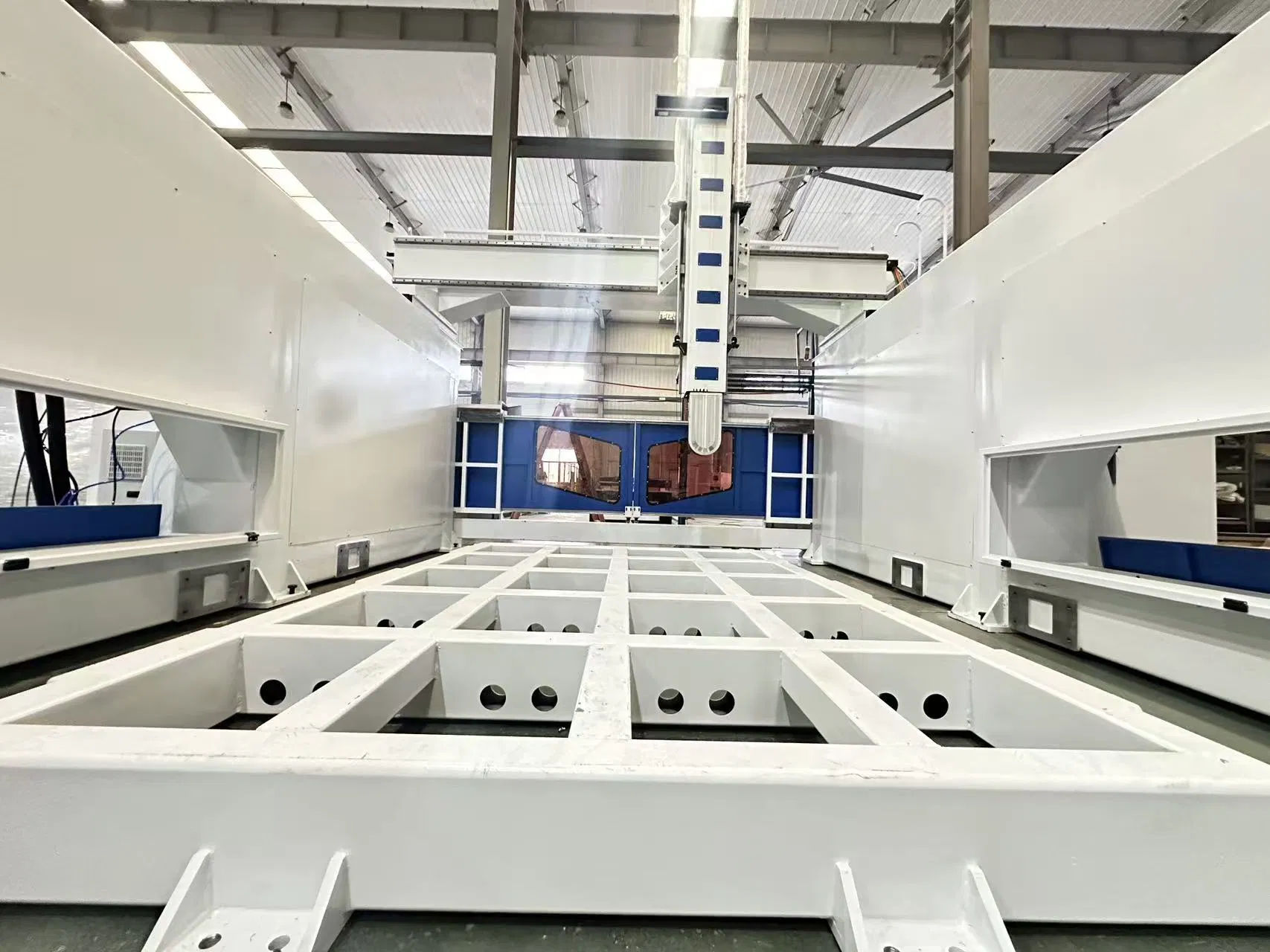

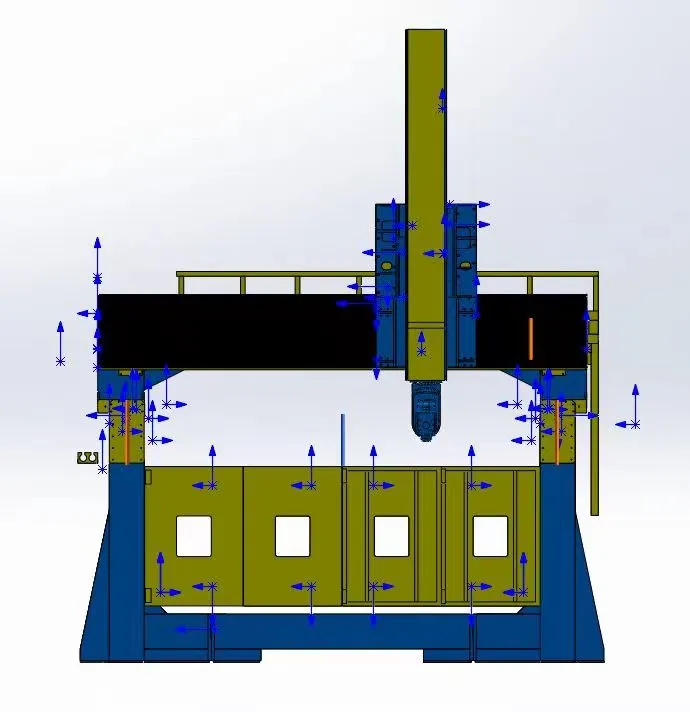

This large working size Mould CNC 5 Axis Milling Router Machine features a 360-degree swing head designed for Foam, Wood Plug, Wood Deck, and other complex materials. It is primarily utilized in automotive and boat model industries for mold fabrication, offering high precision and rapid milling speeds.

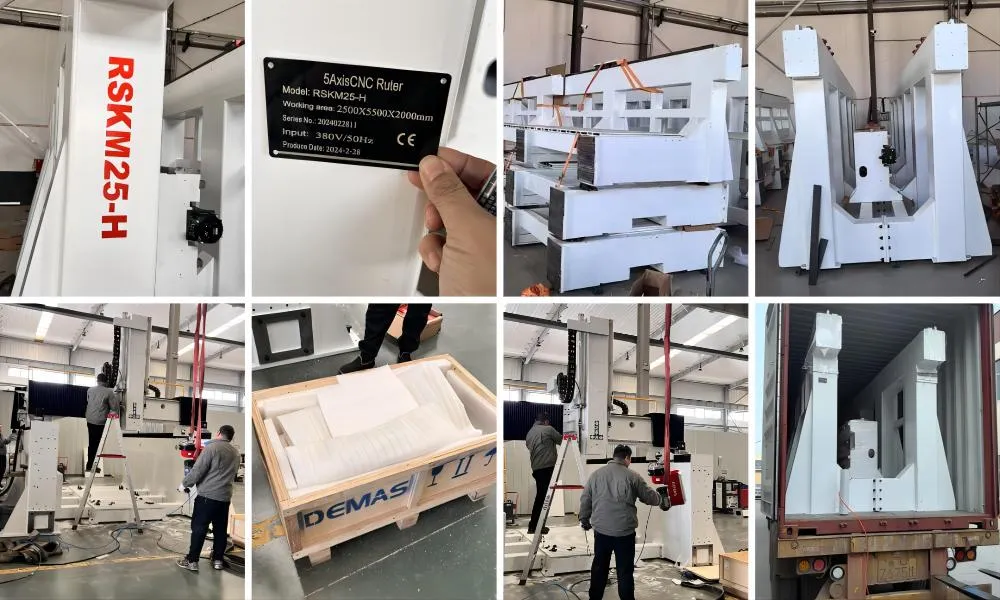

The machine delivery process involves professional disassembly of the gantry, Y-axis supporters, and electronic boxes to ensure safe transit. All components are secured in plywood boxes or loaded directly into containers under expert guidance.
