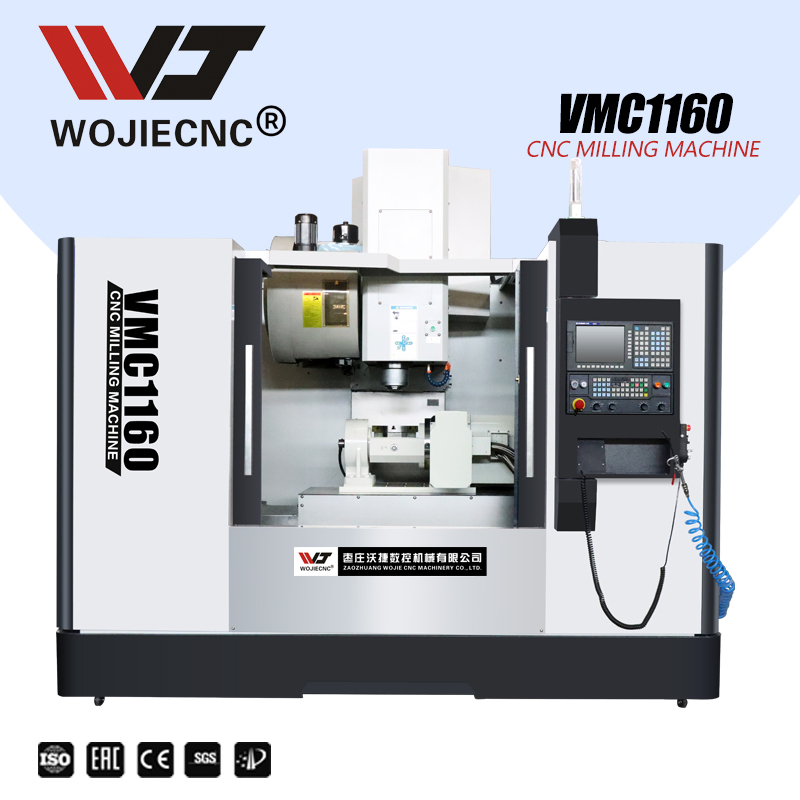

5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
1 / 5
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options
5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options

5 Axis CNC Machining Center Vmc1160 Bt40 Spindle 8000rpm 24 Atc Fanuc Multi-Control Options

Customization: Available
After-sales Service: Online Services
Warranty: 2 Years
Send Inquiry

Product Description

● Basic Information
Model NO.
VMC1160
Application
Metal Processing
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Certification
CE, ISO 9001, EAC
Machine Type
Vertical Machining Center
Spindle Speed
8000rpm (Options available)
Worktable Size
1200*600mm
X/Y/Z Travel
1100*600*600mm
Body Casting
HT300 High-strength Cast Iron
● Product Description

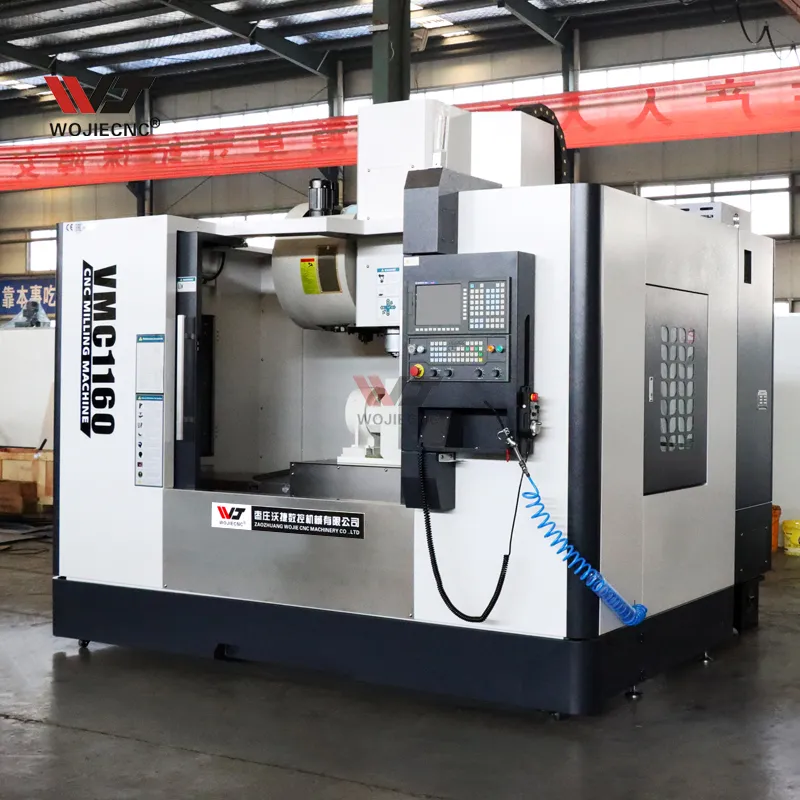

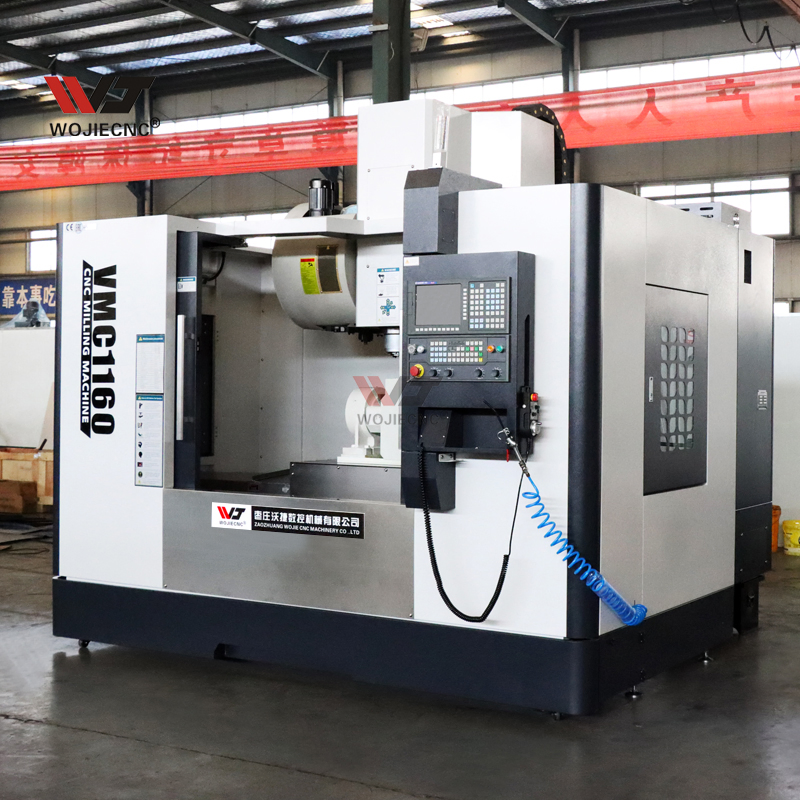

CNC Machining Center VMC1160

VMC series machines are high-precision solutions widely utilized across multiple industries:

  • Automobile Manufacturing: Processing engine parts, gearbox components, and chassis units.
  • Aerospace Industry: Meeting extreme precision requirements for complex aerospace components.
  • Electronic Communication: Manufacturing precision electronic parts and communication equipment.
  • Mold Manufacturing: Ideal for plastic molds, die-casting, and stamping molds.
  • General Machinery: Versatile enough for a wide range of mechanical part processing.
● Technical Parameters
  • Positioning accuracy
    • Specifications VMC1160 Details
    X/Y/Z axis travel1100/600/600mm
    Spindle nose to worktable120-720mm
    X/Y/Z Axis rapid speed30/30/24 m/min
    Cutting feed rate1-10000mm/min
    Worktable size1200×600mm
    Worktable max loading800kg
    Spindle speed8000/10000/12000rpm
    Spindle taperBT40
    0.005mm
    Machine weight7000KG
    ● Detailed Component Photos

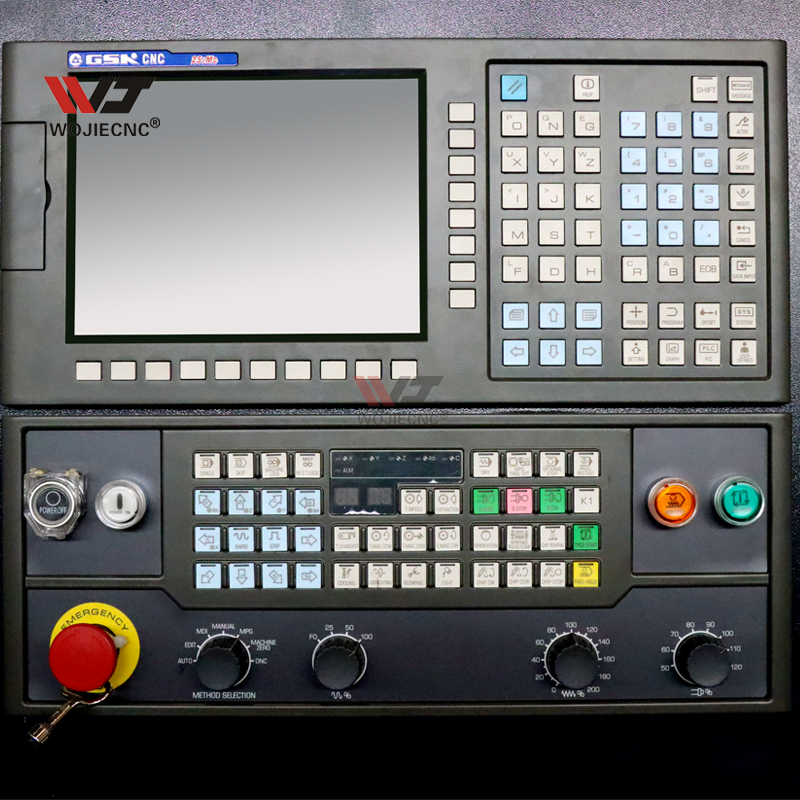

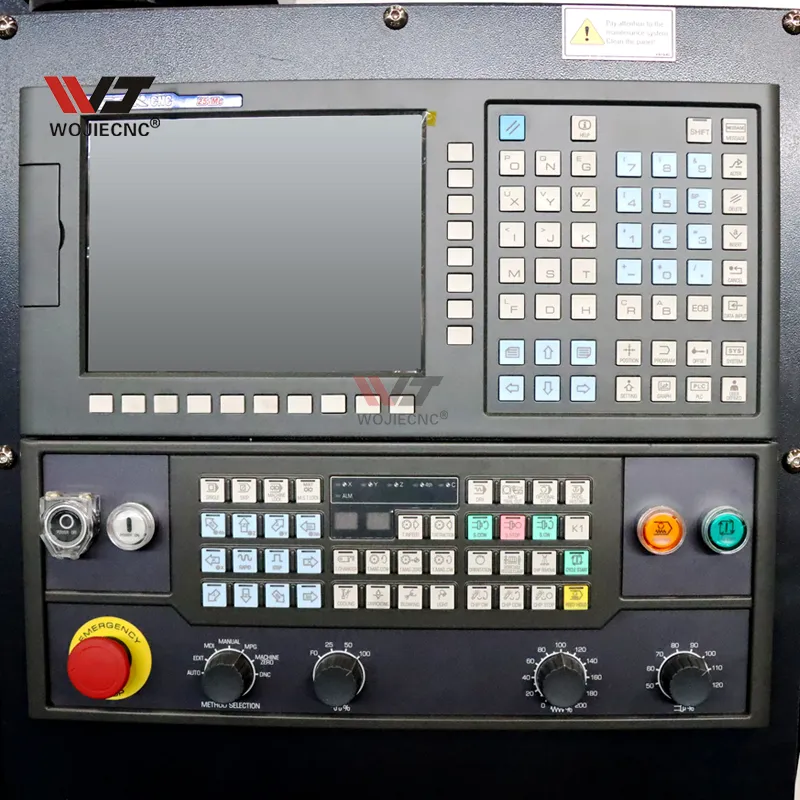

    Control System

    Control System (GSK/Siemens/Fanuc/Syntec)

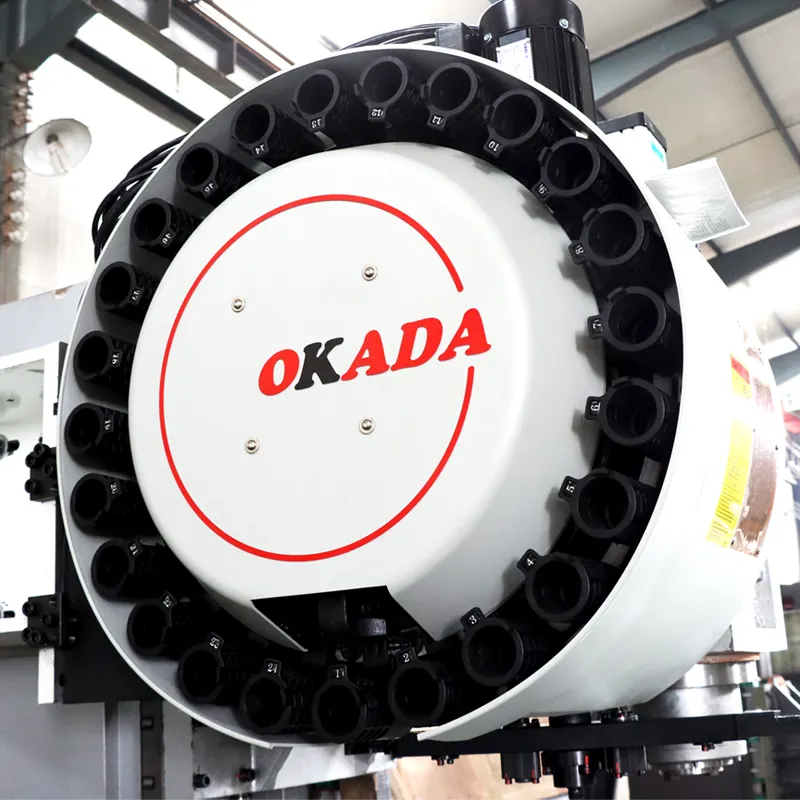

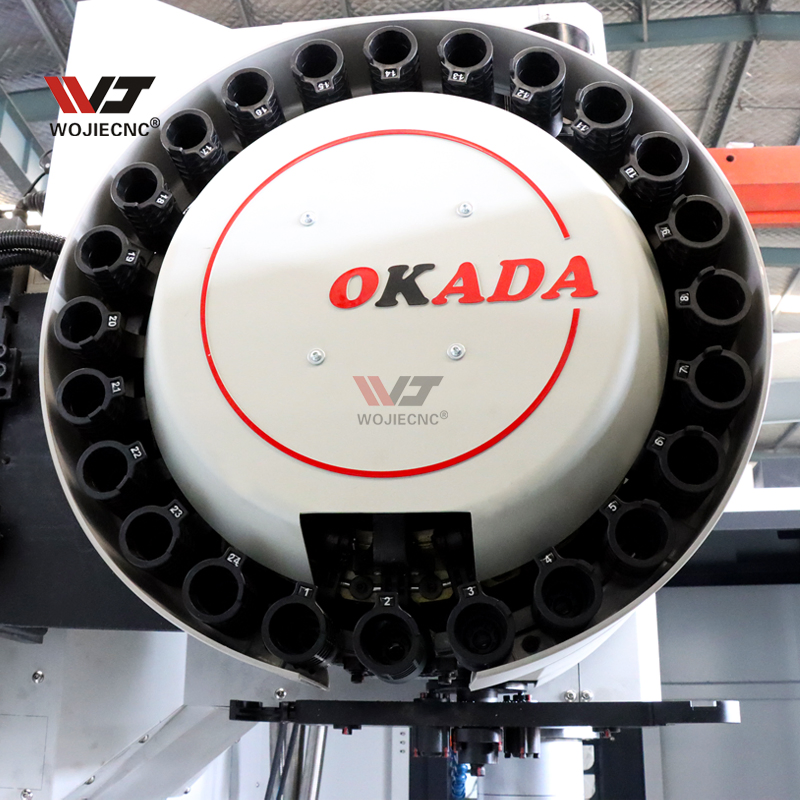

    ATC System

    24T Arm-type Tool Magazine

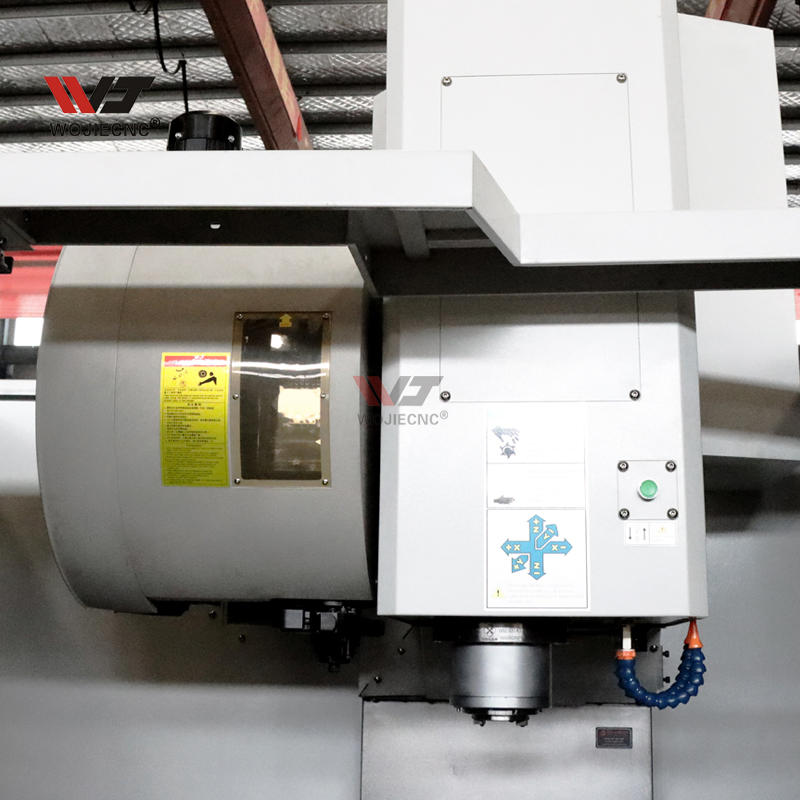

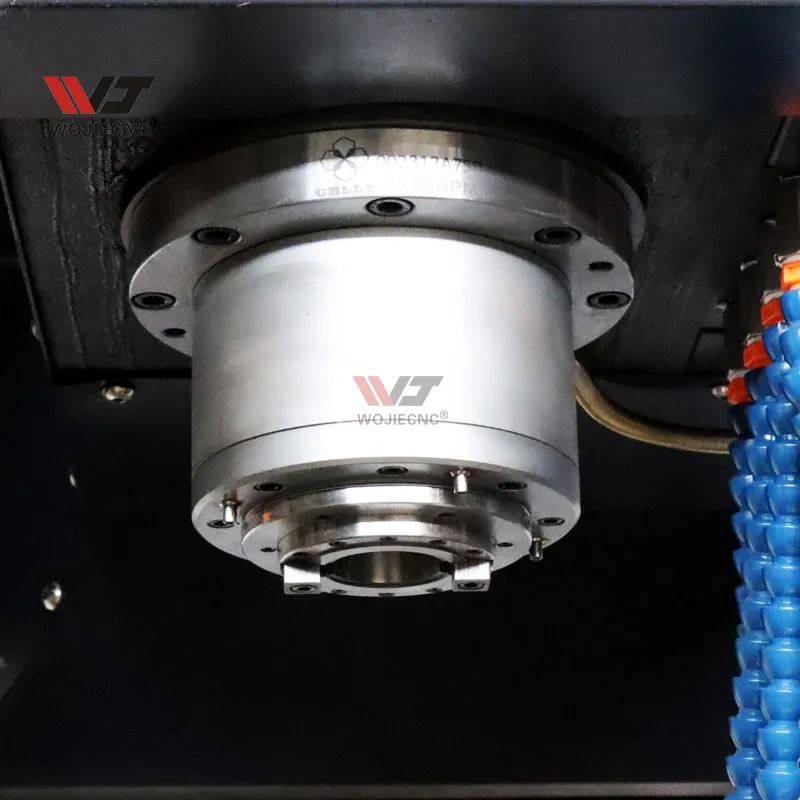

    Spindle

    High-Quality Taiwanese Spindle

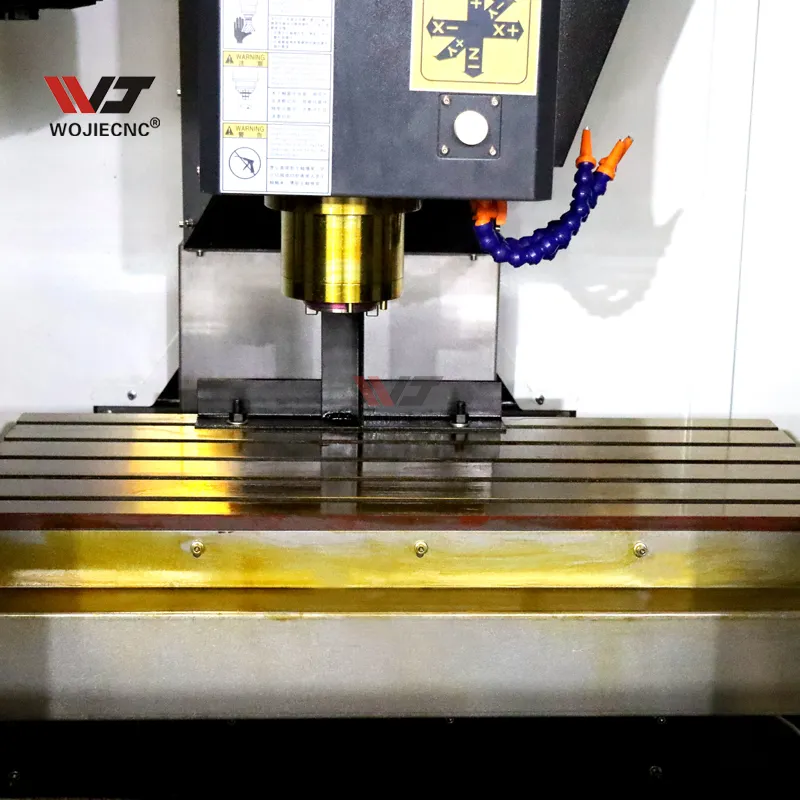

    Workbench

    High-frequency Quenched Workbench

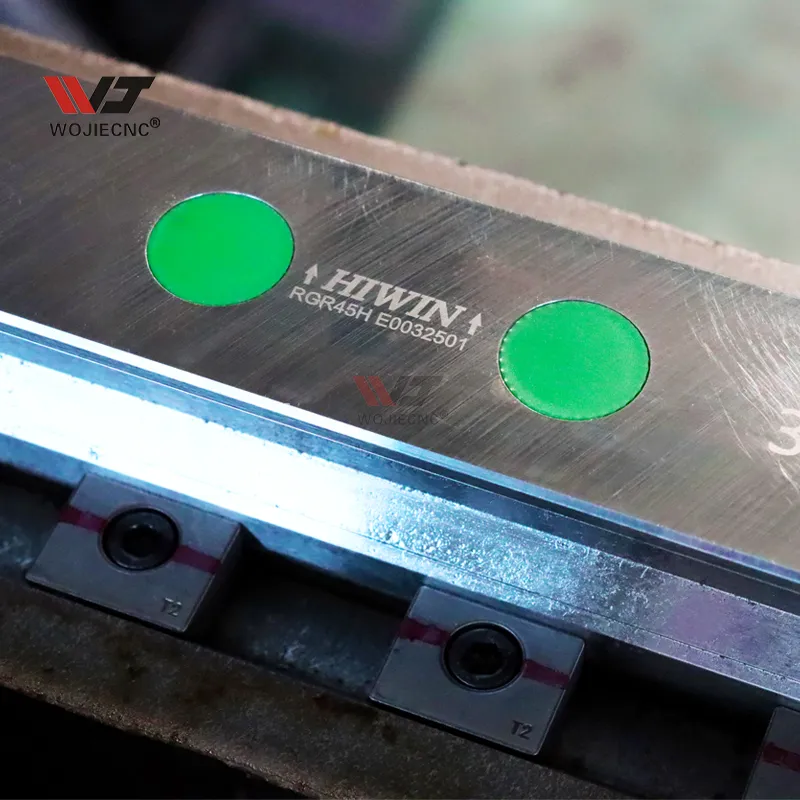

    Linear Guide

    3-Axis Precision Linear Guide

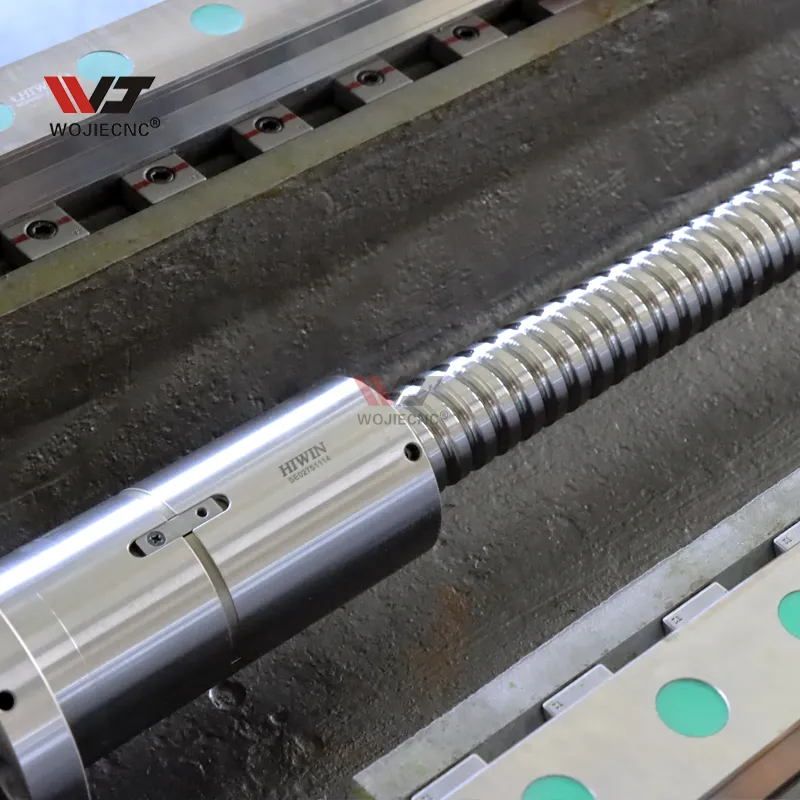

    Lead Screw

    High-precision Taiwanese Lead Screw

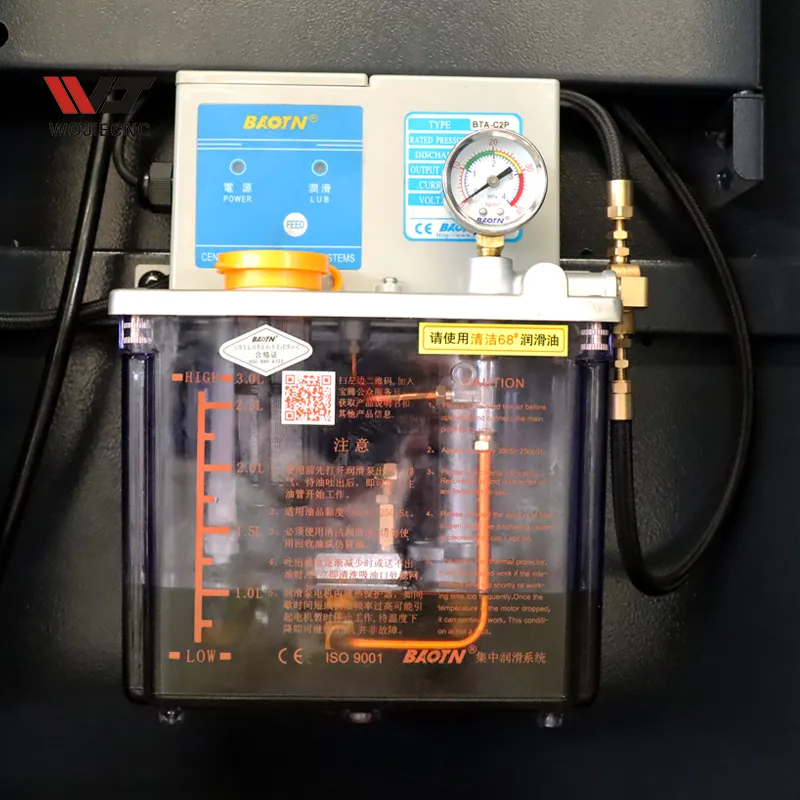

    Lubrication System

    Centralized Lubrication System

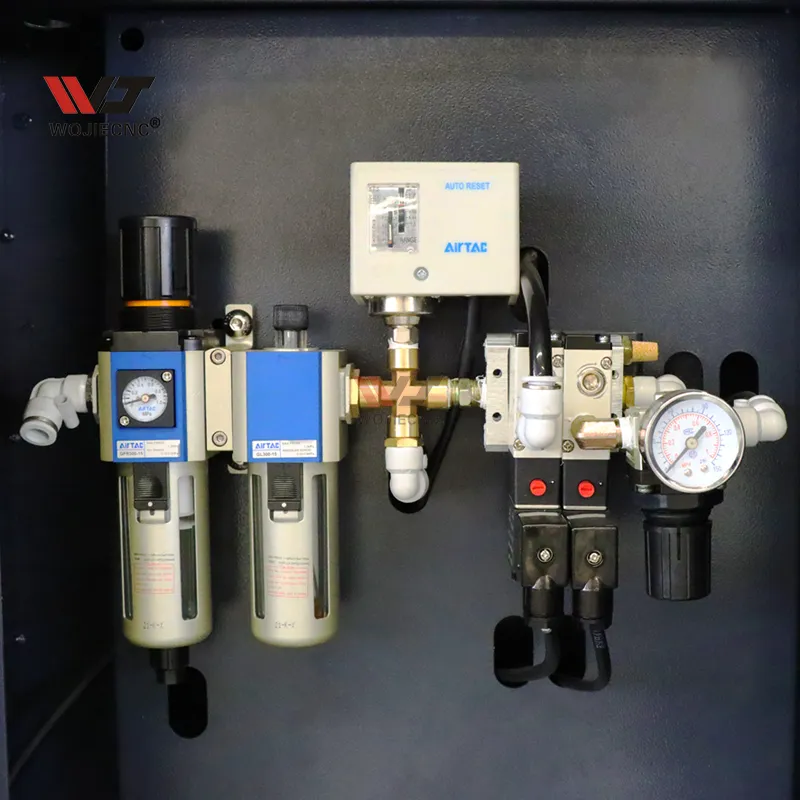

    Pneumatic System

    Electronic Pneumatic Stability System

    ● Optional Accessories
    Optional Accessories List
    ● Production Capability & Services

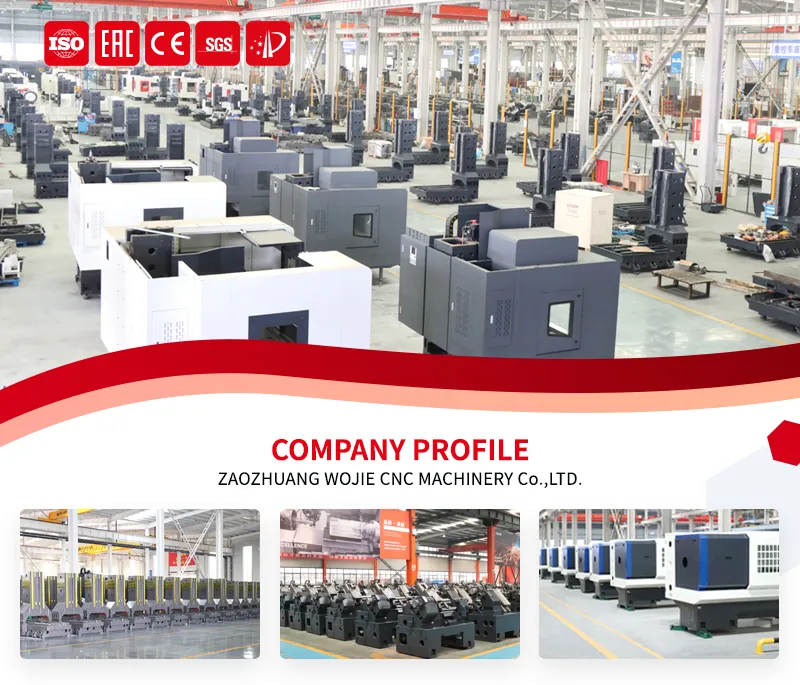

    Factory Overview
    • Factory span of over 60,000m² with a dedicated workforce of 150+ professionals.
    • Rigorous quality control with a 24-step testing process for every machine.
    • Over 30 years of expertise in CNC machine tool manufacturing.
    • Global reach with customers in more than 150 countries worldwide.
    • Strong partnerships with global leaders like SIEMENS, FANUC, and SYNTEC.
    • Comprehensive ODM/OEM support and a 24-month warranty period.
    ● Professional Certifications
    CE and ISO Certifications
    ● Frequently Asked Questions
    What are the available payment terms for orders?
    We accept T/T (30% down payment, 70% balance before shipment) and irrevocable L/C at sight. Production begins upon receipt of the advance payment, and inspection via photos/videos is provided before final dispatch.
    What is the typical delivery timeframe?
    Standard machines can be prepared within 15 days. For specialized or customized equipment, the timeframe is approximately 30 days. Some popular models are kept in stock for immediate shipment.
    What range of machinery do you manufacture?
    We specialize in a comprehensive range of CNC milling machines, vertical machining centers, CNC lathes, hydraulic presses, and conventional machine tools.
    What are the international trade terms supported?
    We support various international trade terms including FOB, CFR, CIF, DDP, DAP, and FCA to accommodate our global clients' logistics needs.
    What are the warranty and service policies?
    The minimum order quantity is 1 set. We provide a 2-year warranty period alongside lifetime technical service for all our machines to ensure long-term operational stability.
    How is the equipment packaged for international shipping?
    All machines are secured on metal pallets, treated with a moisture-proof coating, and fully enclosed in durable plywood crates for maximum protection during transit.
