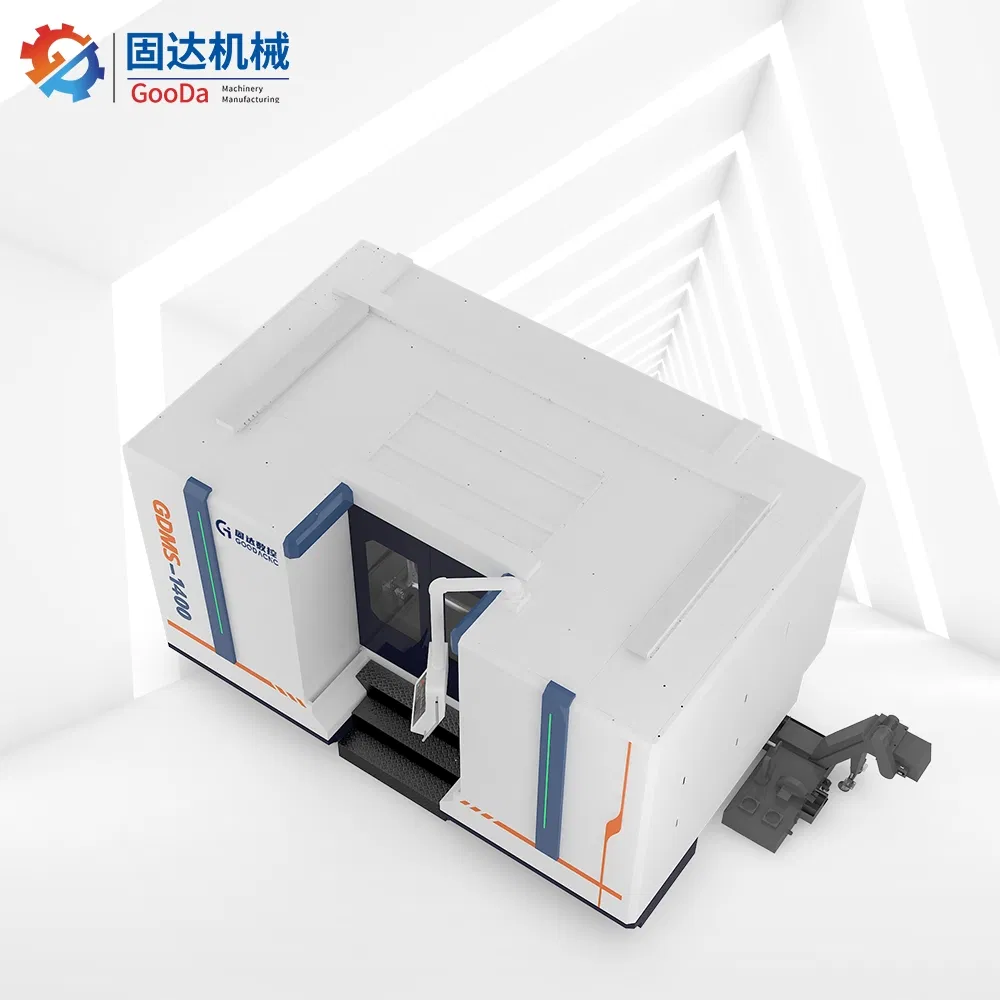

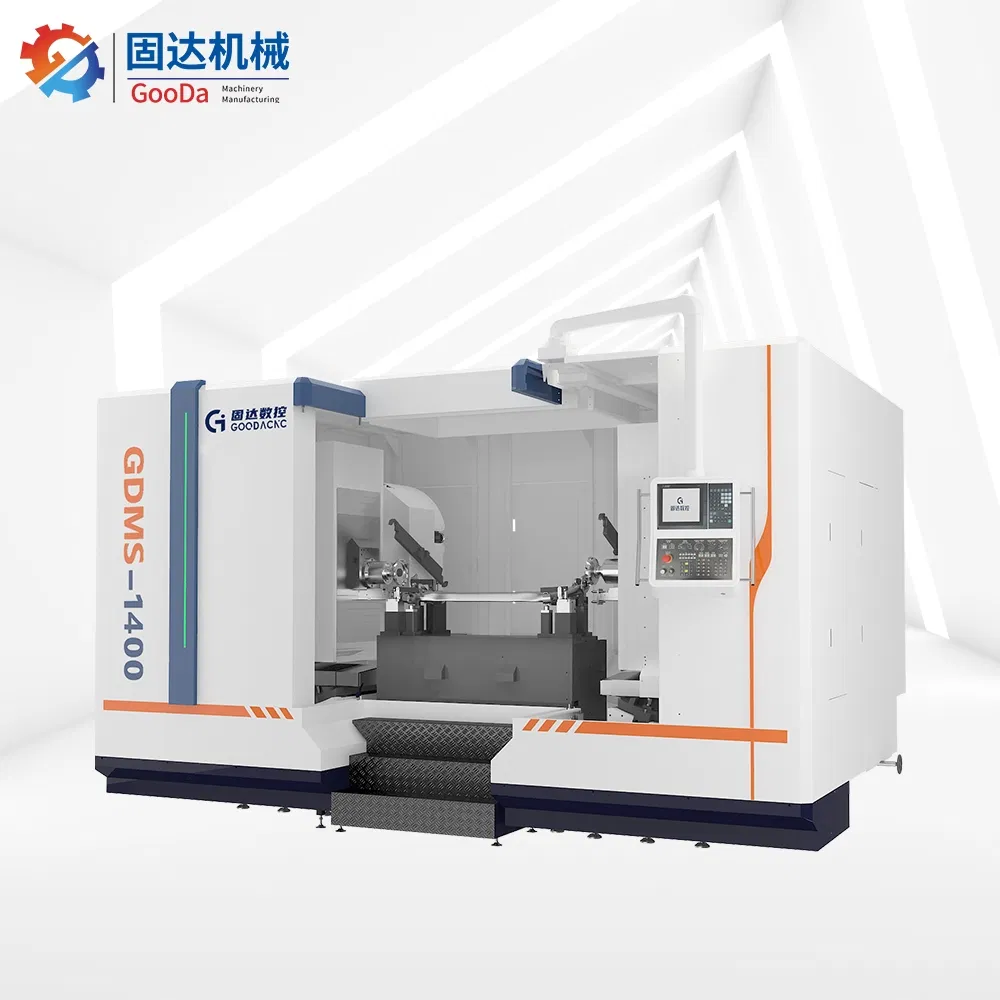

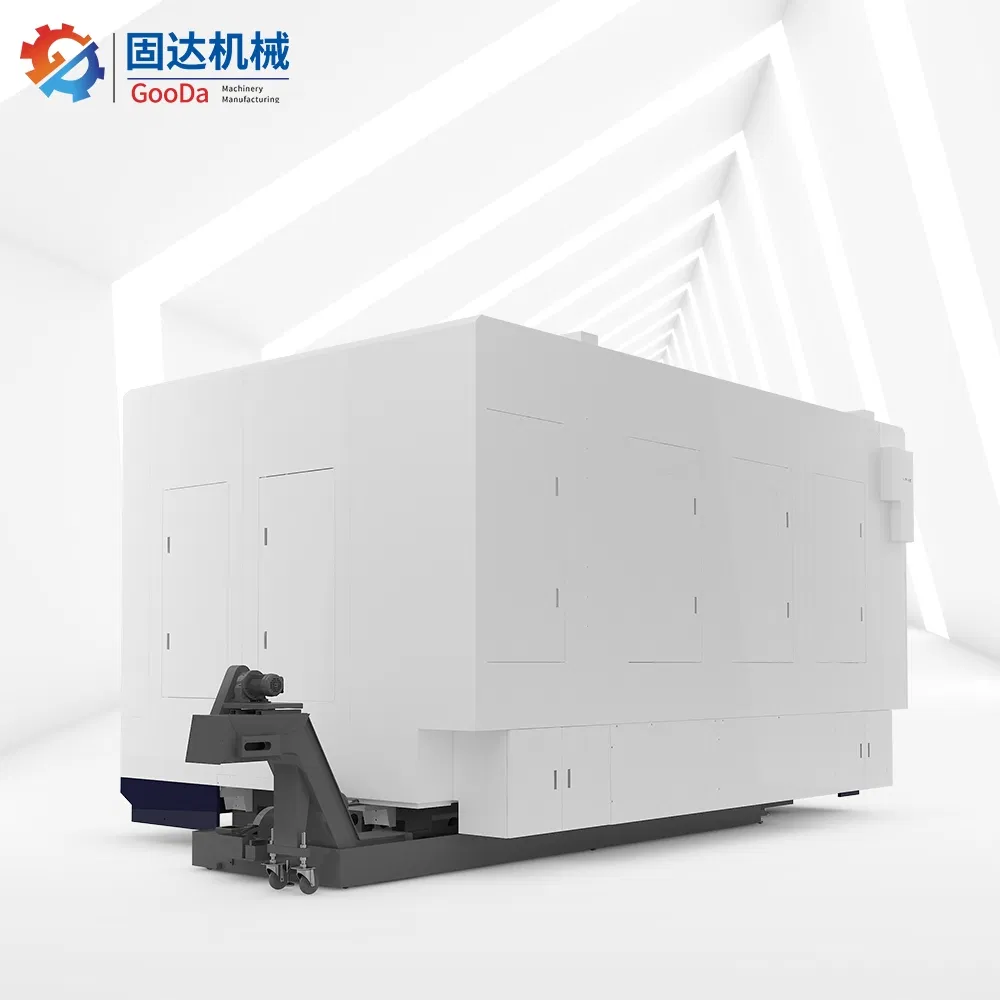

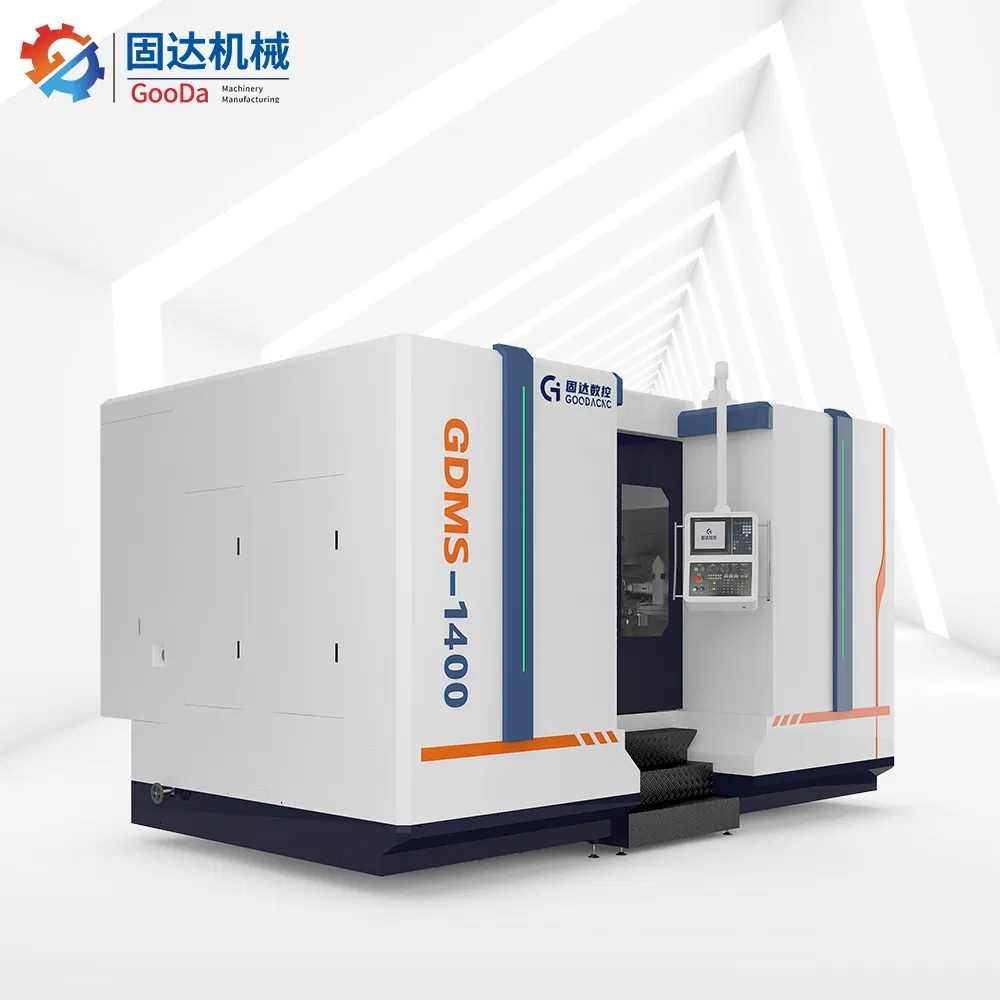

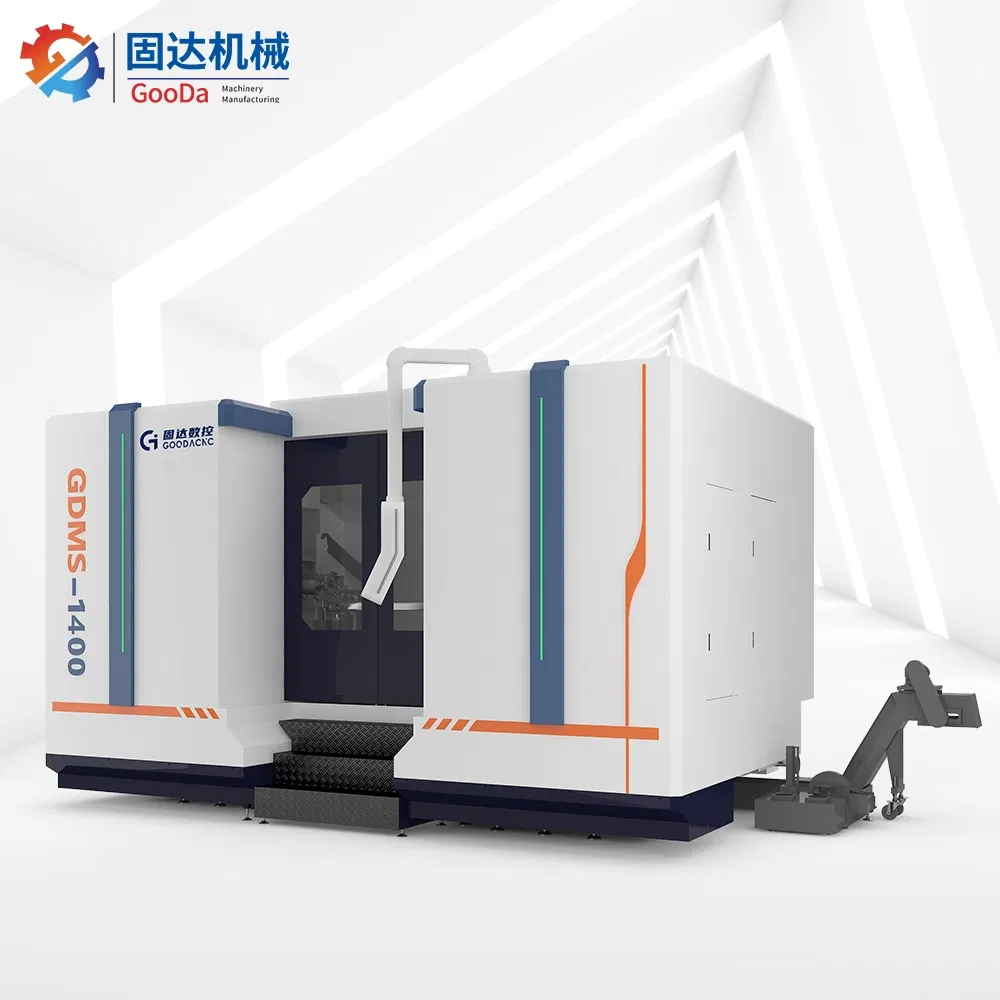

Double-Spindle Horizontal Machining Center GDMS-1400: Designed with a cutting-edge twin-spindle system that boasts high torque cutting force, this model allows for efficient one-time clamping and shaping. Customization options are available to perfectly suit your unique processing needs.
Equipped with dual mechanical spindles, this machine delivers exceptional high torque cutting force, ensuring high efficiency and consistent performance. Its multi-process capabilities—including milling, drilling, and tapping—facilitate one-time clamping and shaping, streamlining your production process.

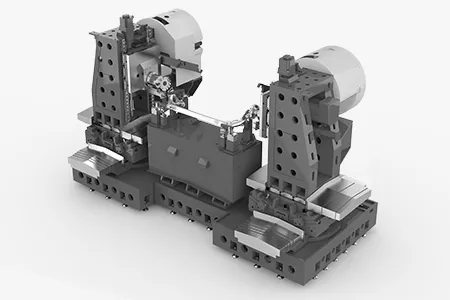

Double-Spindle System: Features two independent processing units, allowing for simultaneous machining of workpieces with similar or varied features, significantly reducing manufacturing costs.
Fast Positioning: X, Y, and Z axes utilize high-precision ball screws for precise positioning and rapid response, minimizing vibrations during high-speed operations.

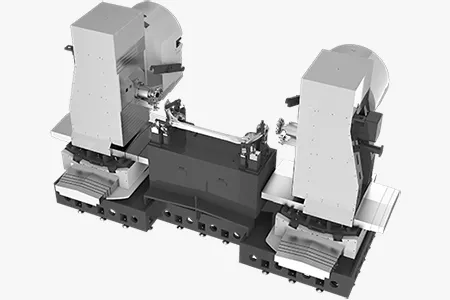

Z-axis: Featuring a robust double Z-axis structure, providing substantial high-torque cutting force for seamless operation.

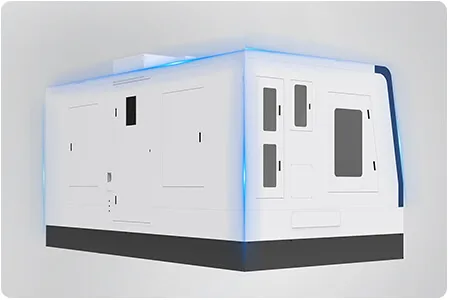

Machine Tool Protection: Guideways are shielded with stainless steel covers to prolong lifespan. Electrical cabinets are designed for stable long-term operation.
| Category | Attribute | Value | Unit |
|---|---|---|---|
| Worktable | Worktable Area | 800×1300 | mm |
| Worktable | Max Load Capacity | 2000 | Kg |
| Travel | X-axis Travel | 500/500 | mm |
| Travel | Y-axis Travel | 300/300 | mm |
| Travel | Z-axis Travel | 300/300 | mm |
| Spindle | Spindle Taper | BT50 | - |
| Spindle | Max Spindle Speed | 3000 | rpm |
| Others | Machine Weight | 17 | T |
