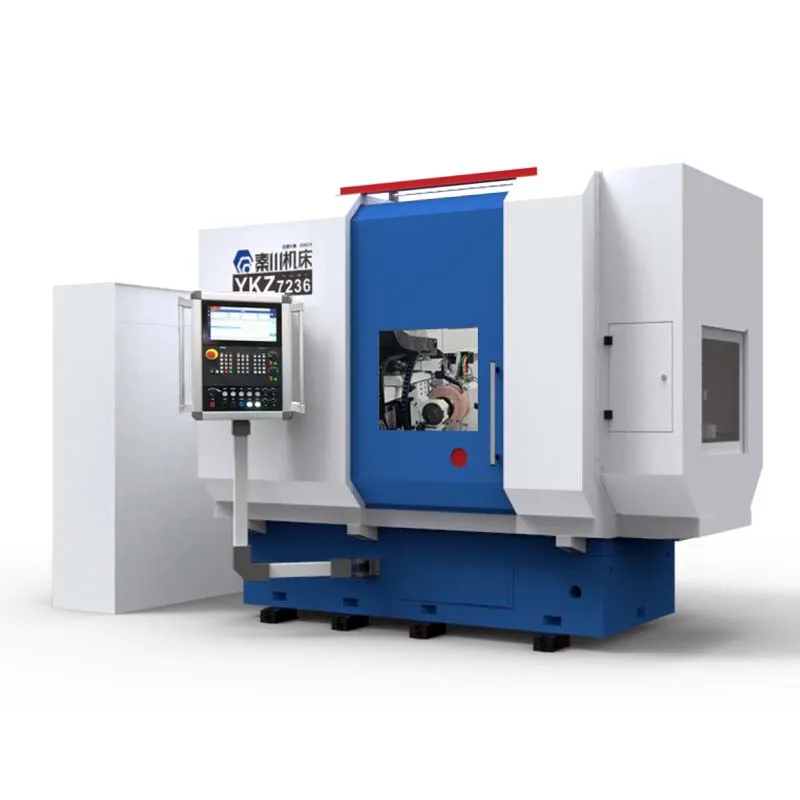

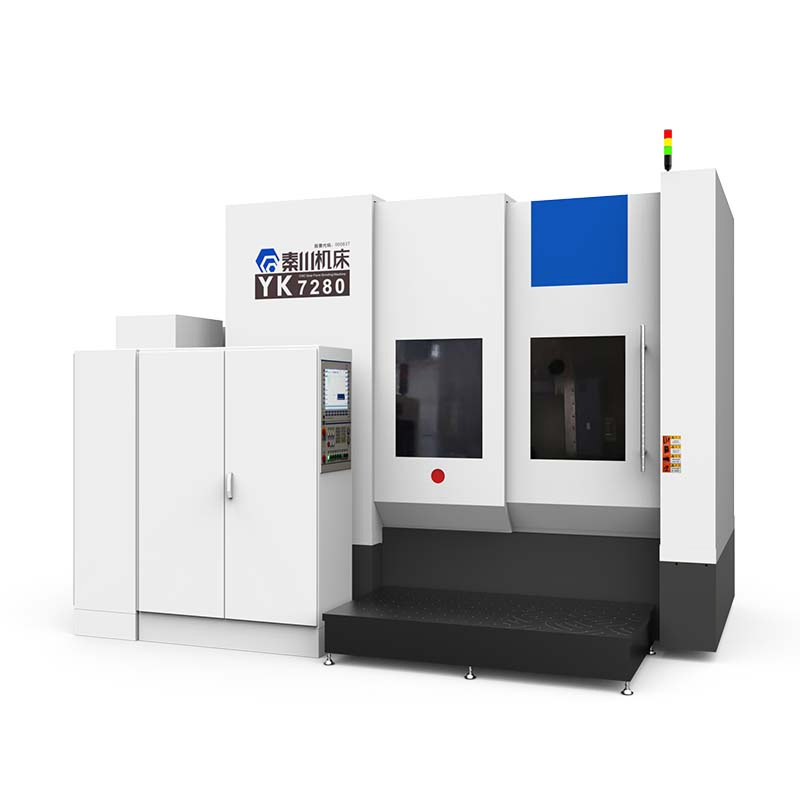

YKZ7236 CNC Worm Wheel Grinding Machine

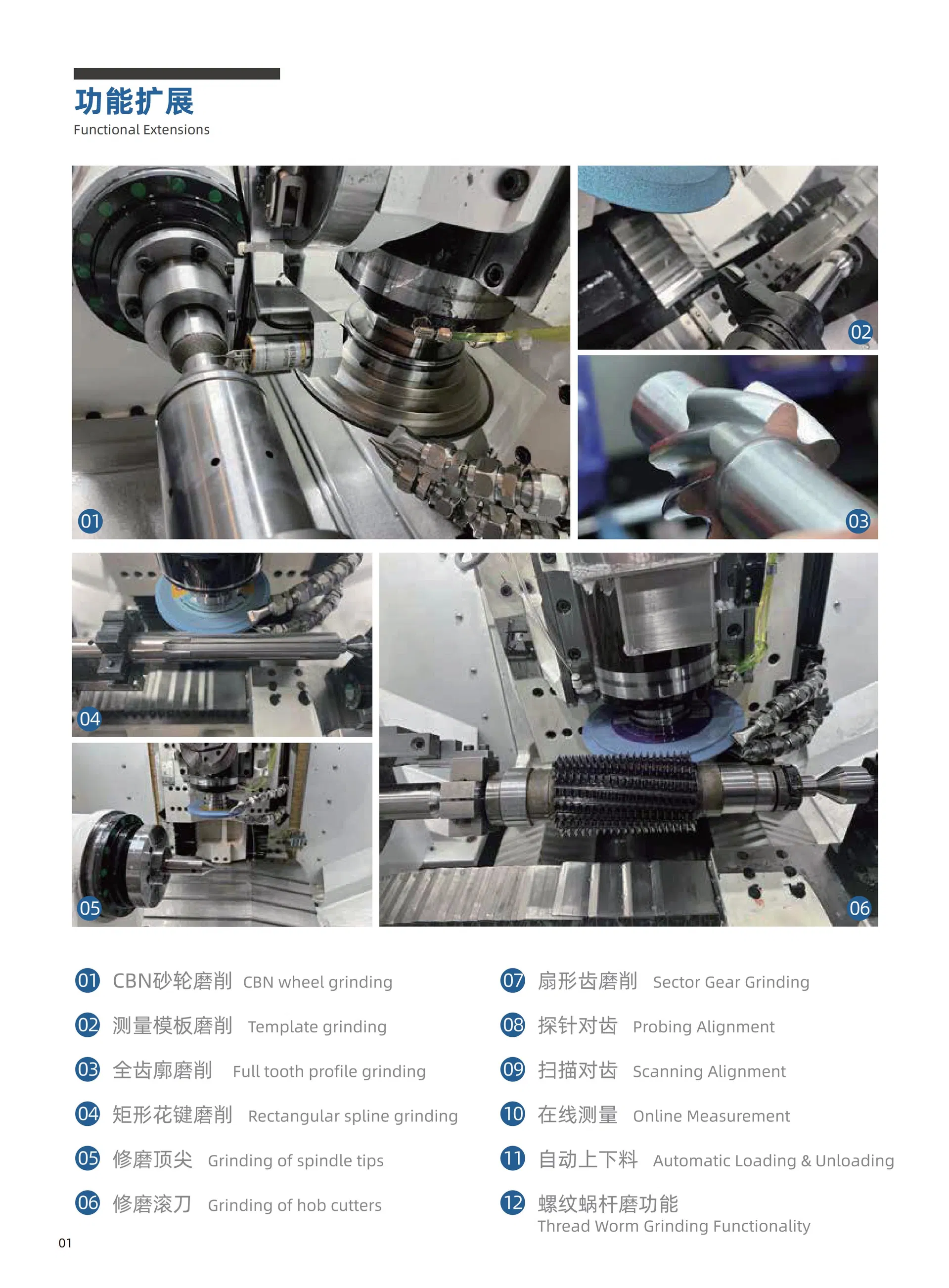

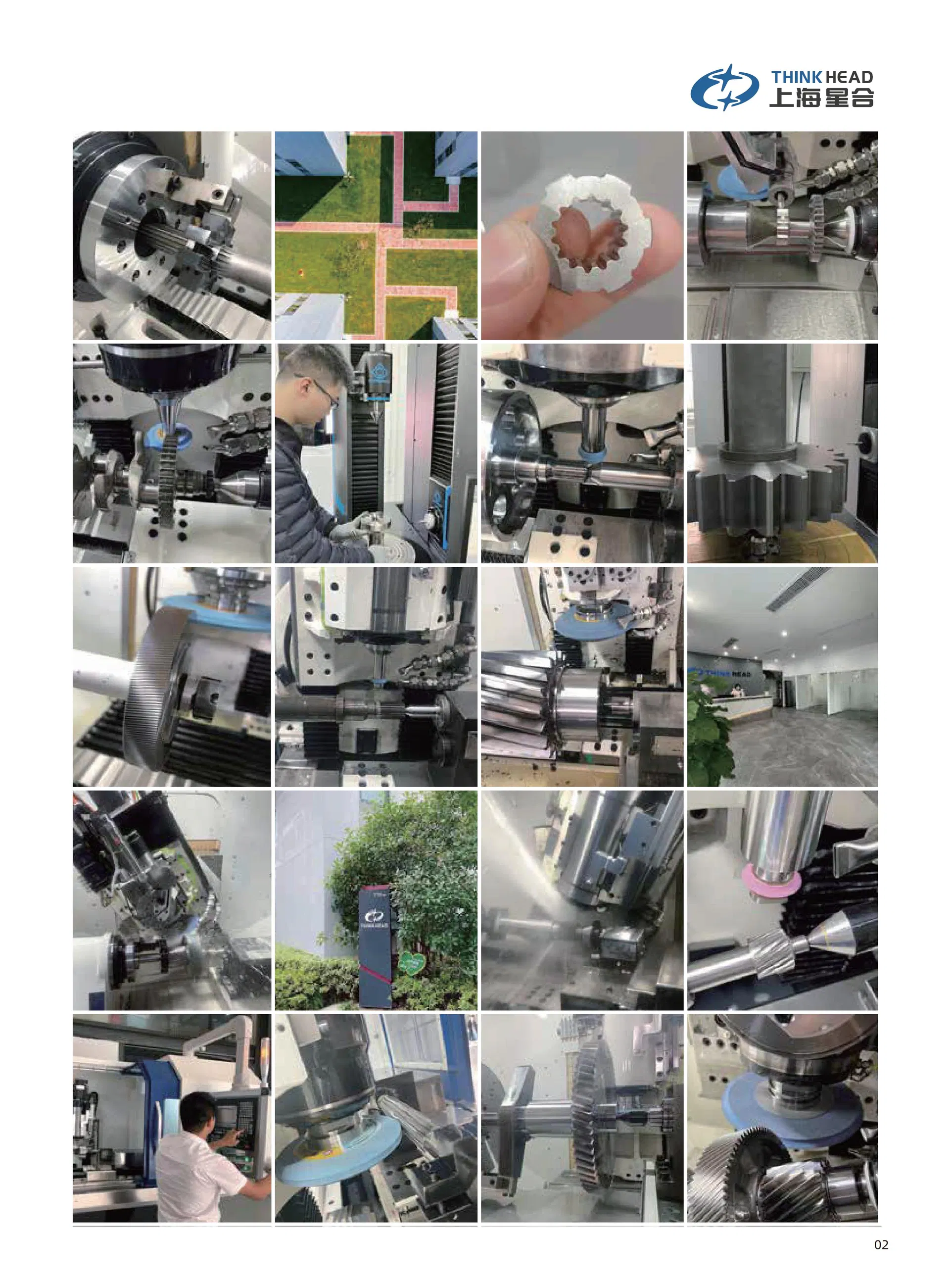

Introduction to the main structure, principles, and functions:
YK7326 is a CNC forming grinding wheel gear grinding machine suitable for precision grinding of small and medium-sized cylindrical gears. The overall layout of the machine tool is compact, with good stability and high processing efficiency. The machine tool bed is made of new environmentally friendly mineral casting materials, which have high thermal stability. The grinding wheel spindle can achieve rapid replacement of grinding wheels of different specifications. The workpiece spindle and horizontal linear axis are controlled by direct drive, with fast dynamic response and high processing efficiency. It integrates self-developed forming grinding wheel grinding software to achieve high-precision error control, meeting the precision machining needs of small and medium-sized gears in key fields such as new energy vehicles, precision reducers, and aerospace.
| Head and tail frame top distance |
180-420 mm |
Automatic, adjustable |
0-2.5 mm |
| Grinding wheel to center distance |
170-420mm |
Radial feed rate |
| Grinding wheel specification |
Φ 400 × Φ 203 × 100mm |
Total amount generally |
0.8 mm |
| Grinding wheel spindle speed |
1000-1650 rpm/min |
Single journey feed rate |
0.01-0.10 mm |
| Workpiece rack speed |
10-200 mm/min |
Dresser movement along spindle |
| Working speed |
10-200 mm/min |
Axial / Radial |
165mm / 85mm |
| Grinding wheel holder (X-axis) Movement |
Workpiece spindle taper |
3 # |
| Maximum movement |
250 mm |
Tail frame top taper |
3 # |
| Total power |
20 KW |
Workbench load |
100KG |
| Machine weight |
8000KG |
Overall dimensions |
4000*2000*1900 |
FAQ
What types of gears can the YKZ7236 grind?
The YKZ7236 is specifically designed for precision grinding of small and medium-sized cylindrical gears, making it ideal for new energy vehicles and precision reducers.
What material is used for the machine bed?
The machine bed is constructed from environmentally friendly mineral casting materials, which provide superior thermal stability and damping characteristics compared to traditional iron.
Does the machine support high-speed processing?
Yes, the workpiece spindle and horizontal linear axis utilize direct drive control, ensuring fast dynamic response and high processing efficiency.
What is the lead time for delivery?
The standard delivery time for the YKZ7236 CNC Worm Wheel Grinding Machine is approximately 4 to 5 months.
Does it include an online measuring system?
Yes, the machine features an integrated online measuring system and self-developed software to ensure high-precision error control during the grinding process.
What certifications does the machine hold?
The equipment is fully certified with CE and ISO9001 standards, ensuring compliance with international quality and safety requirements.
