Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
1 / 5
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine

Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine

Customization: Available
After-sales Service: Long Term
Warranty: 3 Years
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
C-M68
Type
Tool Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Transport Package
Export Type Wooden Case
Origin
China
HS Code
8460221000
Production Capacity
20 Pieces/Year

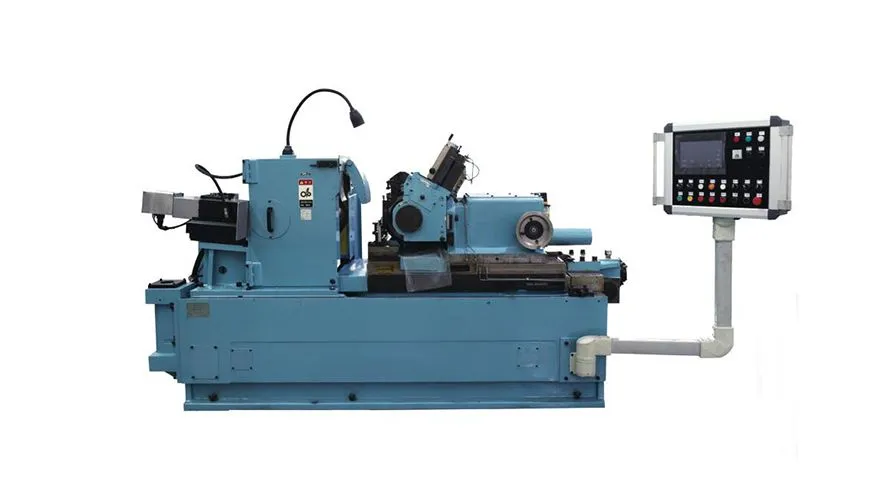

Machine tool characteristics

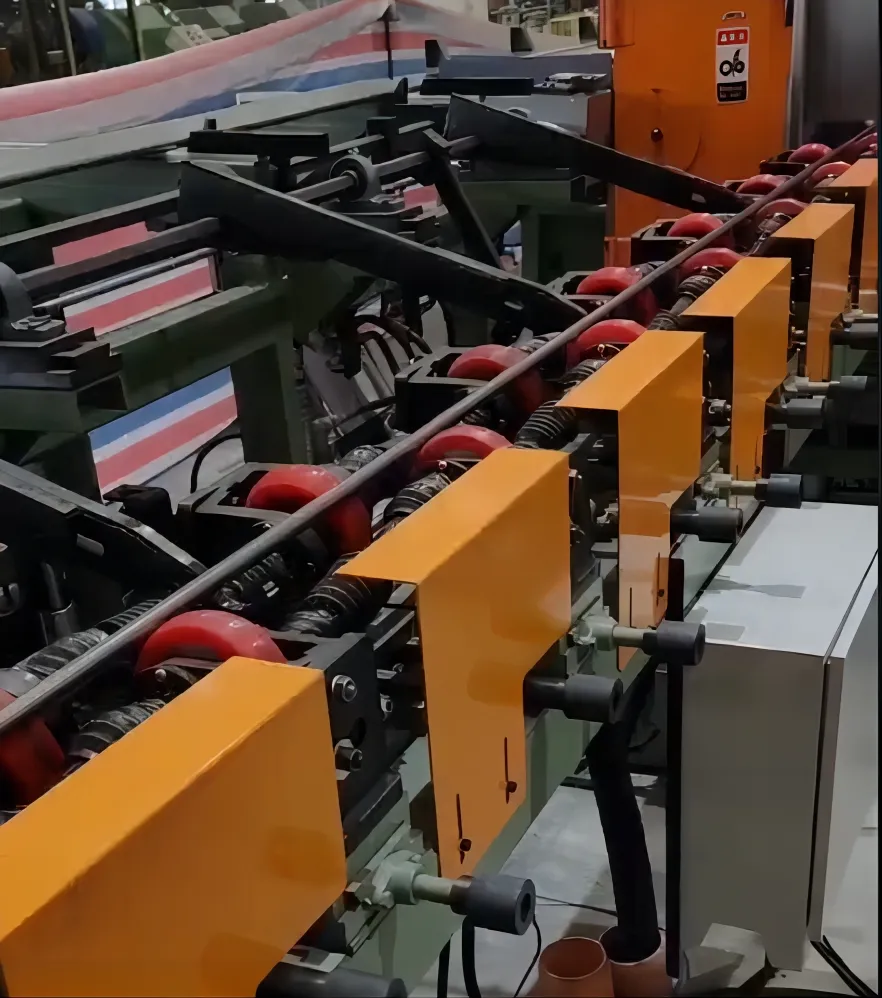

High Precision CNC Centreless
Cylindrical Grinding Machine

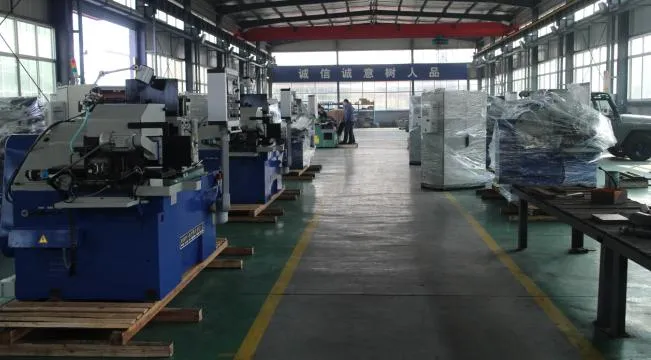

Technical Overview
Equipment Detail
⚙ Machine Tool Characteristics
➤
High-Precision Spindle Structure: The guide wheel shaft uses a double-row roller shaft structure, sealed with grease for maintenance-free operation. Both grinding and guide wheel shafts adopt double support structures to ensure sufficient rigidity for mass production.
➤
Vibration Reduction: The drive motor of the grinding wheel is strategically located in the rear side to minimize operational vibration.
➤
Stepless Speed Control: The guide wheel is driven by a worm and gear system, allowing for uniform force bearing and stepless variable speed regulation.
➤

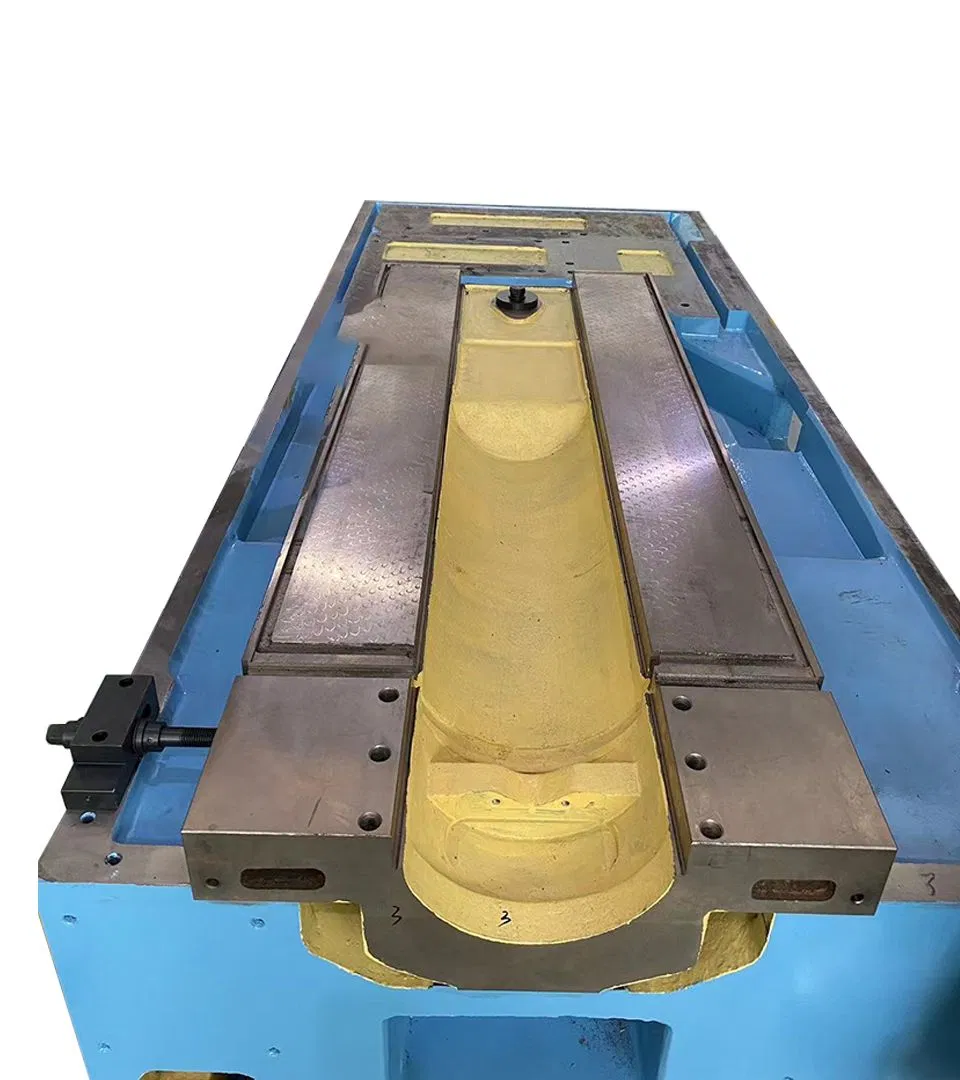

Advanced Three-Layer Platform: Features a cone adjustment turntable (superior), feeding guide rail (middle), and guide wheel platform rail (inferior). The rails are wide, thick, chromium-plated, and plastic-stuck for wear resistance and vibration absorption.
➤

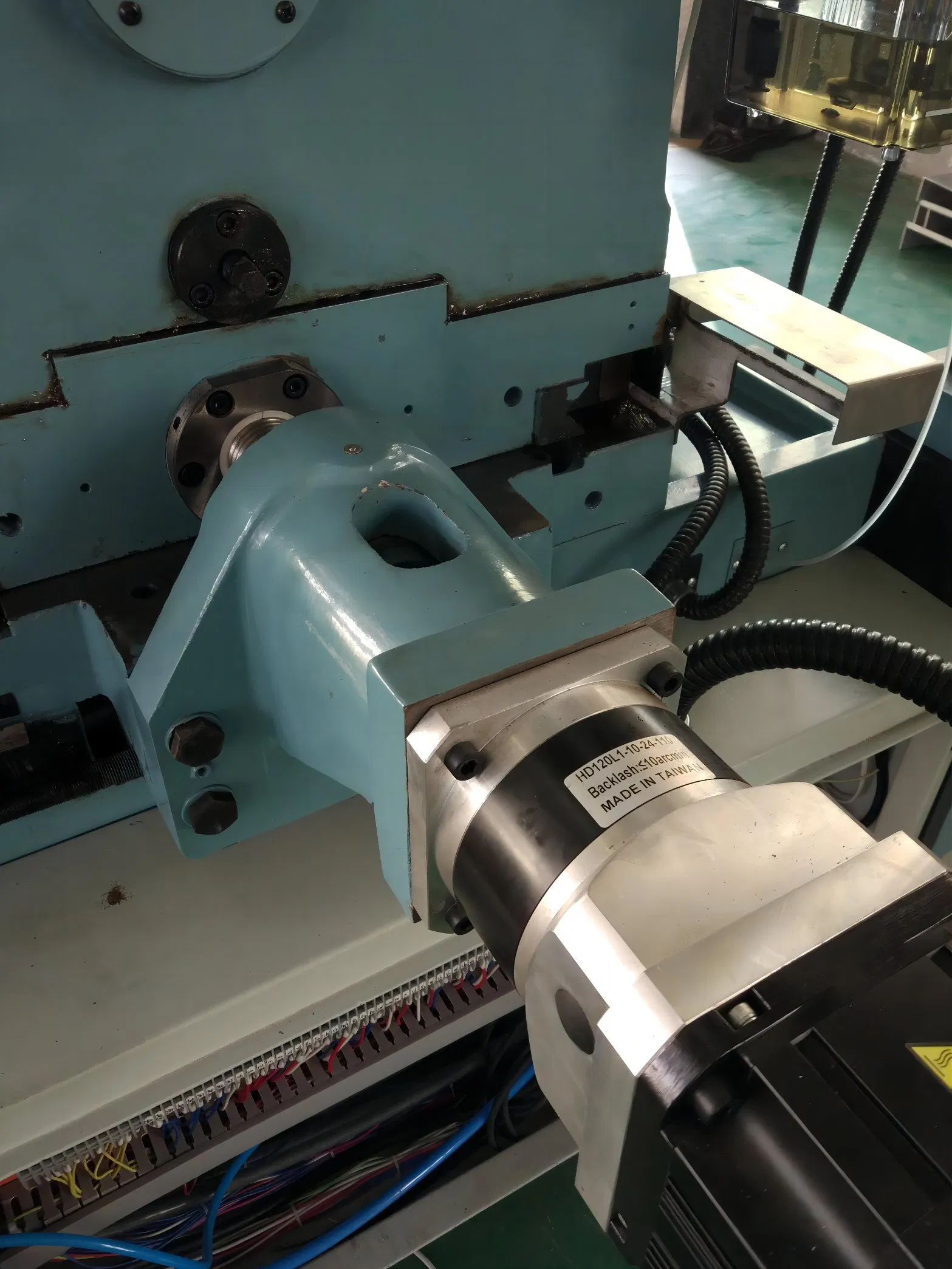

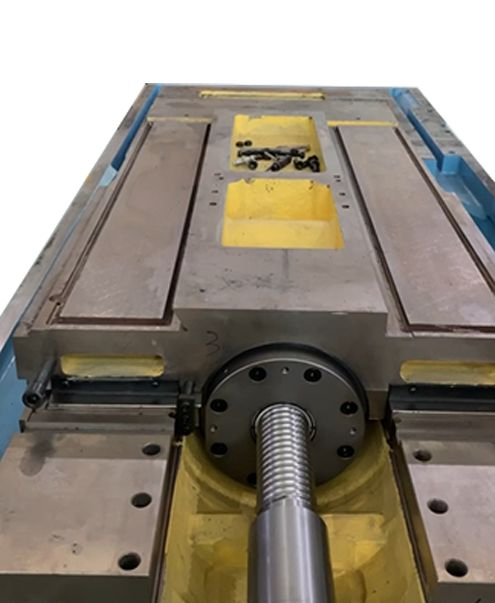

Micro-Advancing Precision: Driven by a combined ball screw and worm gear system to ensure high-precision feeding.
📊 Technical Parameters
Parameter Item Specifications
Grinding Diameter (mm)φ1.6 - φ120
Grinding Maximum Length (mm)400
Grinding Wheel Specifications (mm)φ610 × 405 × φ305
Guide Wheel Specifications (mm)φ330 × 405 × φ203
Max Working Linear Speed of Grinding Wheel (m/s)45
Grinding Wheel Speed (rpm)1400
Guide Wheel Frequency Conversion Speed (rpm)12 - 230
Guide Wheel Rotation Angle (°)+5° ~ -5°
Standard Test AccuracyRoundness (mm)0.001
Cylindricity (mm)0.002
Machine Dimensions (mm)3500 x 2700 x 1800
Machine Weight (kg)About 10000
❓ Frequently Asked Questions
What is the processing capacity for this CNC grinding machine?
The machine is capable of grinding diameters ranging from 1.6mm to 120mm, with a maximum grinding length of 400mm.
How does the machine achieve such high precision?
It achieves a roundness of 0.001mm and cylindricity of 0.002mm through a high-rigidity double support structure and ball screw feeding systems.
Is the spindle system difficult to maintain?
No, the guide wheel shaft uses a double-row roller structure that is sealed with grease, making it maintenance-free.
What type of control system does it use?
This is a fully automatic CNC machine designed for high-precision mass production of metal objects.
What are the power and speed capabilities?
The grinding wheel operates at 1400 rpm with a linear speed of 45 m/s, while the guide wheel offers stepless speed regulation between 12-230 rpm.
How is the machine protected during transport?

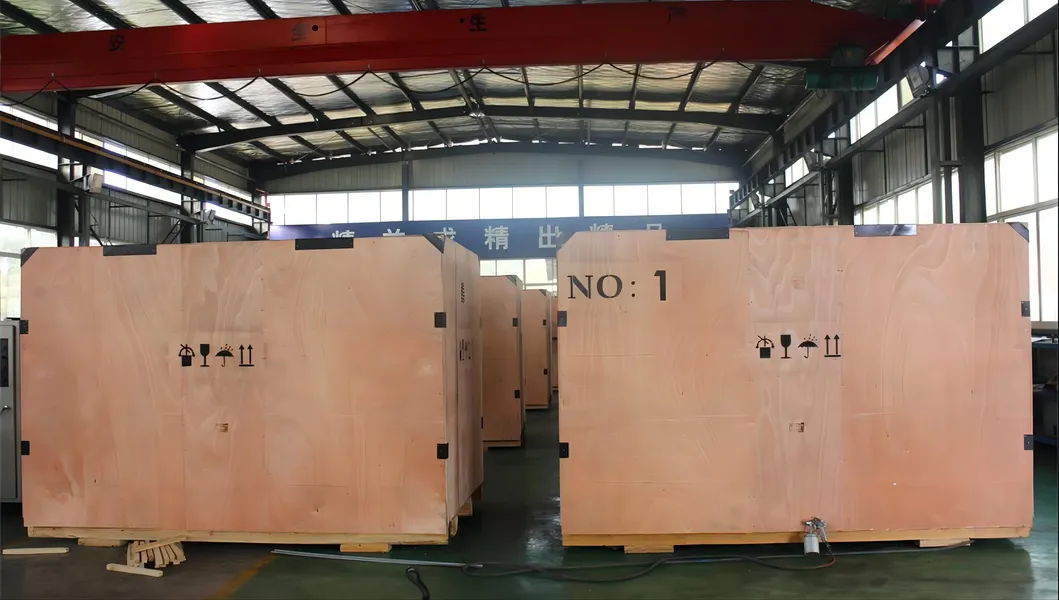

The machine is packed in an export-type wooden case to ensure safety during international shipping.
