⚙️ Basic Info.
Type

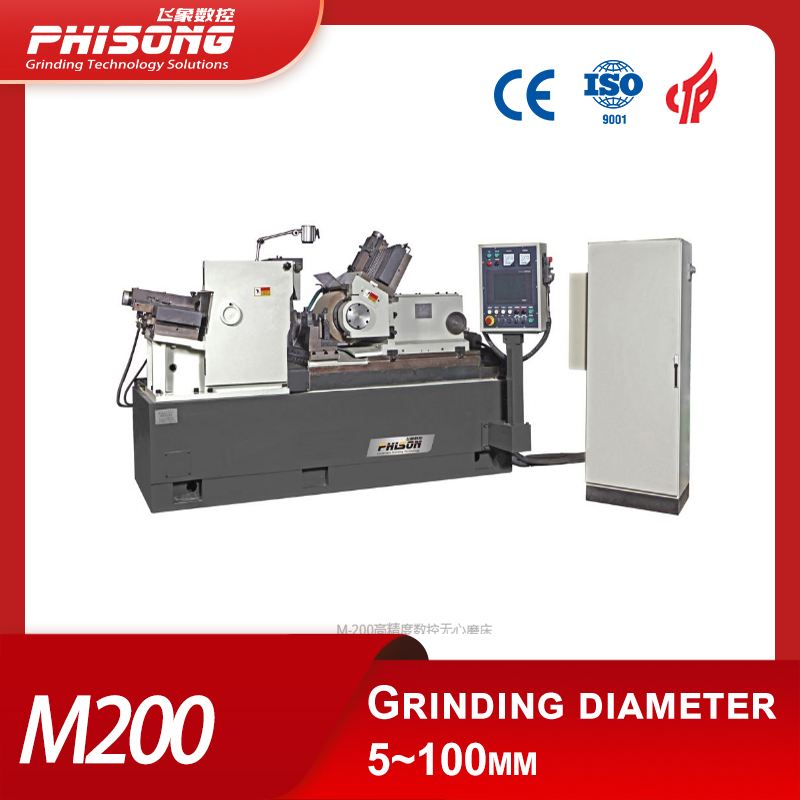

Centerless Grinding Machine
Processing Object
Bearing Rollers
Precision
High Precision (0.001mm)

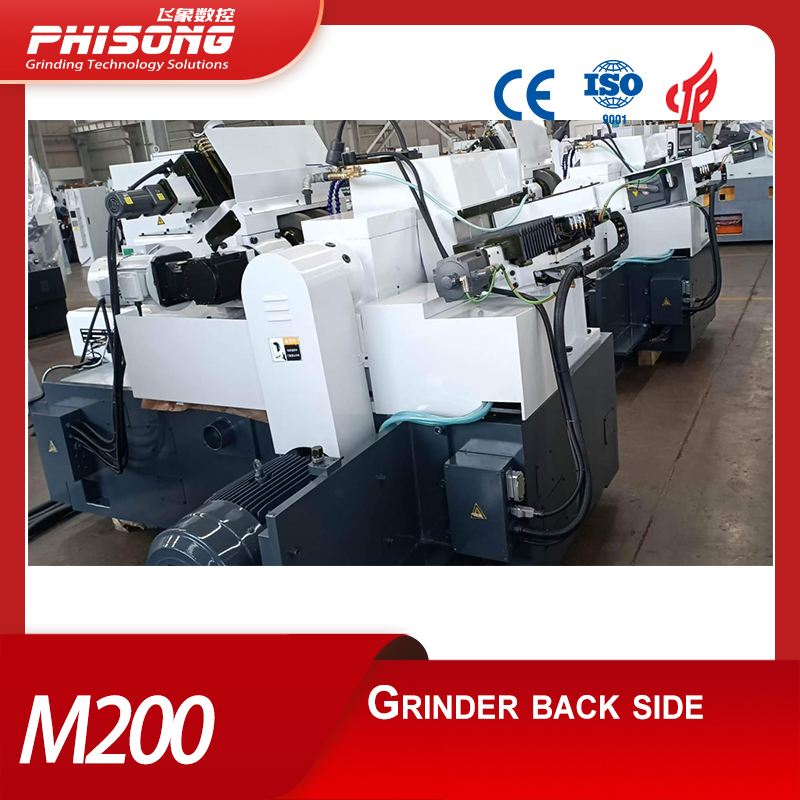

🔍 Product Description

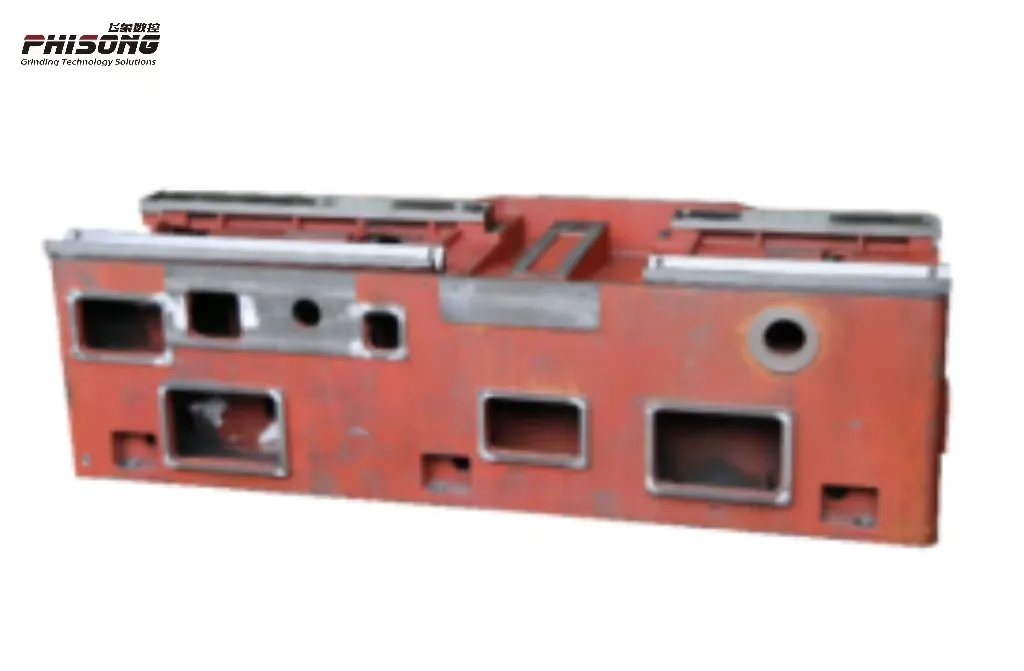

1. Machine Body
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability.

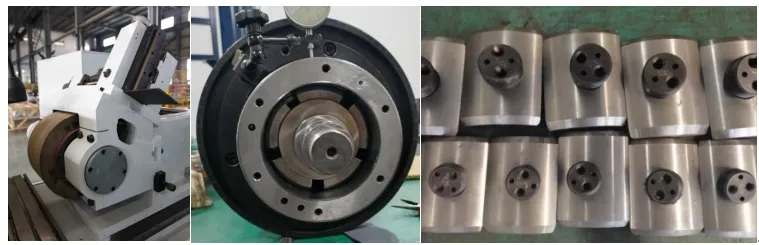

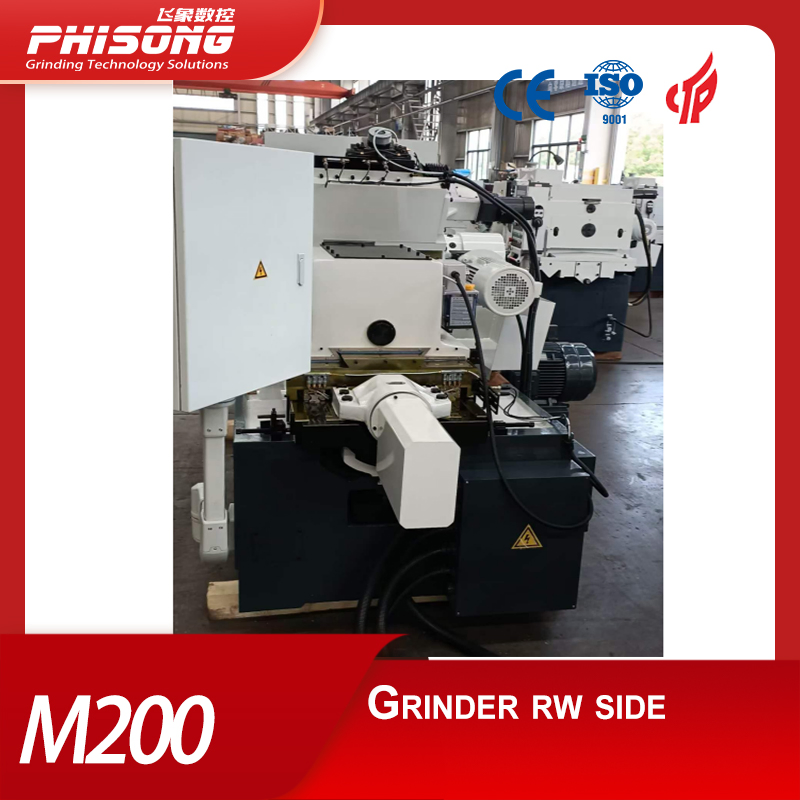

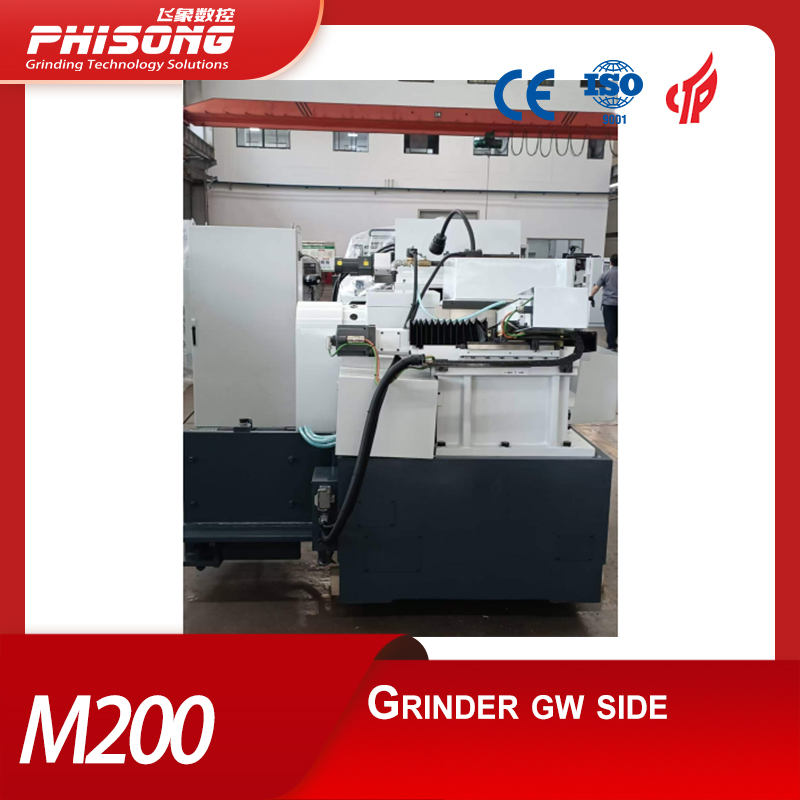

2. GW and RW (Regulating Wheel)
- GW is 600mm in diameter, 200-250mm wheel width for larger grinding amount and higher efficiency.
- RW fixed on the machine bed, adopted double supported structure, with better reliability and stability.
- Five pieces bush-bearings for each side on the GW spindle, better rigidity for fine heavy grinding.

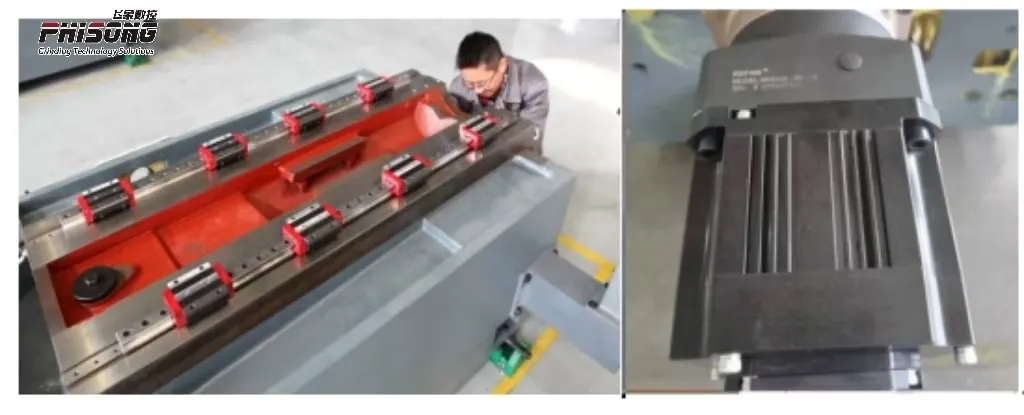

3. Feeding System
- SCHNEEBERGER brand high rigidity linear guide-rail for motion sensitivity, easy micron feed, and vibration resistance.
- Servo motor drives ball-screw through shaft coupling, min. feeding amount 0.001mm.

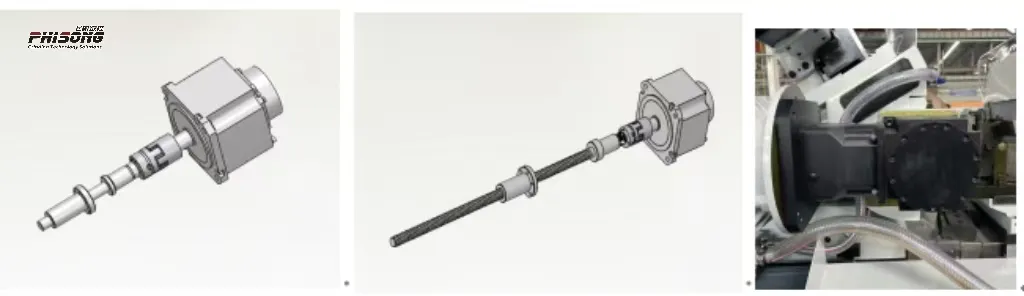

4. Dressing for GW and RW
GW and RW dressing: Servo motors drive ball-screws for GW dresser feeding and reciprocating.

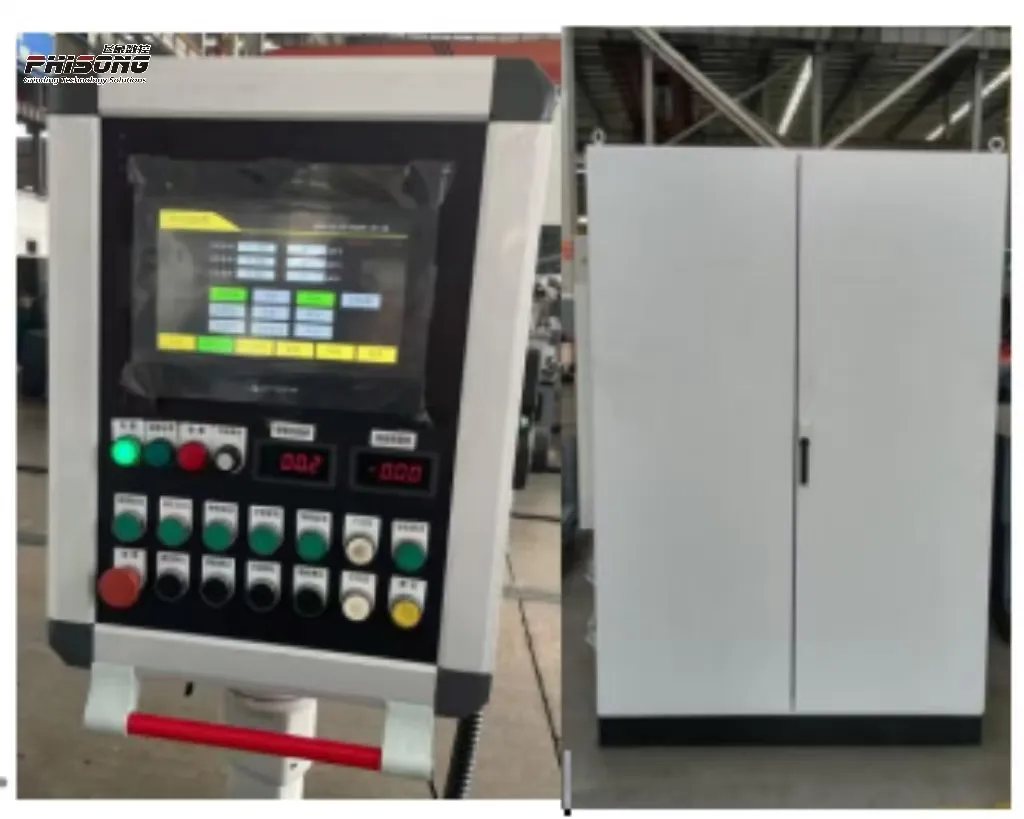

5. Electric & Control
- Converter for RW motor, step-less speed adjusting.
- Operation panel with dials and touch screen for grinding, dressing, feeding, etc.
- Mitsubishi PLC control system (Siemens optional).

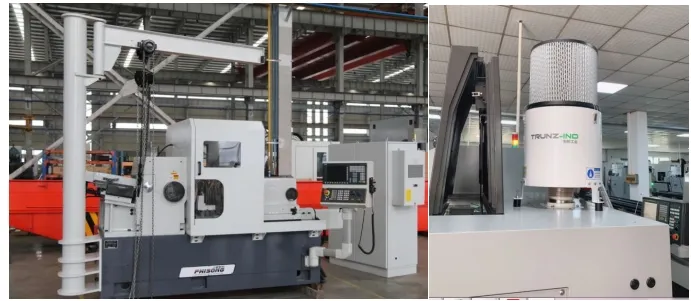

6. Other Optional Configurations
- Semi-cover or Full-cover with electromagnetic lock for protection.

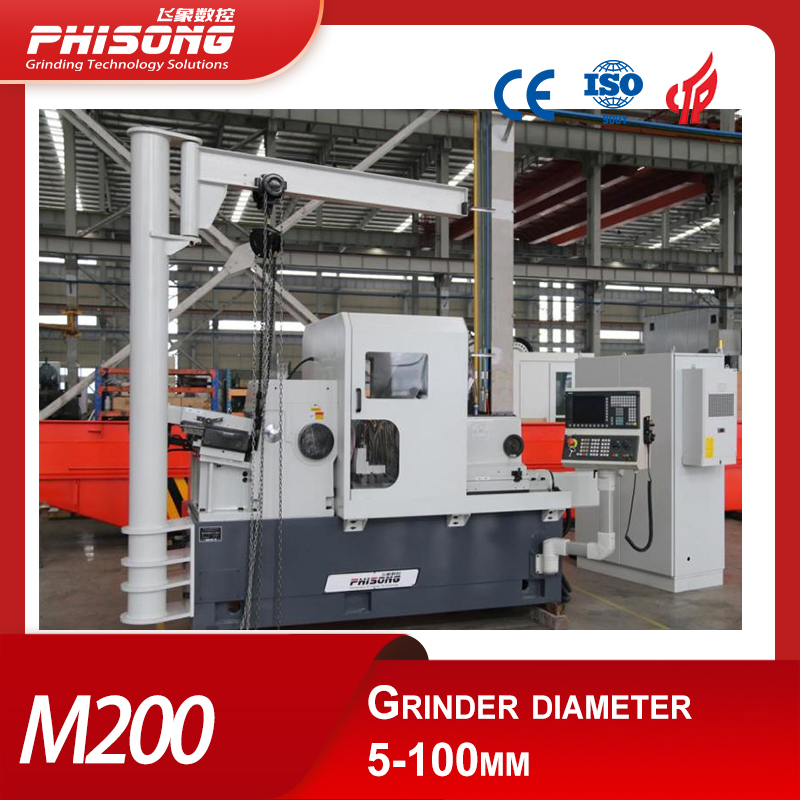

- Crane for GW and RW.
- Oil mist filter.
📋 Main Configuration
| Part Name |
QTY |
Unit |
Supplier |
| Control System PLC, CNC | 1 | Set | Mitsubishi/Siemens |
| Touch Panel | 1 | Set | Mitsubishi/Siemens |
| Servo Motor | 5 | Set | Mitsubishi/Siemens |
| Inverter of Regulating Wheel | 1 | PC | Mitsubishi/Siemens |
| Grinding Wheel Motor | 1 | PC | Wuxi (optional) |
| Regulating Wheel Motor | 1 | PC | ABB (optional) |
| Low Voltage Device | 1 | Set | Schneider (optional) |
| Ball Screw | 5 | PC | Nanjing Technical Equipment Co., LTD |
| Feed linear guide | 2 | PC | SCHNEEBERGER |
📊 Technical Data
| In-feed Grinding Dia. | 5-100mm |
| Length | 190mm |
| Through Grinding Dia. | 5-100mm |
| GW SPEC. (O.D.*width*I.D.) | 600*200max250*305mm |
| RW SPEC.(O.D.*width*I.D.) | 350*200max250*203mm |
| GW Speed | 1100r/min |
| RW Speed (stepless) | 10-200r/min |
| GW min feeding amount | 0.001mm |
| GW Motor | 22kw |
| Dimension(L*W*H) | 3200*1785*1800mm |
| Machine Weight | About 7.5 tons |

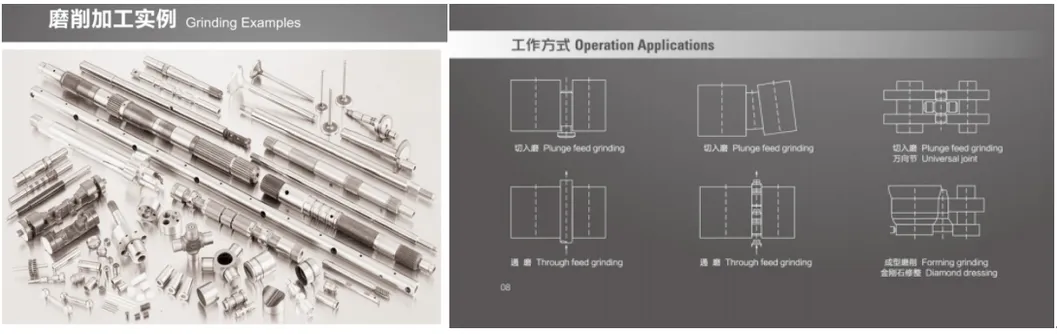

💡 Grinding Examples & Operations

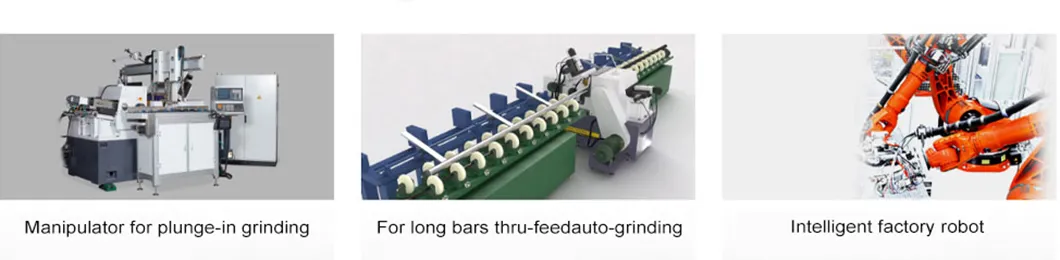

🤖 Automatic Solution

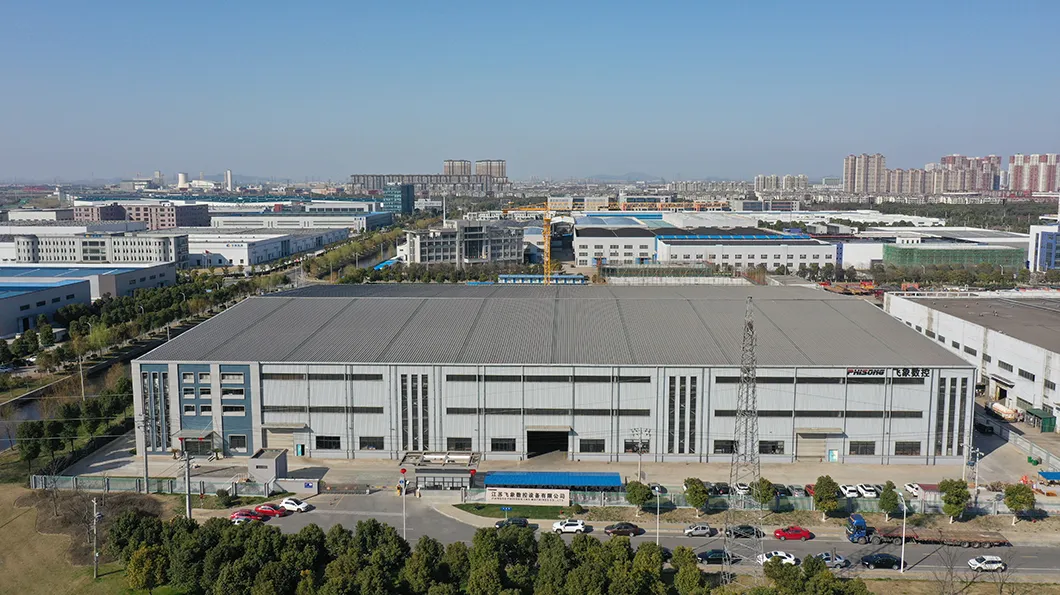

🏢 Company Profile & Exhibition
Professional centerless grinding technology expertise. Our products are selected by numerous famous enterprises globally and exported to Europe, America, Russia, and Southeast Asia. We adopt ISO9001 international quality management systems and customize professional processing technology for customers to improve production efficiency.
Packaging & Shipping
Exhibition & Visiting
❓ Frequently Asked Questions
What is the maximum processing diameter of the HCGM-M200?
The machine can process workpieces with a maximum diameter of up to 100mm.
What is the precision level of this centerless grinding machine?
It offers high precision with a minimum feeding amount of 0.001mm.
Which control systems are used in the machine?
The standard configuration uses Mitsubishi PLC/CNC systems, with Siemens available as an option.
What kind of guide rails are used for the feeding system?
The machine utilizes SCHNEEBERGER brand high-rigidity linear guide rails for superior motion sensitivity and vibration resistance.
Is the machine suitable for automatic production lines?
Yes, we provide professional automatic solutions customized to improve processing levels and production efficiency.
What certifications does the machine have?
The machine is CE and ISO 9001 certified, ensuring compliance with international quality and safety standards.
