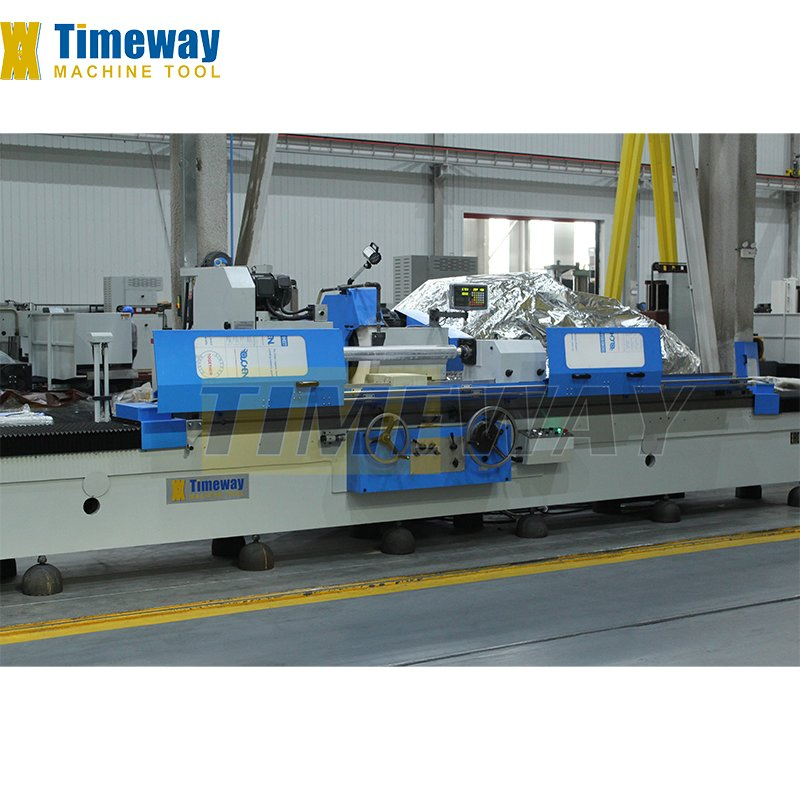

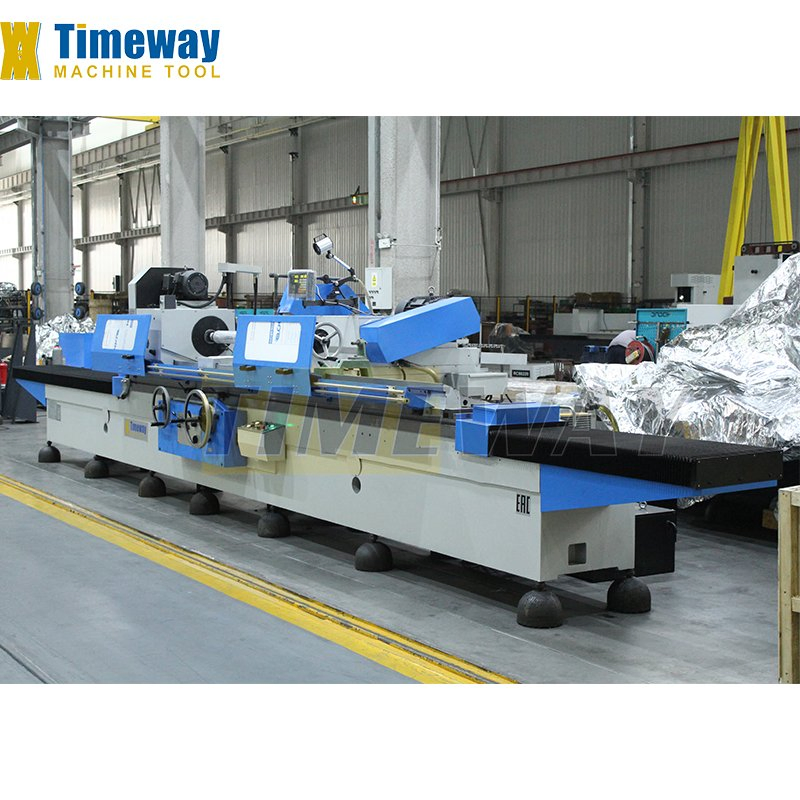

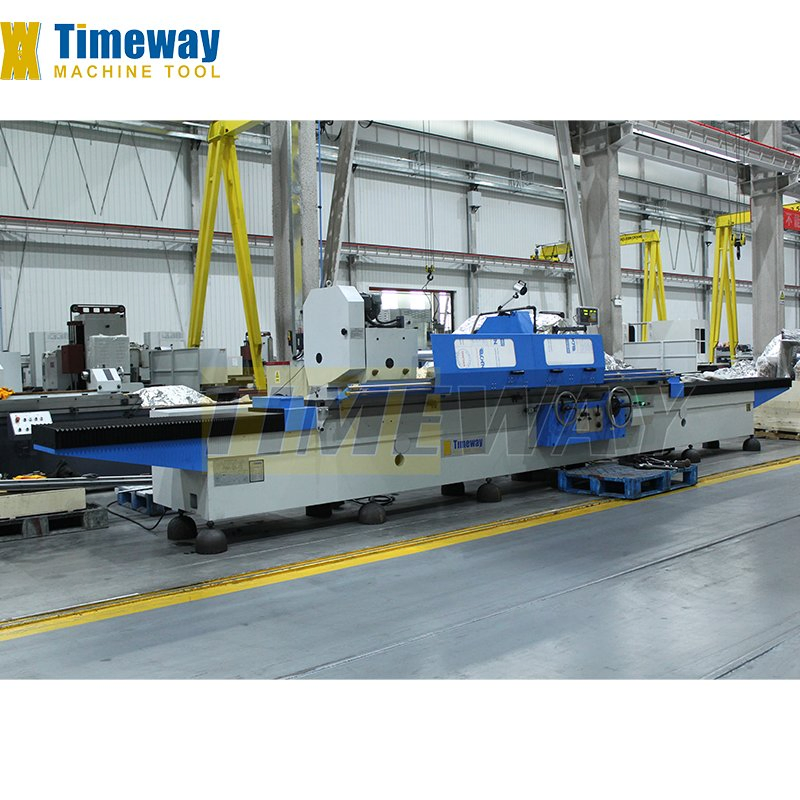

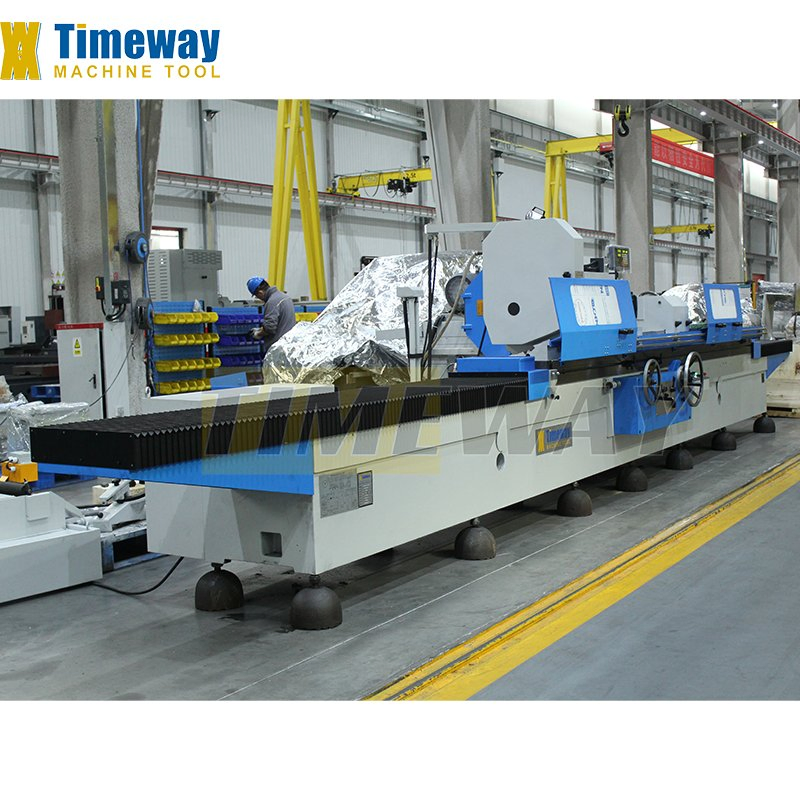

1. The worktable and wheelhead guideway adopt hydrostatic lubrication, ensuring smooth movement even at low speeds.
2. The wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, providing high rotary accuracy.
3. For UG-500 models, the workhead spindle adopts a sliding bearing structure with adjustable clearance, ideal for center or chuck grinding.
| SPECIFICATION | UNIT | G-500(G-500A) | UG-500(UG-500A) |
|---|---|---|---|
| Distance between centers | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 |
| Center height | mm | 270 | 270 |
| Dia. ground (O.D) | mm | 25-500 | 25-500 |
| Dia. ground (I.D) | mm | - | 30-200 |
| Grinding length (O.D) | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 |
| Grinding length (I.D) | mm | - | 320 |
| Loading capacity | kg | 1000(2000) | 1000(2000) |
| Workhead spindle speed | rpm | 18-180(10-100) | 20-224 |
| Wheelhead spindle speed | rpm | 870 | 1330/665 |
| External grinding motor | kw | 15 | 5/7.5 |
Measuring bridge plate, Open steady rest, Wheel flange, Wheel extractor, Balancing arbor, Grinding wheel, Coolant tank, Carbide tipped center, Driving dog, Wheel dresser, Work lamp, Internal grinding attachment (UG), 3-jaw chuck (UG), Tools set, Leveling wedge.
Balancing stand, Digital readout, Close steady rest, End wheel dresser, Radius wheel dresser, Center grinding attachment (G), Magnetic separator, Paper filter.

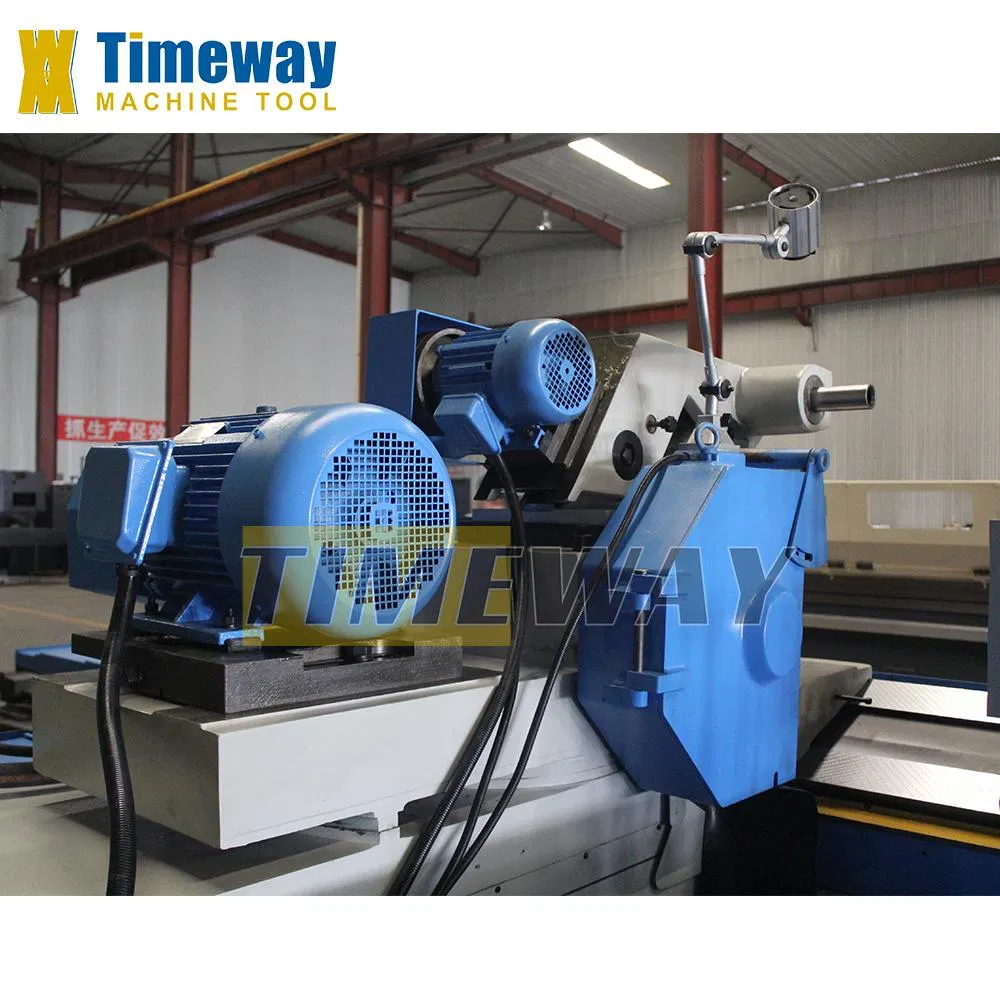

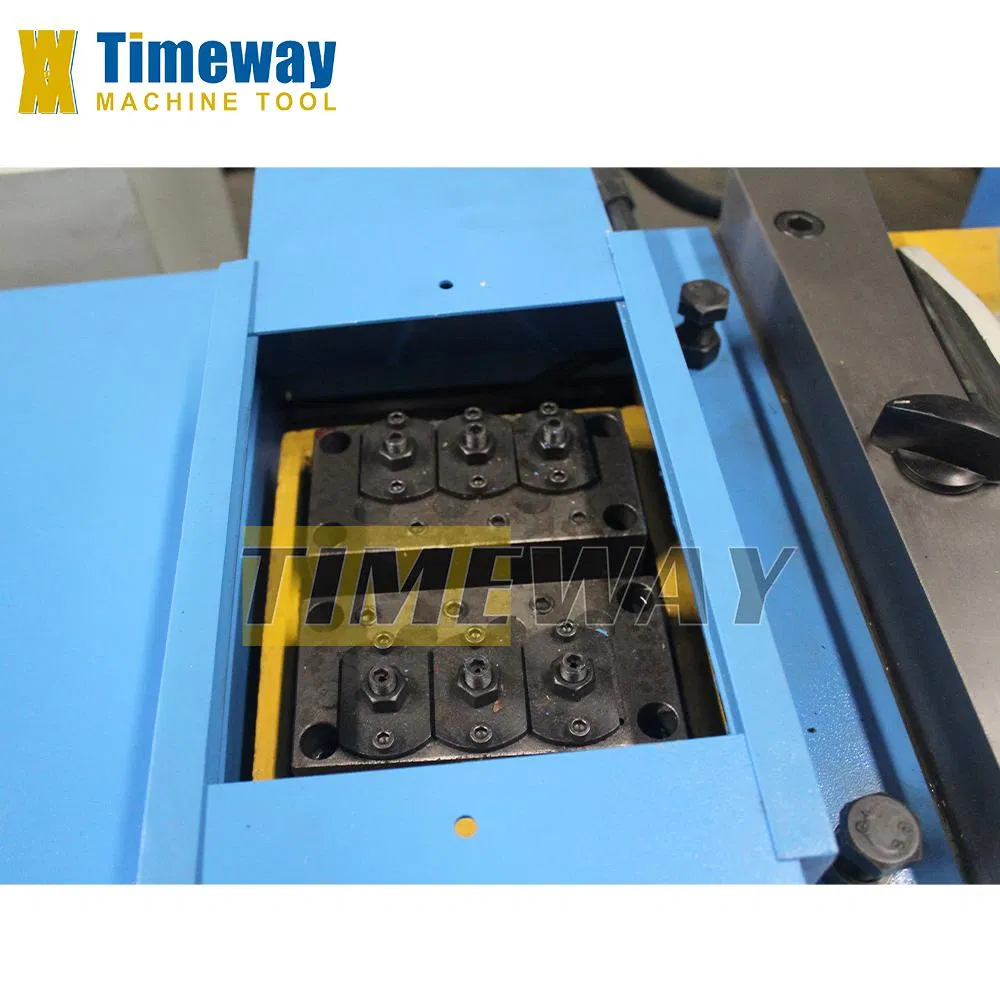

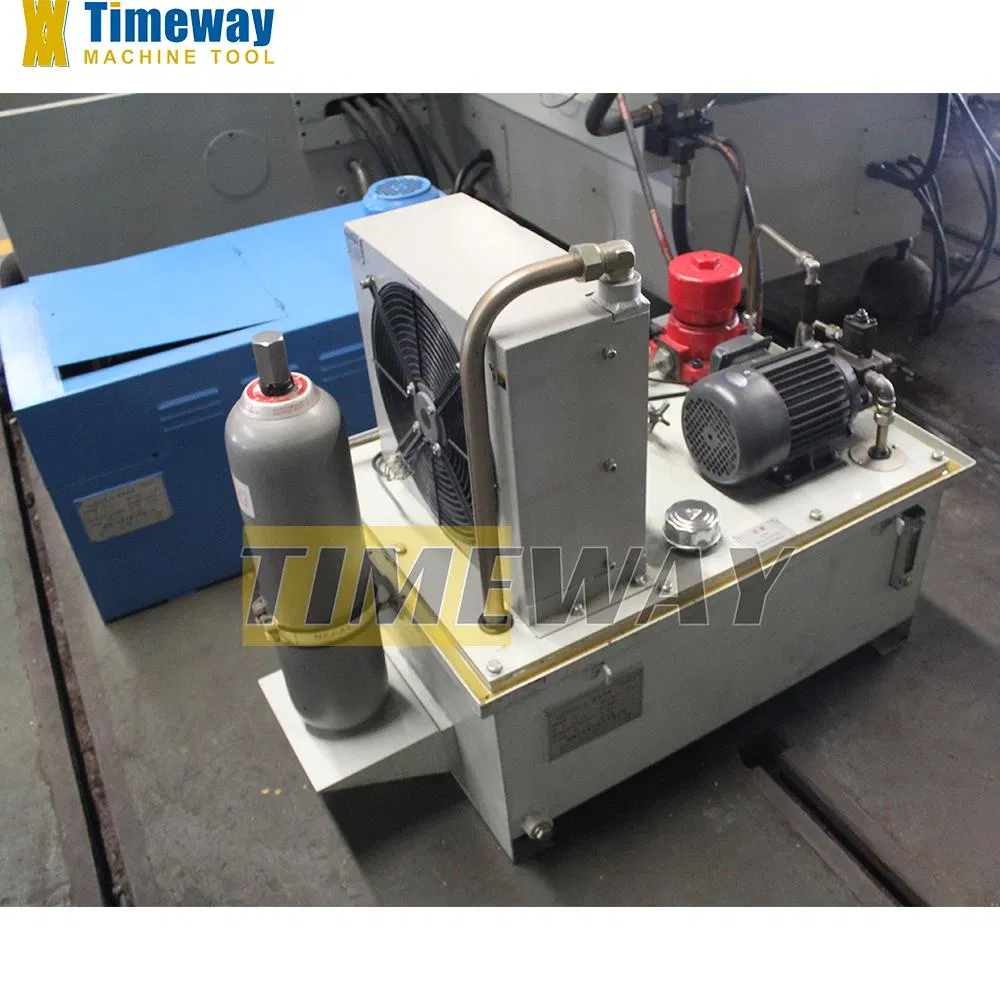

| Workhead, wheelhead, and internal grinding spindles are driven by separate motors for precision. | Worktable with hydrostatic pressure support ensures large loading capacity and minimal wear. | Independent hydraulic station with air cooling for stable operation and precision grinding. |

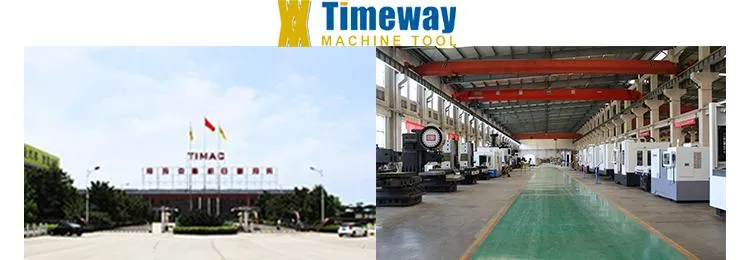

We are a professional machine tool manufacturing enterprise. Our main products include lathes, milling machines, and grinding machines. We also design and manufacture various special-purpose machines and provide technology upgrading and transformation services.
