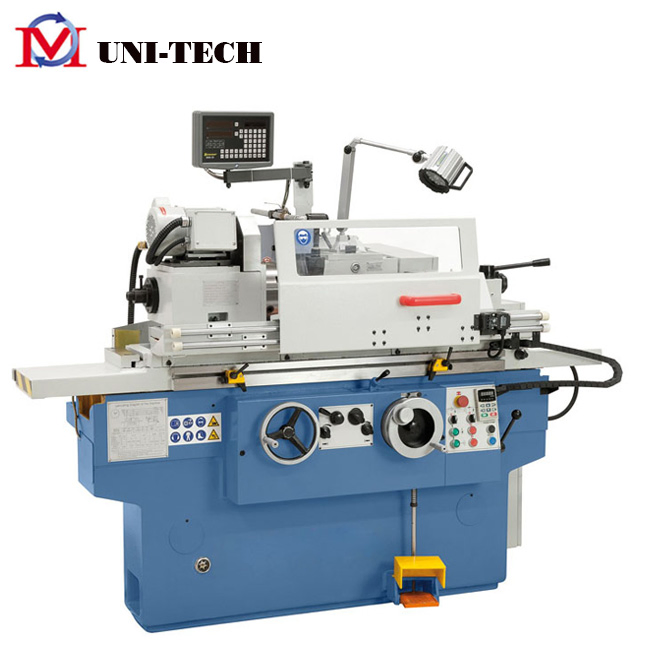

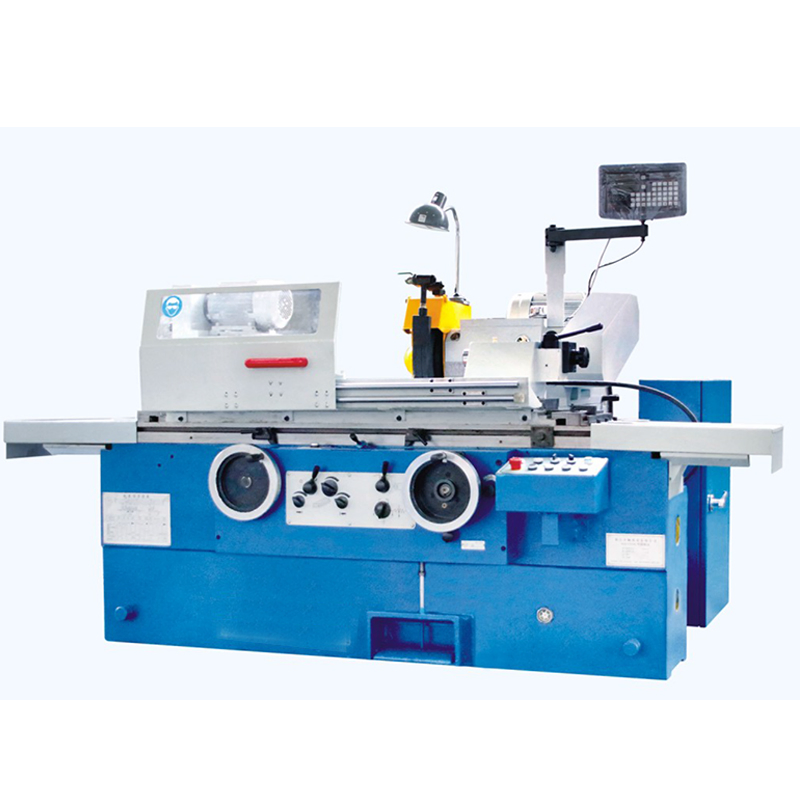

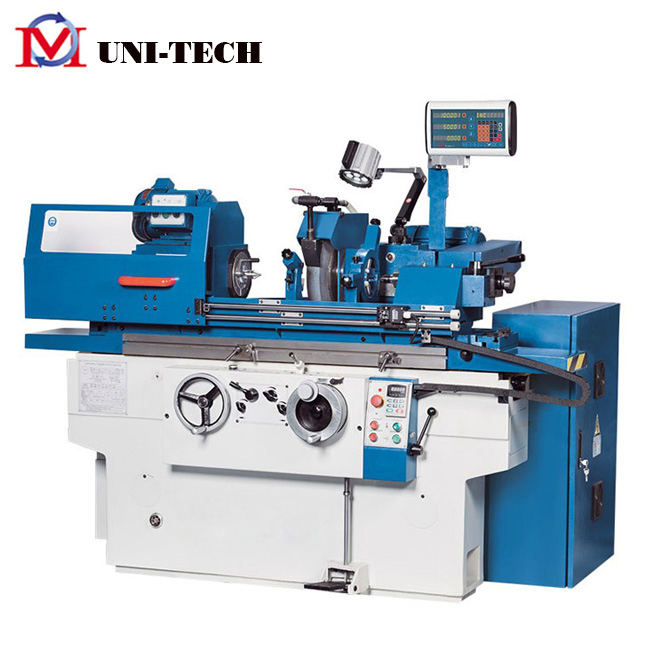

| Model NO. | M1420/500 |
|---|---|
| Type | External Grinding Machine |
| Abrasives | Grinding Wheel |
| Controlling Mode | Electric / Automatic |
| Cylindrical Grinder Type | Universal Cylindrical Grinder |
| Precision | High Precision |
| External Grinding Diameters | 8-200mm |
| Internal Grinding Diameters | 13-100mm |
| Max. Workpiece Weight | 50kg |
| Machine Weight | 3000kgs |
| Description | Unit | M1420X500 | M1420X800 |
|---|---|---|---|
| Center height | mm | 135 | 135 |
| Max. worktable traverse | mm | 650 | 950 |
| Hydraulic travel speed | m/min | 0.1~4 | 0.1~4 |
| Grinding length (Ext/Int) | mm | 500/125 | 800/125 |
| Worktable swivel range | ° | -5~+9° | -3~+7° |
| External wheel size | mm | Max.φ400x50xφ203 / Minφ280x50xφ203 | |
| Total motor power | kw | 5.625 | 5.625 |
| Roundness (O.D/I.D) | μm | 1.5 / 2.5 | |
| Surface roughness | μm | Ra0.32 / 0.63 | |
Quality Guarantee: 12 months from the date the machine is on board.
Service Policy: If a breakdown occurs due to quality issues within the guarantee period, spare parts will be prepared and sent within 5 days free of charge. For issues caused by misoperation, parts are supplied at cost price.
