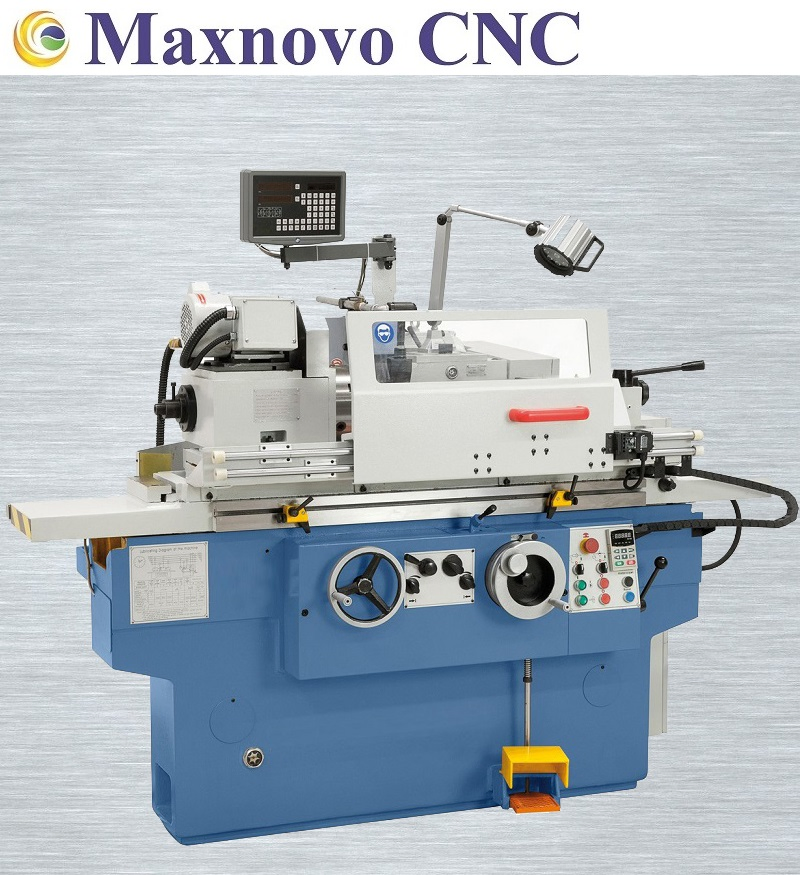

The MM-URS500N universal cylindrical grinding machine is engineered for external grinding operations up to 200mm in diameter with a maximum grinding length of 500mm. This high-precision equipment includes an internal grinding device to significantly extend its application range. It is ideal for machine construction, tool and mold shaping, and small-series production.
| Parameter | Specifications |
|---|---|
| Center Height | 135 mm |
| Grinding Length | 500 mm |
| Max. Work-piece Weight | 60 KGS |
| Outside Grinding Diameter | 8-200 mm |
| Inside Grinding Diameter | 13-100 mm |
| Inside Grinding Depth | 125 mm |
| Table Swivel Range | +3° to -9° |
| Table Longitudinal Travel | 650 mm |
| Work Spindle Speeds | 25-220 RPM (variable) |
| Grinding Spindle Speed | 1670 RPM |
| Inside Spindle Speed | 20000 RPM |
| Grinding Wheel Dimensions | Φ 400 X 50 X Φ 203 mm |
| Motor Rating Grinding | 4 KW |
| Total Power Consumption | 5.625 KW |
| Packing Size | 2550 X 1650 X 1550 mm |
With over 25 years of professional experience and innovation technology, our team supports customers worldwide with professional OEM/ODM manufacturing. We emphasize quality, efficiency, and reliability in every machine produced.

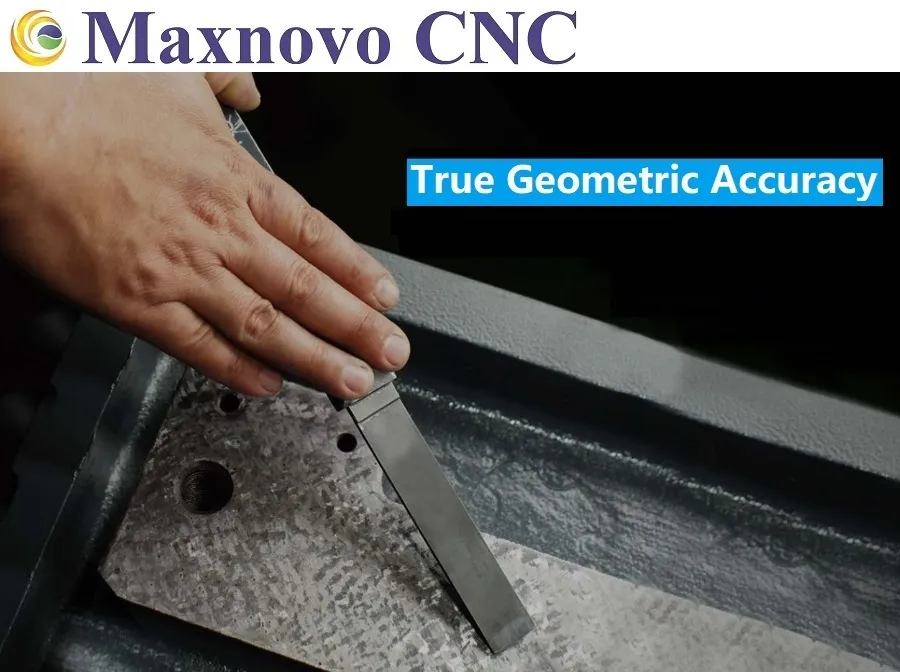

Metal Scraper Craftsmanship: Hand-scraped contact surfaces with 20 spots per square inch for true geometric accuracy.

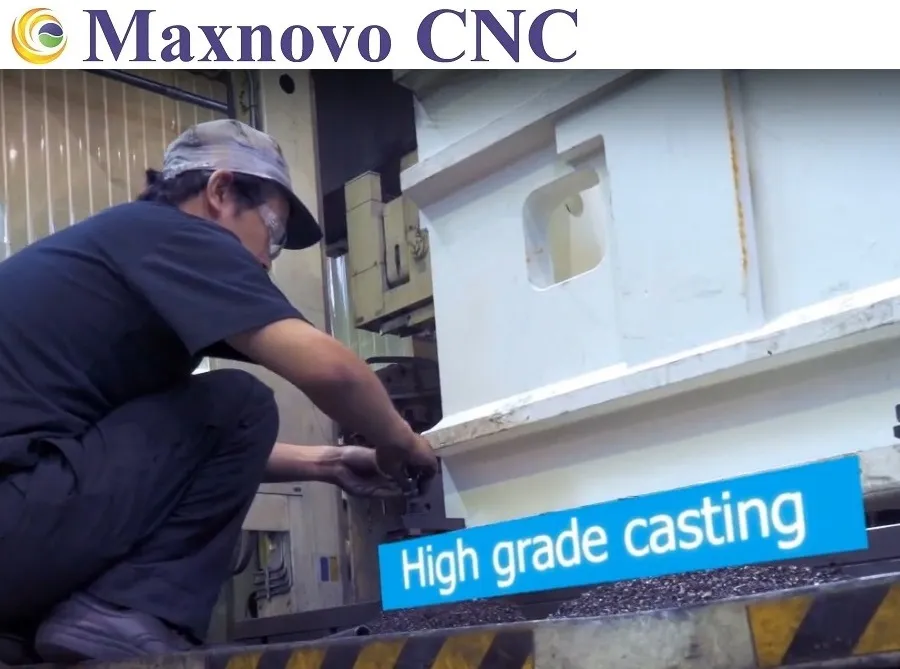

Premium Casting: Each piece undergoes high-pressure spray, annealing, and stress release tests to ensure long-term stability.

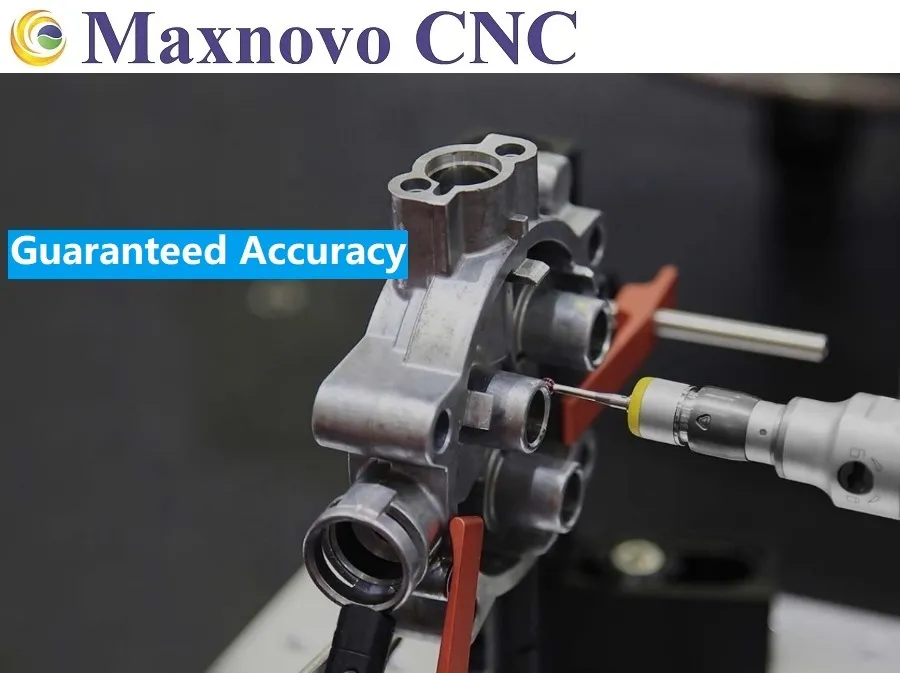

Strict Inspection: Every single part is examined against high quality standards to maintain excellence.
Controlled Environment: Machining is completed in temperature-controlled environments to maintain outstanding accuracy.
Quality is monitored by on-site management representatives. We never compromise on material validation and accurate quality control (IQC, IPQC, OQC) from start to finish. From a single cable to hardware functions, we ensure no mistakes in the supply chain.
