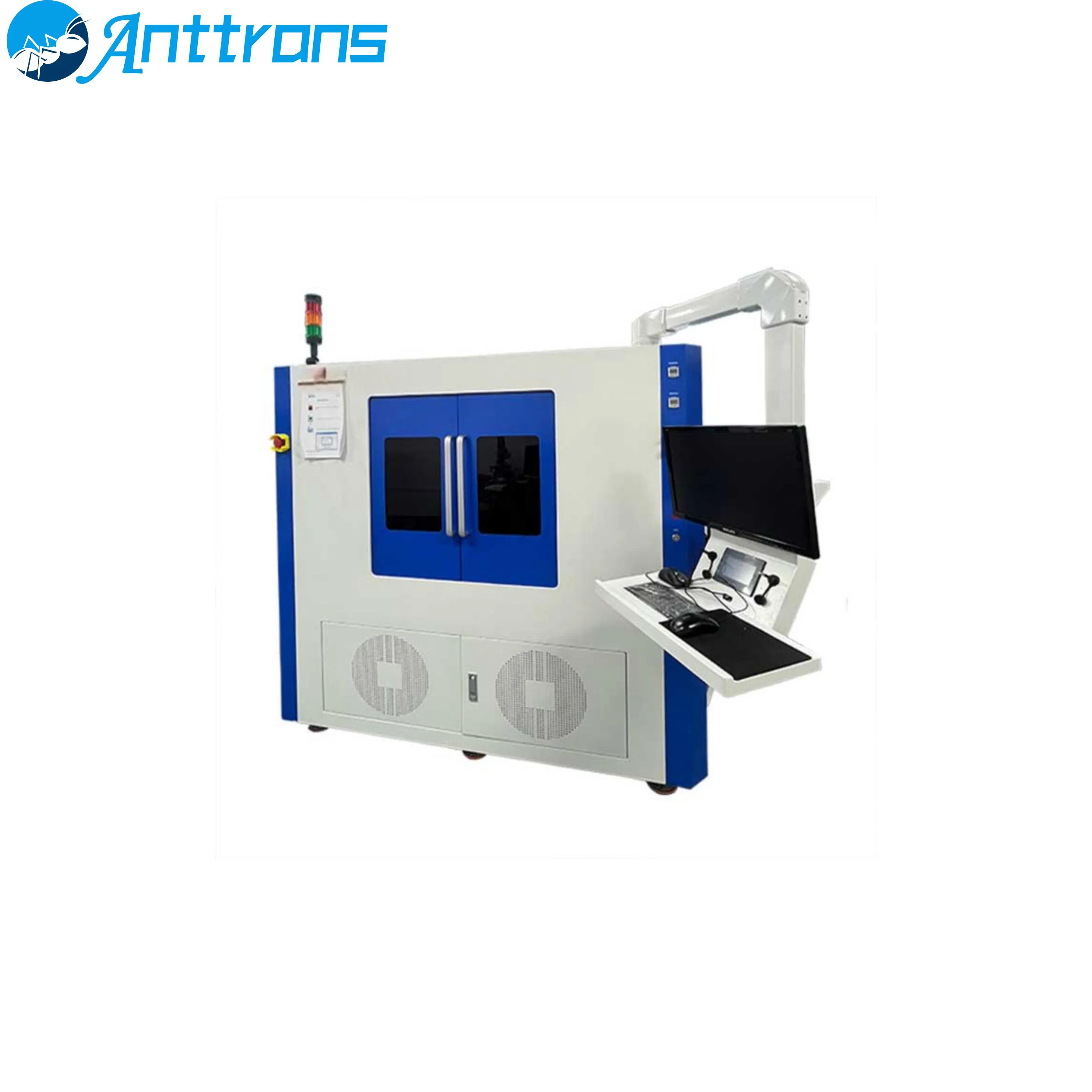

Ultra-High Speed Machining System/Efficient Laser Machining System

1 / 5

Ultra-High Speed Machining System/Efficient Laser Machining System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

ℹ️ Basic Information

Model NO. AT-61151

Origin China

Package Size 50.00cm * 60.00cm * 50.00cm

Gross Weight 30.000kg

🚀 Product Features

Utilizes high-power, highly stable ultra-fast ultraviolet laser for direct ablation and vaporization, achieving micron-level machining with no heat-affected zone.

Excellent beam shaping design allows for adjustments in spatial distribution and polarization to expand micro-machining capabilities.

High-precision galvanometer enables high-speed control with machining accuracy better than ±2μm.

Large-area precision machining through high-precision linear motor-driven platform with repeatability up to ±1μm.

Electrically adjustable Z-axis to accommodate materials of different thicknesses for 3D fine machining.

Extended precision rotary axis for forming irregularly shaped parts.

High-resolution industrial camera for full-field error correction, high-precision positioning, and depth measurement.

On-machine power detection and compensation ensure reliable long-term machining.

Supports up to 256 layer parameters and processes DXF, AI, and PNG vector and image files.

Marble tabletop enhances overall system stability for long-term precision.

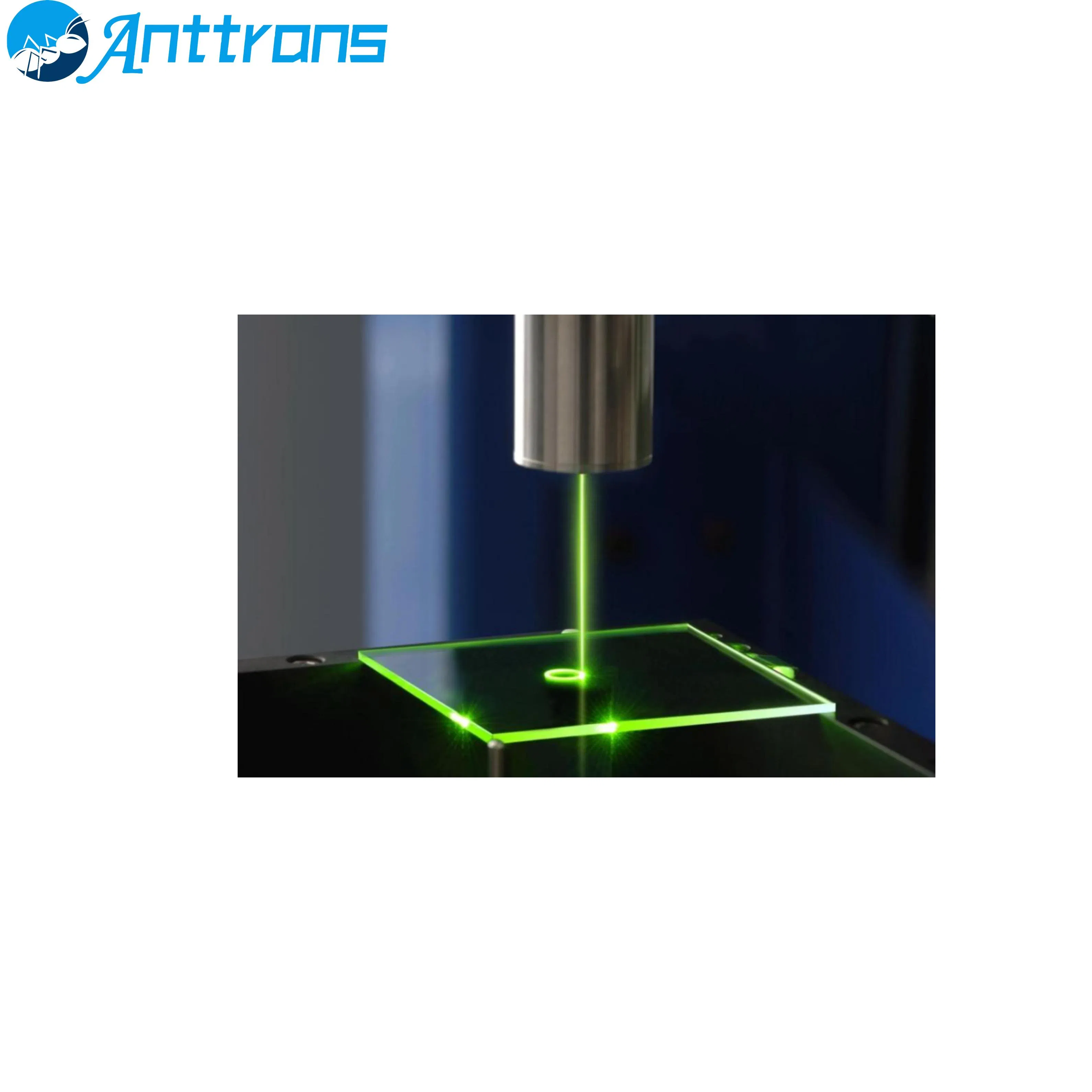

Suitable for solid materials including glass, organics, metals, ceramics, etc., for etching, drilling, and slotting.

🎯 Application Areas

Medical devices, precision tools, precision micro-mold forming, and fine mask fabrication.

📊 Product Parameters

Category	Parameter	AT-UVAT-5A
Laser	Wavelength	343/355nm
	Power	10W
	Modulation Frequency	1-2000kHz
	Pulse Width	<10ps
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±3μm
XY Table	Travel	500*400mm
	Positioning Resolution	0.1μm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±3μm
Machining	Minimum Line Width	<10μm
Dimensions	LWH	170014001950mm
Weight	Total Mass	2000Kg

🛠️ Product Construction

Main System	Main Components
Ultrafast Laser Micro-machining System	Laser, Scanning Galvanometer, Control Card
	Linear Translation Stage, Focusing Lens
	CCD (Charge-Coupled Device)
	Water Chiller, Platform Control Card
	Control System, Z-axis
	Smoke Dust Collector
	UPS (Uninterruptible Power Supply), Rack

🏢 Business Scope

Technical services, technology development, and consulting. Wholesale and retail of computer software/hardware. Expertise in graphic design, functional glass, new optical materials, optical instruments, semiconductor device equipment, experimental analysis instruments, CNC machine tools, and electronic components. Specializing in metal cutting, welding equipment, fiber optics, photovoltaic equipment, and optical glass.

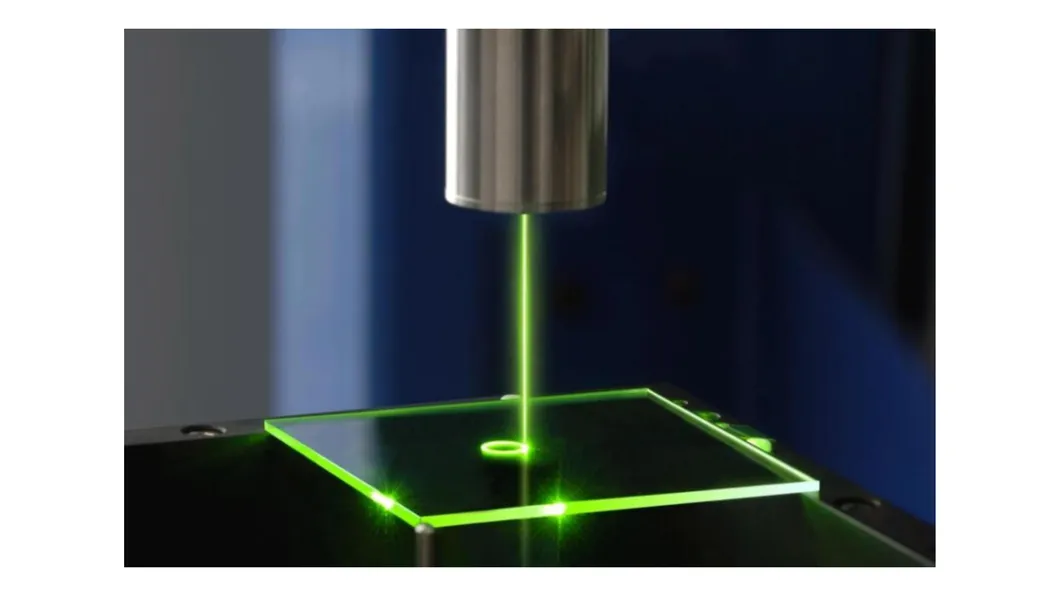

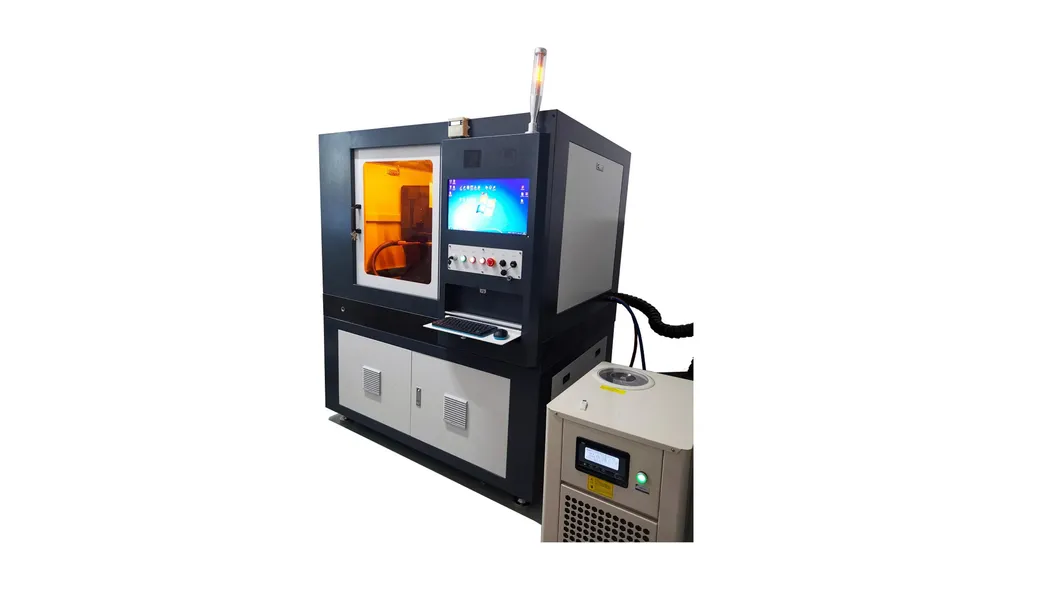

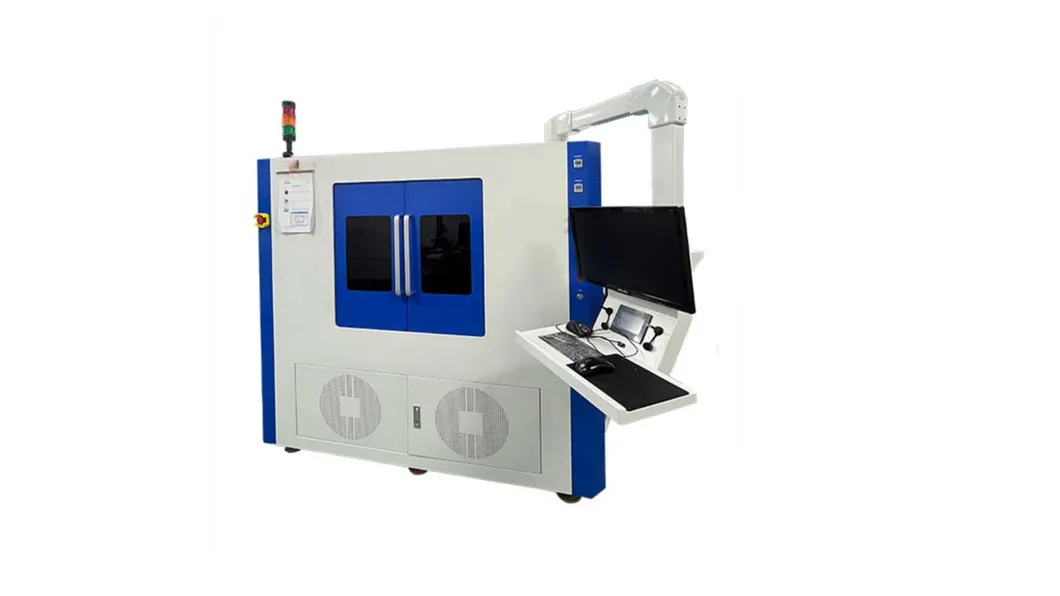

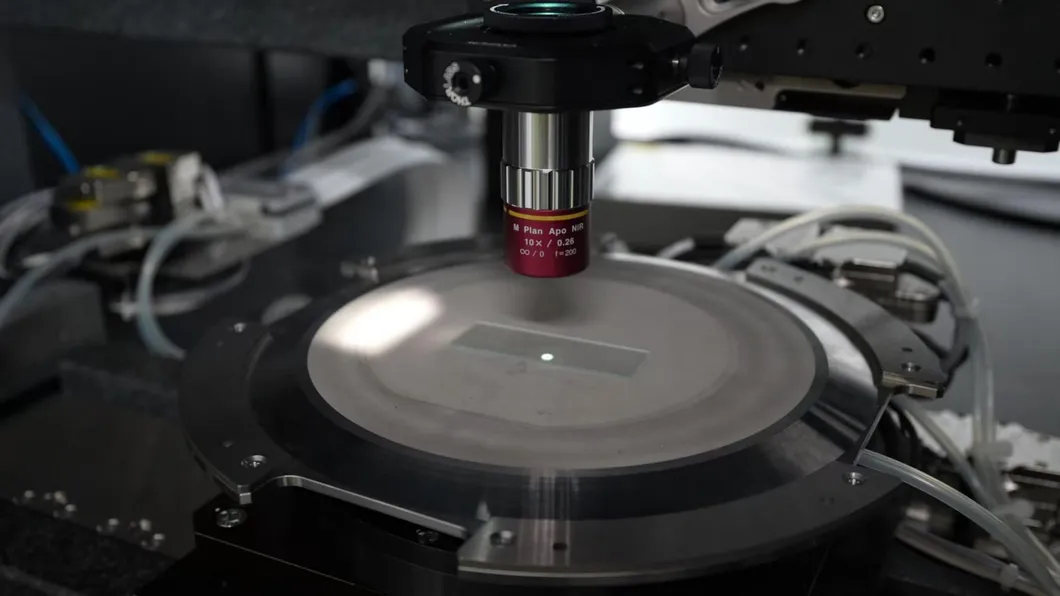

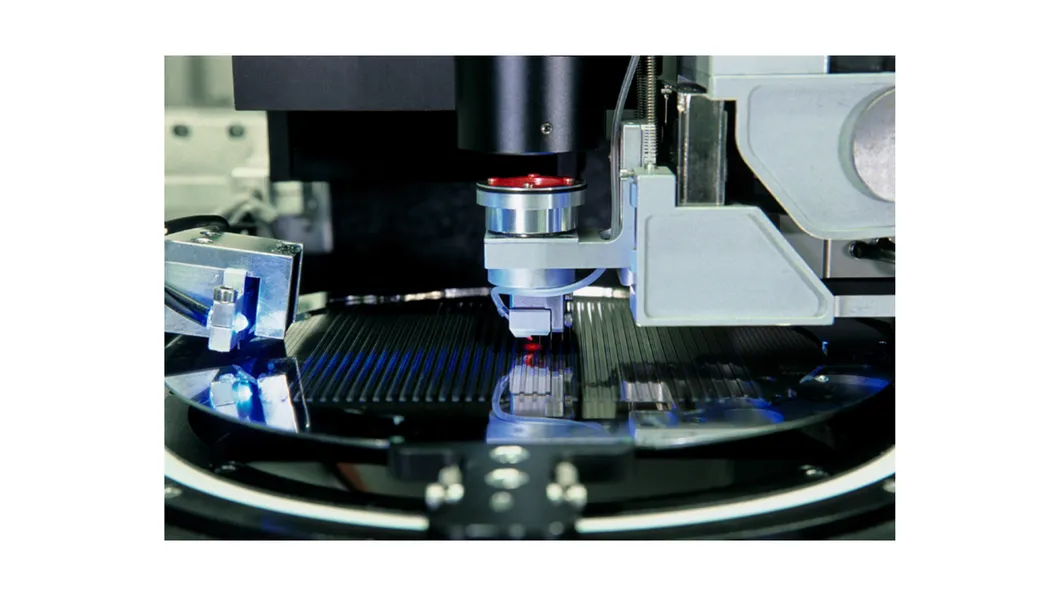

📸 Detailed Photos

❓ Frequently Asked Questions

What materials can be processed with this laser system?

The system is versatile and can machine virtually all solid materials, including glass, organic materials, metals, ceramics, and diamonds.

What is the maximum precision of the machining?

The system achieves a local dimensional accuracy better than 2μm and a repeatability accuracy of up to ±1μm using high-precision linear motor platforms.

Does the system support 3D structure machining?

Yes, the Z-axis is electrically adjustable, allowing the system to meet the requirements for fine machining of three-dimensional structures.

Which file formats are compatible with the software?

The control system supports two-dimensional and three-dimensional vector files, as well as images in formats such as DXF, AI, and PNG.

How is the long-term stability of the system ensured?

The system features a marble tabletop for vibration damping and high-quality mechanical components, along with on-machine power detection and compensation.

What are the cooling and power requirements?

The system requires a water cooling unit with a 2000W capacity and operates on 220V 50-60Hz 10A power with consumption ≤3000W.
