2025 Wholesale Rail Fastener Elastic Clip Skl Rail Fastening System for High Speed Rail

1 / 5

2025 Wholesale Rail Fastener Elastic Clip Skl Rail Fastening System for High Speed Rail

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

SKL Railway Fastening System

Certification

ISO9001

Type

Clip

Material

Steel, Rubber, Nylon

Process

Forging & Machining

Feature

Easy Installation & Maintenance

Application

High Speed Train

Surface Treatment

Plain Oiled/Zinc Plated/ Dacromet

📋

Product Description

SKL14 Rail Fastening System Specifications
Axle Load	≤26 t
Speed (km/h)	HS:≥250 CR:≤250
Curve Radius (m)	HS:≥400 CR:≥150
Height Regulation	Optional
Track Regulation	± 10 mm
Vertical Fatigue Strength	2 mm
Static Stiffness	≥50 kN/mm
Hold-down Force	9 kN
Electrical Resistance	≥5 kΩ
Penetration Resistance	≥9 kN

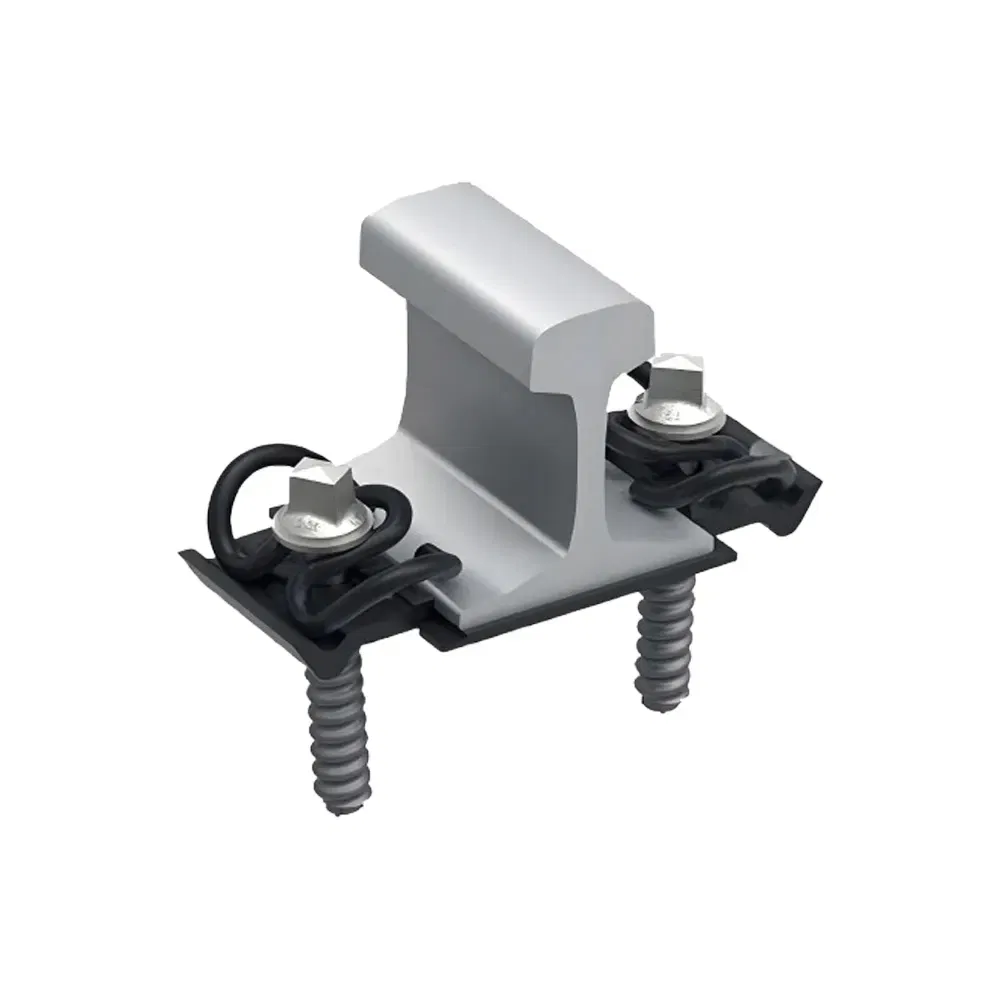

The SKL is a robust, direct-screw fastening system designed for concrete sleepers. It's simple, dependable, and safe, having been validated as a reliable solution for ballasted tracks across numerous countries.

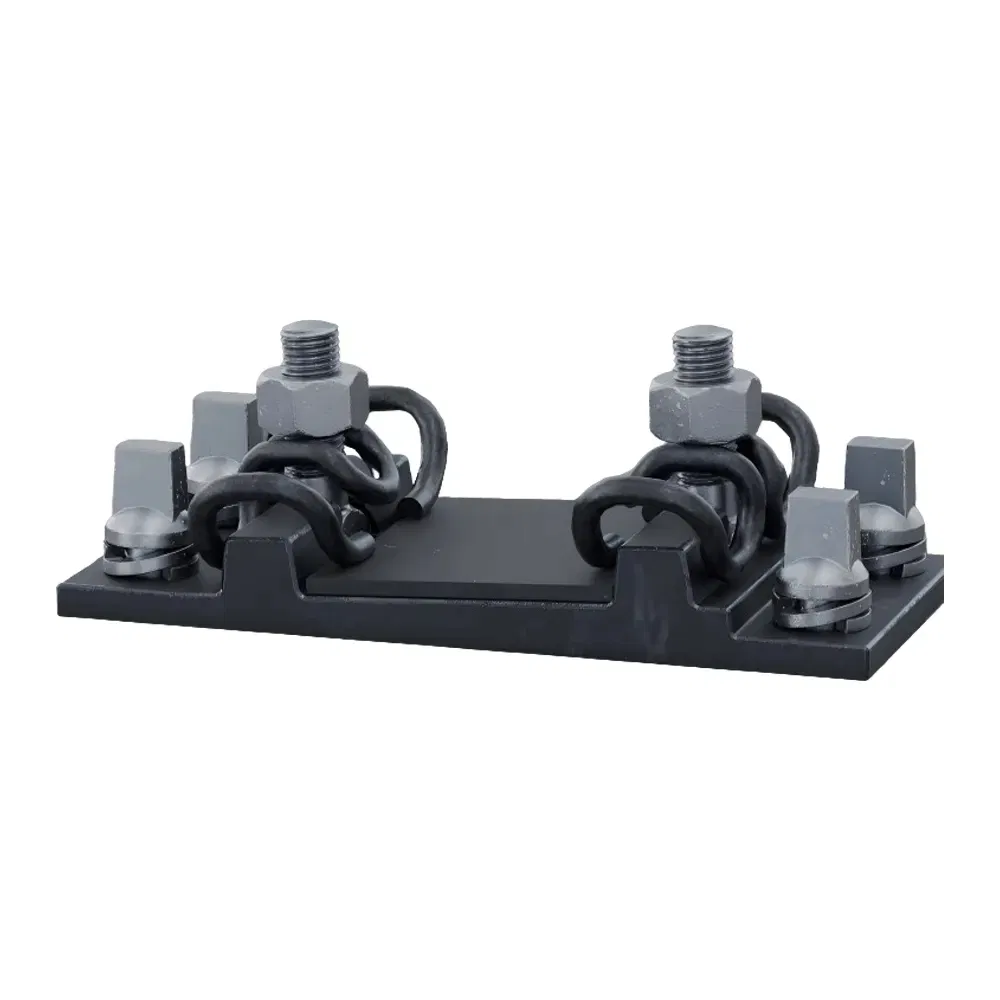

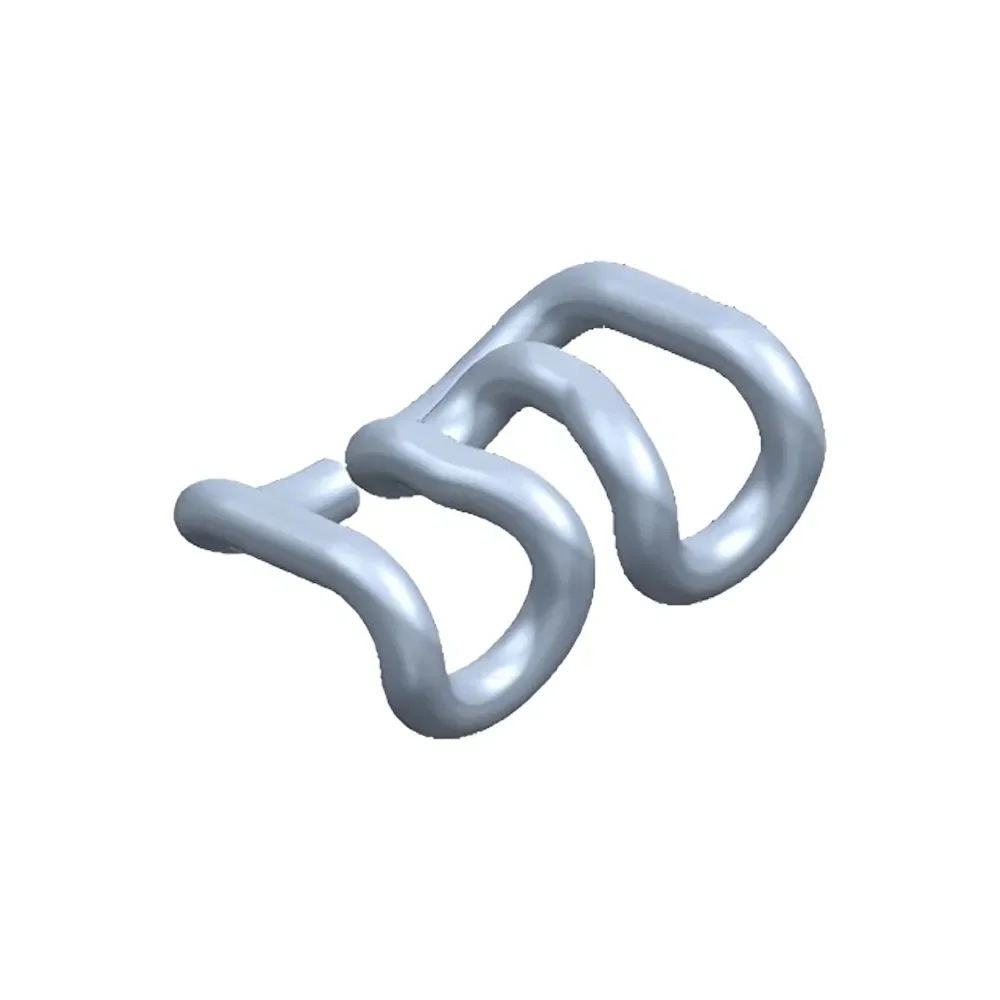

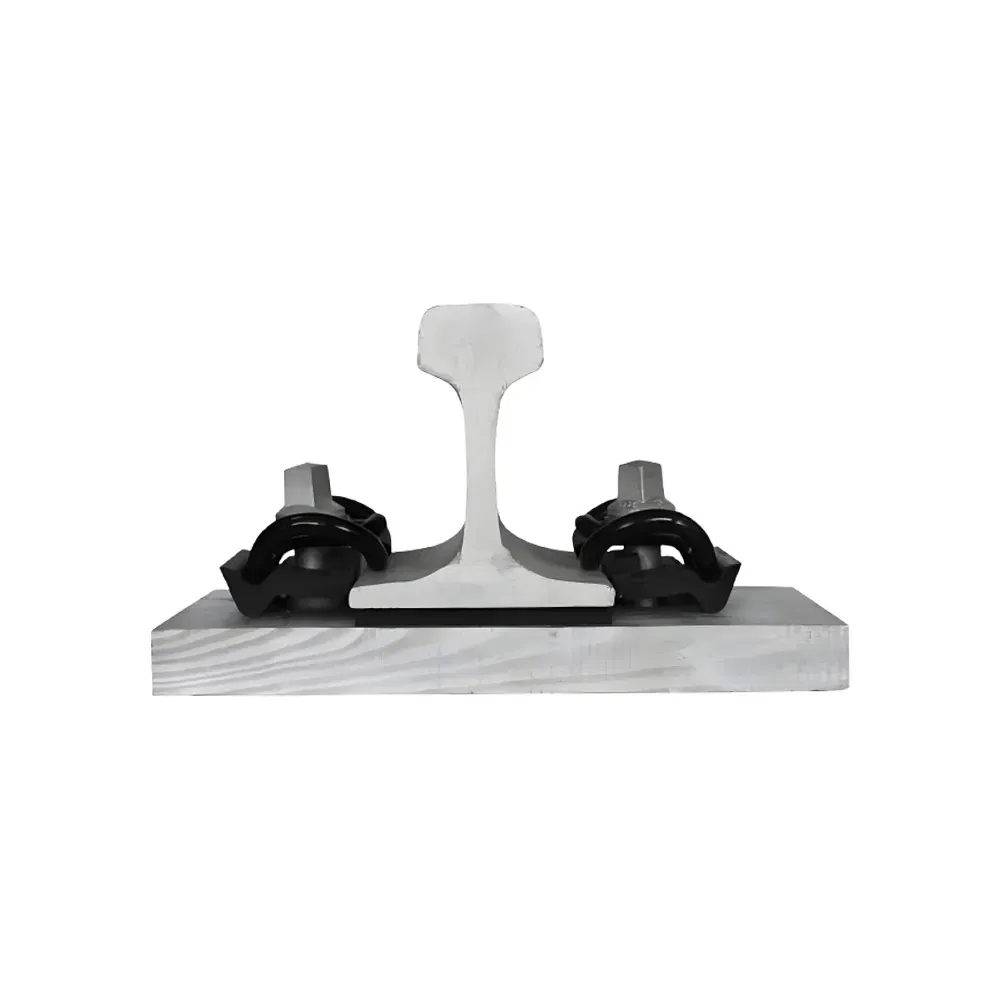

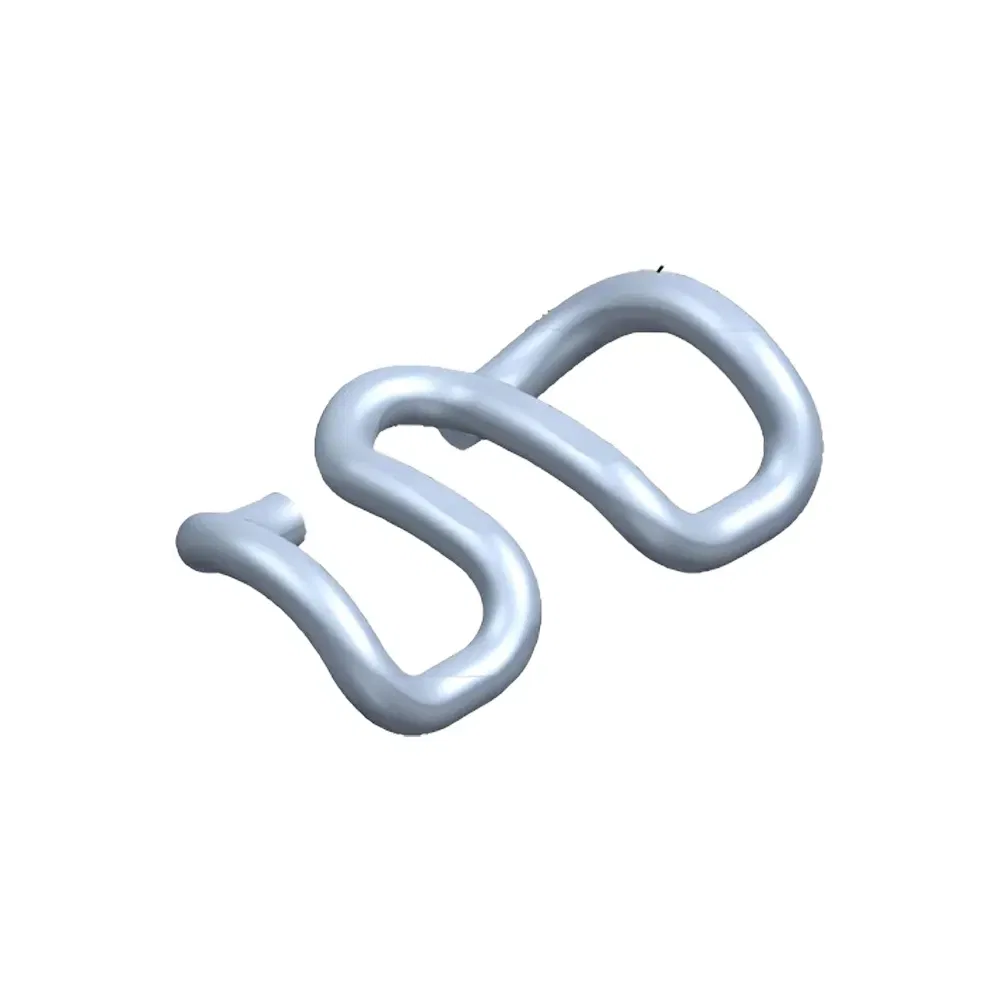

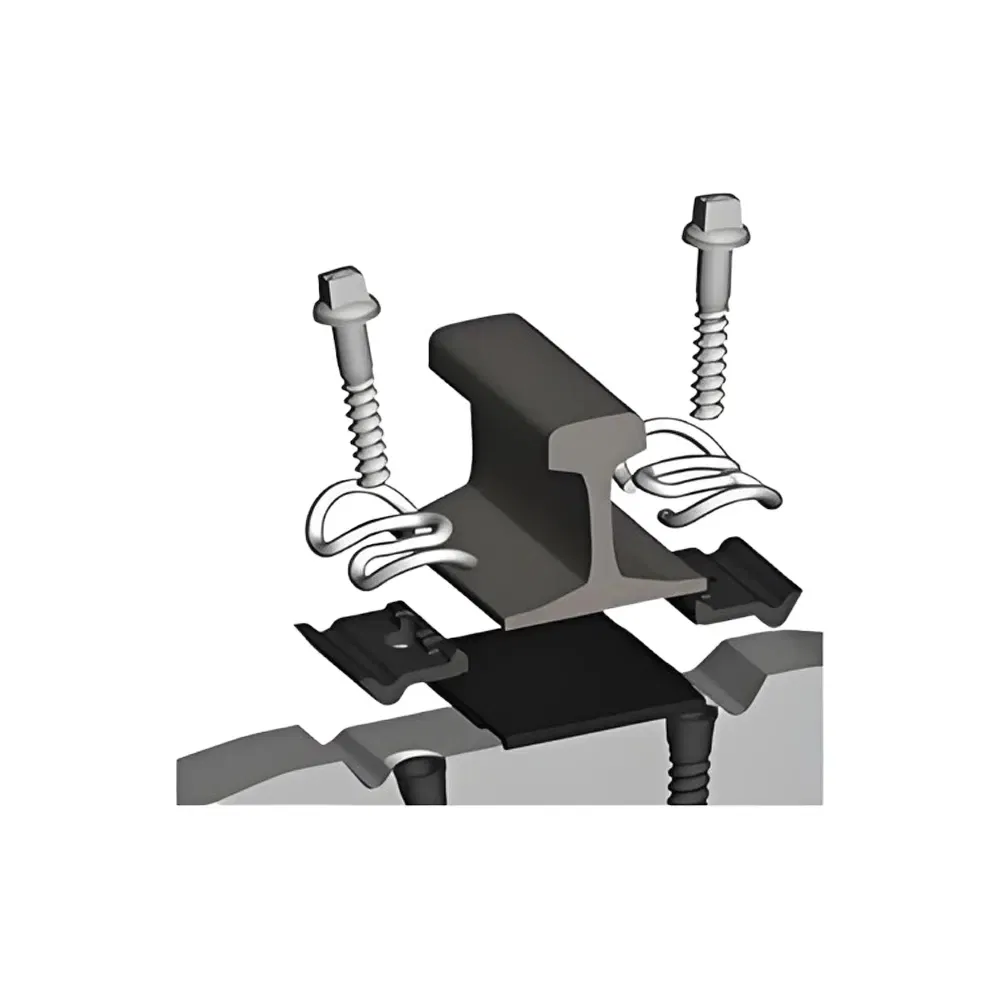

The rail seat assembly consists of two tension clamps (SKL clips) situated on top of angled guide plates. These guide plates fit into recesses on the concrete surface, securing the rail horizontally and transmitting lateral loads to the sleeper. A pad under the rail provides cushioning for impact absorption and electrical insulation.

⭐

Product Advantages

Gauge Adjustment: Simple component swapping removes the need for different sleepers during gauge widening.
Reduced Handling: Captive fastening reduces the risk of losing components, saving time and costs.
Replaceable Components: All parts, including concrete dowels, are replaceable to limit maintenance expenses.
Variable Clamping Force: Longitudinal restraint can be adjusted for specific track areas.
Stiffness Regulation: Overall track stiffness targets can be met even as conditions change over time.
Overturning Stop: Keeps the rail secure and protects clips from overstretching or failure.

❓

Frequently Asked Questions

What are the main factors to consider when selecting track accessories?

Key factors include compatibility with existing track specifications, adherence to international quality and safety standards, material durability for specific environments, and long-term cost-effectiveness.

How is the quality of the products ensured?

Quality is maintained through rigorous testing and quality control procedures, sourcing from recognized manufacturers, and full compliance with industry standards and safety regulations.

Can customized solutions be provided for specific rail projects?

Yes, customized solutions can be tailored to meet unique project specifications, including dual gauge and turnout sleeper configurations.

Is technical support and after-sales service available?

Comprehensive technical support is provided, including assistance with installation, maintenance, and troubleshooting to ensure optimal performance.

Do you offer international shipping for these components?

Yes, international shipping is available to a wide range of countries. Arrangement and costs are determined based on the destination and order volume.

What makes the SKL system reliable for high-speed rail?

The SKL system offers high static stiffness (≥50 kN/mm) and a strong hold-down force (9 kN), combined with an overturning stop that prevents overstretching of clips, making it ideal for the high lateral loads of high-speed tracks.
