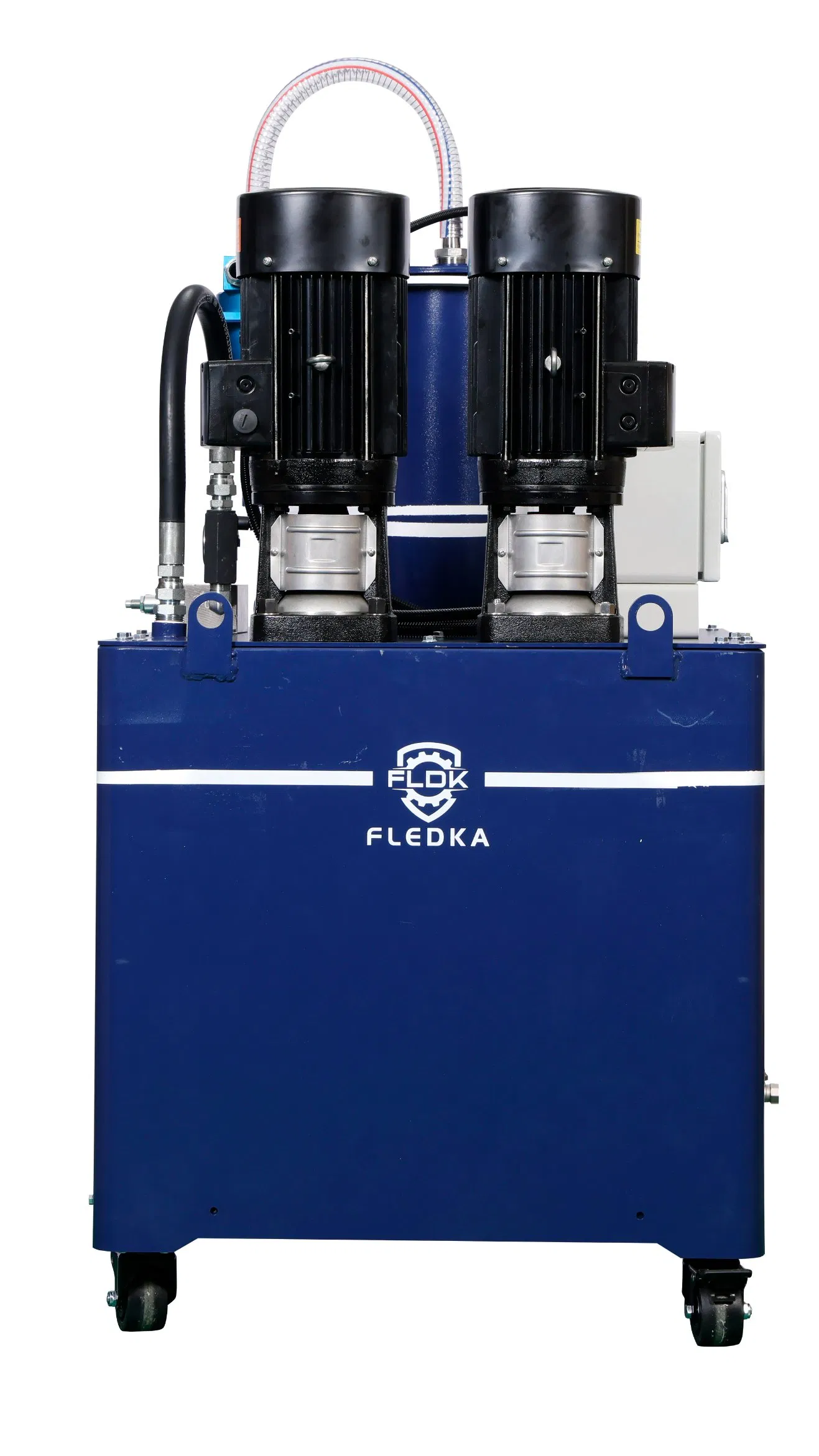

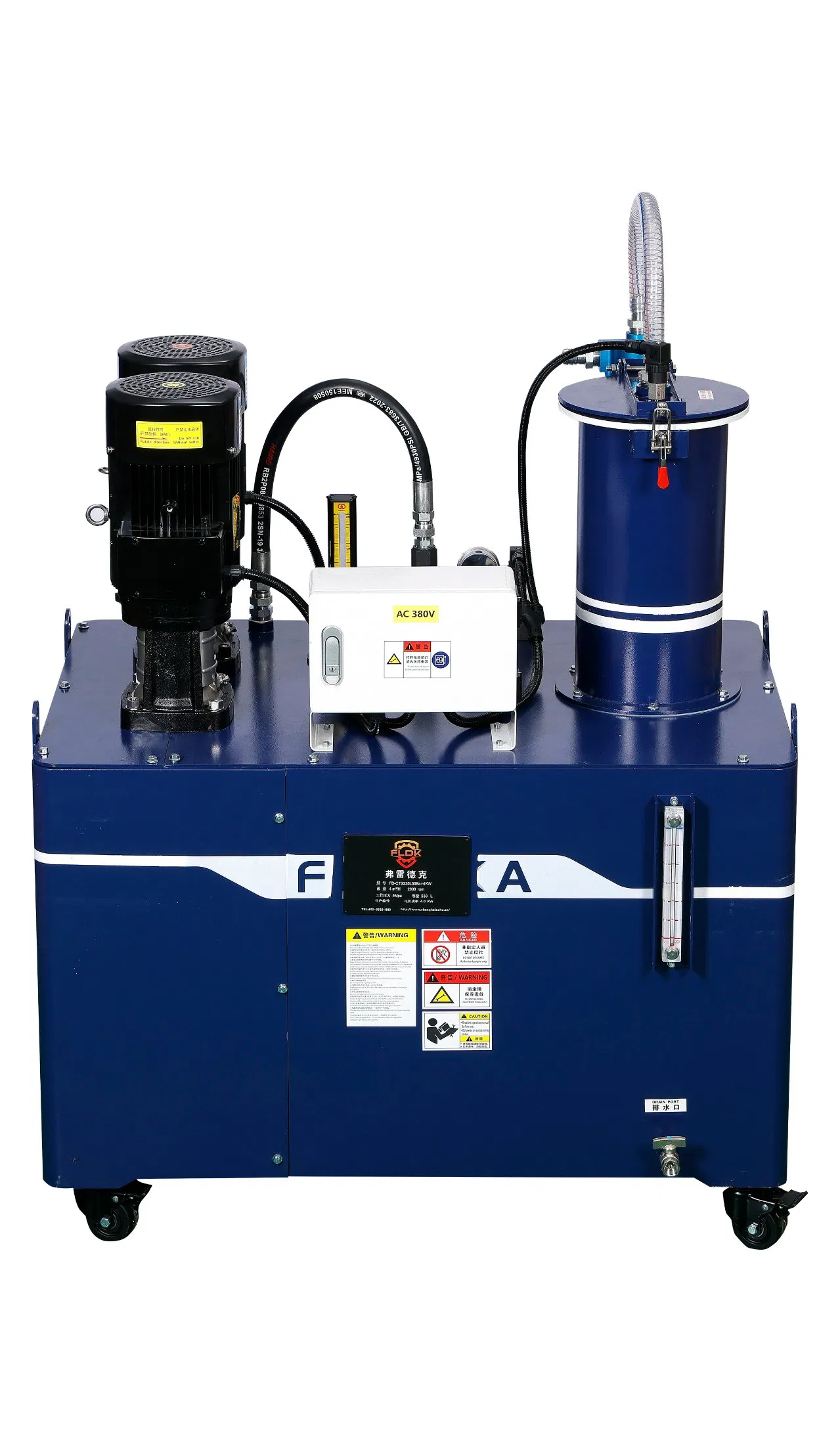

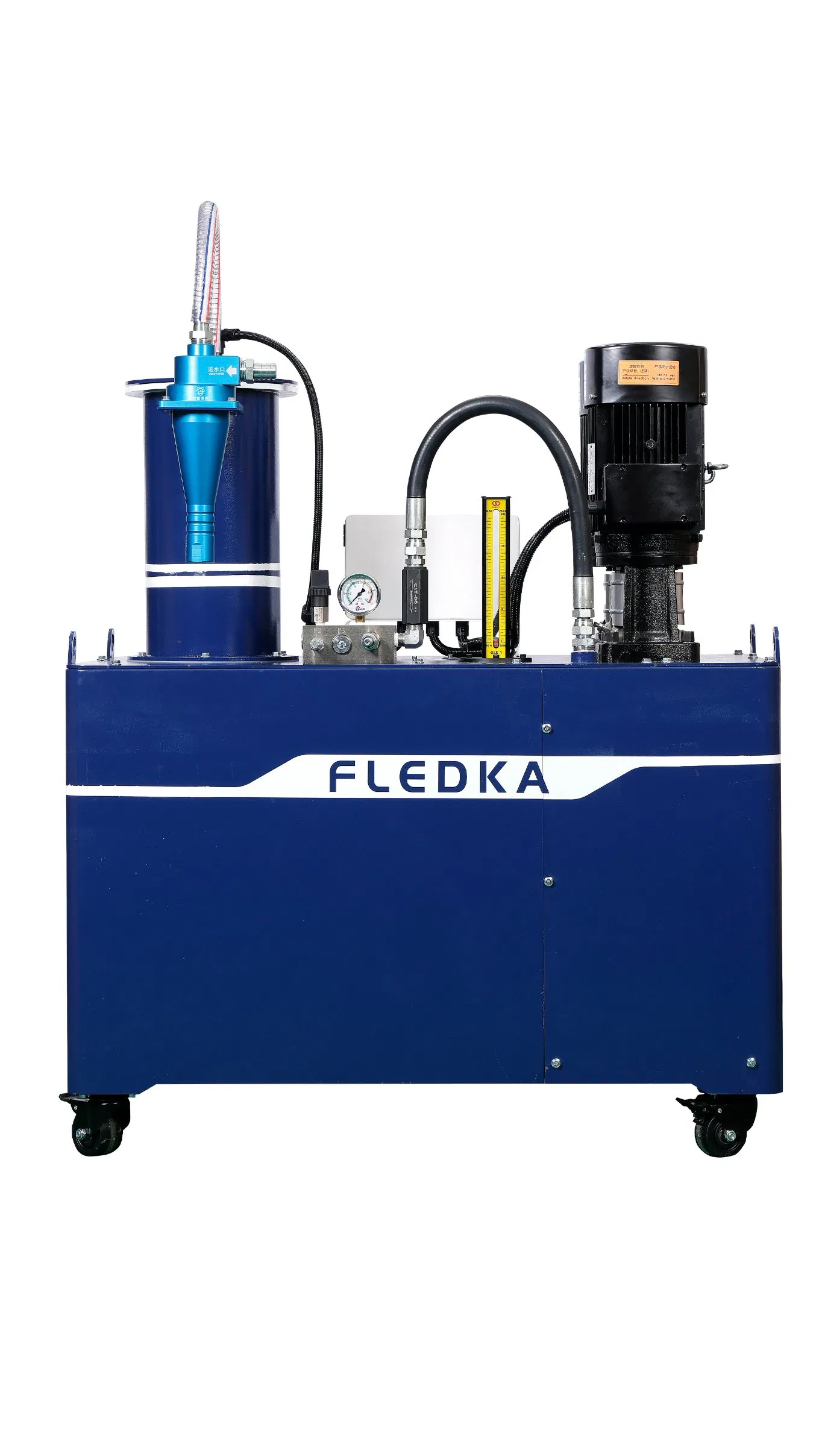

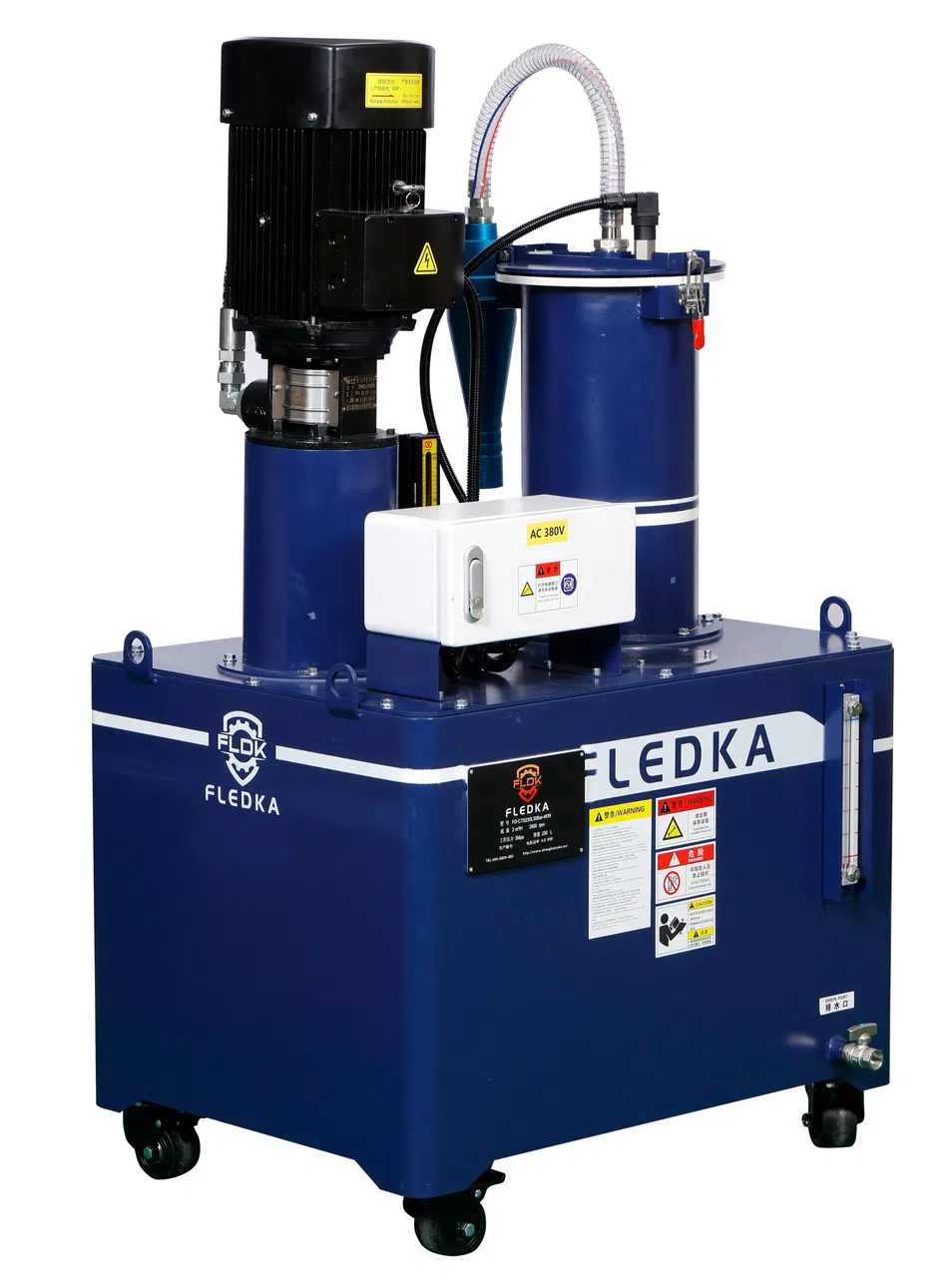

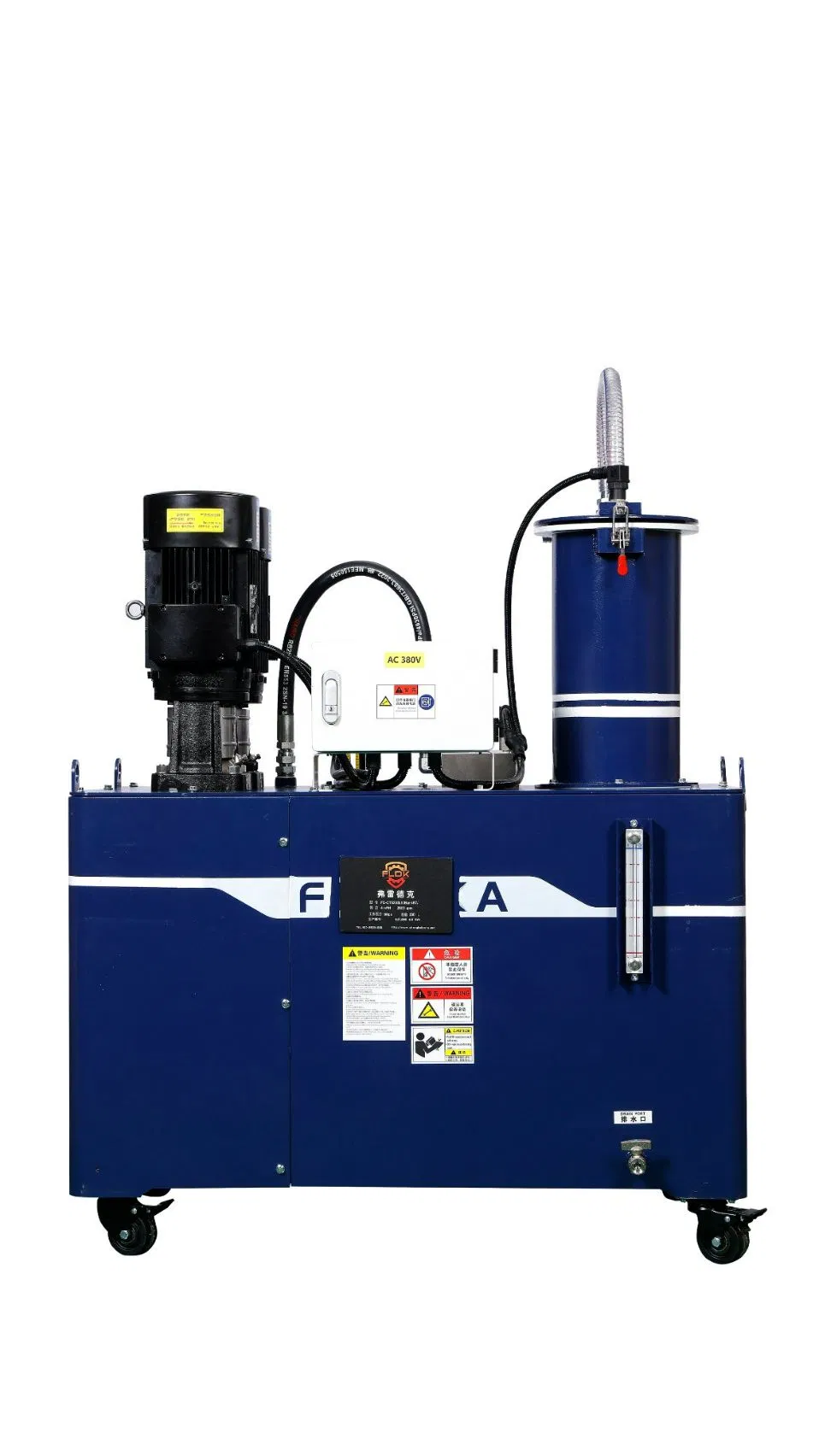

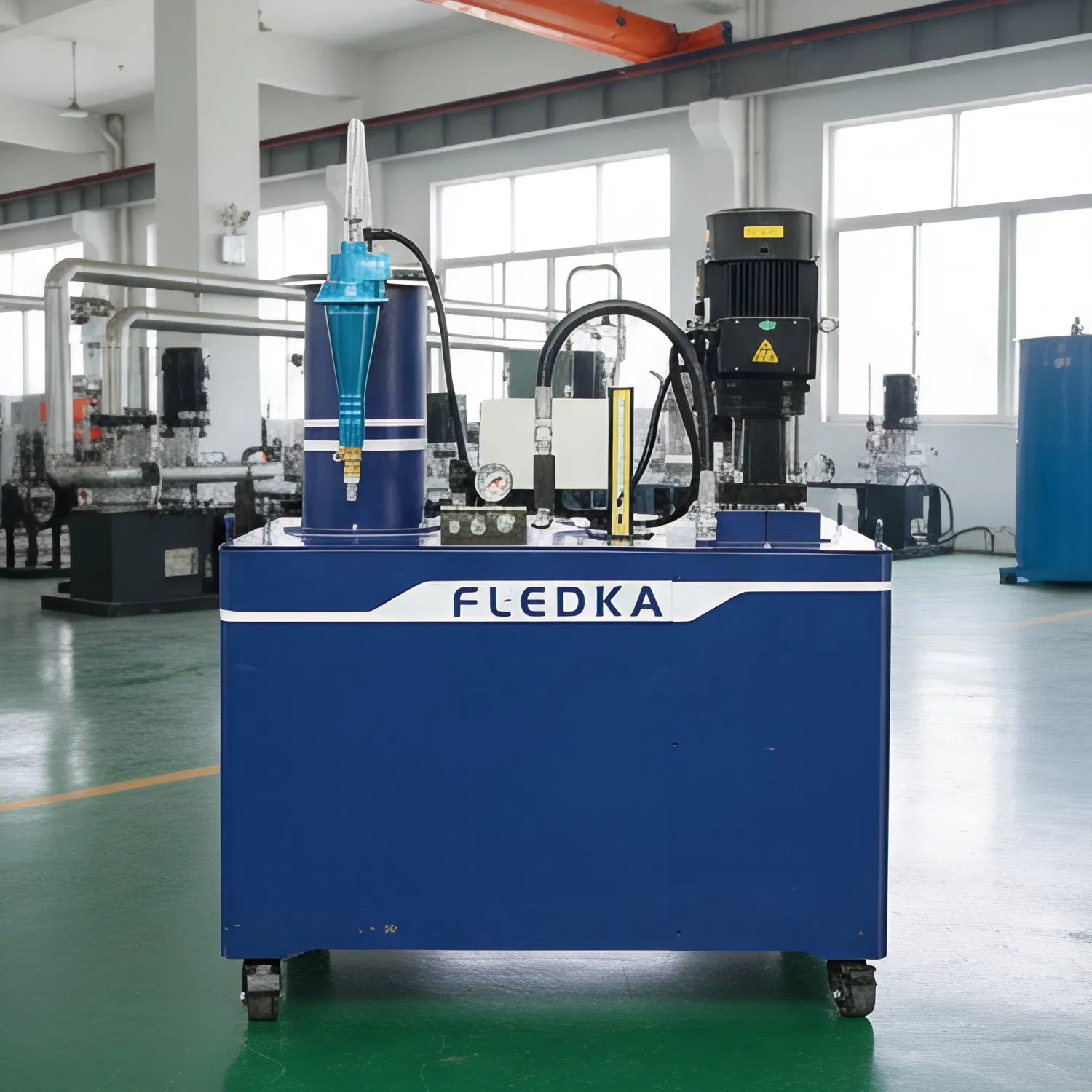

Multiple Filtering Fldka 50bar-3.75kw High-Pressure Through-Spindle Coolant System for Enhancing Machining Efficiency

Customization:	Available
After-sales Service:	7*24h Service
Warranty:	1 Year

Basic Info.

Model NO.

FD-CTS230L50Bar-3.75KW

Type

High-Pressure Through-Spindle Coolant

Cooling Water

Industrial Water

System Type

Closed System

Fans Species

Single-speed Fan

Noise Level

Low

Application

Precision Machining, Turning, Milling and Drilling

Certification

ISO

Condition

New

Weight

250kg

Specification

750*1200*1650

Trademark

FLDKA

Product Description

During product processing and over cutting and hot cutting, the steam barrier is formed and the chip liquid is unevenly distributed, so that the tool tip cannot obtain the required cooling. In the case of insufficient cooling of the cutting tool, the iron chips will return to the cutting point. Therefore, repeated processing of chips will shorten the tool life and damage the surface finish of the workpiece.

High-pressure Through spindle coolant filtration system high-pressure centralized aiming chip liquid can penetrate the steam barrier, smoothly reduce the high temperature generated during cutting, effectively supply chip liquid, significantly improve the tool life, sufficient lubrication, and improve the surface finish and accuracy of the workpiece.

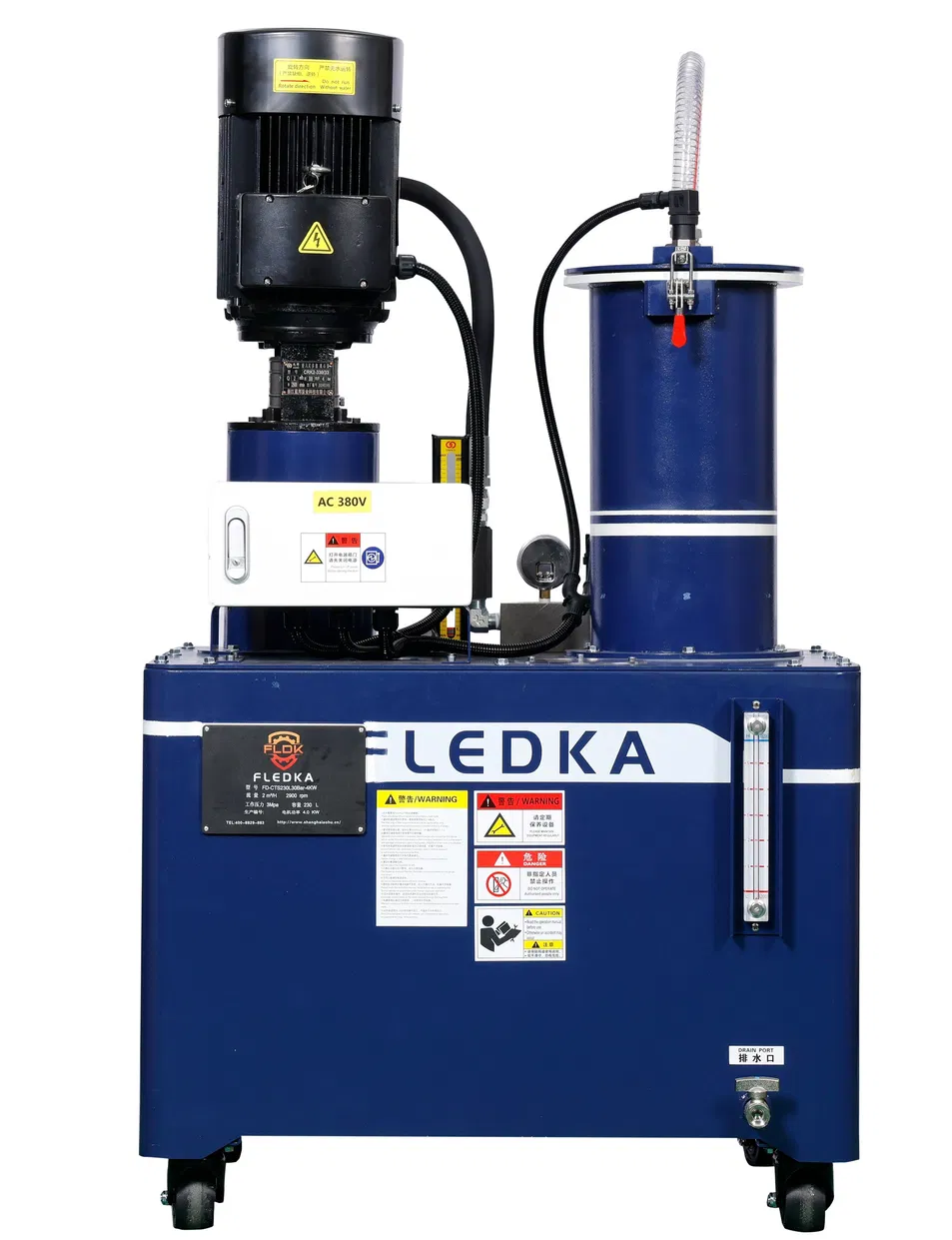

1. Superior Heat Management

By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation of the workpiece and tool, ensuring tighter tolerances and consistent part quality. It maintains stable temperatures even in high-speed scenarios.

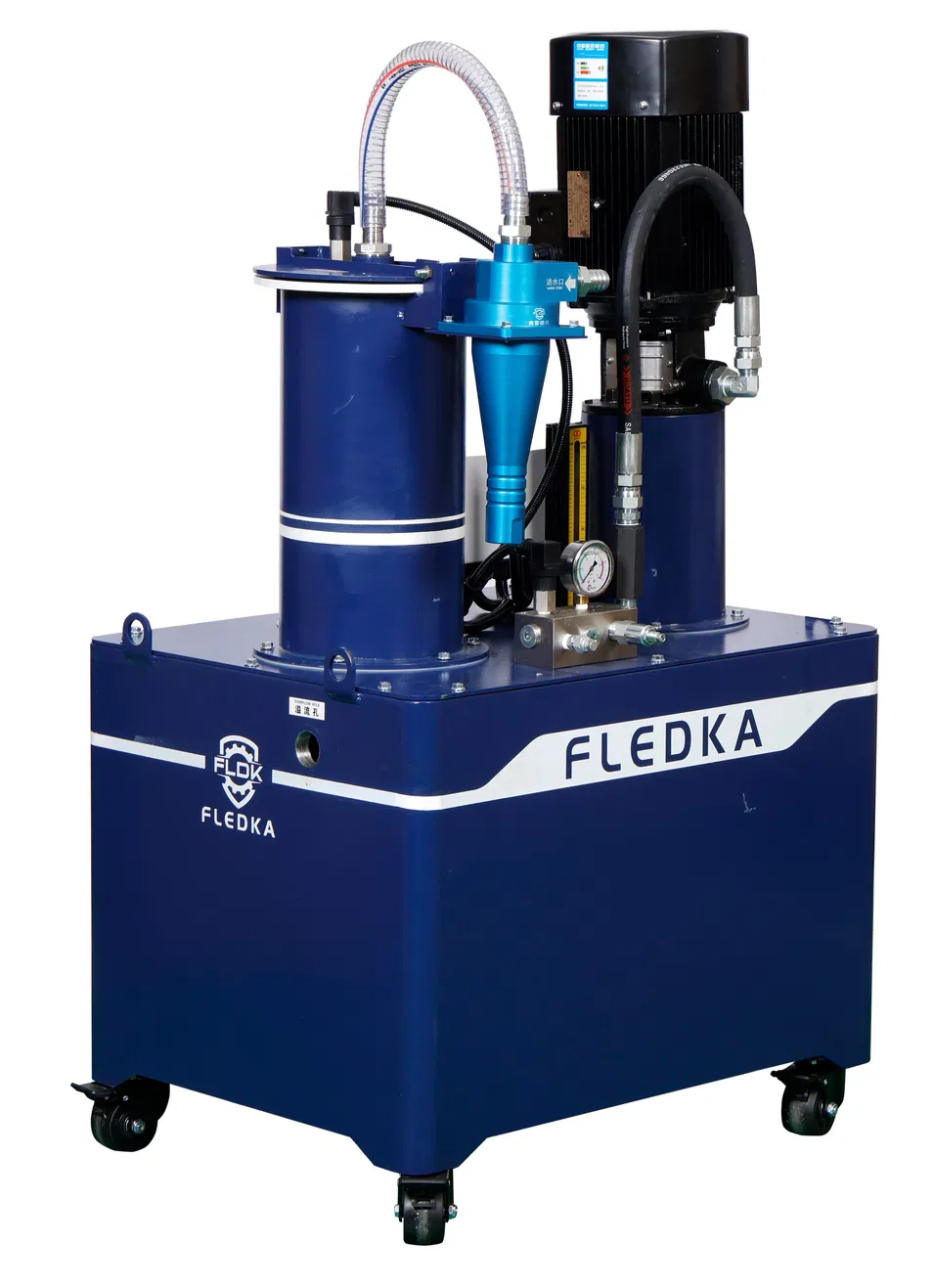

2. Efficient Chip Evacuation

The high-pressure coolant flow effectively flushes away chips from the cutting zone. It prevents chip re-welding, entanglement, and accumulation, which can lead to tool breakage and surface finish defects. This ensures unobstructed cutting paths for deep-hole drilling and milling.

3. Force Transmission & Responsiveness

Equipped with advanced sealing technology and optimized pathways, the system ensures efficient force transmission with minimal energy loss. Fast response times enable quick blade actuation, reducing cycle times in high-speed operations while maintaining consistent cutting force.

4. Flexible Customization

We offer extensive customization options to match specific machinery requirements. From adjustable stroke lengths to tailored mounting interfaces, the system can be modified to fit unique equipment designs, compatible with both hydraulic and pneumatic setups.

Manufacturing Excellence

Established on December 8, 2010, we are a manufacturing-based enterprise that integrates production, trade, and technical R&D. Our factory covers an area of over 4,000 square meters, equipped with warehousing and inventory capabilities that allow us to respond swiftly to urgent orders.

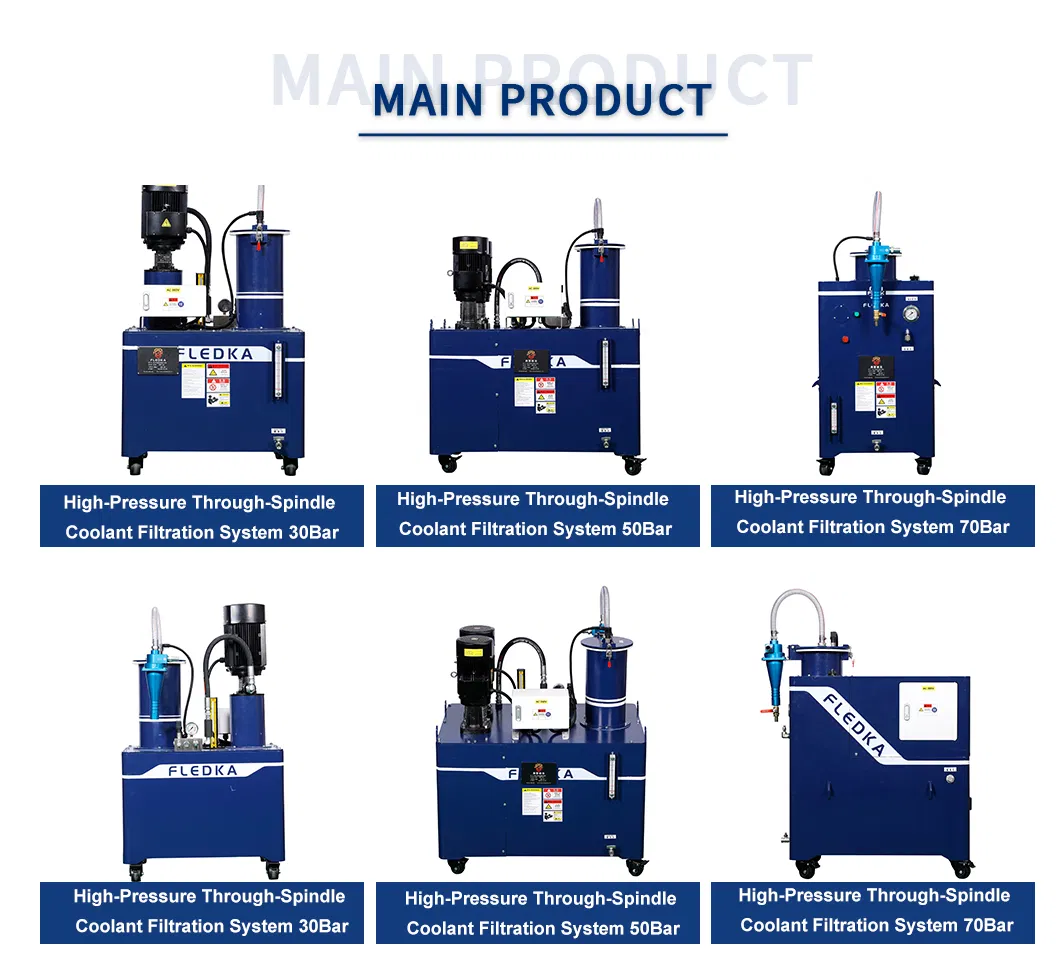

We currently have 4 technical R&D teams and 5 dedicated testing and inspection laboratories, with strong capabilities in both mass production and product innovation. Our product portfolio includes: 4th-Axis Motor Drives, Energy-Saving Hydraulic Systems, CNC Spindle Tool Release Cylinders, and High-Pressure Through-Spindle Coolant Systems.

Frequently Asked Questions

Can I get samples for testing?

As our quotation is already very competitive, we are unable to provide free samples. However, for large purchase quantities, we can deduct the sample cost from future cooperation orders.

Do you support OEM/ODM and custom designs?

Yes, we provide full OEM/ODM services. Your logo and design can be applied to the products, and we also support non-standard customization to meet specific technical requirements.

Are you a professional manufacturer?

Yes, we operate a 4,000-square-meter professional factory. We have an efficient R&D team and over 16 years of industry experience in CNC machine tool components.

What is your annual production capacity?

Our annual capacity includes 70,000 sets of 4th/5th axis cables, 5,000 hydraulic power units, 5,000 tool release cylinders, and 2,000 high-pressure through-spindle coolant systems.

What is the expected lead time for shipping?

Standard products are kept in stock and can be shipped immediately. For non-standard or customized products, the lead time is typically 2-4 weeks depending on component selection.
