Technical Specifications
Model NO.

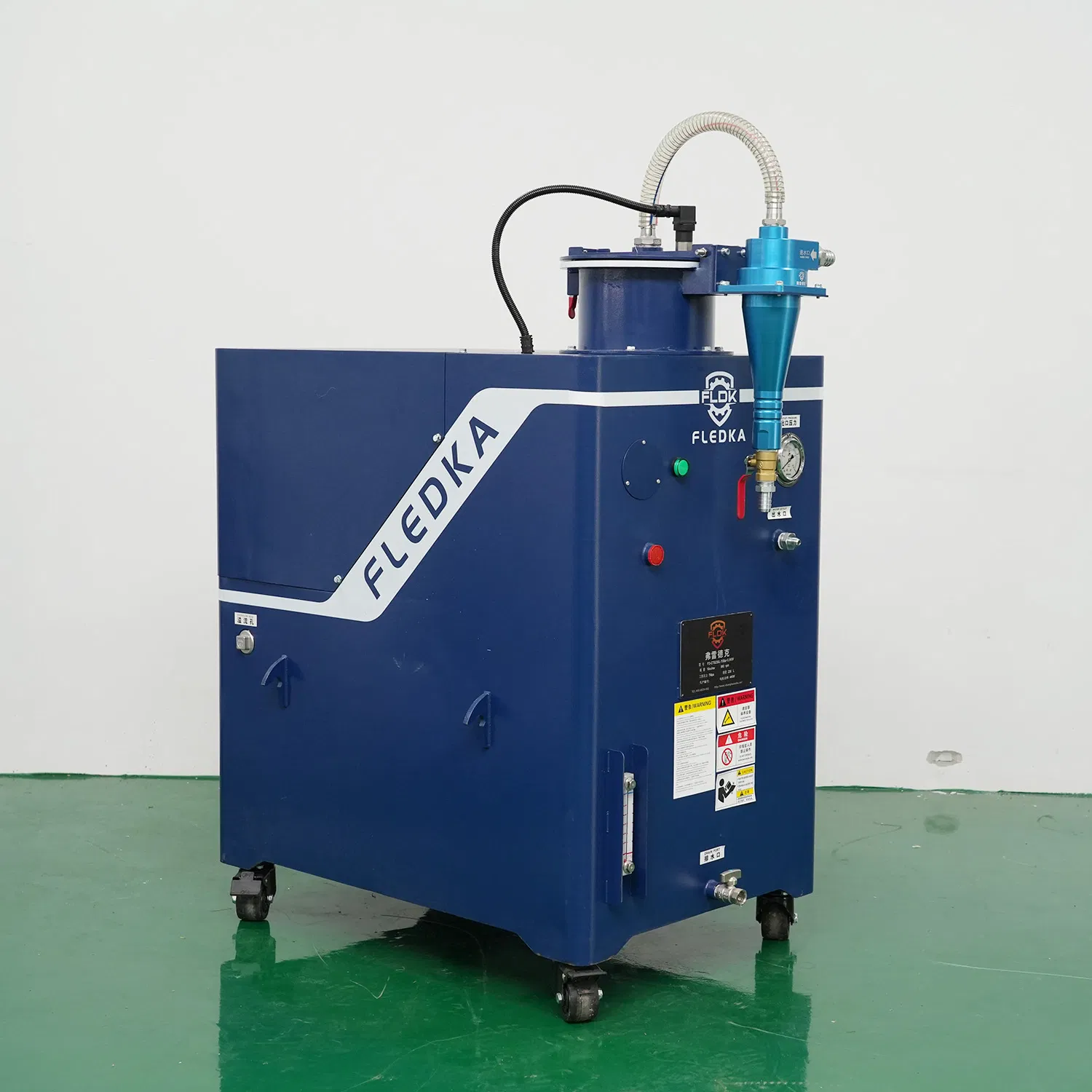

FD-CTS230L70Bar-4KW
Type
High-Pressure Through-Spindle Coolant
Cooling Water
Industrial Water
Fans Species
Single-speed Fan
Application
Precision Machining, Turning, Milling, Drilling
Specification
750*1200*1650
Product Description
During product processing involving over-cutting and hot-cutting, steam barriers often form, causing uneven distribution of chip liquid. This leads to the tool tip failing to receive necessary cooling. Insufficient cooling causes iron chips to return to the cutting point, shortening tool life and damaging the workpiece surface finish.

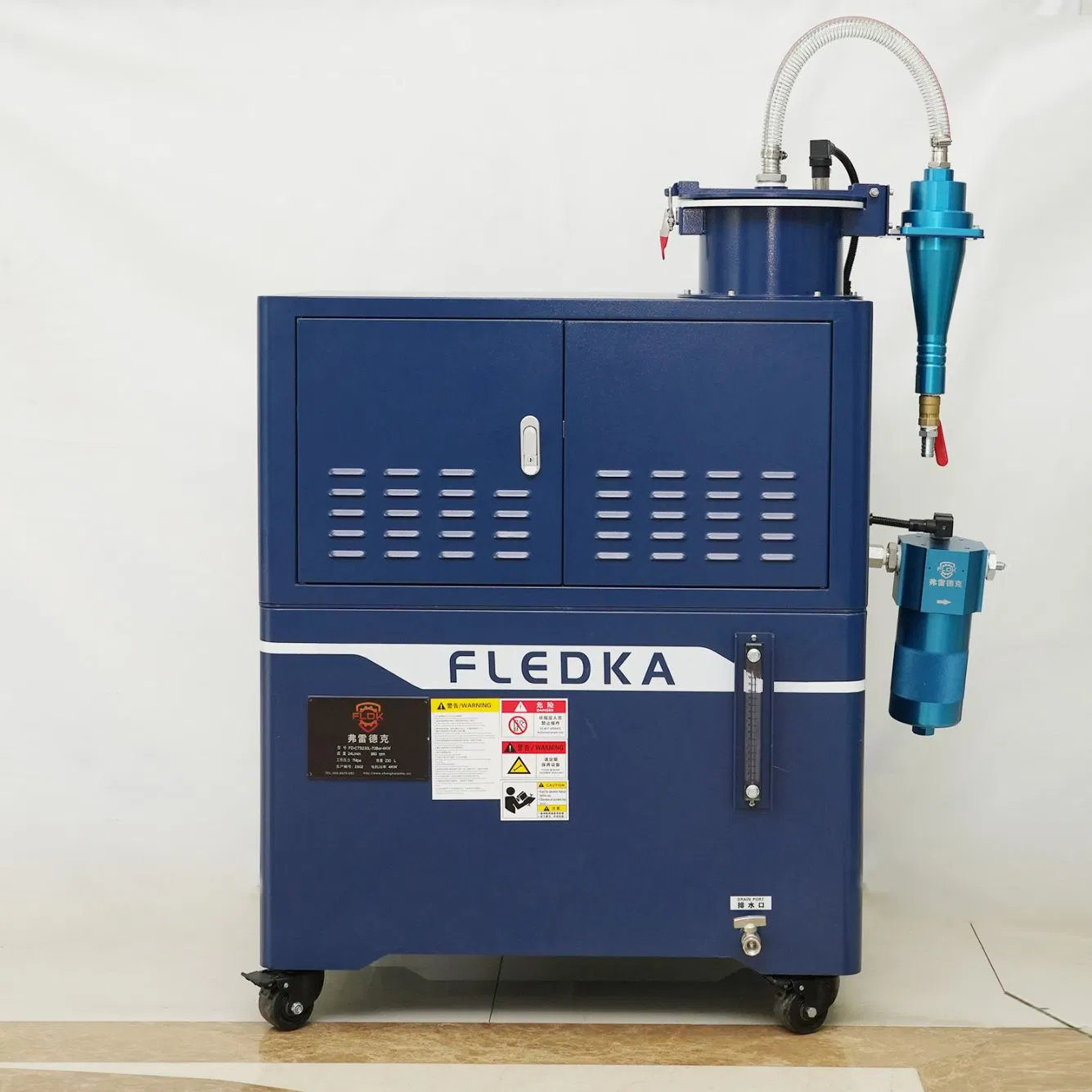

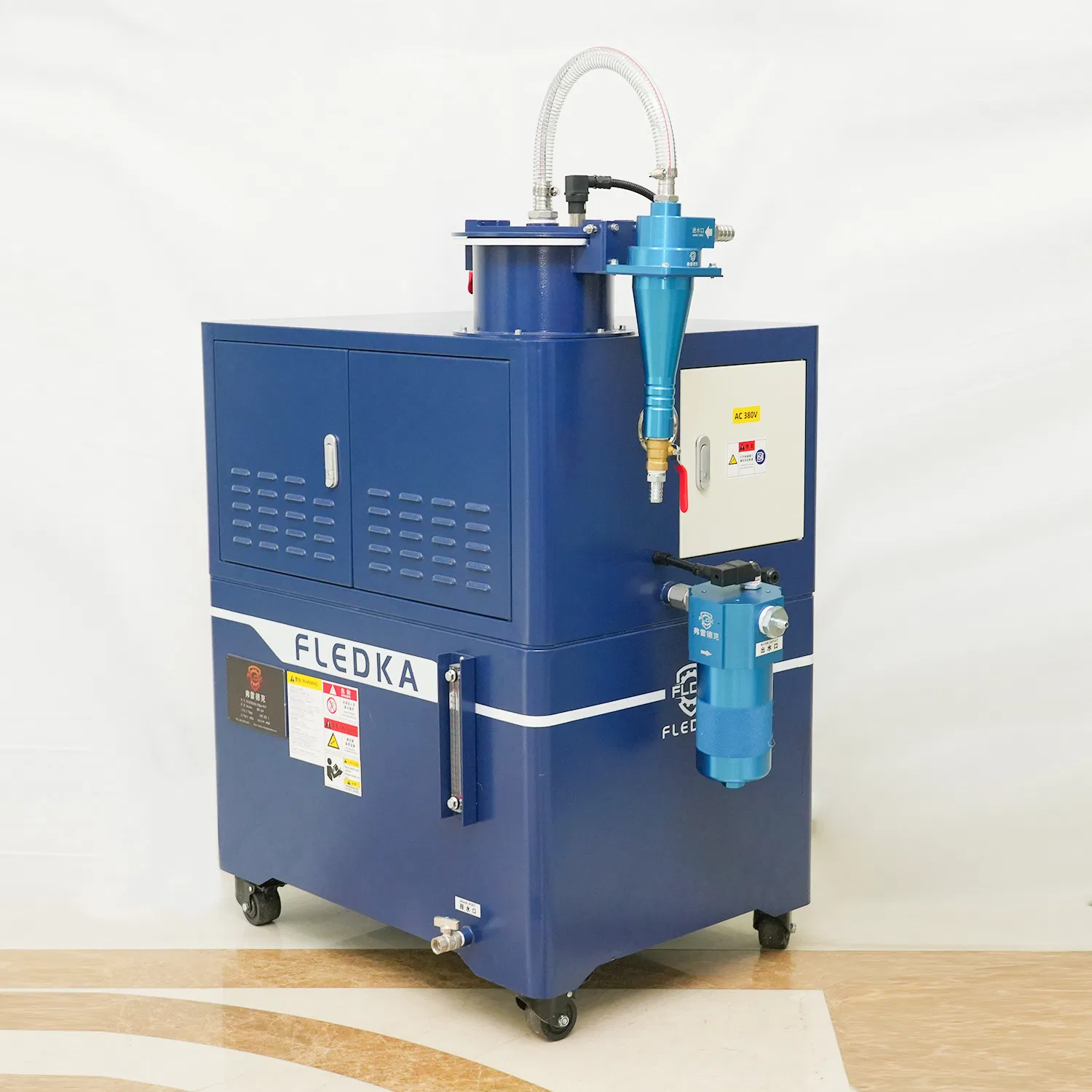

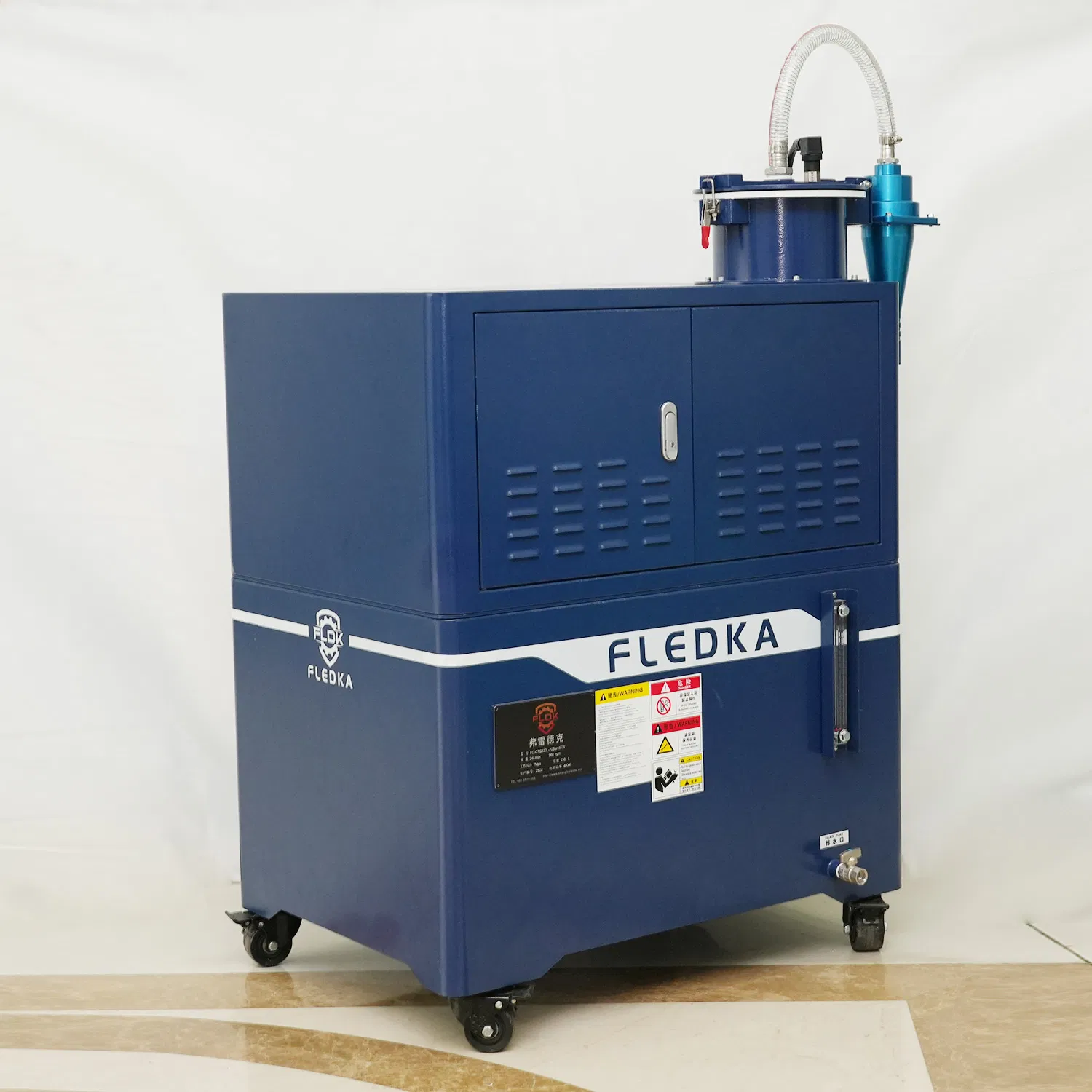

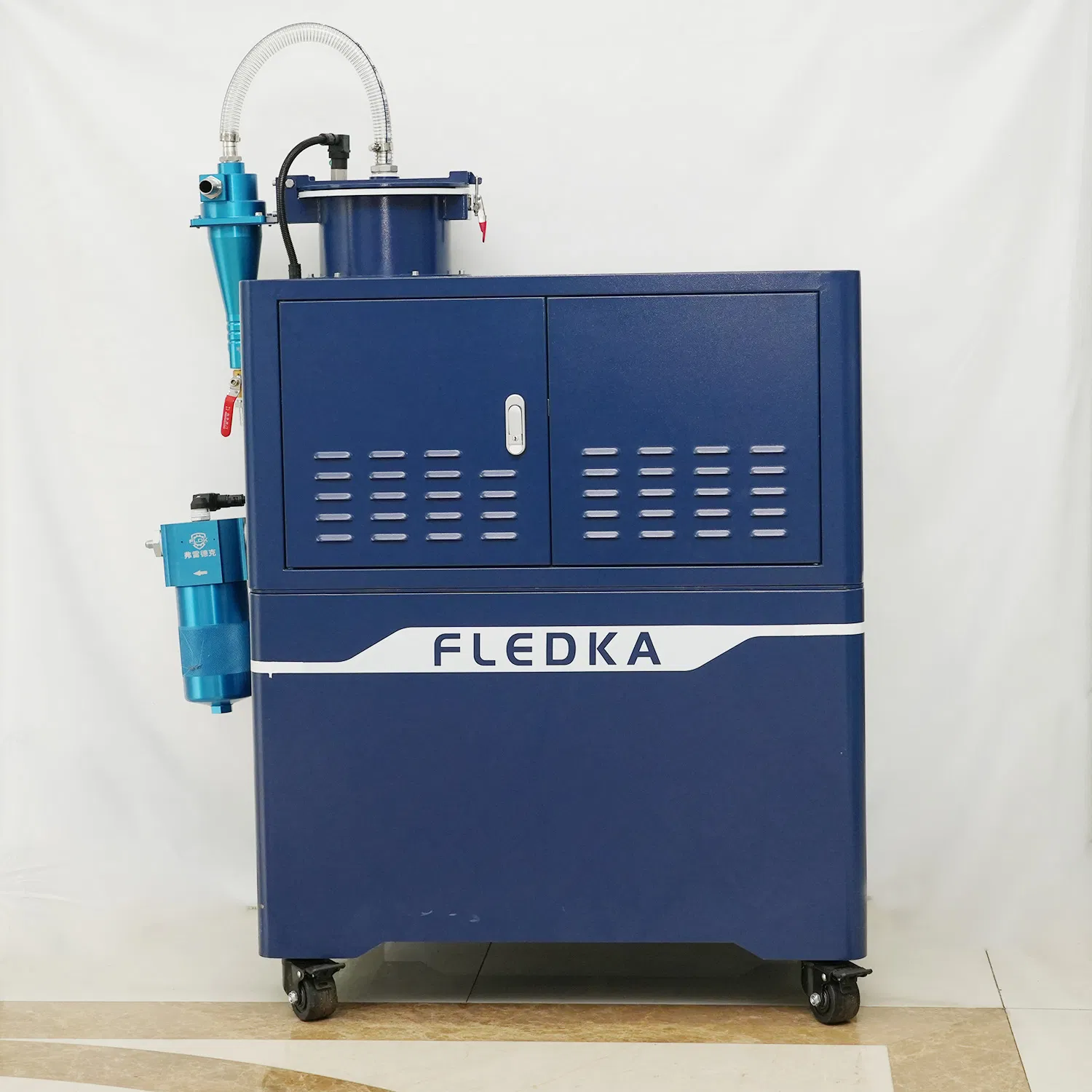

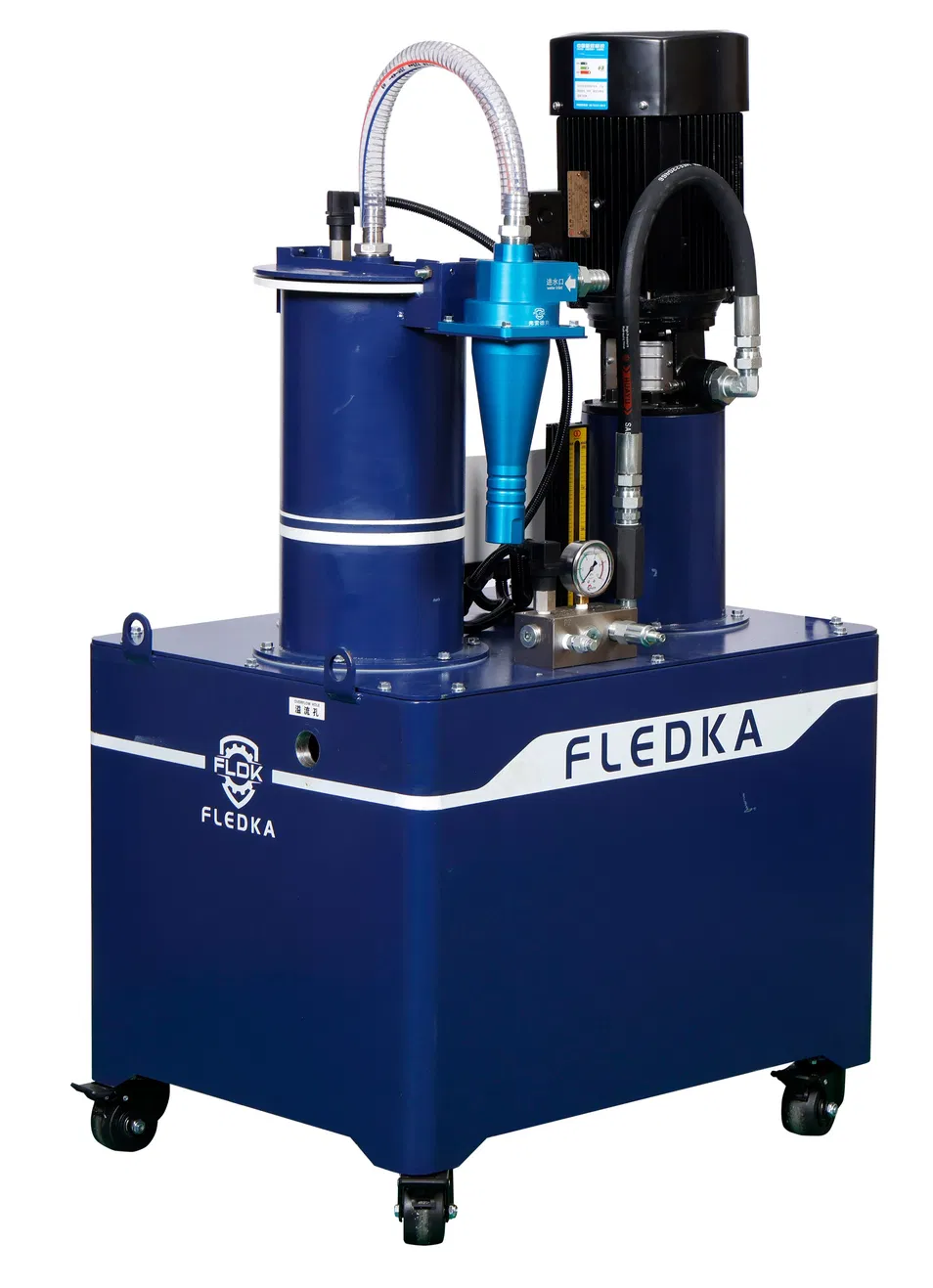

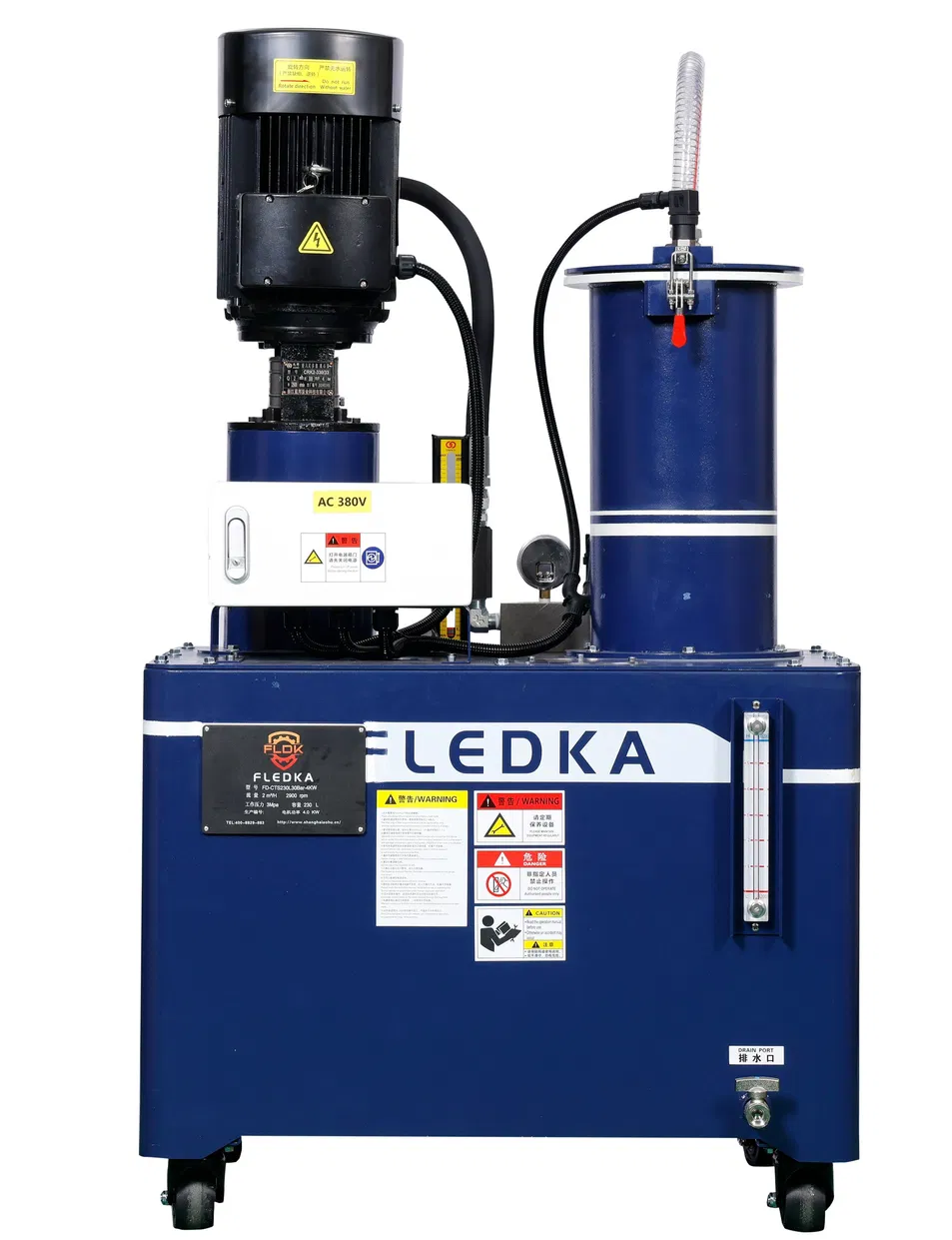

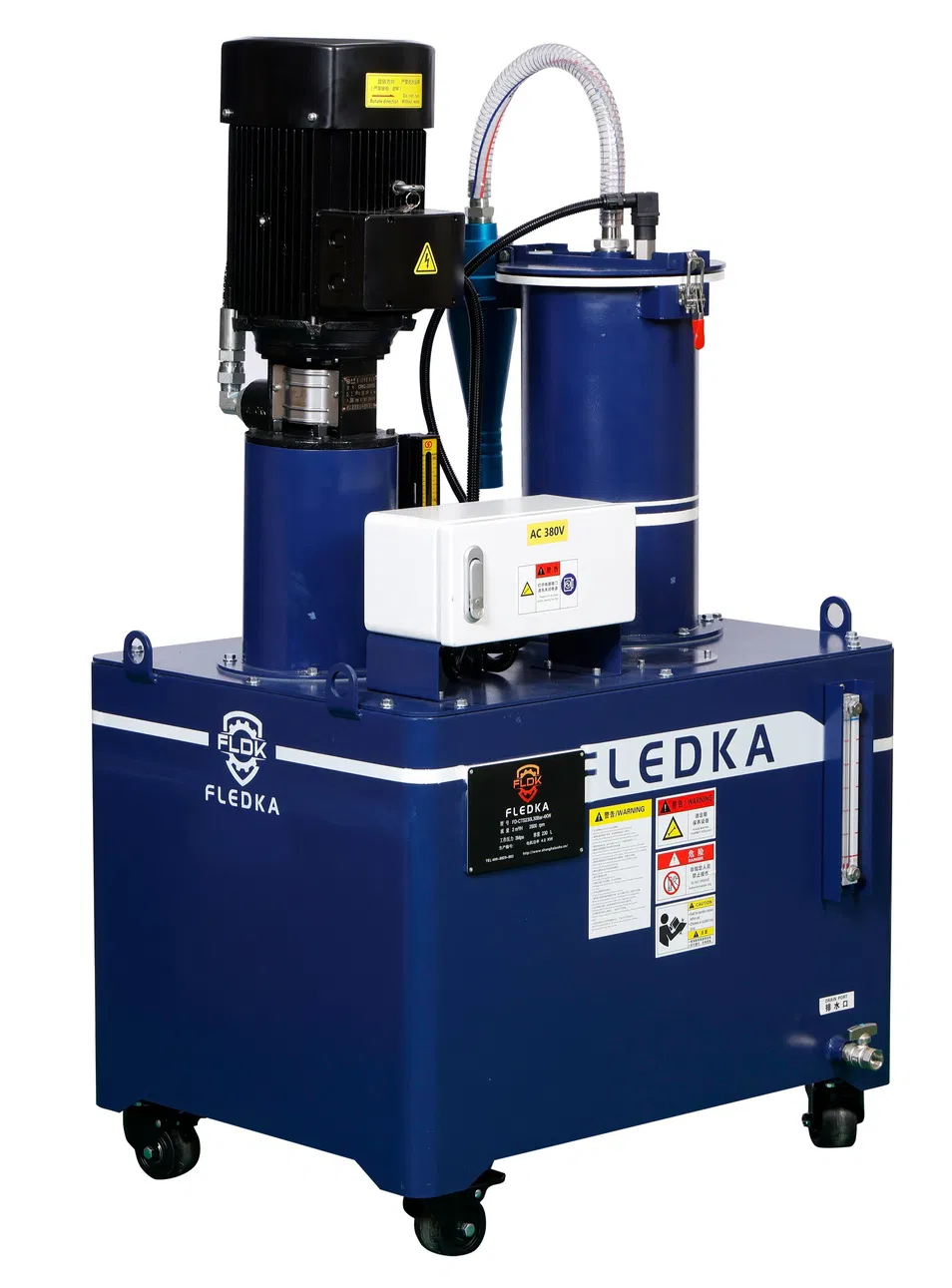

The HY series high-pressure through-spindle coolant filtration system delivers centralized high-pressure liquid that penetrates the steam barrier, rapidly reducing high temperatures, ensuring sufficient lubrication, and significantly improving surface finish and machining accuracy.
🛡️ 1. Superior Heat Management
By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation of the workpiece and tool, ensuring tighter tolerances and consistent part quality even in high-speed, heavy-duty cutting scenarios.
🌪️ 2. Efficient Chip Evacuation
The high-pressure coolant flow effectively flushes away chips from the cutting zone. It prevents chip re-welding, entanglement, and accumulation, which can lead to tool breakage and surface finish defects, especially in deep-hole drilling and milling.
⚙️ 3. Efficient Force Transmission
Equipped with advanced sealing technology, the system ensures efficient force transmission with minimal energy loss. Fast response times enable quick blade actuation, reducing cycle times in high-speed operations while maintaining consistent cutting force.
🔧 4. Flexible Customization
We offer extensive customization options to match specific machinery requirements. From adjustable stroke lengths to tailored mounting interfaces, the system integrates seamlessly into existing production lines across industries like textiles, packaging, and metalworking.
Manufacturing Excellence
Our manufacturing facility covers an area of over 4,000 square meters, equipped with extensive warehousing to respond swiftly to urgent orders. With dedicated technical R&D teams and inspection laboratories, we specialize in both mass production and product innovation. We maintain a profound understanding of electrical and mechanical systems for rotary tables across over 100 global brands.
Frequently Asked Questions
Q1. Are samples available for testing?
Due to our highly competitive pricing, we do not provide free samples. However, for large-scale purchase orders, the initial sampling cost can be deducted from the final cooperation agreement.
Q2. Do you support OEM/ODM customization and custom logos?
Yes, we provide full OEM/ODM services. Your specific logo and designs can be applied to the products, and we specialize in non-standard customization to meet unique equipment needs.
Q3. What is the current production capacity?
Our facility produces approximately 2,000 high-pressure through-spindle coolant systems, 5,000 hydraulic power units, and 5,000 tool release cylinders annually. Standard products are kept in stock for immediate needs.
Q4. What is the typical lead time for shipping?
Standard products are available in stock and can be shipped immediately. For non-standard or customized products, the lead time is typically 2 to 4 weeks, depending on the component selection.
Q5. What are the primary application fields for this system?
This system is designed for high-precision machining environments, including CNC turning, milling, deep-hole drilling, and any operation where heat management and chip evacuation are critical.
Q6. Is your factory open for visits?
Yes, our 4,000-square-meter professional manufacturing facility is open for visits. We have an efficient R&D team and dedicated labs to showcase our production standards.
