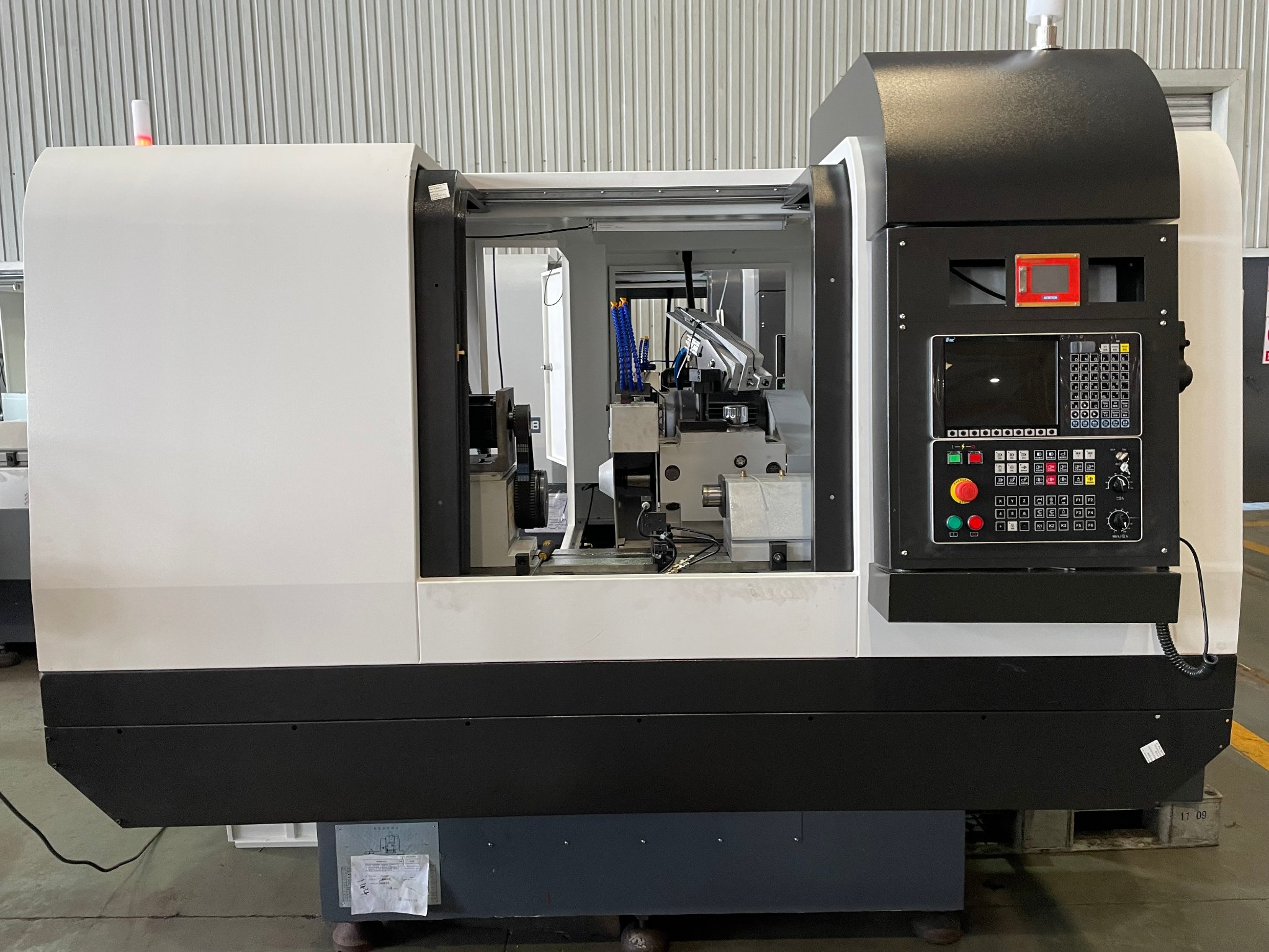

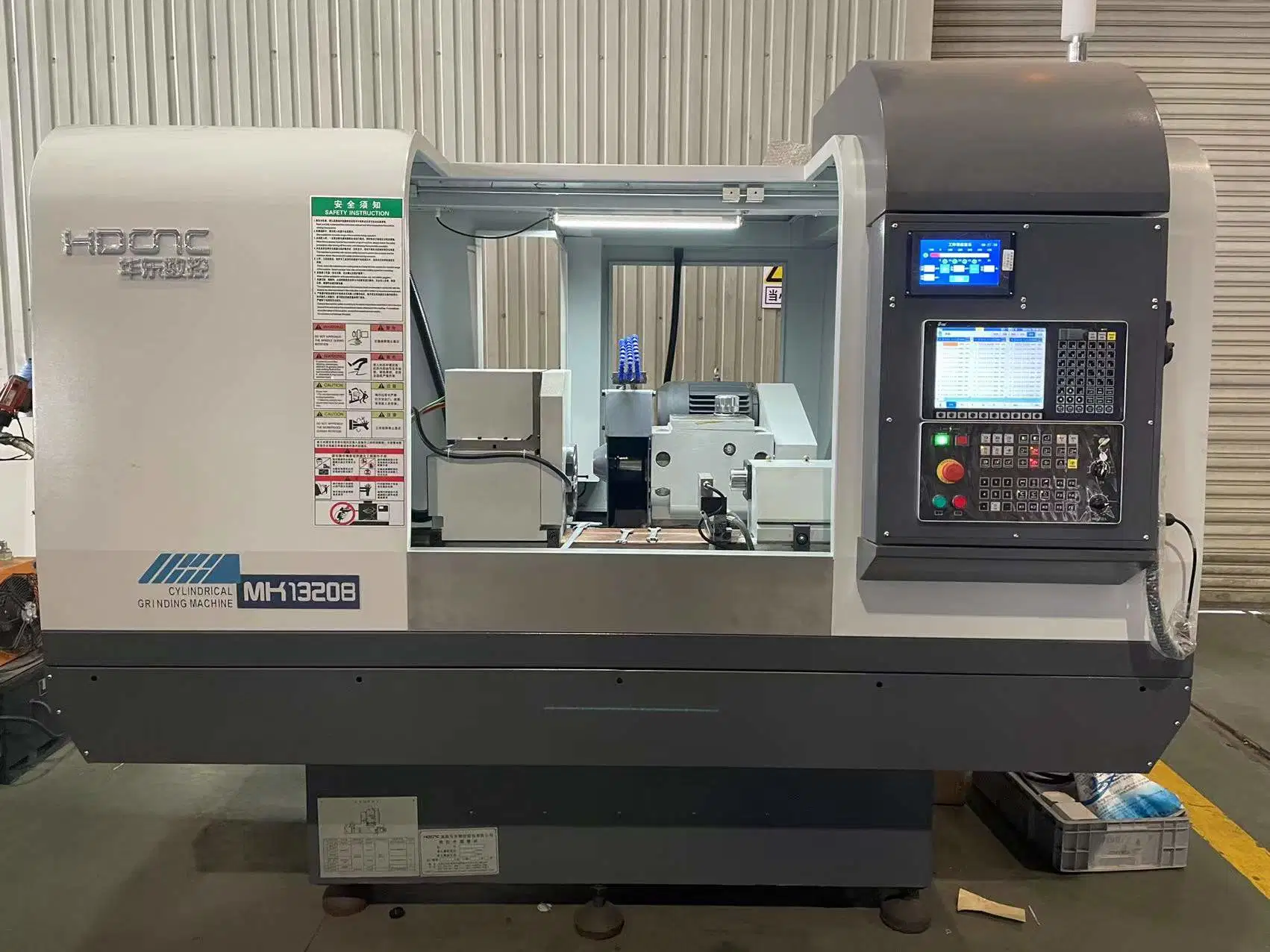

Mk1320*500 CNC Cylindrical Grinding Machine CNC Cylindrical Grinder

1 / 5

Mk1320*500 CNC Cylindrical Grinding Machine CNC Cylindrical Grinder

Customization:	Available
After-sales Service:	All Free Within Warranty
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MK1320B/MK1620B/MKE1332/MKE1350

Type

External Grinding Machine

Processing Object

Cylindrical Shafts, Conical Surfaces, Stepped Shafts

Controlling Mode

CNC (Automatic)

Precision

Normal Precision (Ra0.32/0.2)

Certification

CE, RoHS, ISO 9001

Main Electrical

CE Standard (NSK Spindle Bearing)

Dimension

4260*2000*2050mm

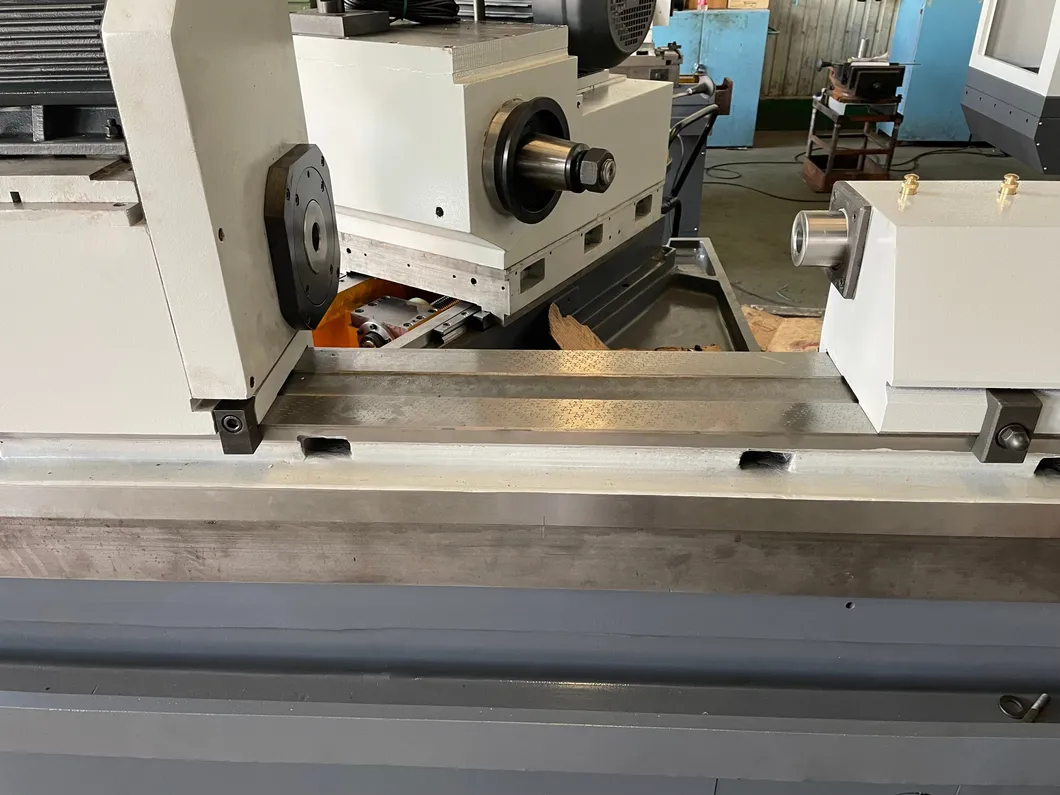

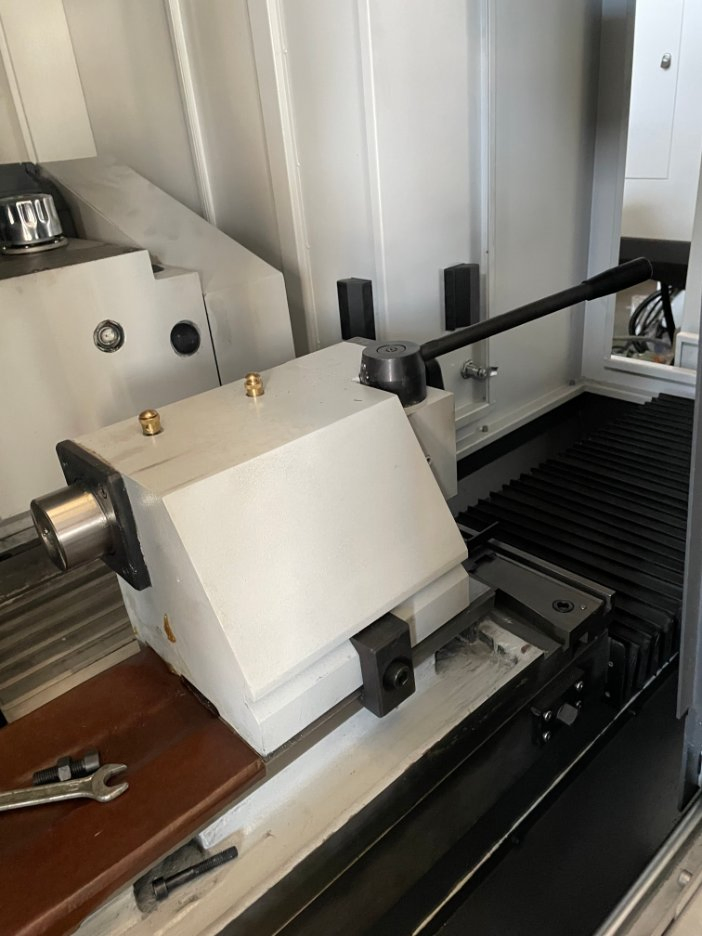

Machine Details

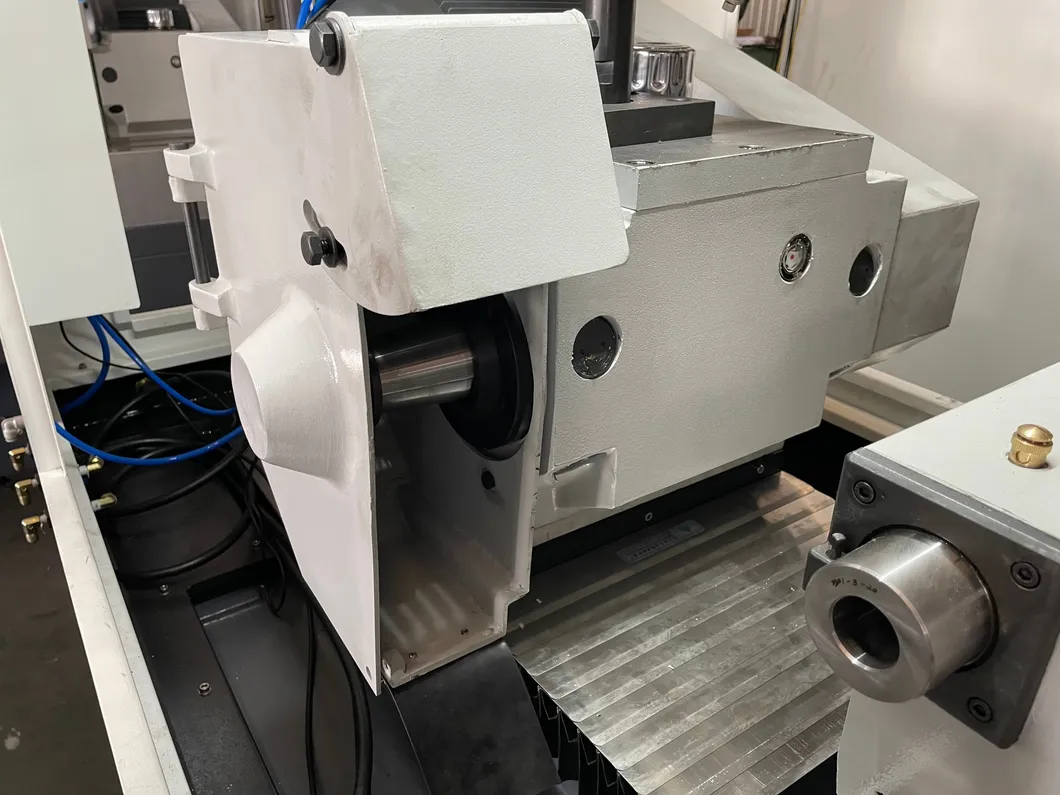

MK13 Grinding wheel feed in type | MK16 Grinding wheel oblique feed type

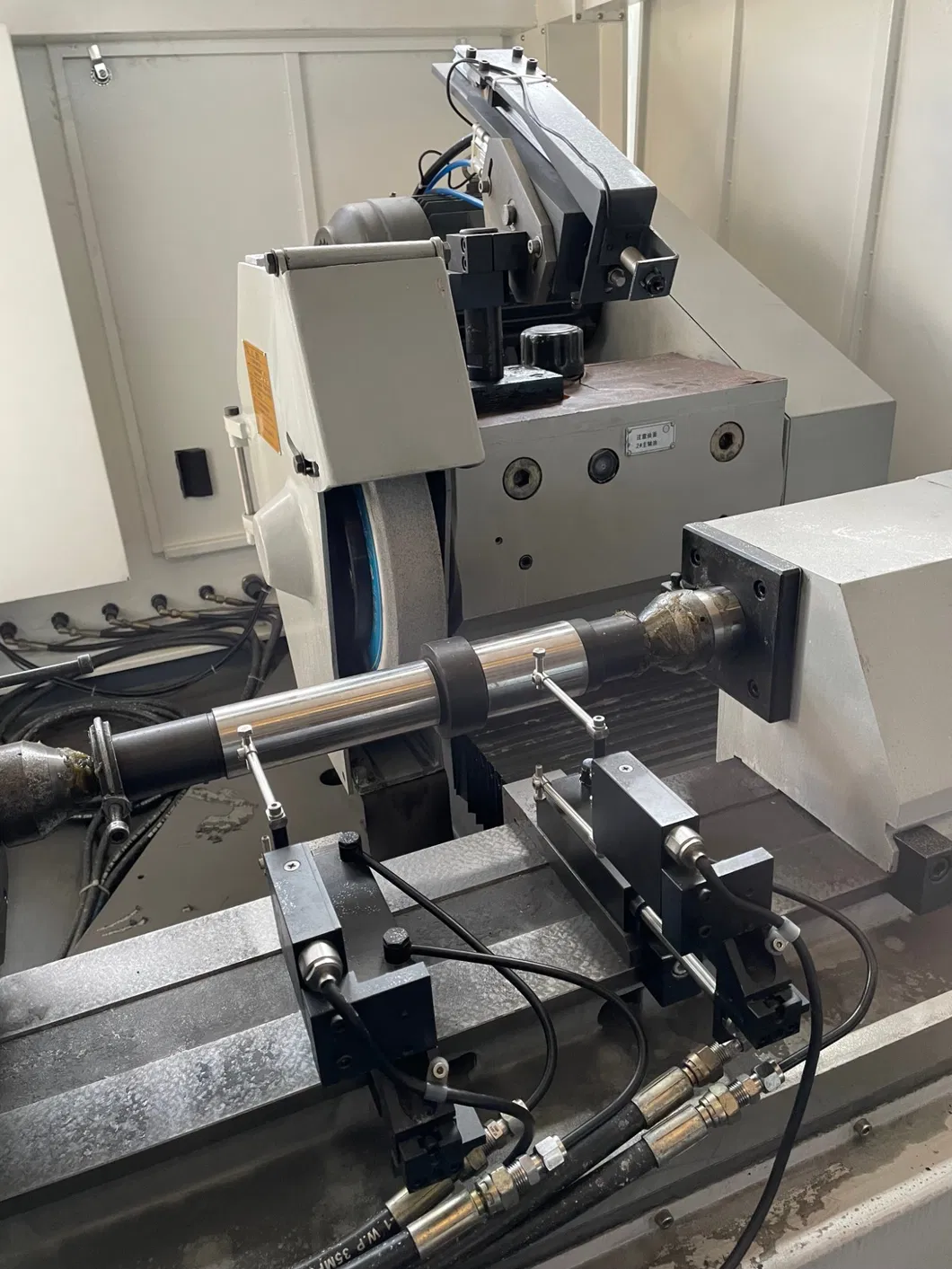

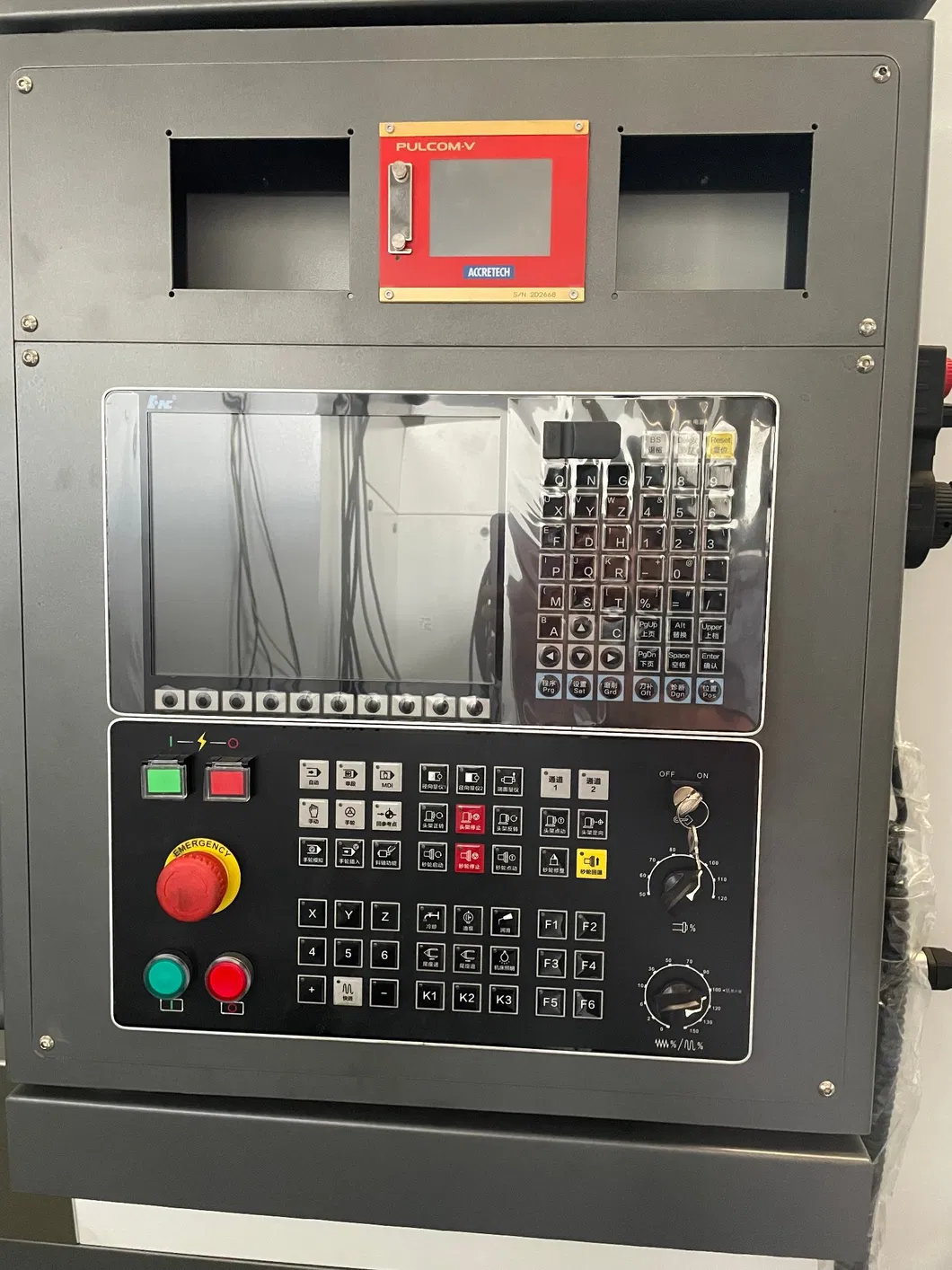

Equipped with OD measuring instrument or end face instrument. Standard with HNC808DG, Siemens or Fanuc options available.

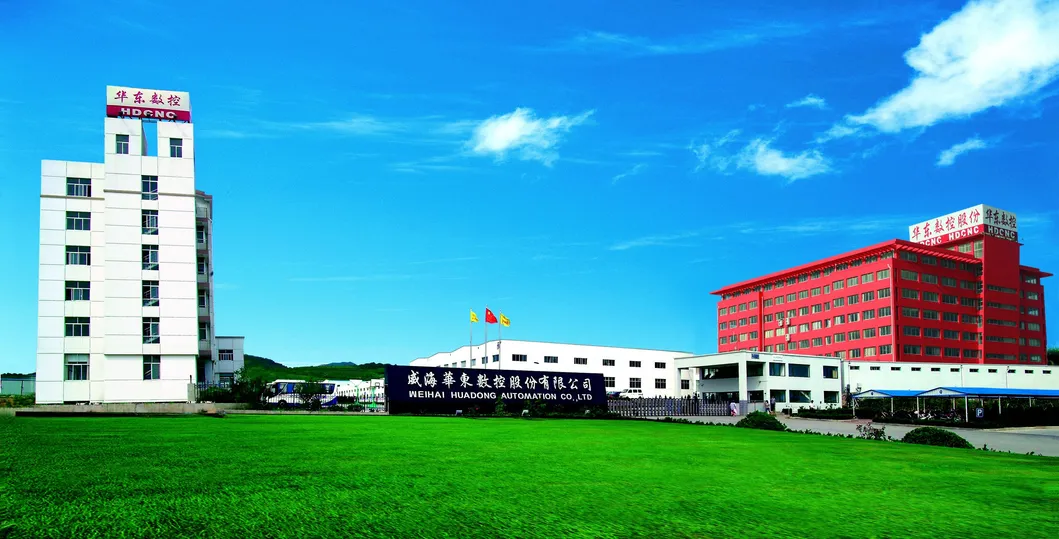

Our Advantages

Factory direct sales: Guaranteed product quality and delivery time.
Professional manufacturer with over 30 years of international trade experience.
Highly recognized quality by global partners such as KNUTH, OPTIMUM, and others.
Reliable after-sales service and technical support.

Technical Parameters

Specifications	Unit	MK1320B	MKE1332	MK1620B	MKE1350
Max. length grinding (O.D)	mm	500/750	1000/1500	500/750	1500-4000
Center height	mm	135	180	135	270
Dia. grinding (O.D)	mm	8~200	8~320	8~200	25~500
Max. weight of workpiece	kg	50	150	50	1000

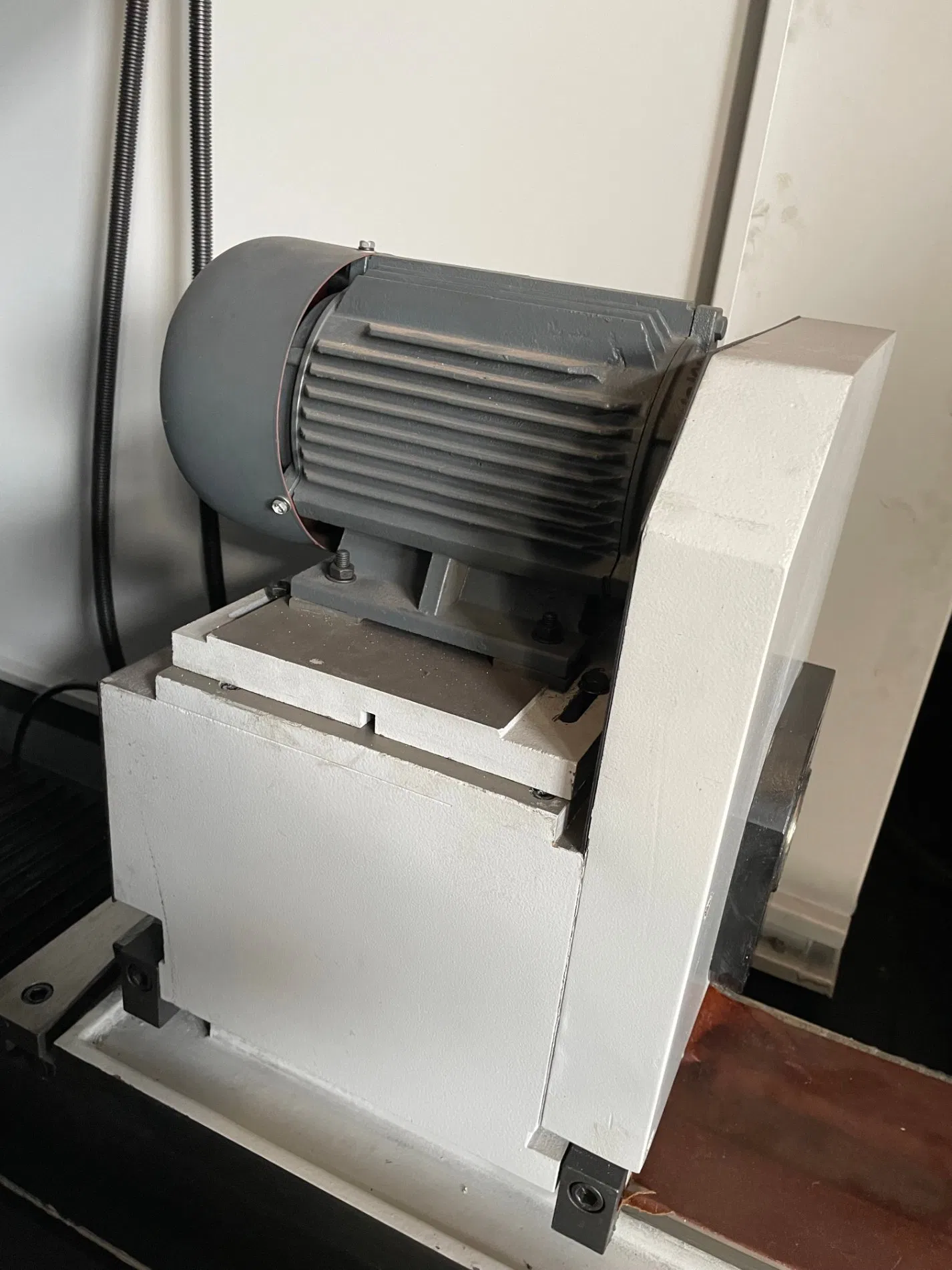

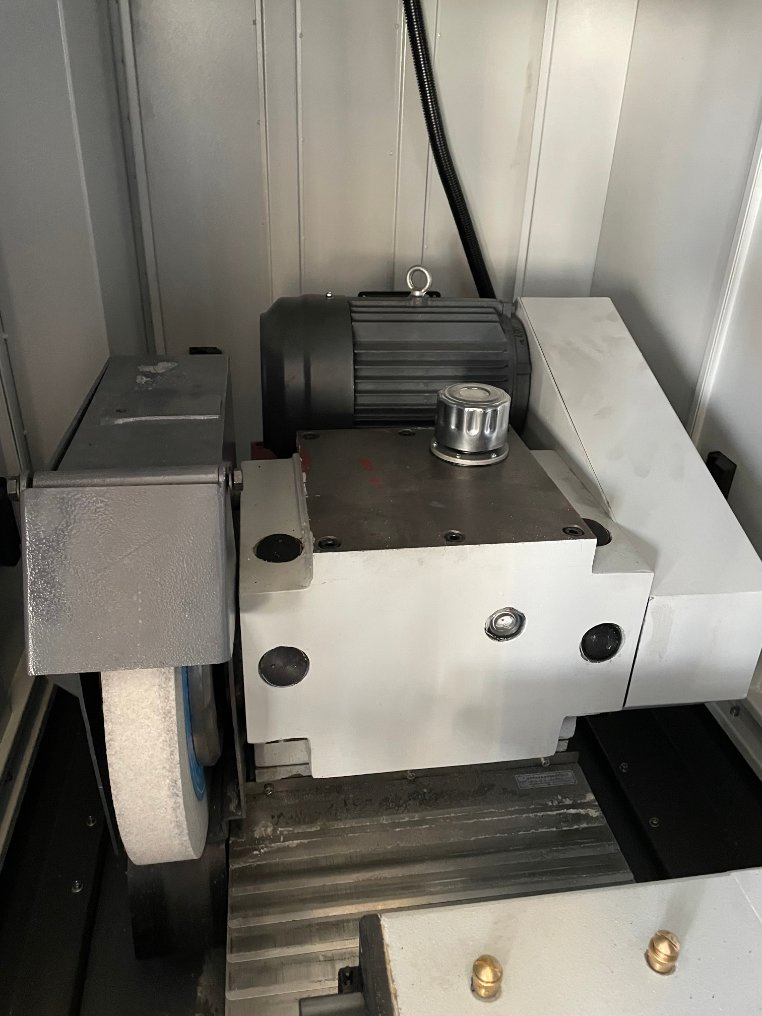

Wheelhead
Max. dimension of wheel	mm	40050203	60075305	50075305	75075305
Wheel peripheral velocity	m/s	35	35	35	35
Accuracy
Roundness	μm	3	3	3-5	3-5
Cylindricity	μm	5	8	8-15	8-15
Roughness	μm	Ra0.2	Ra0.2	Ra0.32	Ra0.32

Accessories

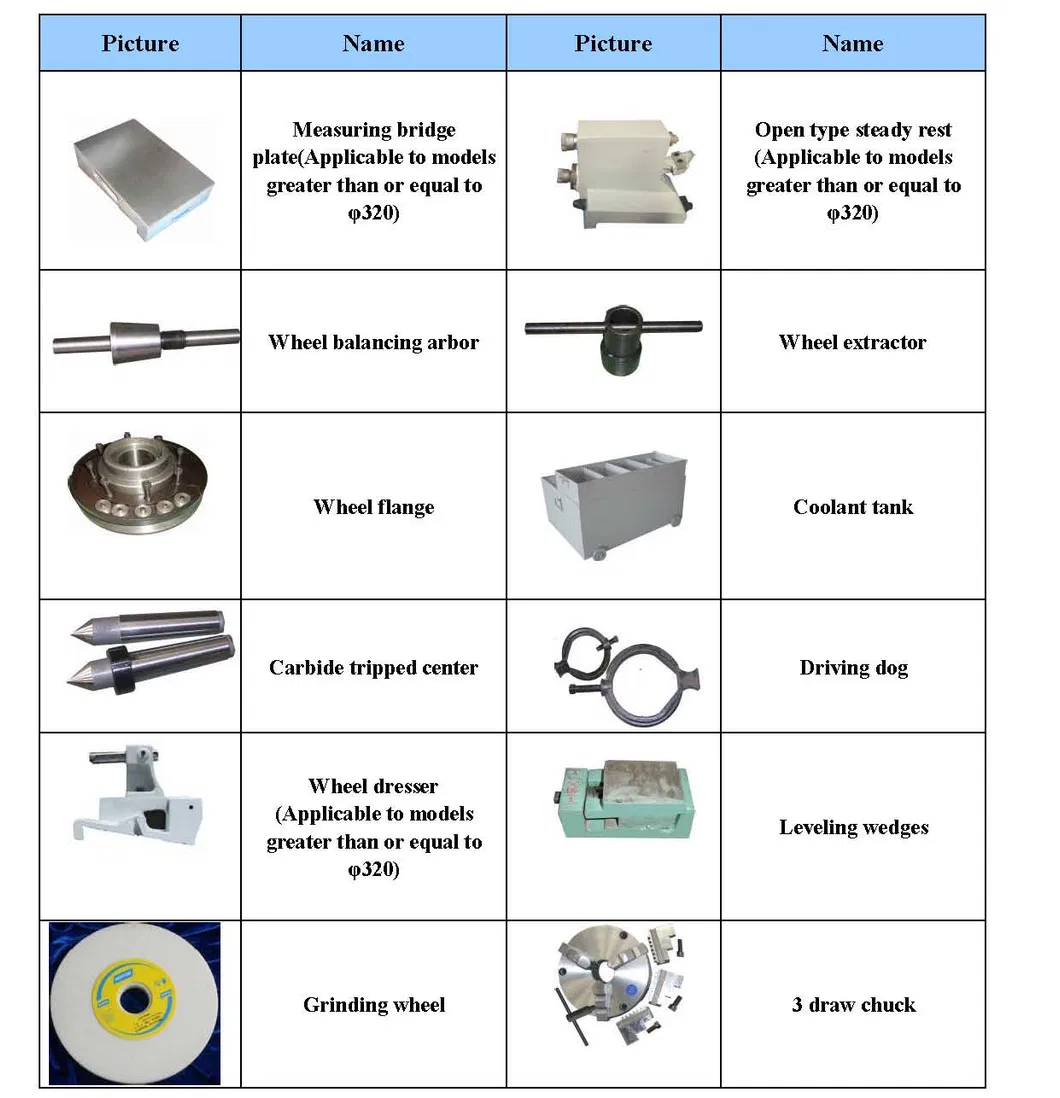

Standard Accessories:

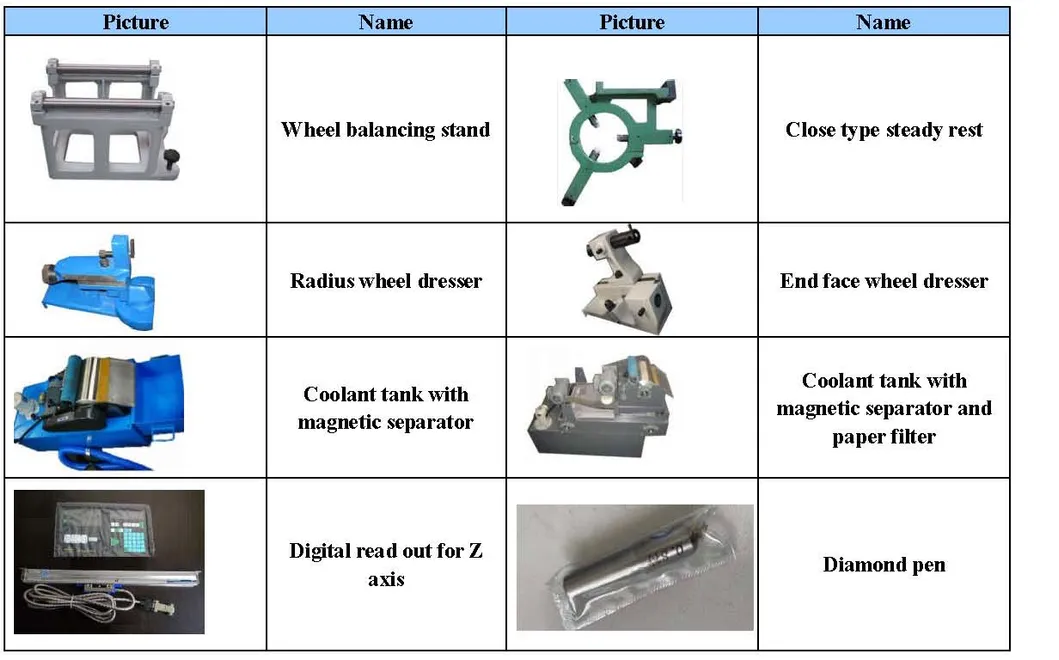

Optional Accessories:

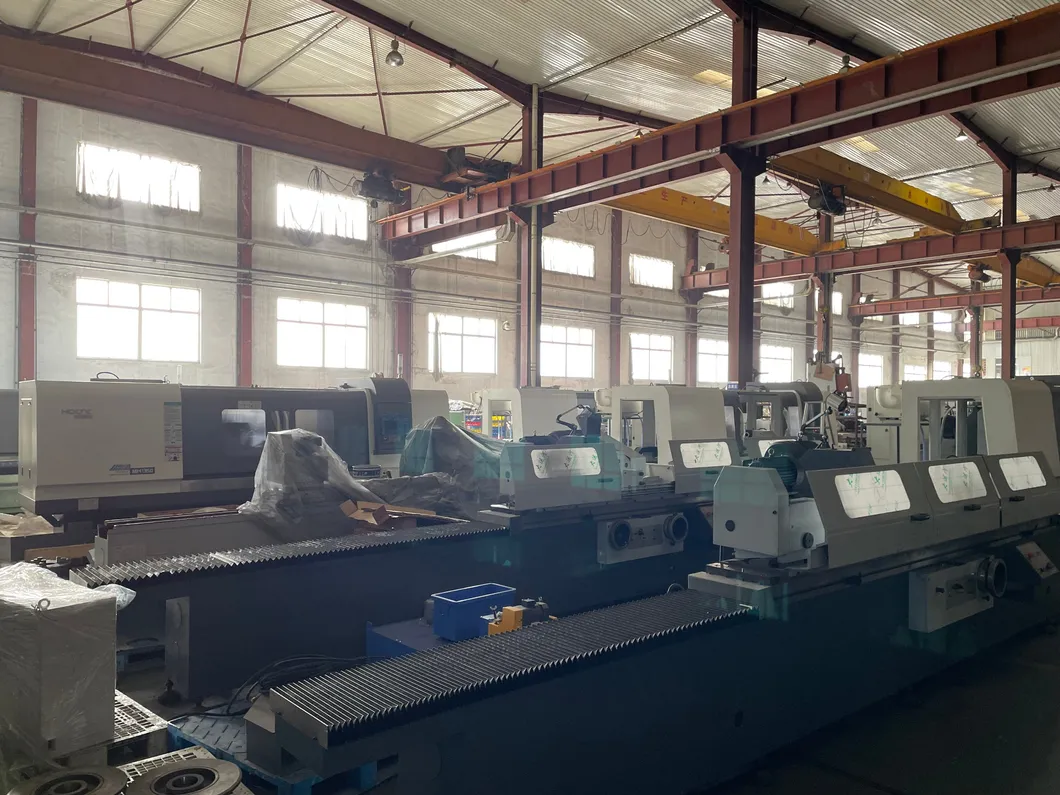

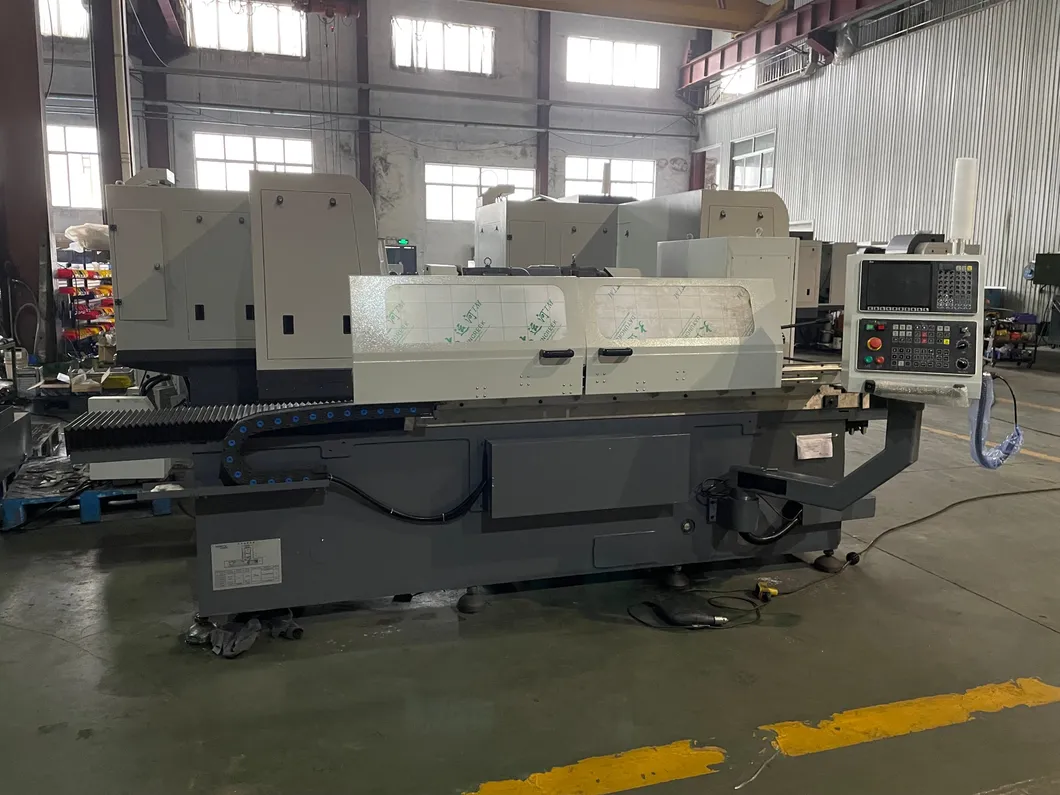

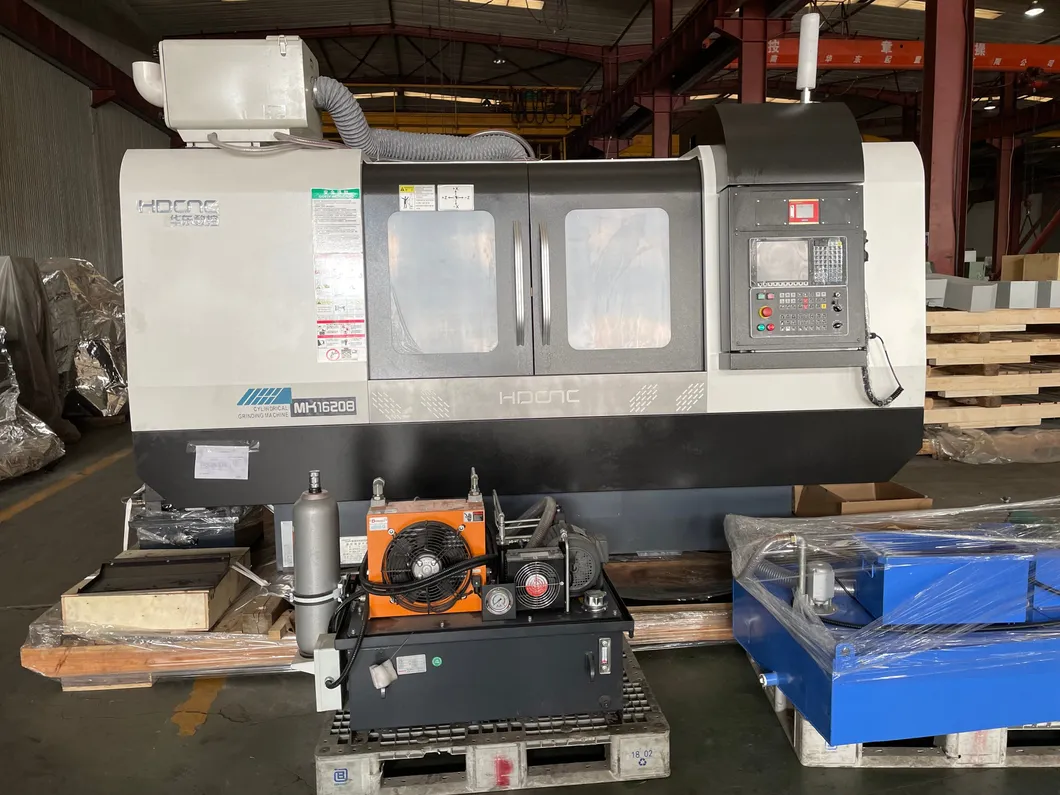

Workshop & Exhibitions

After-Sale Services

One-year Warranty: Free treatment or replacement of parts for faults caused by design or manufacturing.
Lifelong Maintenance: Permanent technical support and paid maintenance services provided after the warranty period.
Spare Parts Support: Provision of spare parts at preferential prices forever.

Frequently Asked Questions

Q1: What materials can the CNC Cylindrical Grinding Machine process? A1: It is designed for processing cylindrical shafts, conical surfaces, and stepped shafts with high precision.

Q2: Which CNC control systems are supported? A2: The standard system is HNC808DG, but customers can also choose Siemens 808D or Fanuc 0I systems based on their preference.

Q3: What is the grinding accuracy of these machines? A3: The machines achieve a roundness of 3-5μm and a surface roughness of Ra0.2 to Ra0.32 depending on the model.

Q4: What is the difference between MK13 and MK16 models? A4: MK13 uses a standard grinding wheel feed-in type, while the MK16 series features an oblique feed type for specific machining requirements.

Q5: How is the machine packaged for international shipping? A5: All machines are securely packed using wooden pallets or reinforced wooden cases to ensure safety during transport.

Q6: Do you provide technical support for installation? A6: Yes, we provide lifelong technical support and detailed documentation to assist with the operation and maintenance of the equipment.
