Basic Information
1. Machine Details

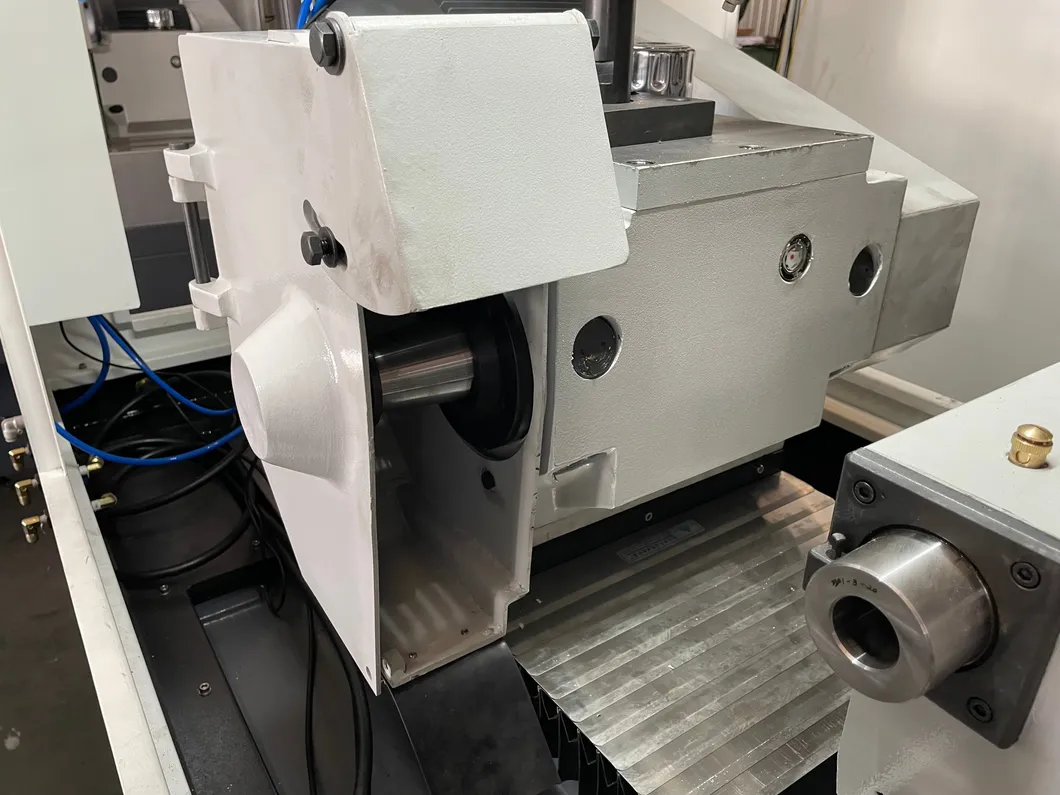

MGK13 Grinding wheel feed in type

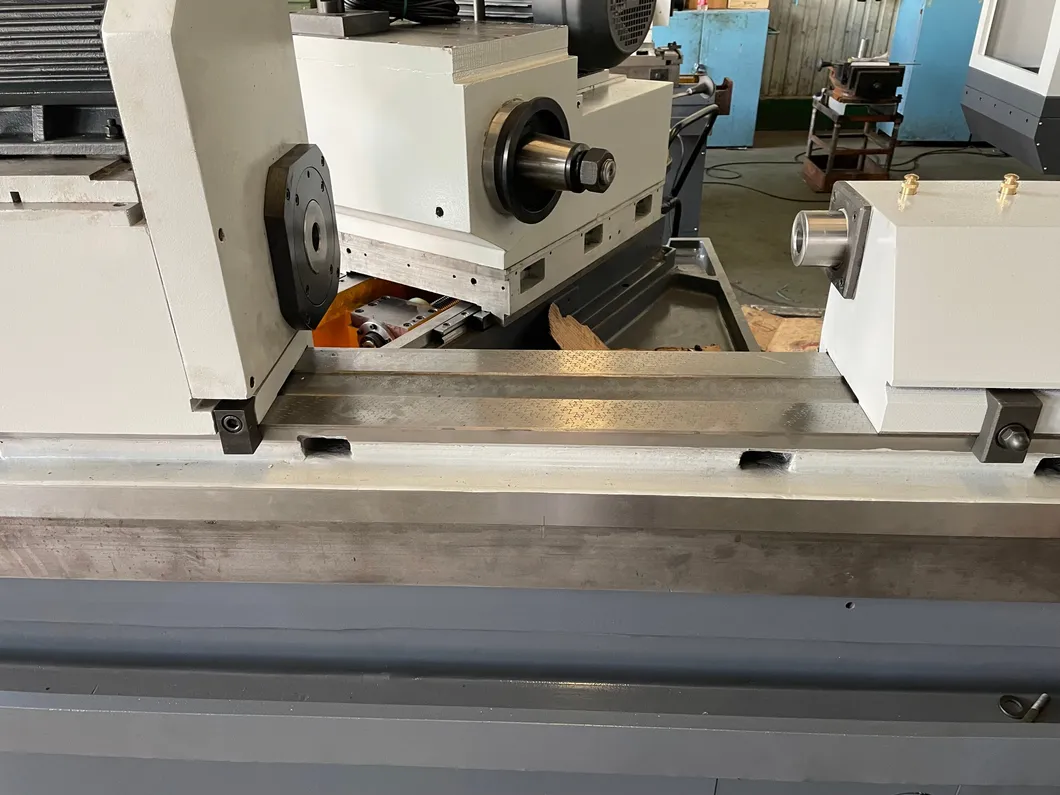

MGK16 Grinding wheel oblique feed type

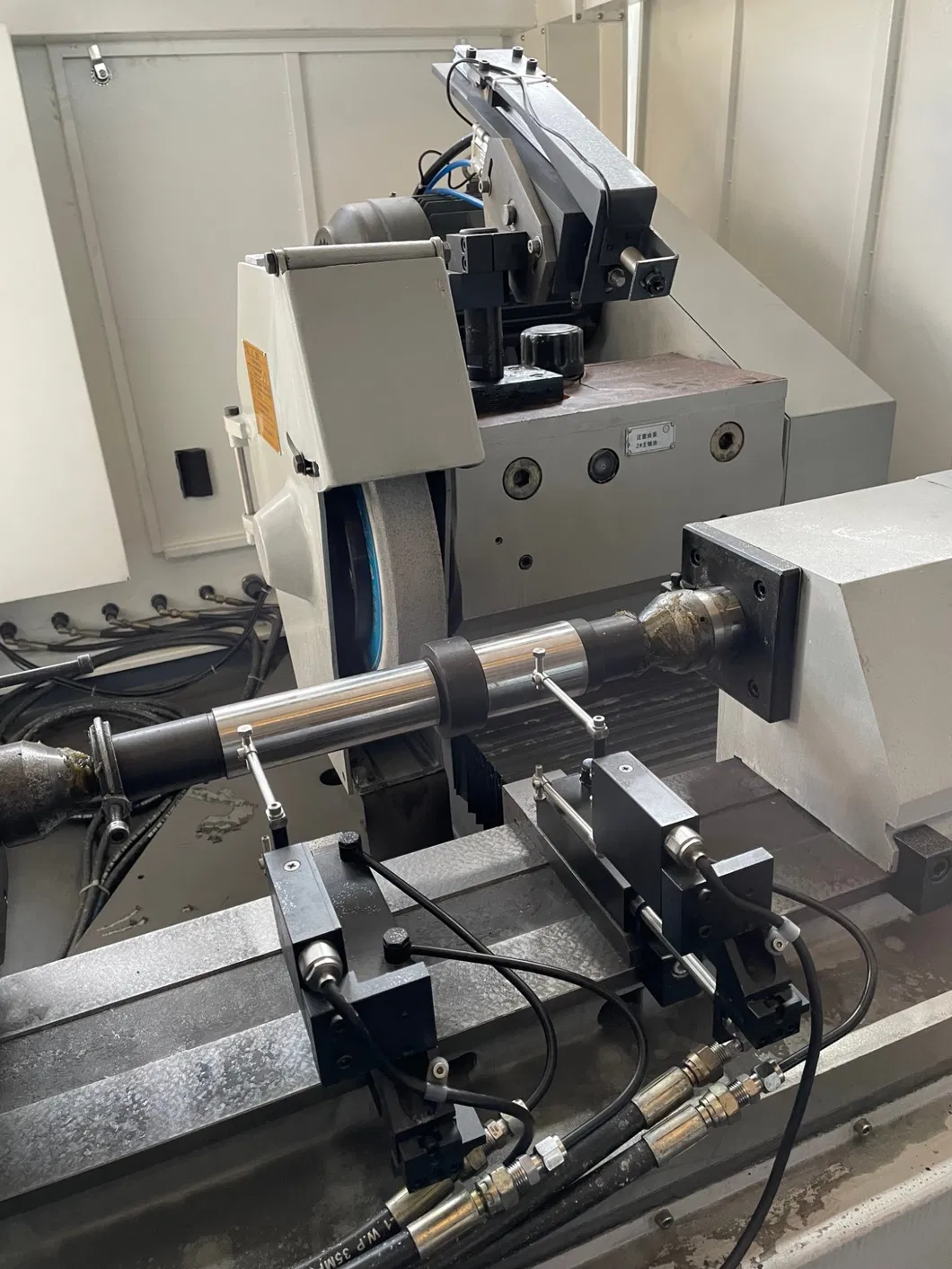

Equipped with OD measuring instrument

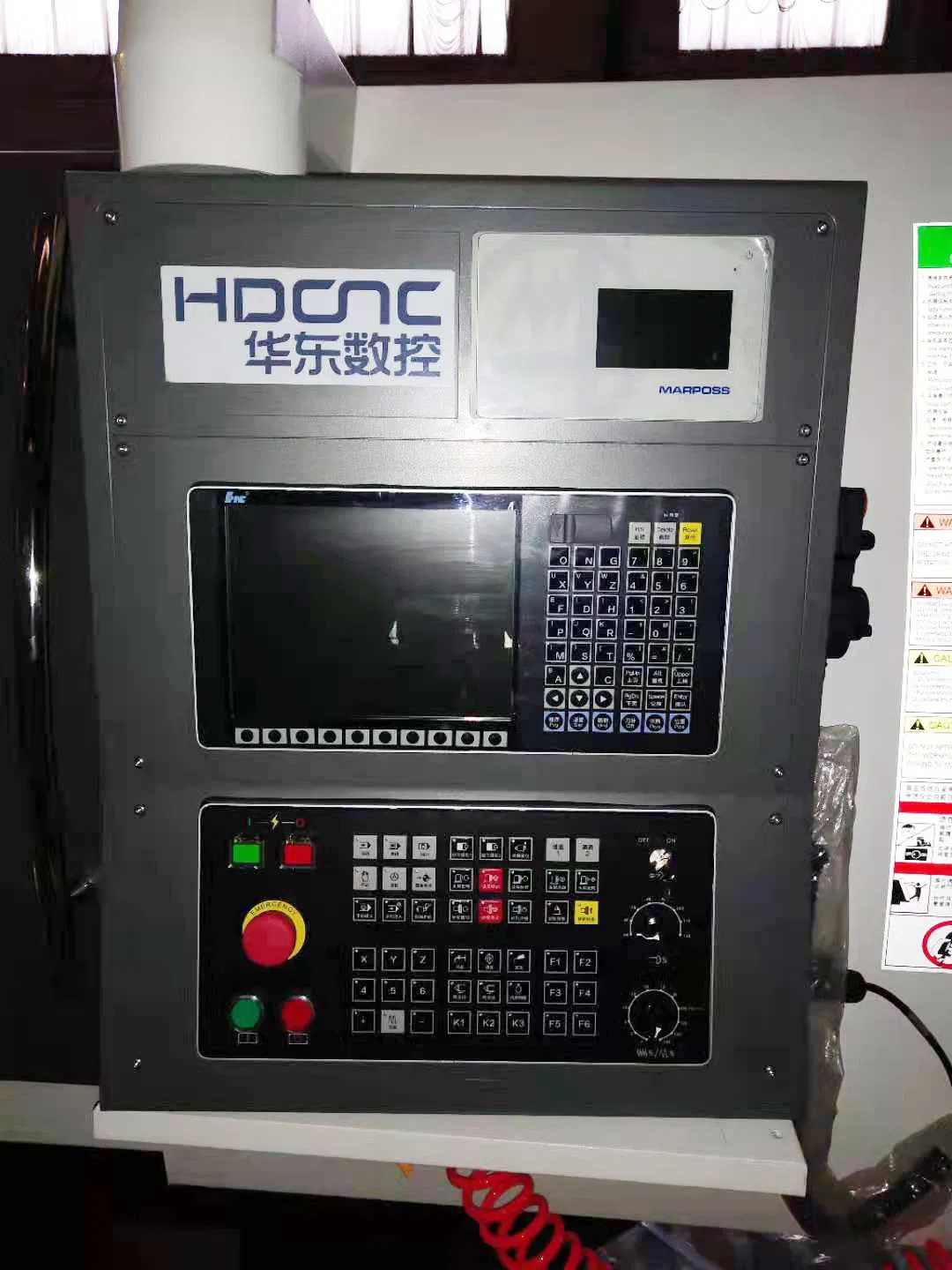

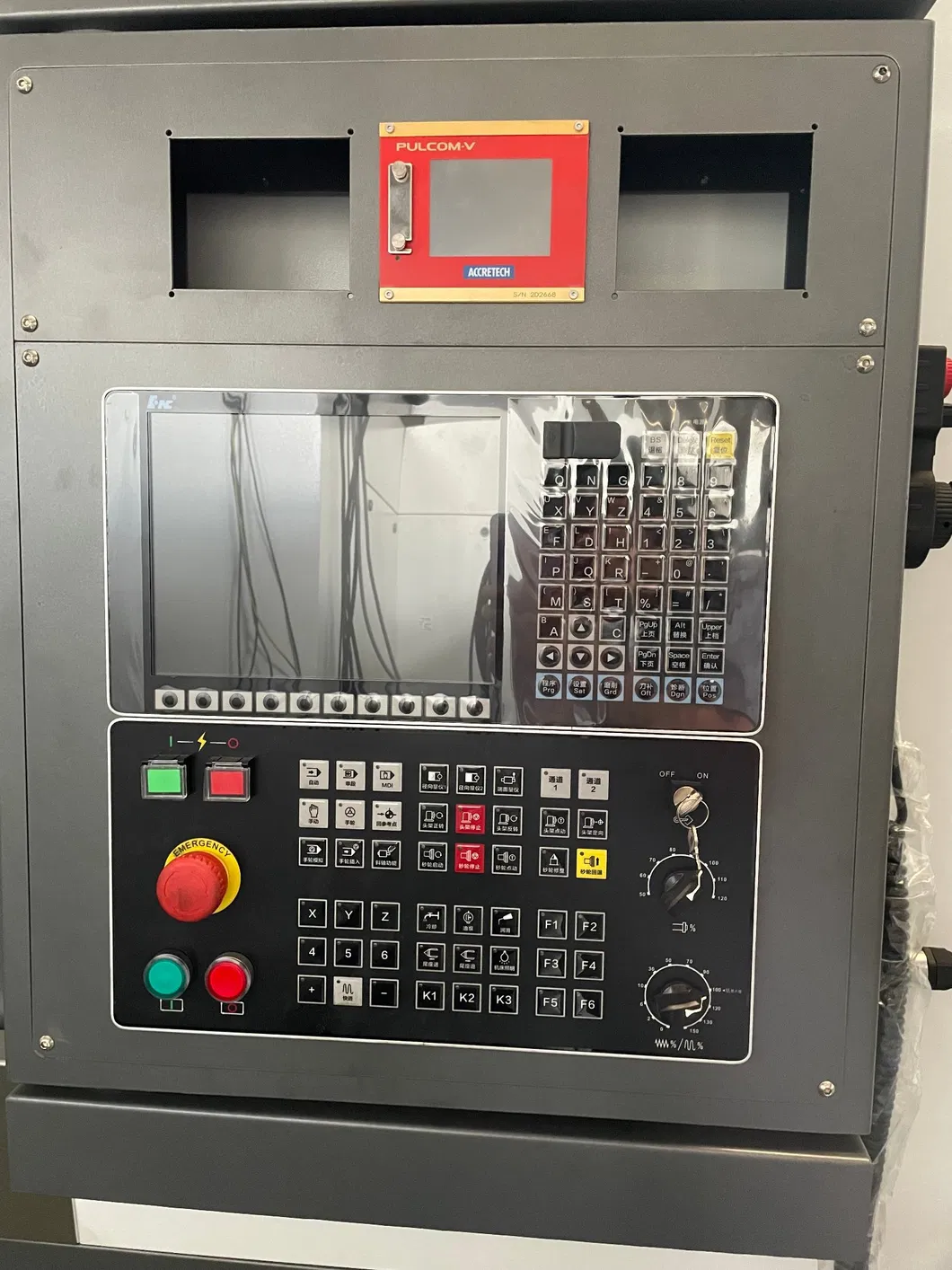

Standard with HNC808DG System (Siemens/Fanuc Optional)
2. Key Advantages
3. Technical Parameters
| Specifications | Unit | MGK1320 | MGK1620 | MGK1332 | MGK1632 |
|---|---|---|---|---|---|
| Max. length grinding (O.D) | mm | 500/750 | 500/750 | 1000/1500 | 1000/1500 |
| Center height | mm | 135 | 135 | 180 | 180 |
| Dia. grinding (O.D) | mm | 8~200 | 8~200 | 8~320 | 8~320 |
| Max. weight of workpiece | kg | 50 | 50 | 100 | 100 |
| WORKHEAD | |||||
| Center taper | MT | 4 | 4 | 5 | 5 |
| Spindle speed (stepless) | r/min | 60-600 | 60-600 | 35-350 | 35-350 |
| WHEELHEAD | |||||
| Max. dimension of wheel | mm | 400*50*203 | 500*75*203 | 500*50*203 | 500*75*203 |
| Wheel peripheral velocity | m/s | 35 | 45 | 45 | 45 |
| Min. set Unit | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| MACHINING ACCURACY | |||||
| Roundness | μm | 0.5 | 0.5 | 0.5 | 0.5 |
| Roughness | μm | Ra0.04 | Ra0.04 | Ra0.04 | Ra0.04 |
| CNC System | - | Siemens 828D / Fanuc 0I / HNC | |||
4. Standard & Optional Accessories

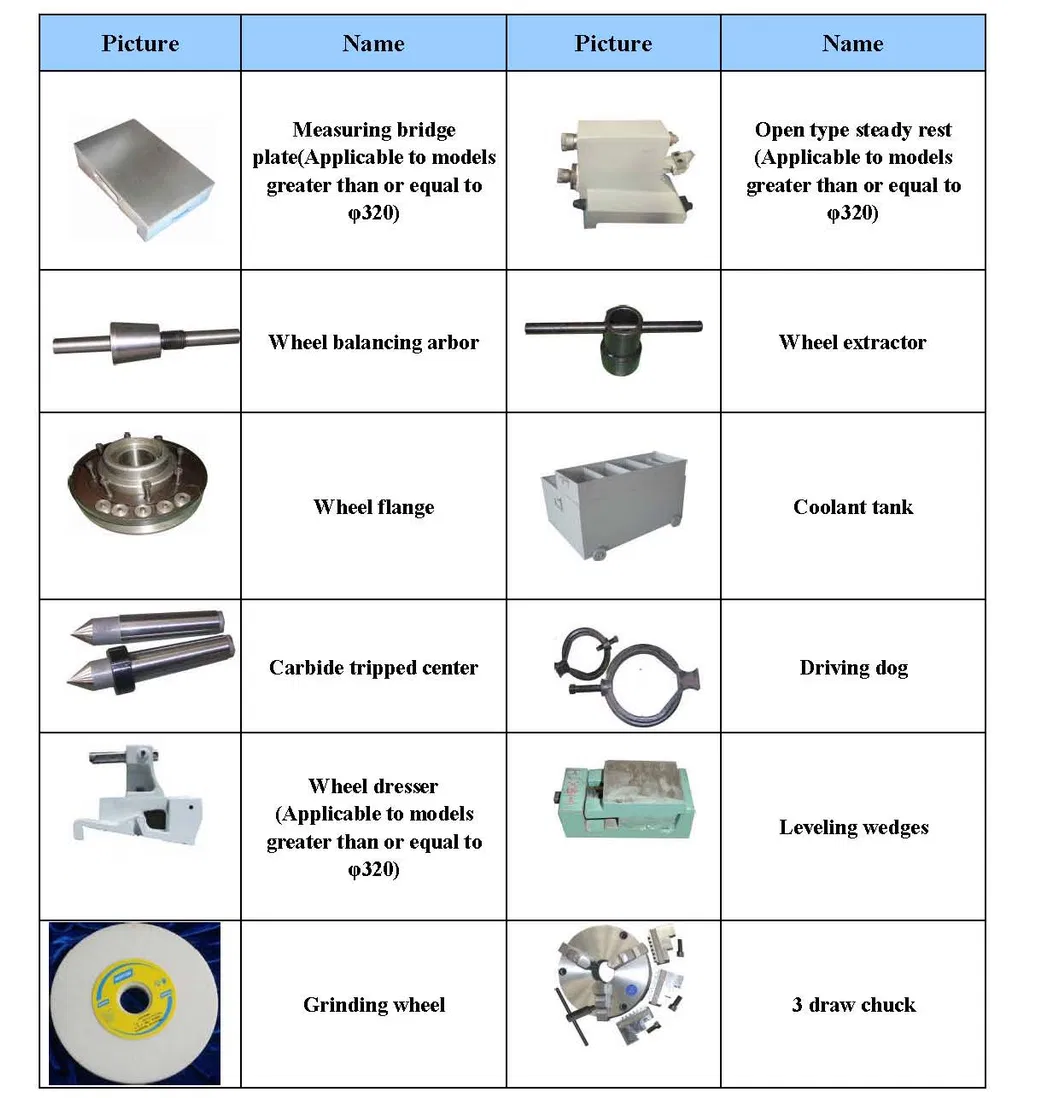

Standard Accessories Package

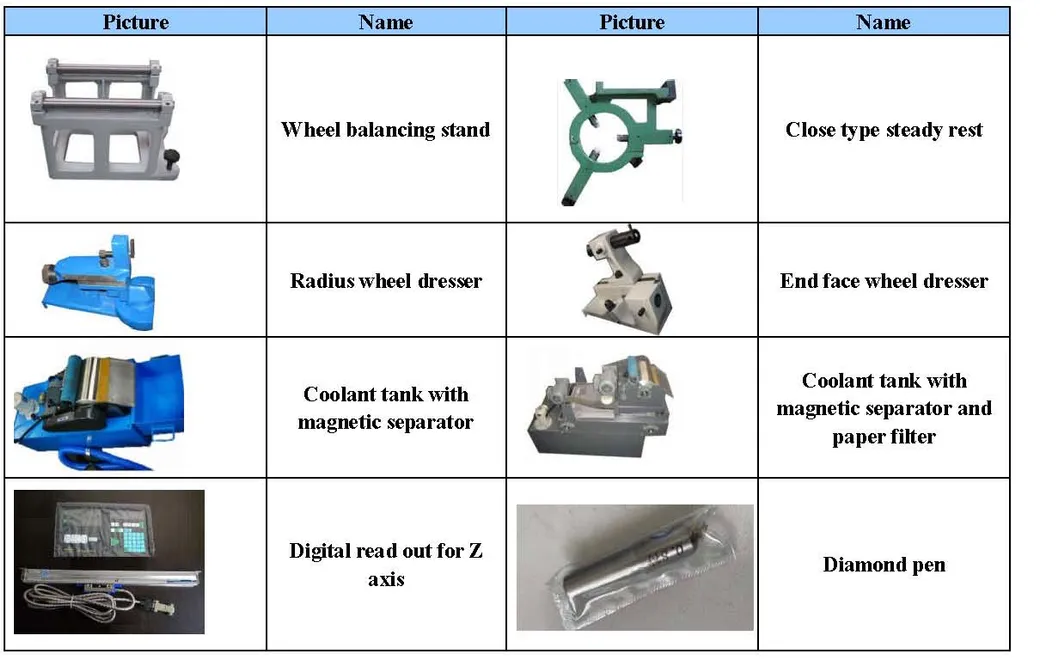

Optional Customization Accessories

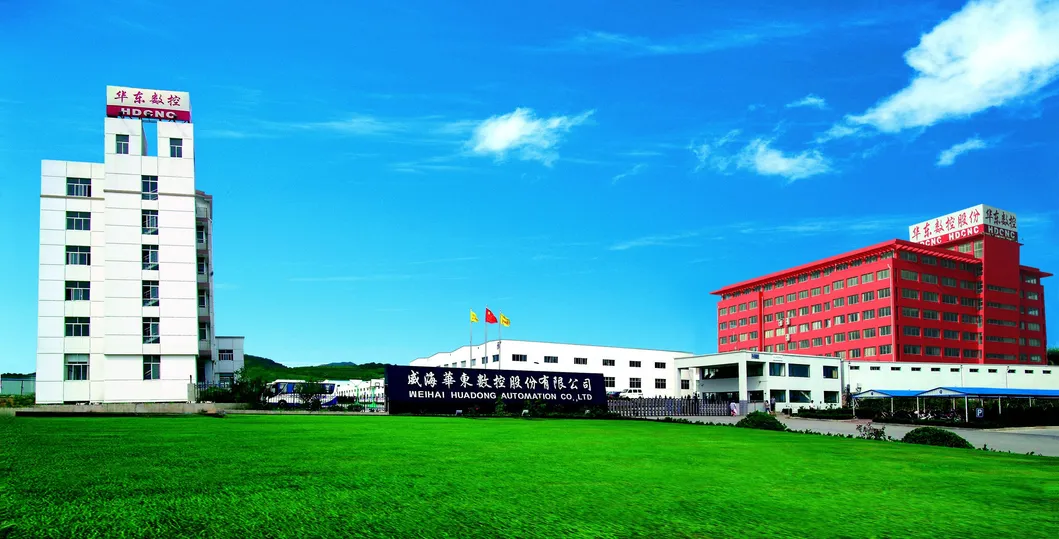

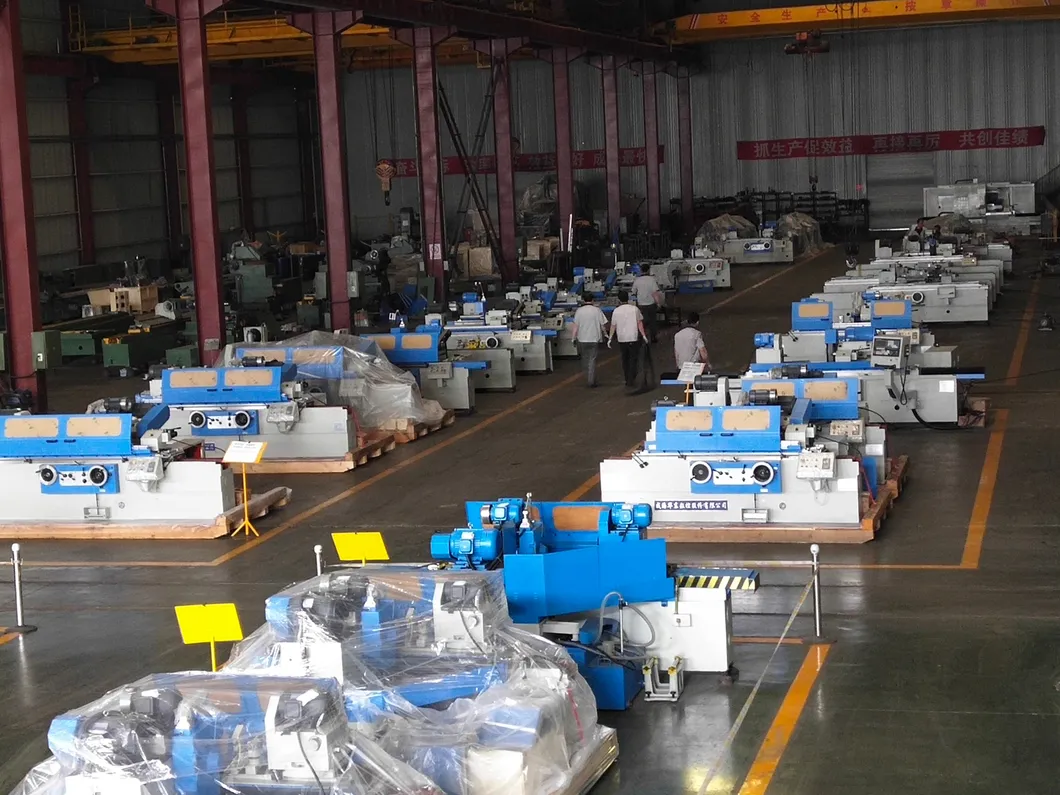

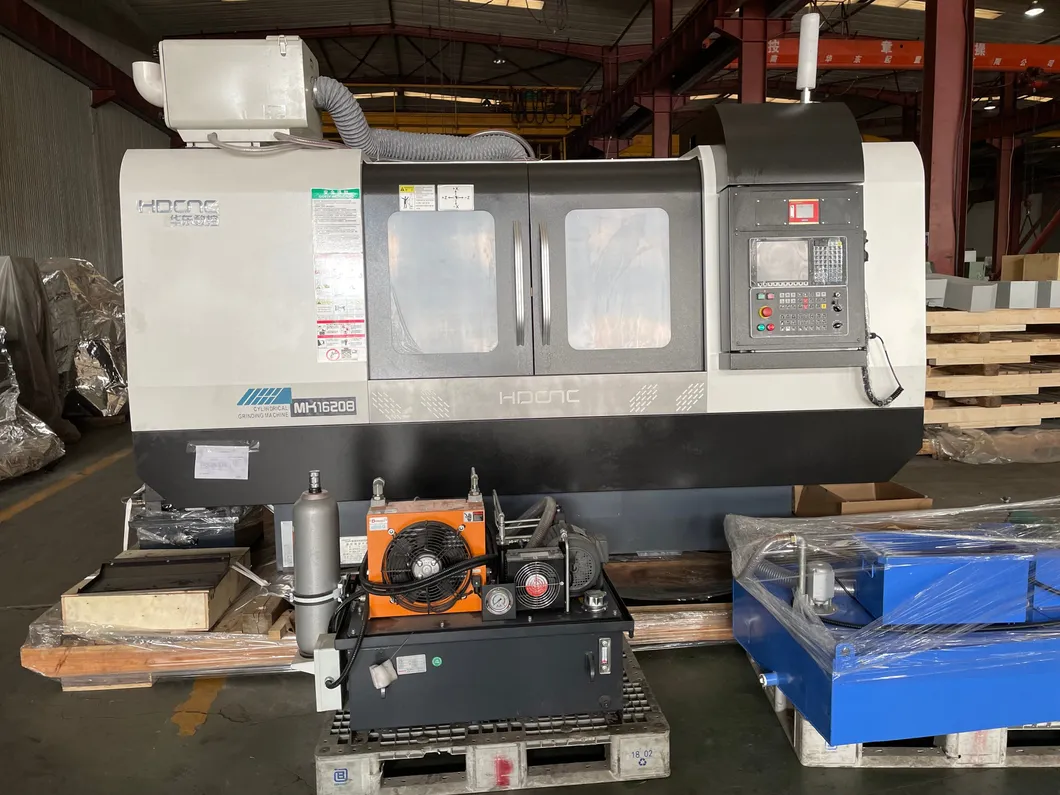

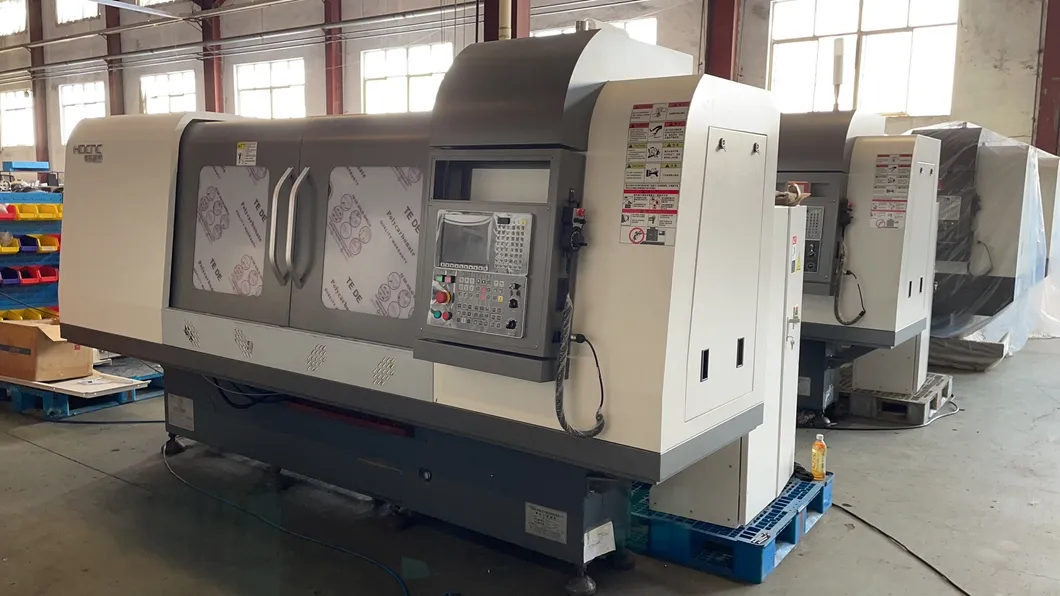

5. Professional Workshop & Honors
6. After-Sale Services
I. One-Year Warranty: Free treatment or replacement of parts for any faults caused by design or manufacturing during the first year.
II. Lifelong Support: Lifelong paid maintenance and technical service provided after the warranty period.
III. Spare Parts: Permanent availability of spare parts at preferential prices.
